slegs proto type on sinap linac

SLEGS Proto type on SINAP LINAC

Jin-Gen Chen& SLEGS Collaboration

outline

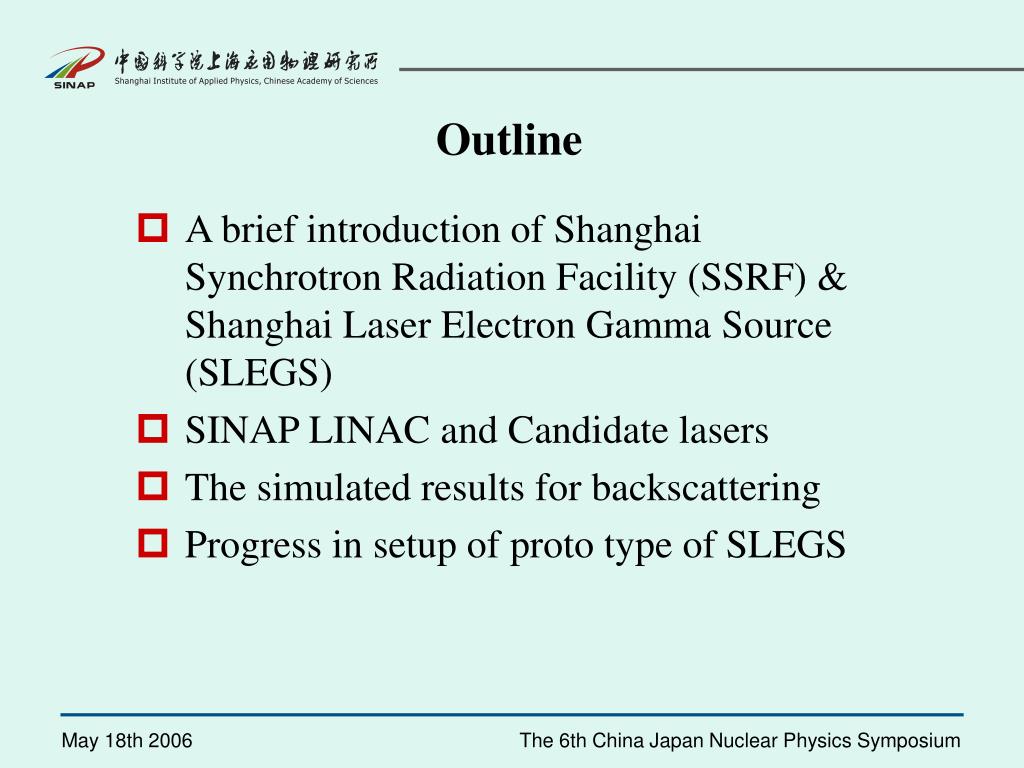

Outline
  • A brief introduction of Shanghai Synchrotron Radiation Facility (SSRF) & Shanghai Laser Electron Gamma Source (SLEGS)
  • SINAP LINAC and Candidate lasers
  • The simulated results for backscattering
  • Progress in setup of proto type of SLEGS

The 6th China Japan Nuclear Physics Symposium

slide3

SSRF Layout

  • 100MeV Linac injector
  • 3.5GeV Booster
  • 3.5GeV Storage Ring

CharacteristicsofSSRF

  • Wide range of wave length
  • High power and high brightness
  • Small pulse length
  • High linear or circular polarization
  • High efficiency
  • High flexibility

The 6th China Japan Nuclear Physics Symposium

slegs @ ssrf
SLEGS @ SSRF

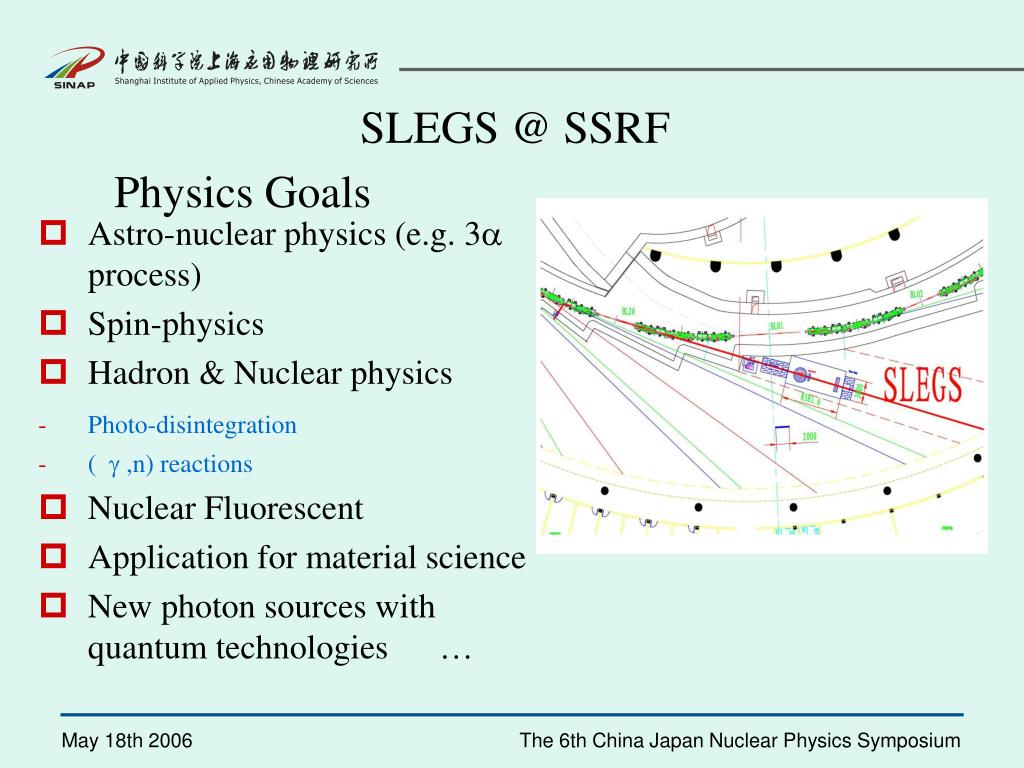

Physics Goals

  • Astro-nuclear physics (e.g. 3a process)
  • Spin-physics
  • Hadron & Nuclear physics
  • Photo-disintegration
  • (g,n) reactions
  • Nuclear Fluorescent
  • Application for material science
  • New photon sources with quantum technologies …

The 6th China Japan Nuclear Physics Symposium

slegs @ssrf 1 25mev will be made by sinap in 2008 at ssrf china

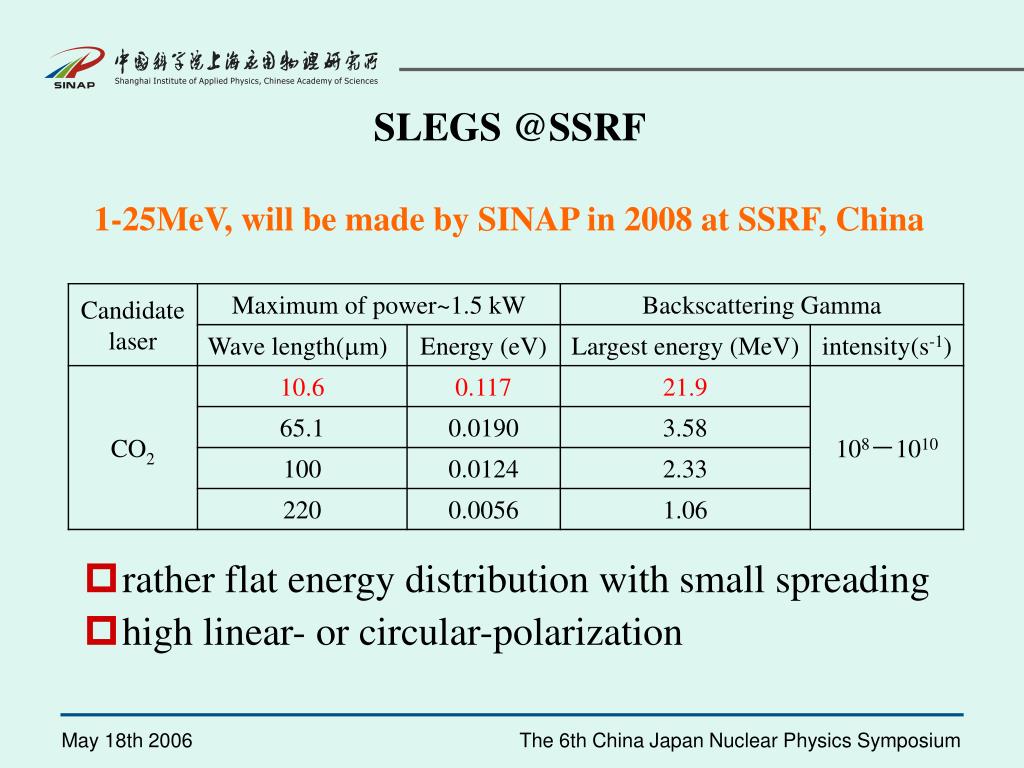

SLEGS @SSRF 1-25MeV, will be made by SINAP in 2008 at SSRF, China
  • rather flat energy distribution with small spreading
  • high linear- or circular-polarization

The 6th China Japan Nuclear Physics Symposium

100 mev linac
100 MeV LINAC

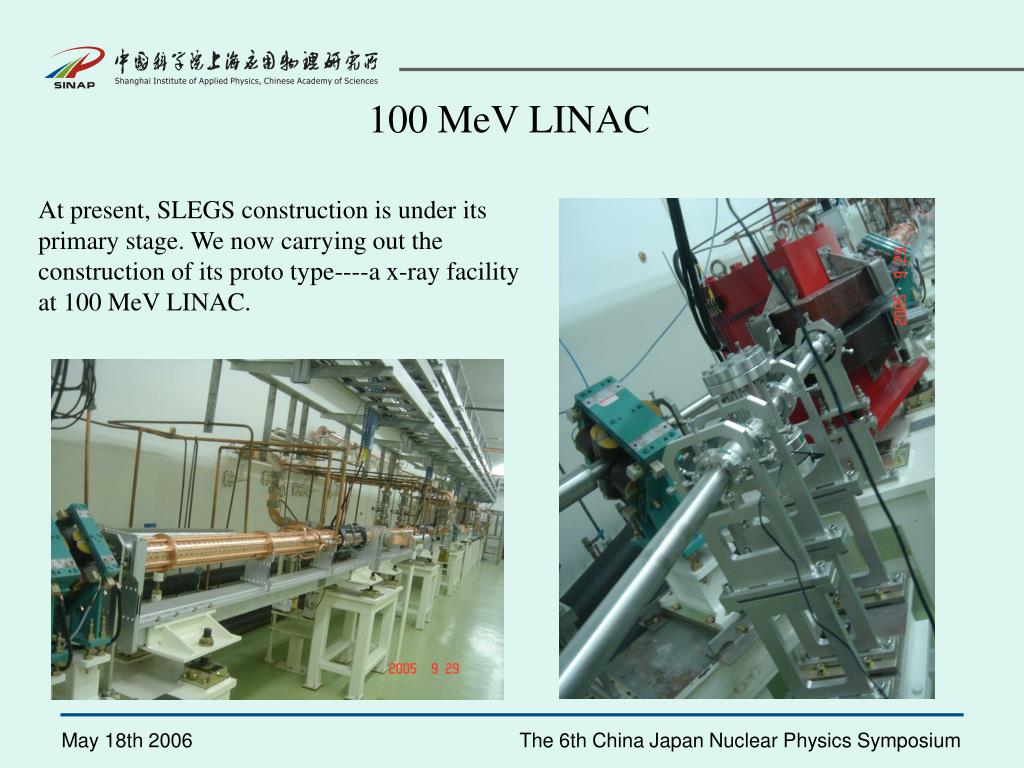

At present, SLEGS construction is under its primary stage. We now carrying out the construction of its proto type----a x-ray facility at 100 MeV LINAC.

The 6th China Japan Nuclear Physics Symposium

main features of linac present
Main features of LINAC- present
  • single bunch mode;
  • Energy: 100 [MeV];
  • Energy resolution: 0.9%;
  • Pulse length: 1 [ns] (FWHM), 1.28 [A];
  • 1s Normalized emittance: 107 (x), 137 (y) [pmmrad];

The 6th China Japan Nuclear Physics Symposium

candidate lasers

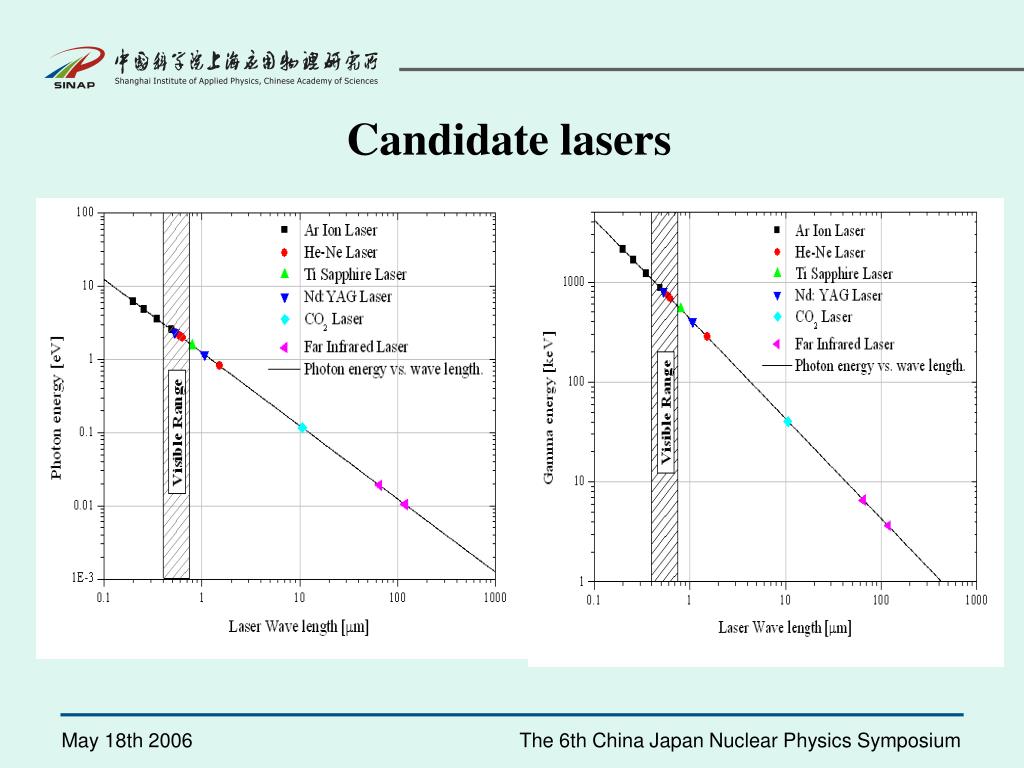

Candidate lasers

The 6th China Japan Nuclear Physics Symposium

100 mev linac vs co 2 laser as a sample
100 MeV LINAC vs. CO2 laser as a sample
  • CO2 laser:
    • l=10.64 [mm]  Infrared.
    • Waist radius: down to ~10 [mm]
    • Power of CW laser: up to ~1500 [W]
    • Well-developed and generally-used in industry.
    • Relatively low cost.

The 6th China Japan Nuclear Physics Symposium

slide10
The differential flux changes sharply with the transform of interaction position if waist width is very small but becomes insensitive when waist width of laser is large enough.
  • Total luminous flux increases and then decreases with increase of waist width of laser. In addition, a longer wave length laser corresponds a larger total luminous flux at the same waist width of laser.

The 6th China Japan Nuclear Physics Symposium

the collimation of laser and electron

反射镜

准直孔Ф0.5mm

约1m

CO2激光入射窗

检验共轴

观察窗

CO2激光入射窗

观察窗

做一垂直标记

反射镜

反射镜

生成准直孔Ф0.5mm

准直孔Ф0.5mm

电子束流

准直光路

约1m

约1m

CO2激光光路

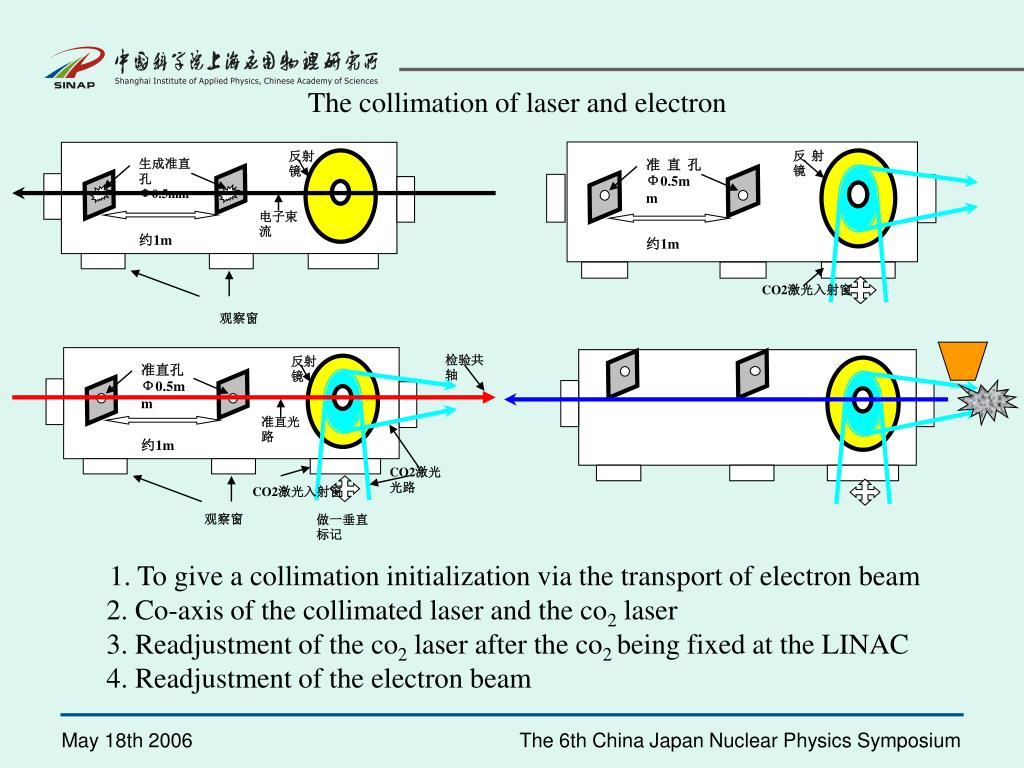

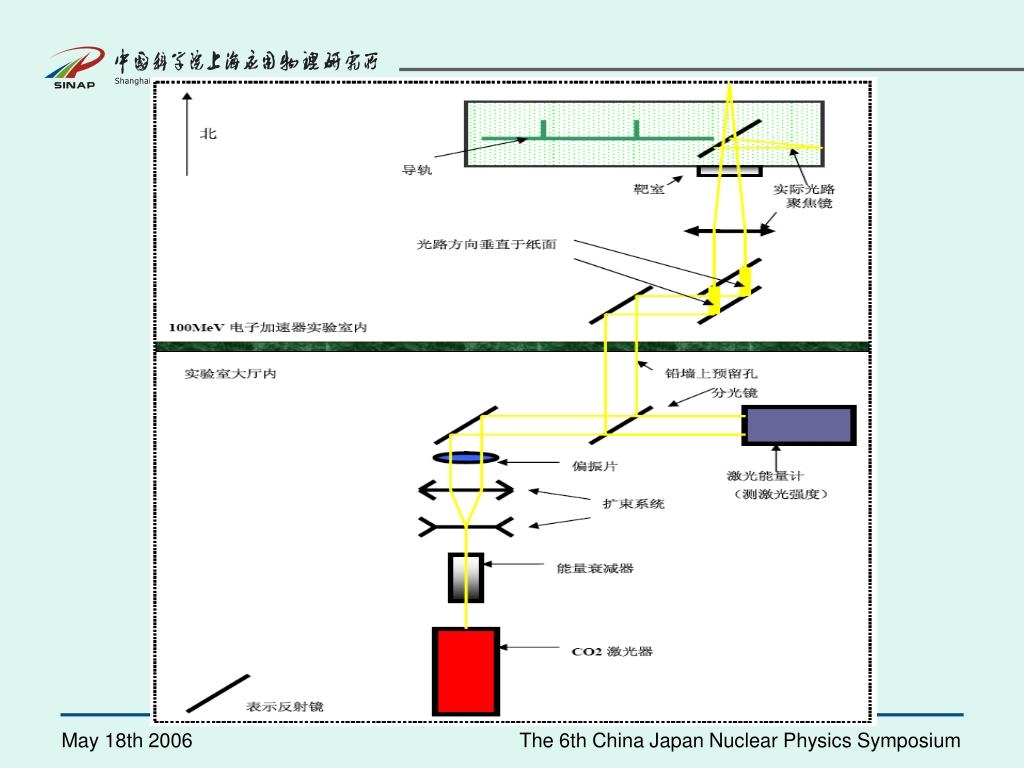

The collimation of laser and electron

1. To give a collimation initialization via the transport of electron beam2. Co-axis of the collimated laser and the co2 laser 3. Readjustment of the co2 laser after the co2 being fixed at the LINAC4. Readjustment of the electron beam

The 6th China Japan Nuclear Physics Symposium

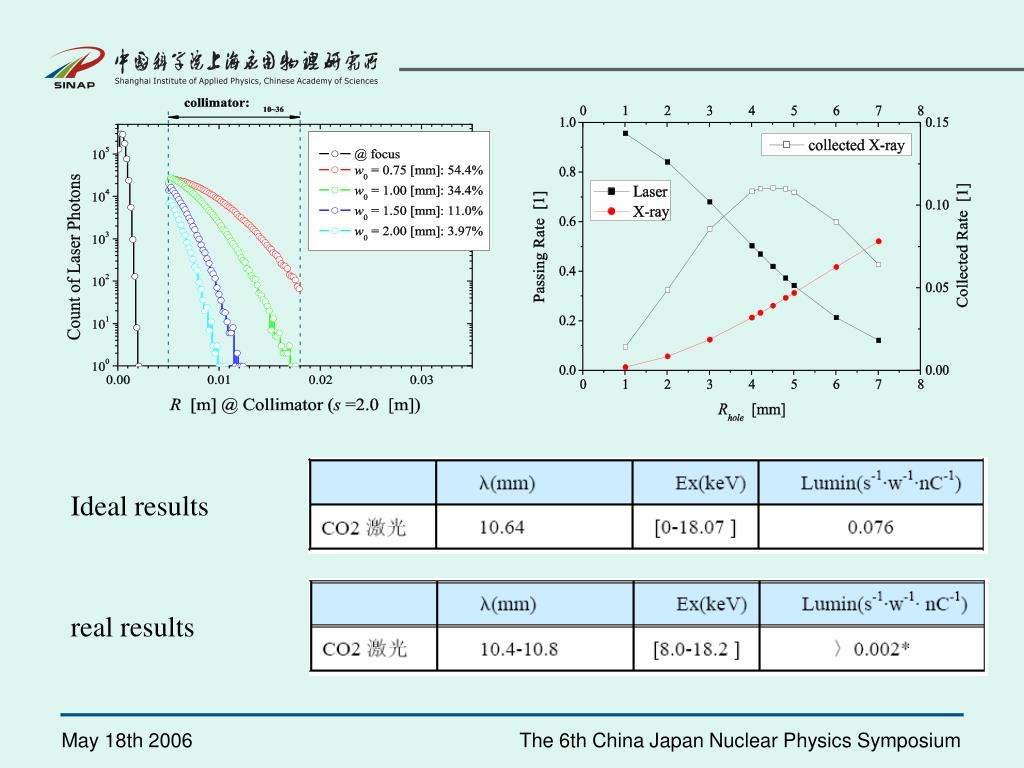

slide12

Ideal results

real results

The 6th China Japan Nuclear Physics Symposium

estimation of background
Estimation of background

Background from synchrotron radiation

Background from bremsstrahlung of electron and air

The 6th China Japan Nuclear Physics Symposium

other relevant equipments
Other relevant equipments

1. Data acquirement system 2. Control system 3. Detector system 4. Chamber of target

The 6th China Japan Nuclear Physics Symposium

schedule
Schedule

The 6th China Japan Nuclear Physics Symposium

budget

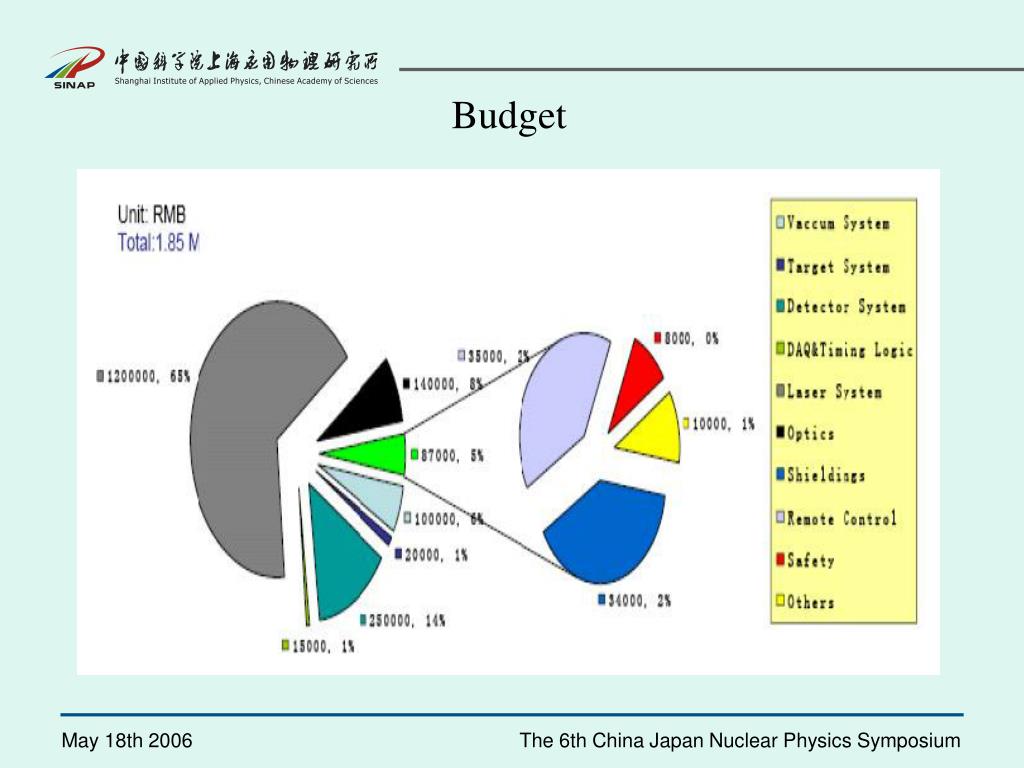

Budget

The 6th China Japan Nuclear Physics Symposium
