  1. MIB Compiler & Browser Mi-Jung Choi Dept. of Computer Science KNU Email: mjchoi@kangwon.ac.kr

  2. What is “MIB Compiler”? • Checks whether the MIBs written in SMIv1 or SMIv2 defined correctly • Usually allows a user to compile MIBs using a GUI • Some tools provide MIB editor as well • Example tools • MG-Soft MIB Compiler (www.mg-soft.com) • DMH MIB Compiler (www.dmhsoftware.com)

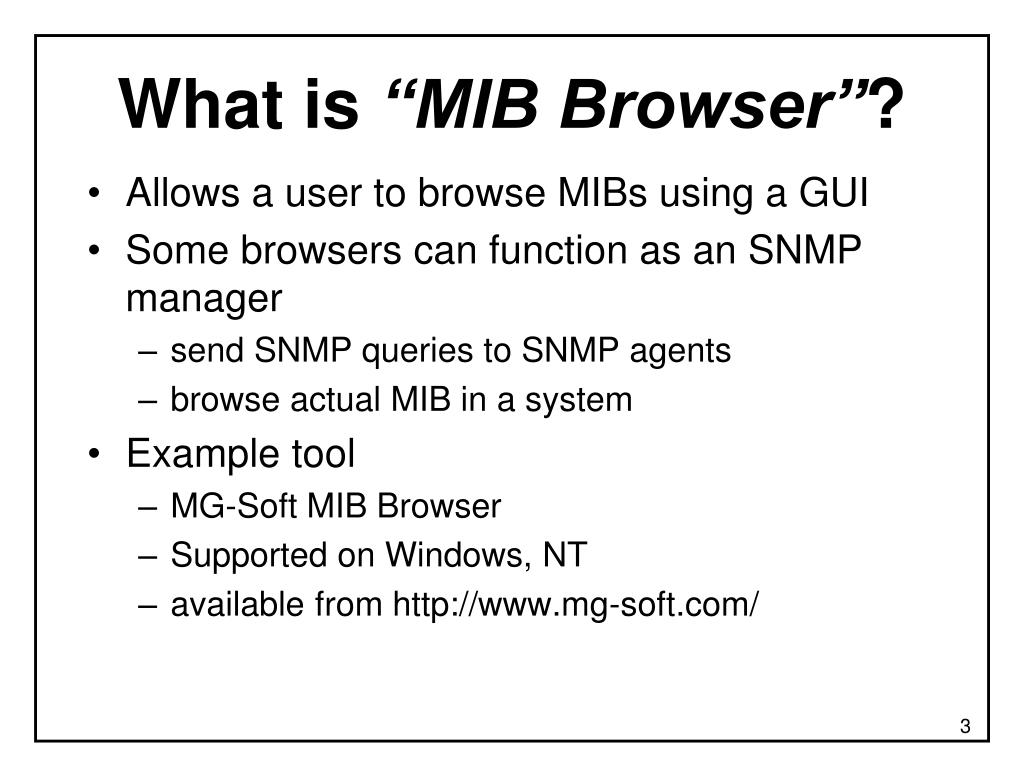

  3. What is “MIB Browser”? • Allows a user to browse MIBs using a GUI • Some browsers can function as an SNMP manager • send SNMP queries to SNMP agents • browse actual MIB in a system • Example tool • MG-Soft MIB Browser • Supported on Windows, NT • available from http://www.mg-soft.com/

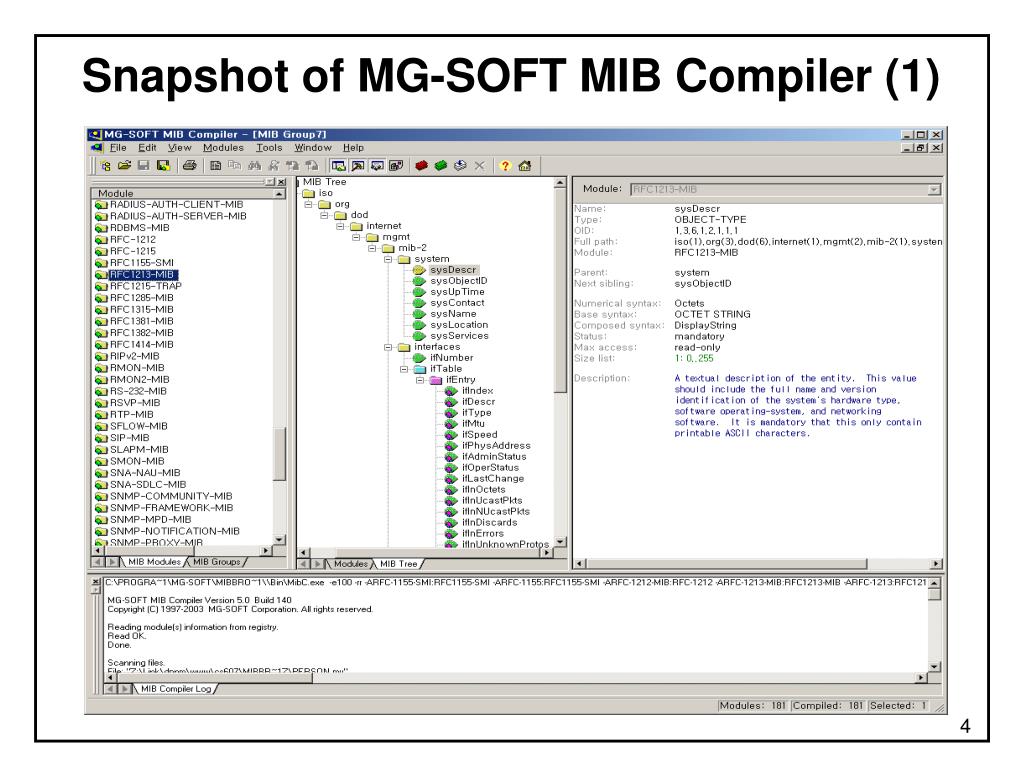

  4. Snapshot of MG-SOFT MIB Compiler (1)

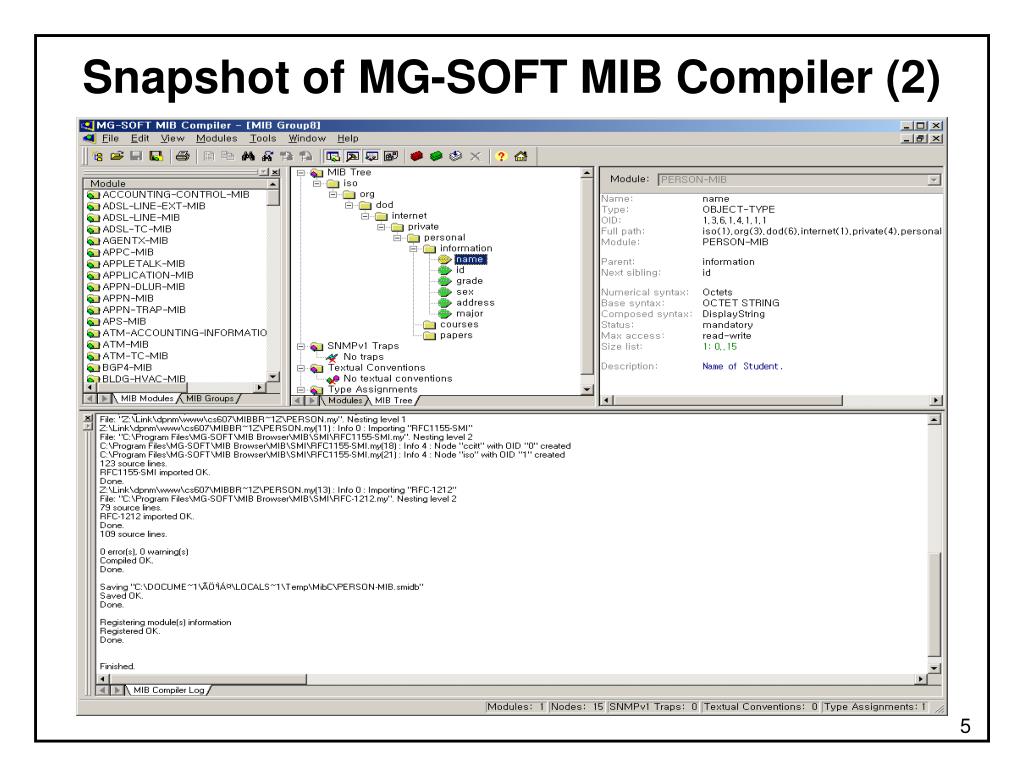

  5. Snapshot of MG-SOFT MIB Compiler (2)

  6. Snapshot of MG-SOFT MIB Compiler (3)

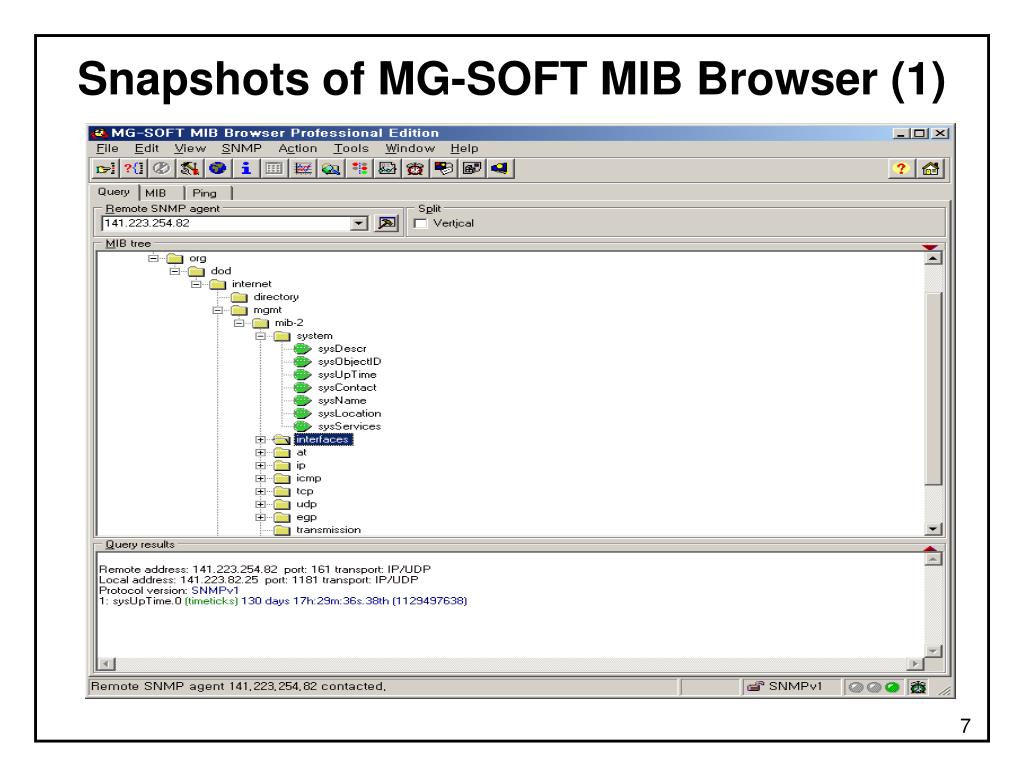

  7. Snapshots of MG-SOFT MIB Browser (1)

  8. Snapshots of MG-SOFT MIB Browser (2)

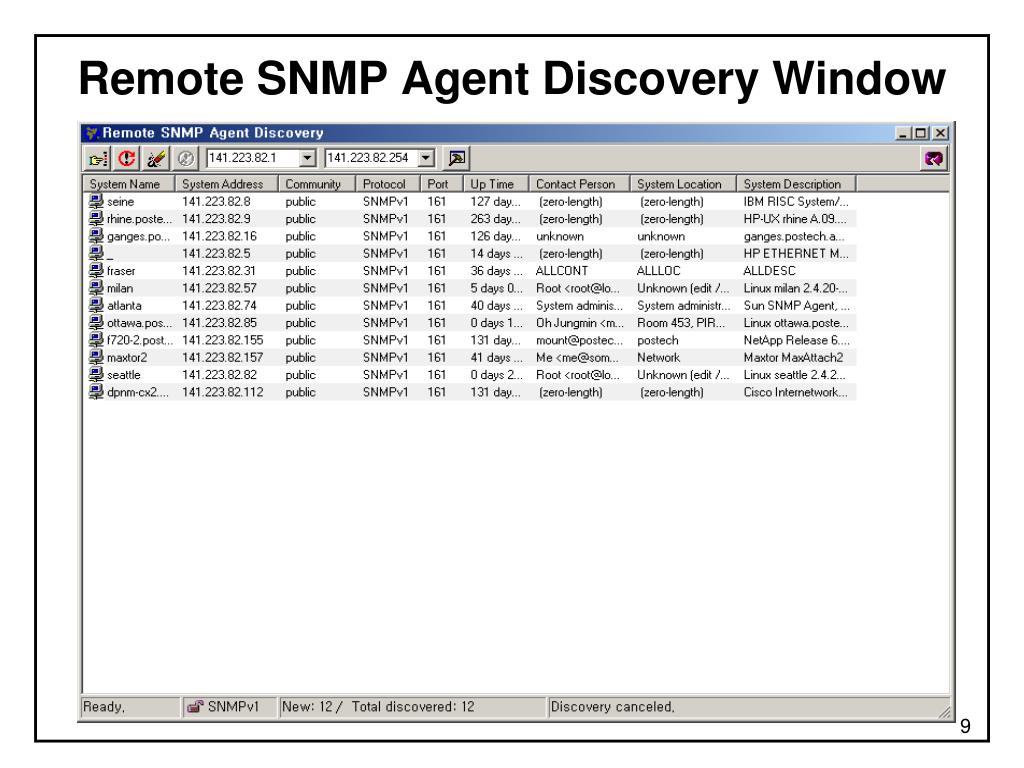

  9. Remote SNMP Agent Discovery Window

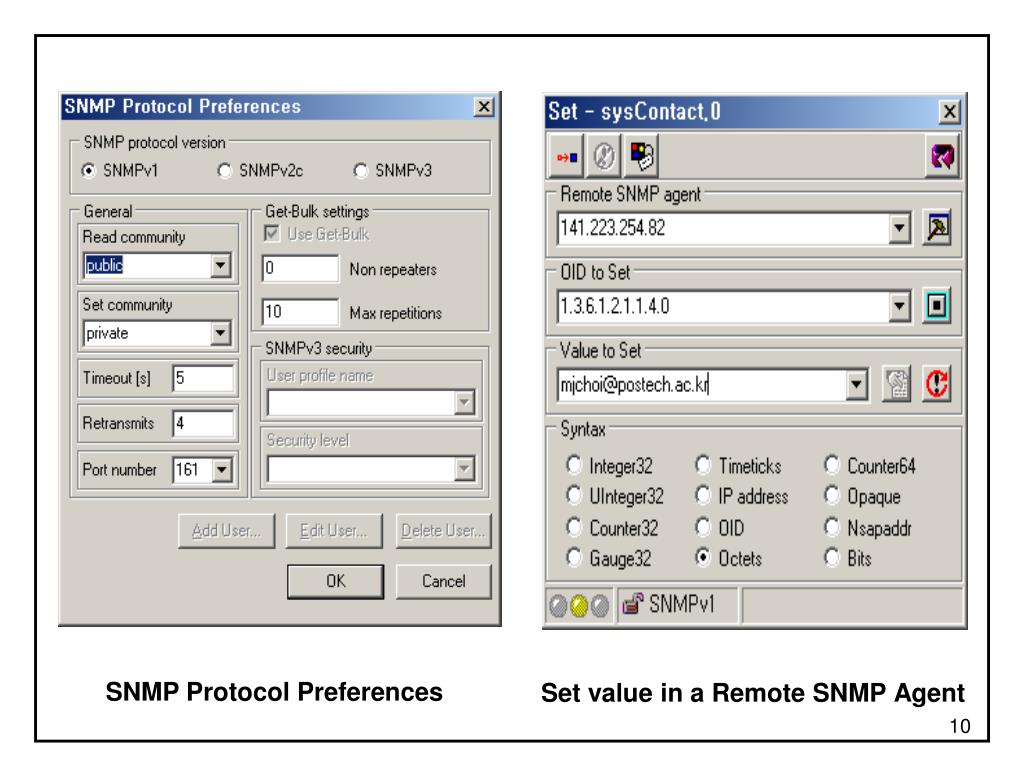

  10. Set value in a Remote SNMP Agent SNMP Protocol Preferences

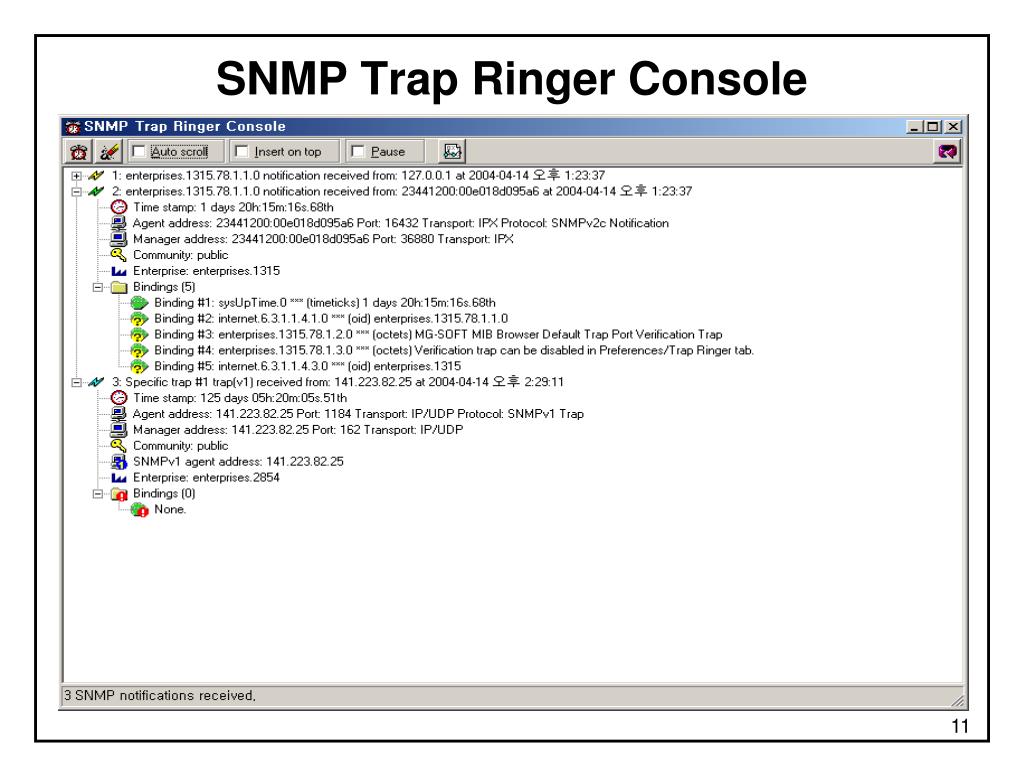

  11. SNMP Trap Ringer Console

  12. SNMP Performance Graph Window
