SSH

1. SSH Scott Nykl Jim Wyllie

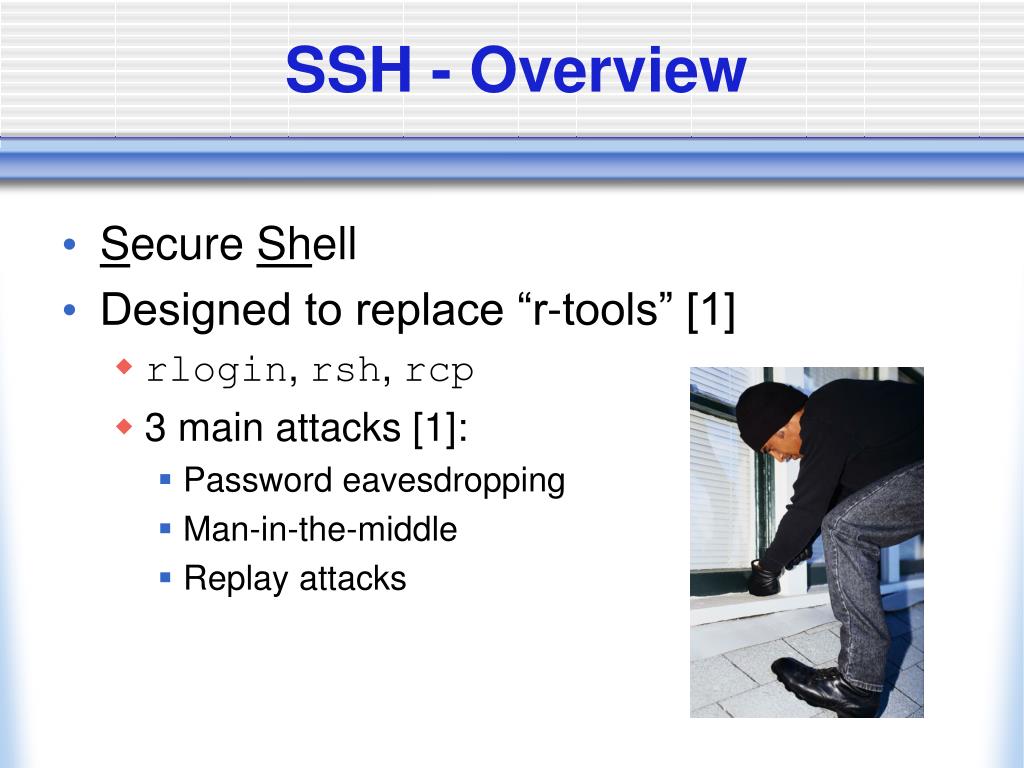

2. SSH - Overview • Secure Shell • Designed to replace “r-tools” [1] • rlogin, rsh, rcp • 3 main attacks [1]: • Password eavesdropping • Man-in-the-middle • Replay attacks

3. SSH1 • SSH1 -- First incantation of SSH [3] • Created in 1995, obsolete in 1996 • Allowed rhost authentication (not secure) • Man-in-the-middle

4. SSH2 • What we use today • More secure session key generation • Dropped rhost authentication

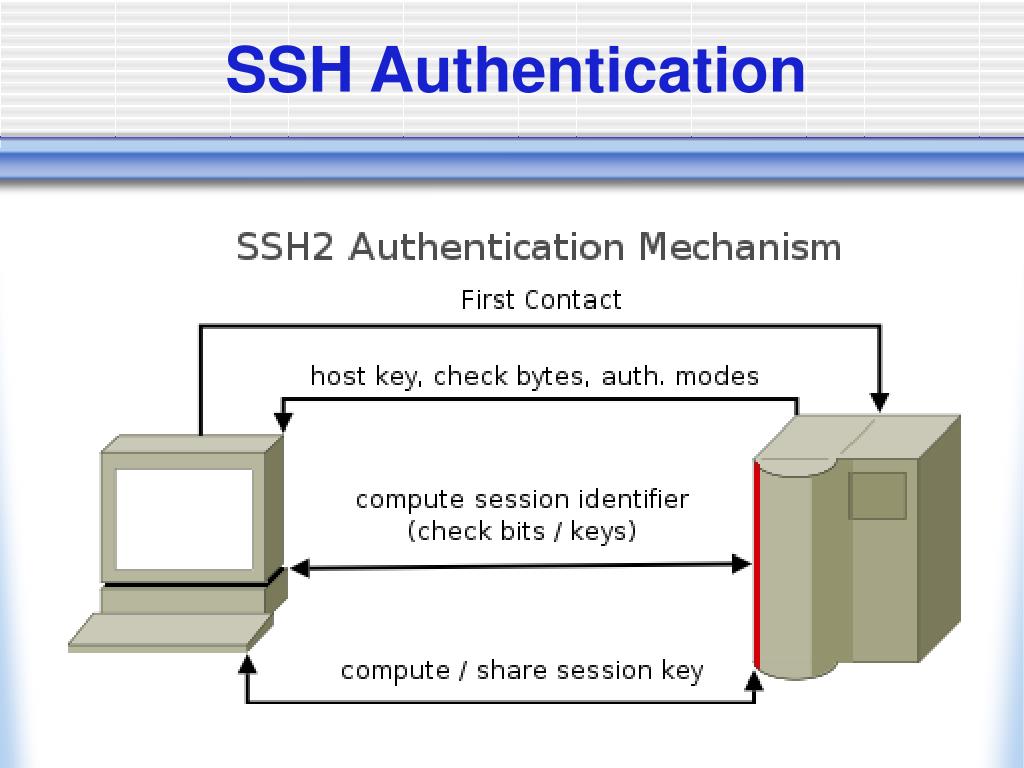

5. SSH Authentication

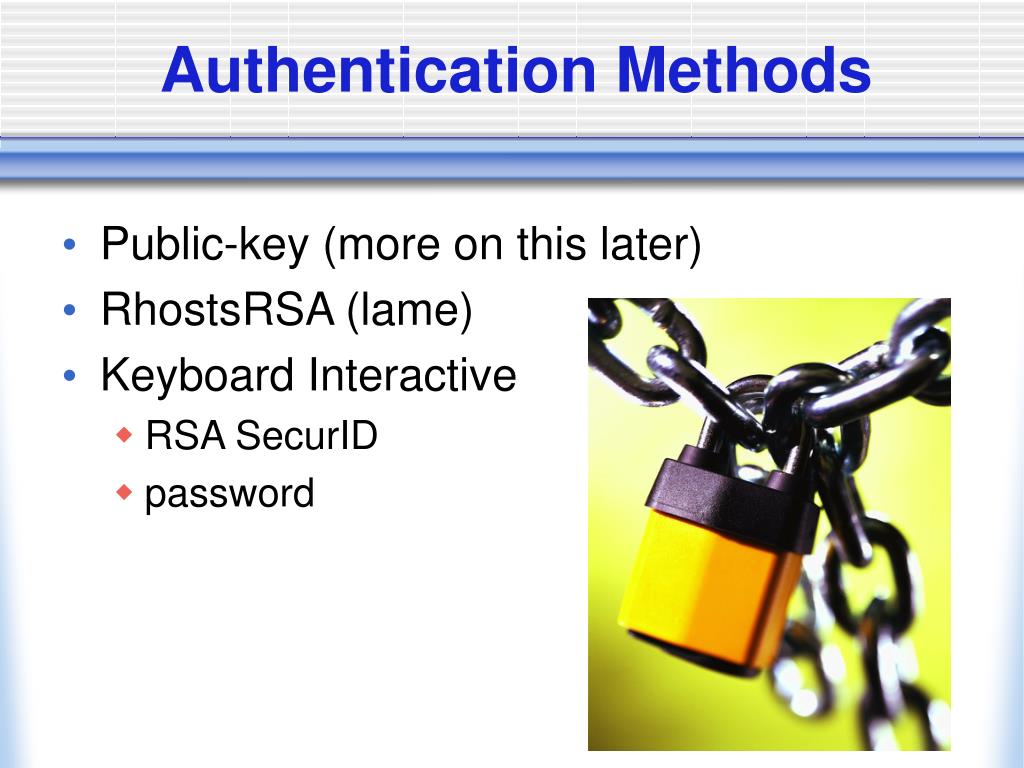

6. Authentication Methods • Public-key (more on this later) • RhostsRSA (lame) • Keyboard Interactive • RSA SecurID • password

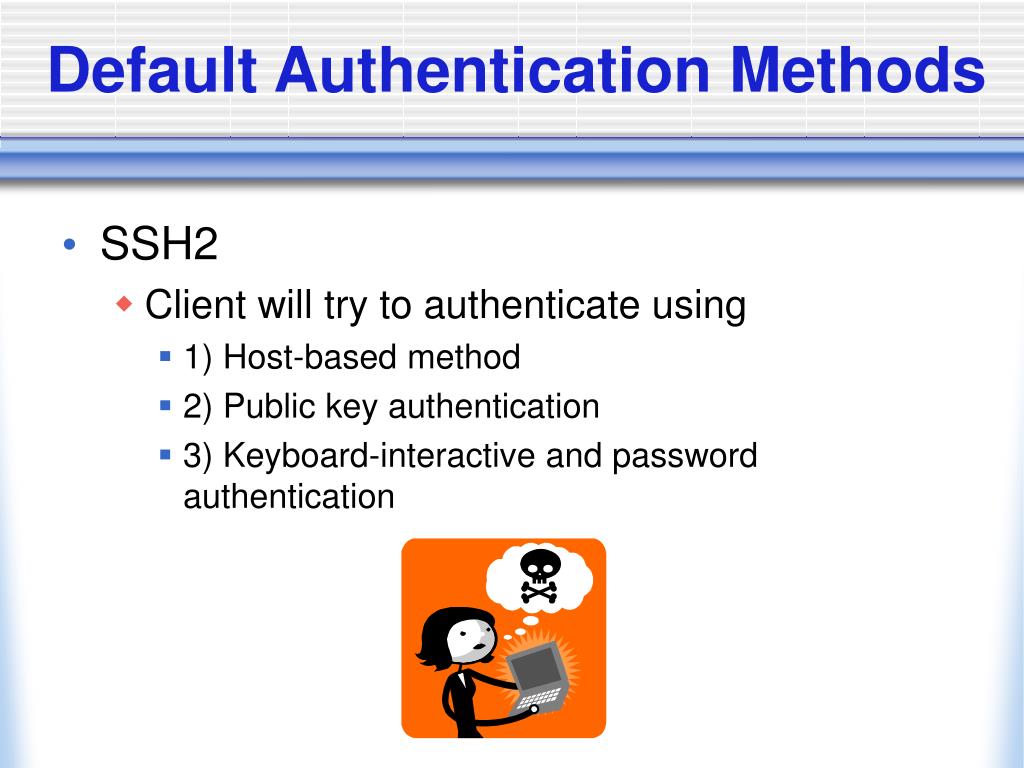

7. Default Authentication Methods • SSH2 • Client will try to authenticate using • 1) Host-based method • 2) Public key authentication • 3) Keyboard-interactive and password authentication

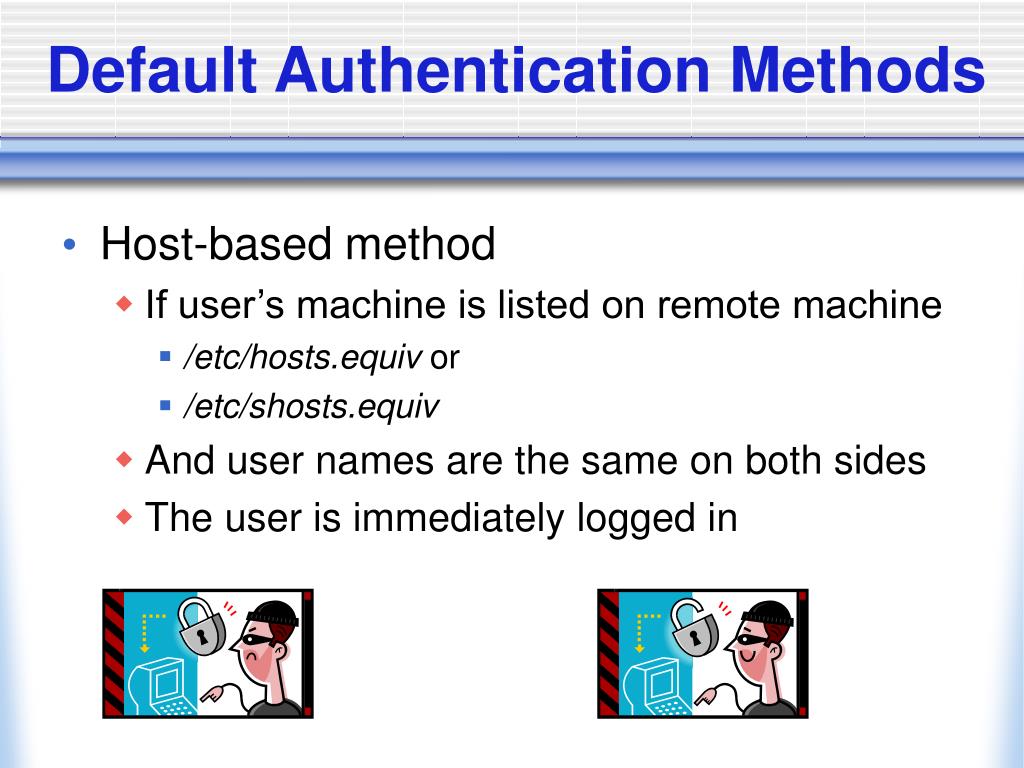

8. Default Authentication Methods • Host-based method • If user’s machine is listed on remote machine • /etc/hosts.equiv or • /etc/shosts.equiv • And user names are the same on both sides • The user is immediately logged in

9. Default Authentication Methods • Public Key Authentication • Using keychain or pagent

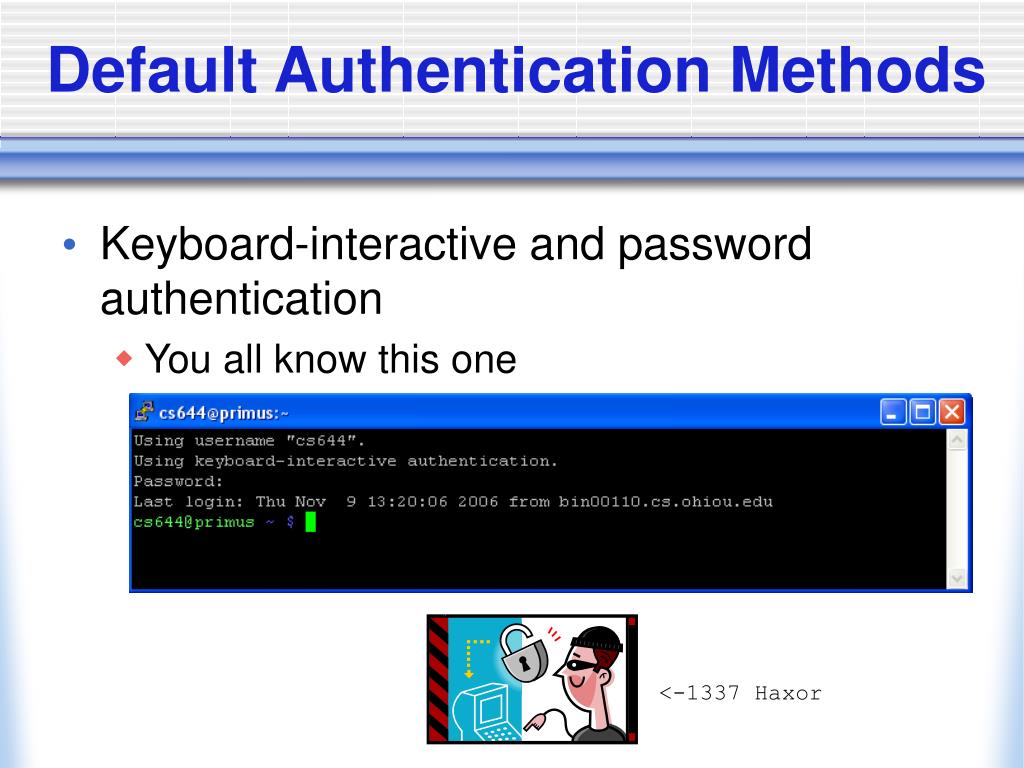

10. Default Authentication Methods • Keyboard-interactive and password authentication • You all know this one <-1337 Haxor

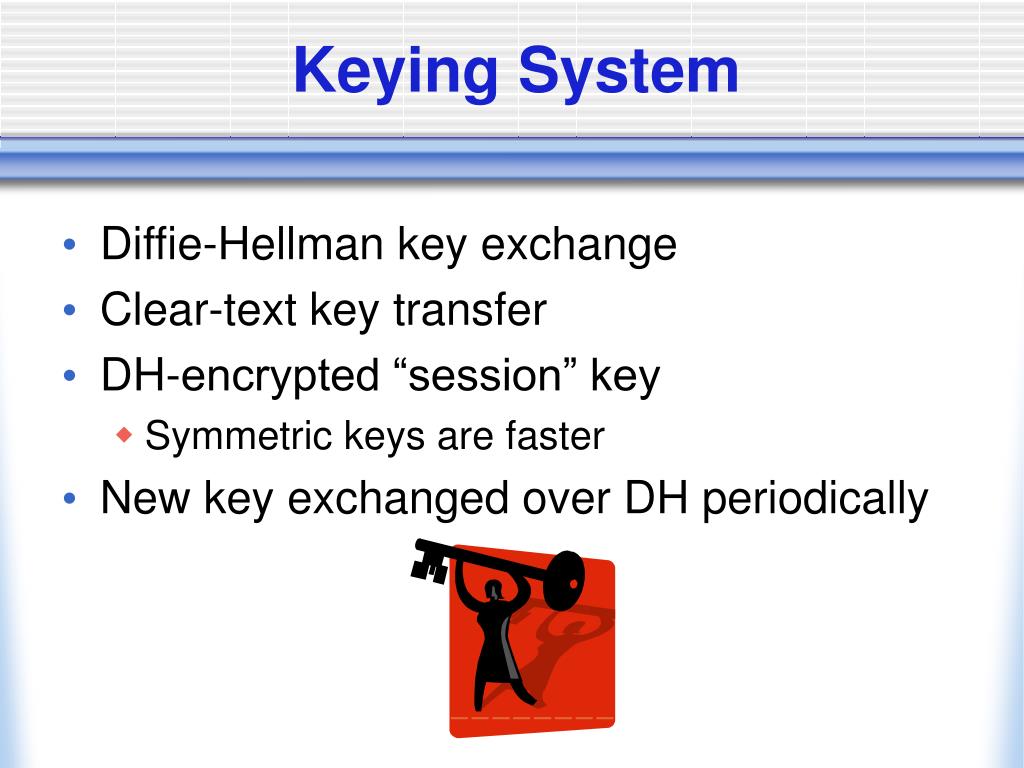

11. Keying System • Diffie-Hellman key exchange • Clear-text key transfer • DH-encrypted “session” key • Symmetric keys are faster • New key exchanged over DH periodically

12. Cool stuff with SSH • All previous slides were to ensure I covered the bases and got a good grade on this presentation • I really don’t care too much about “how” it works (that’s for the crypto guys), but what it can do for me

13. Public-Key authentication • Far fewer passwords to memorize • Robust against brute force guessing • Easy to grant / deny access to an account • Creating a key: ssh-keygen -t dsa • Follow the menus

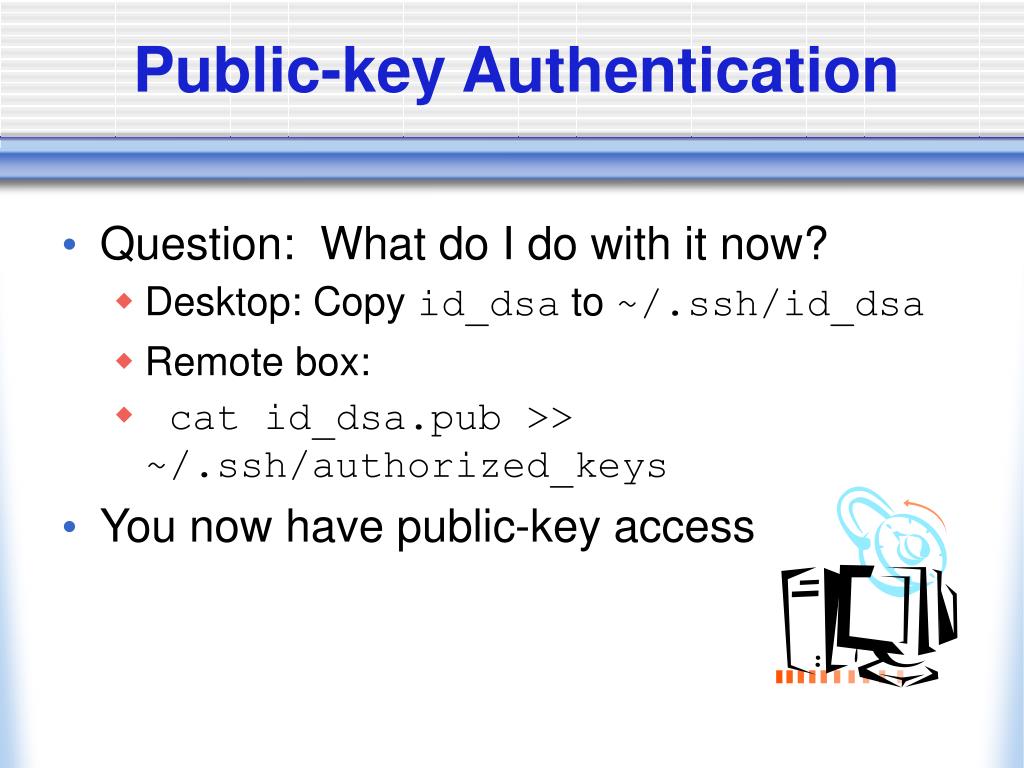

14. Public-key Authentication • Question: What do I do with it now? • Desktop: Copy id_dsa to ~/.ssh/id_dsa • Remote box: • cat id_dsa.pub >> ~/.ssh/authorized_keys • You now have public-key access

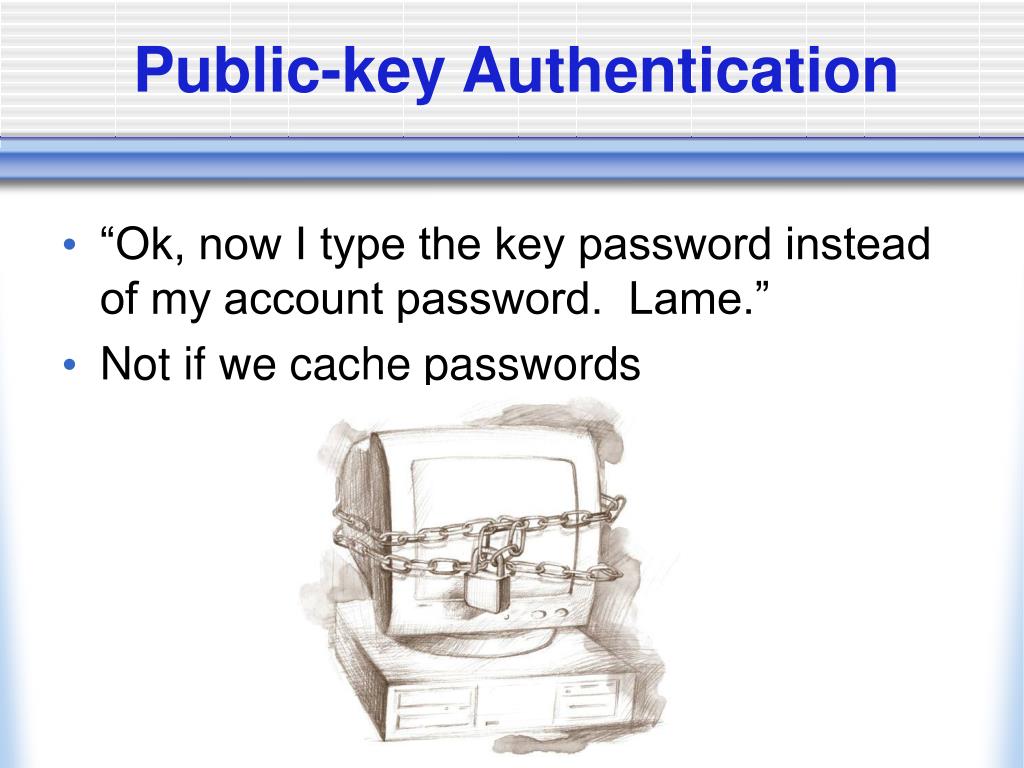

15. Public-key Authentication • “Ok, now I type the key password instead of my account password. Lame.” • Not if we cache passwords

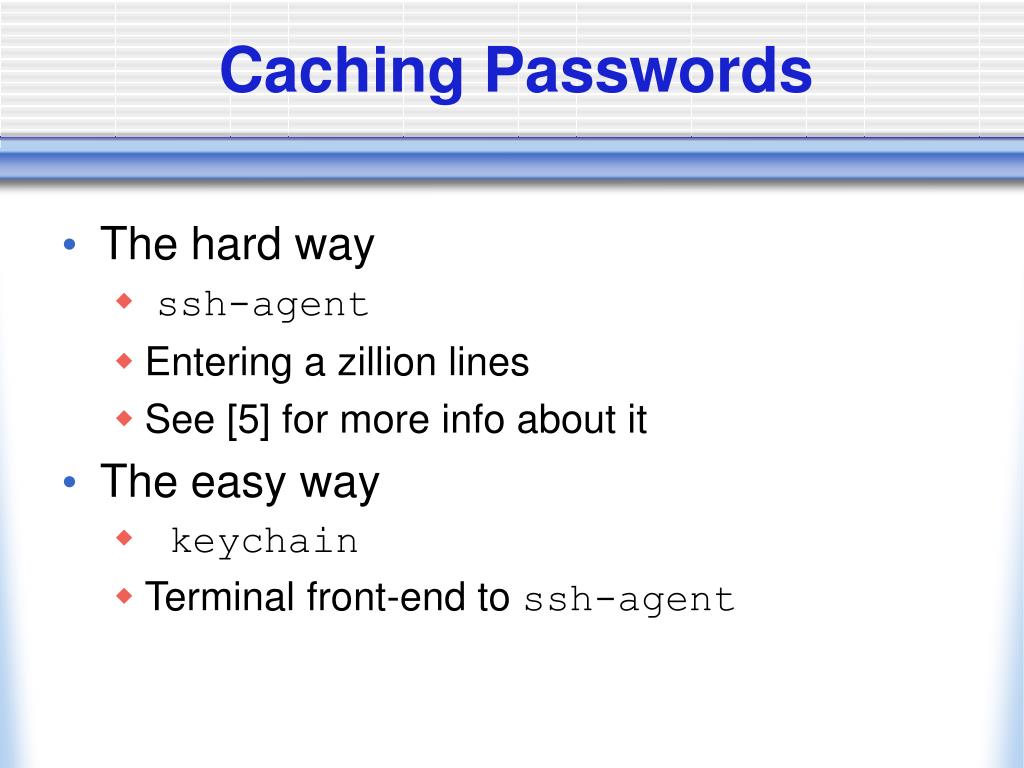

16. Caching Passwords • The hard way • ssh-agent • Entering a zillion lines • See [5] for more info about it • The easy way • keychain • Terminal front-end to ssh-agent

17. keychain • Terminal standard for key mgmt. • By the folks at Gentoo • Download / Install • Paste into ~/.bashrc: • keychain -q ~/.ssh/id_rsa • . ~/.keychain/$HOSTNAME-sh • That’s it. One password entry.

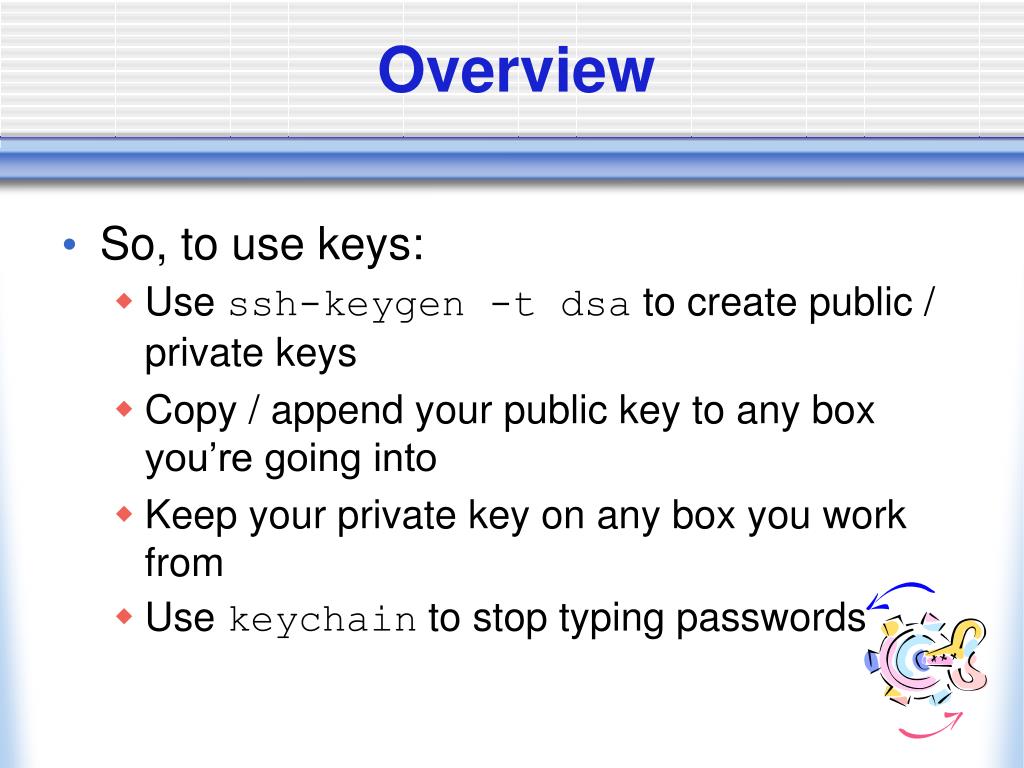

18. Overview • So, to use keys: • Use ssh-keygen -t dsa to create public / private keys • Copy / append your public key to any box you’re going into • Keep your private key on any box you work from • Use keychain to stop typing passwords

19. ~/.ssh/config • Allows you to set up some cool things • Aliases for common connections • jwyllie@primus.cs.ohiou.edu -> primus • Agent forwarding (a little risky) • See [6] for my config file example • man ssh_config

20. X11 Forwarding • X11 uses sockets to connect • Sockets can communicate over networks • You can tunnel X11 GUIs through SSH • X11Forwarding = yes • Slow over the Internet, fast on a LAN • Just run any graphical app like normal • Requires sane xorg.conf

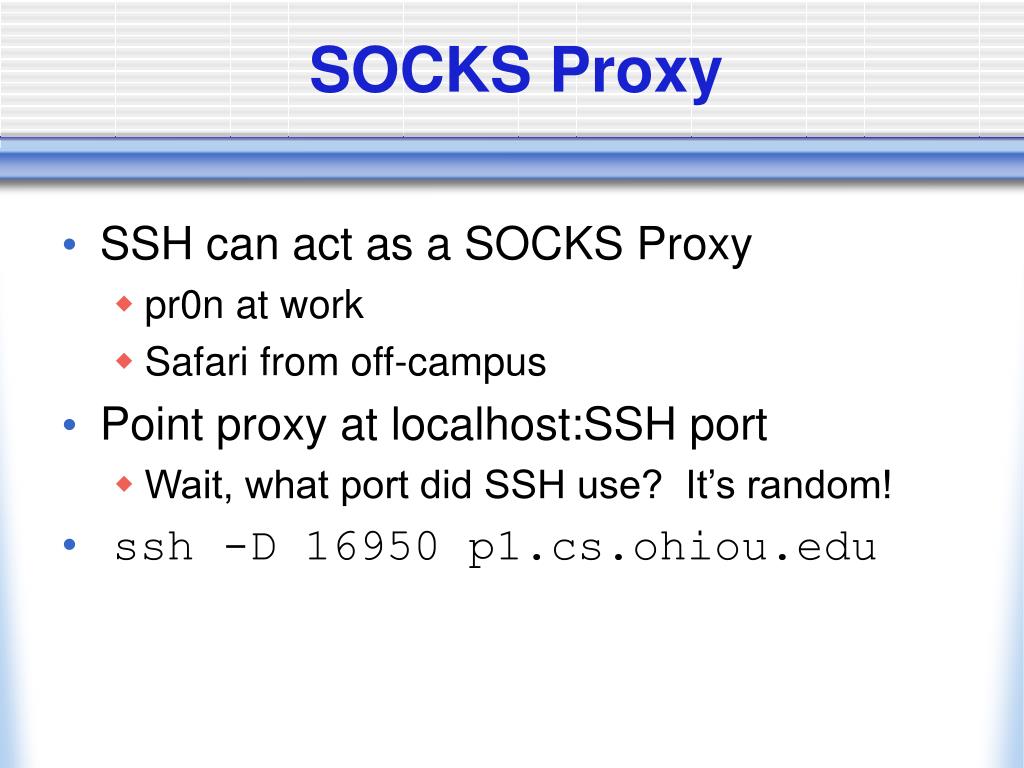

21. SOCKS Proxy • SSH can act as a SOCKS Proxy • pr0n at work • Safari from off-campus • Point proxy at localhost:SSH port • Wait, what port did SSH use? It’s random! • ssh -D 16950 p1.cs.ohiou.edu

22. SOCKS Proxy Edit -> Preferences… -> Connection Settings

23. SOCKS Proxy (PuTTY) • PuTTY: A Free Telnet/SSH Client • Do what Jim said, but without installing a thing (from a windows box)!

24. SOCKS Proxy • What does tunnelling web traffic give me? • Security through wireless access • safari.oreilly.com remotely • Privacy through a workplace • Protection against DNS hijacking • Bypassing web filters

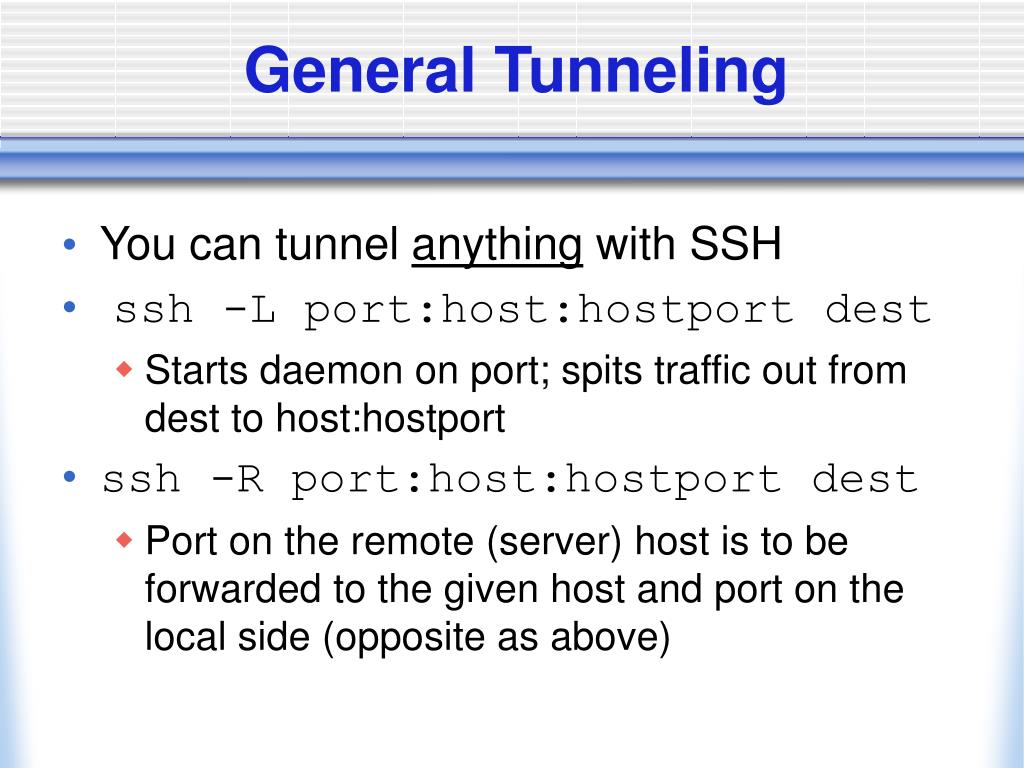

25. General Tunneling • You can tunnel anything with SSH • ssh -L port:host:hostport dest • Starts daemon on port; spits traffic out from dest to host:hostport • ssh -R port:host:hostport dest • Port on the remote (server) host is to be forwarded to the given host and port on the local side (opposite as above)

26. Tunneling -L

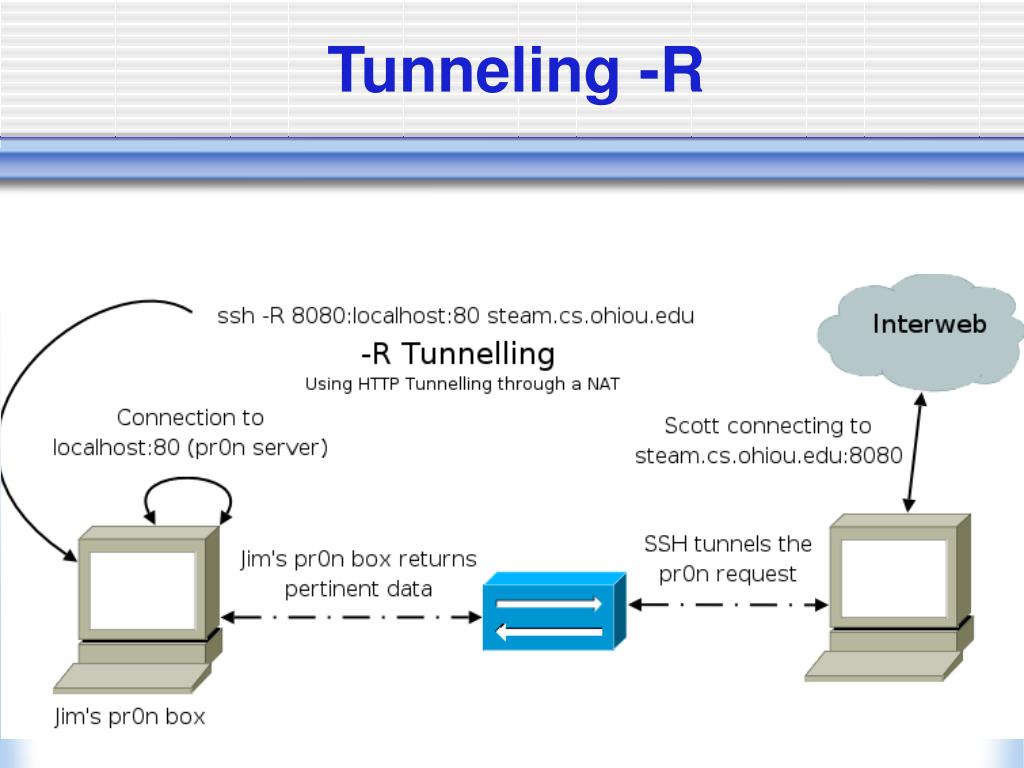

27. Tunneling -R

28. General Tunneling • Remember!!! • Tunneling forwards traffic through an intermediate link • Slowness may result if this intermediate link is slow • eg, you tunnel pr0n from work through your home dialup… You will wait!

29. Tunneling examples • “Secure” POP over wireless • ssh -l 110:oak.cats.ohiou.edu:110 p1 • In /etc/hosts: • oak.cats.ohiou.edu 127.0.0.1 • Or just connect over localhost:110 • No more wireless email sniffing • (PS: Don’t use POP: Use secure IMAP)

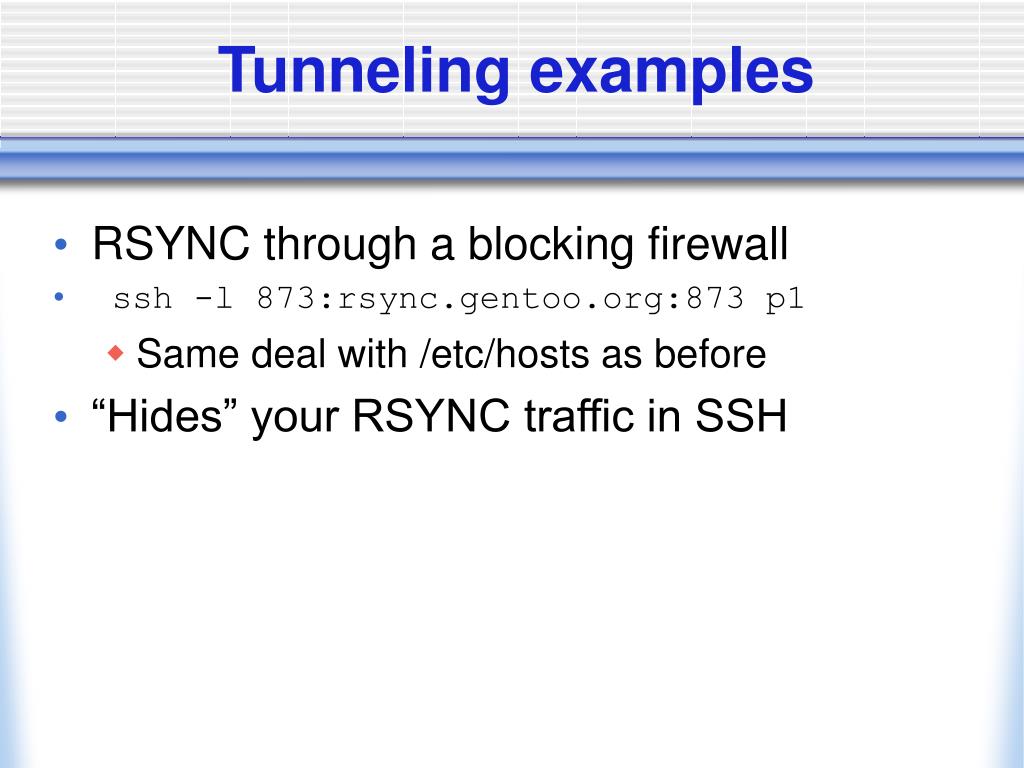

30. Tunneling examples • RSYNC through a blocking firewall • ssh -l 873:rsync.gentoo.org:873 p1 • Same deal with /etc/hosts as before • “Hides” your RSYNC traffic in SSH

31. SSH as a pipe • SSH can also act as a simple pipe • ssh p1 “ls -l” lists your prime home directory • cat /dev/cdrom | ssh p1 “cat - > my_local_cd.iso”

32. Tunnels w/o prompts • Want all the tunnels without minimized idle SSH sessions? • screen to the rescue • Puts you in a nested shell • Ctrl+a d puts it in the background • screen -r retrieves it to your terminal • Barely scratching the surface; man screen for more

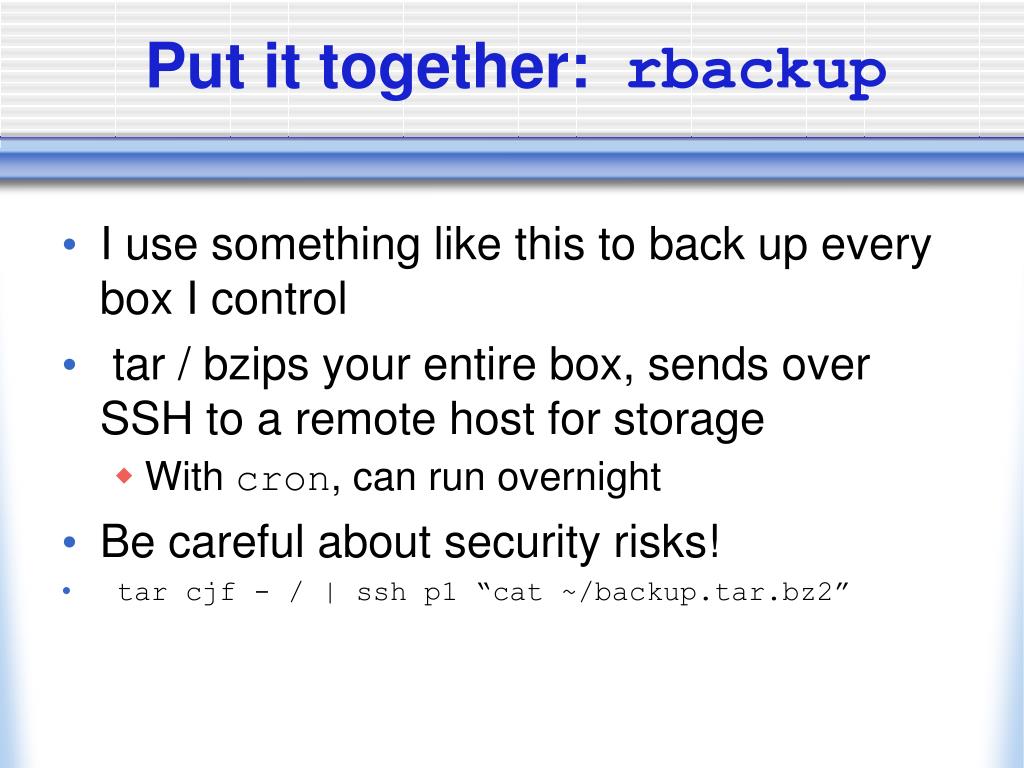

33. Put it together: rbackup • I use something like this to back up every box I control • tar / bzips your entire box, sends over SSH to a remote host for storage • With cron, can run overnight • Be careful about security risks! • tar cjf - / | ssh p1 “cat ~/backup.tar.bz2”

34. PuTTY • Collection of useful Windows Utilities that provide SSH capability. • PuTTY - Telnet and SSH client • PSCP - SCP client, i.e. command-line secure file copy • PSFTP - SFTP client, i.e. general file transfer sessions much like FTP • PuTTYtel - Telnet-only client

35. PuTTY • Plink - a command-line interface to the PuTTY back ends (remember our plink –D example) • Pageant - SSH authentication agent for PuTTY, PSCP and Plink • PuTTYgen (an RSA and DSA key generation utility).

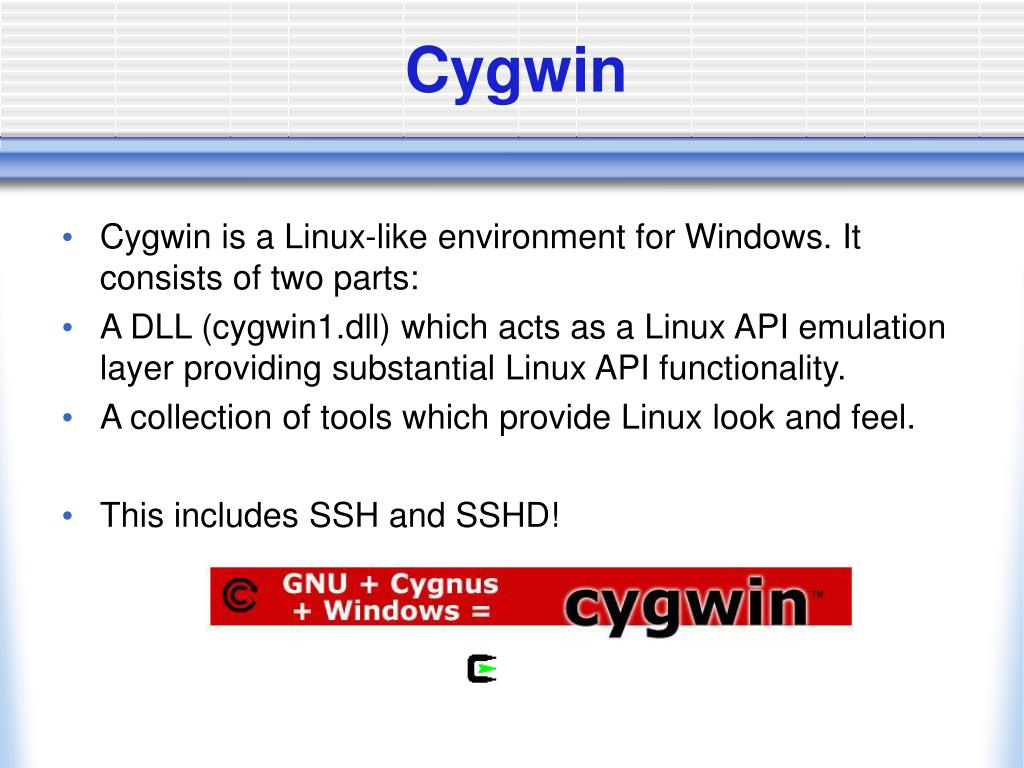

36. Cygwin • Cygwin is a Linux-like environment for Windows. It consists of two parts: • A DLL (cygwin1.dll) which acts as a Linux API emulation layer providing substantial Linux API functionality. • A collection of tools which provide Linux look and feel. • This includes SSH and SSHD!

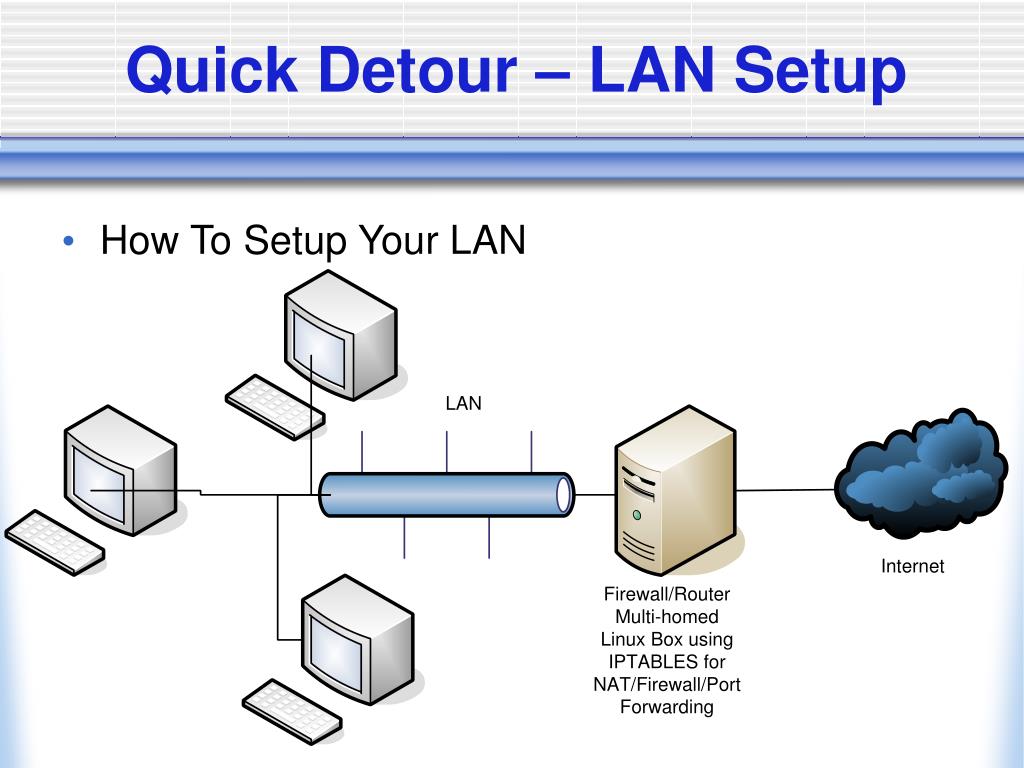

37. Quick Detour – LAN Setup • How To Setup Your LAN

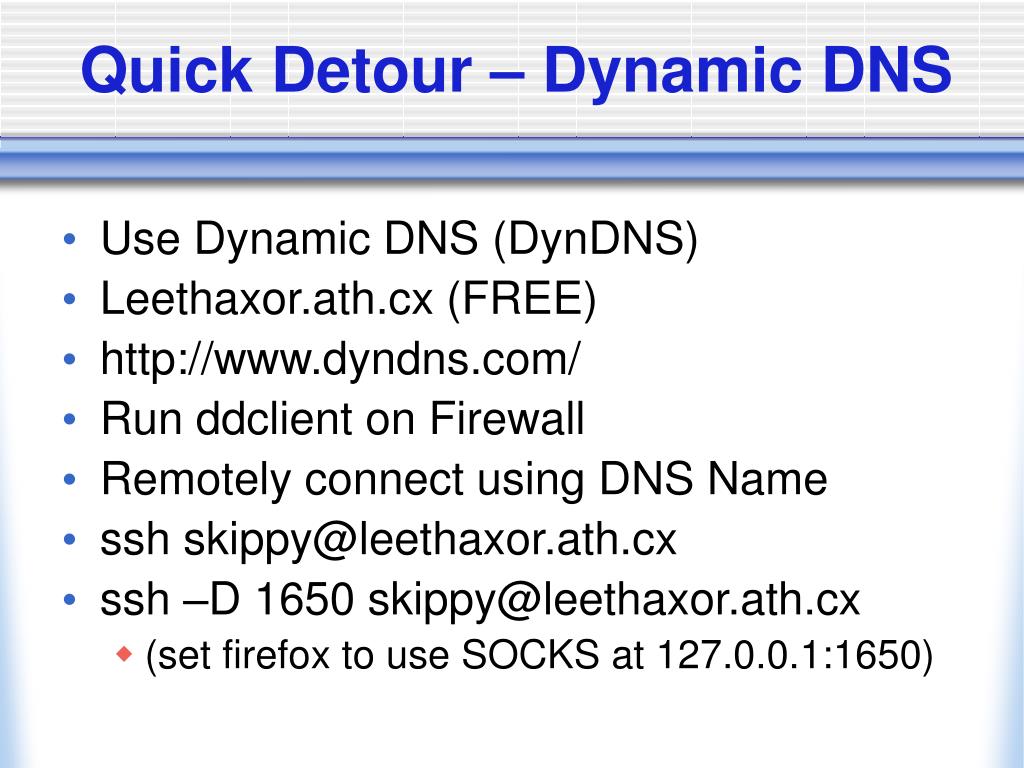

38. Quick Detour – Dynamic DNS • Use Dynamic DNS (DynDNS) • Leethaxor.ath.cx (FREE) • http://www.dyndns.com/ • Run ddclient on Firewall • Remotely connect using DNS Name • ssh skippy@leethaxor.ath.cx • ssh –D 1650 skippy@leethaxor.ath.cx • (set firefox to use SOCKS at 127.0.0.1:1650)

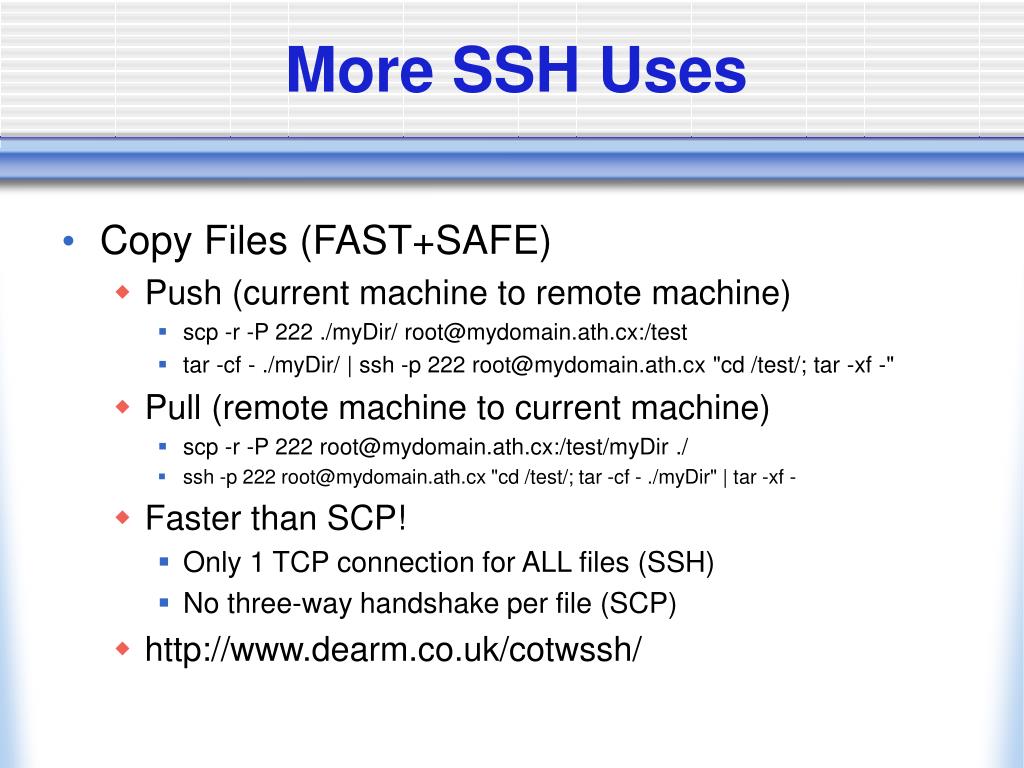

39. More SSH Uses • Copy Files (FAST+SAFE) • Push (current machine to remote machine) • scp -r -P 222 ./myDir/ root@mydomain.ath.cx:/test • tar -cf - ./myDir/ | ssh -p 222 root@mydomain.ath.cx "cd /test/; tar -xf -" • Pull (remote machine to current machine) • scp -r -P 222 root@mydomain.ath.cx:/test/myDir ./ • ssh -p 222 root@mydomain.ath.cx "cd /test/; tar -cf - ./myDir" | tar -xf - • Faster than SCP! • Only 1 TCP connection for ALL files (SSH) • No three-way handshake per file (SCP) • http://www.dearm.co.uk/cotwssh/

40. Summary • SSH keys for better authentication • SOCKS with SSH • keychain for fewer passwords • General tunneling for privacy • SSH pipes • Remote backups • Faster Recursive File Copy than SCP, SFTP, FTP, etc • SSH can do more than this

41. References • [1] http://www.vandyke.com/solutions/ssh_overview/ssh_overview.pdf • [2] http://www.tacc.utexas.edu/services/userguides/ssh_detailed/ • [3] http://en.wikipedia.org/wiki/Secure_Shell • [4] RFC 4251 • [5] http://www.securityfocus.com/infocus/1812 • [6] http://irg.cs.ohiou.edu/~jwyllie/ssh_config • [7] http://http://www.hmug.org/man/1/ssh.php • [8] http://www.chiark.greenend.org.uk/~sgtatham/putty/
