A. Computer Basics

A. Computer Basics Unit Objectives: 1.01-1.04 1.00 Examine the role of hardware and software.

What Is A Computer? • An electronic device that receives data, processes data, stores data, and produces a result (output). • A collection of electronic circuits, which can be on or off (open or closed). • These two states of the circuit are represented by two digits, 0 and 1. • Called the binary system • Combining bits (0 and 1), you can represent any character or number.

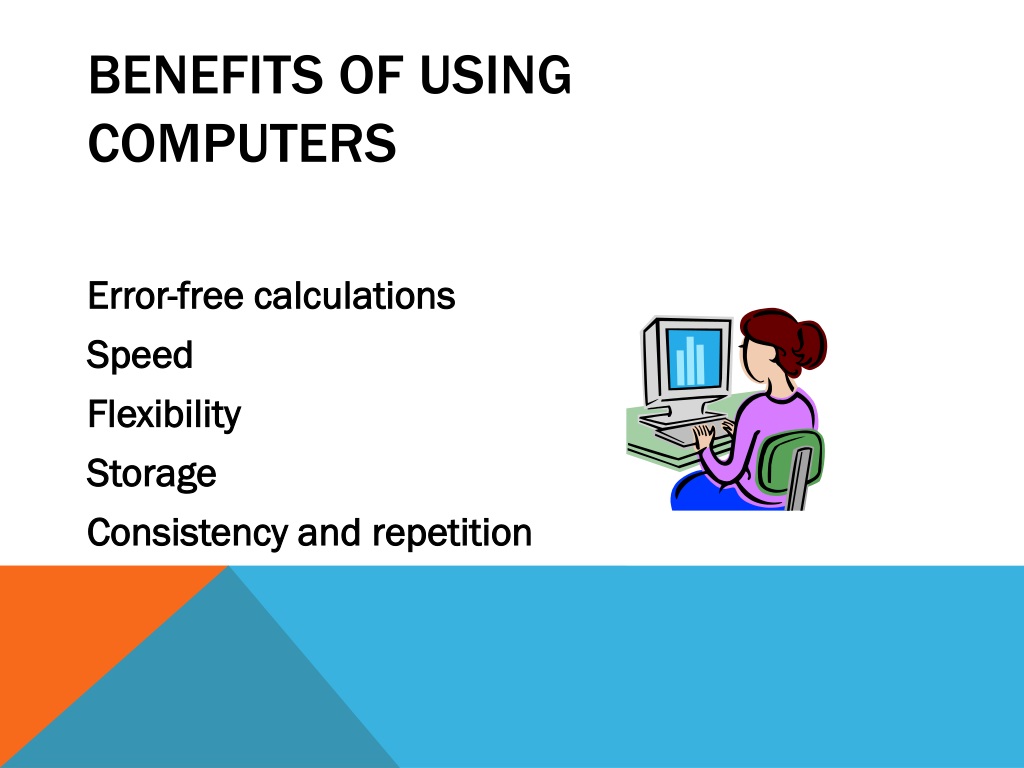

Benefits of Using Computers • Error-free calculations • Speed • Flexibility • Storage • Consistency and repetition

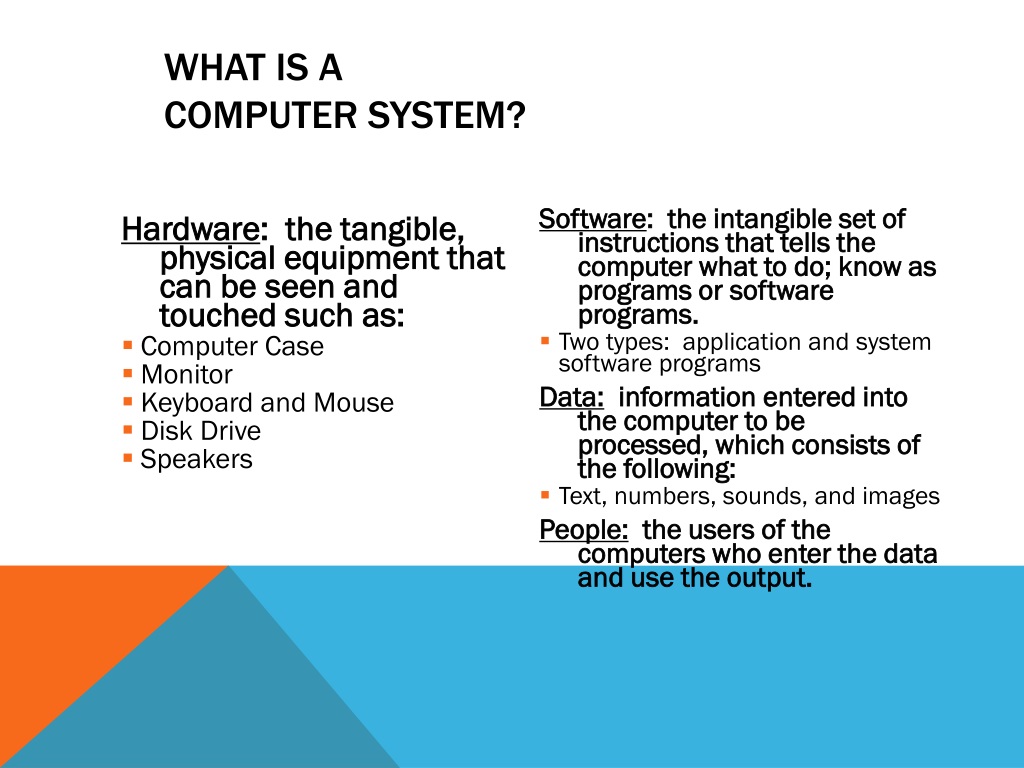

What Is AComputer System? • Software: the intangible set of instructions that tells the computer what to do; know as programs or software programs. • Two types: application and system software programs • Data: information entered into the computer to be processed, which consists of the following: • Text, numbers, sounds, and images • People: the users of the computers who enter the data and use the output. • Hardware: the tangible, physical equipment that can be seen and touched such as: • Computer Case • Monitor • Keyboard and Mouse • Disk Drive • Speakers

Supercomputer: most powerful Used to do things like predict hurricanes and navigate satellites Mainframes and minicomputers: used by business and government to process large amounts of information Personal computers: smaller and less powerful than the other types of computers Types of Computers

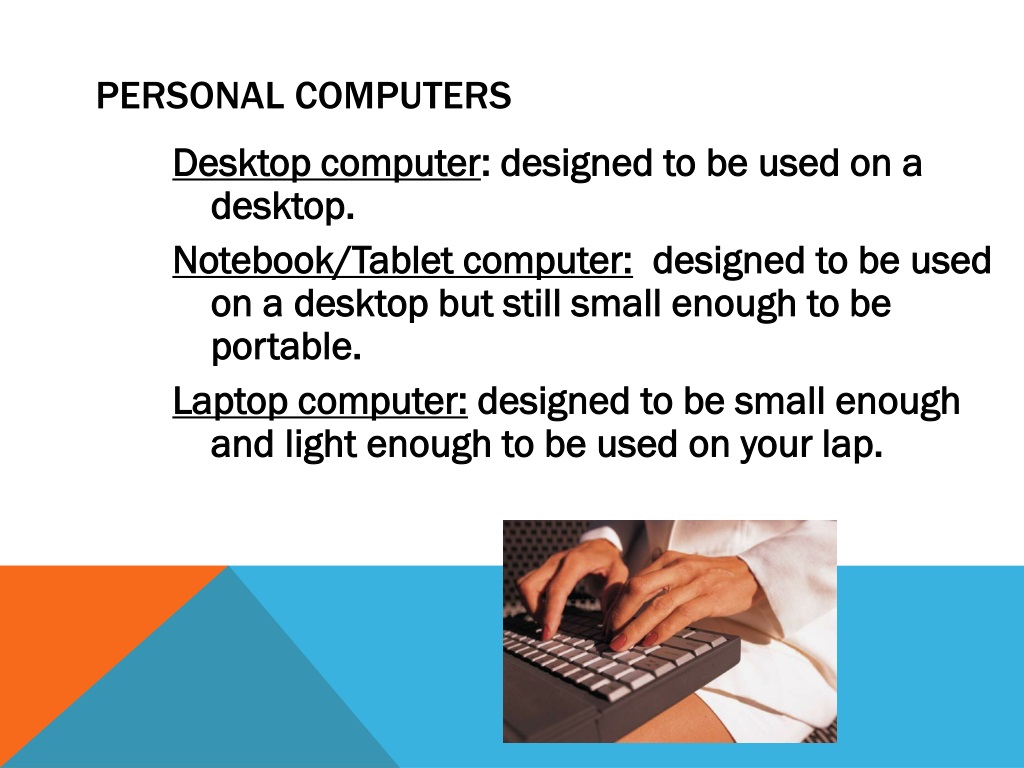

Desktop computer: designed to be used on a desktop. Notebook/Tablet computer: designed to be used on a desktop but still small enough to be portable. Laptop computer: designed to be small enough and light enough to be used on your lap. Personal Computers

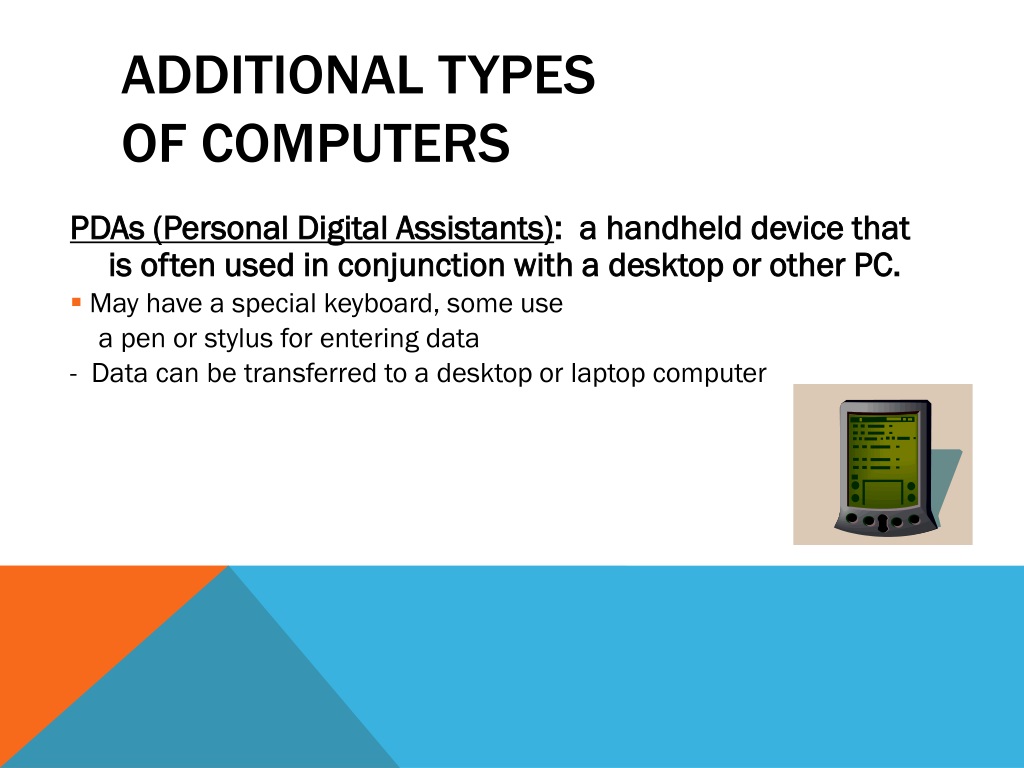

PDAs (Personal Digital Assistants): a handheld device that is often used in conjunction with a desktop or other PC. May have a special keyboard, some use a pen or stylus for entering data - Data can be transferred to a desktop or laptop computer Additional Typesof Computers

Data Communications • The technology that enables computers to communicate • The transmission of text, numeric, voice or video data from one machine to another. • Popular examples: • Internet, electronic messages (e-mail), faxes, and electronic or online banking • Four components: • Sender: the computer that is sending the message. • Receiver: the computer receiving the message. • Channel: the media that carries or transports the message. (telephone wire, coaxial cable, microwave signal, or fiber optic) • Protocol: the rules that govern the orderly transfer of the data sent.

Network: when computers are connected to other computers They can share information and sometimes hardware (printers) Local Area Networks (LAN): computers connected together in a relatively close location such as in the same building or department. The data and software for these computers are stored on a central computer called the file server. Wide Area Networks (WAN): when local area networks are expanded to include several local area networks within a city, state, region, territory, country, continent, or the world. Data Communications

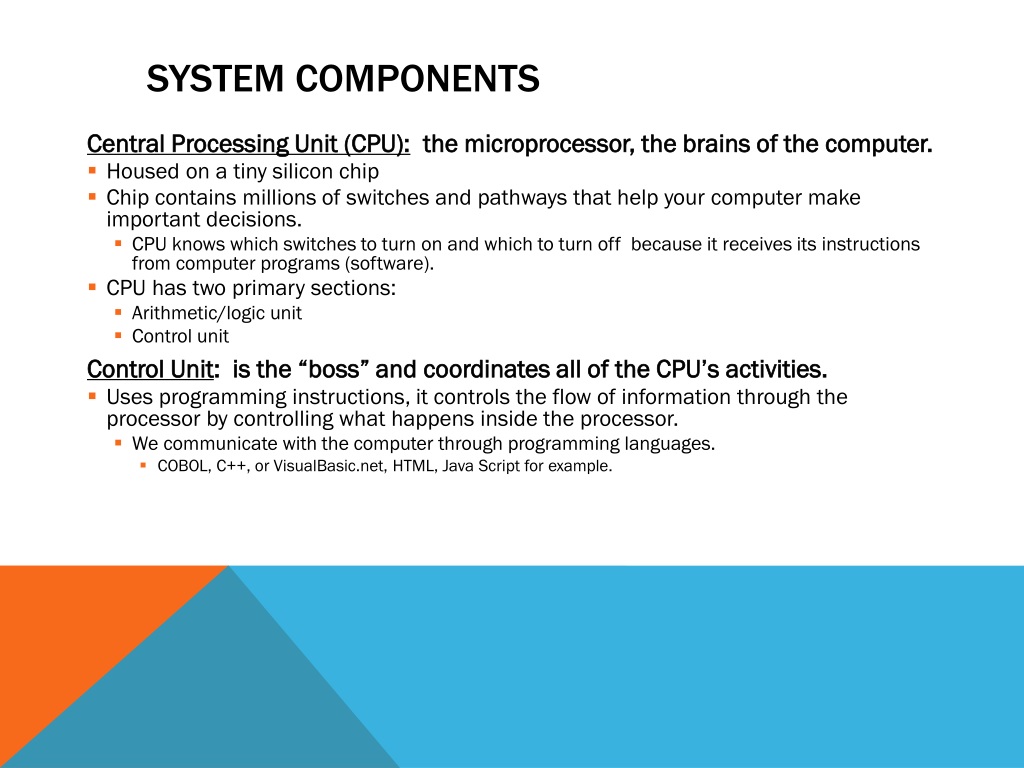

System Components • Central Processing Unit (CPU): the microprocessor, the brains of the computer. • Housed on a tiny silicon chip • Chip contains millions of switches and pathways that help your computer make important decisions. • CPU knows which switches to turn on and which to turn off because it receives its instructions from computer programs (software). • CPU has two primary sections: • Arithmetic/logic unit • Control unit • Control Unit: is the “boss” and coordinates all of the CPU’s activities. • Uses programming instructions, it controls the flow of information through the processor by controlling what happens inside the processor. • We communicate with the computer through programming languages. • COBOL, C++, or VisualBasic.net, HTML, Java Script for example.

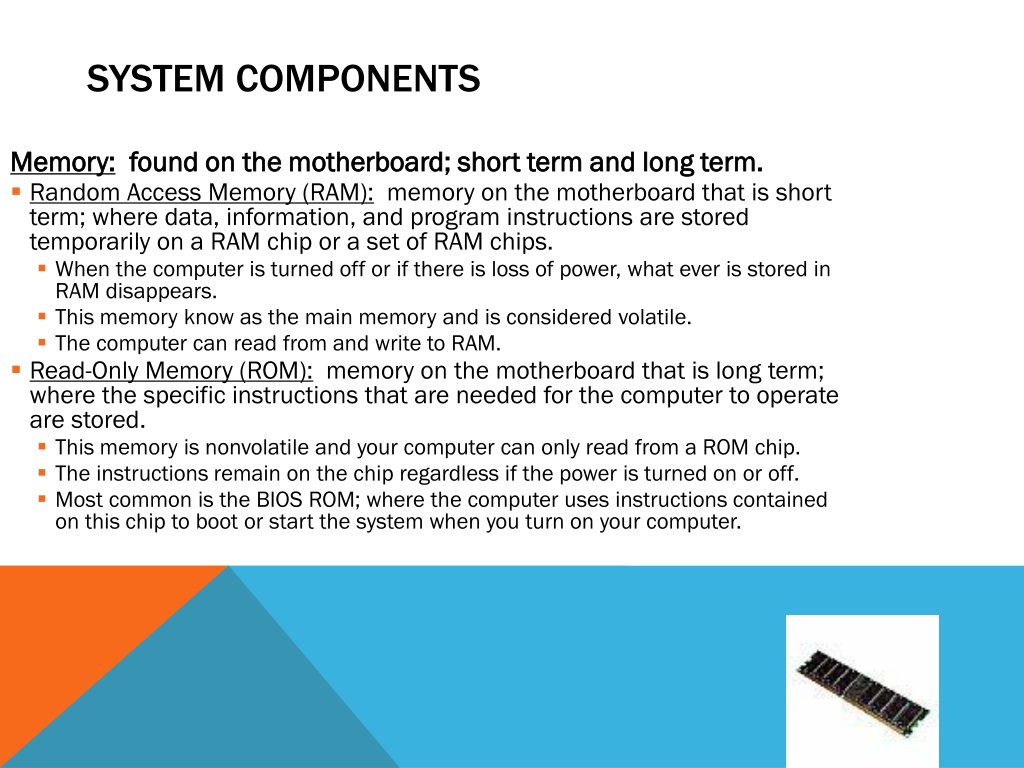

Memory: found on the motherboard; short term and long term. Random Access Memory (RAM): memory on the motherboard that is short term; where data, information, and program instructions are stored temporarily on a RAM chip or a set of RAM chips. When the computer is turned off or if there is loss of power, what ever is stored in RAM disappears. This memory know as the main memory and is considered volatile. The computer can read from and write to RAM. Read-Only Memory (ROM): memory on the motherboard that is long term; where the specific instructions that are needed for the computer to operate are stored. This memory is nonvolatile and your computer can only read from a ROM chip. The instructions remain on the chip regardless if the power is turned on or off. Most common is the BIOS ROM; where the computer uses instructions contained on this chip to boot or start the system when you turn on your computer. System Components

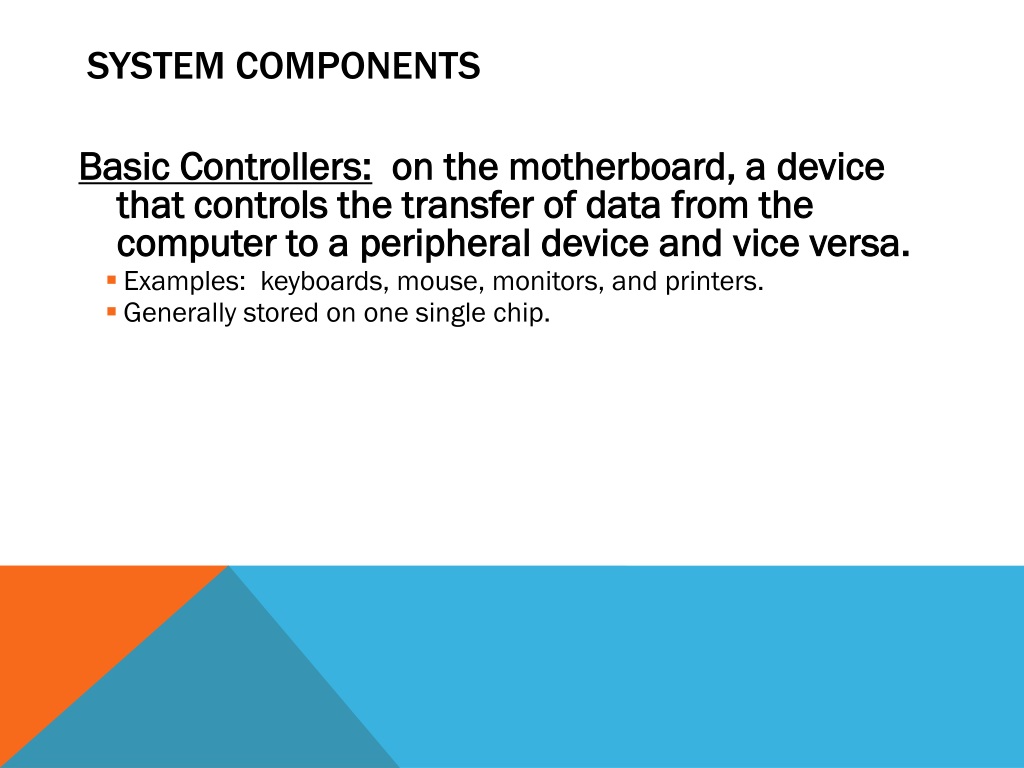

System Components • Basic Controllers: on the motherboard, a device that controls the transfer of data from the computer to a peripheral device and vice versa. • Examples: keyboards, mouse, monitors, and printers. • Generally stored on one single chip.

Universal Serial Bus (USB): a new standard that supports data transfer rates of up to 12 million bits per second. A single USB port can be used to connect up to 127 peripheral devices Expected to replace serial and parallel ports in the near future. Expansion Slots: an opening on the motherboard where a circuit board or expansion board can be inserted. Examples: Additional Memory, video cards, modem cards, and sound cards. System Components

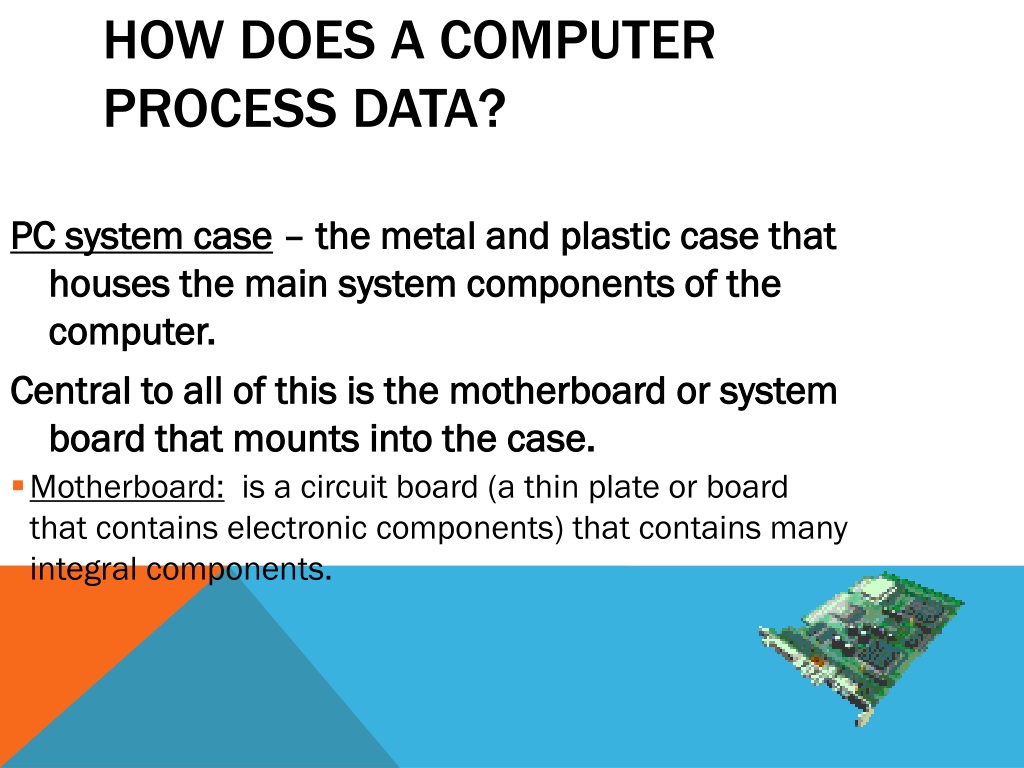

PC system case – the metal and plastic case that houses the main system components of the computer. Central to all of this is the motherboard or system board that mounts into the case. Motherboard: is a circuit board (a thin plate or board that contains electronic components) that contains many integral components. How Does A Computer Process Data?

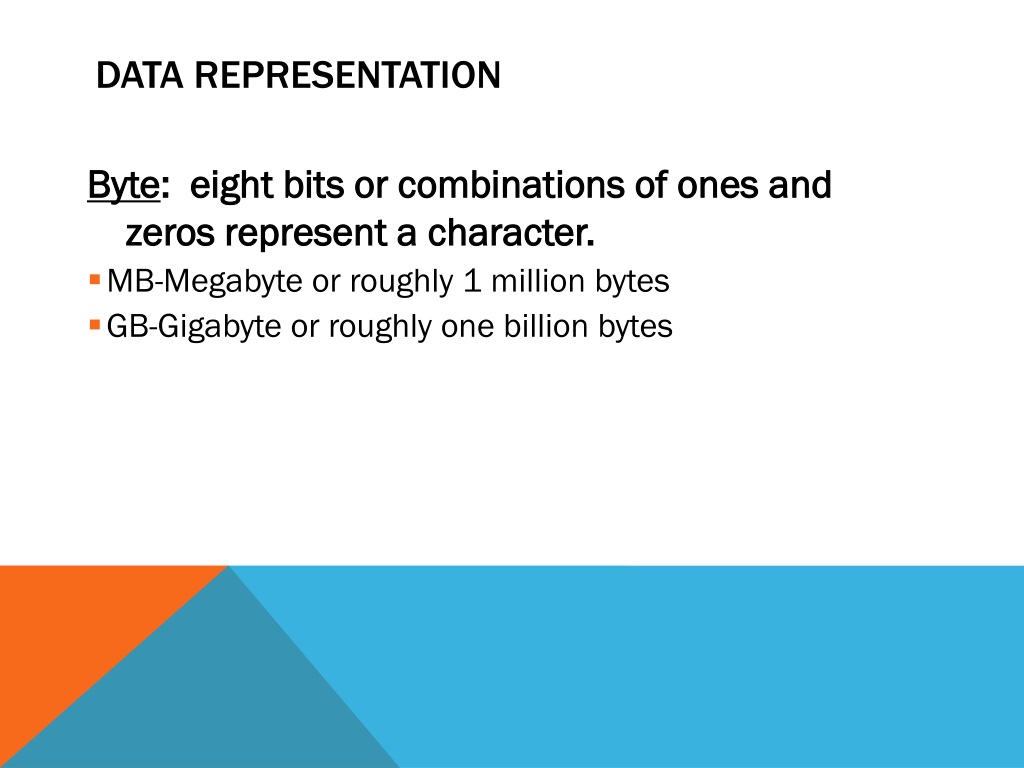

Data Representation • Byte: eight bits or combinations of ones and zeros represent a character. • MB-Megabyte or roughly 1 million bytes • GB-Gigabyte or roughly one billion bytes

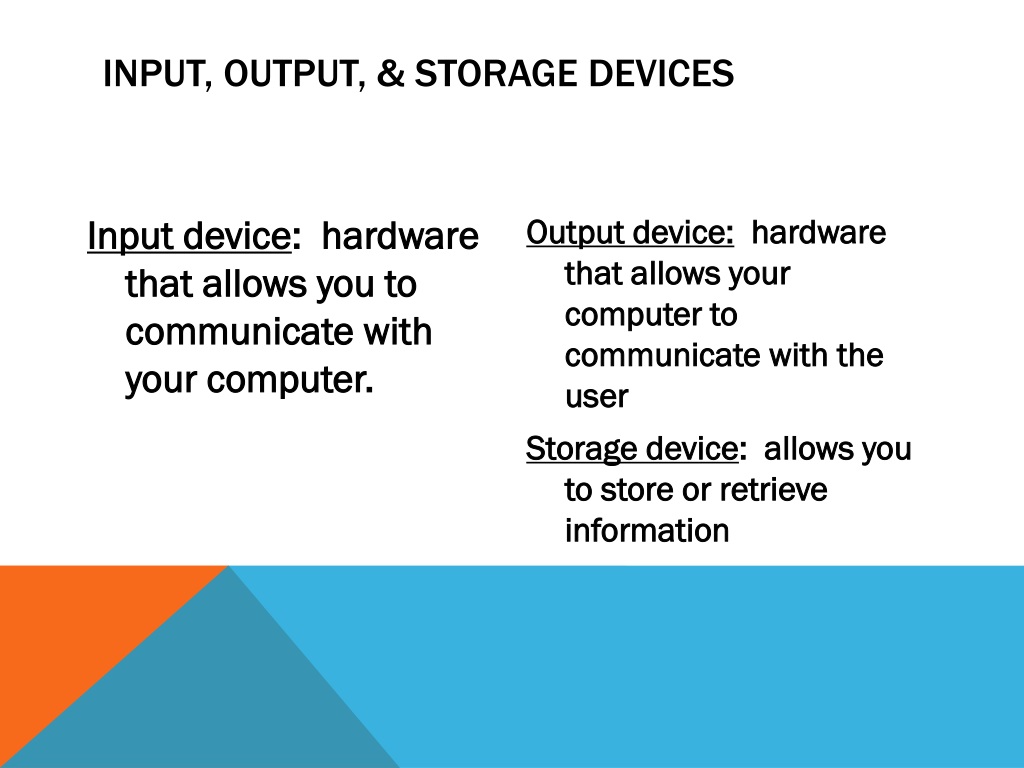

Input, Output, & Storage Devices • Output device: hardware that allows your computer to communicate with the user • Storage device: allows you to store or retrieve information • Input device: hardware that allows you to communicate with your computer.

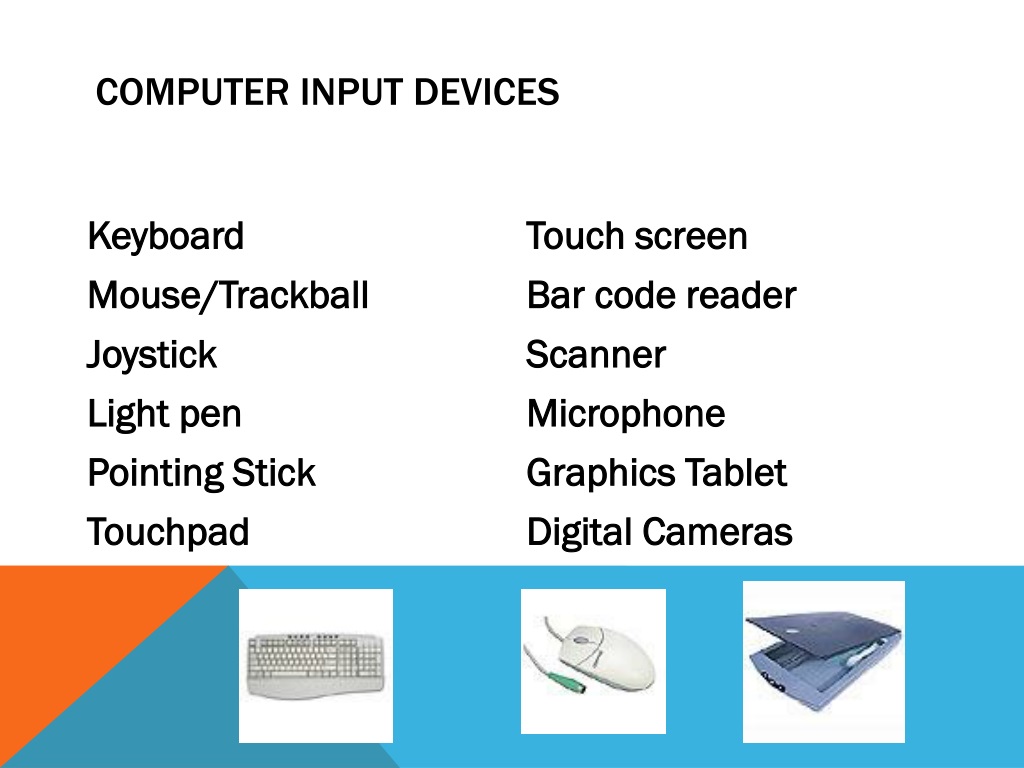

Computer Input Devices • Touch screen • Bar code reader • Scanner • Microphone • Graphics Tablet • Digital Cameras • Keyboard • Mouse/Trackball • Joystick • Light pen • Pointing Stick • Touchpad

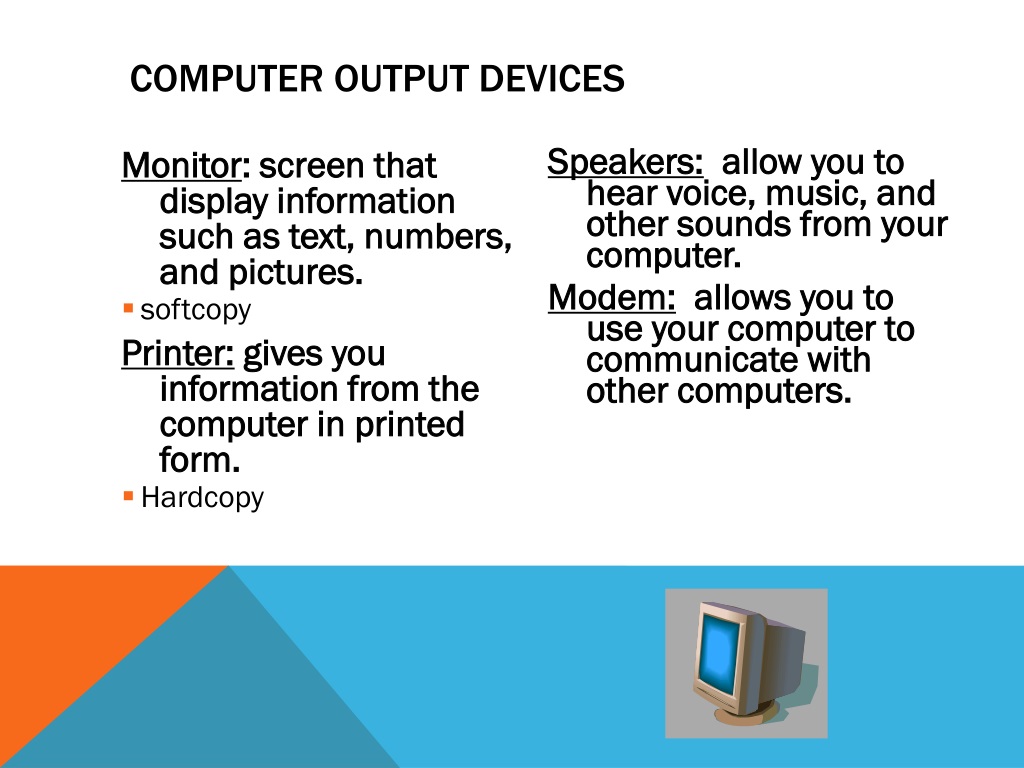

Computer Output Devices • Speakers: allow you to hear voice, music, and other sounds from your computer. • Modem: allows you to use your computer to communicate with other computers. • Monitor: screen that display information such as text, numbers, and pictures. • softcopy • Printer: gives you information from the computer in printed form. • Hardcopy

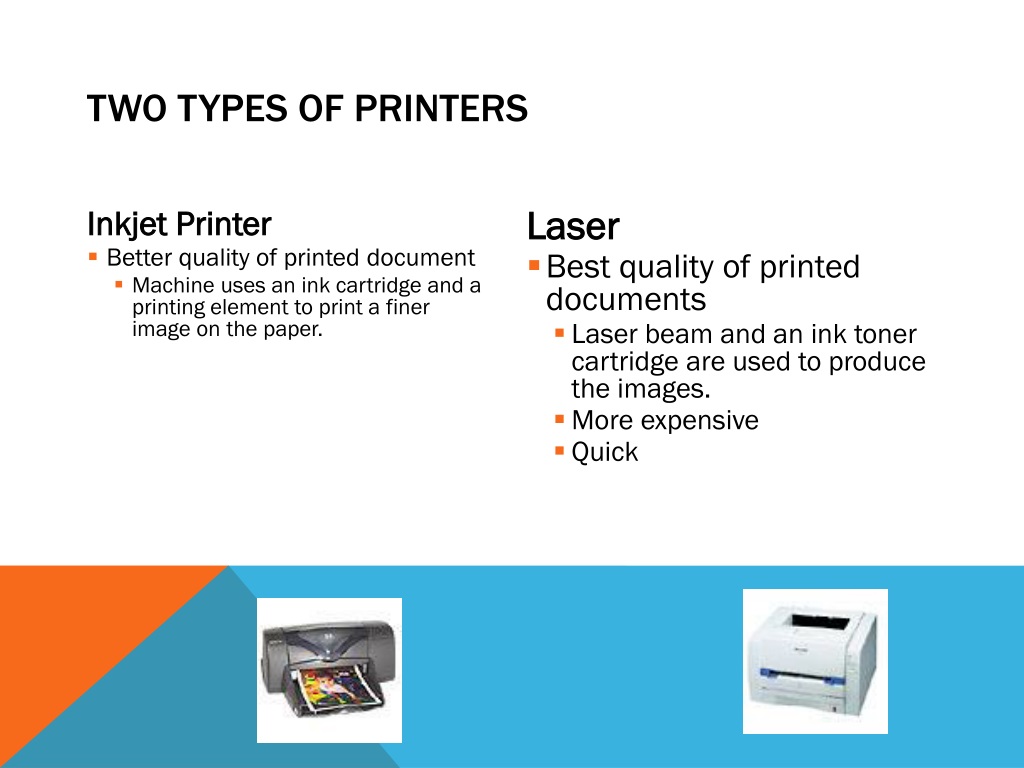

TWO Types of Printers • Laser • Best quality of printed documents • Laser beam and an ink toner cartridge are used to produce the images. • More expensive • Quick • Inkjet Printer • Better quality of printed document • Machine uses an ink cartridge and a printing element to print a finer image on the paper.

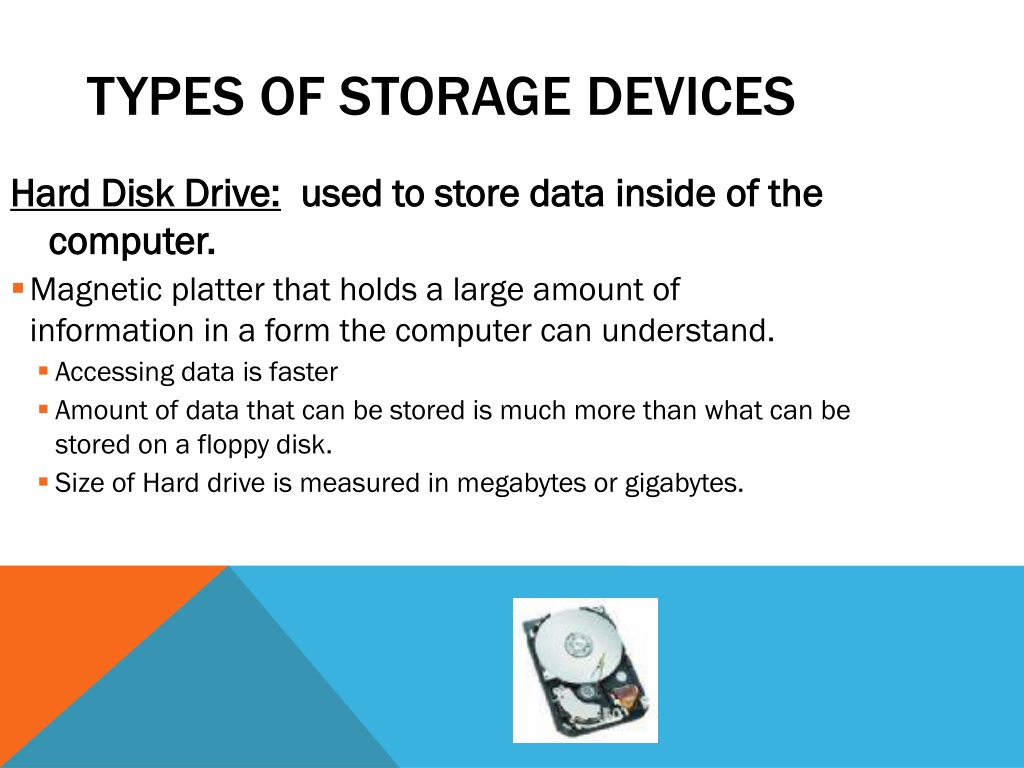

Hard Disk Drive: used to store data inside of the computer. Magnetic platter that holds a large amount of information in a form the computer can understand. Accessing data is faster Amount of data that can be stored is much more than what can be stored on a floppy disk. Size of Hard drive is measured in megabytes or gigabytes. Types of Storage Devices

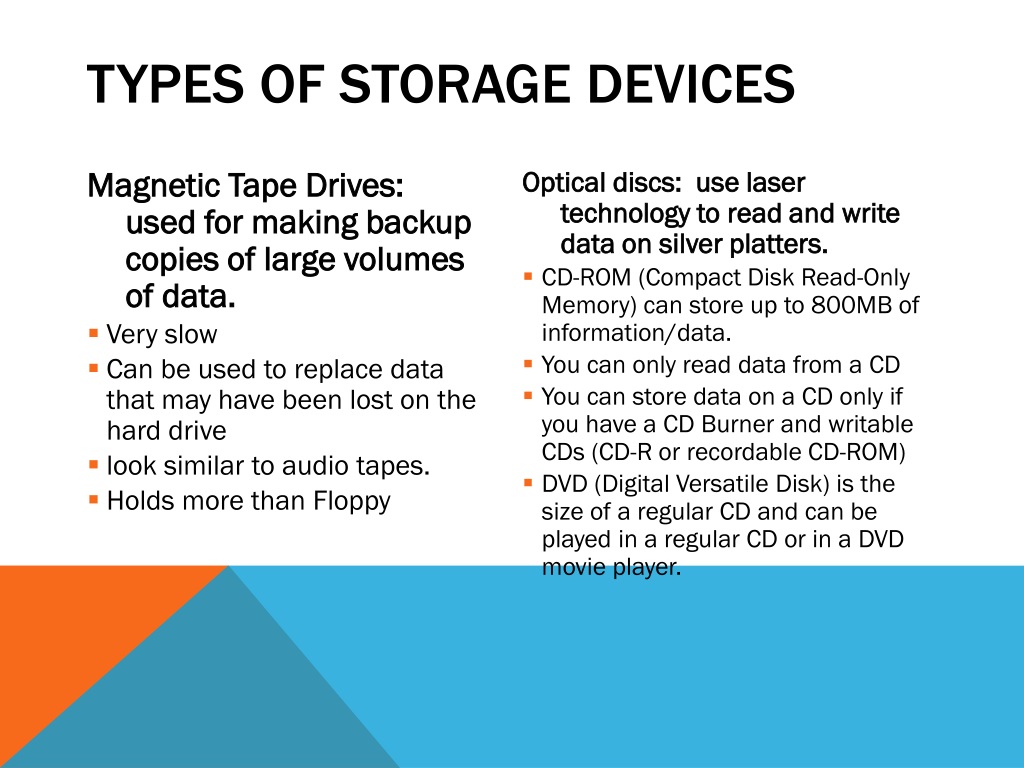

Types of Storage Devices • Optical discs: use laser technology to read and write data on silver platters. • CD-ROM (Compact Disk Read-Only Memory) can store up to 800MB of information/data. • You can only read data from a CD • You can store data on a CD only if you have a CD Burner and writable CDs (CD-R or recordable CD-ROM) • DVD (Digital Versatile Disk) is the size of a regular CD and can be played in a regular CD or in a DVD movie player. • Magnetic Tape Drives: used for making backup copies of large volumes of data. • Very slow • Can be used to replace data that may have been lost on the hard drive • look similar to audio tapes. • Holds more than Floppy

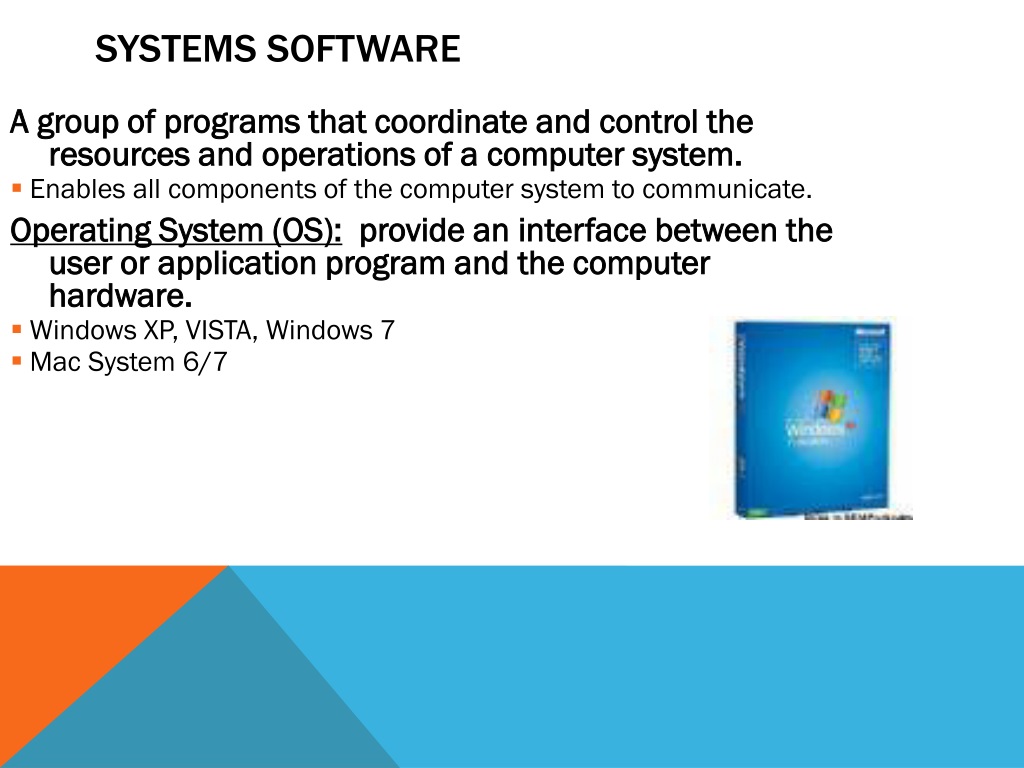

A group of programs that coordinate and control the resources and operations of a computer system. Enables all components of the computer system to communicate. Operating System (OS): provide an interface between the user or application program and the computer hardware. Windows XP, VISTA, Windows 7 Mac System 6/7 Systems Software

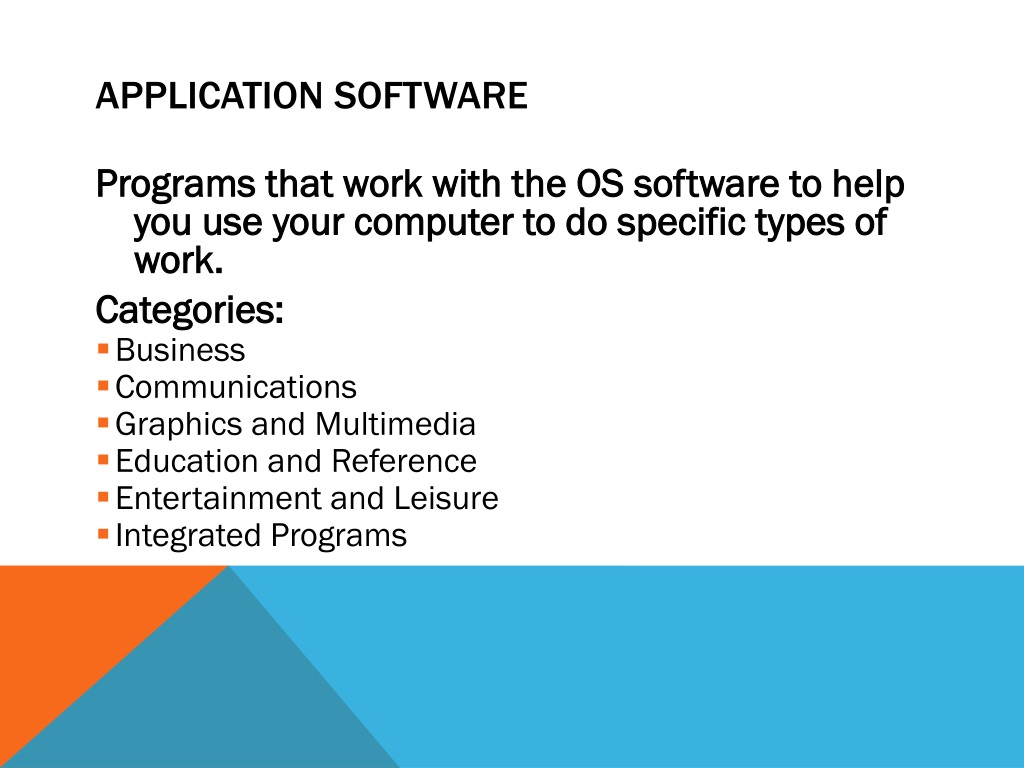

Application Software • Programs that work with the OS software to help you use your computer to do specific types of work. • Categories: • Business • Communications • Graphics and Multimedia • Education and Reference • Entertainment and Leisure • Integrated Programs

Business Software • Database • Lets you set up an electronic filing systems • Enter text and numbers • Find, search, and printer info in different ways • Address book, Card Catalog Microsoft ACCESS • Word Processing • program that allows you to create, edit, and print text documents • Report, flyer, memo Microsoft WORD • Spreadsheet • Numbered Rows and Lettered Columns Microsoft EXCEL

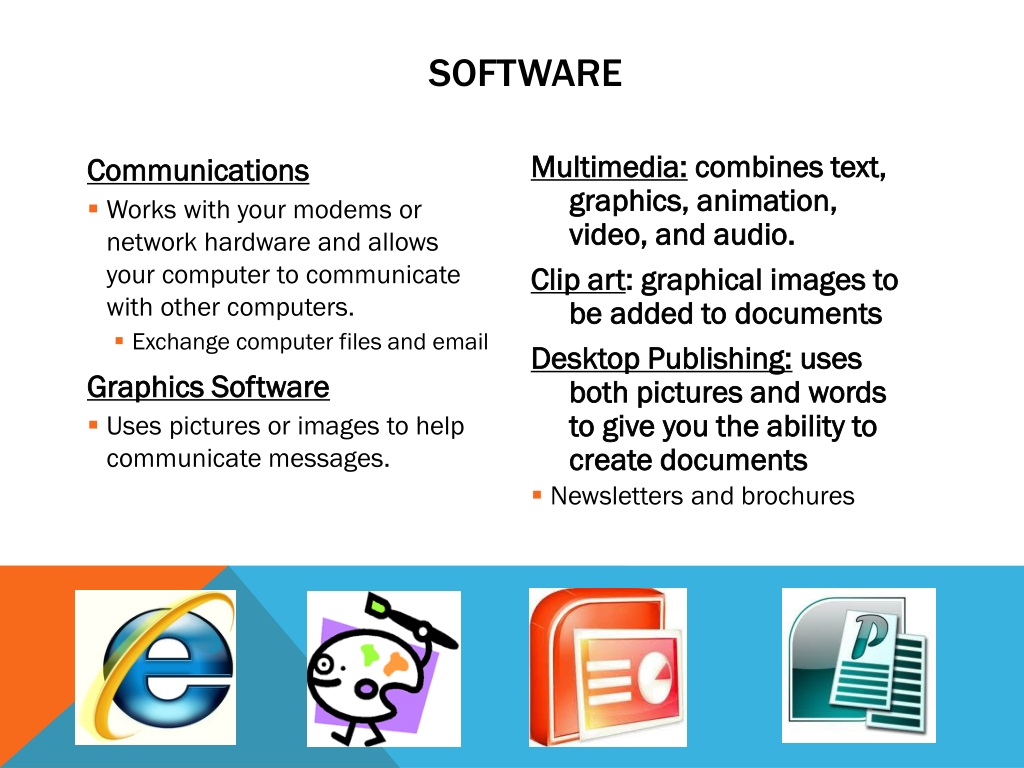

Software • Multimedia: combines text, graphics, animation, video, and audio. • Clip art: graphical images to be added to documents • Desktop Publishing: uses both pictures and words to give you the ability to create documents • Newsletters and brochures • Communications • Works with your modems or network hardware and allows your computer to communicate with other computers. • Exchange computer files and email • Graphics Software • Uses pictures or images to help communicate messages.

Integrated Software • Examples: • MS Works • MS OFFICE • Lotus SmartSuite • Combine several software applications into one program. • Include: • Work Processing • Spreadsheet • Database • Communication

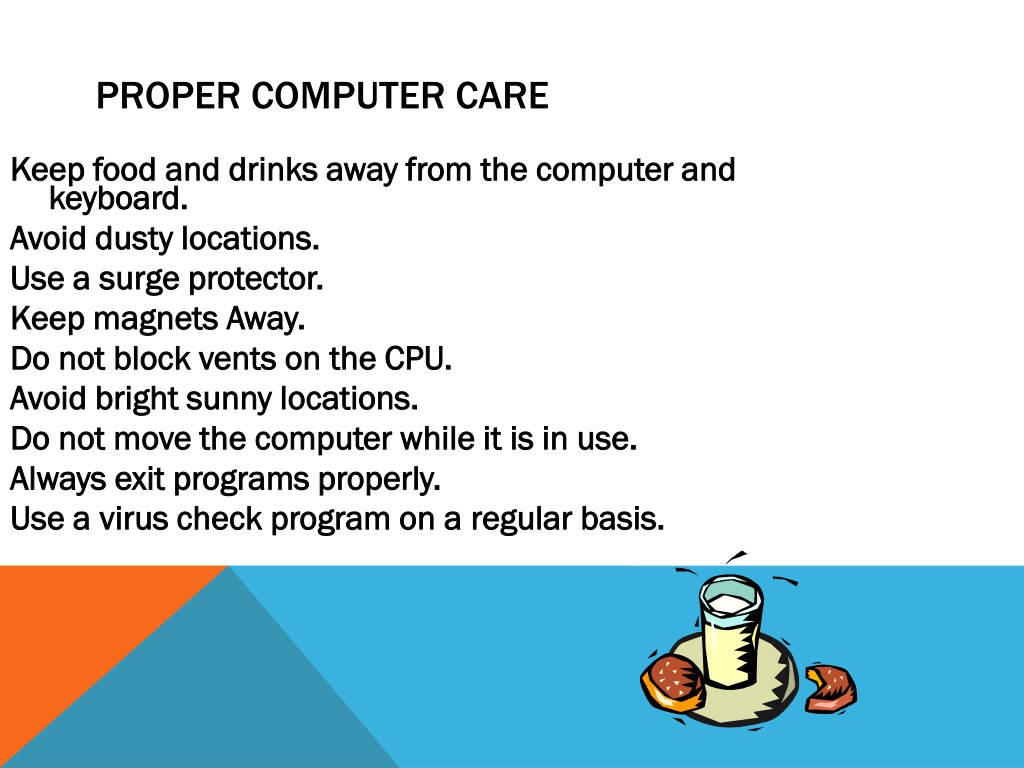

Keep food and drinks away from the computer and keyboard. Avoid dusty locations. Use a surge protector. Keep magnets Away. Do not block vents on the CPU. Avoid bright sunny locations. Do not move the computer while it is in use. Always exit programs properly. Use a virus check program on a regular basis. Proper Computer Care

Keep CDs stored in a clean, cool and dry place with a protective cover. Avoid touching the back side of the CD; to avoid scratches. Avoid hot and cold locations. Make a back-up copy of your programs and files. Insert into CD ROM Drive properly; label facing up. Only write on CD’s with a CD Marking Pen on a label or the correct side of the CD. Proper CD ROM Care

Avoid cold, hot, and dusty locations. Always use the correct ink or toner replacement. Always have the proper printer cable connected to your computer. Never pull paper out of a printer in motion. Do not turn off the printer while printing. Read the instruction manual before operating a printer. Always use the proper type of paper in your printer. Proper Care of Printers

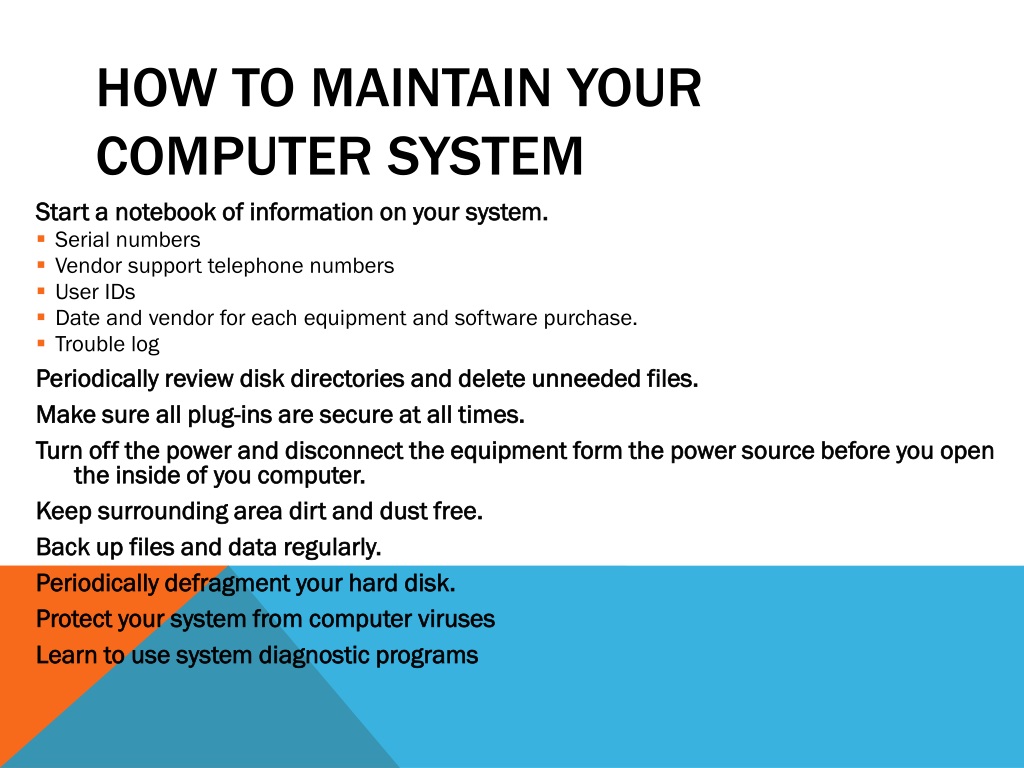

How to Maintain your Computer System • Start a notebook of information on your system. • Serial numbers • Vendor support telephone numbers • User IDs • Date and vendor for each equipment and software purchase. • Trouble log • Periodically review disk directories and delete unneeded files. • Make sure all plug-ins are secure at all times. • Turn off the power and disconnect the equipment form the power source before you open the inside of you computer. • Keep surrounding area dirt and dust free. • Back up files and data regularly. • Periodically defragment your hard disk. • Protect your system from computer viruses • Learn to use system diagnostic programs

The science of designing equipment for a comfortable and safe working environment. Proper Computer Ergonomics Sit up straight and lean forward slightly from the waist. Keep your feet flat on the floor. Your body should be about a hand’s length from the front of the keyboard and centered with the keyboard. Keep your fingers on the home row keys and curved. Keep your wrists up, not touching the keyboard or desk. Focus your eyes on the book, copy or screen. Place all materials you will type on the right side of the computer and supplies on the left side. Keep any items you are not using off your desk. Occasionally rest your eyes and take short breaks. Avoid lights that cause glare on the monitor. Ergonomics
