  1. 모니터 리프트 규격서(HML-500) Audio & Video System, Display, Conference System

  2. 1. INTRODUCTION • 1.1 Specification 2. Manual Switch & Remote-con Sensor Assembly • 1. Main lift system 3. SMPS, 12V DC • Weight : 2.8 kg • Stroke : 350mm • Max lifting weight : 10 kg • Power : SMPS DC 12V, 2.0A

  3. 2. INSTALLATION • 2.1 Product configuration Manual Switch & Remote-con Sensor Assembly • This LT2008E system includes: • 1.2.1. Main lift system • 1.2.2. Manual Switch & Remote-con Sensor Assembly • 1.2.3. SMPS, 12V DC Main lift system SMPS, 12V DC

  4. 2. INSTALLATION • 2.2 Install the main lift system using screws in the guide hole Back plate Screws

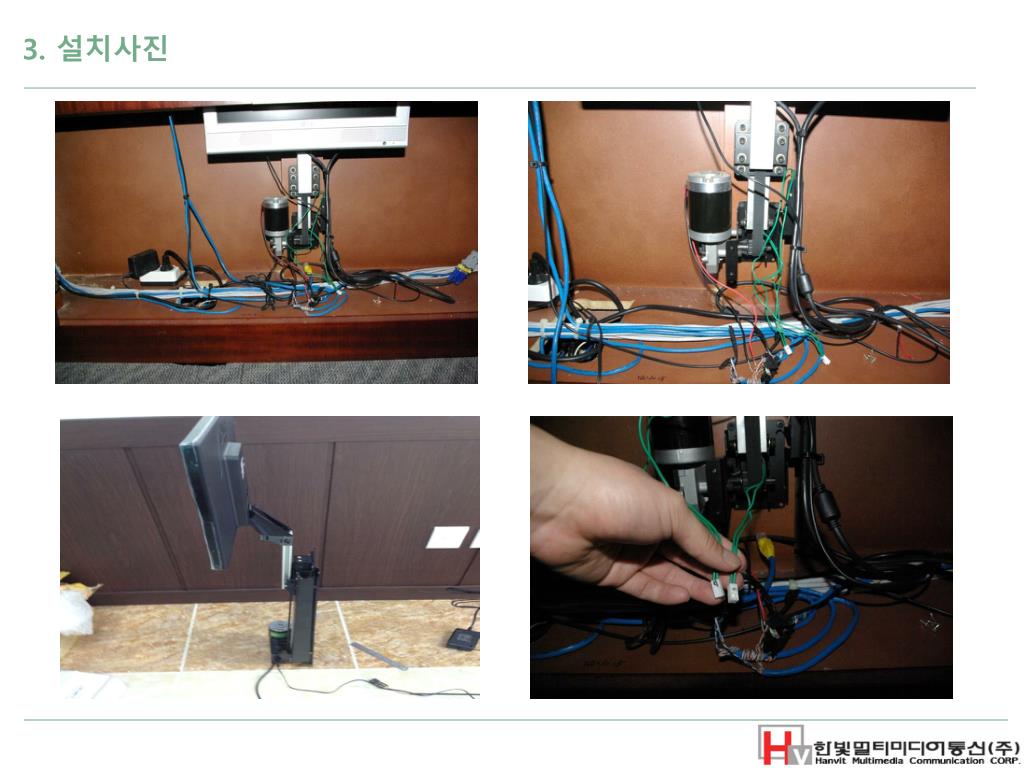

  5. 3. 설치사진

  6. 4. 시공사진 한양대 교수 회의실
