Presentation Transcript
enterprise javabeans

Enterprise JavaBeans

By Yung-Chien Chen

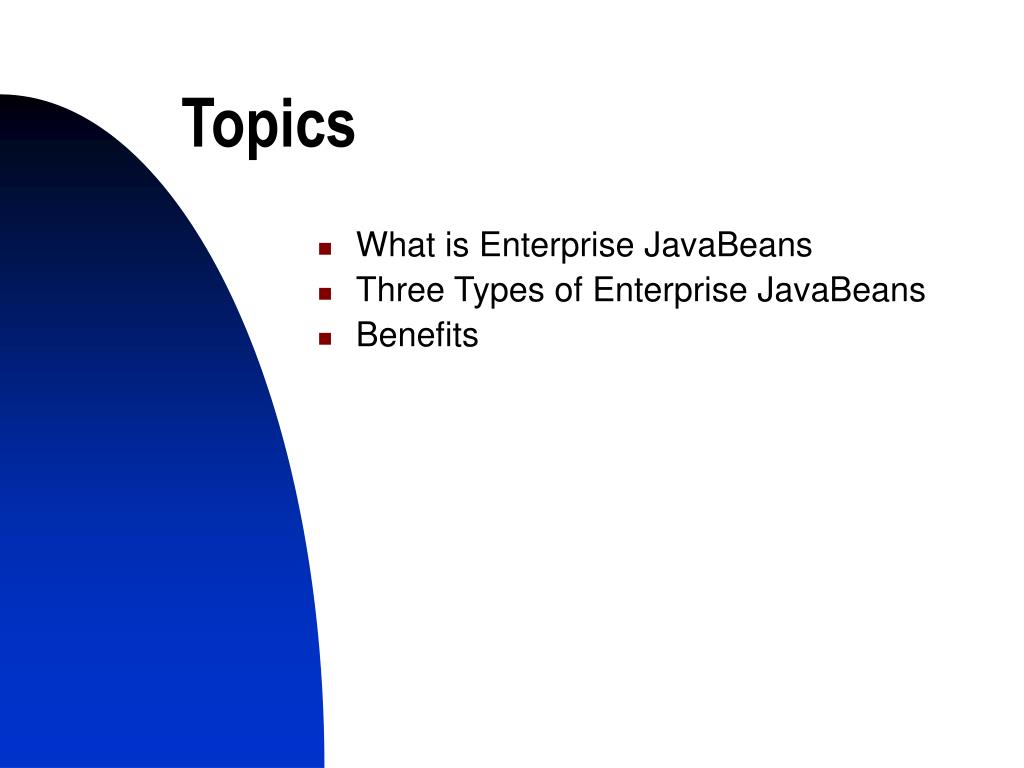

topics
Topics
  • What is Enterprise JavaBeans
  • Three Types of Enterprise JavaBeans
  • Benefits

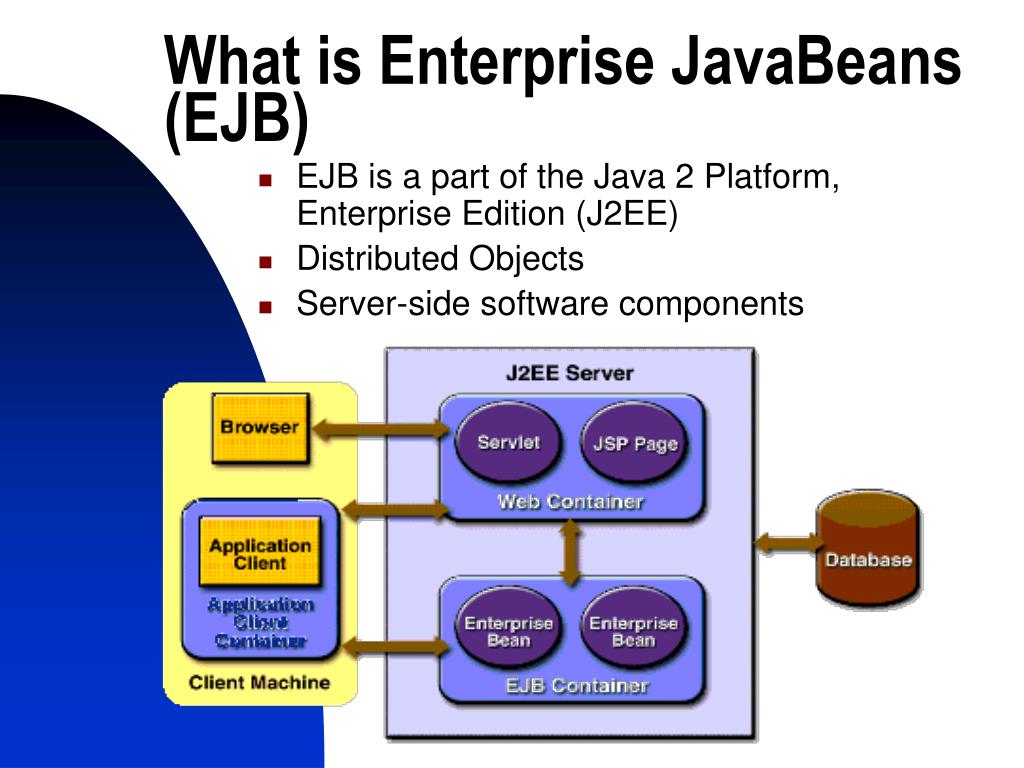

what is enterprise javabeans ejb
What is Enterprise JavaBeans (EJB)
  • EJB is a part of the Java 2 Platform, Enterprise Edition (J2EE)
  • Distributed Objects
  • Server-side software components
j2ee application server api stack
J2EE Application Server API Stack
  • EJB – Enterprise Java Beans
  • RMI and RMI-IIOP
  • JNDI – Java Naming and Directory Interface
  • JDBC – Java Database Connectivity
  • JTA – Java Transaction API
  • JMS – Java Messaging Service
  • Java Servlets
  • JSP – Java Server Pages
  • Java IDL
  • JavaMail
  • JCA – Java Connector Architecture
  • JAXP – Java API for XML Parsing
  • JAAS – Java Authentication and Authorization Service
three types of ejb
Three Types of EJB
  • Session Beans
    • Actions by remote method invocation
  • Entity Beans
    • Data Objects
  • Message-Driven Beans
    • Actions by messaging

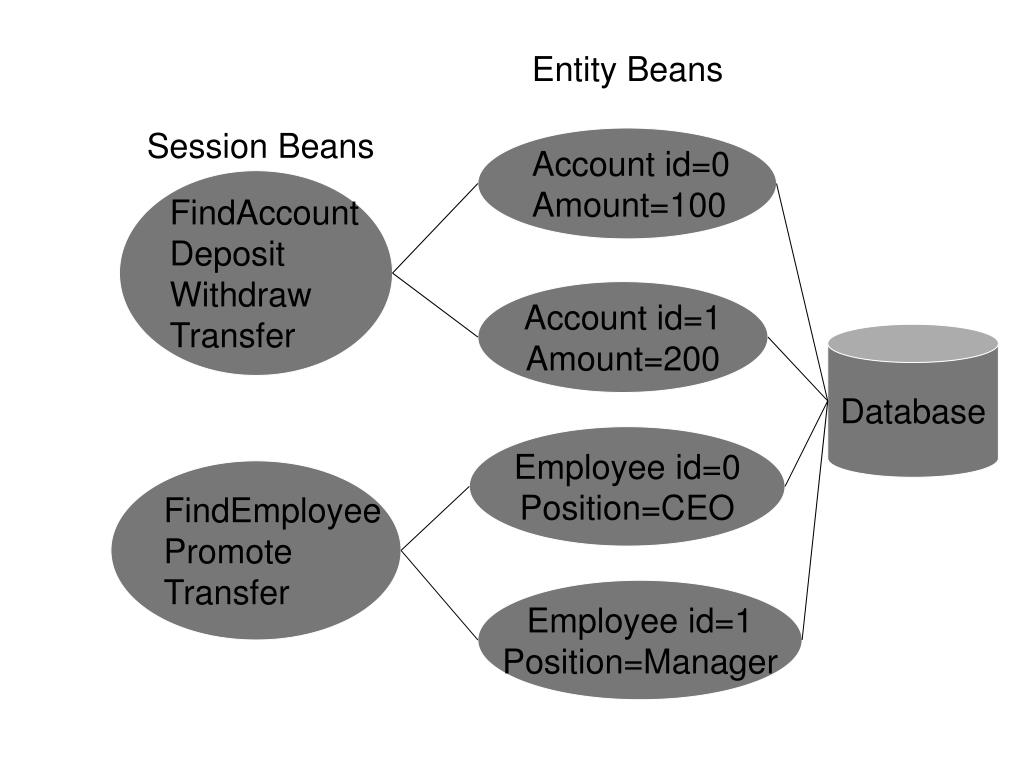

slide7

Entity Beans

Session Beans

Account id=0

Amount=100

FindAccount

Deposit

Withdraw

Transfer

Account id=1

Amount=200

Database

Employee id=0

Position=CEO

FindEmployee

Promote

Transfer

Employee id=1

Position=Manager

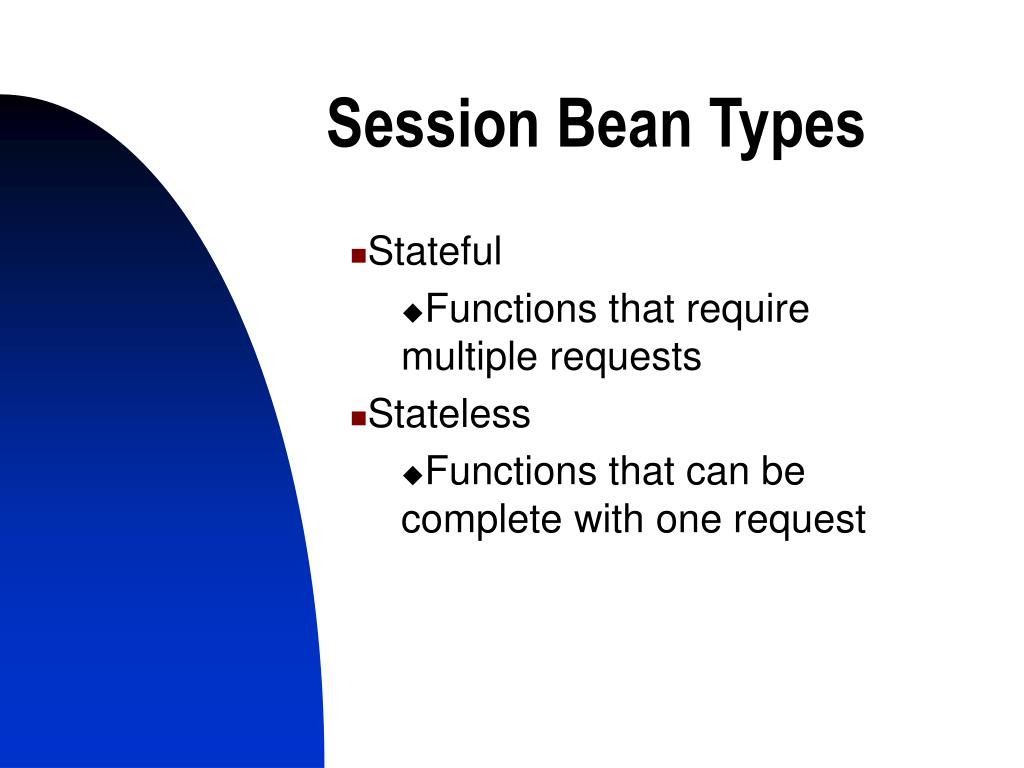

session bean types
Session Bean Types
  • Stateful
    • Functions that require multiple requests
  • Stateless
    • Functions that can be complete with one request
two ways to persist entity beans
Two Ways to Persist Entity Beans
  • Bean-Managed Persistence
    • developer writes code to perform persistent operations
  • Container-Managed Persistence
    • EJB Container generates data access code base on deployment descriptor
    • Harder to debug
message domains
Message Domains
  • Publish/subscribe
  • Point-to-Point

Producer 1

Consumer 1

Topic

Producer 2

Consumer 2

Producer 1

Queue

Consumer 1

Producer 2

components of a ejb
Components of a EJB
  • Bean class
  • Remote Interface
  • Home Interface
  • Local Interface
  • Local Home Interface
  • Deployment Descriptor
  • Vendor-Specific File

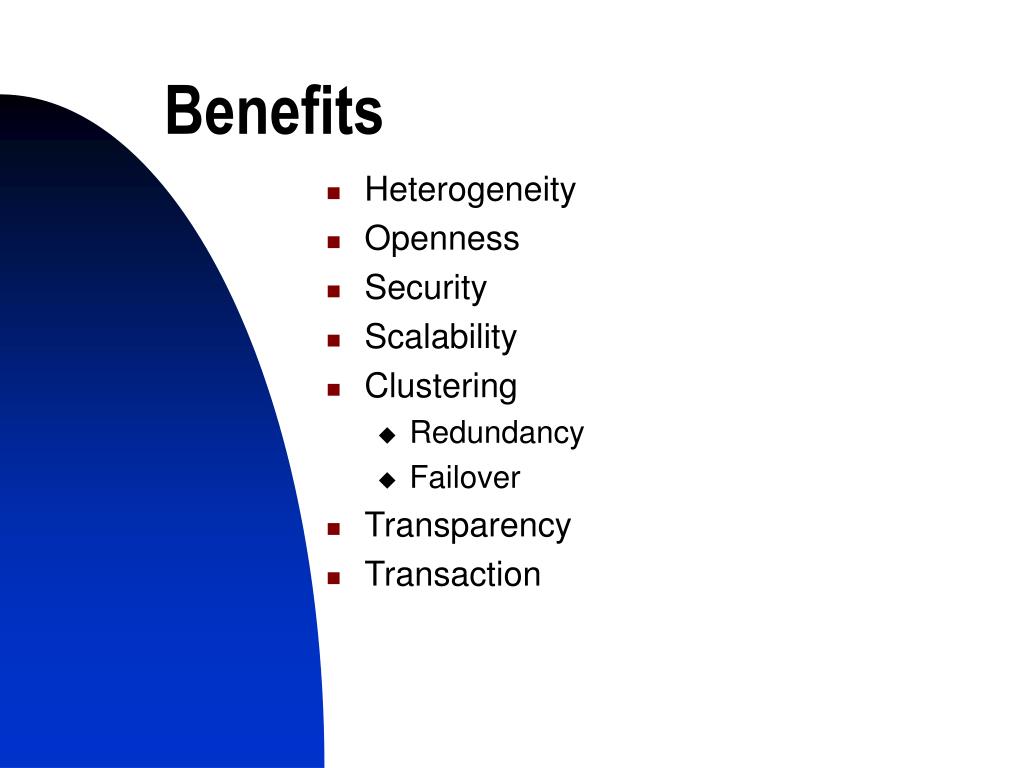

benefits
Benefits
  • Heterogeneity
  • Openness
  • Security
  • Scalability
  • Clustering
    • Redundancy
    • Failover
  • Transparency
  • Transaction
