This guide outlines the process of developing a dress pattern using Gerber software, starting with a standard KL dress block. We will distribute darts along the neckline to create extra fullness for gathers. Learn to combine and merge the neckline smoothly while adjusting both neckline and armhole with a 2-Point Curve. Discover how to add variable fullness at the center front (CF) and center back (CB) for gathering effects. Finally, we will smooth the pattern, delete unnecessary lines, and add seam allowances to create a polished garment design.
E N D

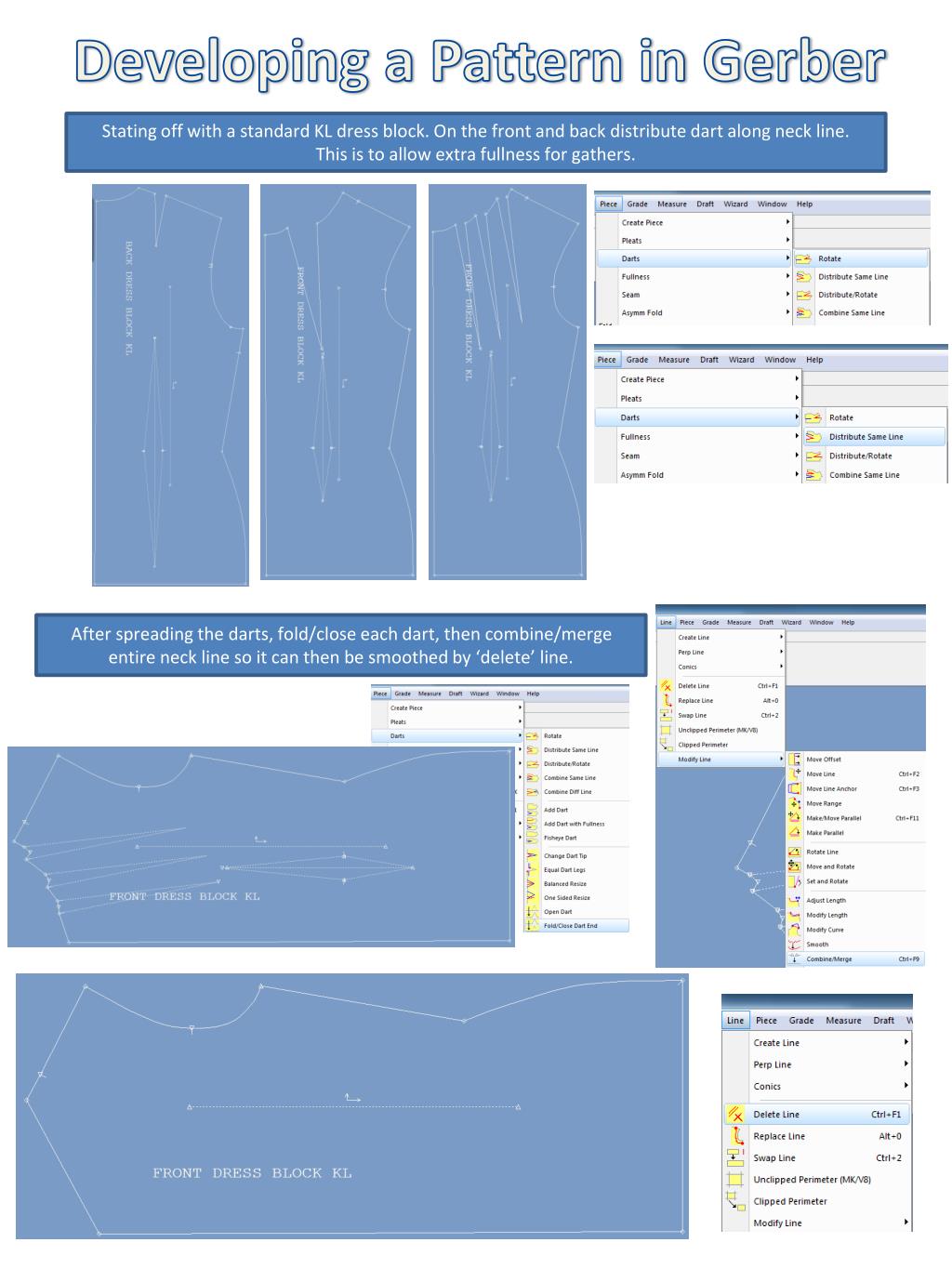

Developing a Pattern in Gerber Stating off with a standard KL dress block. On the front and back distribute dart along neck line. This is to allow extra fullness for gathers. After spreading the darts, fold/close each dart, then combine/merge entire neck line so it can then be smoothed by ‘delete’ line.
Adjusting the neckline with a 2 Point Curve Adjusting armhole with a 2 Point Curve Trace off new dress shape. Now to add variable fullness to give the dress extra fabric at the CF and CB for gather..
To smooth off pattern, like before, combine/merge, ‘delete’ line and then proceed to modify both neckline and hemline for desired shape. Add 1cm Seam allowance all around the garment except for CB/CF line and hem line which is 2cm. These lines is the mirror line of the garment.
