  1. Climate models and open source software Andy Pitman and Steven Phipps Climate Change Research Centre University of New South Wales

  2. Background • The Earth’s climate is changing

  3. Background 385 ppmv – increased from 280 in ~100 years 260-280 ppmv over 10,000 years

  4. Temperature • Continued greenhouse gas emissions at or above current rates would cause further warming - very likely larger than those observed during the 20th century. 2008 2007 2006 2005

  5. How do we know ? • Observations • radiation changes • temperature changes • pressure, humidity, acidity etc • Basic theory • Backs of envelopes … and • Climate models

  6. Climate models • Mathematical representations of • Atmosphere • Ocean • Terrestrial surface • Cryosphere • Fluxes of energy, mass and carbon between these systems

  7. Climate Modelling Governing equations Forcing conditions Initial conditions Model output

  8. Three-Dimensional Climate Models (GCM)

  9. Climate models • ~300 x 300 km grid • ~20 vertical levels in atmosphere, 30 in ocean • 300,000 grid points • Solves basic dynamics equations, parameterizes physics • Solve all equations with a ~15 minute timestep for 200 year integrations • Something like 2 x 1018 calculations per run

  10. Climate models work Rainfall [annual] Which is observed and which is modelled ?

  11. Climate models

  12. Climate models • Written in Fortran • Mainly f95 or f90, some f77 • best language [efficiency and safety] • python, c, other wraps • Mostly written by scientists not software engineers • Cannot [usefully] re-write in other languages • Run on NCI, or similarly large systems – main rationale for a Pflop system in Australia • Generate ~5 Tb per run. Data sets now > 1 Pbyte

  13. Why ? • Not resourced or requested to provide this code in suitable standard • Costs of supporting open source • hardware compatibility • complier variability, • user support problems • Code maintenance • Dispute resolution/managing expectation • It’s a myth that climate modeling groups are well resourced … • Many climate models are variants of forecasting systems – commercial value

  14. Why ? • Groups sometimes associated with defense departments • Culture • Fear of inappropriate use • IP concerns • Unwillingness to be exposed to independent evaluation • Strategic issues with best models • Why would you provide open source ?

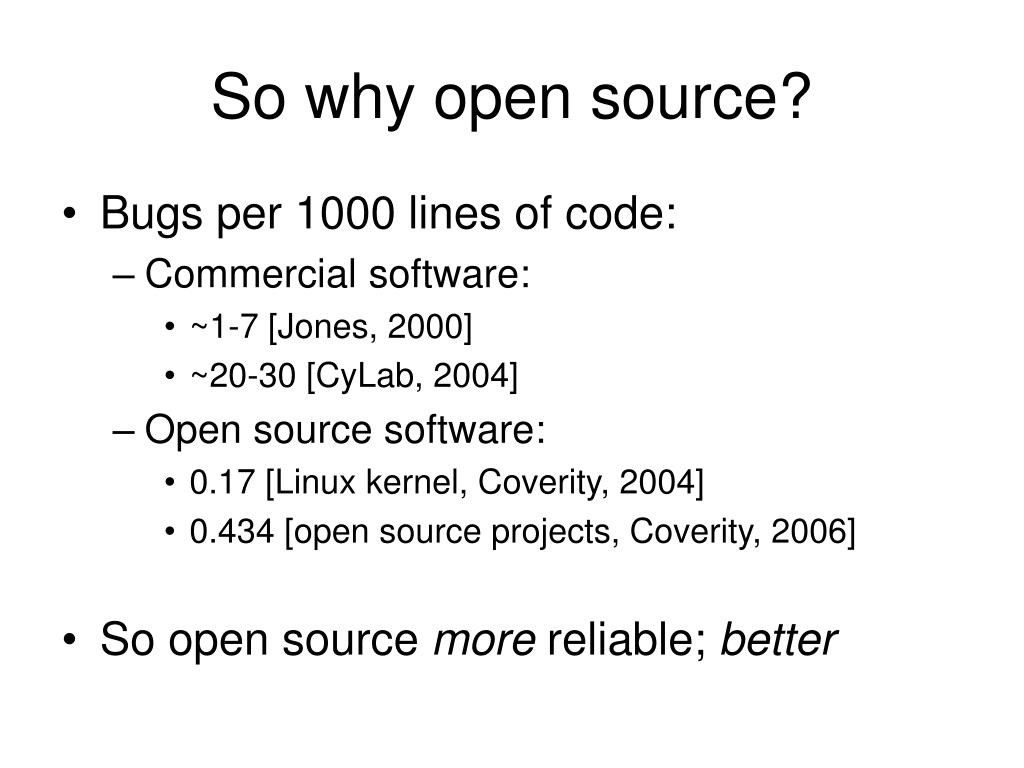

  15. So why open source? • Bugs per 1000 lines of code: • Commercial software: • ~1-7 [Jones, 2000] • ~20-30 [CyLab, 2004] • Open source software: • 0.17 [Linux kernel, Coverity, 2004] • 0.434 [open source projects, Coverity, 2006] • So open source more reliable; better

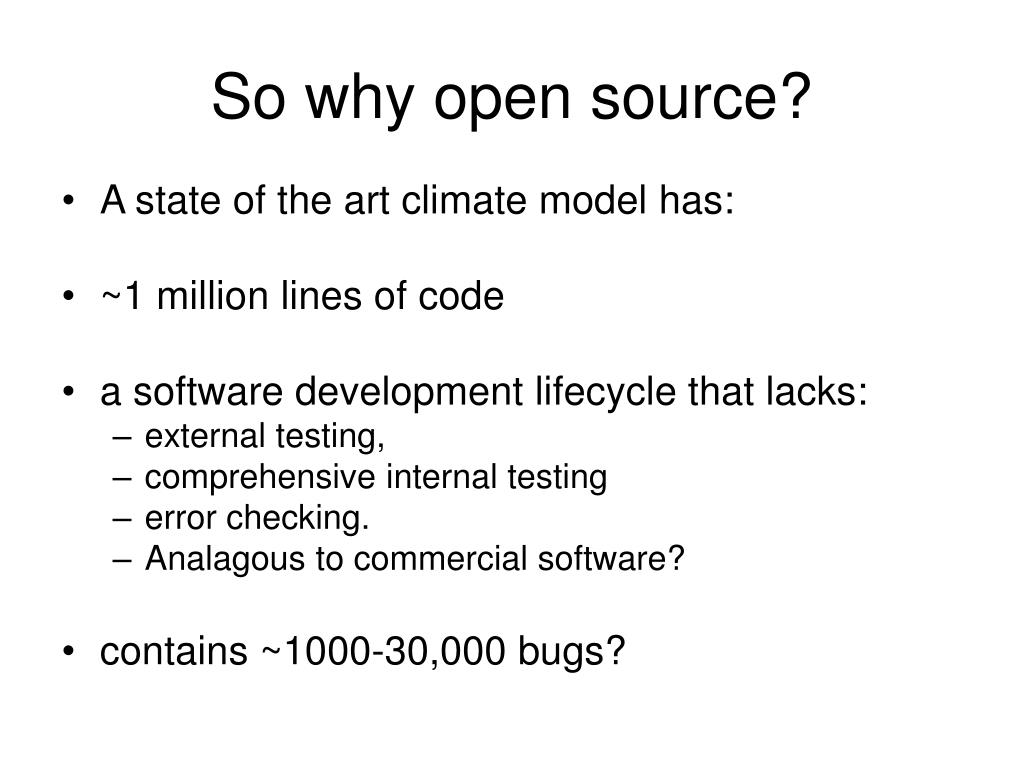

  16. So why open source? • A state of the art climate model has: • ~1 million lines of code • a software development lifecycle that lacks: • external testing, • comprehensive internal testing • error checking. • Analagous to commercial software? • contains ~1000-30,000 bugs?

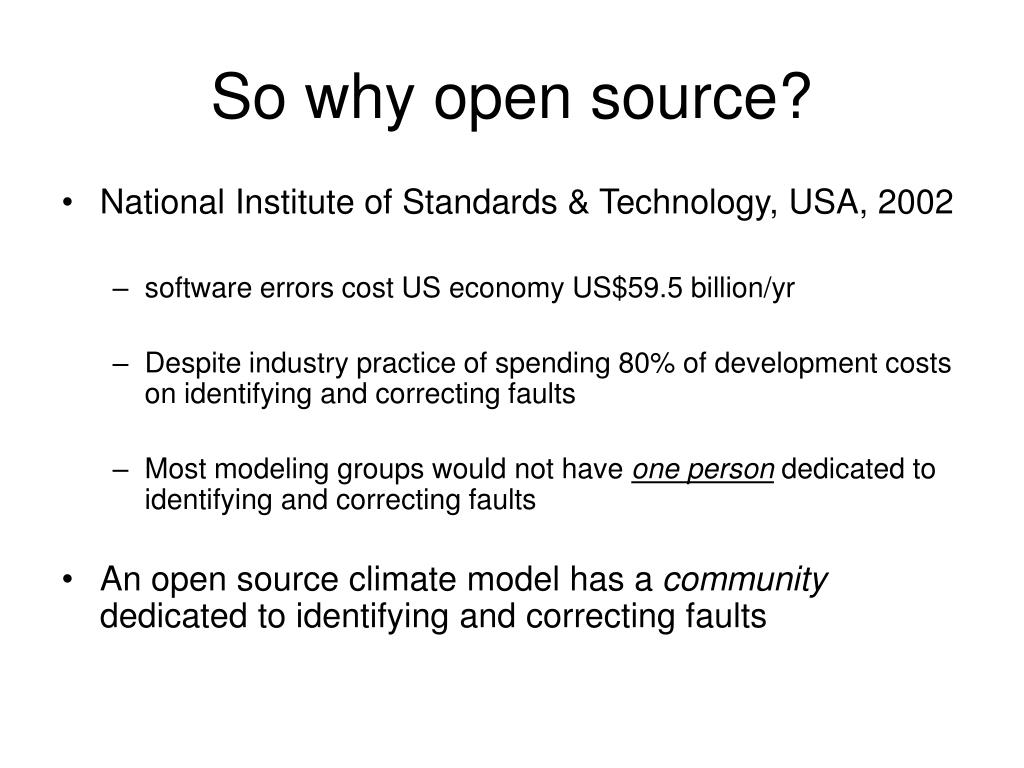

  17. So why open source? • National Institute of Standards & Technology, USA, 2002 • software errors cost US economy US$59.5 billion/yr • Despite industry practice of spending 80% of development costs on identifying and correcting faults • Most modeling groups would not have one person dedicated to identifying and correcting faults • An open source climate model has a community dedicated to identifying and correcting faults

  18. The climate model challenge • More components • Longer simulations • Finer spatial and temporal resolution • Serious computational challenges • 6 months to port to new computer system • Super computer time valuable

  19. What I want … • model test plans with pre-defined performance • Software developers know how … • Code developed in a F95 via subversion • You are welcome to try • Simple and elegant scripting • Suggestions welcomed • Tools to slice and dice netCDF • Talk to the modelers – embed in R • Enhancements to openDAP … • Implementation of agreed coding standards

  20. Summary • Climate models have been developed over 20 years – with IT systems engineers in some cases • Few are open source – those that are were commonly developed with IT engineers • Hard to contribute – cannot ad hoc – little low hanging fruit • But a commitment in this area can be an invaluable contribution over time. Needs to be based on a dialog with the modelers
