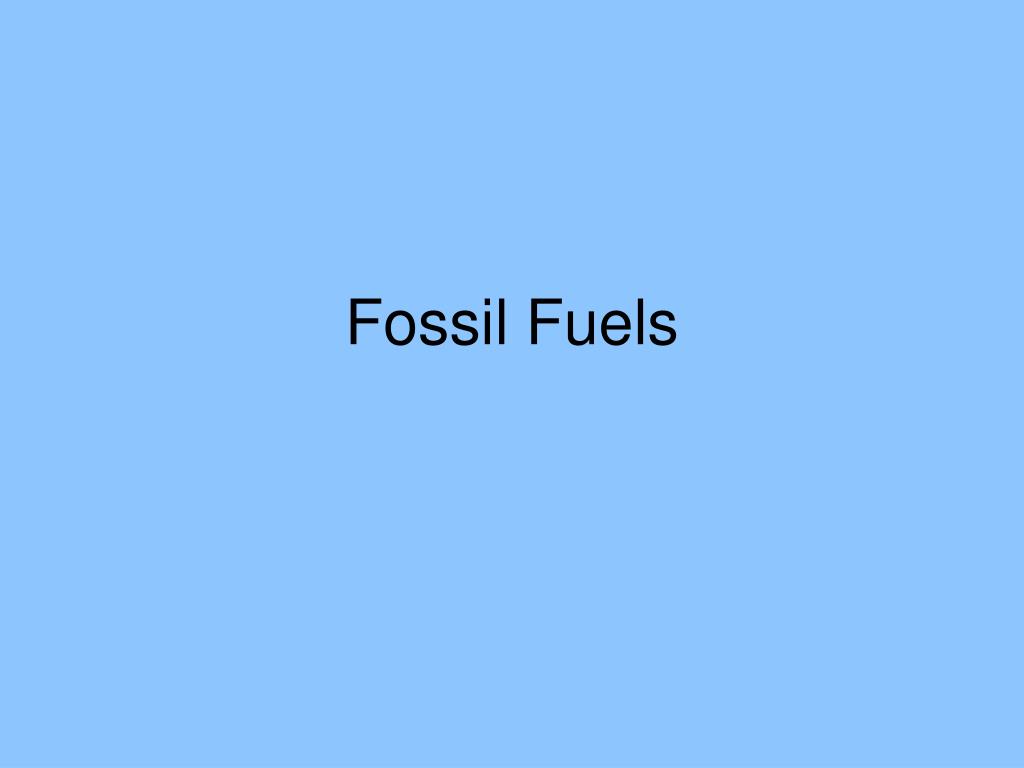

  1. Fossil Fuels

  2. Energy Production using Steam http://ga.water.usgs.gov/edu/wupt-coalplant-diagram.html Many power plant use steam to turn generators. Water is heated by burning fossil fuels or through nuclear reaction, and when the water boils, steam is produced. The steam is then fed through the turbines, forcing them to rotate.

  3. Fossil Fuels… … include coal, oil (from petroleum/crude oil), natural gas, tar sands, and oil shale. … formed over a period of time from compressed vegetation and other organisms. … are considered nonrenewable resources. Why?

  4. Coal • Coal is the most abundant and least expensive of the fossil fuels. • It is also the most popular, accounting for almost 40 per cent of the total worldwide power generation. www.freedigitalphotos.net

  5. Coal is a rock consisting almost entirely of organic material www.freedigitalphotos.net

  6. Today’s coal formed from prehistoric vegetation that accumulated thousands of years ago when much of the Earth's surface was covered in swamps. As the plants and trees in these swampy areas began to die, their remains sank into the swamp land, which eventually formed a dense material called peat. During this time there were huge forests of mosses, horsetails, and tree ferns The great “coal” forests www.freedigitalphotos.net

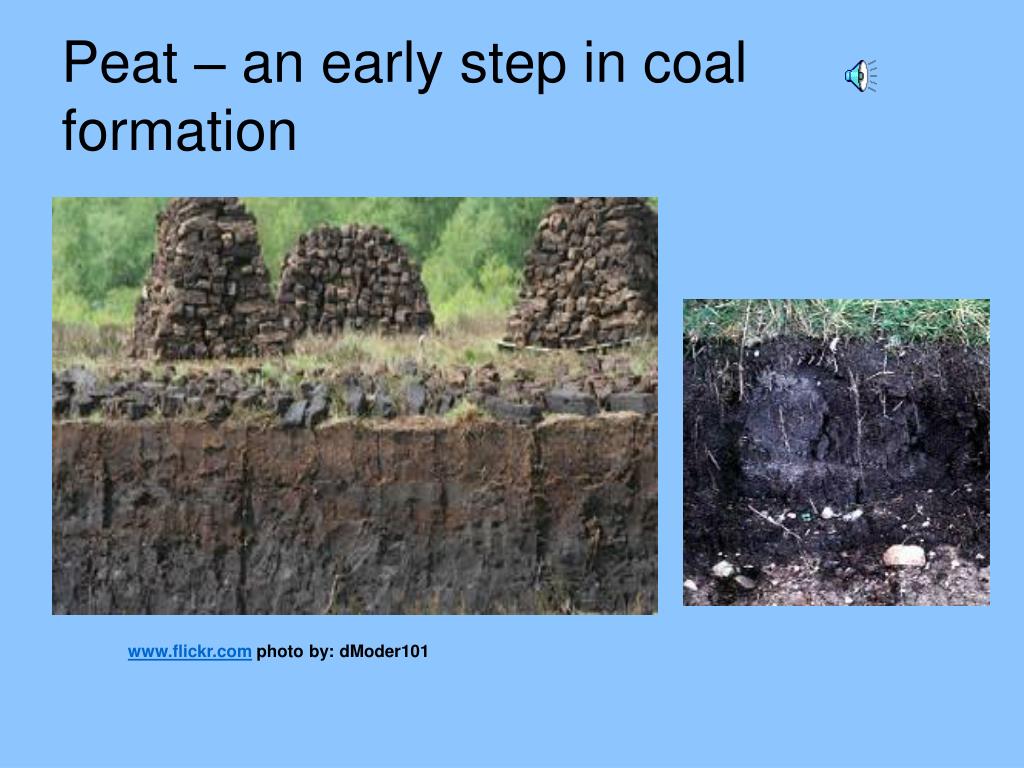

  7. Peat – an early step in coal formation www.flickr.com photo by: dModer101

  8. Peat only forms where there are low oxygen conditions, such as in this damp low spot on a swamp or bog. Bodies don’t decay in bogs very well – as you can tell! A good place to look for peat formation … www.flickr.com by: LonePine Bog Man www.flickr.com by: saamiblog

  9. The Coal Formation Process … • The organic matter accumulates and forms a bed of peat. • The peat bed gets buried by other sediments and under heat and pressure begins to transform to a low grade coal known as lignite. • More heat and pressure further change the lignite into bituminous coal. • Even more heat and pressure change the bituminous coal into a nice hard shiny anthracite coal.

  10. The Steps of Coal Formation… www.uky.edu

  11. U.S. Coal Deposits … www.usgs.gov

  12. Is coal being made now? • Coal formation is a continuing process, however large deposits of sediment are no longer covering swamp lands as in the past! • Today, in areas such as the Great Dismal Swamp of North Carolina and Virginia, the Okefenokee Swamp of Georgia, and the Everglades in Florida, plant life decays and subsides, eventually to be covered by silts and sands, and other matter. • Perhaps many years from now, those areas will contain large coal beds. The Florida Everglades www.flickr.com by: Surrealplaces

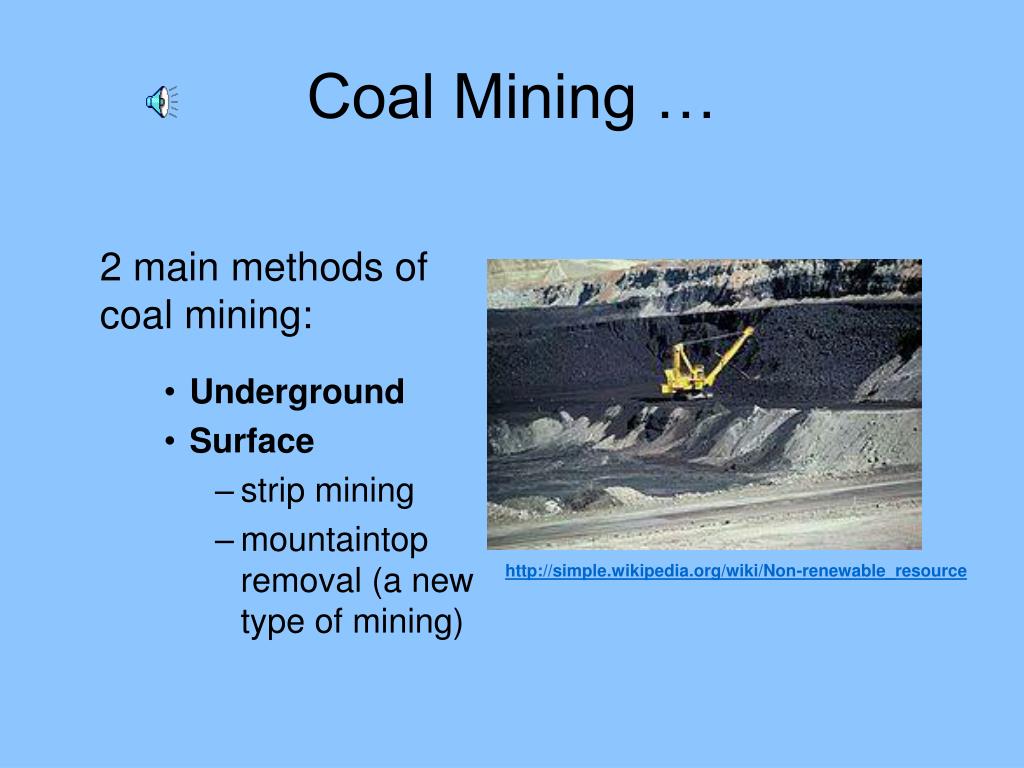

  13. Coal Mining … 2 main methods of coal mining: • Underground • Surface • strip mining • mountaintop removal (a new type of mining) http://simple.wikipedia.org/wiki/Non-renewable_resource

  14. Coal mining has always been a dirty, dangerous job. http://hewit.unco.edu/dohist/mining/work/coal/photo1.htm

  15. A coal seam exposed by mining http://pl.wikipedia.org/wiki/Riese

  16. Strip mining coal

  17. Mountaintop Removal – a large scale type of coal mining www.flickr.com by : Mr. Stabile What effect does this type of mining have on the environment?

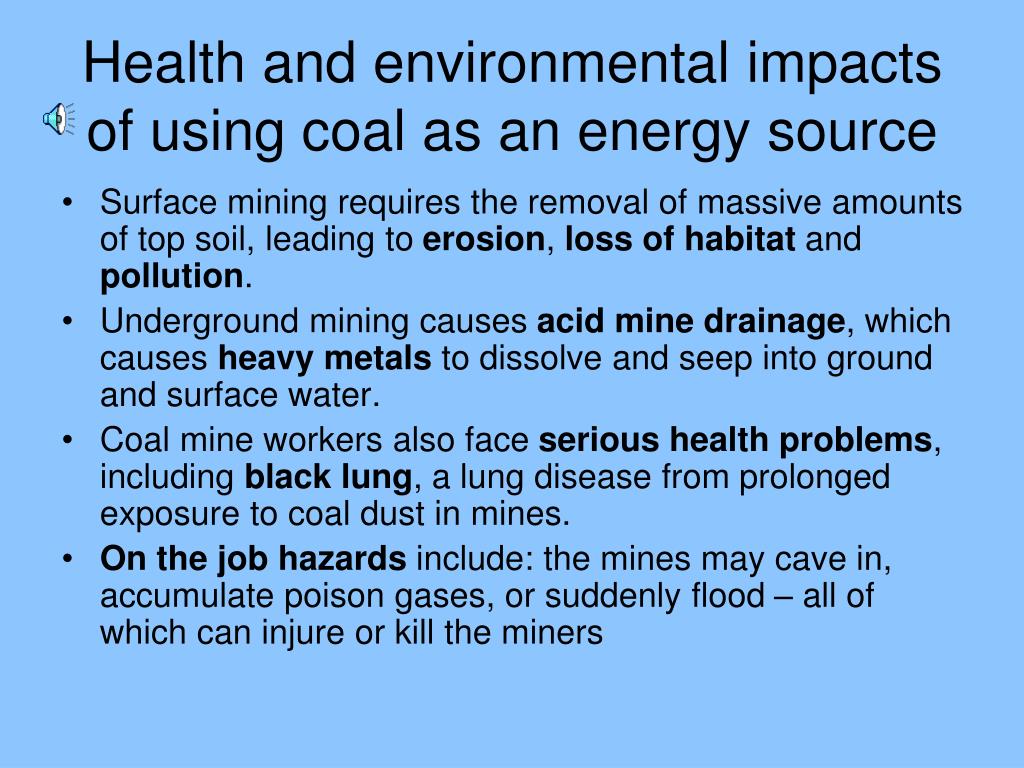

  18. Health and environmental impacts of using coal as an energy source • Surface mining requires the removal of massive amounts of top soil, leading to erosion, loss of habitat and pollution. • Underground mining causes acid mine drainage, which causes heavy metals to dissolve and seep into ground and surface water. • Coal mine workers also face serious health problems, including black lung, a lung disease from prolonged exposure to coal dust in mines. • On the job hazards include: the mines may cave in, accumulate poison gases, or suddenly flood – all of which can injure or kill the miners

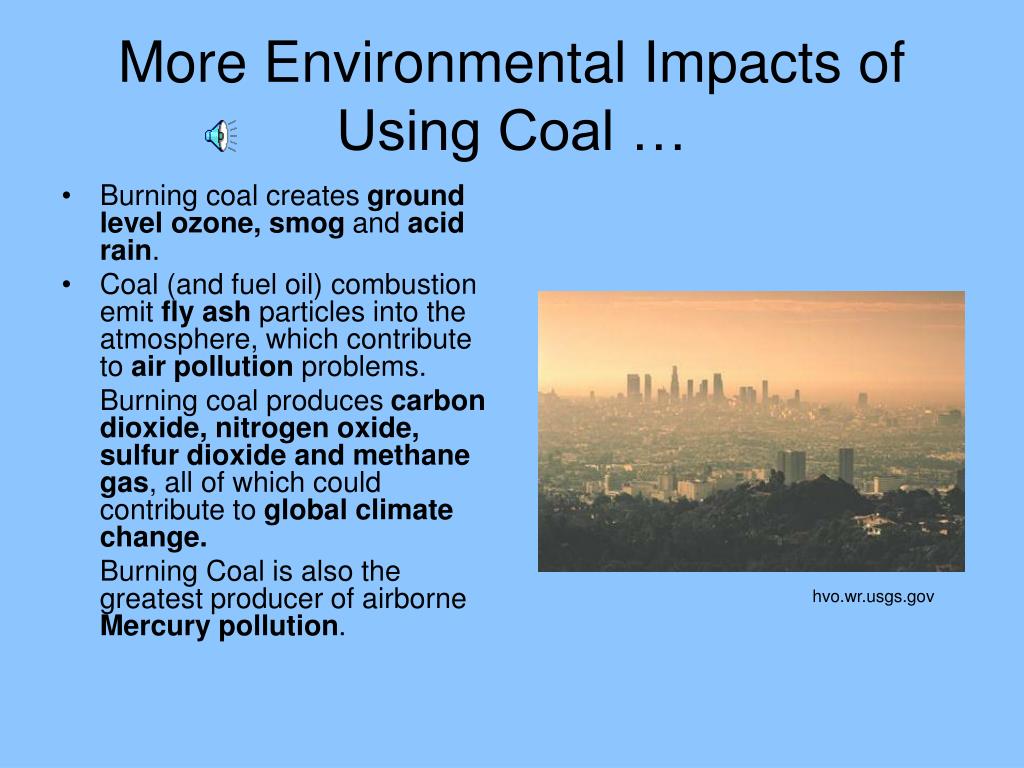

  19. More Environmental Impacts of Using Coal … • Burning coal creates ground level ozone, smog and acid rain. • Coal (and fuel oil) combustion emit fly ash particles into the atmosphere, which contribute to air pollution problems. Burning coal produces carbon dioxide, nitrogen oxide, sulfur dioxide and methane gas, all of which could contribute to global climate change. Burning Coal is also the greatest producer of airborne Mercury pollution. hvo.wr.usgs.gov

  20. Natural Gas… A natural gas well www.flickr.com by: United States Government Work

  21. Natural gas … • Formed from the remains of tiny sea animals and plants that died thousands of years ago. (Same process that formed petroleum.) • The gas became trapped in the rock layers much like a wet household sponge traps water. • Raw natural gas is a mixture of different gases. Its main ingredient is methane. By itself, methane is odorless, colorless, and tasteless. As a safety measure, natural gas companies add a chemical odorant (it smells like rotten eggs) so escaping gas can be detected. www.seed.slb.com

  22. Processing natural gas … A natural-gas processing plant • After natural gas comes out of the ground, it goes to a processing plant where it is cleaned of impurities (water, sulfur, dust) and separated into its various components • Then it’s compressed and forced through pipelines under high pressure. • It’s often cooled to a liquid state before being transported. LNG – liquified natural gas www.flickr.com by: A guy with A camera

  23. Benefits of using natural gas … • Cleaner fuel than petroleum or coal • Has the highest energy content of the hydrocarbons used for fuel • Our country has large reserves, mostly in the Gulf of Mexico, Texas, Louisiana, Oklahoma, New Mexico, Wyoming, Kansas, and Alaska. • Used for making plastics, detergents, drugs • But, if we continue to use natural gas at the same rate as we use it today, the United States will run out in about 50 years (more can be recovered for higher cost).

  24. Other sources of natural gas • Landfills - Landfill gas is considered a renewable source of natural gas since it comes from decaying garbage. • Landfill gas is 50 percent methane • Biomass - afuel source derived from plant and animal wastes which generates natural gas There are more than 350 commercial landfill gas recovery operations in the U.S. which generate electricity on-site, supply industrial gas-fired boilers, or produce substitute natural gas fuels such as CNG. www.flickr.com by: Wisconsin Department of Natural Resources

  25. Some landfills are currently capturing the gas produced by decaying garbage. A well is drilled into the waste mass in order to install a well. The landfill gas is then pumped to a gas treatment and processing facility to separate out the methane from carbon dioxide and other non-methane compounds. www.flickr.com by: Wisconsin Department of Natural Resources

  26. Study Reveals Huge U.S. Oil Shale Field … WASHINGTON — The United States has an oil reserve at least three times that of Saudi Arabia locked in oil-shale deposits beneath federal land in Colorado, Utah and Wyoming, according to a study released yesterday. Headline from The Seattle Times, September 1, 2005 As the head of Shell's Unconventional Resources unit, Steve Mutt, explained that as far back as the native Americans, people have been trying to exploit this resource, which is essentially immature petroleum. The Indians called it fire rock and inexperienced homesteaders tried to use it for their fireplaces with disastrous consequences.

  27. An oil-shale rock burns on its own once it has been lit by a blowtorch.www.flickr.com by: asia blues

  28. Oil shale doesn’t contain oil or (usually) shale • The organic material is kerogen (not oil), and the "shale" is usually a relatively hard rock, called marl. • Properly processed, kerogen can be converted into a substance somewhat similar to petroleum. • The kerogen must be heated to a high temperature. This causes the organic material to be converted into a liquid. The liquid is then further processed to produce an medium grade oil which is said to be better than the lowest grade of oil.

  29. Here’s the down side……. • The report also says oil-shale mining, above-ground processing and disposing of spent shale cause significant adverse environmental impacts. • Shell Oil is working on a process that would heat the oil shale in place, which could have less effect on the environment.

  30. Instead of strip-mining the rock and then processing it, this new method superheats huge underground areas for several years, This method gradually forces the oil out of the stone and then pumps it to the surface A new oil shale method uses in-ground heaters to “preheat” the oil shale so it is easier to remove the oil. www.flickr.com by: SkyTruth

  31. These sands contain clay, water, sand, and bitumen Bitumen contains 83.2% carbon This can be processed to make synthetic crude oil or be refined into petroleum products. This may prove to be a viable alternative to oil imported from the Middle East. Tar sands (also called oil sands or bituminous sands) www.flickr.com by: The Co-operative

  32. Environmental impacts of using shale or tar sands • Takes lots of energy to remove and process. • Uses large amounts of water which is then polluted by the process. • Generate huge amounts of waste that must be “put back” somewhere (unless the in-ground heating method is used). www.flickr.com by: coopfs

  33. Environmental Impact of Tar Sands Alberta Tar Sands The term “tar sands” refers to thick oil called bitumen that is mixed in with sand, clay, and water. Intensive energy is required to process the sands into crude oil. Tar Sands oil is the world’s most harmful type of oil for the atmosphere, emitting high volumes of greenhouse gases during development, which contribute to global warming, as well as other pollutants. Tar Sands projects are the largest contributor to greenhouse gas emissions growth in Canada. By 2015, the Tar Sands are expected to emit more greenhouse gases than the nation of Denmark (pop. 5.4 million).

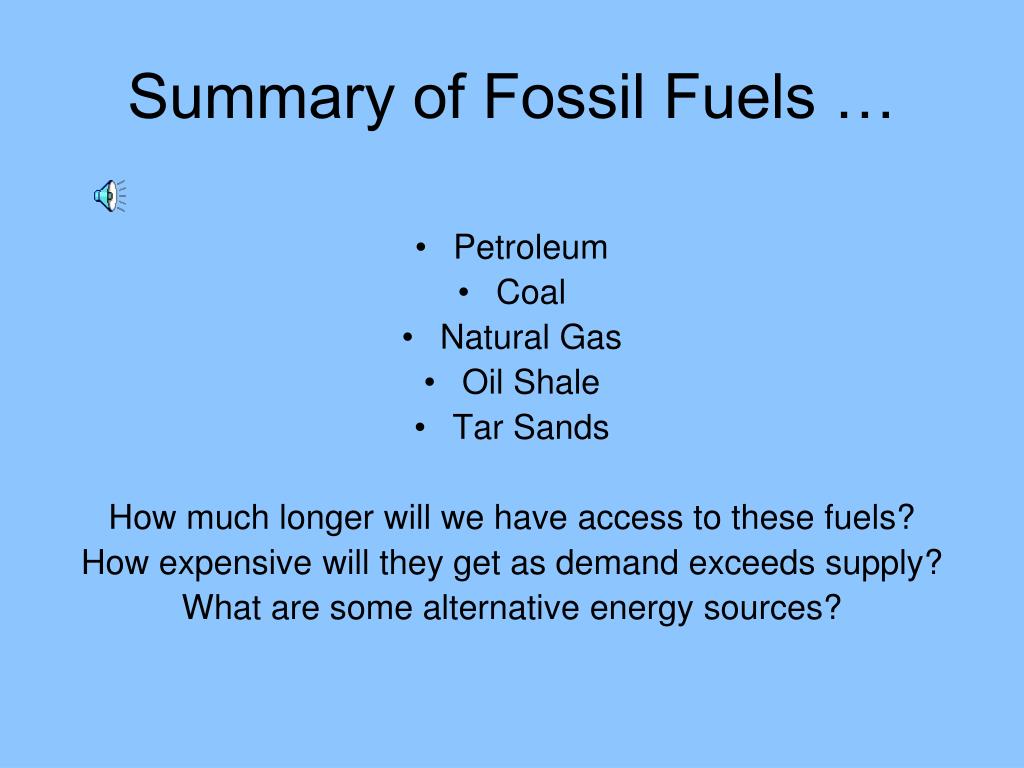

  34. Summary of Fossil Fuels … • Petroleum • Coal • Natural Gas • Oil Shale • Tar Sands How much longer will we have access to these fuels? How expensive will they get as demand exceeds supply? What are some alternative energy sources?

  35. Nuclear Energy Produces Electricity…

  36. Nuclear Energy • Two ways that nuclear energy can be produced are fusion and fission. • Fusion – the combining of atomic nuclei – such as in the stars (and sun!) – generates energy http://www.aa.washington.edu

  37. Nuclear Energy • Fission – the breaking apart of atomic nuclei hyperphysics.phy-astr.gsu.edu/hbase/nucene/im...

  38. Nuclear energy • Two advantages of nuclear energy: • It produces huge amounts of energy from small amounts of nuclear fuel (uranium and plutonium). • Earth contains enough nuclear fuel to meet all present and future needs. www.pollutionissues.com

  39. Nuclear Energy Nuclear energy produces wastes in the form of heat and spent (used) fuel – which can remain radioactive for thousands of years. • Disposing of this radioactive spent fuel is a major problem. • One proposed disposal site is Yucca Mountain in Nevada.

  40. Nuclear Energy Four reasons why nuclear power is not as widely used as it could be… • High cost • Peoples’ fear of exposure to radiation • The threat of a meltdown (nuclear explosion) • The fear that nuclear weapons could be developed using this technology Stable, highly centralized governmental control is necessary for the safe operation of nuclear power. www.answers.com

  41. Sources Wikimedia commons Freedigitalphotos.net Flickr.com USGS.gov Uky.edu aa.washington.edu
