  1. Advanced Unix

  2. Roses are #FF0000 Violets are#0000FF All My Base Are Belong To You

  3. Bastille Linux • http://www.bastille-linux.org • Well best laid plans oft go awry… • Bastille Linux does not work on FC6 • It will work on FC5, 4, 3, etc… • Prerequisites for Bastille are: • TK - an open source, cross-platform widget toolkit, that is, a library of basic elements for building a graphical user interface (GUI). • Curses - a terminal control library for Unix-like systems, enabling the construction of text user interface (TUI) applications

  4. Bastille Linux • If TK or Curses are not installed use the following commands to install: • yum install tk • yum install perl-Curses • To run Bastille use the following commands: • GUI Mode: bastille –x • TUI Mode: bastille -c

  5. Bastille Linux • If you are running FC6 you’ll have to wait a little while before they support it • In the mean while a quick demo…

  6. Post Scanners • Port scanners are a useful tools • Port scanners are software designed to search a network host or hosts for open ports. • This is often used by administrators to check the security of their system/networks and by crackers to detect attack points

  7. Port Scanners • There are numerous port scanners available today. Freeware, Shareware and Commercial of the Shelf (COTS) • Many Network/Security Administrators use port scanners to detect unauthorized services running on their network

  8. Port Scanners • Nmap: ("Network Mapper") is an open source utility for network exploration or security auditing. It was designed to rapidly scan large networks. • Foundstone Vision: Reports all open TCP and UDP ports and maps them to the owning process or application.

  9. Port Scanners • Foundstone Fport: Identify unknown open ports and their associated applications • Foundstone Scanline: Formerly FScan. Command line port scanner • Foundstone SuperScan: Powerful TCP port scanner, pinger, resolver • …and many, many more…

  10. nmap • Version 3.70 (should be installed on your class hard drive) • Written by Fyodor: fyodor@dhp.com • http://www.insecure.org/nmap/ • To install on your FC6 system: • yum install nmap • Go ahead an do this now if you haven’t already…

  11. Types of Scans • TCP Scan – simple scan to detect open ports (aka listeners) • ACK scan - can find packets allowed through a stateless packet filter. • FIN scan - can determine if ports are open/closed, even if SYN packets are filtered. • Protocol scan - determines what IP level protocols (TCP, UDP, GRE, etc.) are enabled. • Proxy scan - a proxy (SOCKS or HTTP) is used to perform the scan. The target will see the proxy's IP address as the source. This can also be done using some FTP servers. • Idle Scan - Another method of scanning without revealing your IP address, taking advantage of the predictable ipid flaw. • ICMP scan - determines if a host responds to ICMP requests, such as echo (ping), netmask, etc.

  12. Types of Scans • TCP connect • TYP SYN (a.k.a. half-open) • TCP FIN (a.k.a. stealth) • TCP SYN/FIN using IP fragments • TCP ftp proxy (a.k.a. bounce attack) • UCP raw ICMP port unreachable • RPC scan • ACK/WIN scan • Ping scan

  13. TCP connect Goal: find open TCP ports; option –sT • Open a connection to port p on the target • If it succeeds, something is listening on that port • Repeat for desired values of p Advantages: • fast; can do many ports in parallel • no special privileges needed Disadvantages: • easy to detect and block (filter)

  14. Example # nmap -sT zonker Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 15:01 PDT Interesting ports on zonker.wal (10.1.2.3): (The 1653 ports scanned but not shown below are in state: closed) Port State Service 21/tcp open ftp 22/tcp open ssh 23/tcp open telnet 25/tcp open smtp 111/tcp open rpcbind 513/tcp open login 514/tcp open shell 759/tcp open con 873/tcp open rsync 6000/tcp open X11 Nmap run completed -- 1 IP address (1 host up) scanned in 1.733 seconds

  15. TYP SYN (a.k.a. half-open) Goal: find open TCP ports; option –sS • Craft and send a SYN to port p on target • ACK: someone listening; RST: no-one listening • Send RST to tear down (incipient) connection • Repeat for desired values of p Advantages: • many sites don’t log this Disadvantages: • need root to craft the initial SYN

  16. Example # nmap -sS zonker Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 14:58 PDT Interesting ports on zonker.wal (10.1.2.3): (The 1653 ports scanned but not shown below are in state: closed) Port State Service 21/tcp open ftp 22/tcp open ssh 23/tcp open telnet 25/tcp open smtp 111/tcp open rpcbind 513/tcp open login 514/tcp open shell 759/tcp open con 873/tcp open rsync 6000/tcp open X11 Nmap run completed -- 1 IP address (1 host up) scanned in 2.100 seconds

  17. TCP FIN (a.k.a. stealth) Goal: find open TCP ports; option –sF • Send FIN to port p on target • If RST, port closed; if nothing, port open • Repeat for desired values of p Advantages: • even fewer log this Disadvantages: • some systems always send RSTs (e.g., IRIX, Windows)

  18. Example # nmap -sF zonker Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 15:04 PDT Interesting ports on zonker.wal (10.1.2.3): (The 1653 ports scanned but not shown below are in state: closed) Port State Service 21/tcp open|filtered ftp 22/tcp open|filtered ssh 23/tcp open|filtered telnet 25/tcp open|filtered smtp 111/tcp open|filtered rpcbind 513/tcp open|filtered login 514/tcp open|filtered shell 759/tcp open|filtered con 873/tcp open|filtered rsync 6000/tcp open|filtered X11 Nmap run completed -- 1 IP address (1 host up) scanned in 4.228 seconds

  19. Variants Option –sX • Christmas tree packet (FIN, URG, PUSH flags) Option -sN • Null packet (all flags turned off) Same expected result as for –sF

  20. TCP SYN/FIN Using IP Fragments Goal: find open TCP ports; option –f (modifies –SF, –sX, –sN, –sS) • Split the header up over several packets Advantages: • makes it harder for packet filters to detect probe Disadvantages: • can cause monitoring tools to crash • high overhead on networks

  21. TCP FTP Proxy (a.k.a. Bounce Attack) Goal: find open TCP ports; option –b user:password@serverhost:port • Connect to serverhost using user with password • Set up proxy to port p on target (use PORT) • Send over an ls of current directory • if no-one’s there, ftp server returns 425 message • if someone listening, ftp server returns 150 message • Repeat for desired values of p This hides who is doing the probing

  22. Example # nmap -b anonymous:bishop-at-nob.cs.ucdavis.edu@ftp.wal zonker.wal Starting nmap V. 3.00 ( www.insecure.org/nmap/ ) Hint: if your bounce scan target hosts aren't reachable from here, remember to use -P0 so we don't try and ping them prior to the scan Interesting ports on zonker.wal (10.1.2.3): (The 1591 ports scanned but not shown below are in state: closed) Port State Service 20/tcp open ftp-data 21/tcp open ftp 22/tcp open ssh 24/tcp open priv-mail 25/tcp open smtp 80/tcp open http 111/tcp open sunrpc 515/tcp open printer 1023/tcp open unknown 6000/tcp open X11 Nmap run completed -- 1 IP address (1 host up) scanned in 37 seconds if ICMP echos are blocked, give –P0 to prevent check for being up

  23. UDP Raw ICMP Port Unreachable Goal: find UDP ports with listeners; option –sU • Send 0 byte UDP packet to port p on target • Wait for ICMP port unreachable message • if you get it, no-one’s listening • if you don’t, someone is • Repeat for desired values of p Disadvantage: • usually slow due to ICMP error rate limits

  24. Example # nmap -sU zonker.wal Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 15:57 PDT Interesting ports on zonker.wal (10.1.2.3): (The 1467 ports scanned but not shown below are in state: closed) Port State Service 68/udp open|filtered dhcpclient 111/udp open|filtered rpcbind 123/udp open|filtered ntp 513/udp open|filtered who 631/udp open|filtered unknown 800/udp open|filtered mdbs_daemon 866/udp open|filtered unknown Nmap run completed -- 1 IP address (1 host up) scanned in 1492.935 seconds

  25. RPC Scan Goal: find ports with RPC services; option –sR (use with –sT, –sU) • If port p on target is open, send RPC NULL command • goal is to determine if p is an RPC port; if so, what program, version number is served there

  26. Example # nmap -sT -sR zonker.wal Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 16:57 PDT Interesting ports on zonker.wal (10.1.2.3): (The 1654 ports scanned but not shown below are in state: closed) Port State Service (RPC) 21/tcp open ftp 22/tcp open ssh 24/tcp open priv-mail 25/tcp open smtp 80/tcp open http 111/tcp open sunrpc (rpcbind V2) 515/tcp open printer 1023/tcp open (nfs V2) 6000/tcp open X11 Nmap run completed -- 1 IP address (1 host up) scanned in 1.962 seconds

  27. ACK/WIN scan Goal: see if intervening firewall is packet filter or stateful; option –sA • Send ACK to port p on target • Response RST: unfiltered, can get through it • Response ICMP unreachable, nothing: filtered, probably dropped

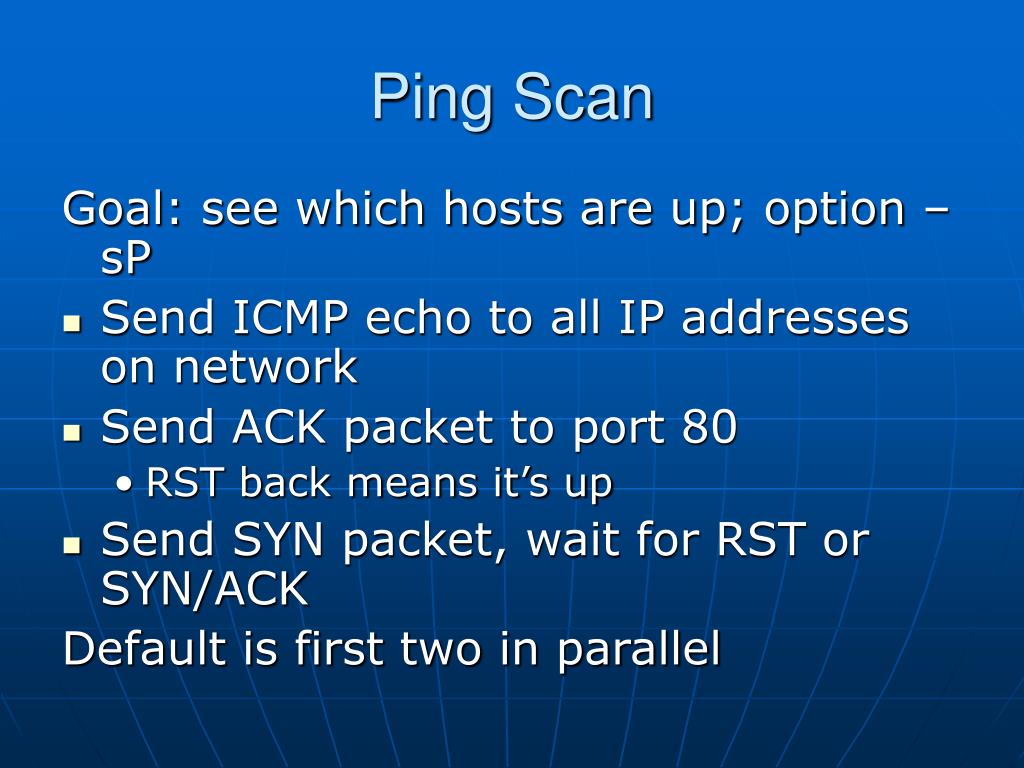

  28. Ping Scan Goal: see which hosts are up; option –sP • Send ICMP echo to all IP addresses on network • Send ACK packet to port 80 • RST back means it’s up • Send SYN packet, wait for RST or SYN/ACK Default is first two in parallel

  29. Example # nmap -sP 10.1.2.1-127 Starting nmap 3.81 ( http://www.insecure.org/nmap/ ) at 2005-06-22 16:57 PDT Host joanie.wal (10.1.2.1) appears to be up. … Host mike.wal (10.1.2.125) appears to be up. Nmap run completed -- 127 IP addresses (48 hosts up) scanned in 4 seconds

  30. Targets • hostname • IP address • * is wildcard • /mask Example: a class C network is: 10.1.2.* 10.1.2.0-255 10.1.2.0/24

  31. Other Interesting Options –O guess the OS type • Indicates how hard guessing was –g p source port is p • Sometimes setting this to 53 (DNS) gets you through when others won’t –r do not randomize order of ports scanned –p p limit scans to ports in given range • Example: –p 1-10,30-60,345,60000–

  32. A Couple of More … –L f targets come from file f –I get login name of user running server • remote system must honor ident protocol • if they send back a crypto hash, you know nothing more • very useful to see if the web server is running as root …

  33. Timing Options Option –Ttiming controls scan paranoid serialize scans, 5 min between packets sneaky paranoid but 15 sec between packets polite serialize, wait ≥0.4 sec between packets normal default behavior (adaptive) aggressive 5 min timeout per host, wait <1.25 sec for probe responses insane aggressive with 75 sec timeouts and <0.3 sec waits
