thermo cooler controller

Thermo-Cooler Controller

Kiefer, Mary, Molly, Sam

slide2
SOW

We will create a robust circuit driver within the Cloud CubeSat size constraints that regulates a thermo-cooler in order to bring the detectors to operating temperatures in as short a time as possible.

chunks

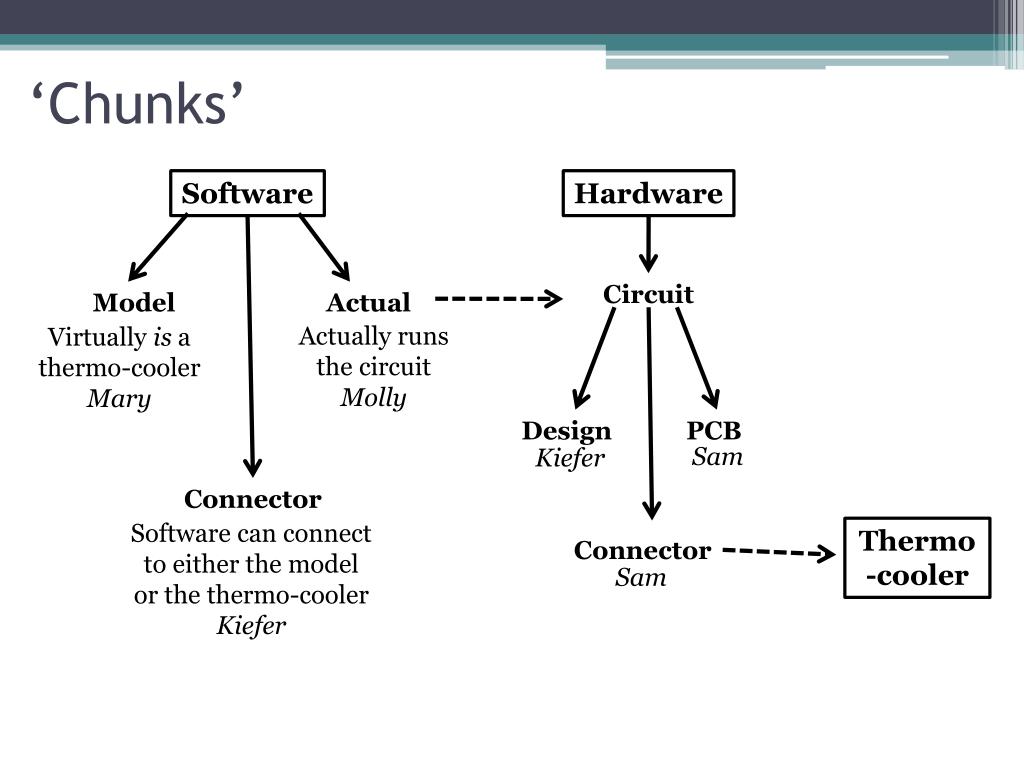

‘Chunks’

Software

Hardware

Circuit

Model

Actual

Actually runs

the circuit

Molly

Virtually is a

thermo-cooler

Mary

Design

PCB

Sam

Kiefer

Connector

Software can connect

to either the model

or the thermo-cooler

Kiefer

Thermo-cooler

Connector

Sam

timeline

7:M--0

Research

-tcooler-circuit stuff-thermodynamics-transport-thermoelectrics

Timeline

7:W-7:F

Prelim model w/ damping

7:W-6:F

Advance model

6:F-1

Minor Changes

7:W-6:T

Prelim Circuit Design

7:W-5:W

Final Circuit Design

5:T-1

Connectors--Integration

4:M-0

Testing and Tweaking

administrative details
Administrative Details
  • Meeting Time:
    • 8:00 – 9:30 am in EH3 Team Room
    • Monday – Friday
  • Project Manager: Sam
  • Website: Sam
