  1. TA/TALE Telescope Array/TA Low Energy Extension For the TA/TALE Collaboration

  2. TA Experiment and Physics Goals • TA is a funded experiment (12M$ equivalent from Japan). Japan-ROC-US Collaboration. • Goal is to resolve the conflict between HiRes and AGASA spectral determination using ground and fluorescence detectors in the same location. Detectors nearly identical to original ones. • TA is ~ 10x AGASA aperture in ground array + ~ 1AGASA hybrid coverage. • Construction begins 2004 and is complete in 2008.

  3. Extra‐Galactic Galactic Magnetic Confinement 1 0 HiRes: Composition Change from Heavy to Light Ankle Structure 3 2 AGASA: Anisotropy towards Galactic Center

  4. 20 km 20 km TA Detector Configuration Millard County Utah/USA 24 x 24 Scintillators (1.2 km spacing) AGASA x 9 3 x Fluorescence Stations AGASA x 10 Low Energy Hybrid Extension

  5. SD - FD; Two Independent Methodsfor Energy Determination. • ○ E > 1019 eV ~ 100 ev. / Year   • ○ E > 1020 eV ~ 1 ev. / Year • Phase-1 Hybrid TA gives ENERGY SCALE by • ● SCINTILLATOR ARRAY • ● AIR FLUORESCENCE •             Energy Spectrum by Only-one, Unique Energy Scale • (Systematic Energy Uncertainty < 10% Aimed) e /γ meas. Calibration Comparison Energy Calibration by SD-FD Coincidence Meas..

  6. TA Scintillator Development     proto: 50 cm x 50 cm, 1cm thick       Wave Length Shifter Fiber readout     50 modules used in L3 for 2.5 years. cutting 1.5 mm deep groove WLS: BCF-91A ( 1 mm Φ) Final: 3 m2 by 2 PMT readout.

  7. “μ” Density at 1km for p/Fe Energy Loss in the Air ~10% of Total Energy MODEL p / Fe Uncertainty EAIR / E0 p Fe ~90% of Total Energy AUGER water tank simulation Plastic Scintillator:               Water Tank: e+e- μ+μ- & soft γ • Electron Measurementby Scintillator • ● Reasonable resolution • ● Small model / composition dependence

  8. Shower Image Telescope: 3mΦ Spherical Mirror TA Telescope Development Electronics: 200 ns continuous ADC + Signal recognition by software Imaging Camera:16X16 PMT Array 1 0 x 1 0 FoV/PMT

  9. AGASA HiRes AUGER AUGER Construction Plan of Hybrid TA: 2003 SITE PREPARATION TELESCOPE TEST IN UTAH TELESCOPE PRODUCTION TELESCOPE INSTAL. ARRAY TEST IN UTAH ARRAY PRODUCTION ARRAY PRODUCTION CALIB. with AGASA SD only Start Obs. with SD only Start Hybrid Obs. SD + FD construction observation

  10. Plan of Laser Deployment (10% total error aimed using Side + Back Scattering) 4th Lidar Station Backscatt. Lidar (within 20 km) VAOD by Vertical Shot (sandwiched by 2 stations ) Laser Station

  11. TALE – TA low energy extension • TA/TALE collaboration would like to extend the physics reach of TA down to 1017 eV. This will be done by: • Moving HiRes detectors to TA site after completion of HiREs operations at Dugway. • Add additional HiRes type mirrors to extend low energy aperture. • Add infill array using recycled AGASA detectors.

  12. TA/TALE Collaboration • US Institutions – Firm • University of Utah • Rutgers University • University of Montana • Brigham Young University • Utah State University

  13. TA/TALE Collaboration • US Institutions, Interested, under discussion • Stanford Linear Accelerator Center • Lawrence Livermore National Lab • ROC Institutions, Firm • COSPA, National Taiwan University

  14. Japan TA/TALE Institutions • ICRR, Tokyo University- M. Fukushima • KEK • Chiba University • Ehime University • Osaka City University • Kanagawa University • Kinki University • Kochi University • Saitama University • Shibaura Institute of Technology • Communications Research Laboratory • Tokyo Institute of Technology • Hiroshima City University • National Institute of Radiological Sciences • Musashi Institute of Technology • Yamanashi University

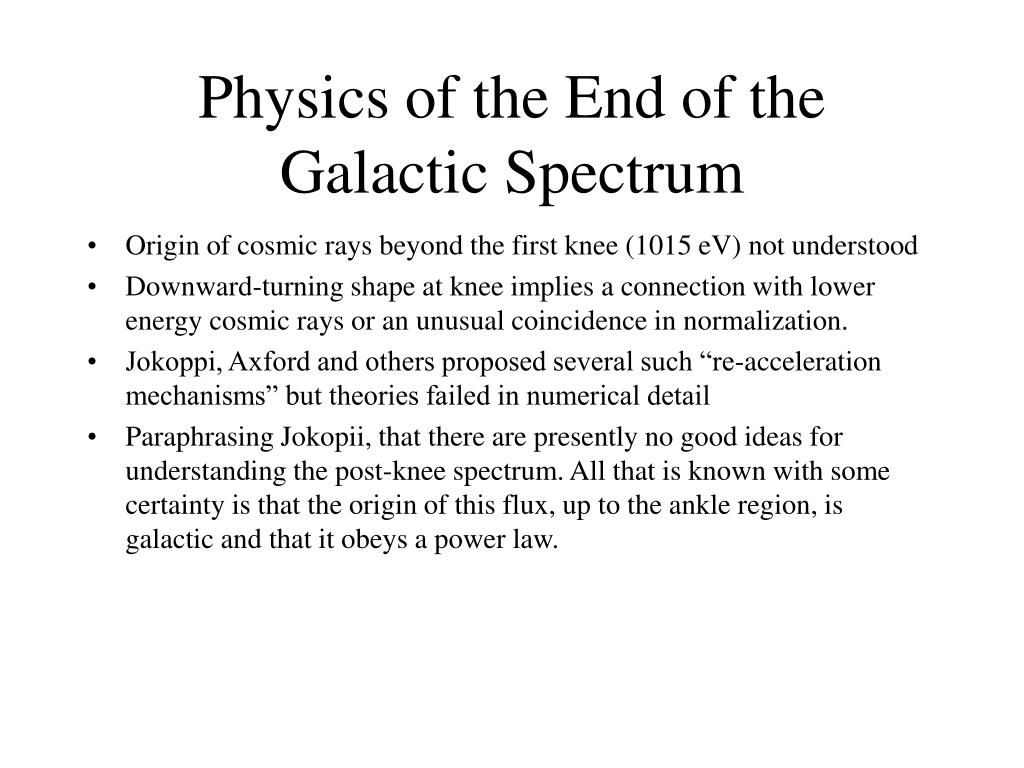

  15. Physics of the End of the Galactic Spectrum • Origin of cosmic rays beyond the first knee (1015 eV) not understood • Downward-turning shape at knee implies a connection with lower energy cosmic rays or an unusual coincidence in normalization. • Jokoppi, Axford and others proposed several such “re-acceleration mechanisms” but theories failed in numerical detail • Paraphrasing Jokopii, that there are presently no good ideas for understanding the post-knee spectrum. All that is known with some certainty is that the origin of this flux, up to the ankle region, is galactic and that it obeys a power law.

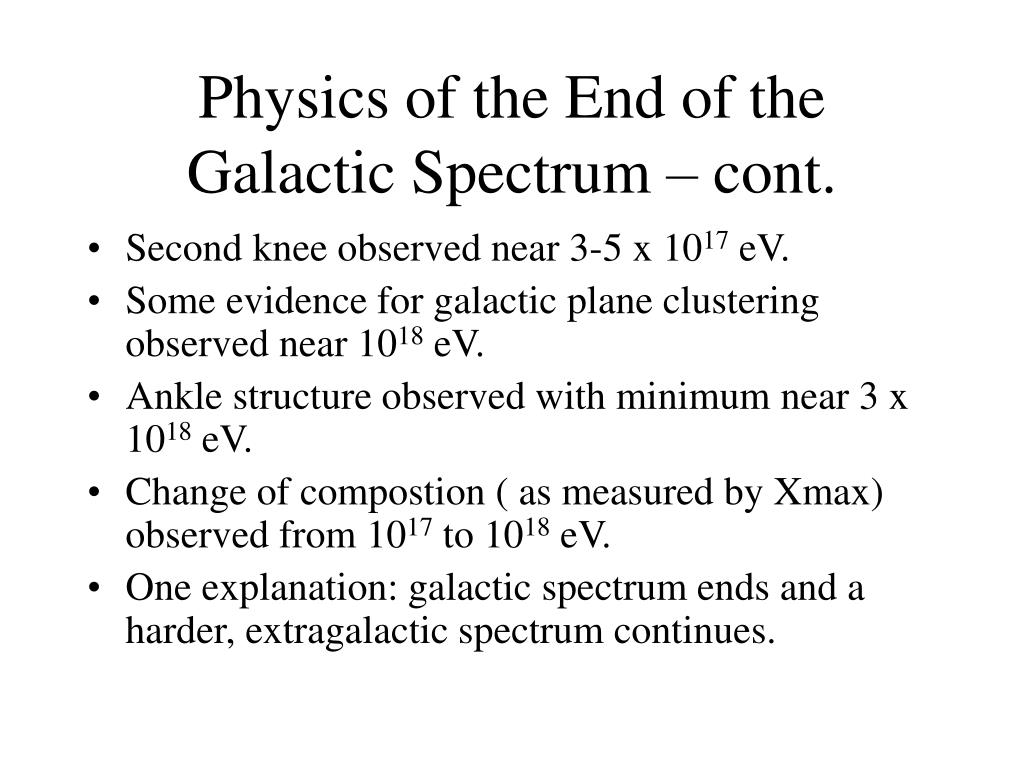

  16. Physics of the End of the Galactic Spectrum – cont. • Second knee observed near 3-5 x 1017 eV. • Some evidence for galactic plane clustering observed near 1018 eV. • Ankle structure observed with minimum near 3 x 1018 eV. • Change of compostion ( as measured by Xmax) observed from 1017 to 1018 eV. • One explanation: galactic spectrum ends and a harder, extragalactic spectrum continues.

  17. Evidence for Second Knee from four experiments

  18. Evidence for ankle from four experiments

  19. Evidence for change of composition from HiRes prototype and Stereo HiRes

  20. Evidence for galactic anisotropy from AGASA

  21. TALE – precision, high statistics study of composition-tagged spectrum in 1017-1019 eV region • Use Xmax to tag galactic and extragalactic components and map out the shape of the end of the galactic spectrum. • Physics goals: Maximum energy of galactic accelerator, anisotropy near maximum energy, location of e+e- energy loss dip in extragalactic spectrum.

  22. Experimental Requirements • Precise determination of Xmax and Energy from 1017 to 1019 eV, • Significant improvement in statistics over Stereo HiRes in this energy range • Smooth, slowly changing aperture that is robustly determined over this energy range.

  23. Realization • TA FD provides opportunity for asymmetric stereo pairs. – smooth aperture and large increase in statistics over HiRes • TA SD and infill array provides opportunity for significant statistics with hybrid stereo events. Very precise determination of Xmax.

  24. Asymetric Stereo Aperture

  25. Xmax bias for two ring detector

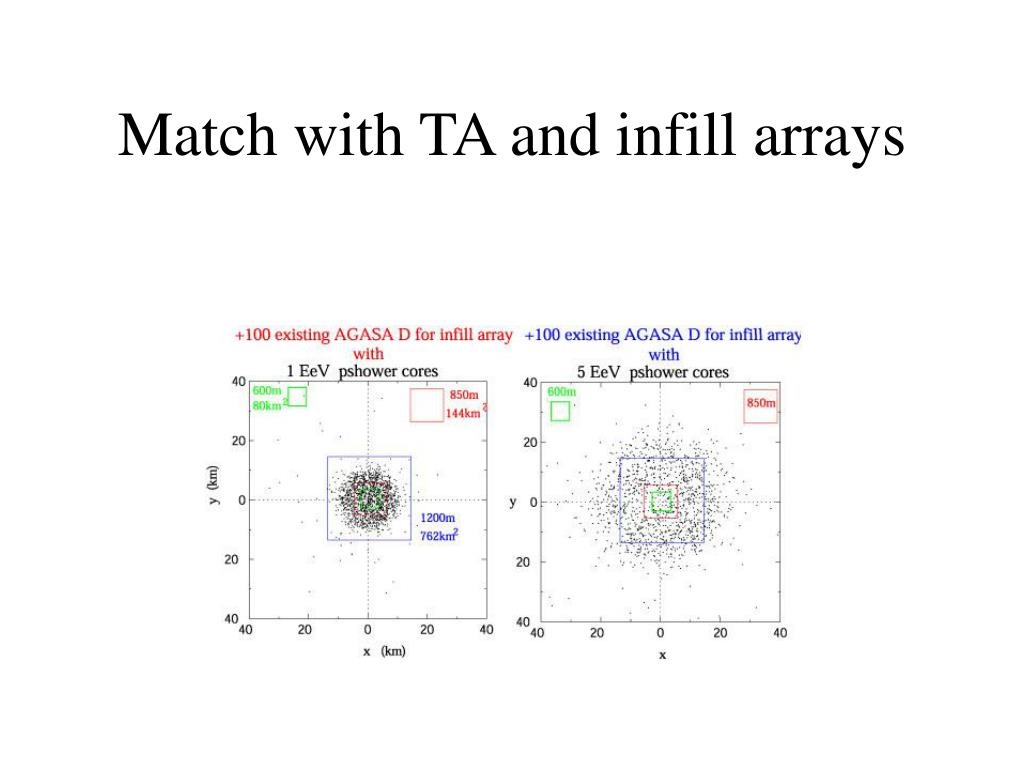

  26. Match with TA and infill arrays

  27. Conclusion • Existence of funded TA detector and HiRes detectors gives opportunity for unique Stereo-hybrid experiment • TA/TALE collaboration being formed • TALE can be built after completion of HiRes operation for ~7M$ • Most of the funding can be accommodated as an extension of HiRes funding
