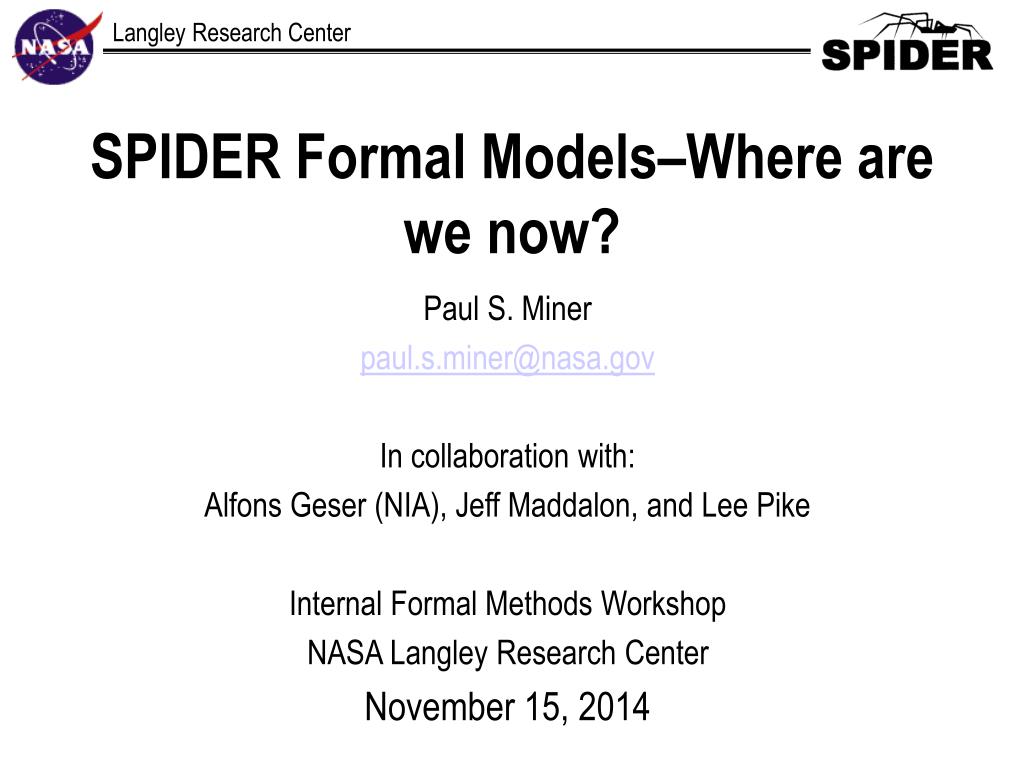

  1. SPIDER Formal Models–Where are we now? Paul S. Miner paul.s.miner@nasa.gov In collaboration with: Alfons Geser (NIA), Jeff Maddalon, and Lee Pike Internal Formal Methods Workshop NASA Langley Research Center November 15, 2014

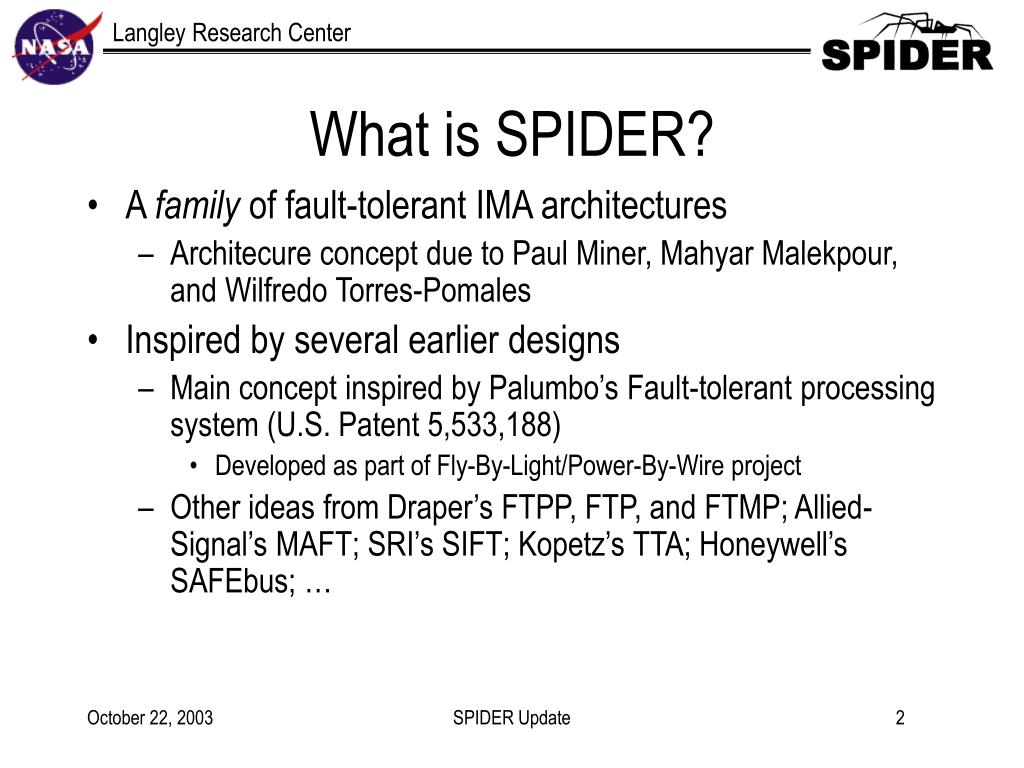

  2. What is SPIDER? • A family of fault-tolerant IMA architectures • Architecure concept due to Paul Miner, Mahyar Malekpour, and Wilfredo Torres-Pomales • Inspired by several earlier designs • Main concept inspired by Palumbo’s Fault-tolerant processing system (U.S. Patent 5,533,188) • Developed as part of Fly-By-Light/Power-By-Wire project • Other ideas from Draper’s FTPP, FTP, and FTMP; Allied-Signal’s MAFT; SRI’s SIFT; Kopetz’s TTA; Honeywell’s SAFEbus; … SPIDER Update

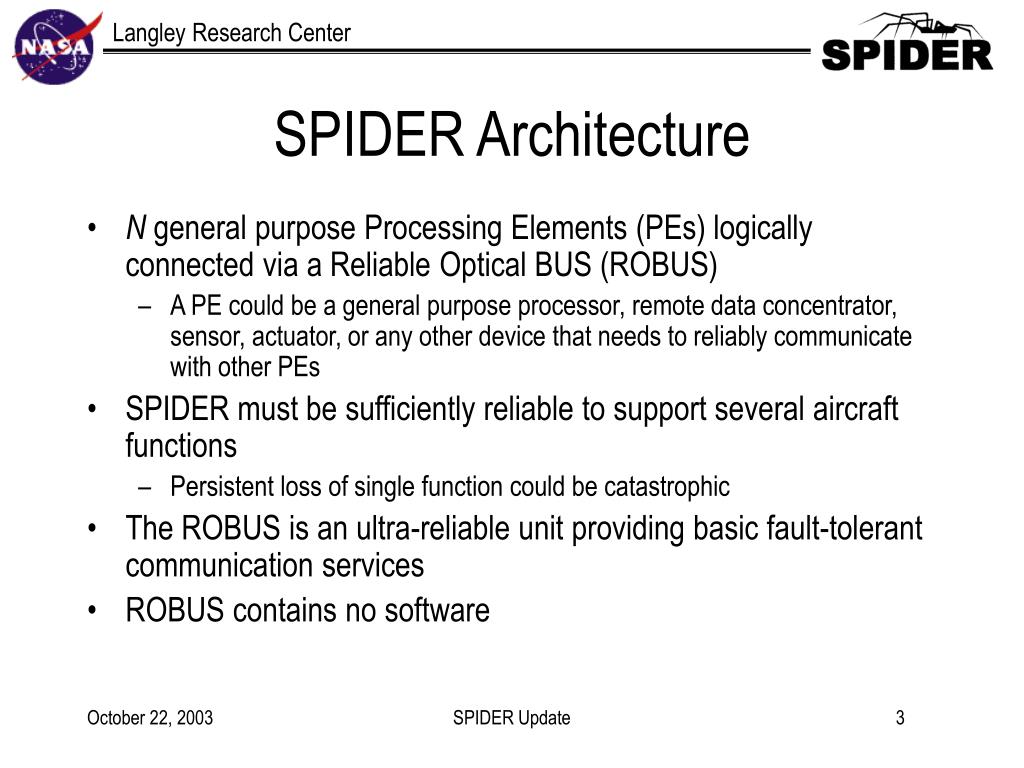

  3. N general purpose Processing Elements (PEs) logically connected via a Reliable Optical BUS (ROBUS) A PE could be a general purpose processor, remote data concentrator, sensor, actuator, or any other device that needs to reliably communicate with other PEs SPIDER must be sufficiently reliable to support several aircraft functions Persistent loss of single function could be catastrophic The ROBUS is an ultra-reliable unit providing basic fault-tolerant communication services ROBUS contains no software SPIDER Architecture SPIDER Update

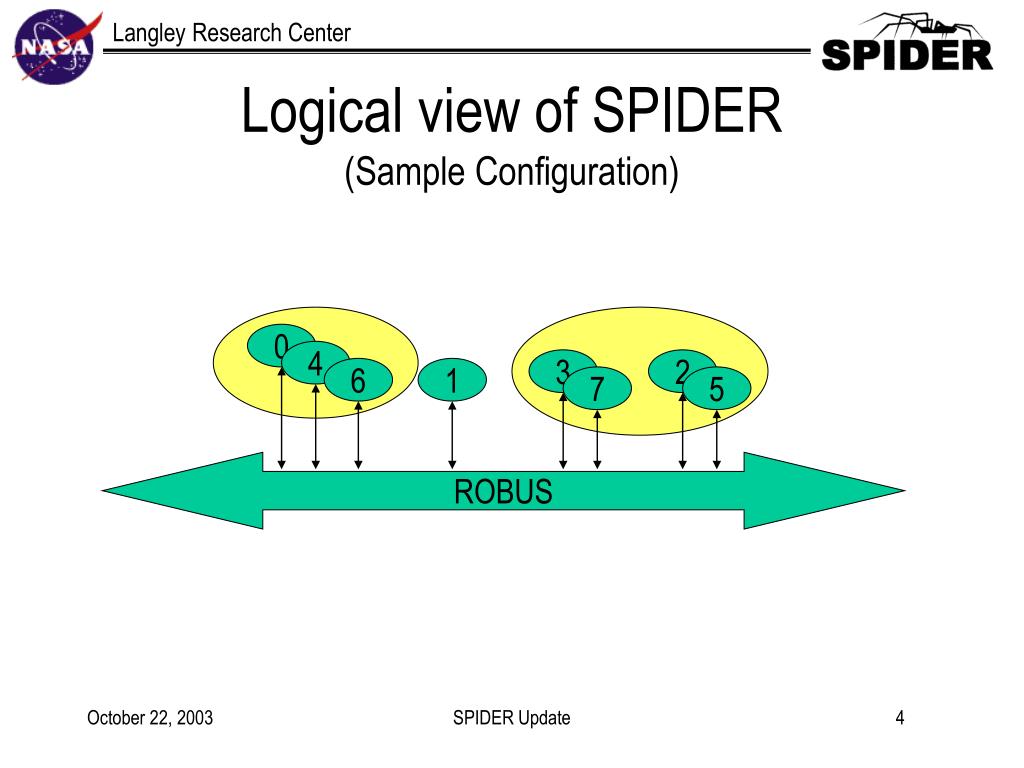

  4. Logical view of SPIDER(Sample Configuration) 0 4 3 2 6 1 7 5 ROBUS SPIDER Update

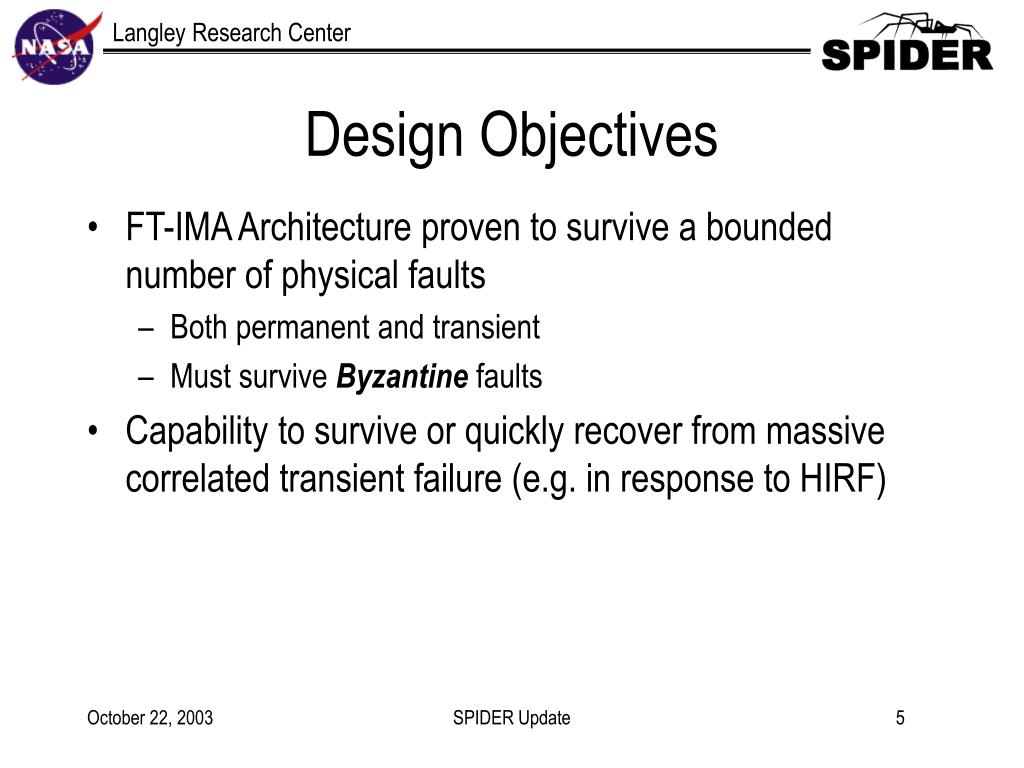

  5. Design Objectives • FT-IMA Architecture proven to survive a bounded number of physical faults • Both permanent and transient • Must survive Byzantine faults • Capability to survive or quickly recover from massive correlated transient failure (e.g. in response to HIRF) SPIDER Update

  6. Byzantine Faults • Characterized by asymmetric error manifestations • different manifestations to different fault-free observers • including dissimilar values • Can cause redundant computations to diverge • If not properly handled, single Byzantine fault can defeat several layers of redundancy • Many architectures neglect this class of fault • Assumed to be rare or even impossible SPIDER Update

  7. Byzantine faults are real • Several examples cited in Byzantine Faults: From Theory to Reality, Driscoll, et al. (to appear in SAFECOMP 2003) • Byzantine failures nearly grounded a large fleet of aircraft • Quad-redundant system failed in response to a single fault • Typical cases are faulty transmitters (resulting in indeterminate voltage levels at receivers) or faults that cause timing violations (so that multiple observers perceive the same event differently) • Heavy Ion fault-injection results for TTP/C (Sivencrona, et al.) • more than 1 in 1000 of observed errors had Byzantine manifestations SPIDER Update

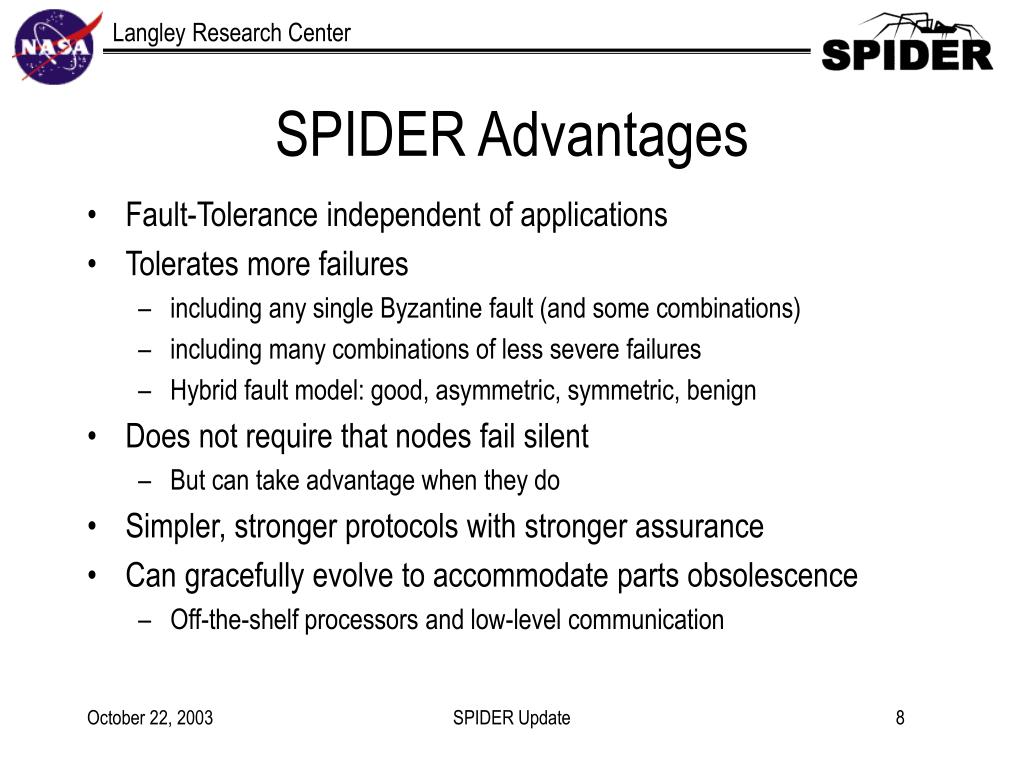

  8. SPIDER Advantages • Fault-Tolerance independent of applications • Tolerates more failures • including any single Byzantine fault (and some combinations) • including many combinations of less severe failures • Hybrid fault model: good, asymmetric, symmetric, benign • Does not require that nodes fail silent • But can take advantage when they do • Simpler, stronger protocols with stronger assurance • Can gracefully evolve to accommodate parts obsolescence • Off-the-shelf processors and low-level communication SPIDER Update

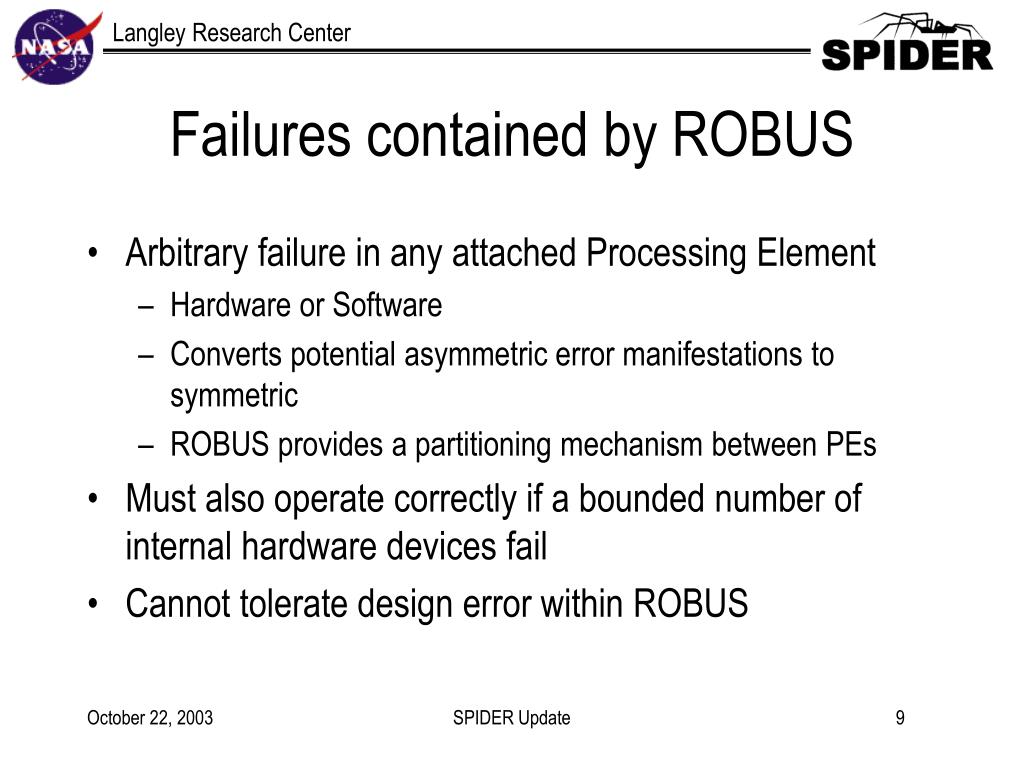

  9. Failures contained by ROBUS • Arbitrary failure in any attached Processing Element • Hardware or Software • Converts potential asymmetric error manifestations to symmetric • ROBUS provides a partitioning mechanism between PEs • Must also operate correctly if a bounded number of internal hardware devices fail • Cannot tolerate design error within ROBUS SPIDER Update

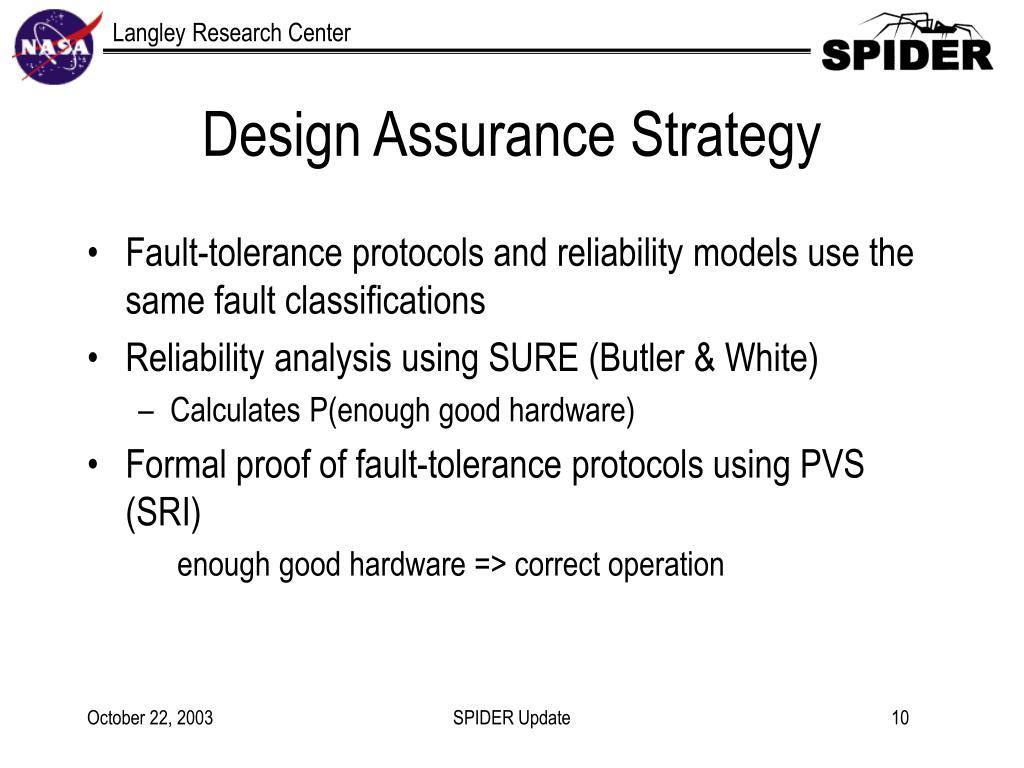

  10. Design Assurance Strategy • Fault-tolerance protocols and reliability models use the same fault classifications • Reliability analysis using SURE (Butler & White) • Calculates P(enough good hardware) • Formal proof of fault-tolerance protocols using PVS (SRI) enough good hardware => correct operation SPIDER Update

  11. Strength of Formal Verification • Proofs equivalent to testing the protocols • for all specified ROBUS configurations • for all combinations of faults that satisfy the maximum fault assumption for each specified ROBUS configuration • for all specified message values • The PVS proofs provides verification coverage equivalent to an infinite number of test cases. • Provided that the PVS model of the protocols is faithful to the VHDL design SPIDER Update

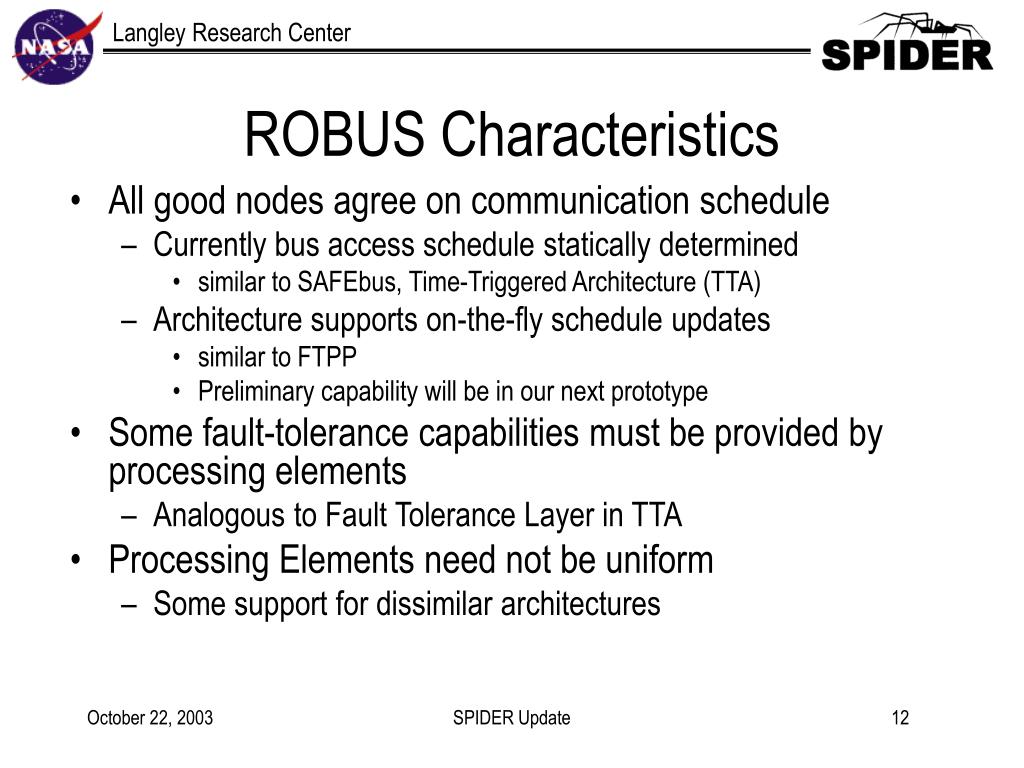

  12. ROBUS Characteristics • All good nodes agree on communication schedule • Currently bus access schedule statically determined • similar to SAFEbus, Time-Triggered Architecture (TTA) • Architecture supports on-the-fly schedule updates • similar to FTPP • Preliminary capability will be in our next prototype • Some fault-tolerance capabilities must be provided by processing elements • Analogous to Fault Tolerance Layer in TTA • Processing Elements need not be uniform • Some support for dissimilar architectures SPIDER Update

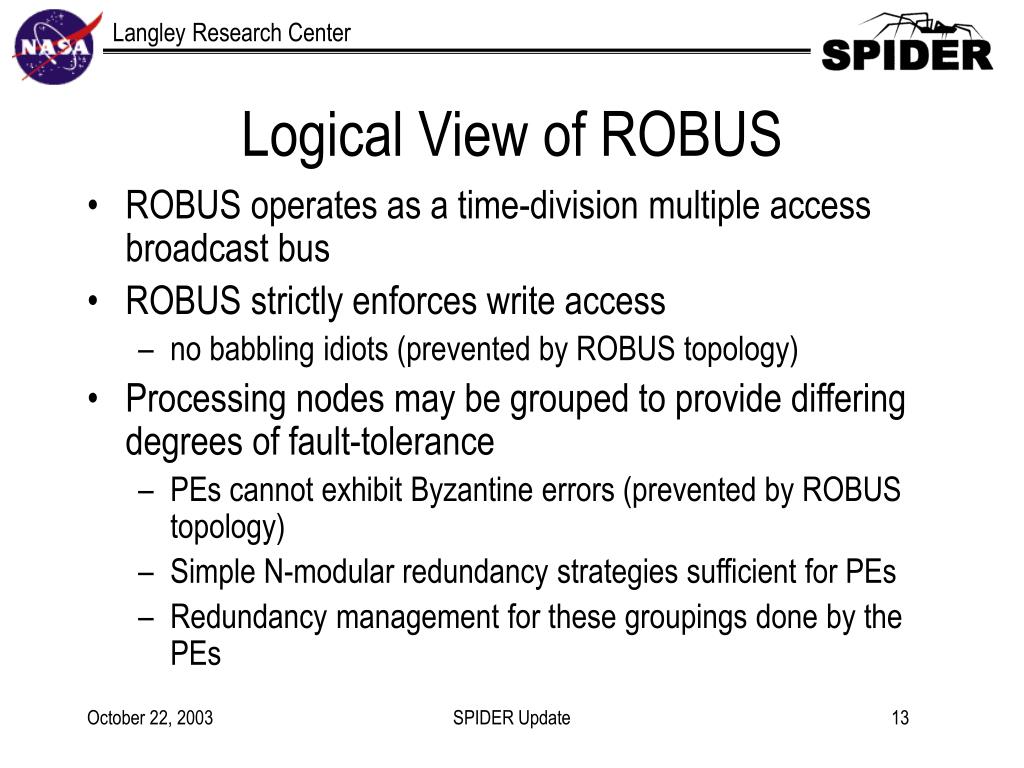

  13. Logical View of ROBUS • ROBUS operates as a time-division multiple access broadcast bus • ROBUS strictly enforces write access • no babbling idiots (prevented by ROBUS topology) • Processing nodes may be grouped to provide differing degrees of fault-tolerance • PEs cannot exhibit Byzantine errors (prevented by ROBUS topology) • Simple N-modular redundancy strategies sufficient for PEs • Redundancy management for these groupings done by the PEs SPIDER Update

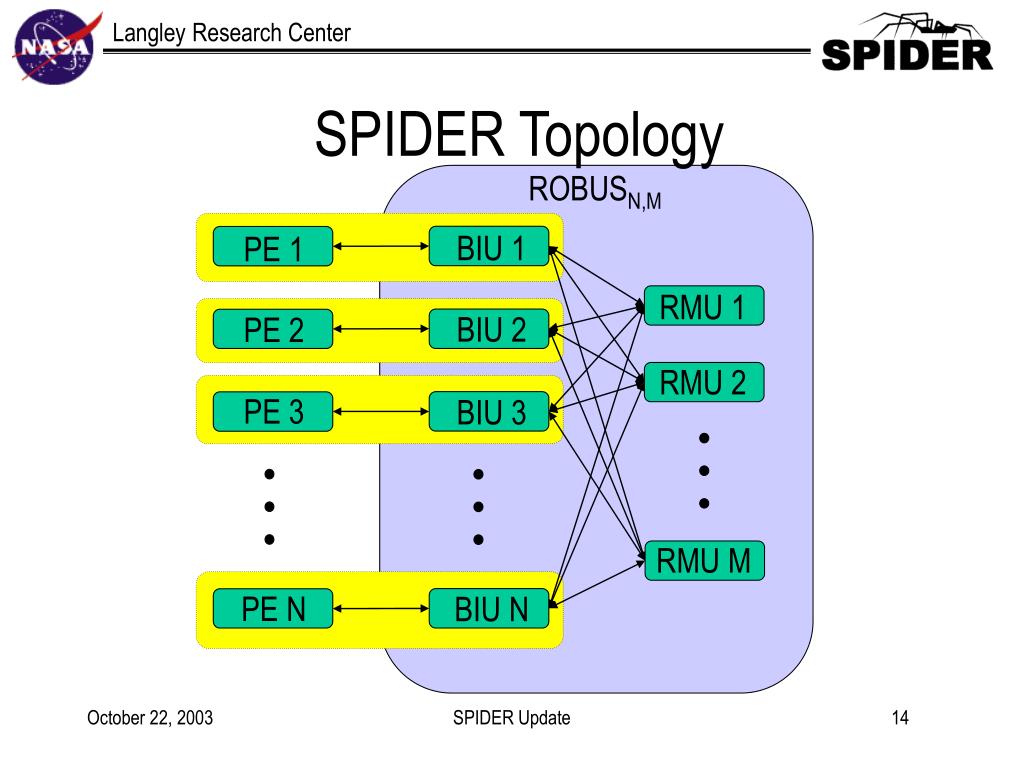

  14. RMU 1 BIU 1 BIU 2 RMU 2 BIU 3 RMU M BIU N SPIDER Topology ROBUSN,M PE 1 PE 2 PE 3 PE N SPIDER Update

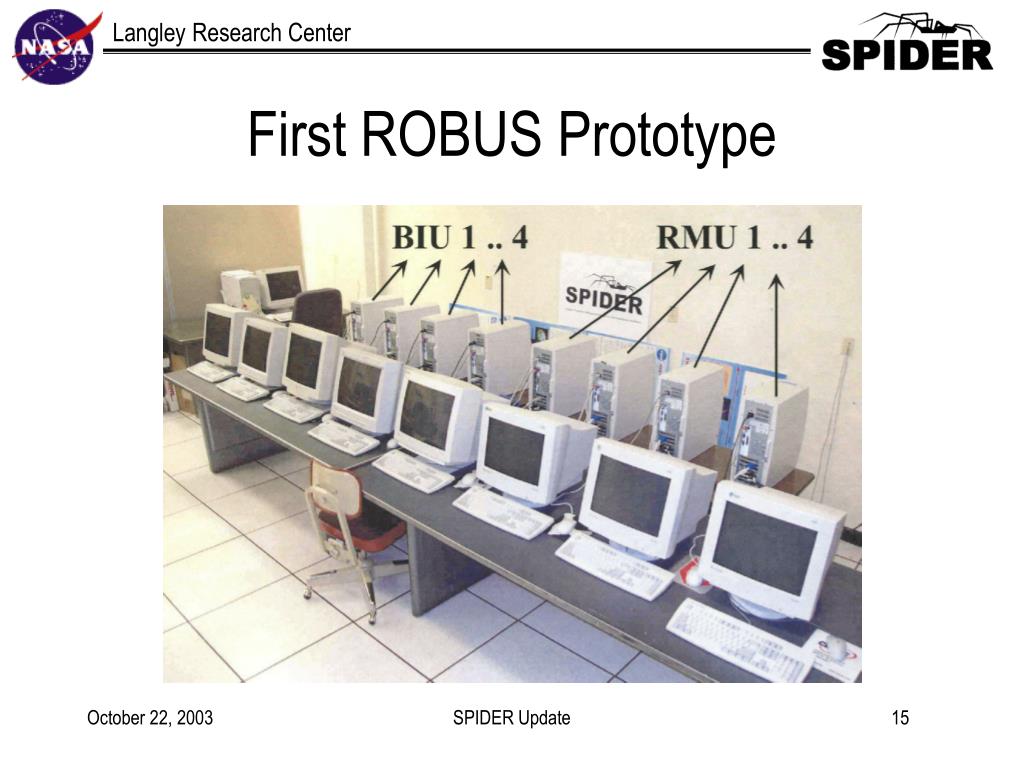

  15. First ROBUS Prototype SPIDER Update

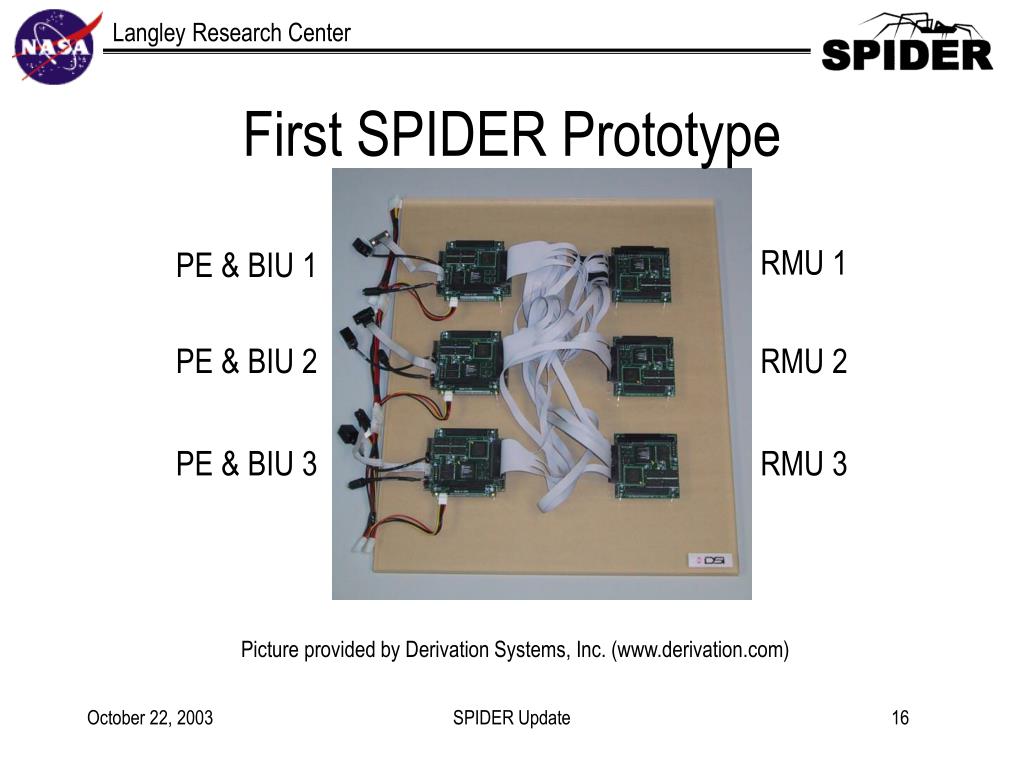

  16. RMU 1 PE & BIU 1 PE & BIU 2 RMU 2 PE & BIU 3 RMU 3 First SPIDER Prototype Picture provided by Derivation Systems, Inc. (www.derivation.com) SPIDER Update

  17. ROBUS Requirements • All fault-free PEs receive identical message sequences • If the source is also fault-free, they receive the message sent • ROBUS provides a reliable time source (RTS) • The PEs are synchronized relative to this RTS • ROBUS provides correct and consistent ROBUS diagnostic information to all fault-free PEs • For 10 hour mission, P(ROBUS Failure) < 10-10 SPIDER Update

  18. Other Requirements • Primary focus is on fault-tolerance requirements • Other requirements unspecified • Message format/encoding • Performance • These are implementation dependent • Product Family • capable of range of performance • trade-off performance and reliability • Formal analysis valid for any instance SPIDER Update

  19. ROBUS Protocols • Interactive Consistency (Byzantine Agreement) • loop unrolling of classic Oral Messages algorithm • Inspired by Draper FTP • Distributed Diagnosis (Group Membership) • Initially adapted MAFT algorithm to SPIDER topology • Depends on Interactive Consistency protocol • Verification process suggested more efficient protocol • Improved protocol due to Alfons Geser • Suggested further generalizations • Clock Synchronization • adaptation of Srikanth & Toueg protocol to SPIDER topology • Corresponds to Davies & Wakerly approach SPIDER Update

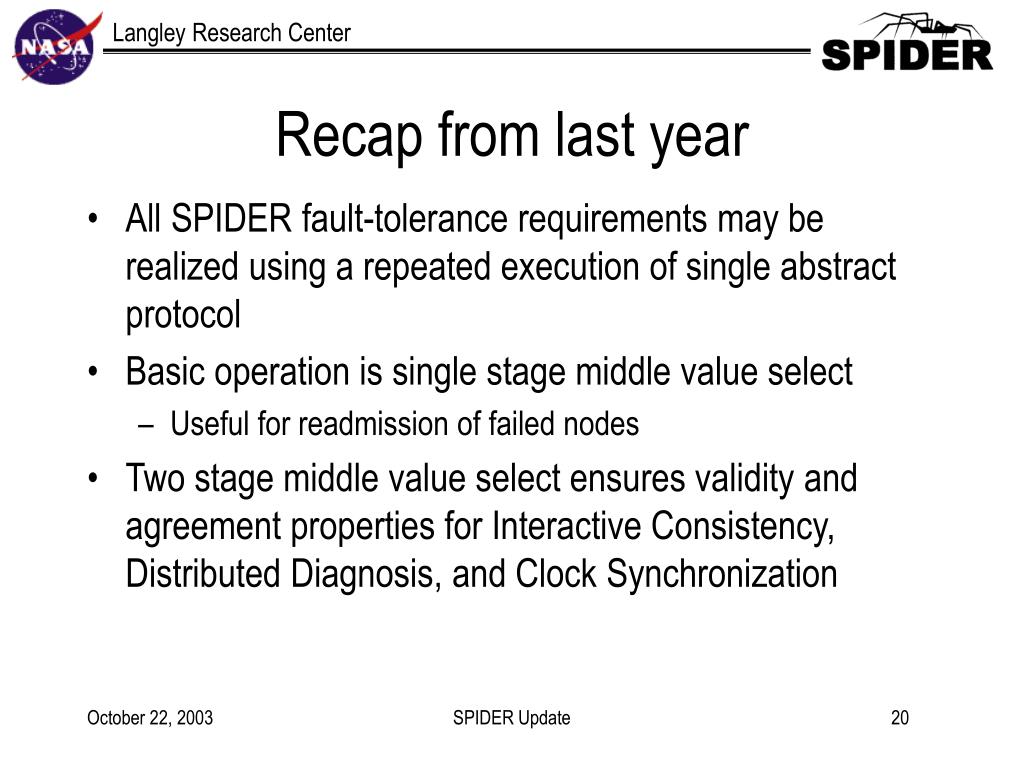

  20. Recap from last year • All SPIDER fault-tolerance requirements may be realized using a repeated execution of single abstract protocol • Basic operation is single stage middle value select • Useful for readmission of failed nodes • Two stage middle value select ensures validity and agreement properties for Interactive Consistency, Distributed Diagnosis, and Clock Synchronization SPIDER Update

  21. x mvs(x,y,z) y mvs(x,y,z) z mvs(x,y,z) Single Stage Middle Value Select mvs(a,b,c) selects middle value from set {a, b, c} SPIDER Update

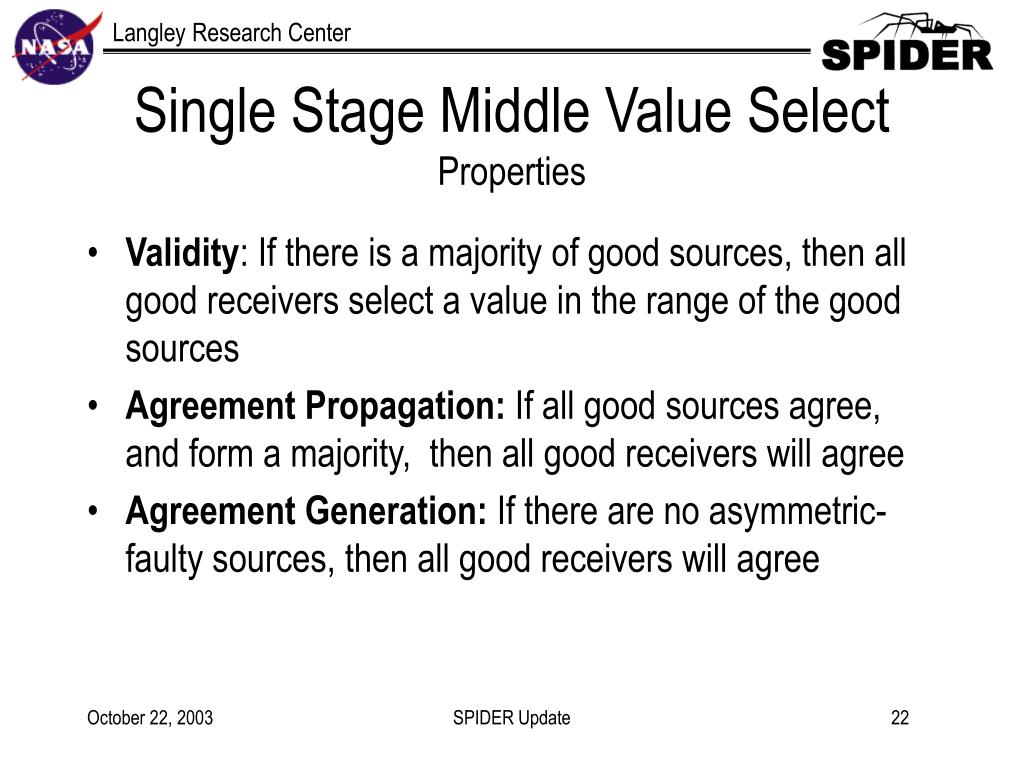

  22. Single Stage Middle Value SelectProperties • Validity: If there is a majority of good sources, then all good receivers select a value in the range of the good sources • AgreementPropagation: If all good sources agree, and form a majority, then all good receivers will agree • Agreement Generation: If there are no asymmetric-faulty sources, then all good receivers will agree SPIDER Update

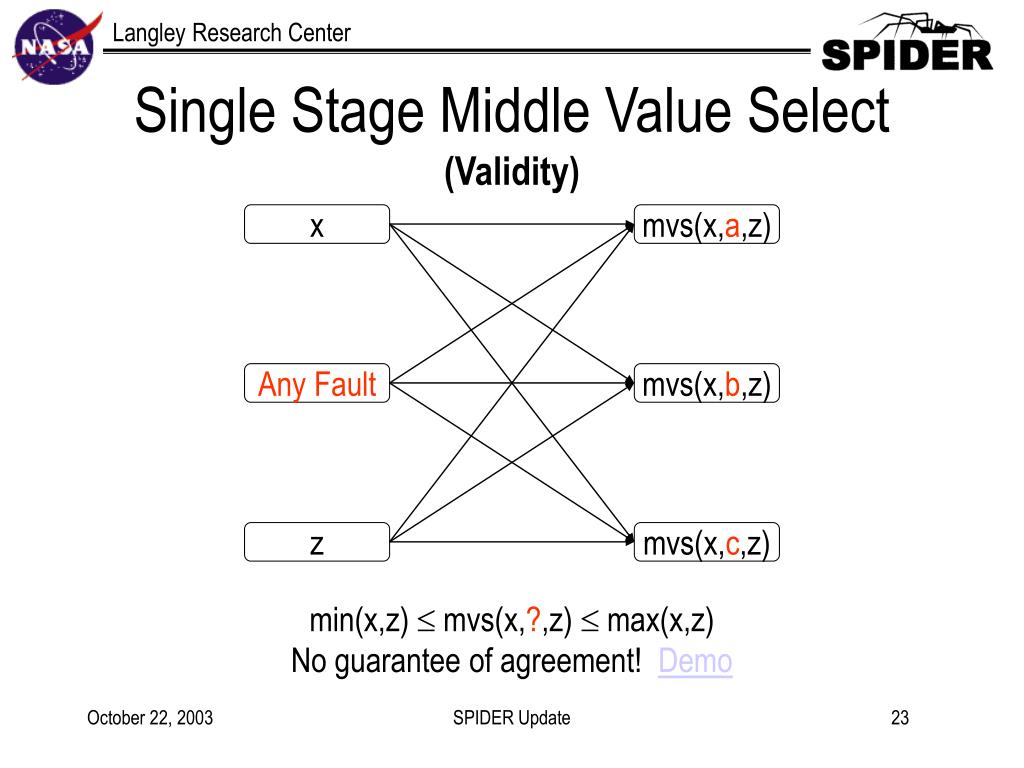

  23. x mvs(x,a,z) Any Fault mvs(x,b,z) z mvs(x,c,z) Single Stage Middle Value Select(Validity) min(x,z)  mvs(x,?,z)  max(x,z) No guarantee of agreement! Demo SPIDER Update

  24. x mvs(x,?,x) = x Any fault mvs(x,?,x) = x x mvs(x,?,x) = x Single Stage Middle Value Select(Agreement Propagation) SPIDER Update

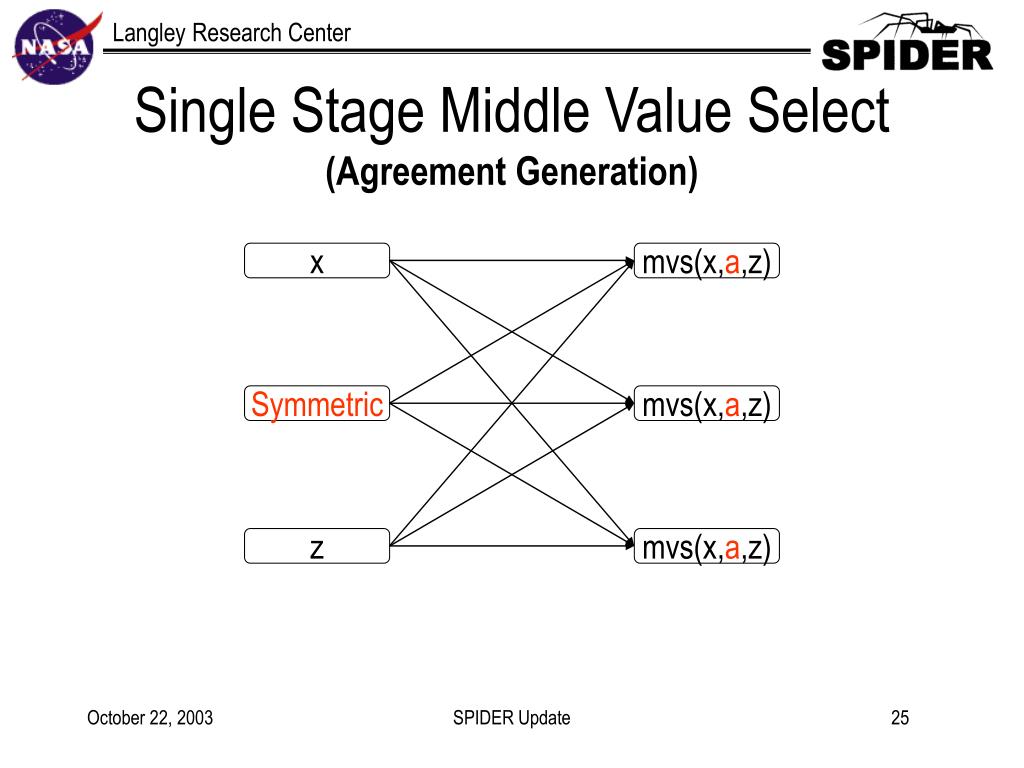

  25. x mvs(x,a,z) Symmetric mvs(x,a,z) z mvs(x,a,z) Single Stage Middle Value Select(Agreement Generation) SPIDER Update

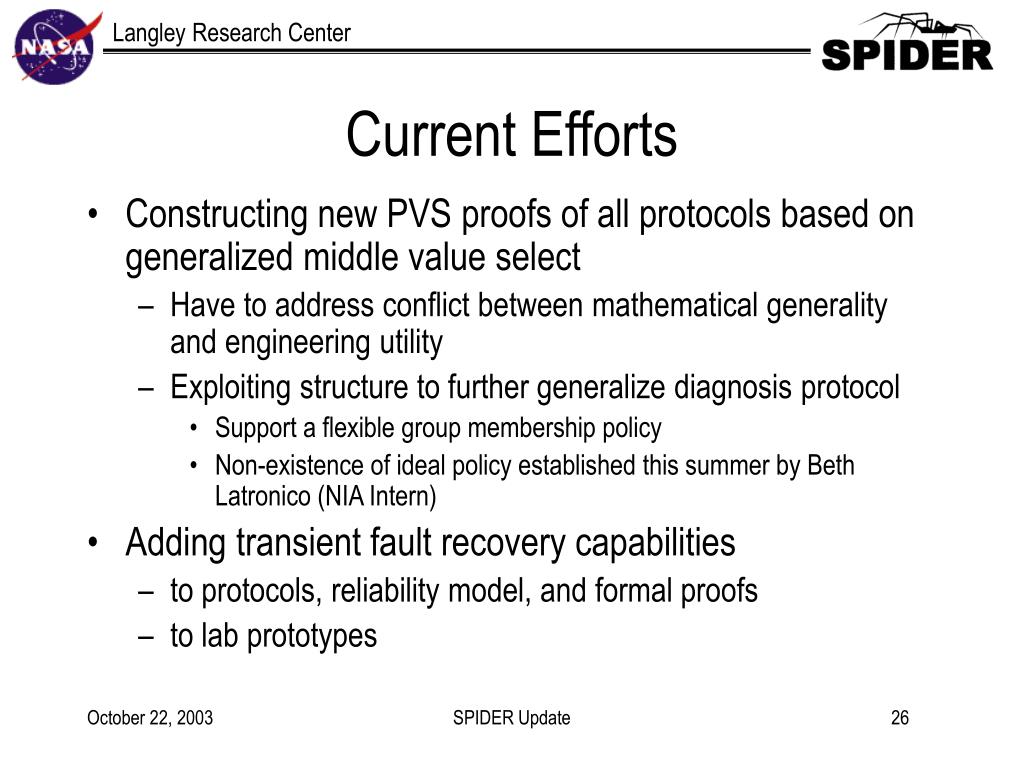

  26. Current Efforts • Constructing new PVS proofs of all protocols based on generalized middle value select • Have to address conflict between mathematical generality and engineering utility • Exploiting structure to further generalize diagnosis protocol • Support a flexible group membership policy • Non-existence of ideal policy established this summer by Beth Latronico (NIA Intern) • Adding transient fault recovery capabilities • to protocols, reliability model, and formal proofs • to lab prototypes SPIDER Update

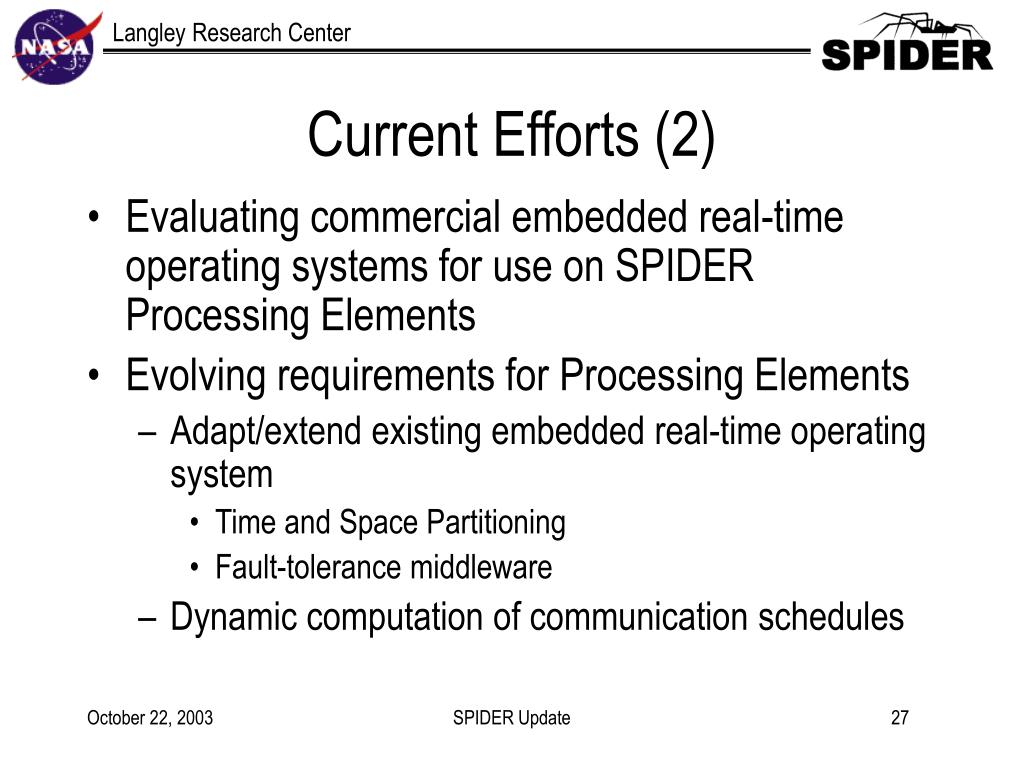

  27. Current Efforts (2) • Evaluating commercial embedded real-time operating systems for use on SPIDER Processing Elements • Evolving requirements for Processing Elements • Adapt/extend existing embedded real-time operating system • Time and Space Partitioning • Fault-tolerance middleware • Dynamic computation of communication schedules SPIDER Update

  28. Current Efforts (3) • Building up PVS library of reusable fault-tolerance results • SPIDER protocols expressed within this framework • Framework supports other network topologies • Improved generic clock synchronization properties • Improved accuracy results (tighter bounds) • Cleaner structure for precision results • Proof framework for general approximate agreement protocols (clock synchronization is special case) • Results generalized to accomodate weaker fault assumptions (including Azadmanesh & Kieckhafer model of strictly omissive asymmetric faults) • Preliminary support for wireless fault models SPIDER Update

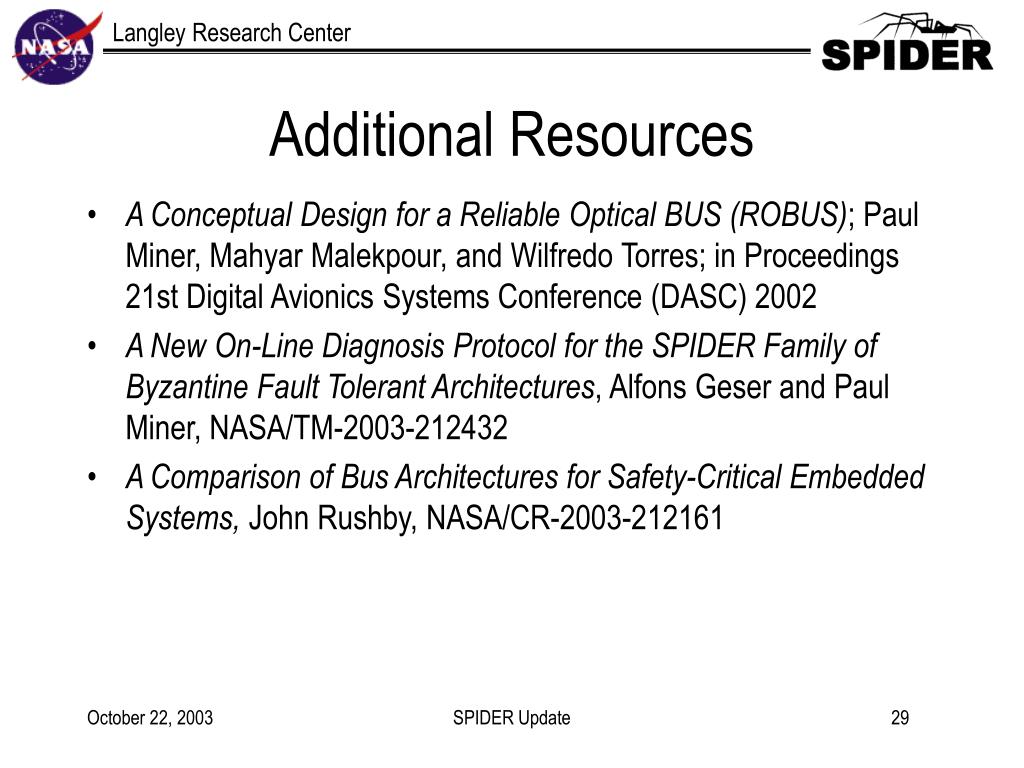

  29. Additional Resources • A Conceptual Design for a Reliable Optical BUS (ROBUS); Paul Miner, Mahyar Malekpour, and Wilfredo Torres; in Proceedings 21st Digital Avionics Systems Conference (DASC) 2002 • A New On-Line Diagnosis Protocol for the SPIDER Family of Byzantine Fault Tolerant Architectures, Alfons Geser and Paul Miner, NASA/TM-2003-212432 • A Comparison of Bus Architectures for Safety-Critical Embedded Systems, John Rushby, NASA/CR-2003-212161 SPIDER Update
