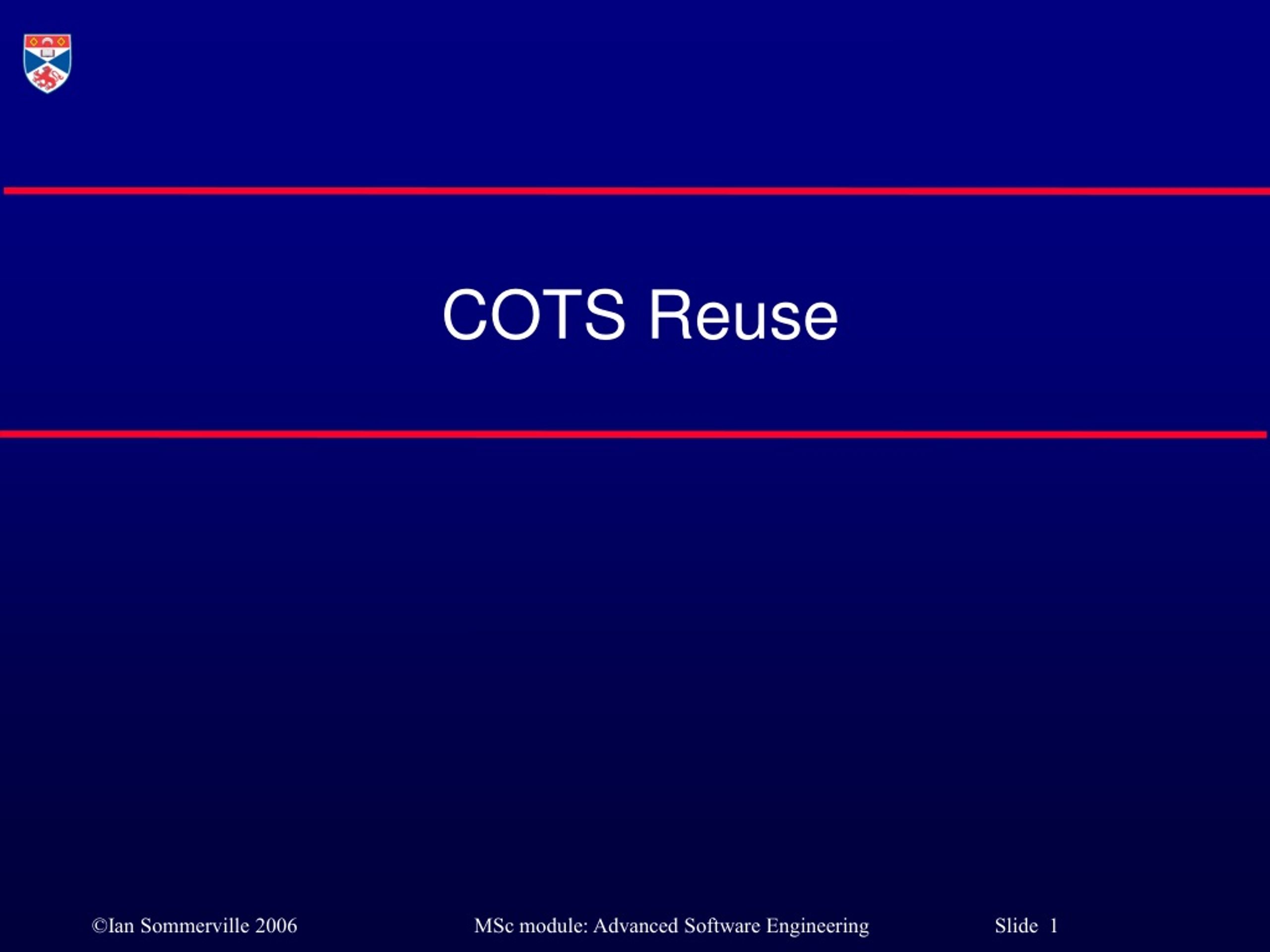

COTS Reuse

1. COTS Reuse

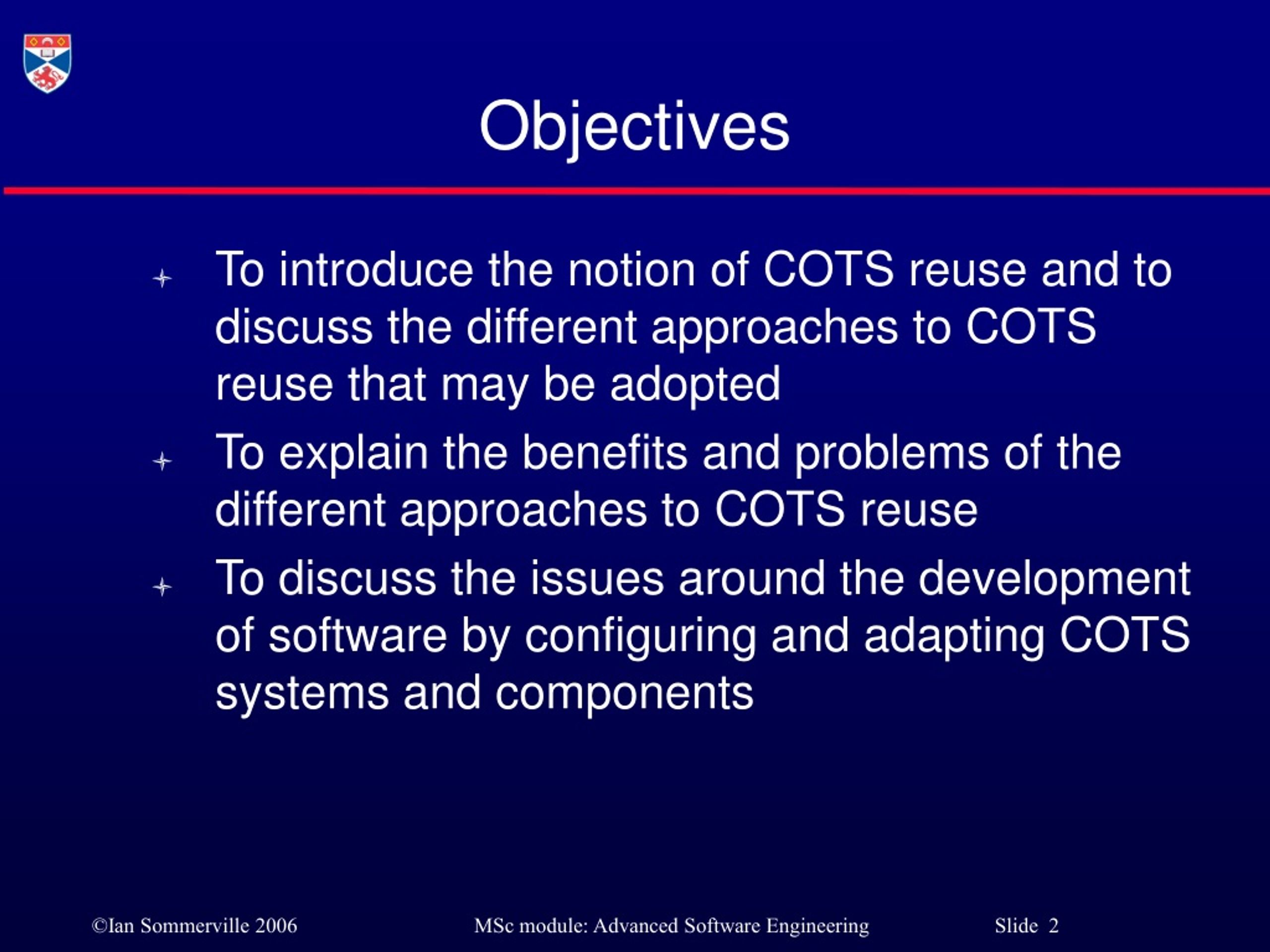

2. Objectives • To introduce the notion of COTS reuse and to discuss the different approaches to COTS reuse that may be adopted • To explain the benefits and problems of the different approaches to COTS reuse • To discuss the issues around the development of software by configuring and adapting COTS systems and components

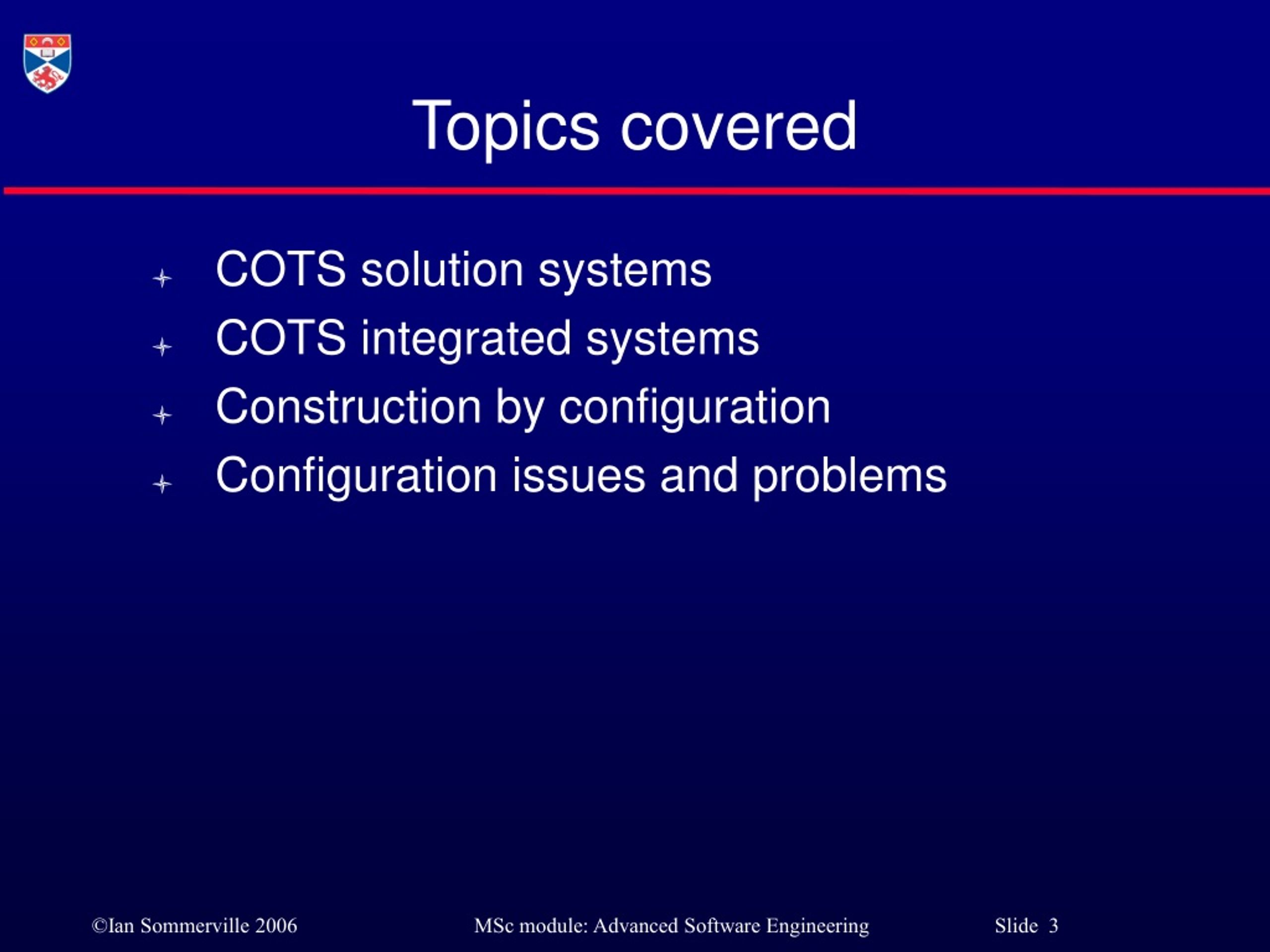

3. Topics covered • COTS solution systems • COTS integrated systems • Construction by configuration • Configuration issues and problems

4. Commercial Off-the-Shelf Systems (COTS) • COTS systems are complete application systems (not components of some larger system) that can be deployed and run as independent systems. • Reuse of COTS systems involves adapting and configuring these systems for a specific operational environment. • Examples • Develop Excel spreadsheets to support project costing • Configure a patient record system for a specific medical practice

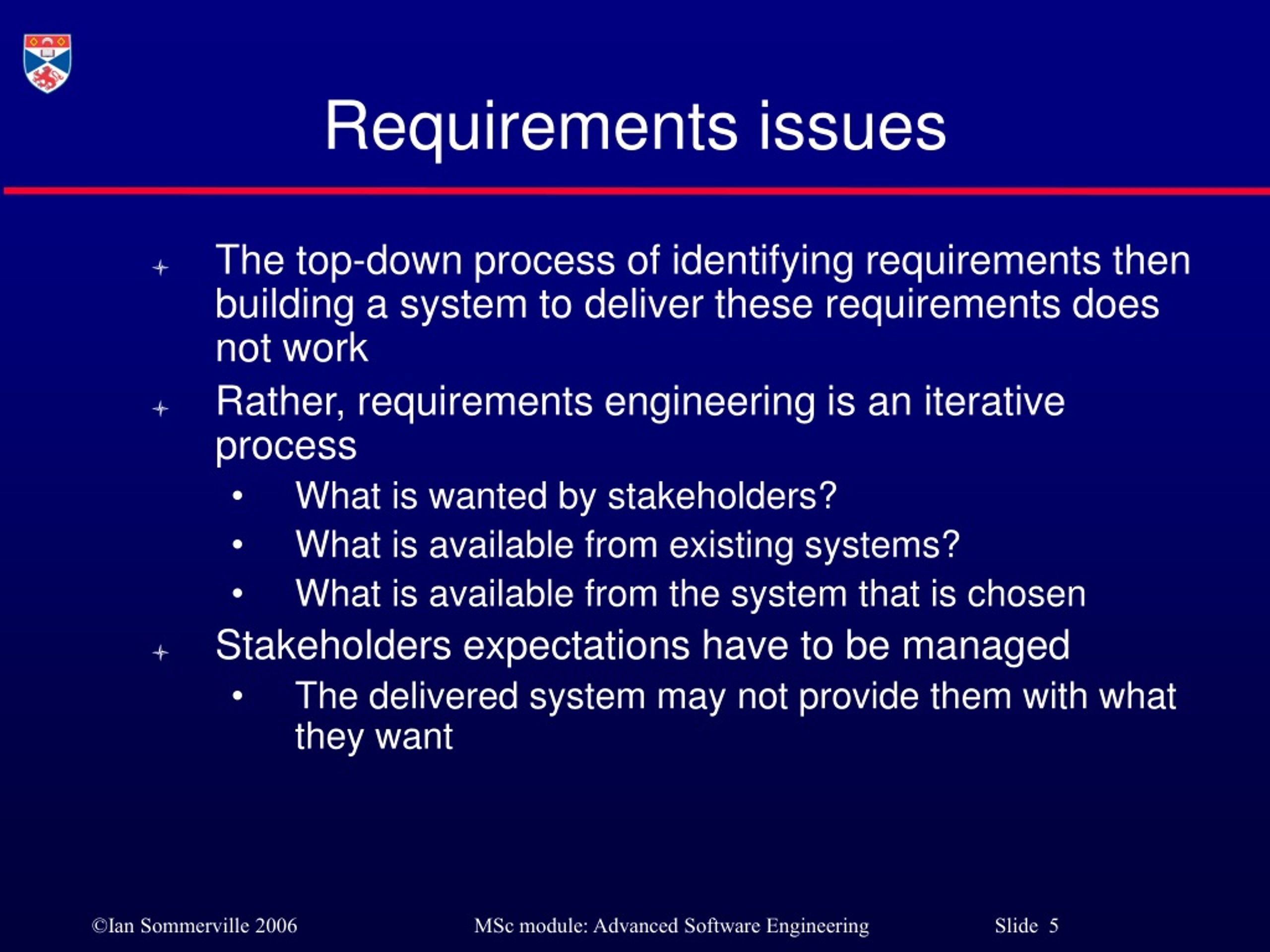

5. Requirements issues • The top-down process of identifying requirements then building a system to deliver these requirements does not work • Rather, requirements engineering is an iterative process • What is wanted by stakeholders? • What is available from existing systems? • What is available from the system that is chosen • Stakeholders expectations have to be managed • The delivered system may not provide them with what they want

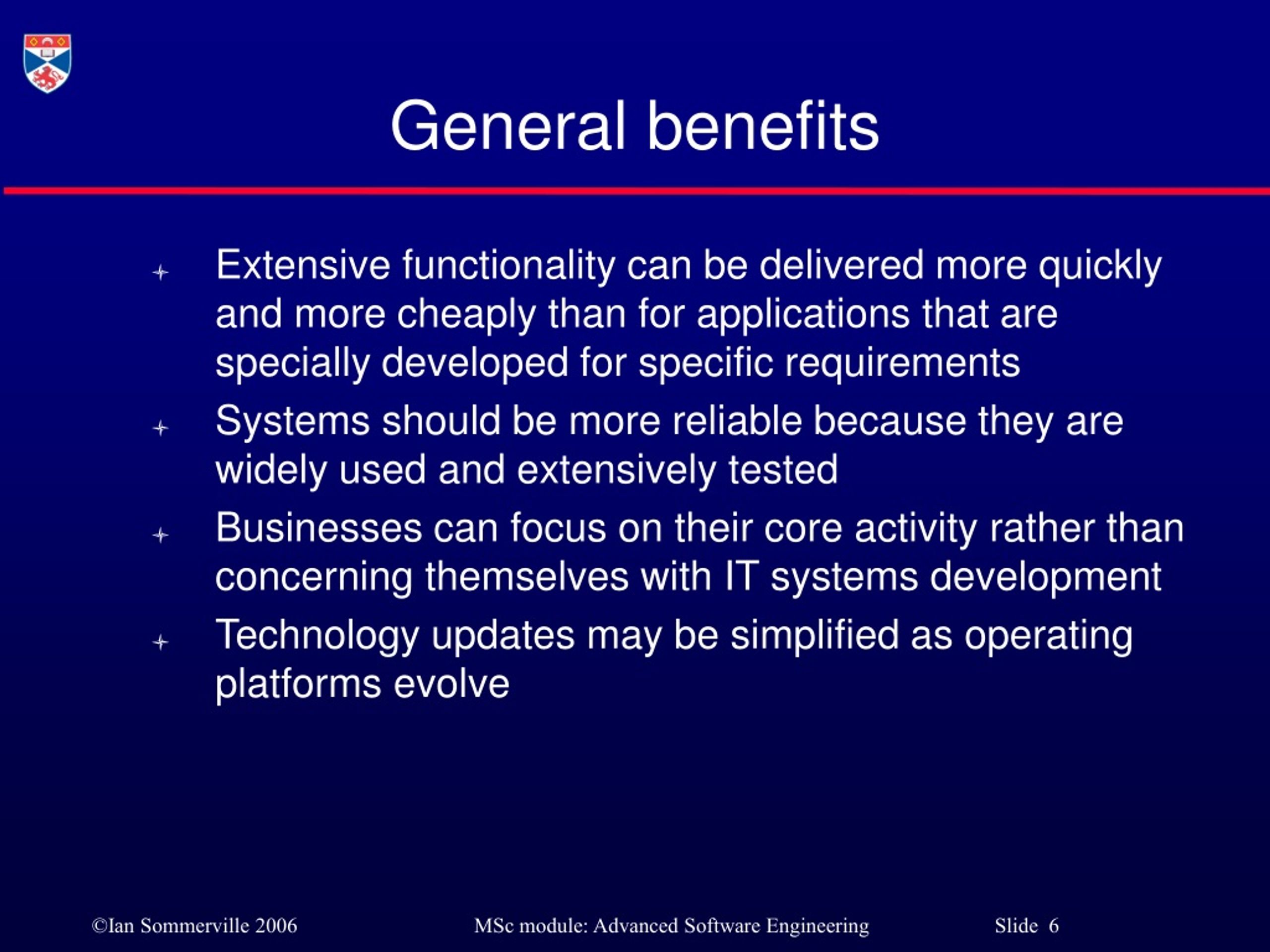

6. General benefits • Extensive functionality can be delivered more quickly and more cheaply than for applications that are specially developed for specific requirements • Systems should be more reliable because they are widely used and extensively tested • Businesses can focus on their core activity rather than concerning themselves with IT systems development • Technology updates may be simplified as operating platforms evolve

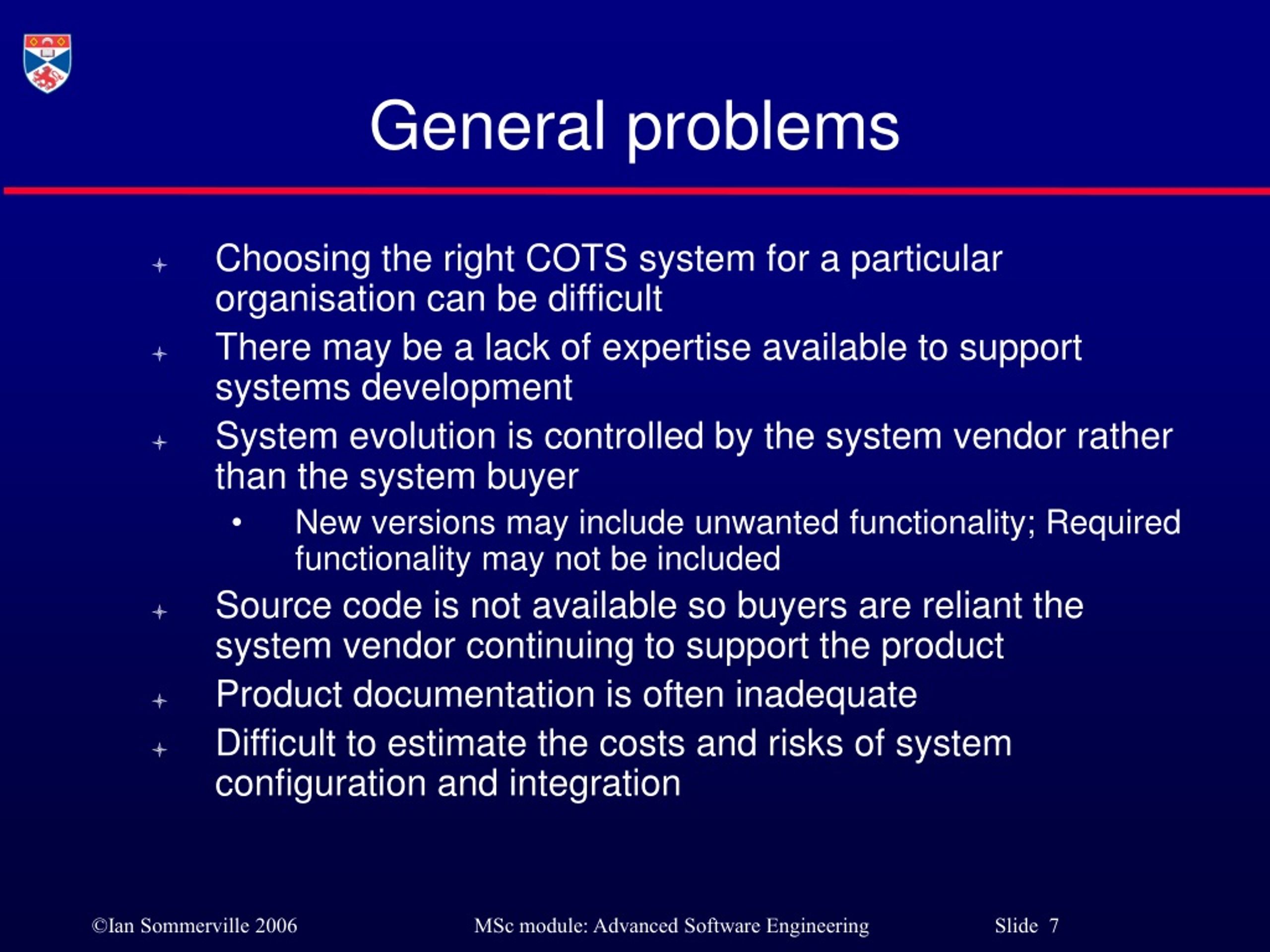

7. General problems • Choosing the right COTS system for a particular organisation can be difficult • There may be a lack of expertise available to support systems development • System evolution is controlled by the system vendor rather than the system buyer • New versions may include unwanted functionality; Required functionality may not be included • Source code is not available so buyers are reliant the system vendor continuing to support the product • Product documentation is often inadequate • Difficult to estimate the costs and risks of system configuration and integration

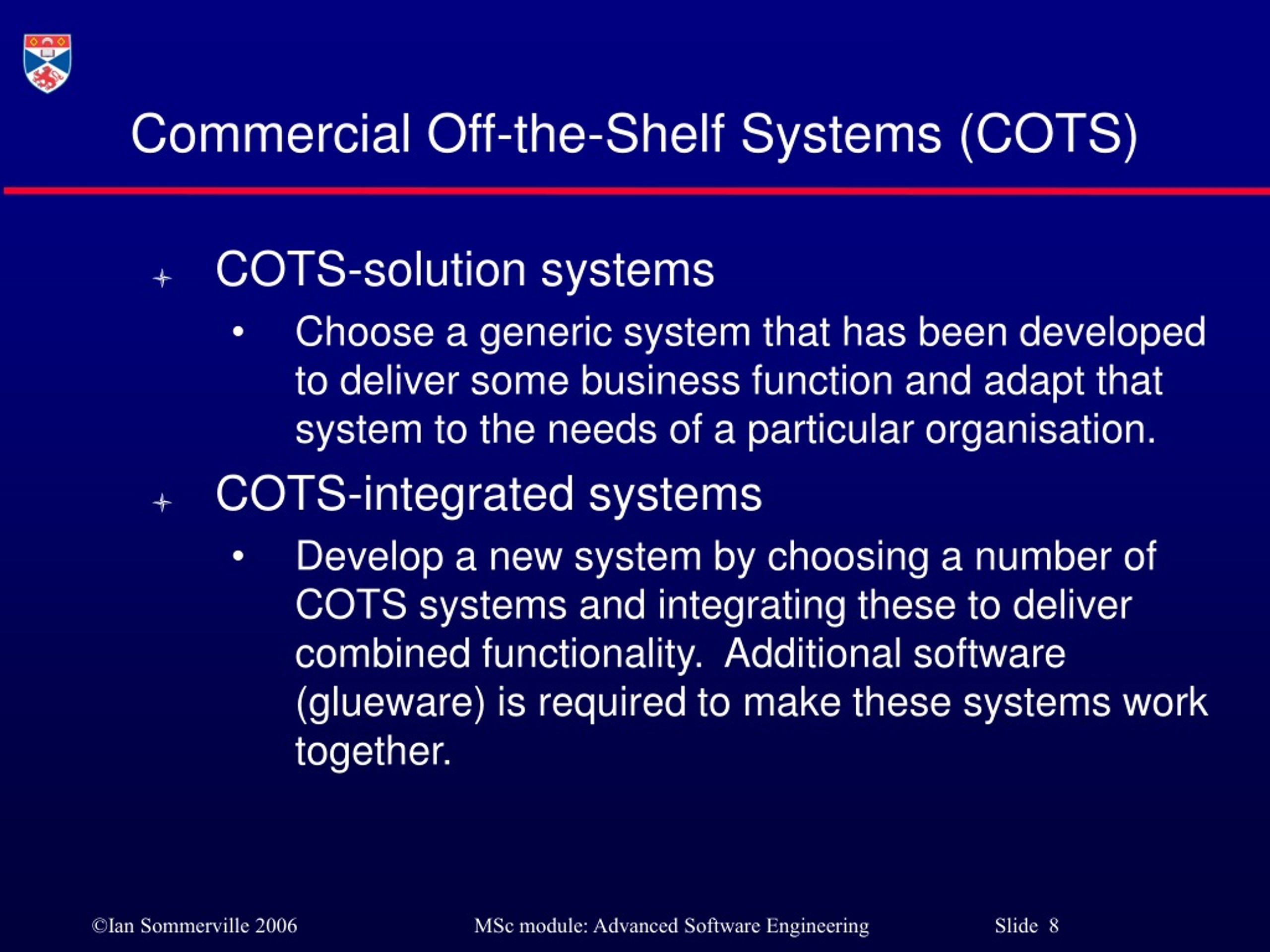

8. Commercial Off-the-Shelf Systems (COTS) • COTS-solution systems • Choose a generic system that has been developed to deliver some business function and adapt that system to the needs of a particular organisation. • COTS-integrated systems • Develop a new system by choosing a number of COTS systems and integrating these to deliver combined functionality. Additional software (glueware) is required to make these systems work together.

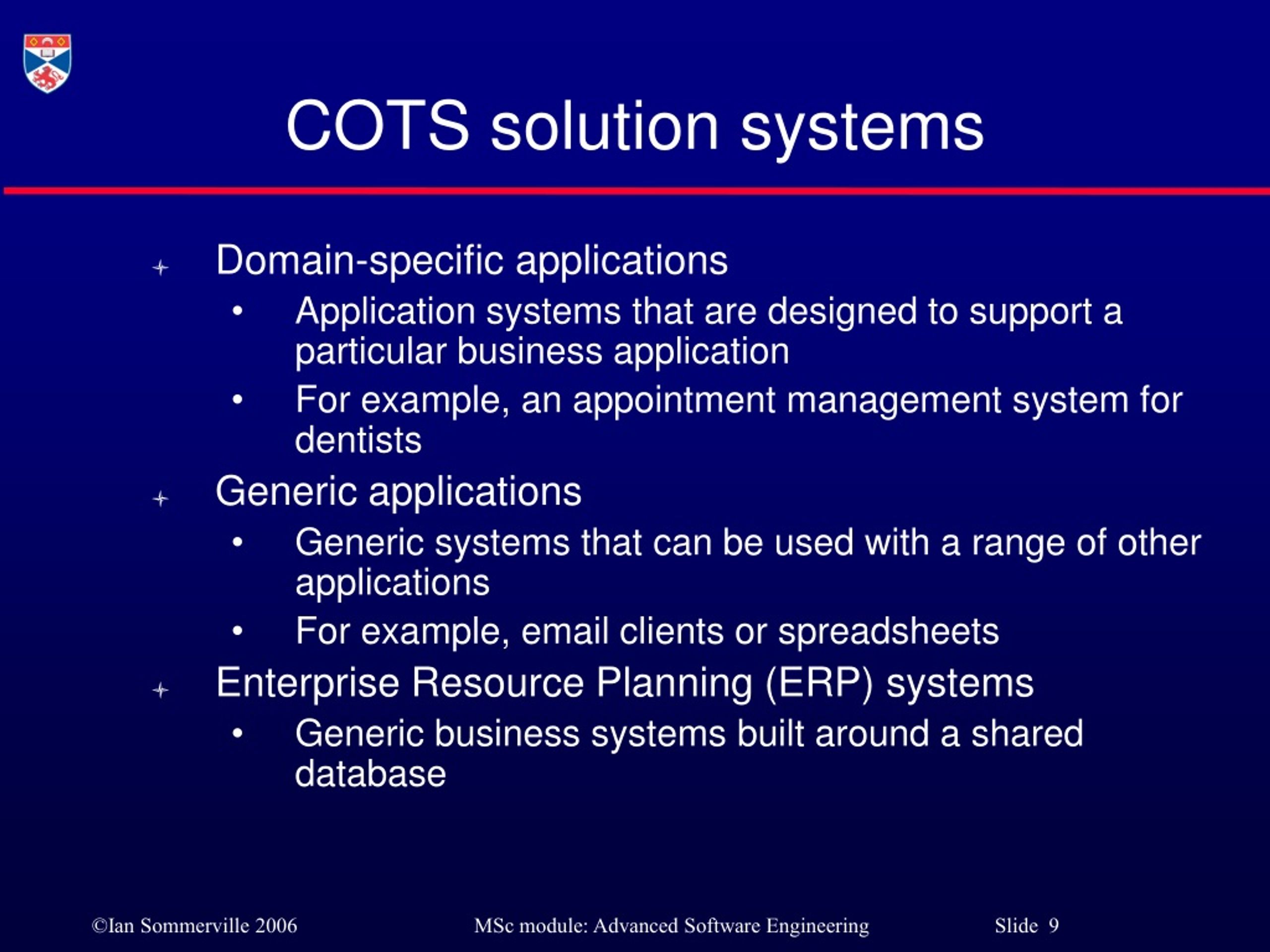

9. COTS solution systems • Domain-specific applications • Application systems that are designed to support a particular business application • For example, an appointment management system for dentists • Generic applications • Generic systems that can be used with a range of other applications • For example, email clients or spreadsheets • Enterprise Resource Planning (ERP) systems • Generic business systems built around a shared database

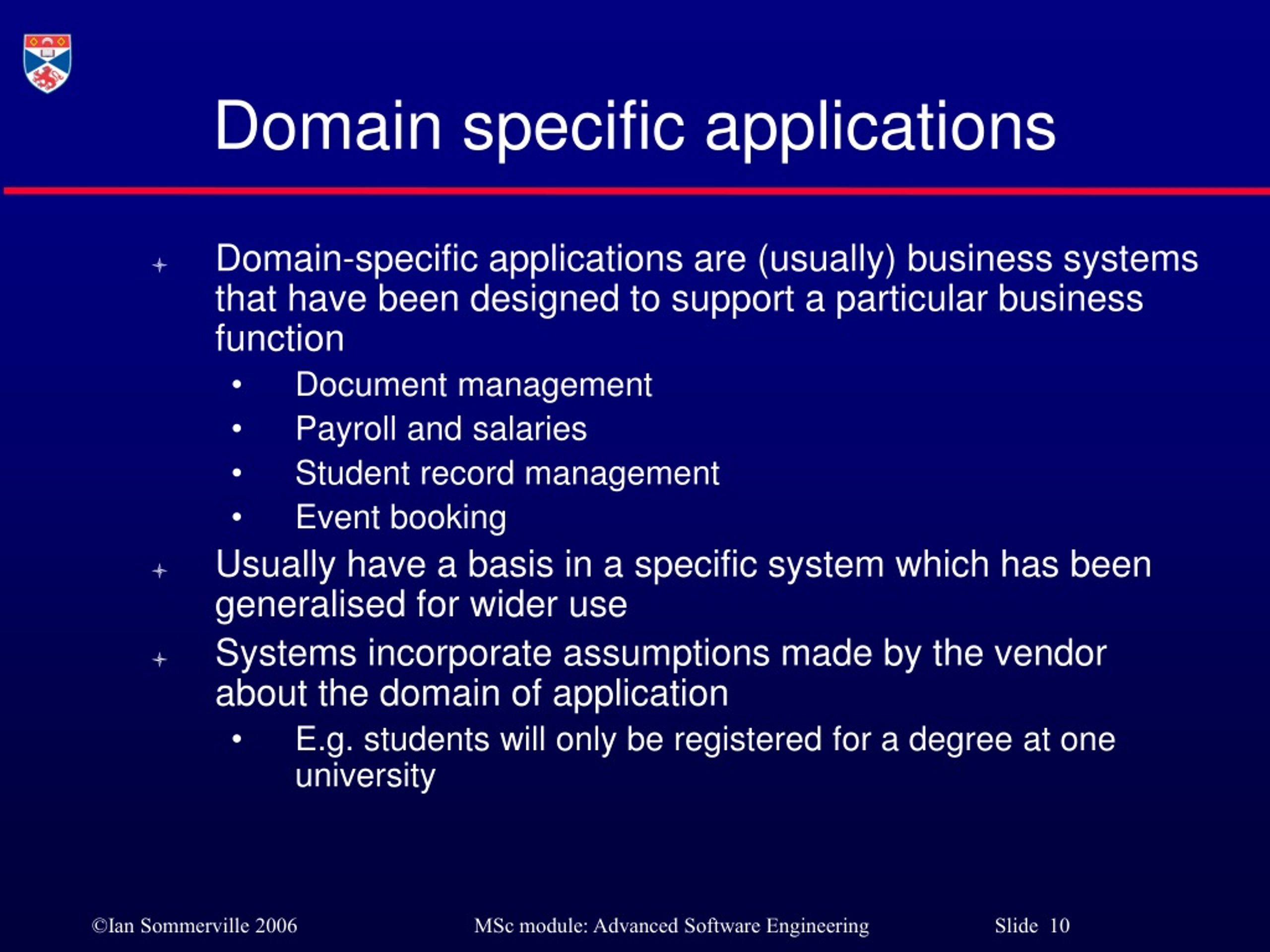

10. Domain specific applications • Domain-specific applications are (usually) business systems that have been designed to support a particular business function • Document management • Payroll and salaries • Student record management • Event booking • Usually have a basis in a specific system which has been generalised for wider use • Systems incorporate assumptions made by the vendor about the domain of application • E.g. students will only be registered for a degree at one university

11. Benefits • Designed for a specific application area so provide extensive, integrated functionality to support that area • A specific user community may be created to share knowledge of problems and how to use the system effectively • Usually designed to support information sharing

12. Problems • The assumptions made by the vendor may not hold for the user of the system • We shall see later a system that had problems because it assumed that it would be used under a particular legal system • The process of use may not match user processes • Systems may only be available on limited platforms • Sometimes expensive • Reliant on continuing support from a single vendor • May be no or limited API for integration with other systems

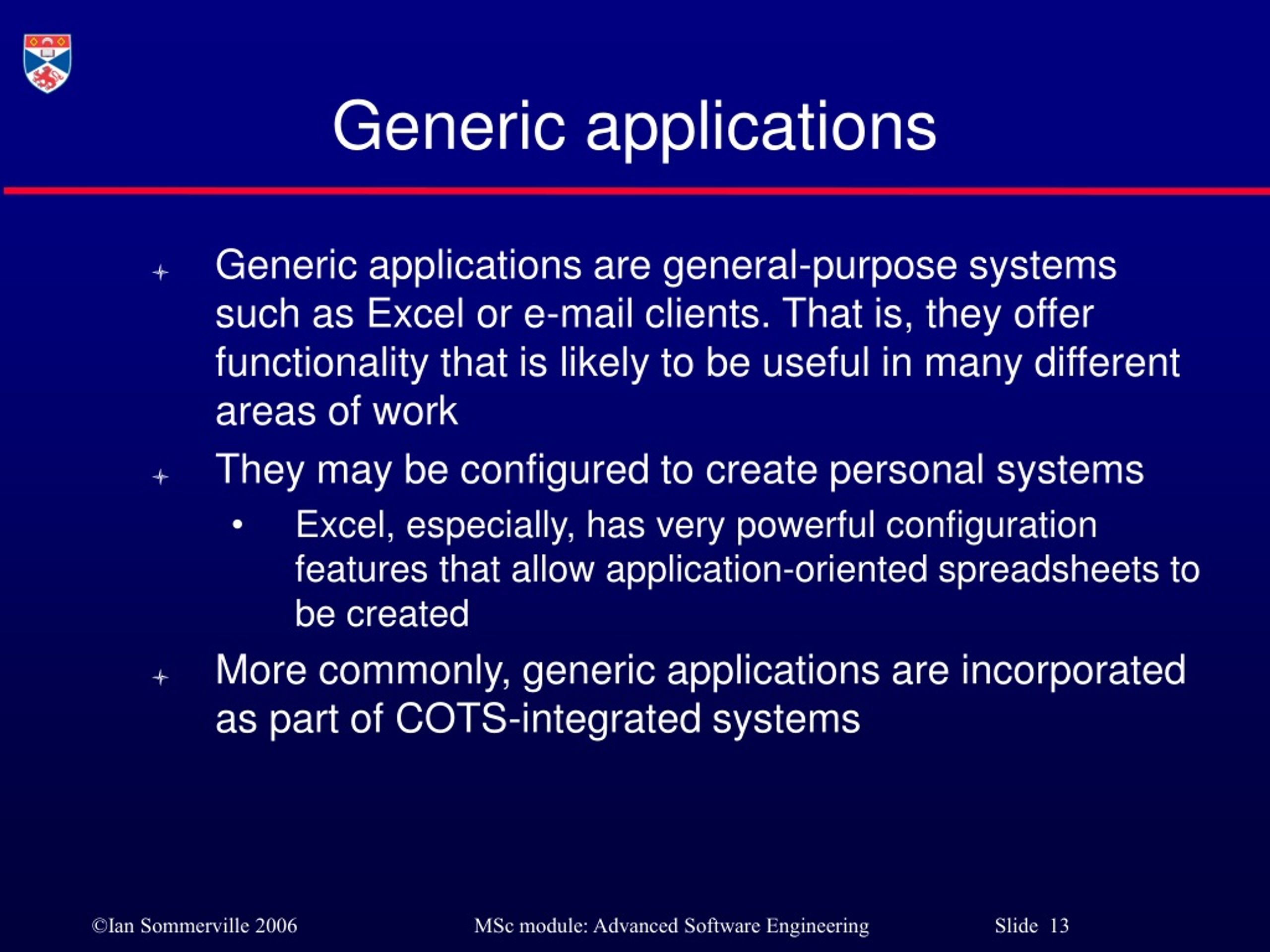

13. Generic applications • Generic applications are general-purpose systems such as Excel or e-mail clients. That is, they offer functionality that is likely to be useful in many different areas of work • They may be configured to create personal systems • Excel, especially, has very powerful configuration features that allow application-oriented spreadsheets to be created • More commonly, generic applications are incorporated as part of COTS-integrated systems

14. Benefits • Usually cheap • Widely used and tested so fairly reliable • May already be licensed for use by the organisation procuring the system • May be supported on different platforms • Users may already be familiar with their user interface (e.g. if Word is used for text input) • Incorporate extensive functionality so may be used in a range of different application types

15. Problems • As the systems are designed for stand-alone use, the API may not be well-defined or documented • This causes difficulties in integration with other systems • Undocumented system features may be incompatible with or may conflict with other COTS systems • System versions on different platforms may not be completely compatible • Systems are regularly superceded by new versions which may be incompatible • The system vendor may not support older versions of the system

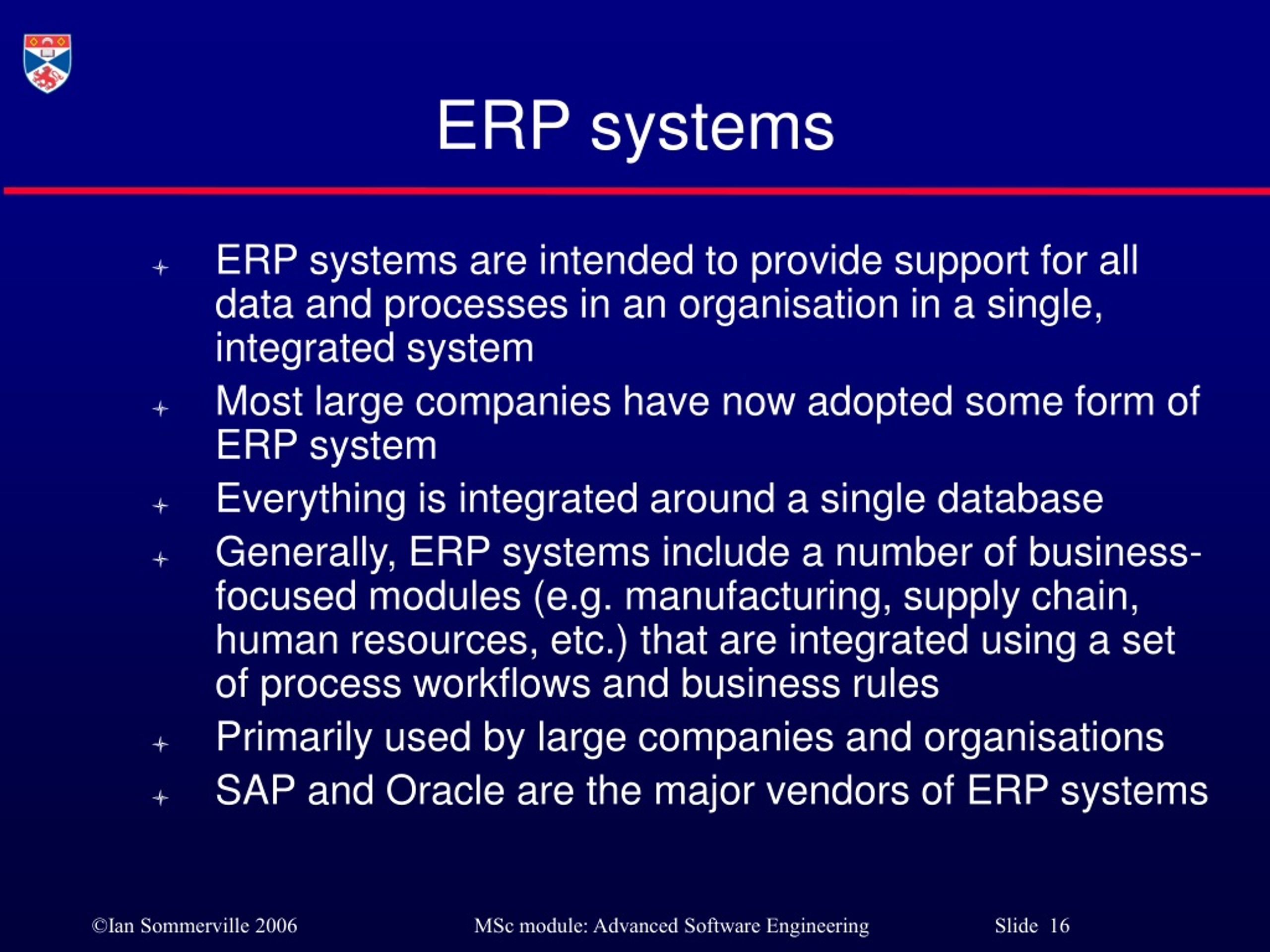

16. ERP systems • ERP systems are intended to provide support for all data and processes in an organisation in a single, integrated system • Most large companies have now adopted some form of ERP system • Everything is integrated around a single database • Generally, ERP systems include a number of business-focused modules (e.g. manufacturing, supply chain, human resources, etc.) that are integrated using a set of process workflows and business rules • Primarily used by large companies and organisations • SAP and Oracle are the major vendors of ERP systems

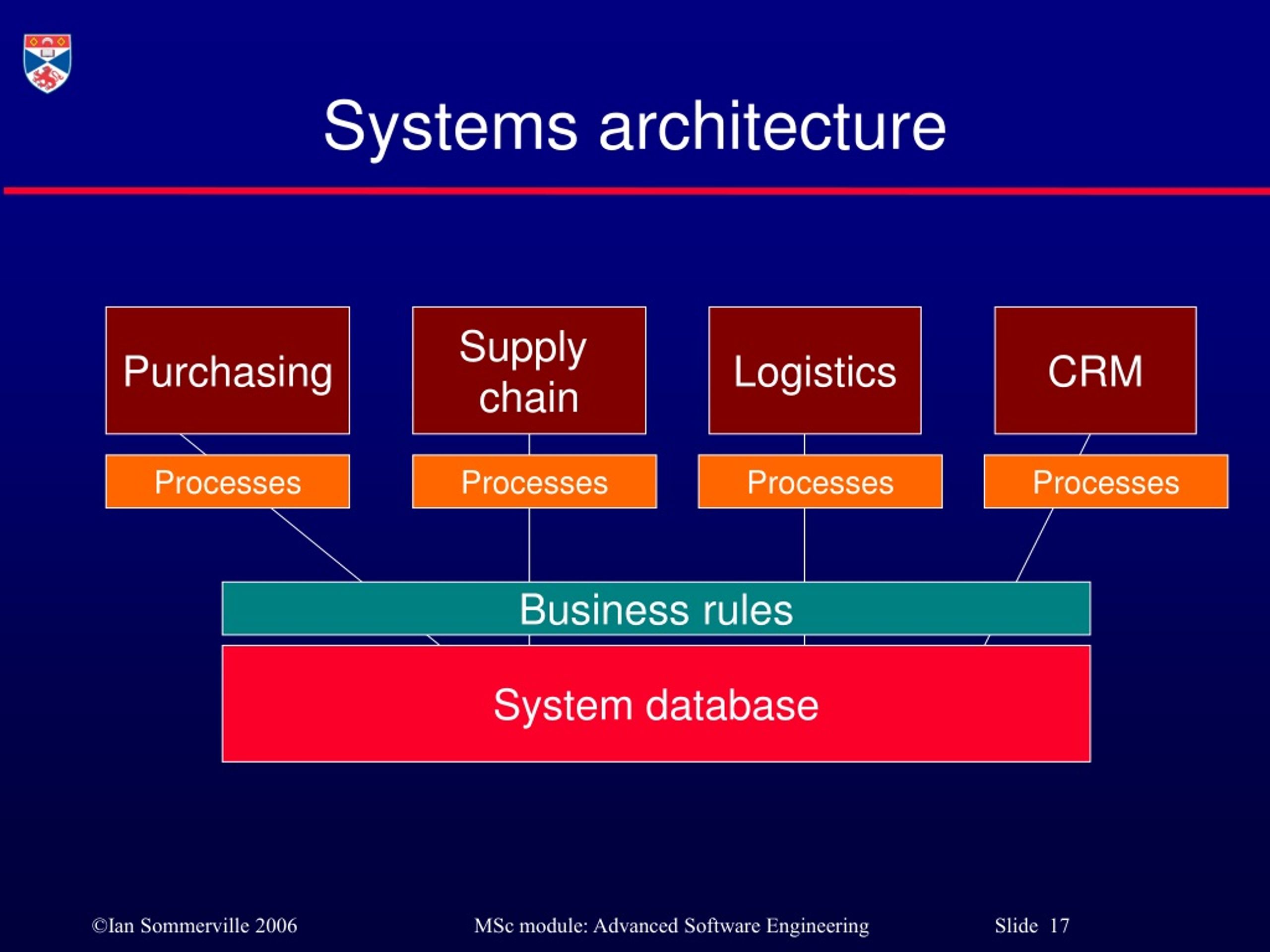

17. Systems architecture Purchasing Supply chain Logistics CRM Processes Processes Processes Processes Business rules System database

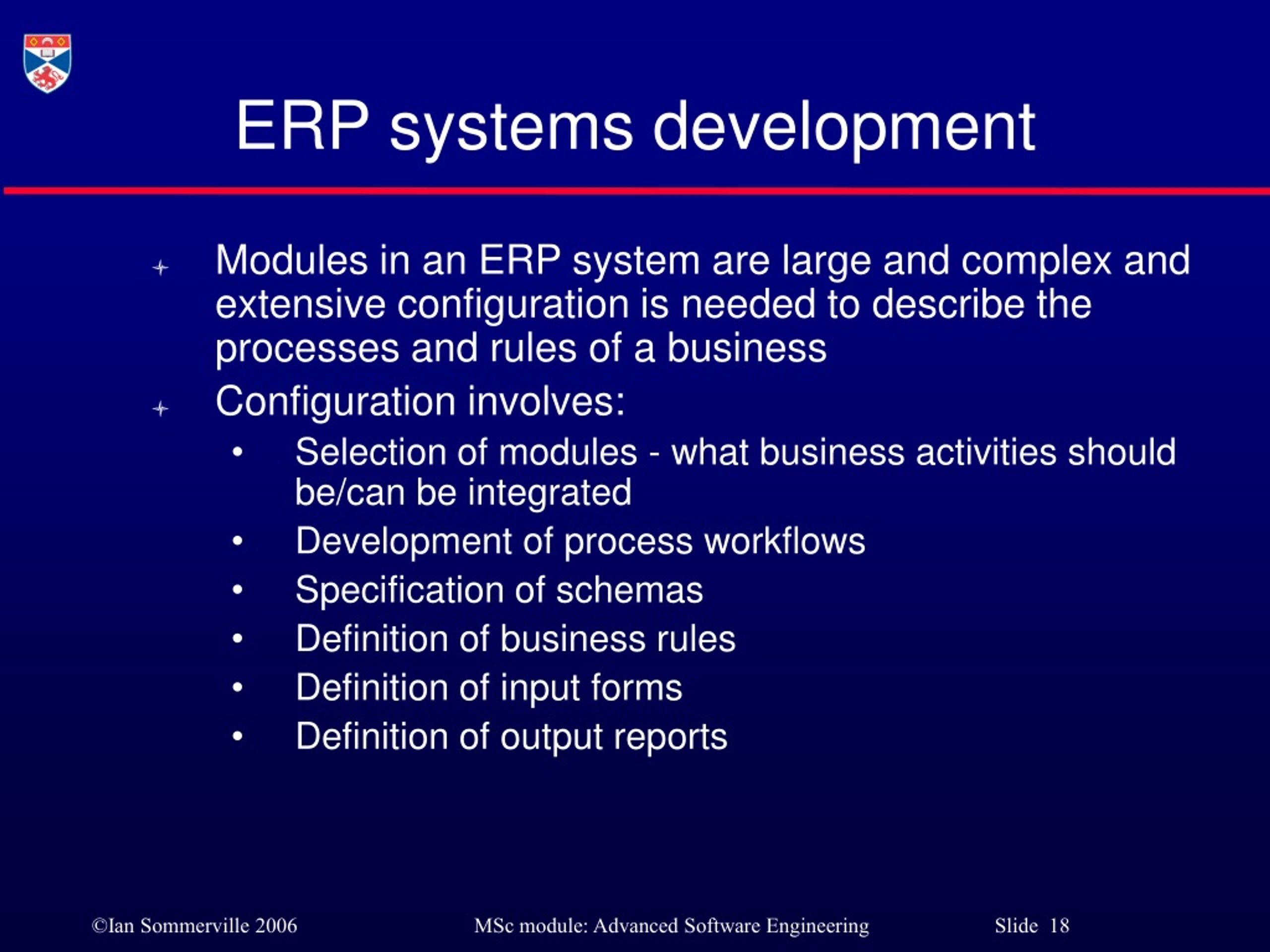

18. ERP systems development • Modules in an ERP system are large and complex and extensive configuration is needed to describe the processes and rules of a business • Configuration involves: • Selection of modules - what business activities should be/can be integrated • Development of process workflows • Specification of schemas • Definition of business rules • Definition of input forms • Definition of output reports

19. Benefits • Integration across business functions. • Data from one function is visible to other functions • Reduces data duplication • Reduces the number of separate software systems that have to be managed and maintained

20. Problems • Very complex to configure ERP systems - thousands of tables and reports may have to be defined • There may be a mismatch between the processes and rules supported by the ERP system and an organisation’s processes • Forces a standard way of working on businesses • Can therefore lose competitive edge because of better processes than competitors • Difficult to integrate with legacy systems

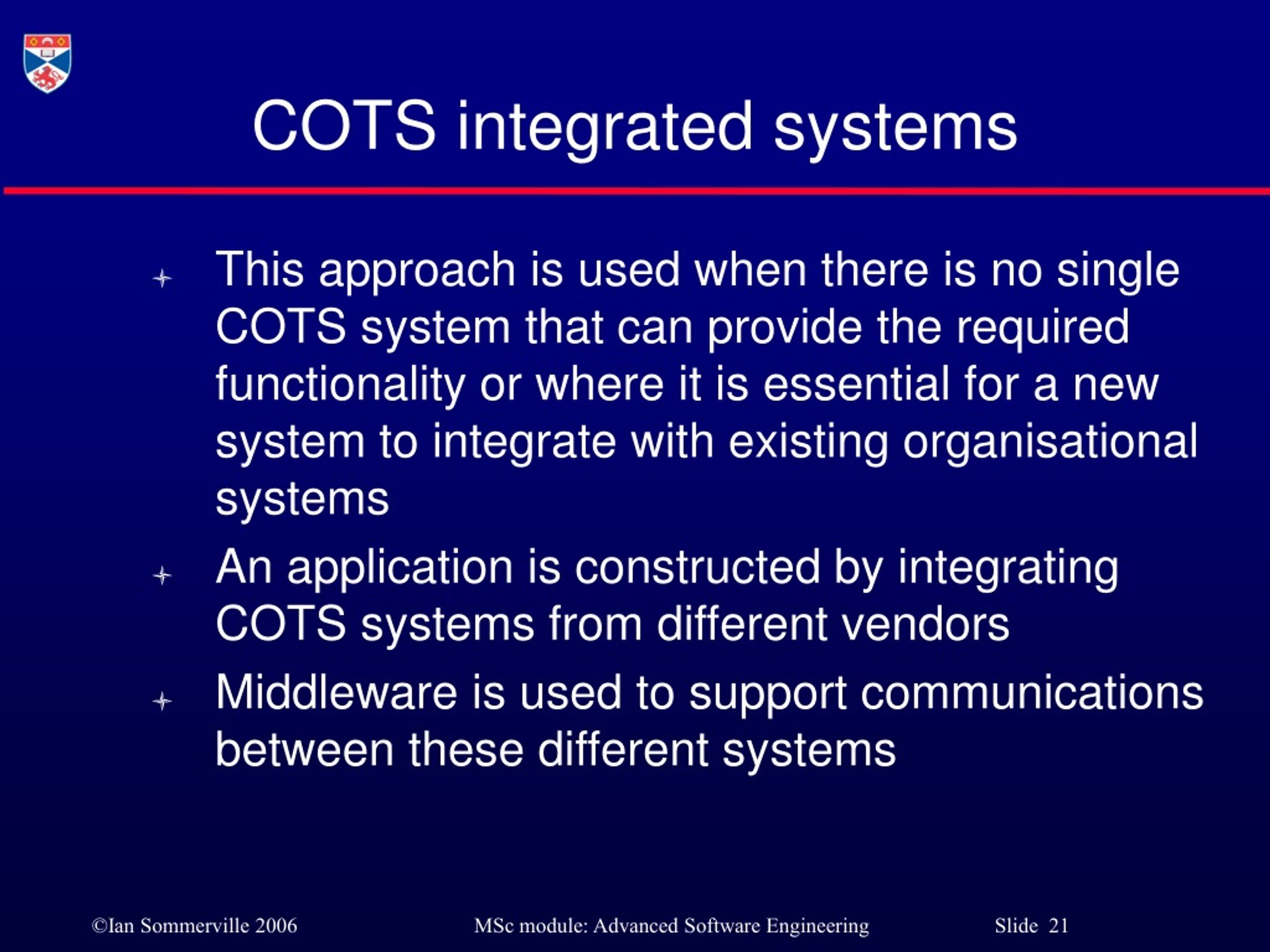

21. COTS integrated systems • This approach is used when there is no single COTS system that can provide the required functionality or where it is essential for a new system to integrate with existing organisational systems • An application is constructed by integrating COTS systems from different vendors • Middleware is used to support communications between these different systems

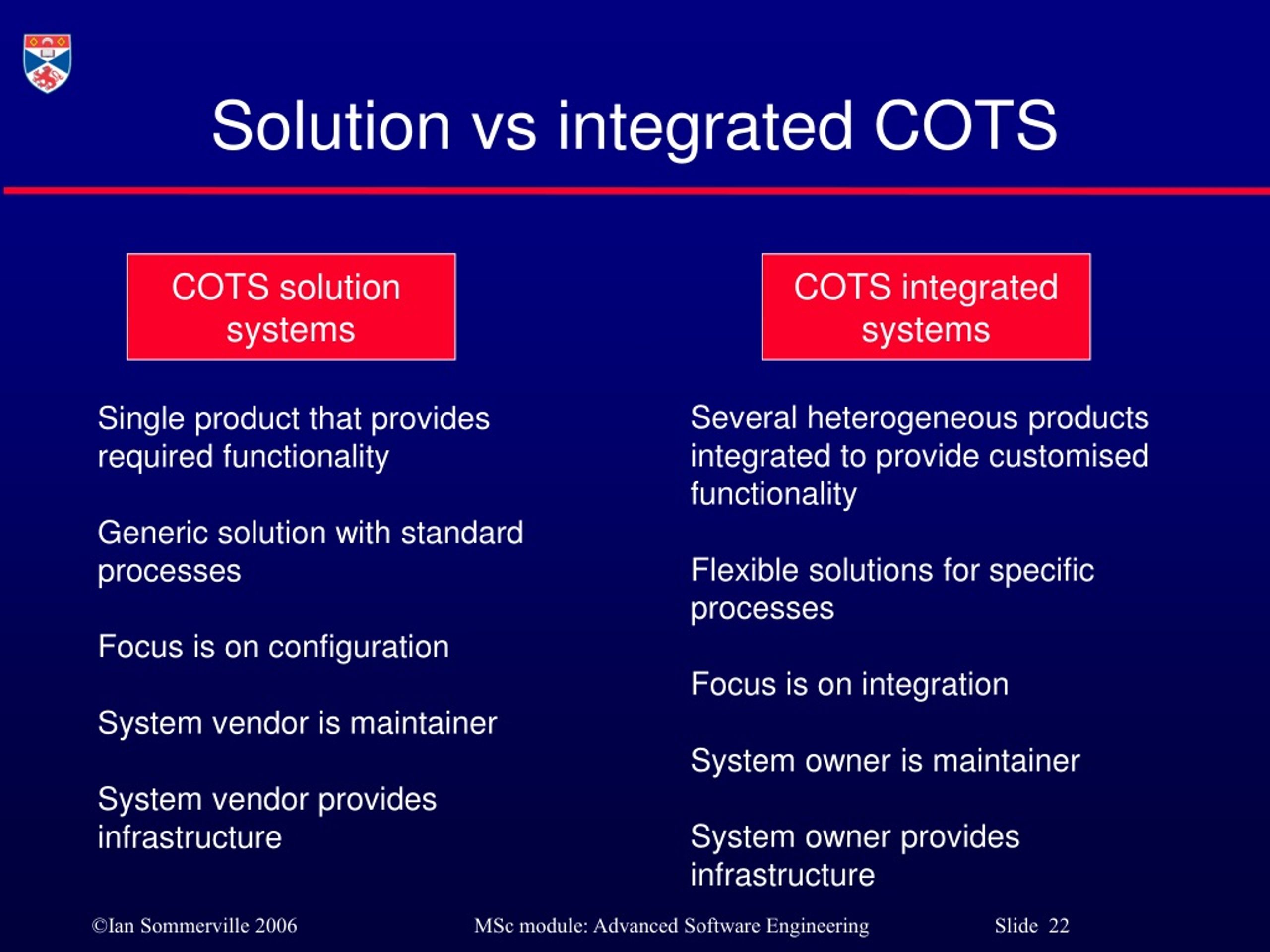

22. Solution vs integrated COTS COTS solution systems COTS integratedsystems Several heterogeneous products integrated to provide customised functionality Flexible solutions for specific processes Focus is on integration System owner is maintainer System owner provides infrastructure Single product that provides required functionality Generic solution with standard processes Focus is on configuration System vendor is maintainer System vendor provides infrastructure

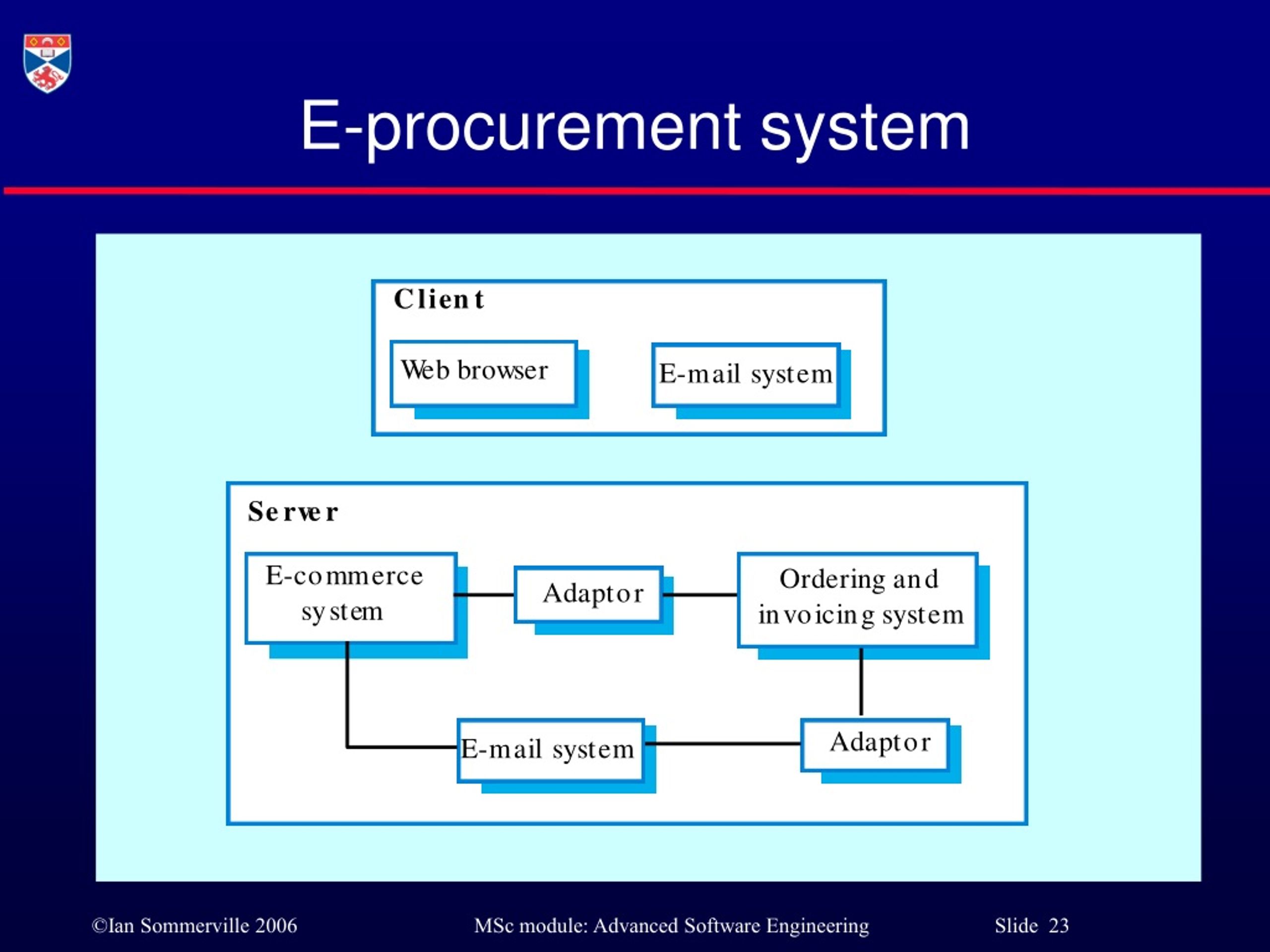

23. E-procurement system

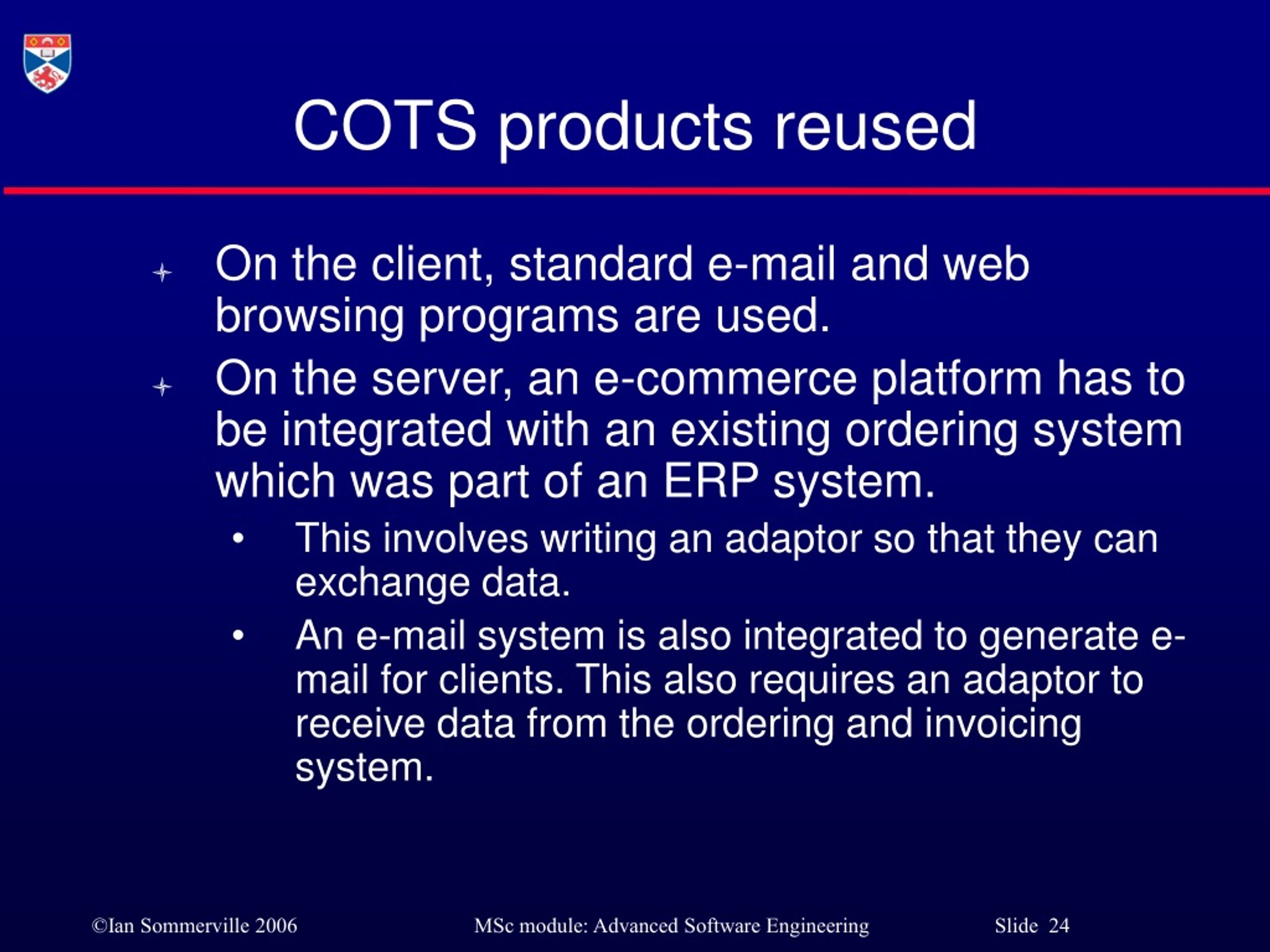

24. COTS products reused • On the client, standard e-mail and web browsing programs are used. • On the server, an e-commerce platform has to be integrated with an existing ordering system which was part of an ERP system. • This involves writing an adaptor so that they can exchange data. • An e-mail system is also integrated to generate e-mail for clients. This also requires an adaptor to receive data from the ordering and invoicing system.

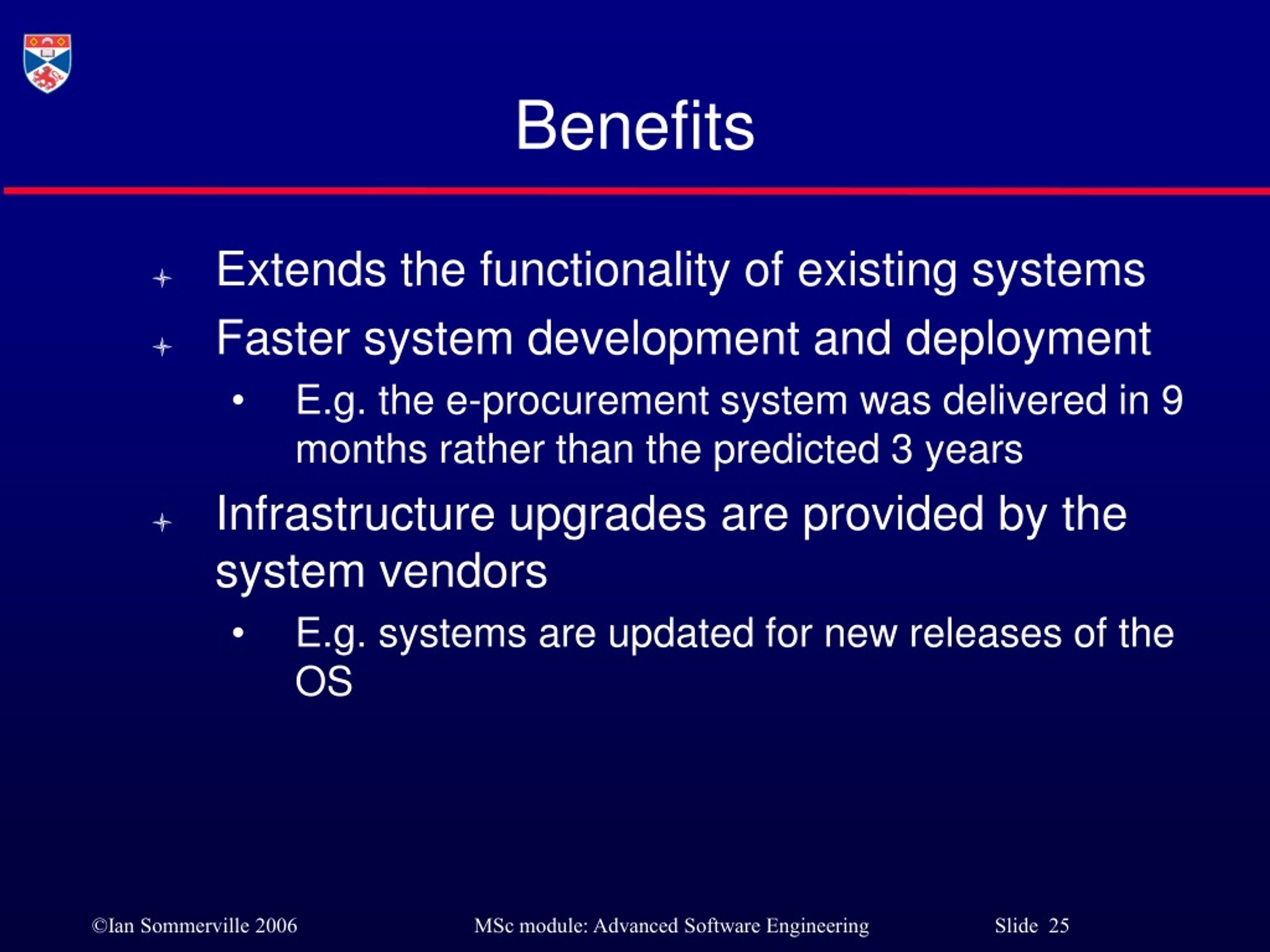

25. Benefits • Extends the functionality of existing systems • Faster system development and deployment • E.g. the e-procurement system was delivered in 9 months rather than the predicted 3 years • Infrastructure upgrades are provided by the system vendors • E.g. systems are updated for new releases of the OS

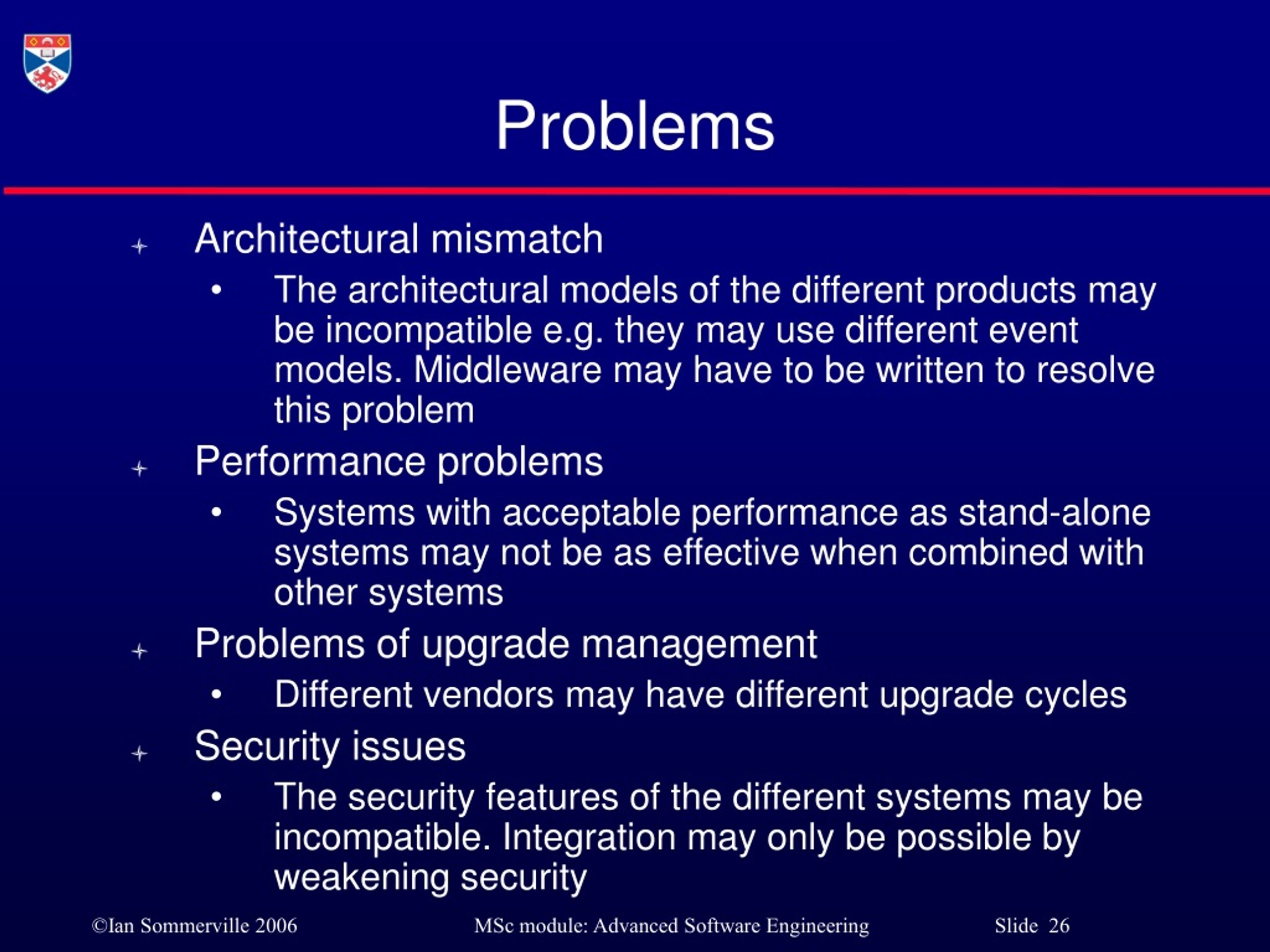

26. Problems • Architectural mismatch • The architectural models of the different products may be incompatible e.g. they may use different event models. Middleware may have to be written to resolve this problem • Performance problems • Systems with acceptable performance as stand-alone systems may not be as effective when combined with other systems • Problems of upgrade management • Different vendors may have different upgrade cycles • Security issues • The security features of the different systems may be incompatible. Integration may only be possible by weakening security

27. Construction by Configuration: COTS application engineering

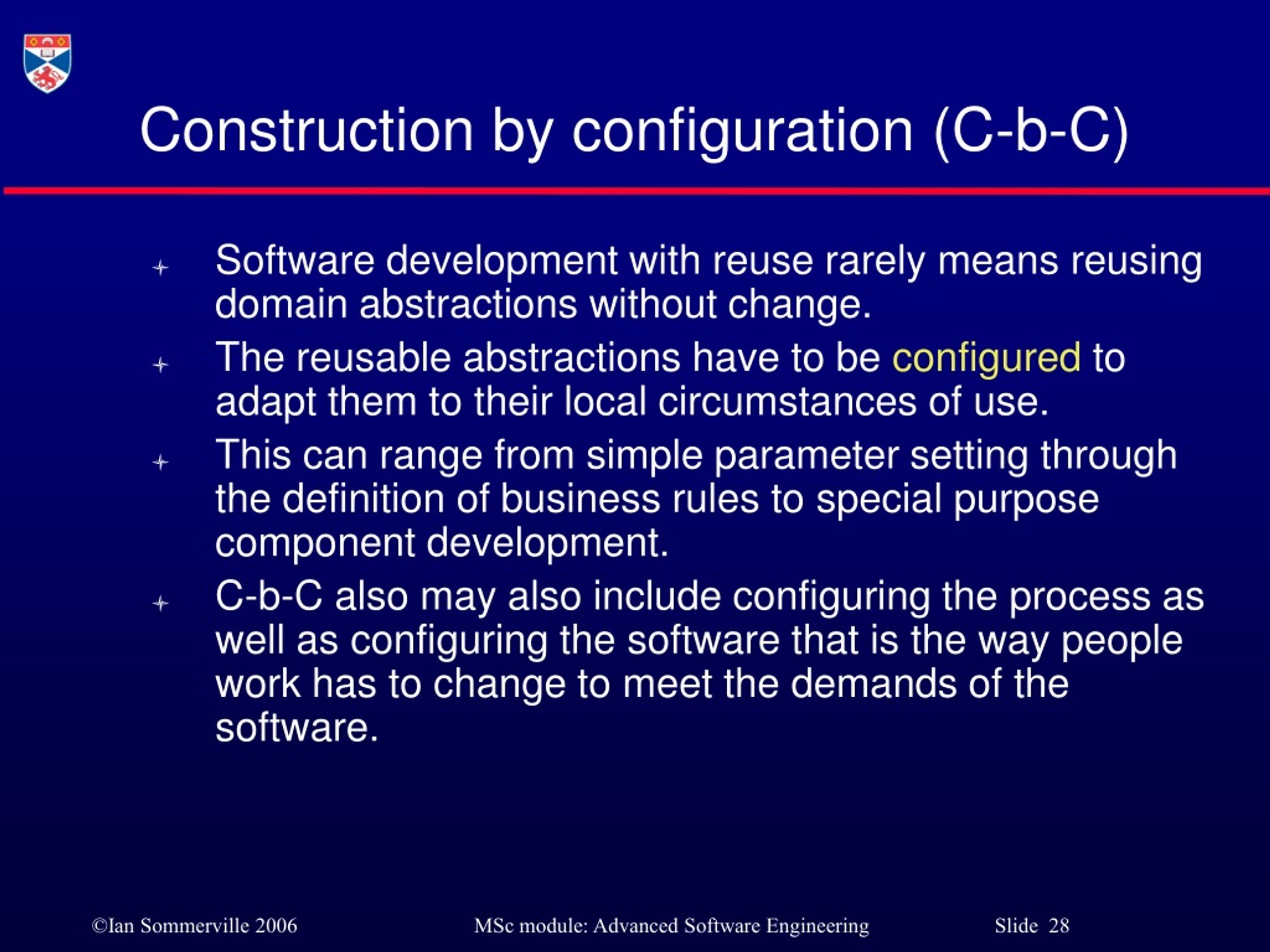

28. Construction by configuration (C-b-C) • Software development with reuse rarely means reusing domain abstractions without change. • The reusable abstractions have to be configured to adapt them to their local circumstances of use. • This can range from simple parameter setting through the definition of business rules to special purpose component development. • C-b-C also may also include configuring the process as well as configuring the software that is the way people work has to change to meet the demands of the software.

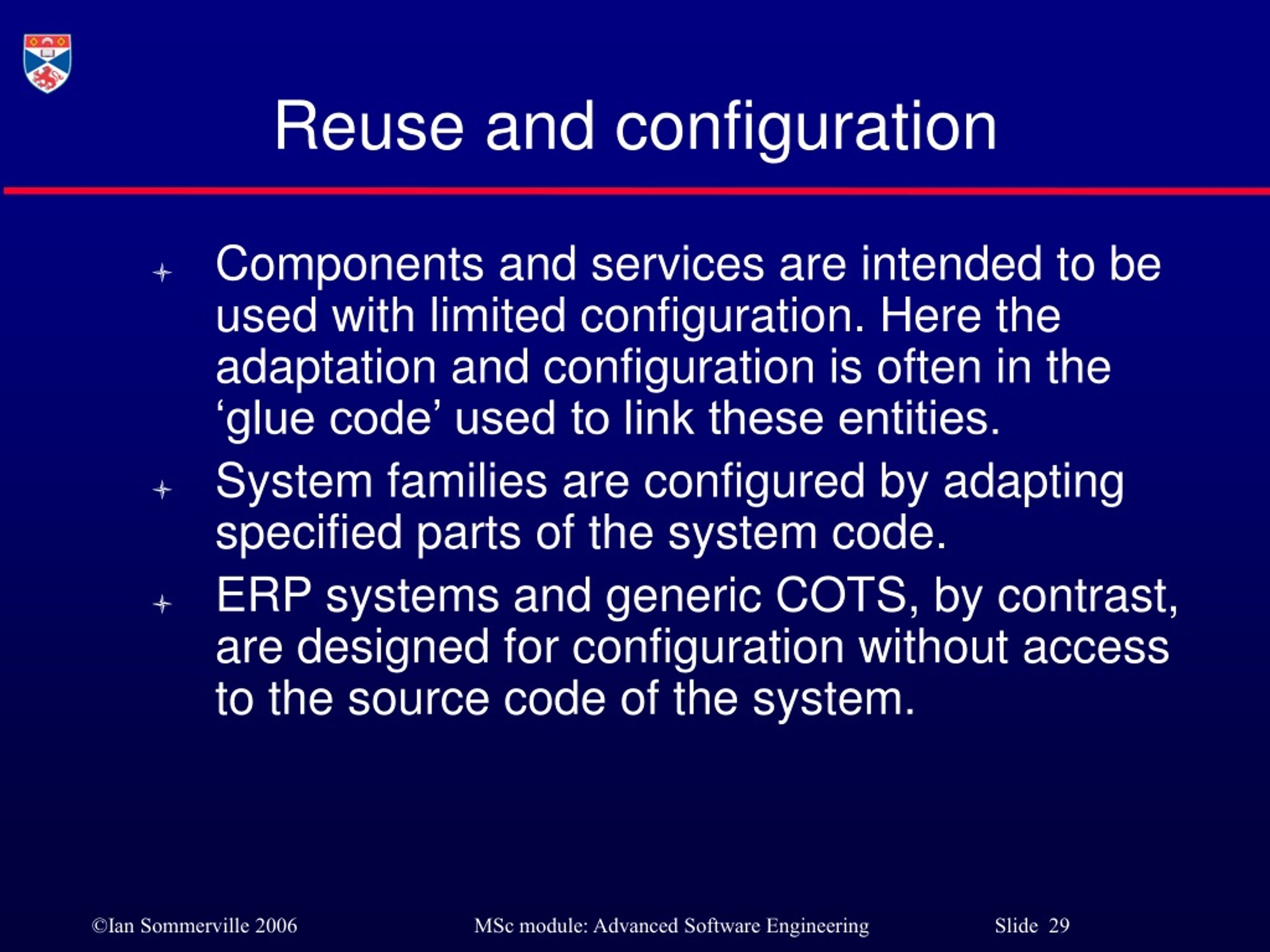

29. Reuse and configuration • Components and services are intended to be used with limited configuration. Here the adaptation and configuration is often in the ‘glue code’ used to link these entities. • System families are configured by adapting specified parts of the system code. • ERP systems and generic COTS, by contrast, are designed for configuration without access to the source code of the system.

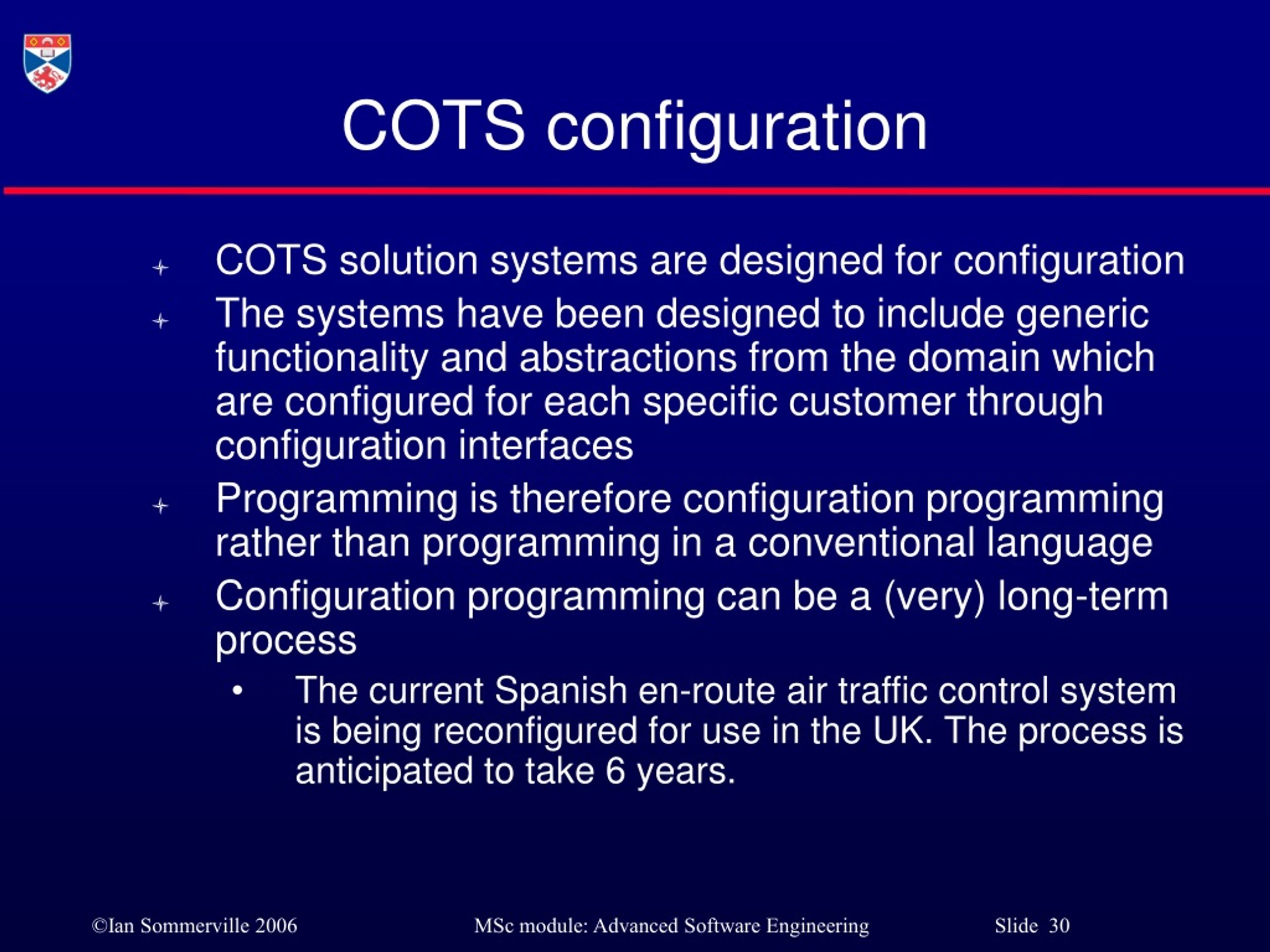

30. COTS configuration • COTS solution systems are designed for configuration • The systems have been designed to include generic functionality and abstractions from the domain which are configured for each specific customer through configuration interfaces • Programming is therefore configuration programming rather than programming in a conventional language • Configuration programming can be a (very) long-term process • The current Spanish en-route air traffic control system is being reconfigured for use in the UK. The process is anticipated to take 6 years.

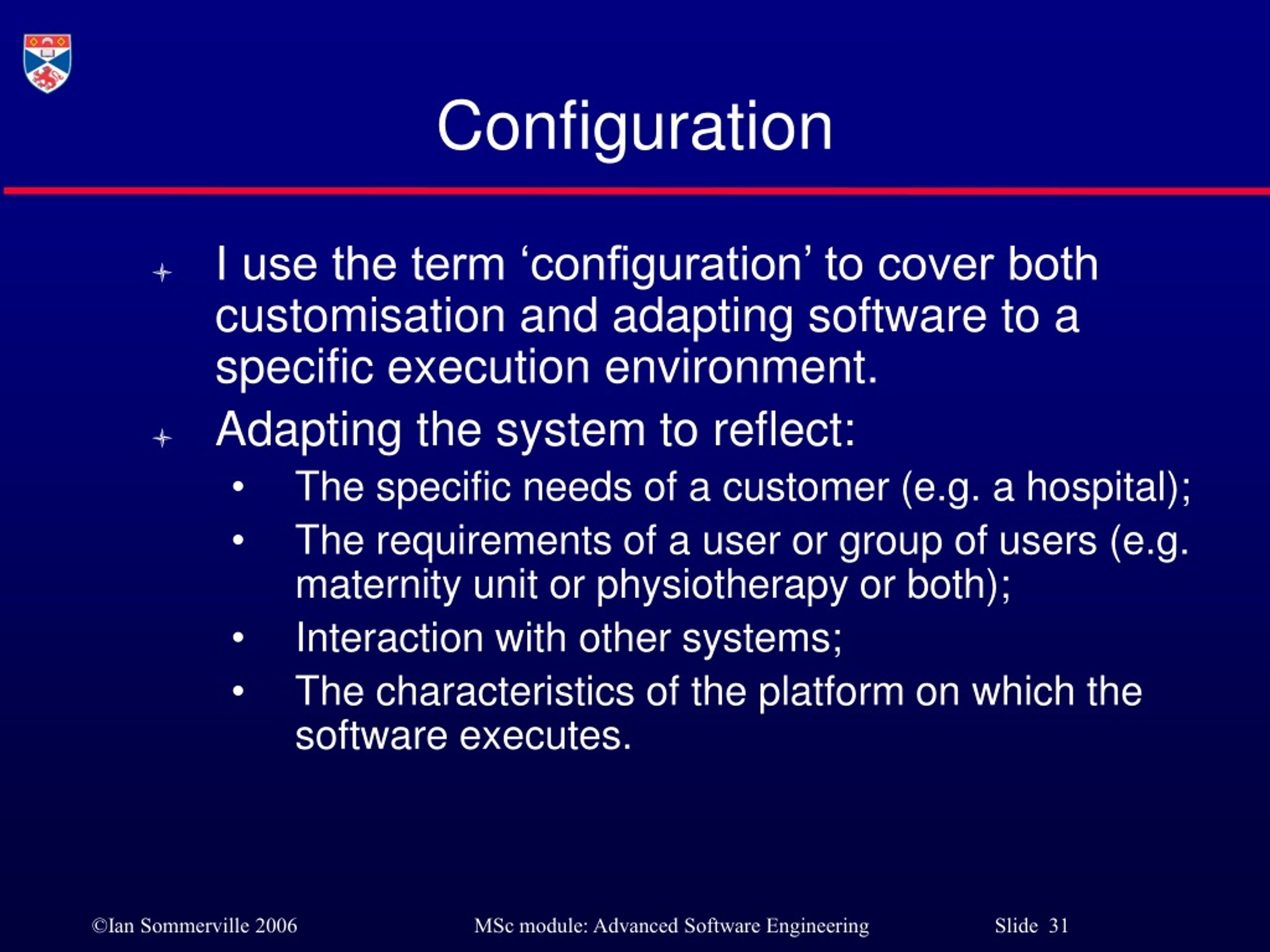

31. Configuration • I use the term ‘configuration’ to cover both customisation and adapting software to a specific execution environment. • Adapting the system to reflect: • The specific needs of a customer (e.g. a hospital); • The requirements of a user or group of users (e.g. maternity unit or physiotherapy or both); • Interaction with other systems; • The characteristics of the platform on which the software executes.

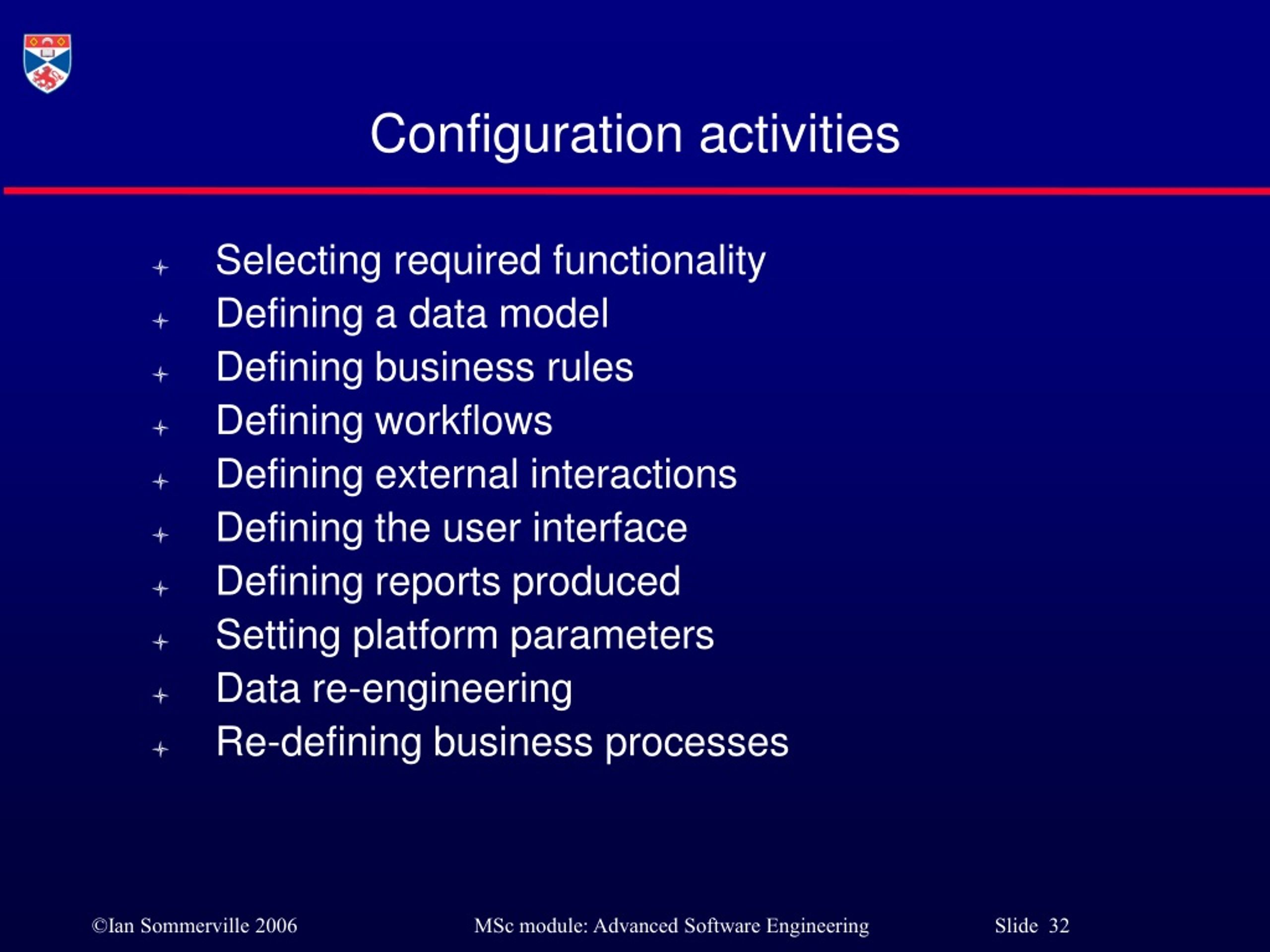

32. Configuration activities • Selecting required functionality • Defining a data model • Defining business rules • Defining workflows • Defining external interactions • Defining the user interface • Defining reports produced • Setting platform parameters • Data re-engineering • Re-defining business processes

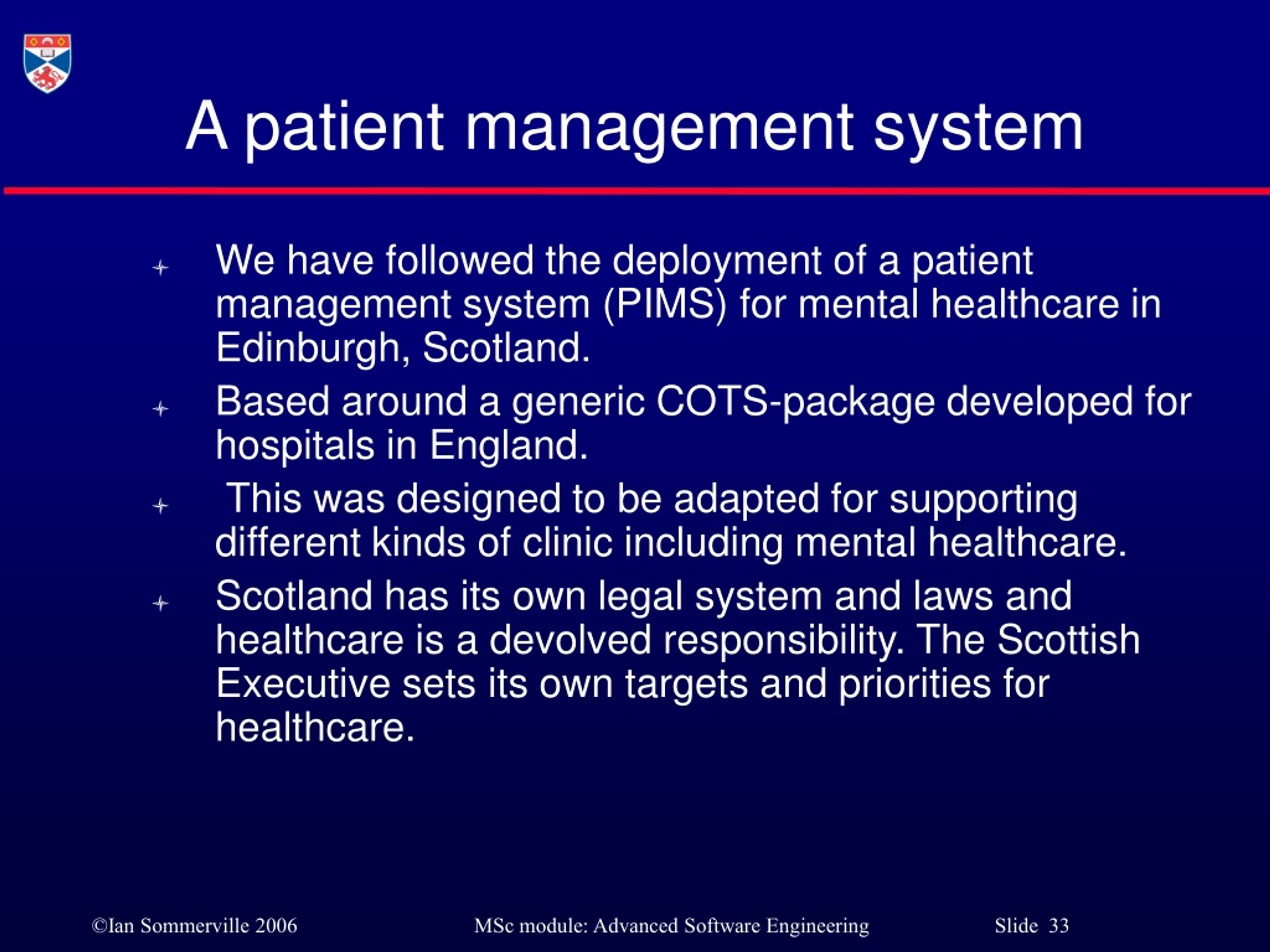

33. A patient management system • We have followed the deployment of a patient management system (PIMS) for mental healthcare in Edinburgh, Scotland. • Based around a generic COTS-package developed for hospitals in England. • This was designed to be adapted for supporting different kinds of clinic including mental healthcare. • Scotland has its own legal system and laws and healthcare is a devolved responsibility. The Scottish Executive sets its own targets and priorities for healthcare.

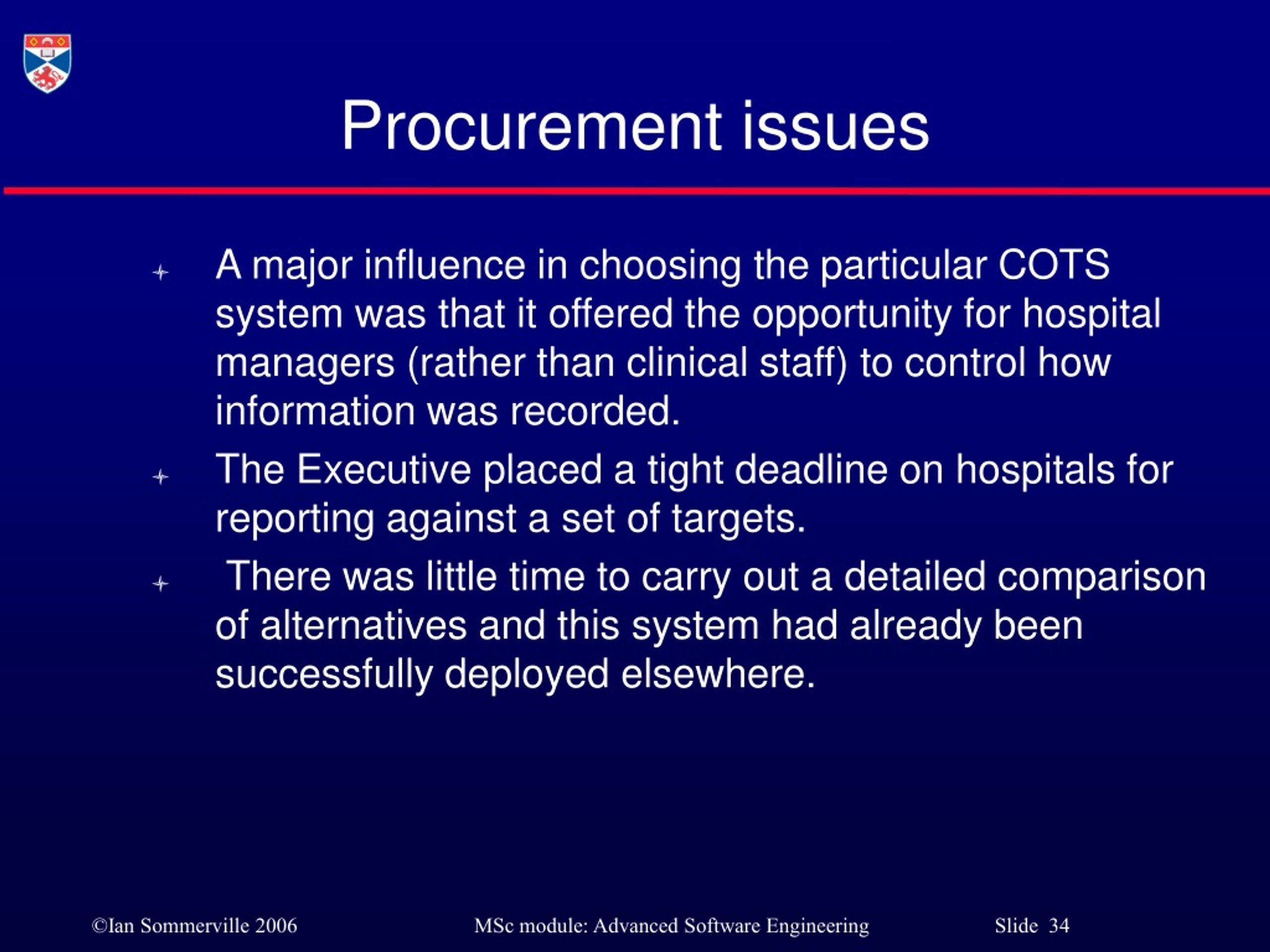

34. Procurement issues • A major influence in choosing the particular COTS system was that it offered the opportunity for hospital managers (rather than clinical staff) to control how information was recorded. • The Executive placed a tight deadline on hospitals for reporting against a set of targets. • There was little time to carry out a detailed comparison of alternatives and this system had already been successfully deployed elsewhere.

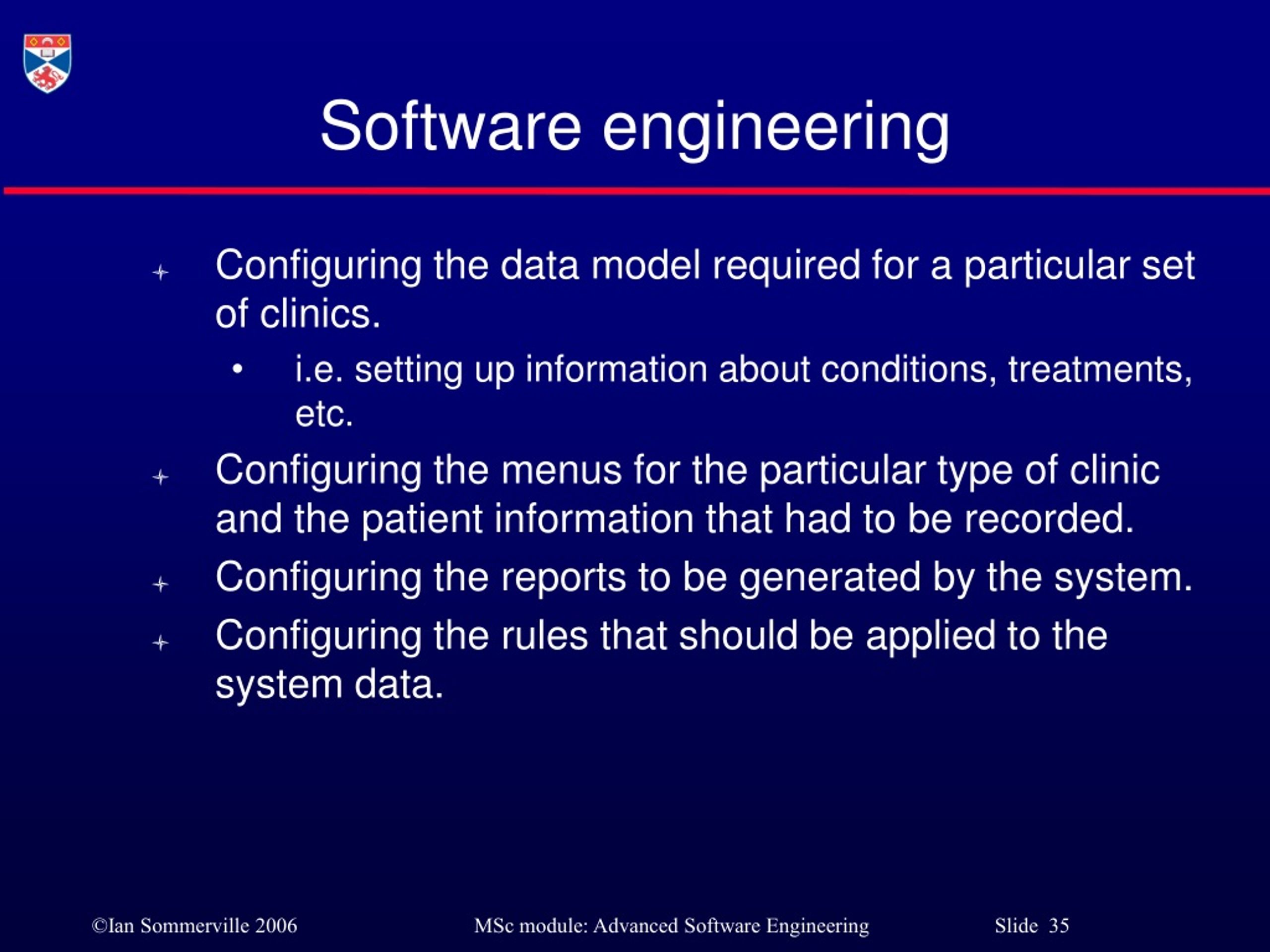

35. Software engineering • Configuring the data model required for a particular set of clinics. • i.e. setting up information about conditions, treatments, etc. • Configuring the menus for the particular type of clinic and the patient information that had to be recorded. • Configuring the reports to be generated by the system. • Configuring the rules that should be applied to the system data.

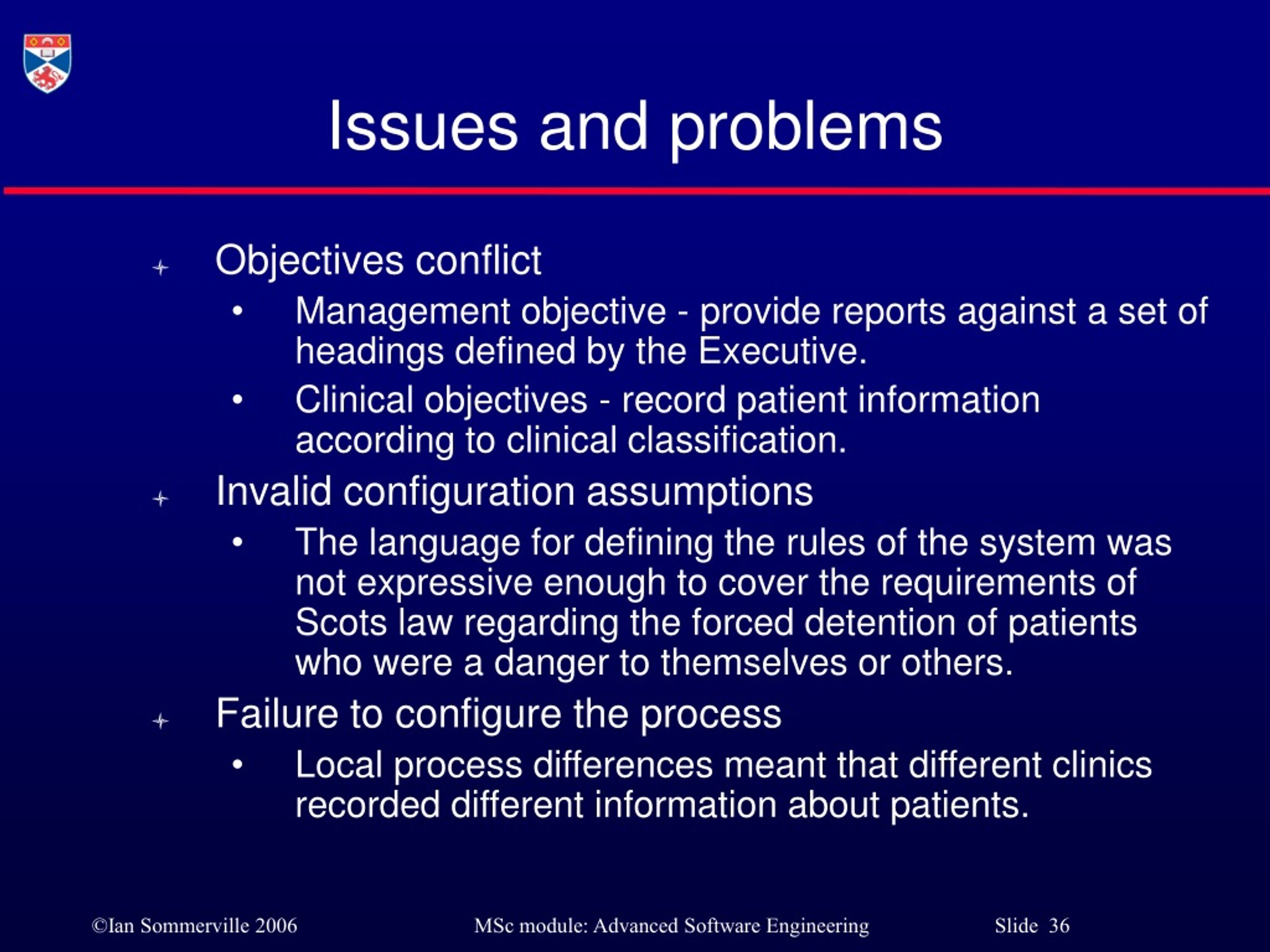

36. Issues and problems • Objectives conflict • Management objective - provide reports against a set of headings defined by the Executive. • Clinical objectives - record patient information according to clinical classification. • Invalid configuration assumptions • The language for defining the rules of the system was not expressive enough to cover the requirements of Scots law regarding the forced detention of patients who were a danger to themselves or others. • Failure to configure the process • Local process differences meant that different clinics recorded different information about patients.

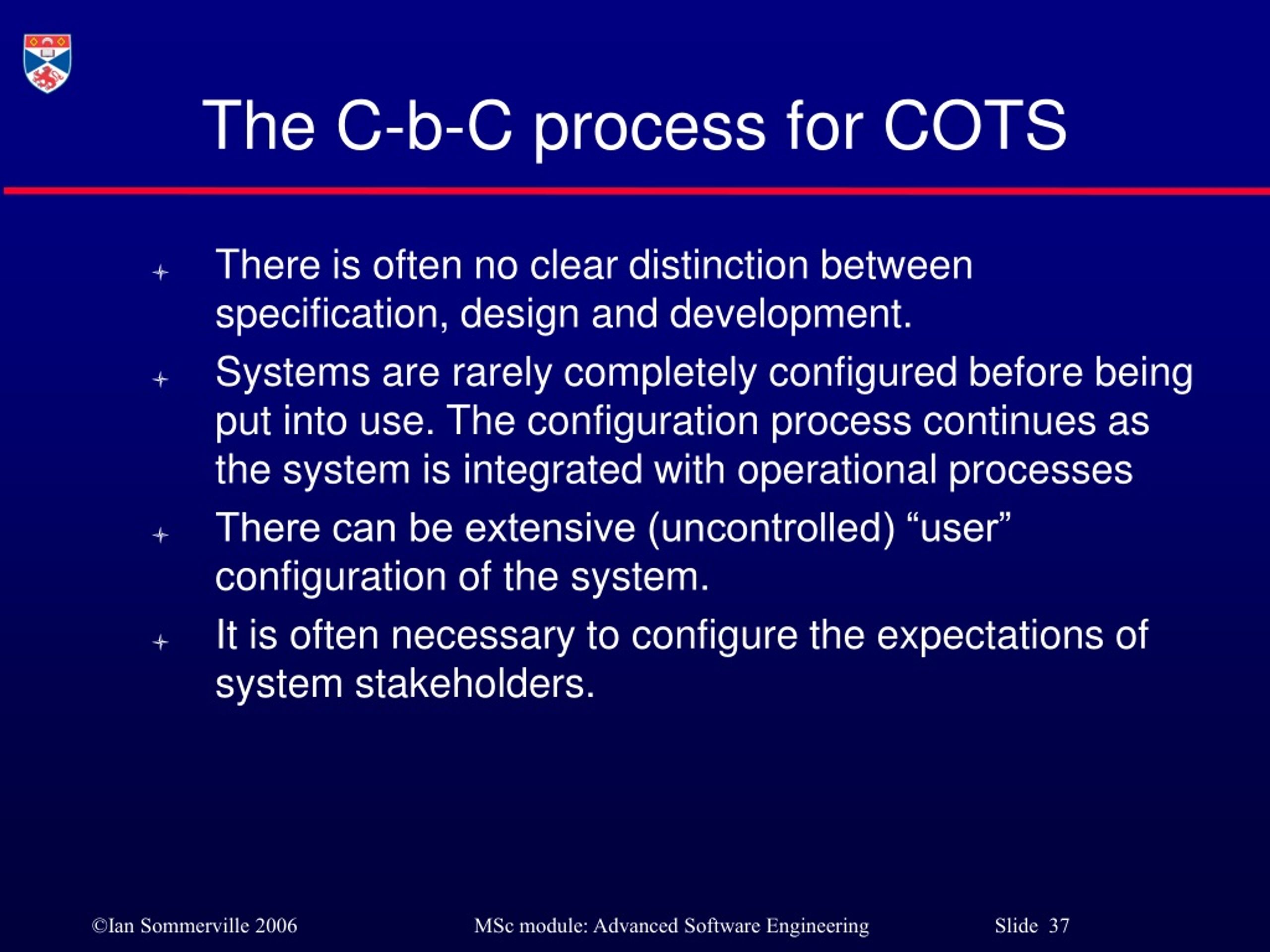

37. The C-b-C process for COTS • There is often no clear distinction between specification, design and development. • Systems are rarely completely configured before being put into use. The configuration process continues as the system is integrated with operational processes • There can be extensive (uncontrolled) “user” configuration of the system. • It is often necessary to configure the expectations of system stakeholders.

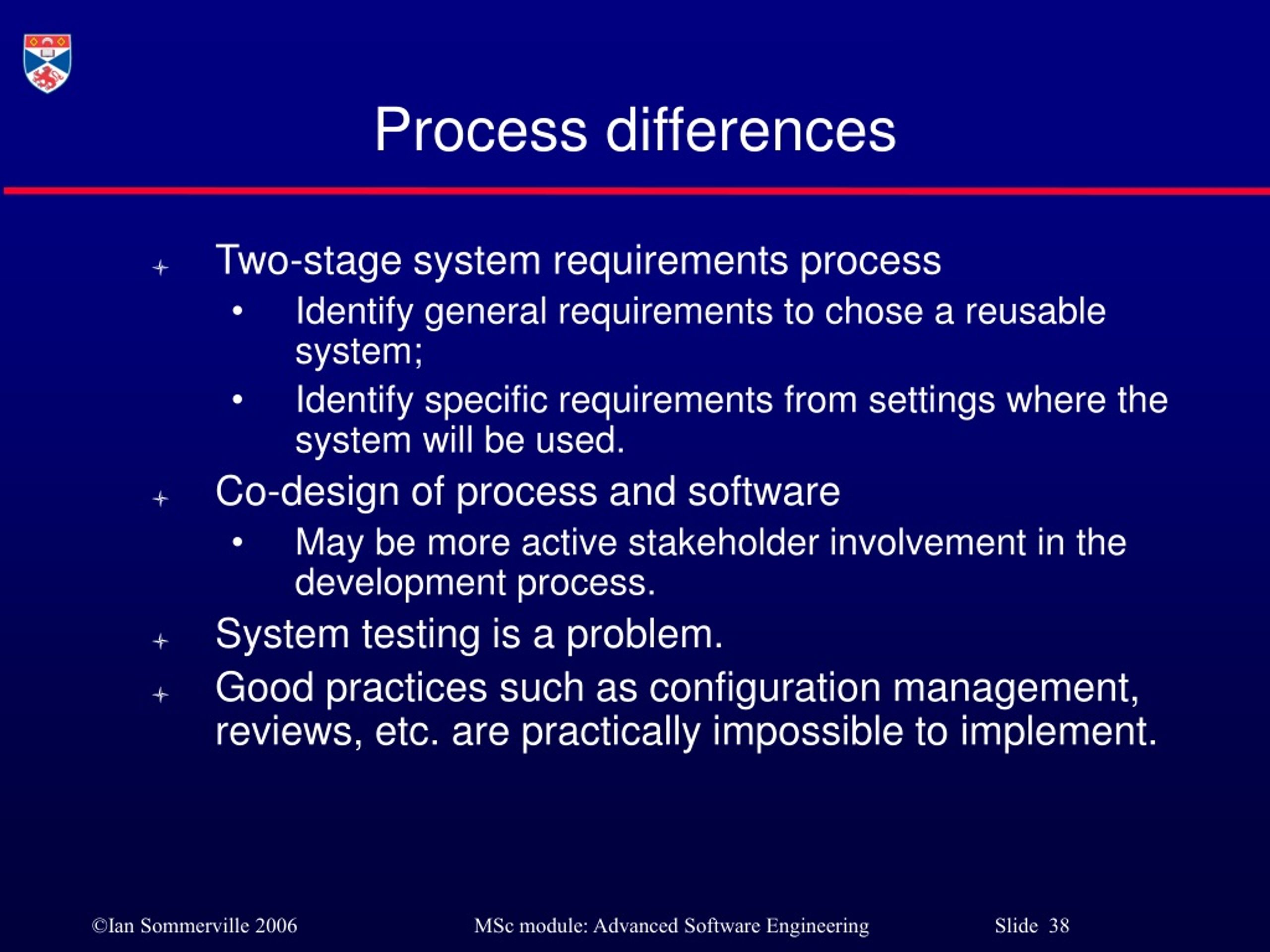

38. Process differences • Two-stage system requirements process • Identify general requirements to chose a reusable system; • Identify specific requirements from settings where the system will be used. • Co-design of process and software • May be more active stakeholder involvement in the development process. • System testing is a problem. • Good practices such as configuration management, reviews, etc. are practically impossible to implement.

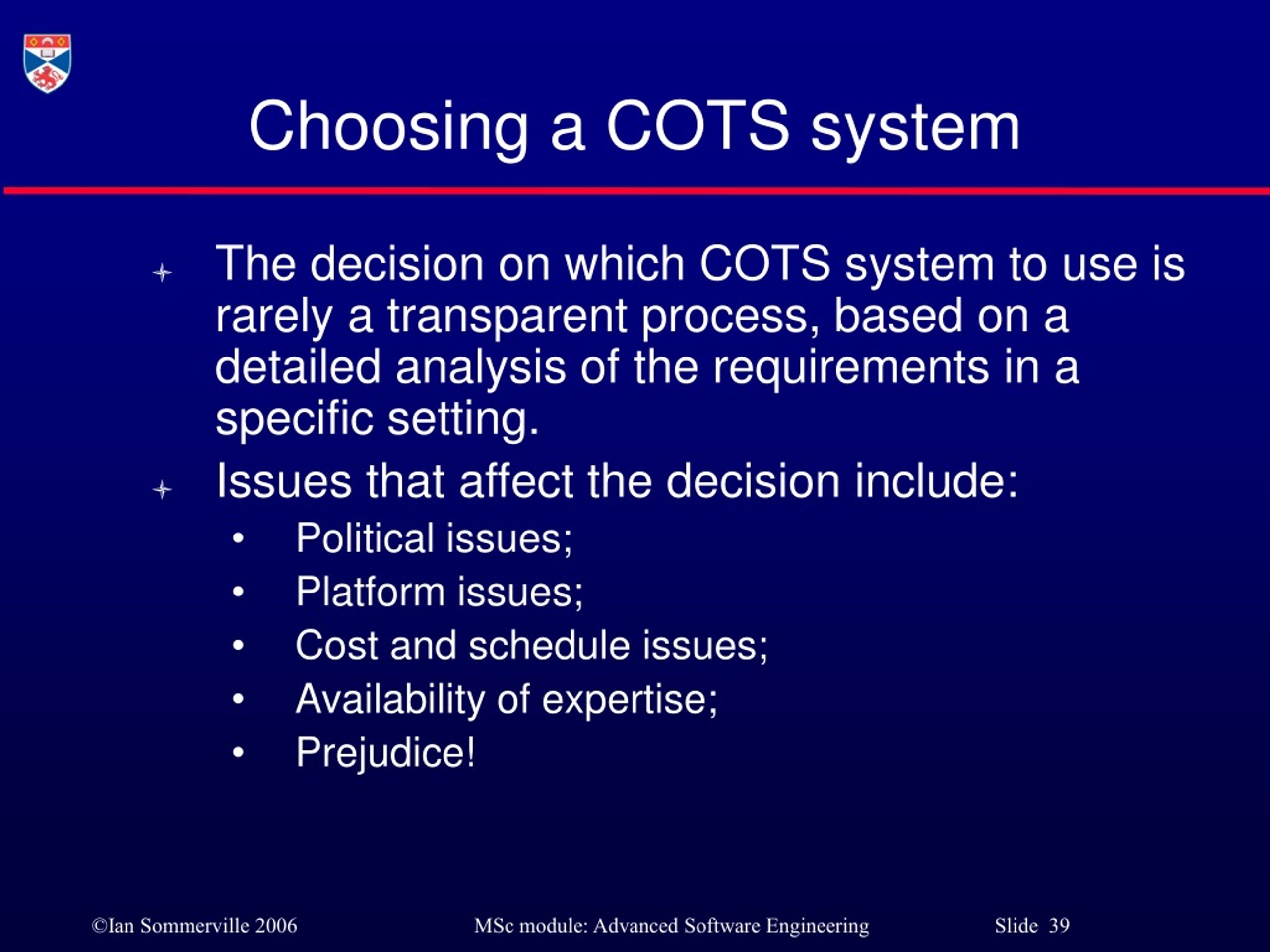

39. Choosing a COTS system • The decision on which COTS system to use is rarely a transparent process, based on a detailed analysis of the requirements in a specific setting. • Issues that affect the decision include: • Political issues; • Platform issues; • Cost and schedule issues; • Availability of expertise; • Prejudice!

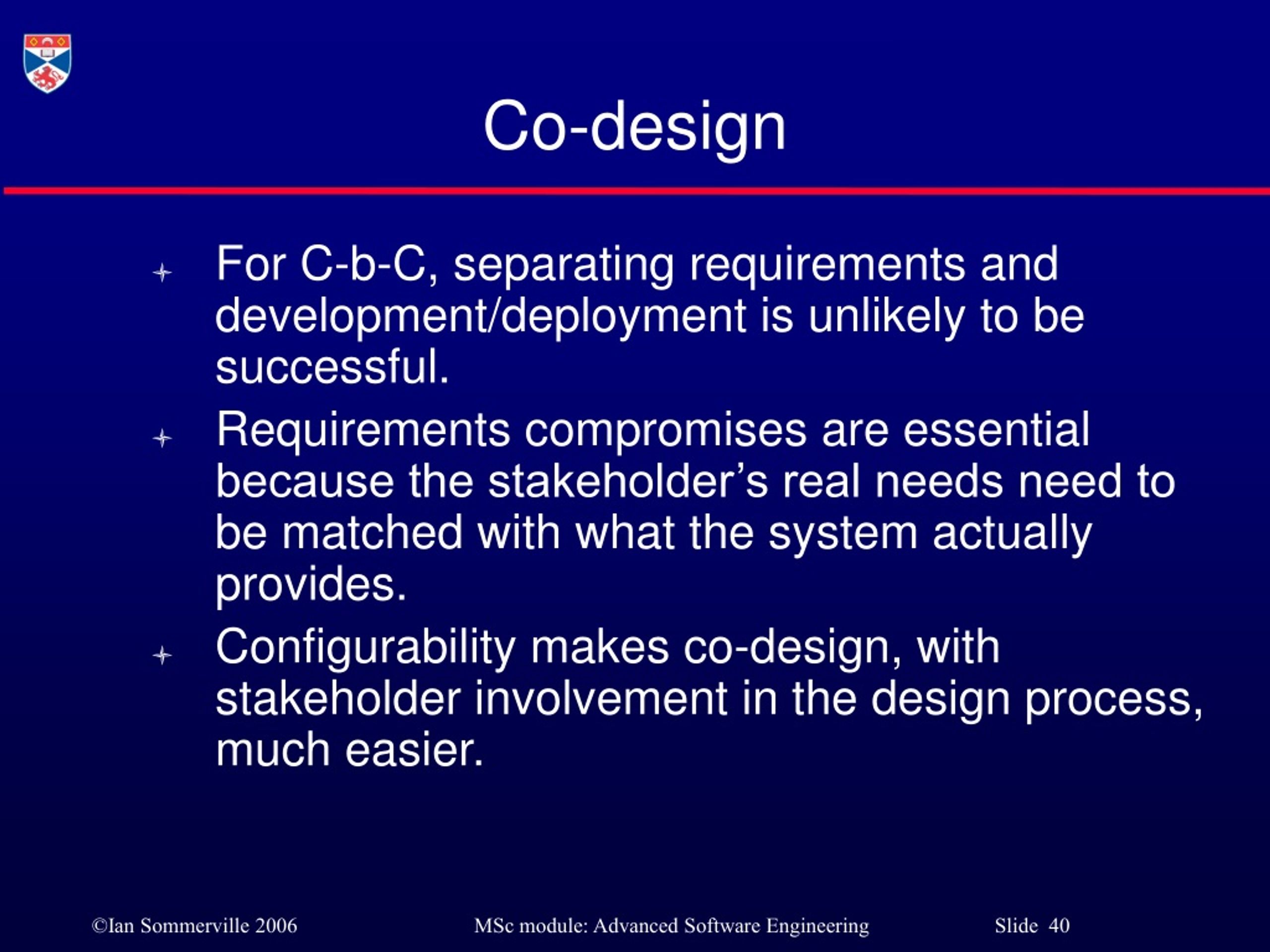

40. Co-design • For C-b-C, separating requirements and development/deployment is unlikely to be successful. • Requirements compromises are essential because the stakeholder’s real needs need to be matched with what the system actually provides. • Configurability makes co-design, with stakeholder involvement in the design process, much easier.

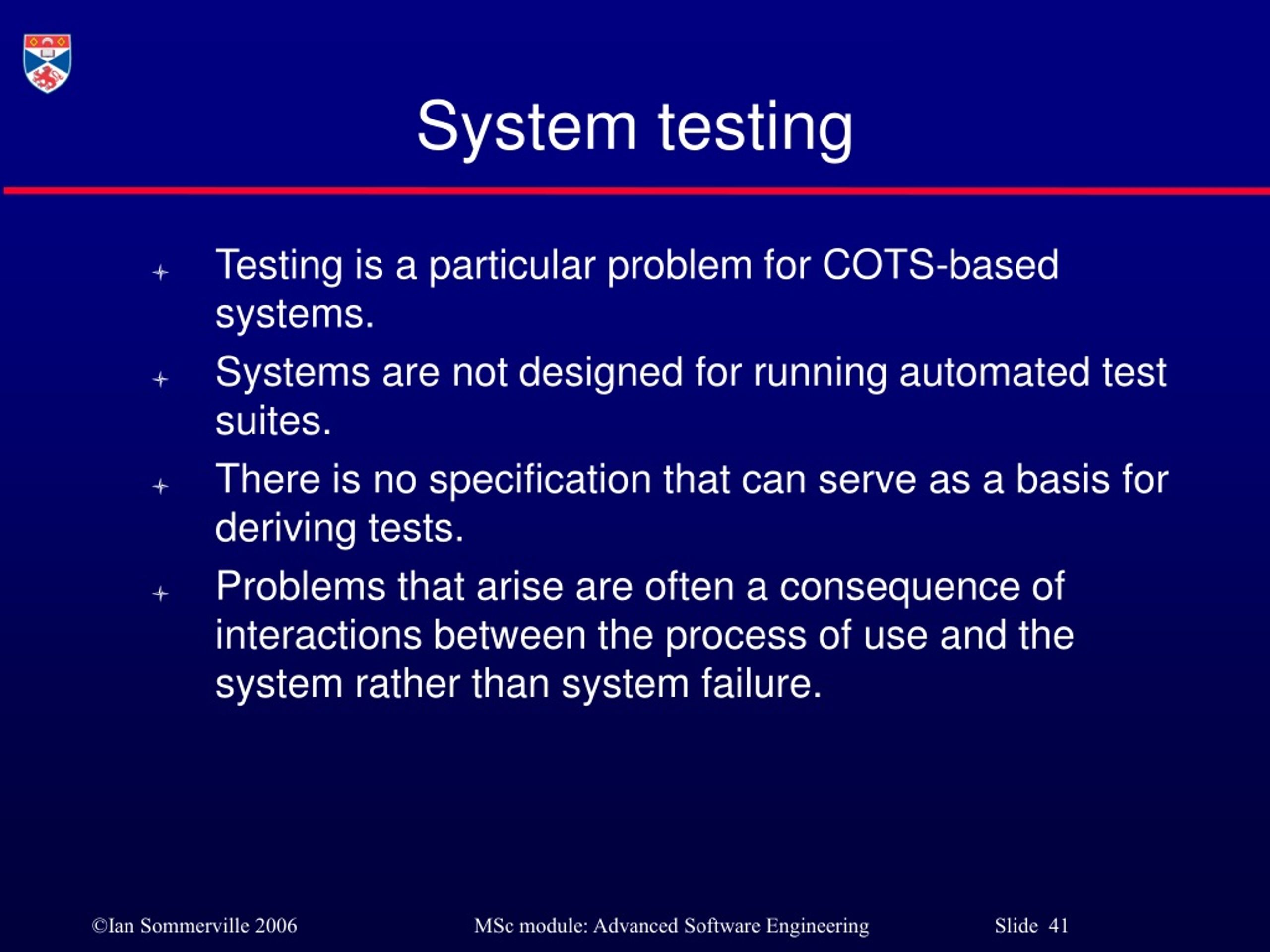

41. System testing • Testing is a particular problem for COTS-based systems. • Systems are not designed for running automated test suites. • There is no specification that can serve as a basis for deriving tests. • Problems that arise are often a consequence of interactions between the process of use and the system rather than system failure.

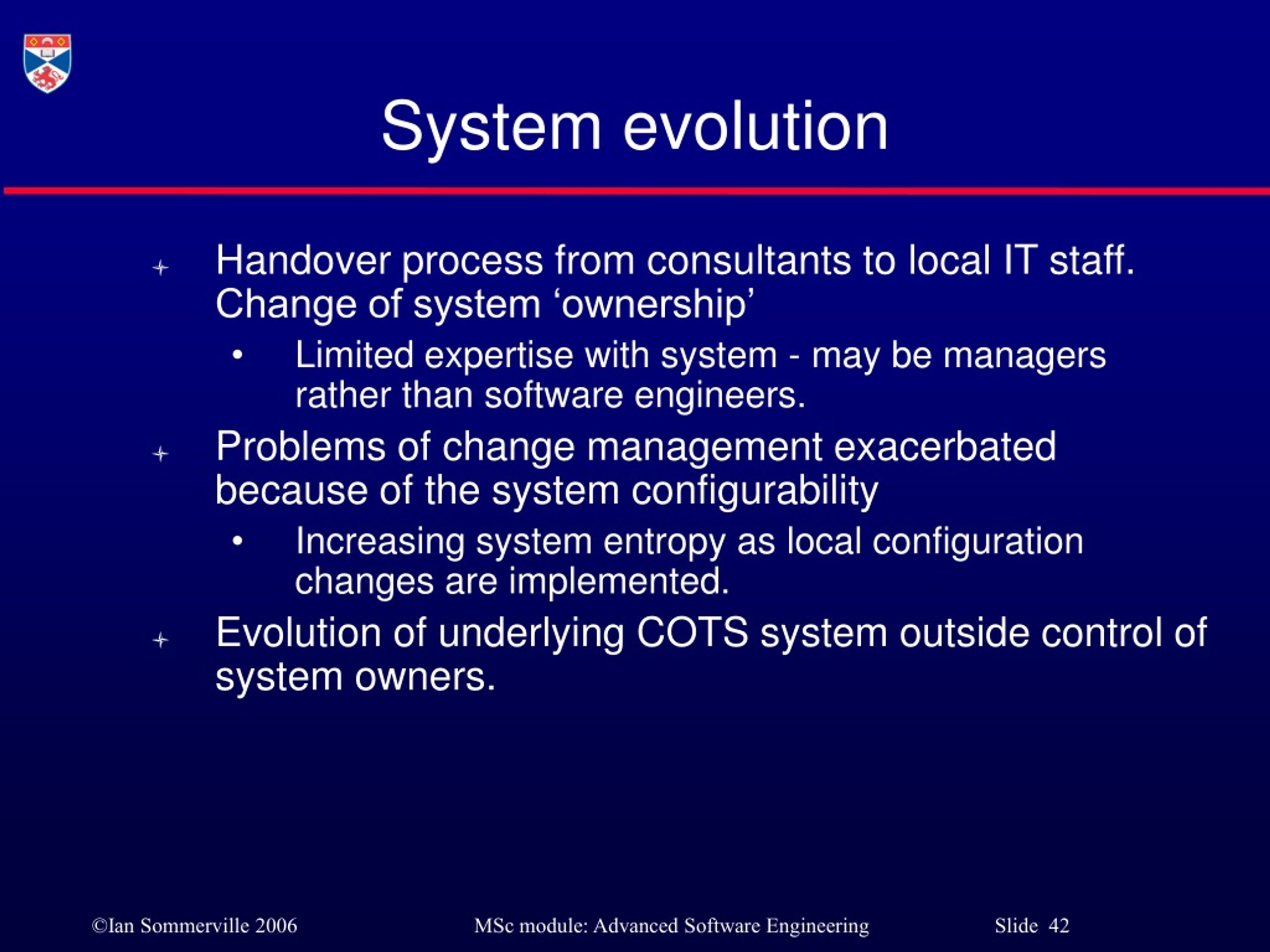

42. System evolution • Handover process from consultants to local IT staff. Change of system ‘ownership’ • Limited expertise with system - may be managers rather than software engineers. • Problems of change management exacerbated because of the system configurability • Increasing system entropy as local configuration changes are implemented. • Evolution of underlying COTS system outside control of system owners.

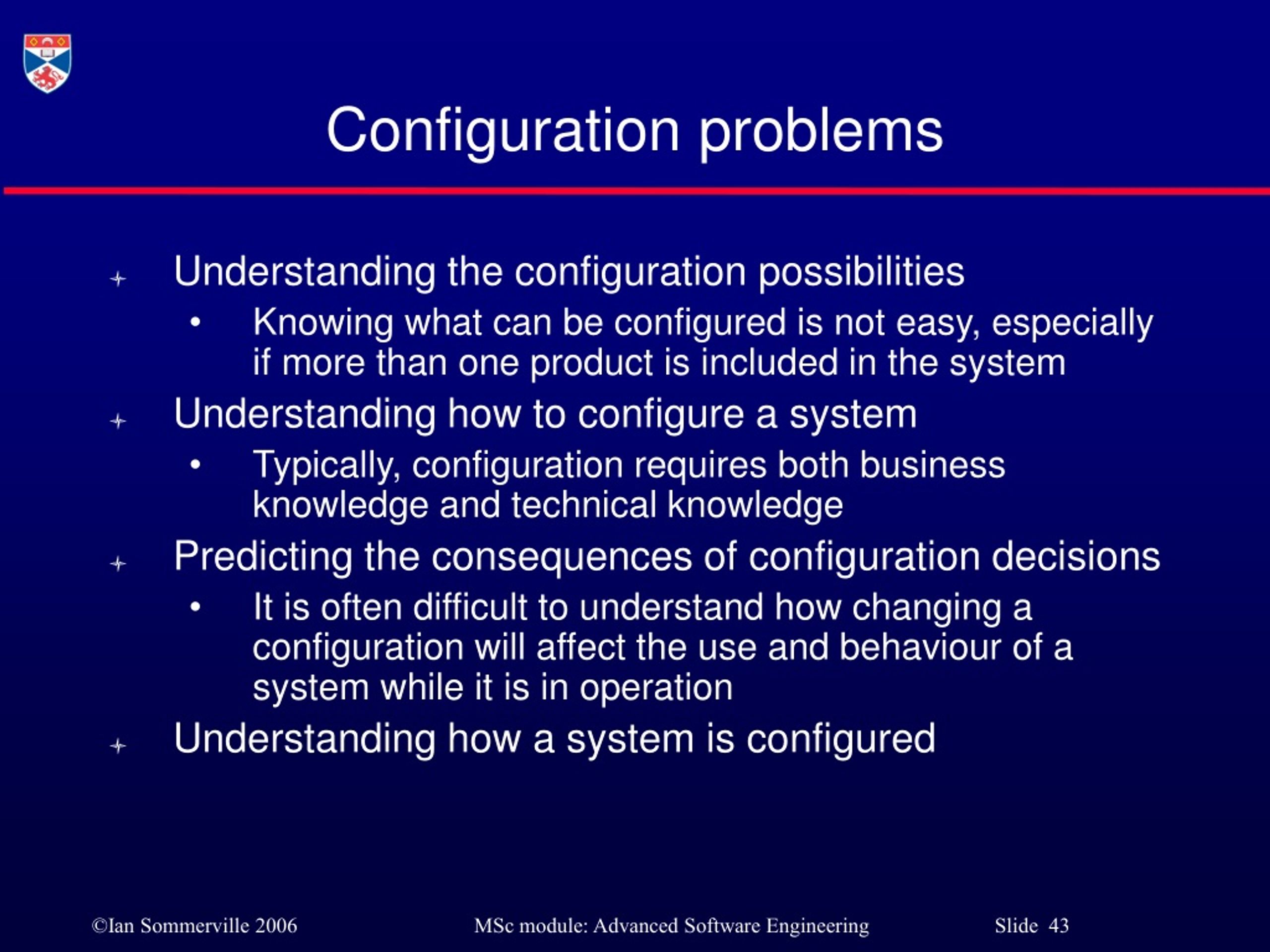

43. Configuration problems • Understanding the configuration possibilities • Knowing what can be configured is not easy, especially if more than one product is included in the system • Understanding how to configure a system • Typically, configuration requires both business knowledge and technical knowledge • Predicting the consequences of configuration decisions • It is often difficult to understand how changing a configuration will affect the use and behaviour of a system while it is in operation • Understanding how a system is configured

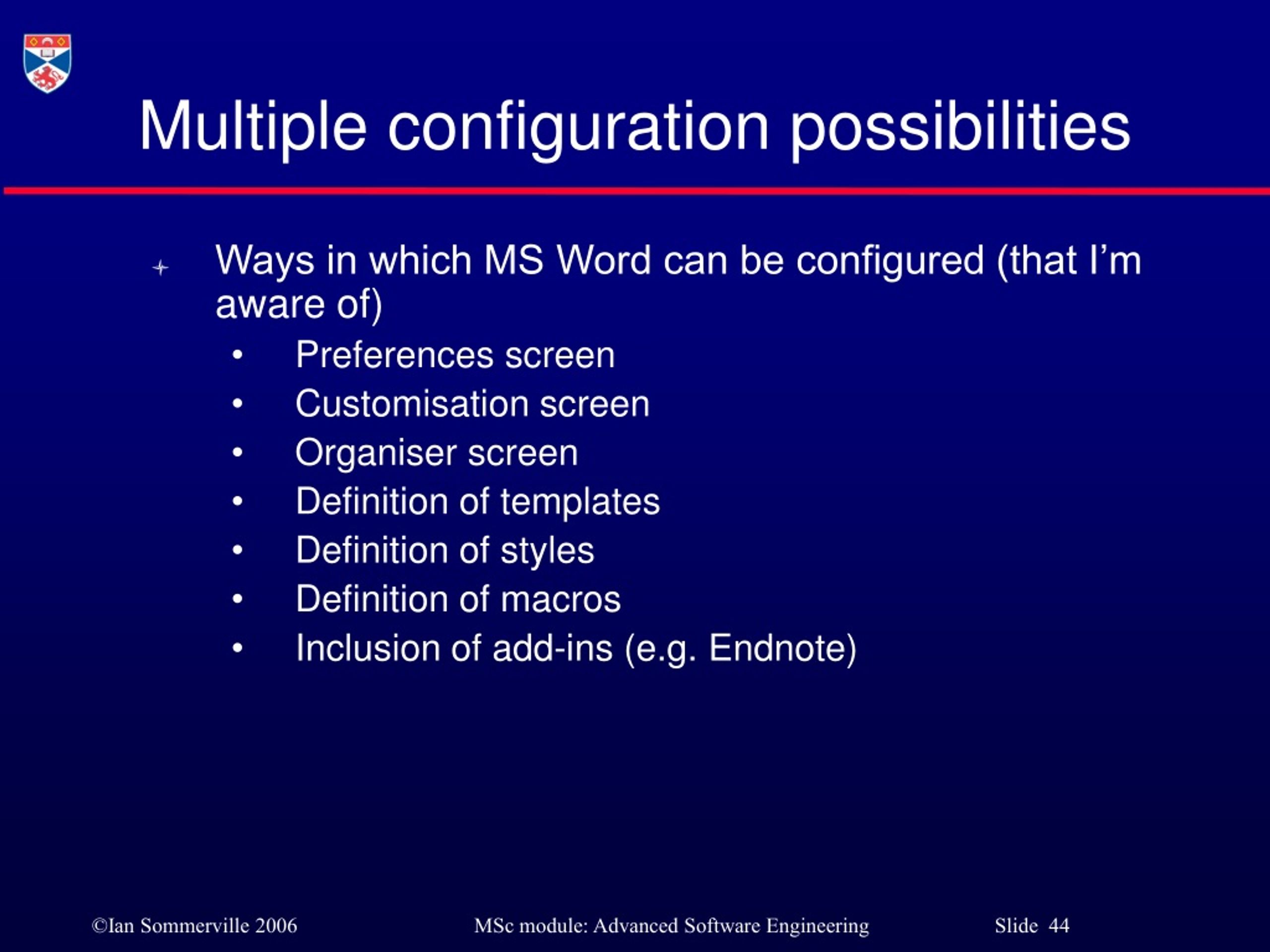

44. Multiple configuration possibilities • Ways in which MS Word can be configured (that I’m aware of) • Preferences screen • Customisation screen • Organiser screen • Definition of templates • Definition of styles • Definition of macros • Inclusion of add-ins (e.g. Endnote)

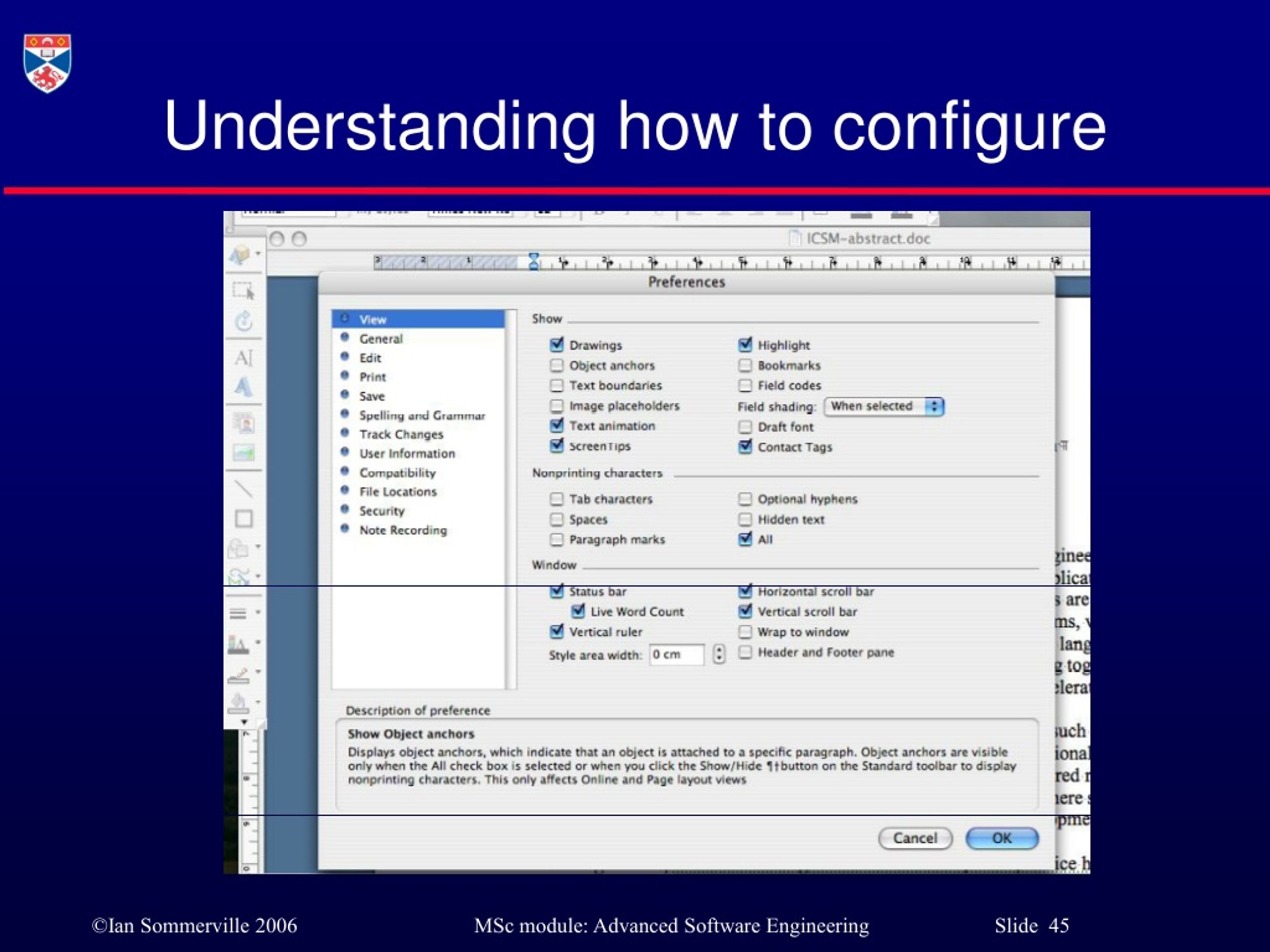

45. Understanding how to configure

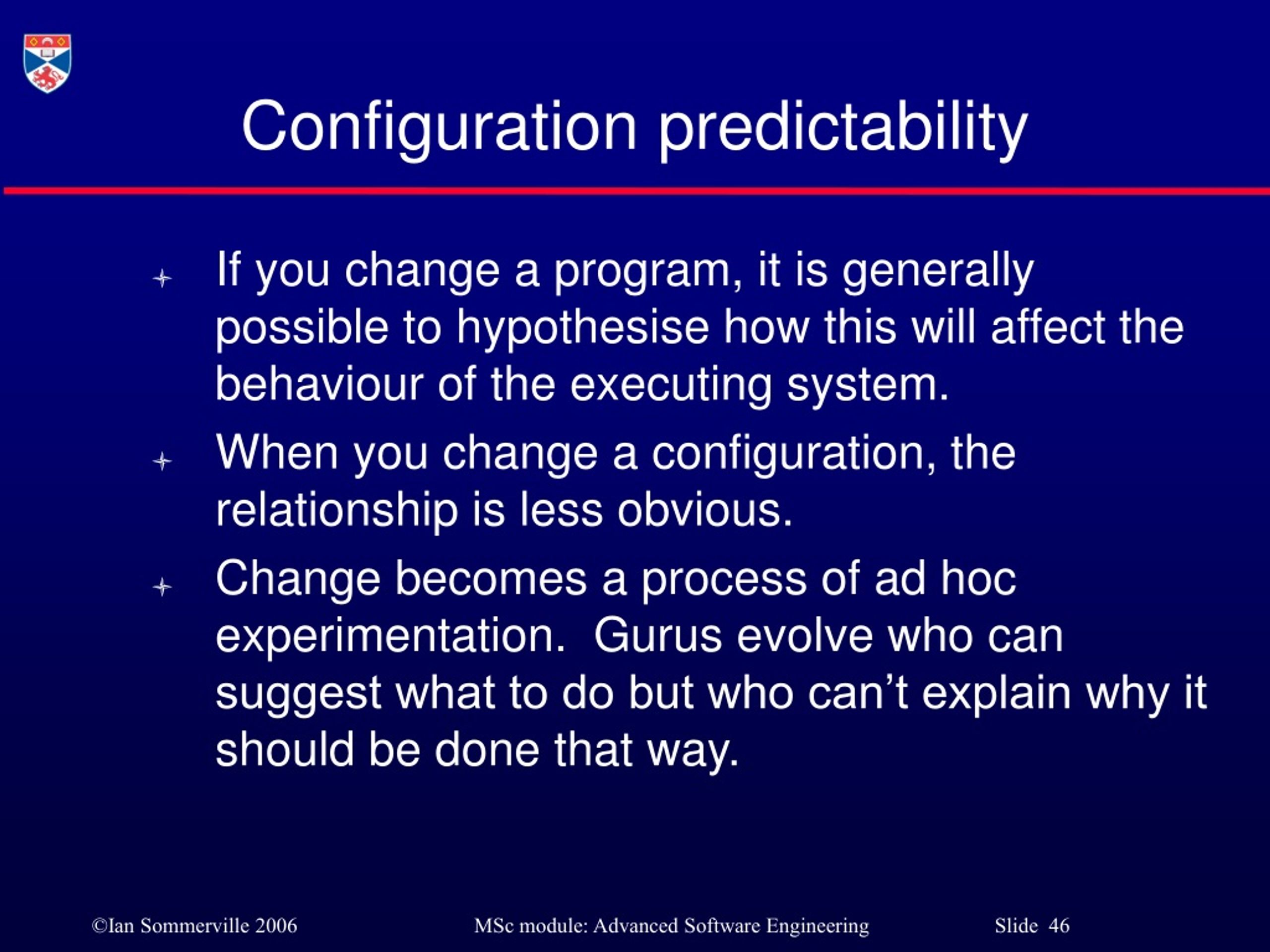

46. Configuration predictability • If you change a program, it is generally possible to hypothesise how this will affect the behaviour of the executing system. • When you change a configuration, the relationship is less obvious. • Change becomes a process of ad hoc experimentation. Gurus evolve who can suggest what to do but who can’t explain why it should be done that way.

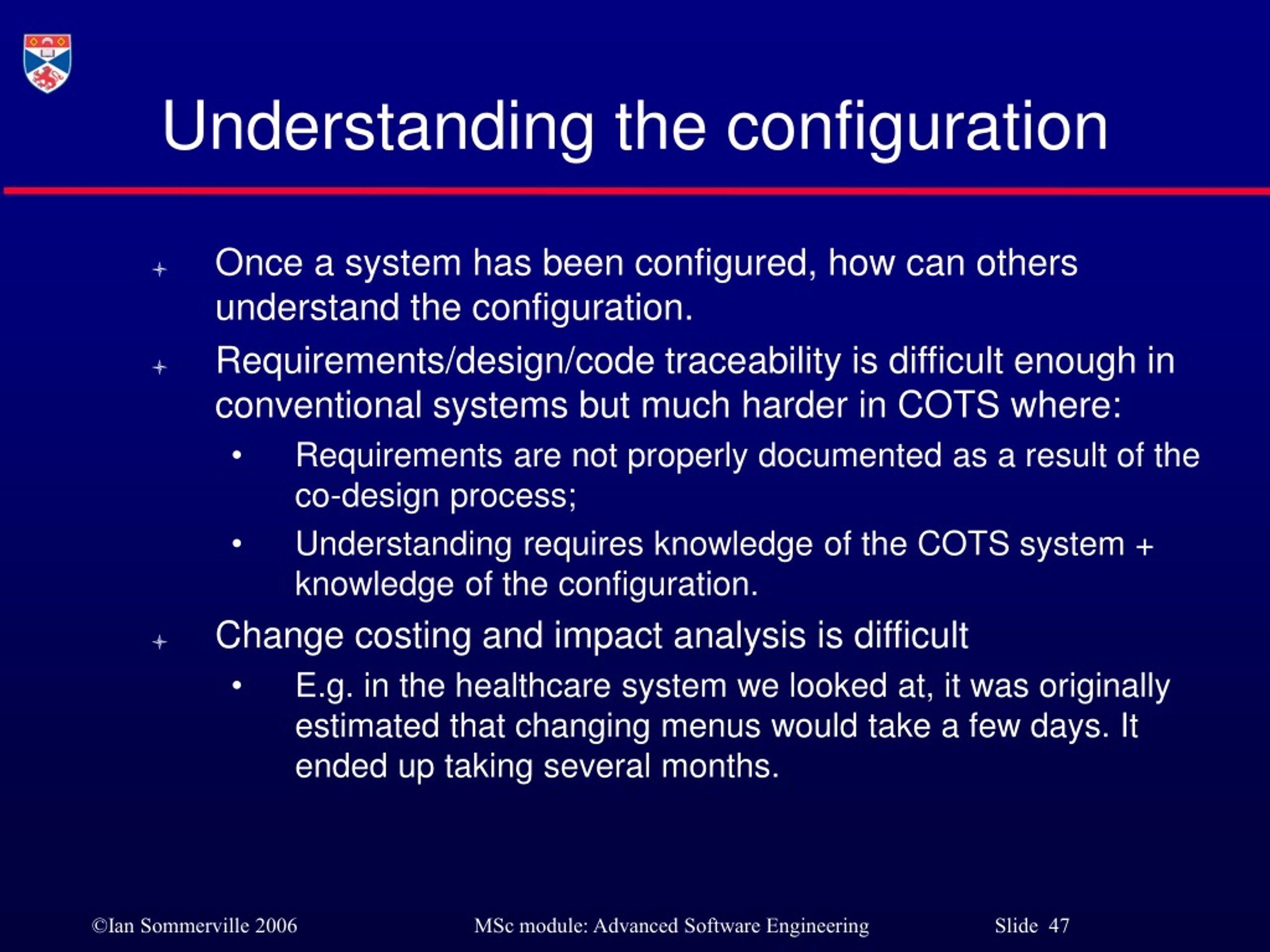

47. Understanding the configuration • Once a system has been configured, how can others understand the configuration. • Requirements/design/code traceability is difficult enough in conventional systems but much harder in COTS where: • Requirements are not properly documented as a result of the co-design process; • Understanding requires knowledge of the COTS system + knowledge of the configuration. • Change costing and impact analysis is difficult • E.g. in the healthcare system we looked at, it was originally estimated that changing menus would take a few days. It ended up taking several months.

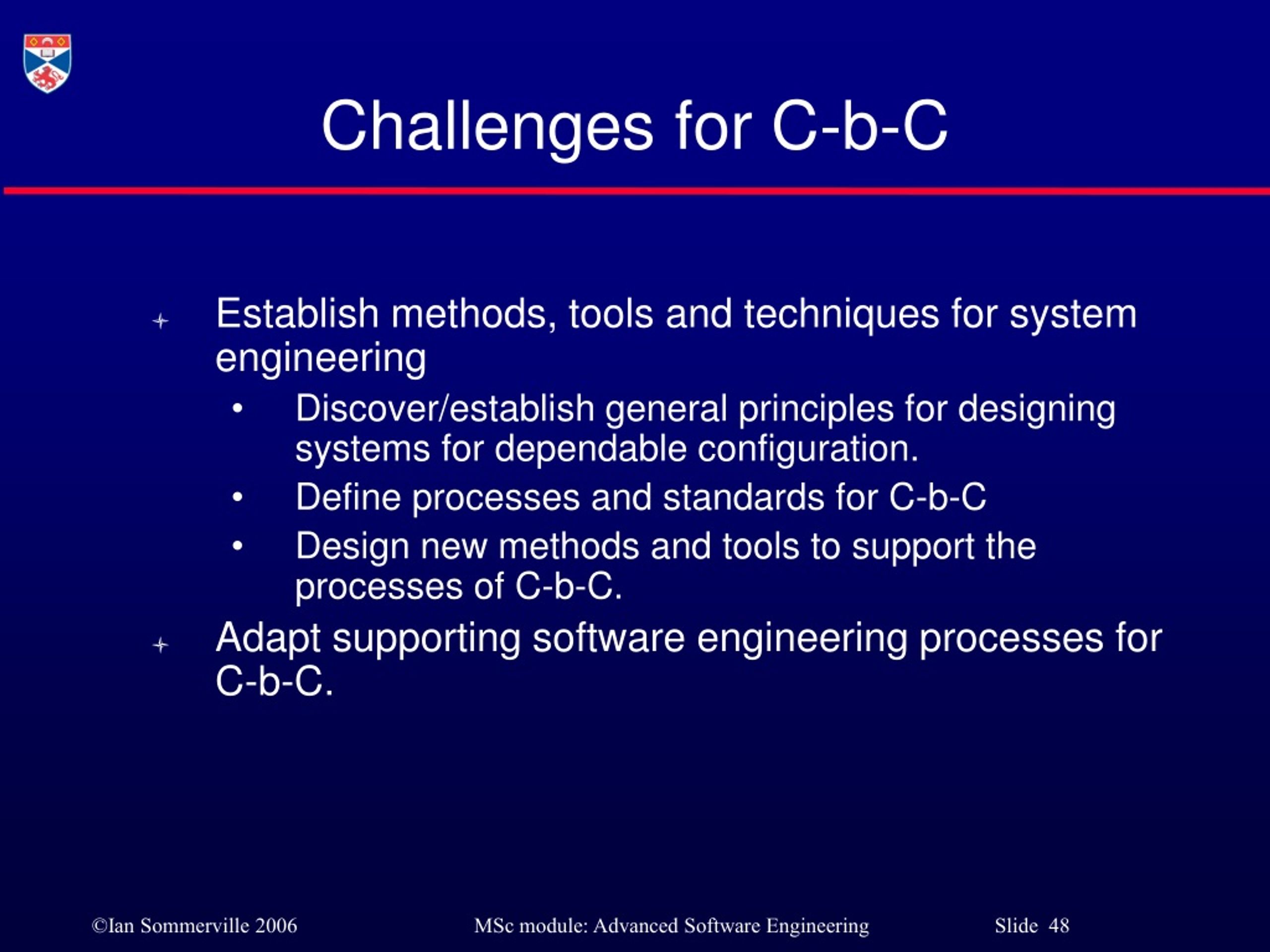

48. Challenges for C-b-C • Establish methods, tools and techniques for system engineering • Discover/establish general principles for designing systems for dependable configuration. • Define processes and standards for C-b-C • Design new methods and tools to support the processes of C-b-C. • Adapt supporting software engineering processes for C-b-C.

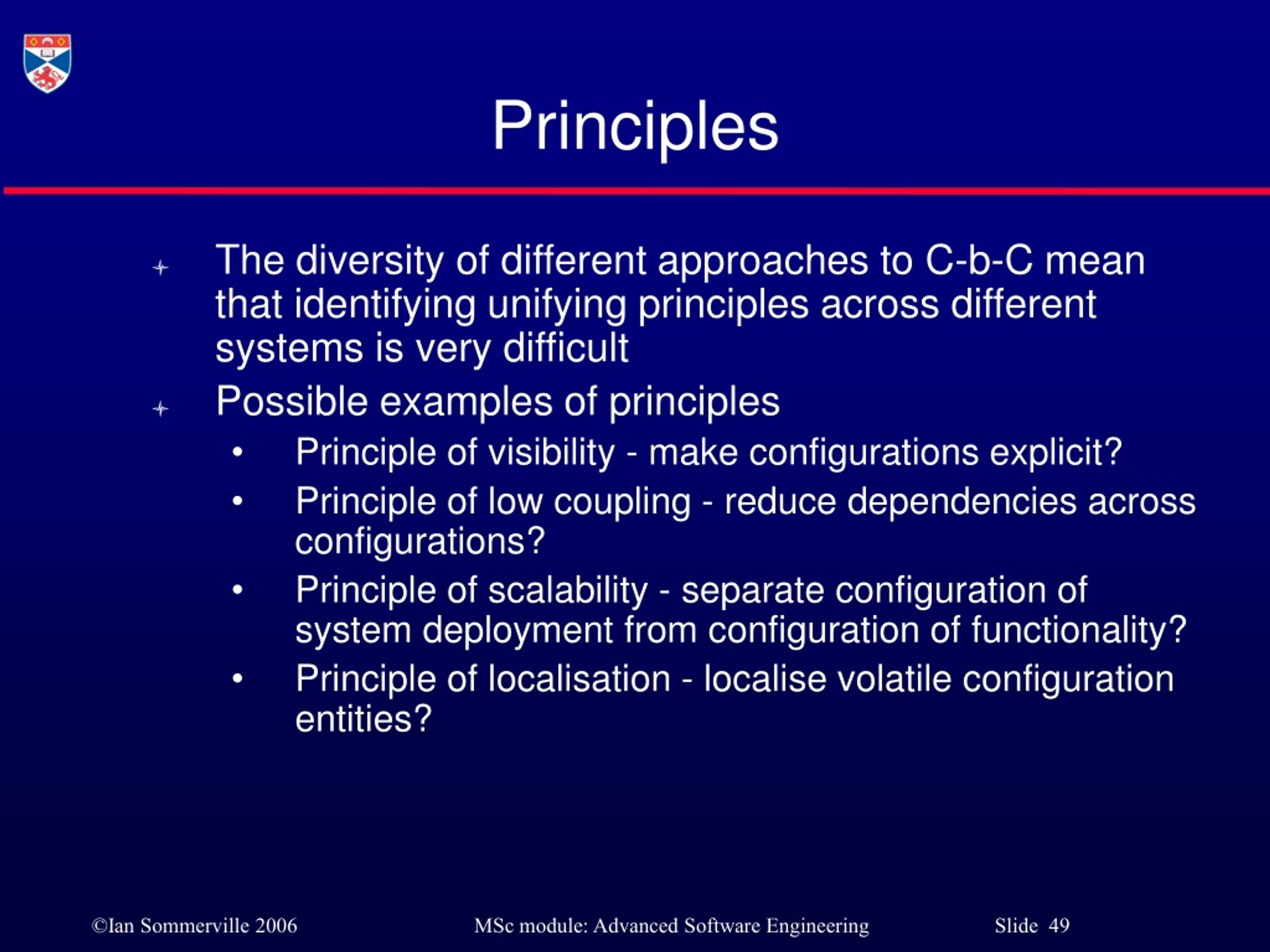

49. Principles • The diversity of different approaches to C-b-C mean that identifying unifying principles across different systems is very difficult • Possible examples of principles • Principle of visibility - make configurations explicit? • Principle of low coupling - reduce dependencies across configurations? • Principle of scalability - separate configuration of system deployment from configuration of functionality? • Principle of localisation - localise volatile configuration entities?

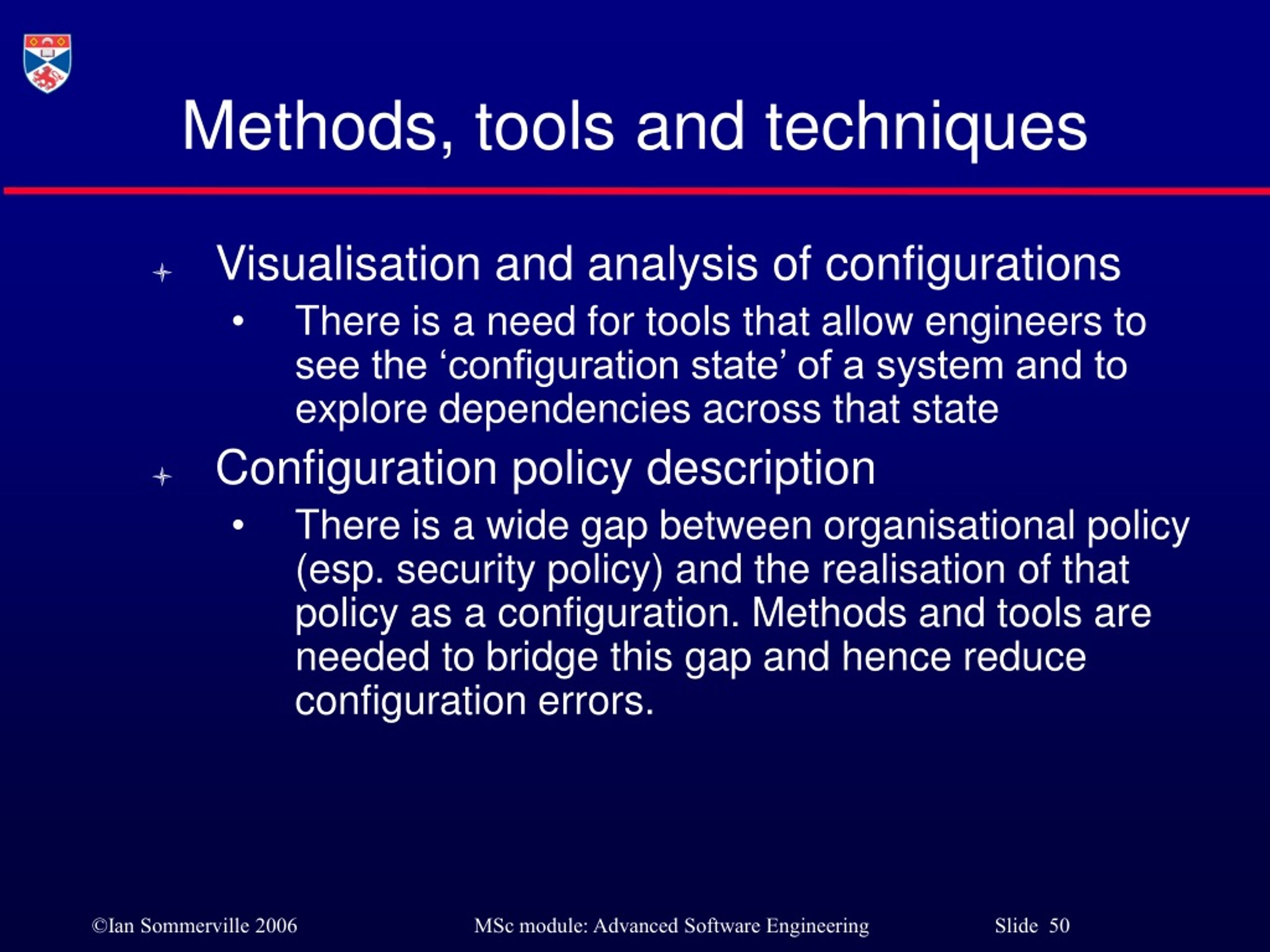

50. Methods, tools and techniques • Visualisation and analysis of configurations • There is a need for tools that allow engineers to see the ‘configuration state’ of a system and to explore dependencies across that state • Configuration policy description • There is a wide gap between organisational policy (esp. security policy) and the realisation of that policy as a configuration. Methods and tools are needed to bridge this gap and hence reduce configuration errors.
