Presentation Transcript
slide2
An extremely reliable and robust system

UNIX

FreeBSD is used by Google and Internet

Access Providers

for their own servers

CamTrace is setup in 10 minutes and can manage one or several hundreds of cameras.

slide3
IP VIDEOSURVEILLANCE SOLUTION

First network videosurveillance server, CamTrace has an innovative architecture in which cameras are isolated on a dedicated network, while allowing access to pictures from any point of your company.

slide4
CamTrace works as a cluster application:

several servers combined for large installation

Cluster architecture

A user connected with one of the CamTrace will acess the cluster group transparently

slide6
Lots of displaying features with the mouse right-click

Magnifier

Snapshot

Selectable views

Joystick with hotkeys

Zoom with mouse

Handrail

Easy recording…

slide8
Completely customizable mosaic views

Camera 2

Camera 1

Flash animation

Map

Web site

slide10
Interactive maps allow you to easily access

to each camera or other incrusted maps

Access map 2

Access map 3

slide11
Interactive maps , can be inserted

In a camera group.

Camera 1

Map 2

slide13
Alarms thumbnail

Classified by date or time slot.

Classified by event type

Clic to open the player

slide14
Intelligent player, very fast.

Find one day events in two minutes

Instant search

any area of the image

Magnifier

Acceleration up to 256x

slide17
CamTrace can display screen walls

on one or several passive screens

Free creation

of picture groups

Push the live view

to a screen wall

Alarm push to

screen wall

slide19
CamTrace manage any kind of alarms

Motion detection

Noise level

Presence detection

Variation of light

Dry contact

ALARM

Recording

Pop-up window

E-mail

slide20
Event server for complex scenario - automatic exportation of videos…

- Push video to screens

- Export sequence to NAS

  • Start recording on event
  • Close dry contact
  • Send cgi to device

-Send http to device

  • Send message to user

-camera pop up

- Start a shell script

- Link to an other scenario

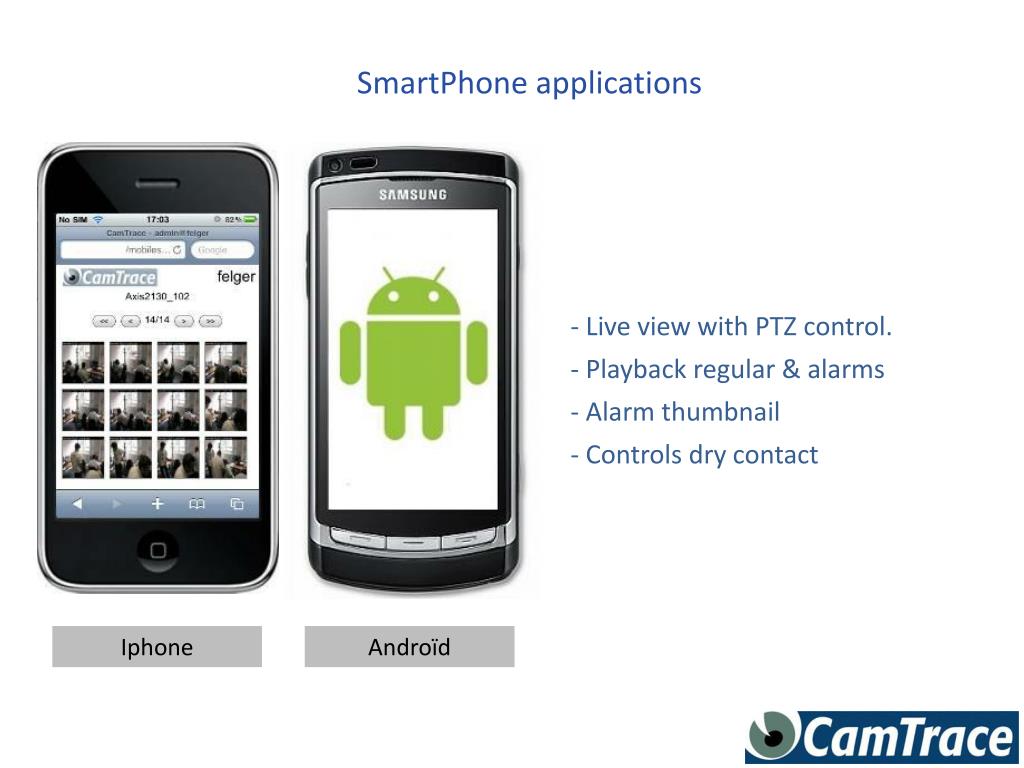

slide21
SmartPhone applications

- Live view with PTZ control.

- Playback regular & alarms

- Alarm thumbnail

- Controls dry contact

Iphone

Androïd

slide22
MonitorC, a monitoring tool

for software and hardware of CamTrace installations

slide23
Open system linked to third parties applications

Hypervision

Access control

Cash register

slide24
Software and/or hardware

Software easy to install

or a server ready to use :

slide25
+ 5000 CamTrace servers manage more than 45 000 cameras in fifteen countries.

Amongprestigious sites equiped with CamTrace, you will find airports, hotels, hospitals, museums, industrial sites, colleges and universities. CamTrace provide more than 300 agencies and bank headquartersof14 different banking networks.

CamTrace has also been chosen by lots of local governments and cities for urban videosurveillance.
