  1. Module 2 Dynamic Programming Prepared by Lee Revere and John Large M2-1

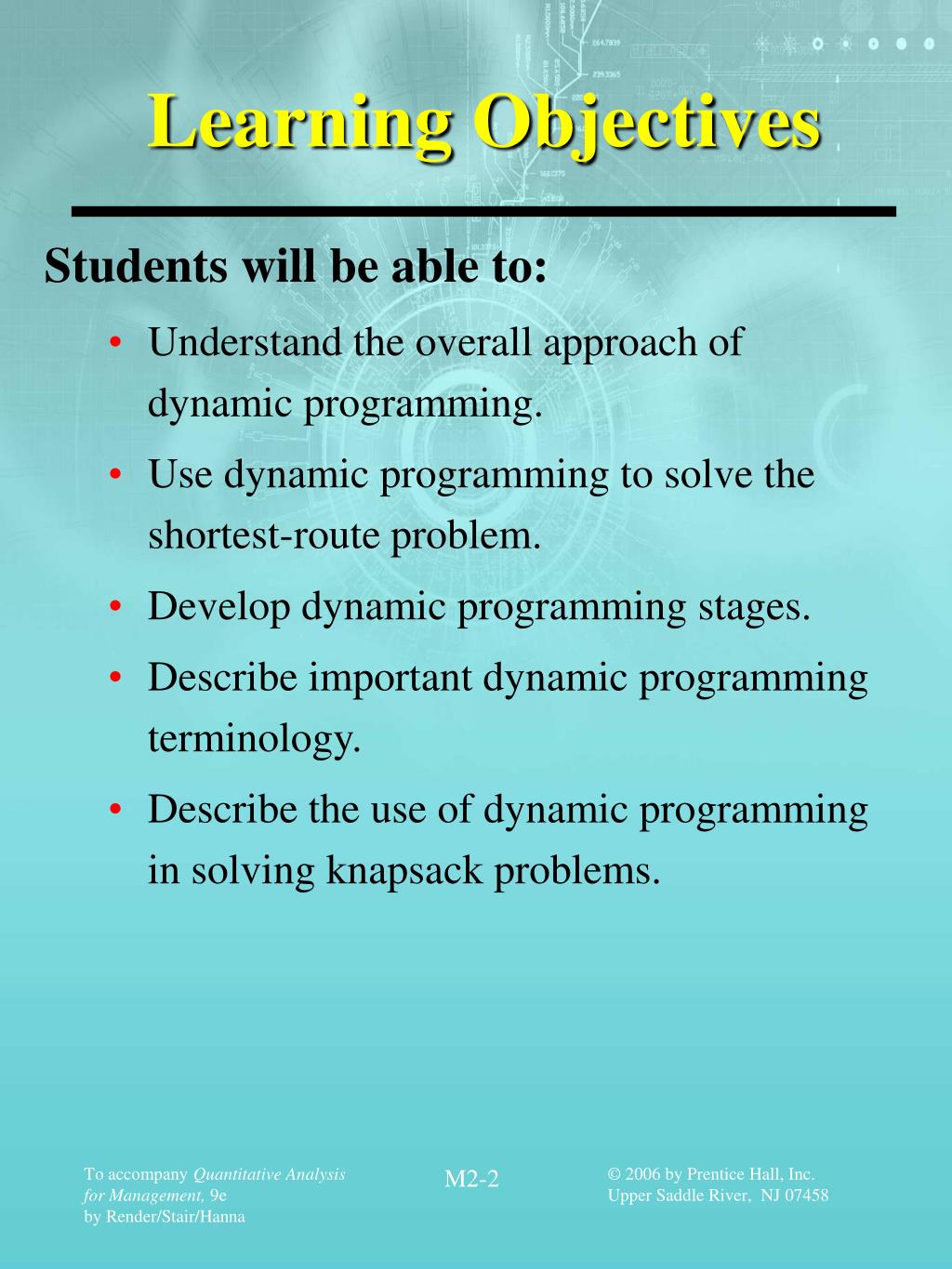

  2. Learning Objectives Students will be able to: • Understand the overall approach of dynamic programming. • Use dynamic programming to solve the shortest-route problem. • Develop dynamic programming stages. • Describe important dynamic programming terminology. • Describe the use of dynamic programming in solving knapsack problems. M2-2

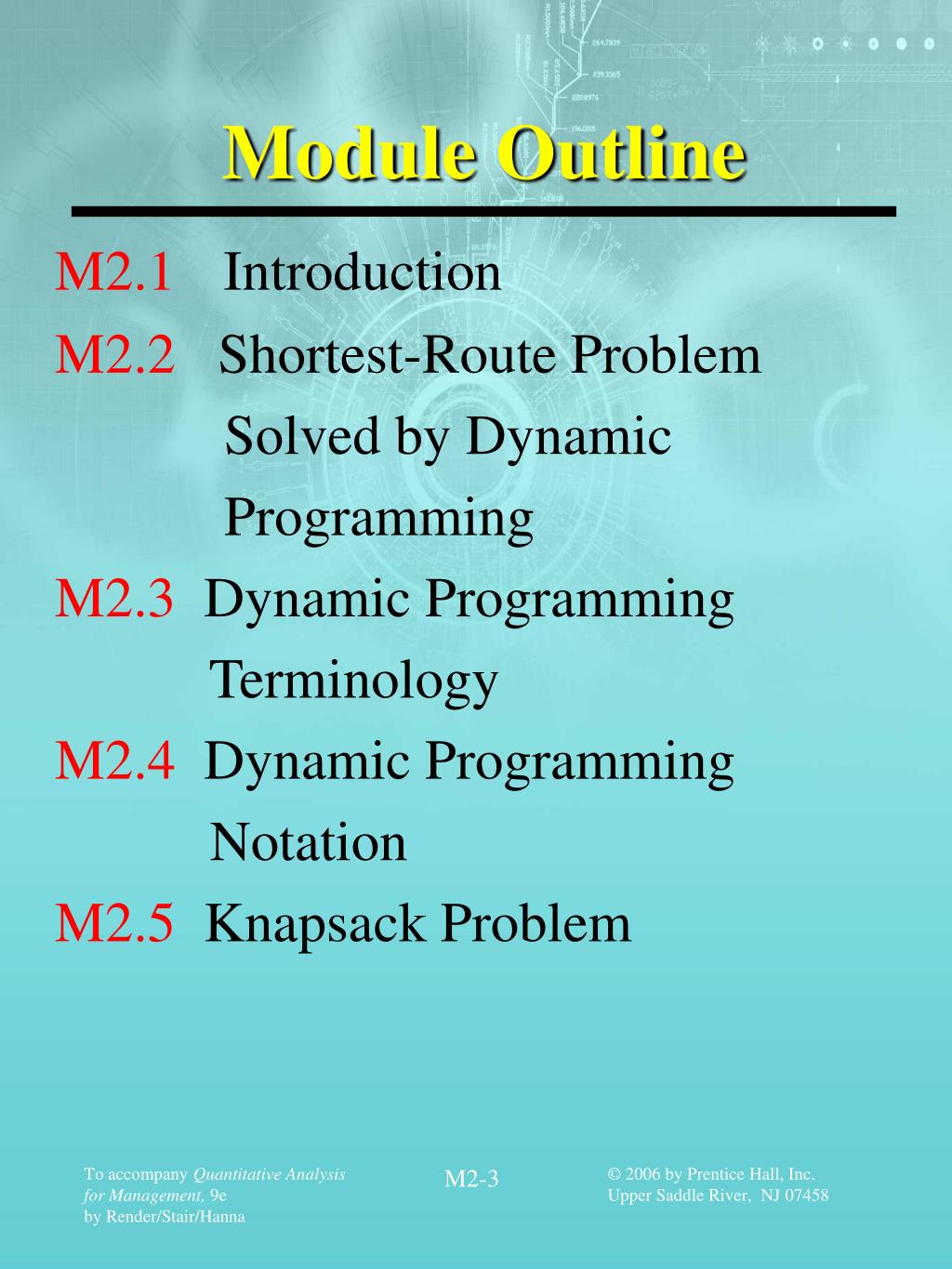

  3. Module Outline M2.1Introduction M2.2Shortest-Route Problem Solved by Dynamic Programming M2.3Dynamic Programming Terminology M2.4Dynamic Programming Notation M2.5Knapsack Problem M2-3

  4. Dynamic Programming • Dynamic programmingis a quantitative analytic technique applied to large, complex problems that have sequences of decisions to be made. • Dynamic programming divides problems into a number of decision stages; • the outcome of a decision at one stage affects the decision at each of the next stages. • The technique is useful in a large number of multi-period business problems, such as • smoothing production employment, • allocating capital funds, • allocating salespeople to marketing areas, and • evaluating investment opportunities. M2-4

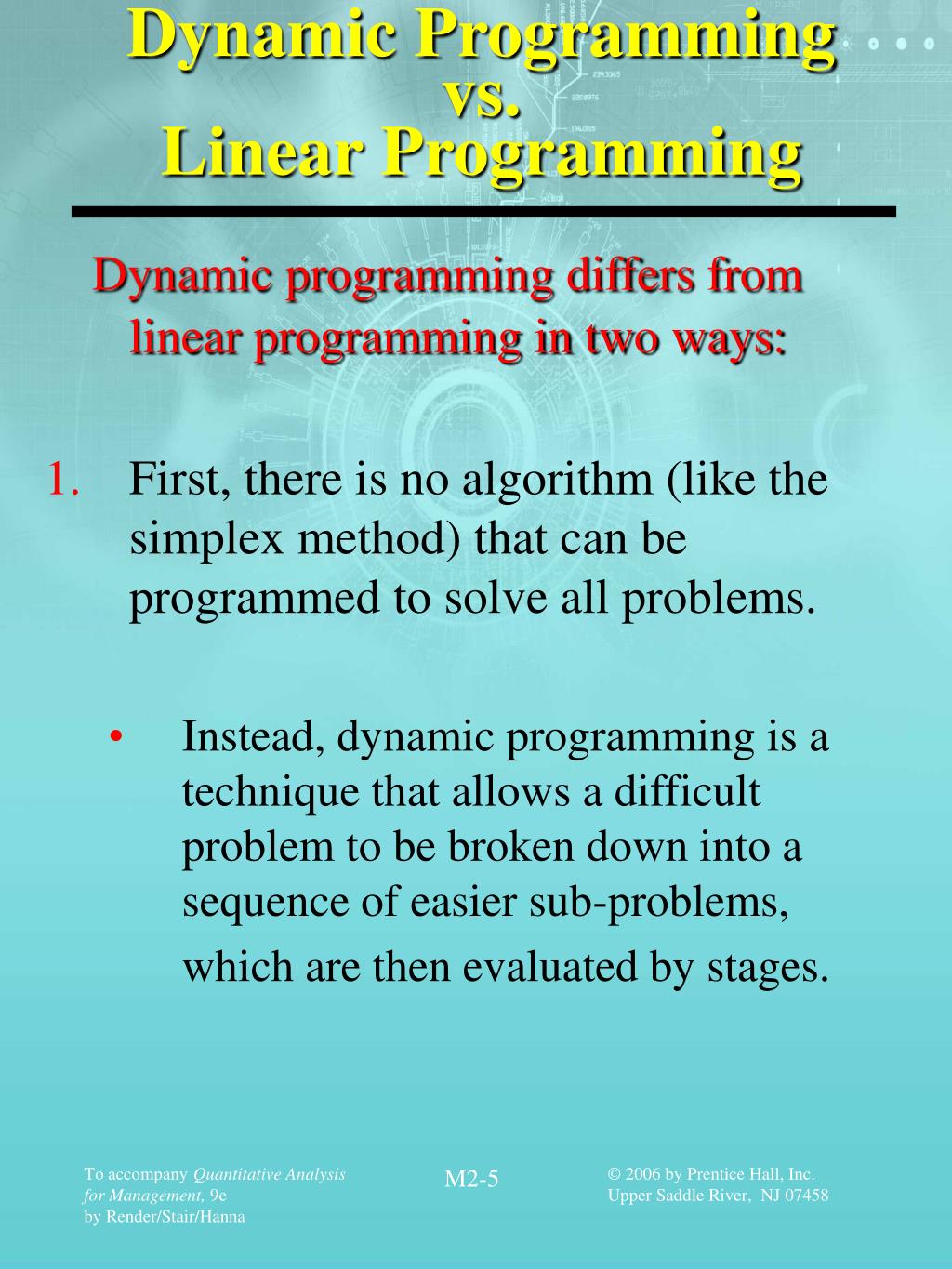

  5. Dynamic Programmingvs. Linear Programming Dynamic programming differs from linear programming in two ways: • First, there is no algorithm (like the simplex method) that can be programmed to solve all problems. • Instead, dynamic programming is a technique that allows a difficult problem to be broken down into a sequence of easier sub-problems, which are then evaluated by stages. M2-5

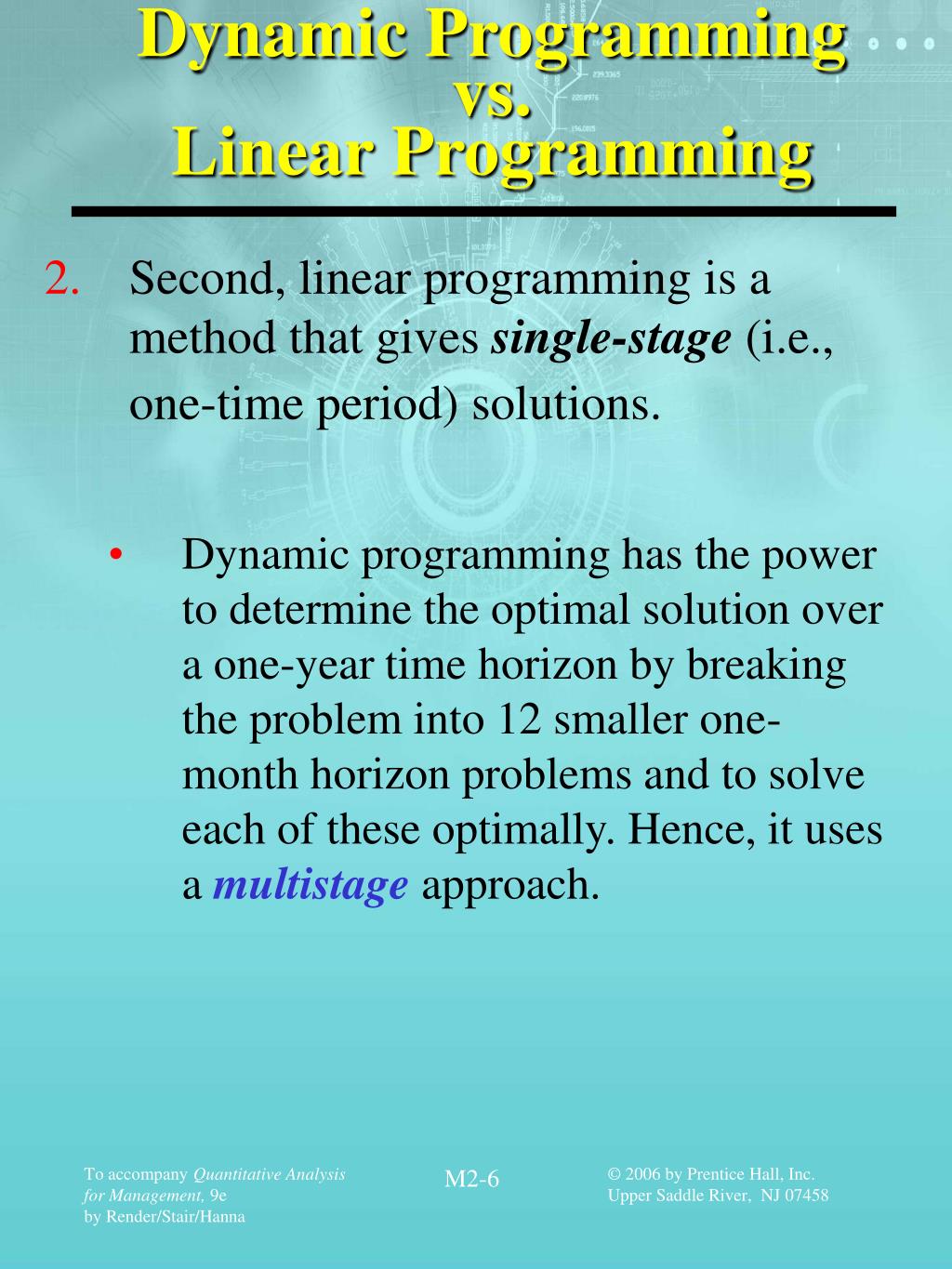

  6. Dynamic Programmingvs. Linear Programming • Second, linear programming is a method that gives single-stage(i.e., one-time period) solutions. • Dynamic programming has the power to determine the optimal solution over a one-year time horizon by breaking the problem into 12 smaller one-month horizon problems and to solve each of these optimally. Hence, it uses a multistageapproach. M2-6

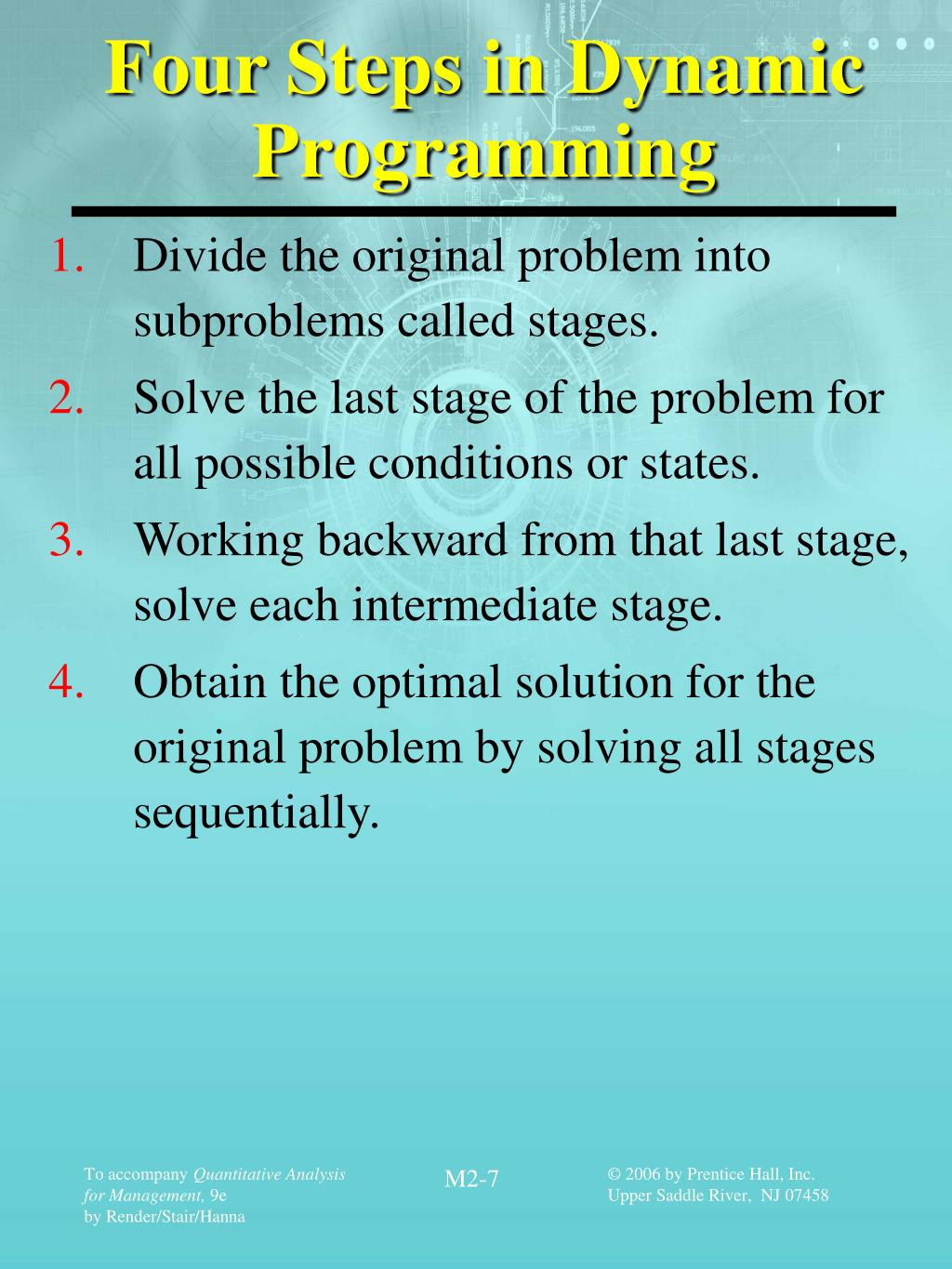

  7. Four Steps in Dynamic Programming • Divide the original problem into subproblems called stages. • Solve the last stage of the problem for all possible conditions or states. • Working backward from that last stage, solve each intermediate stage. • Obtain the optimal solution for the original problem by solving all stages sequentially. M2-7

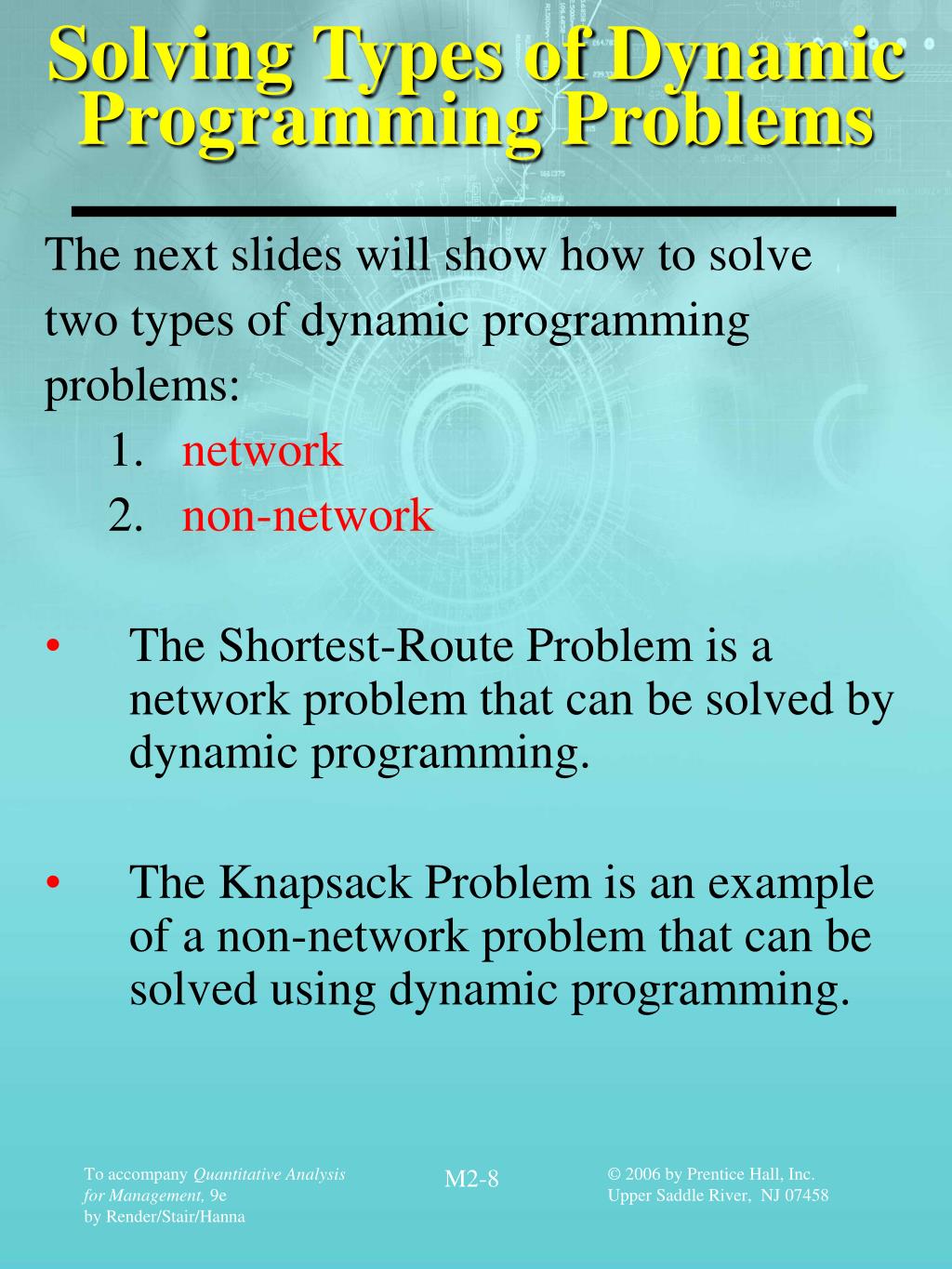

  8. Solving Types of Dynamic Programming Problems The next slides will show how to solve two types of dynamic programming problems: • network • non-network • The Shortest-Route Problem is a network problem that can be solved by dynamic programming. • The Knapsack Problem is an example of a non-network problem that can be solved using dynamic programming. M2-8

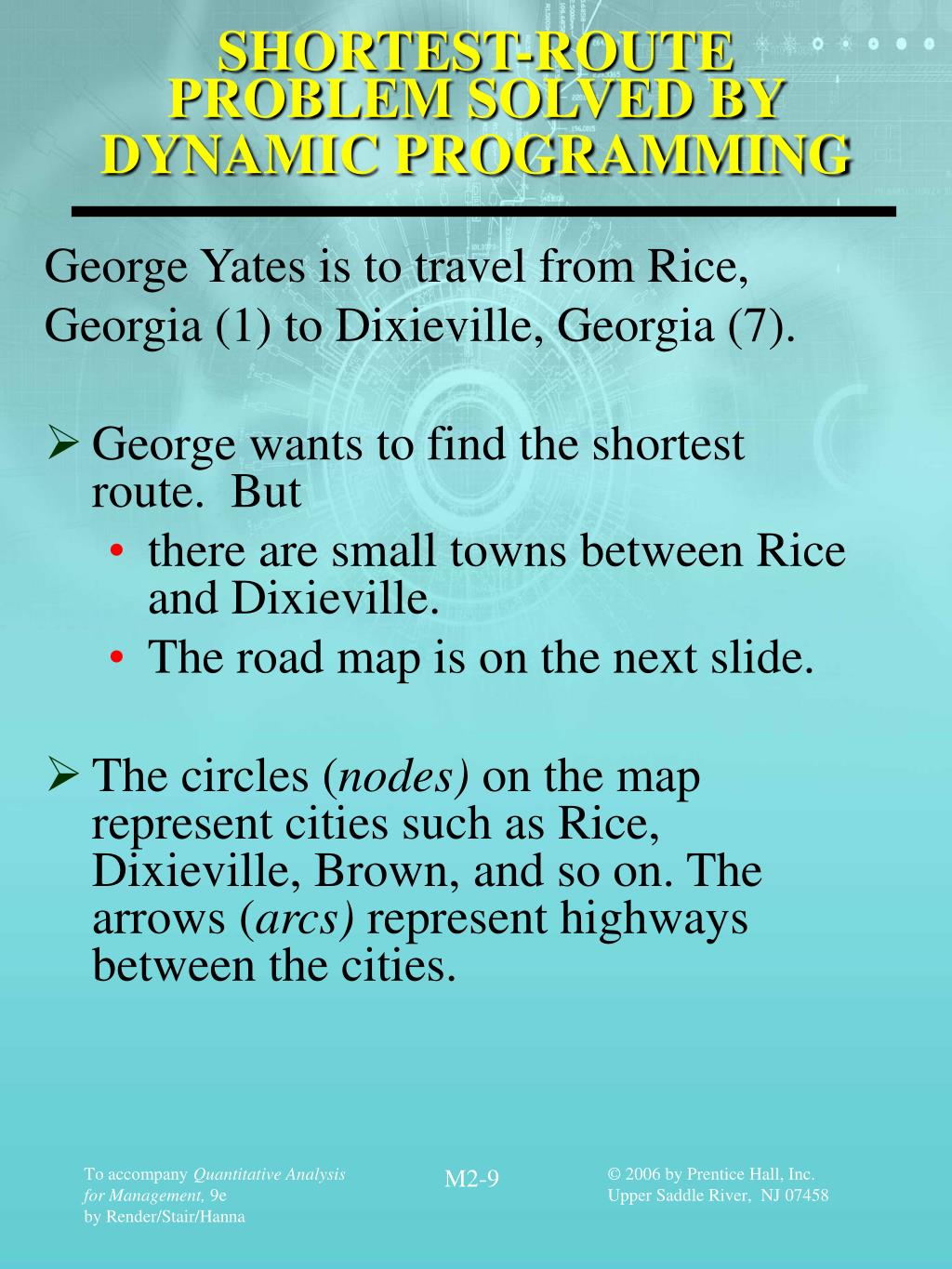

  9. SHORTEST-ROUTE PROBLEM SOLVED BY DYNAMIC PROGRAMMING George Yates is to travel from Rice, Georgia (1) to Dixieville, Georgia (7). • George wants to find the shortest route. But • there are small towns between Rice and Dixieville. • The road map is on the next slide. • The circles (nodes) on the map represent cities such as Rice, Dixieville, Brown, and so on. The arrows (arcs) represent highways between the cities. M2-9

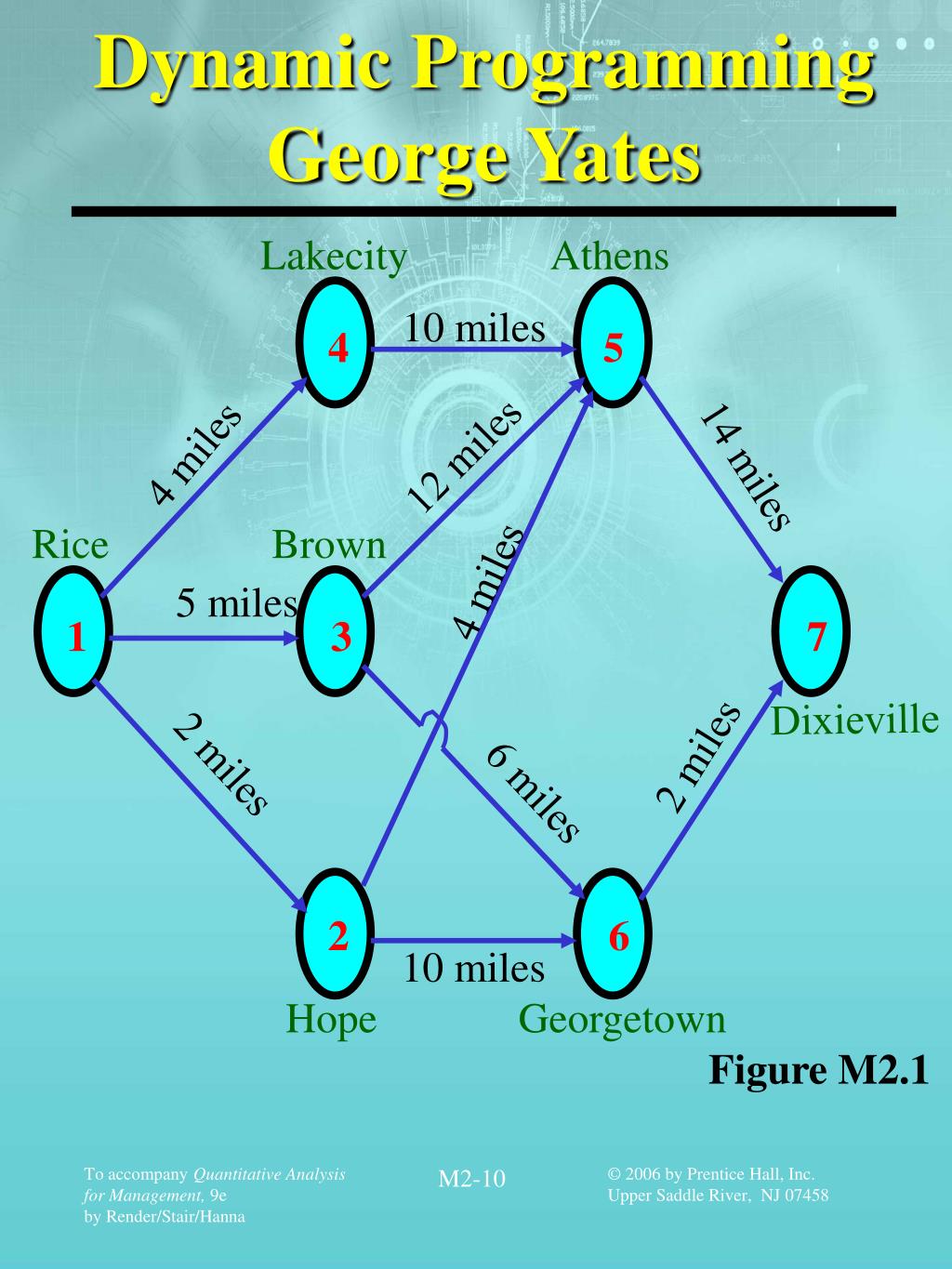

  10. Dynamic ProgrammingGeorge Yates Lakecity Athens 10 miles 4 5 4 miles 12 miles 14 miles Rice Brown 4 miles 5 miles 1 3 7 Dixieville 2 miles 2 miles 6 miles 2 6 10 miles Hope Georgetown Figure M2.1 M2-10

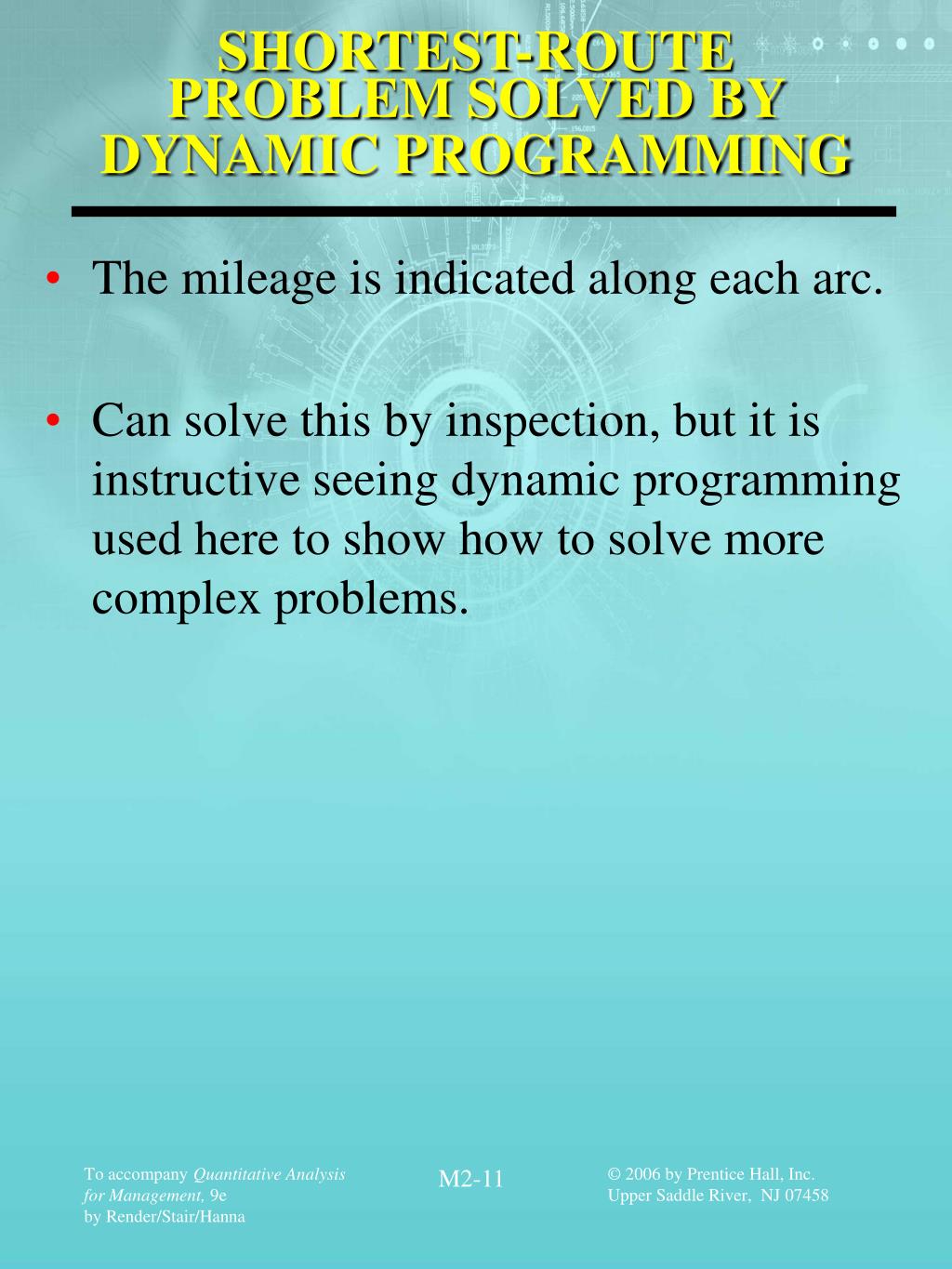

  11. SHORTEST-ROUTE PROBLEM SOLVED BY DYNAMIC PROGRAMMING • The mileage is indicated along each arc. • Can solve this by inspection, but it is instructive seeing dynamic programming used here to show how to solve more complex problems. M2-11

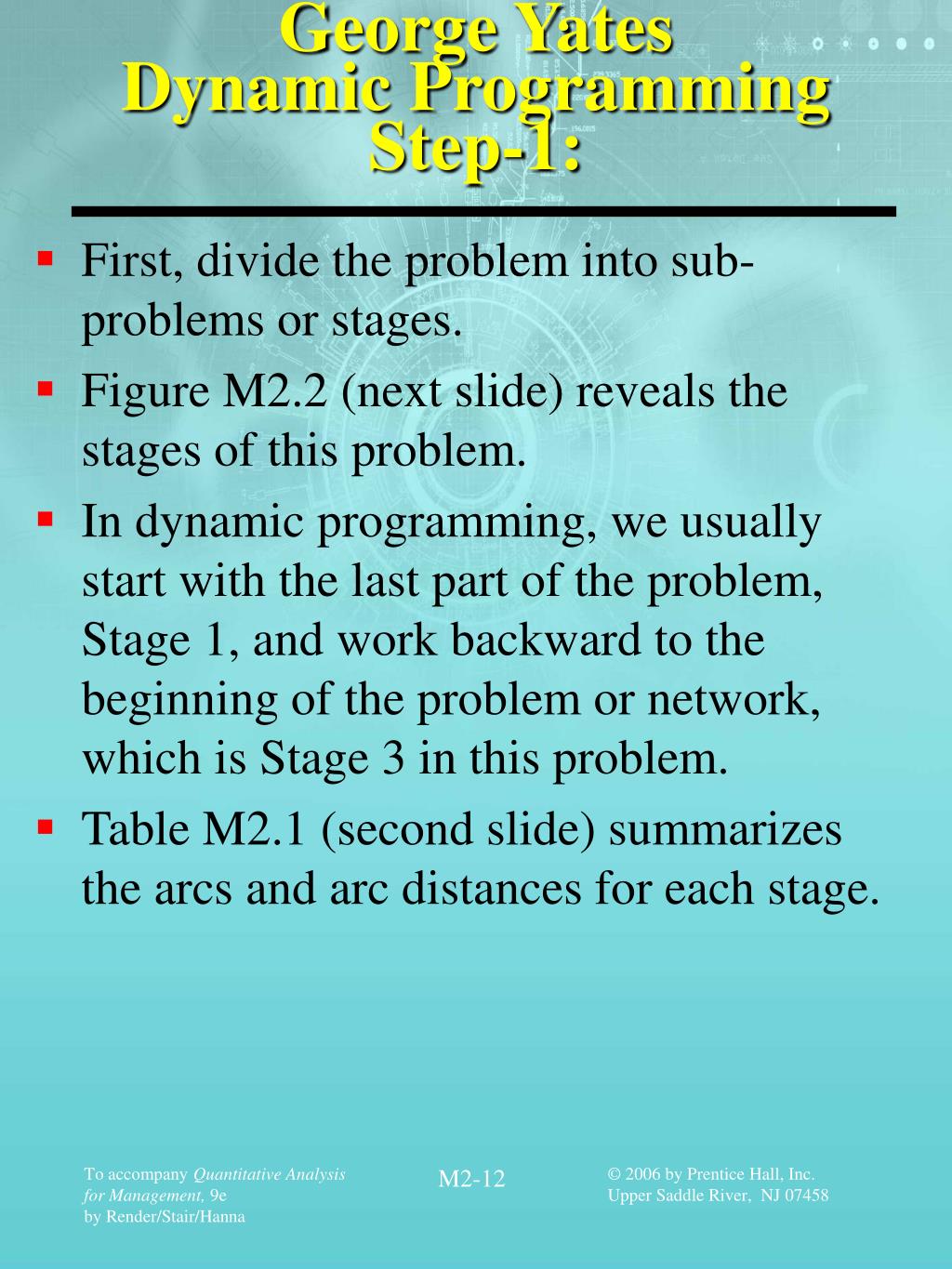

  12. George Yates Dynamic Programming Step-1: • First, divide the problem into sub-problems or stages. • Figure M2.2 (next slide) reveals the stages of this problem. • In dynamic programming, we usually start with the last part of the problem, Stage 1, and work backward to the beginning of the problem or network, which is Stage 3 in this problem. • Table M2.1 (second slide) summarizes the arcs and arc distances for each stage. M2-12

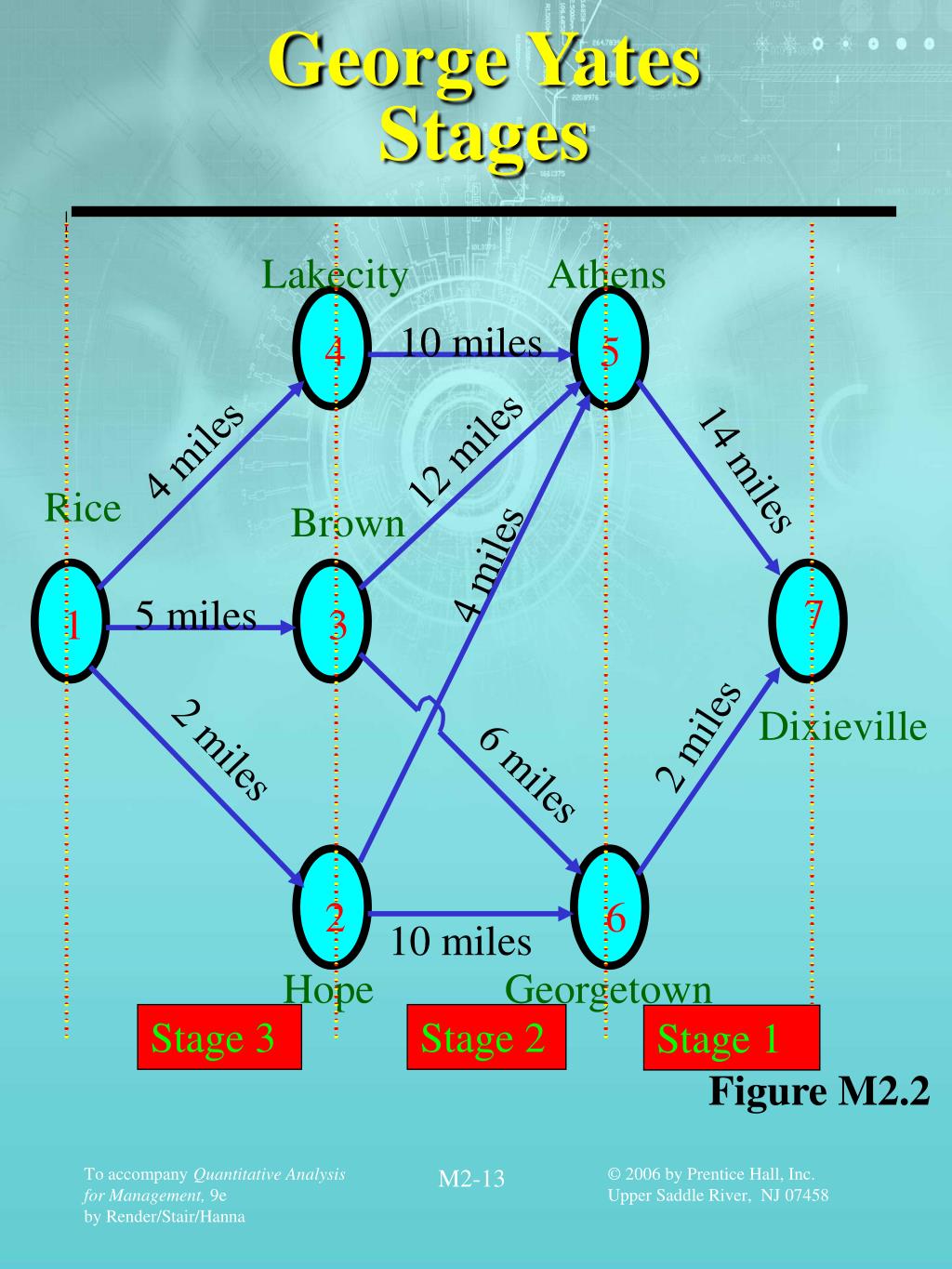

  13. George YatesStages Lakecity Athens 10 miles 4 5 12 miles 4 miles 14 miles Rice Brown 4 miles 7 5 miles 1 3 Dixieville 2 miles 2 miles 6 miles 2 6 10 miles Hope Georgetown Stage 3 Stage 2 Stage 1 Figure M2.2 M2-13

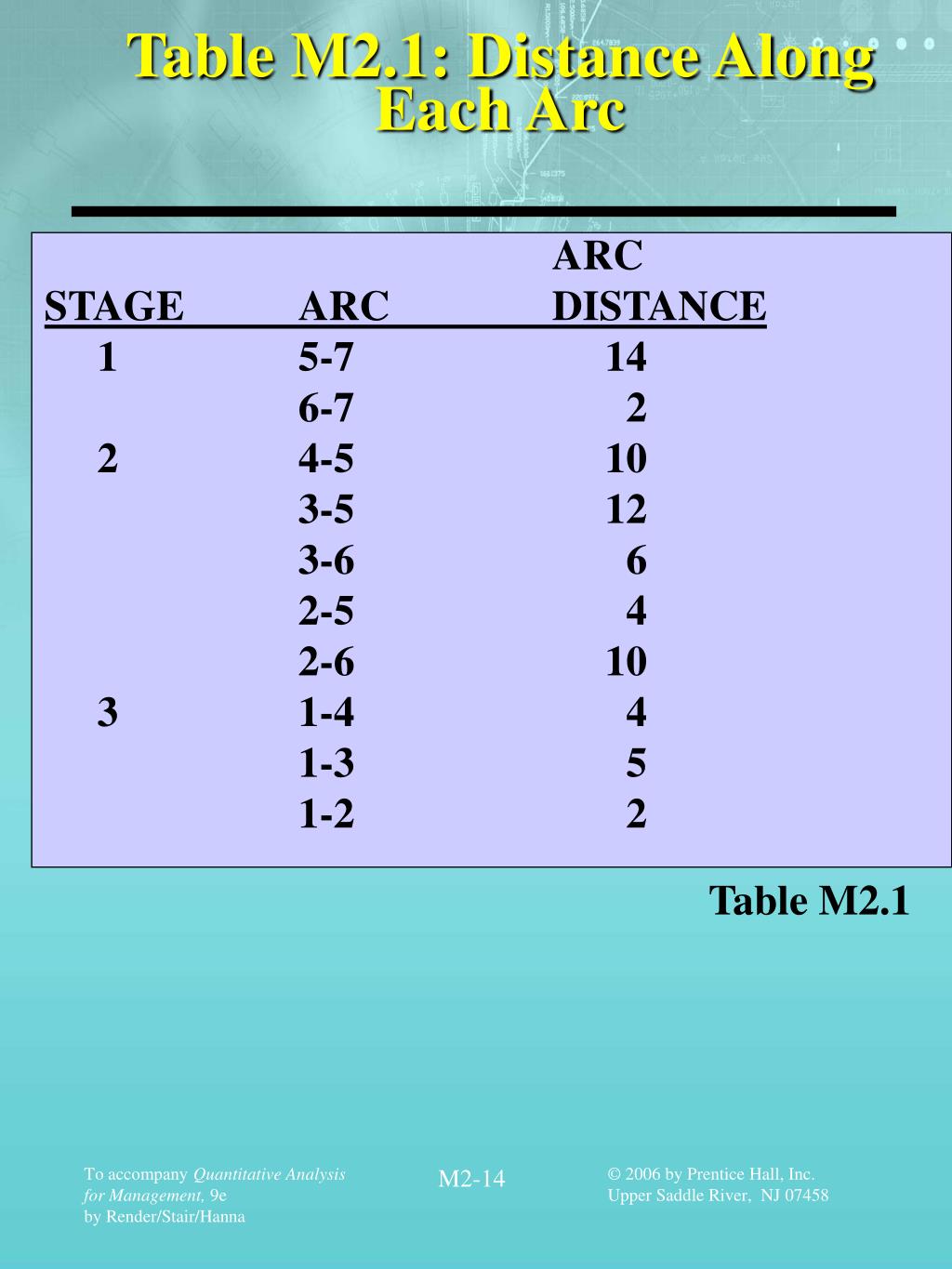

  14. Table M2.1: Distance Along Each Arc ARC STAGE ARC DISTANCE 1 5-7 14 6-7 2 2 4-5 10 3-5 12 3-6 6 2-5 4 2-6 10 3 1-4 4 1-3 5 1-2 2 Table M2.1 M2-14

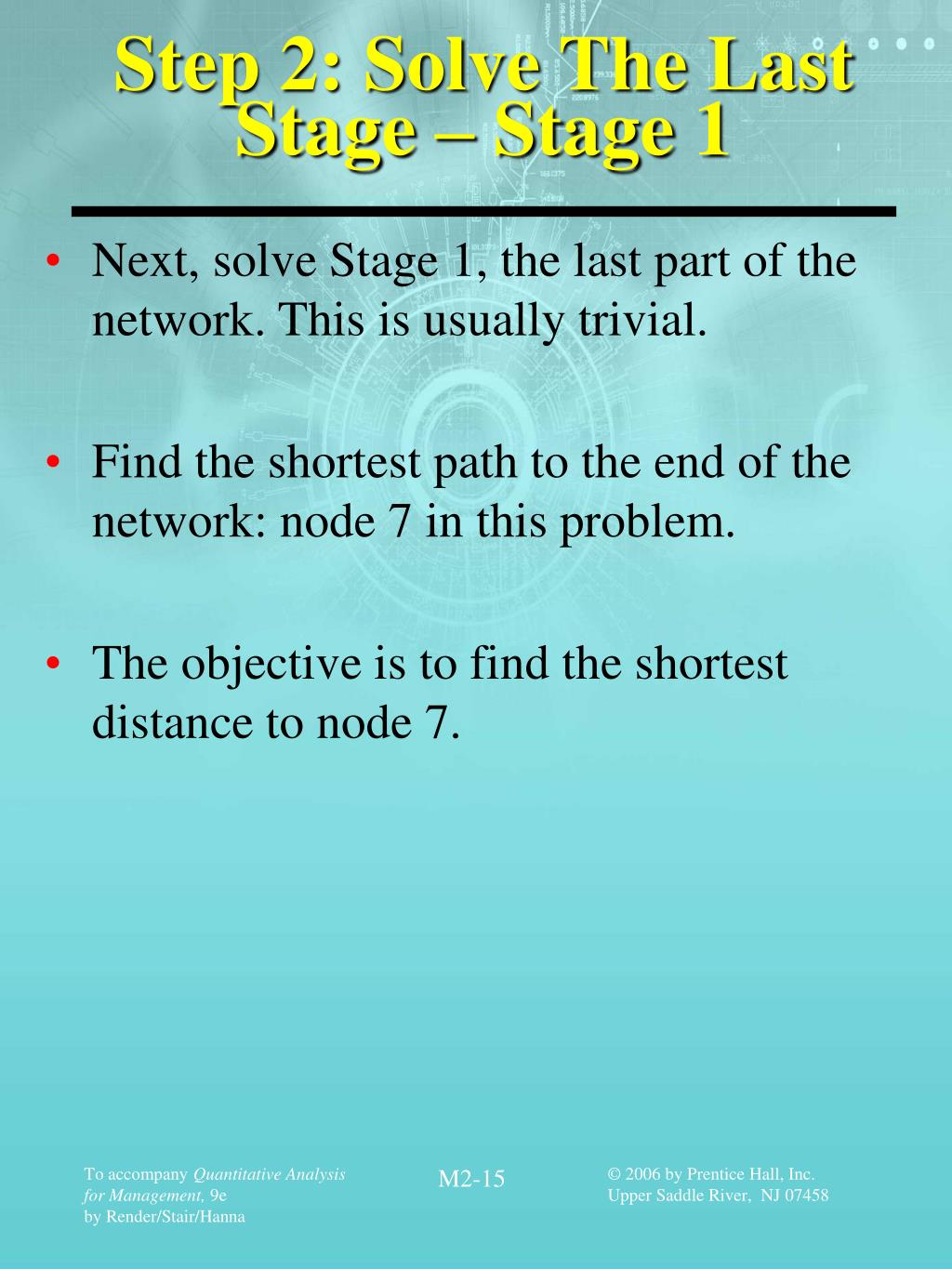

  15. Step 2: Solve The Last Stage – Stage 1 • Next, solve Stage 1, the last part of the network. This is usually trivial. • Find the shortest path to the end of the network: node 7 in this problem. • The objective is to find the shortest distance to node 7. M2-15

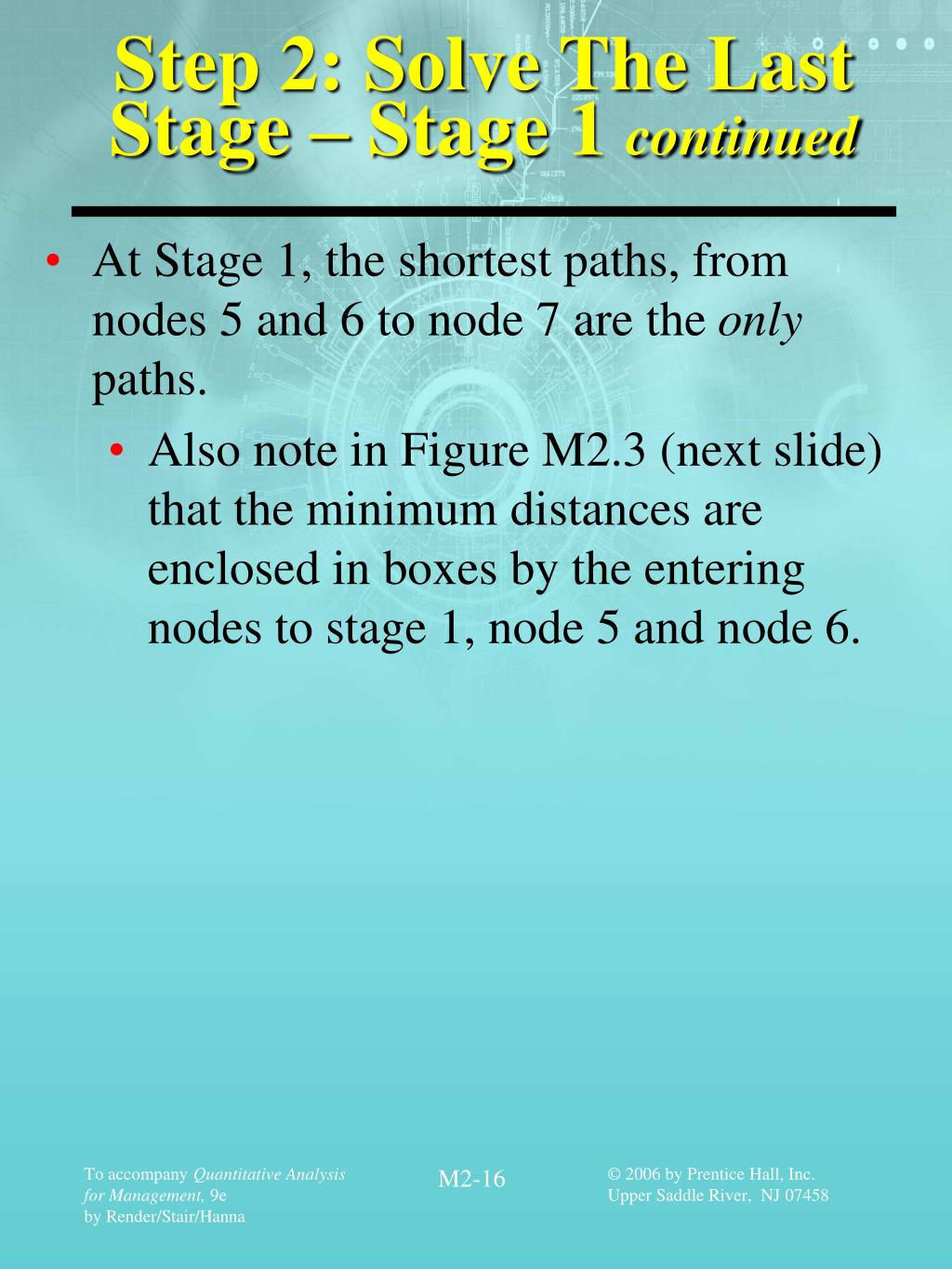

  16. Step 2: Solve The Last Stage – Stage 1 continued • At Stage 1, the shortest paths, from nodes 5 and 6 to node 7 are the only paths. • Also note in Figure M2.3 (next slide) that the minimum distances are enclosed in boxes by the entering nodes to stage 1, node 5 and node 6. M2-16

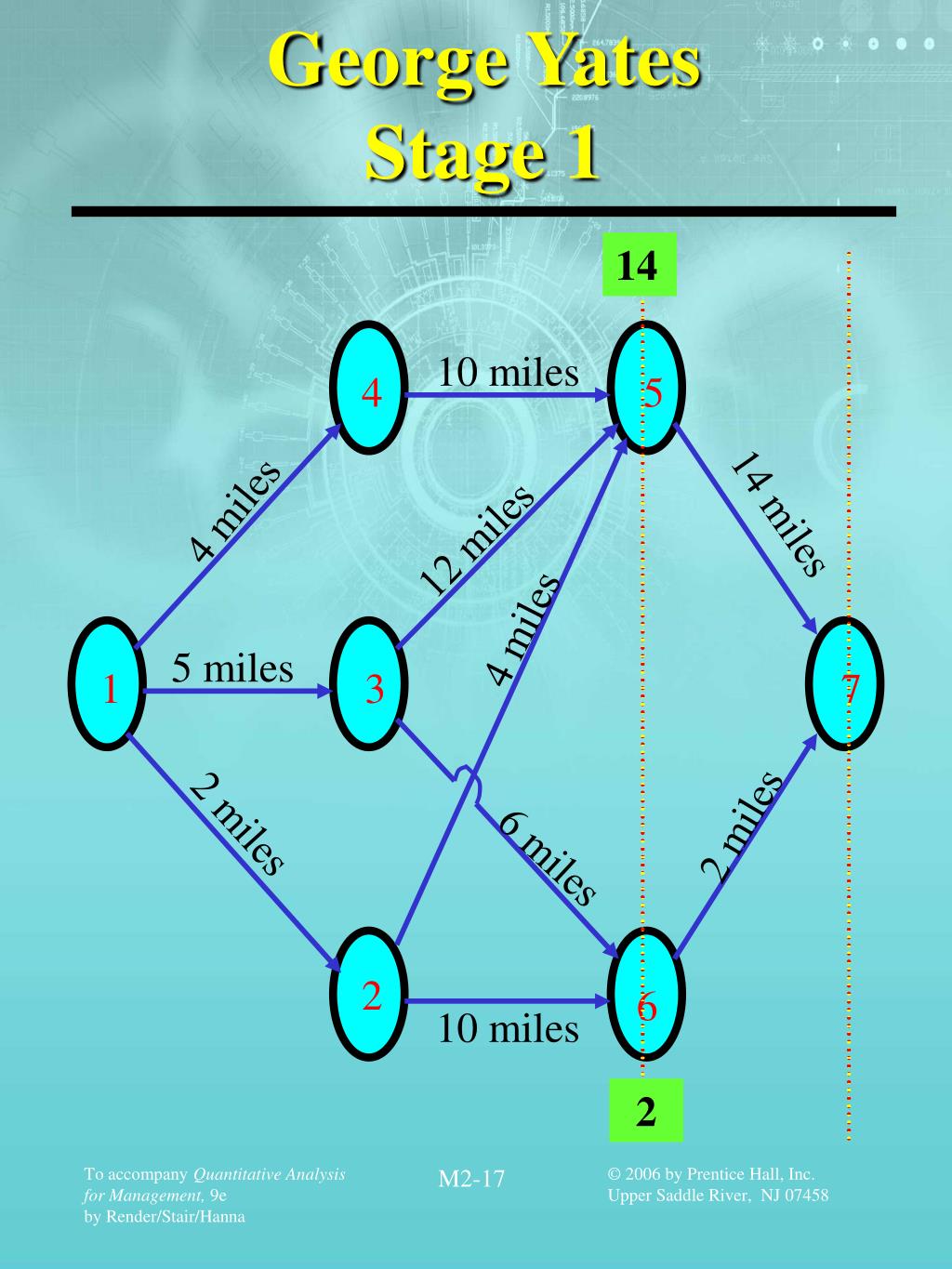

  17. George YatesStage 1 14 10 miles 4 5 4 miles 14 miles 12 miles 4 miles 5 miles 1 3 7 2 miles 2 miles 6 miles 2 6 10 miles 2 M2-17

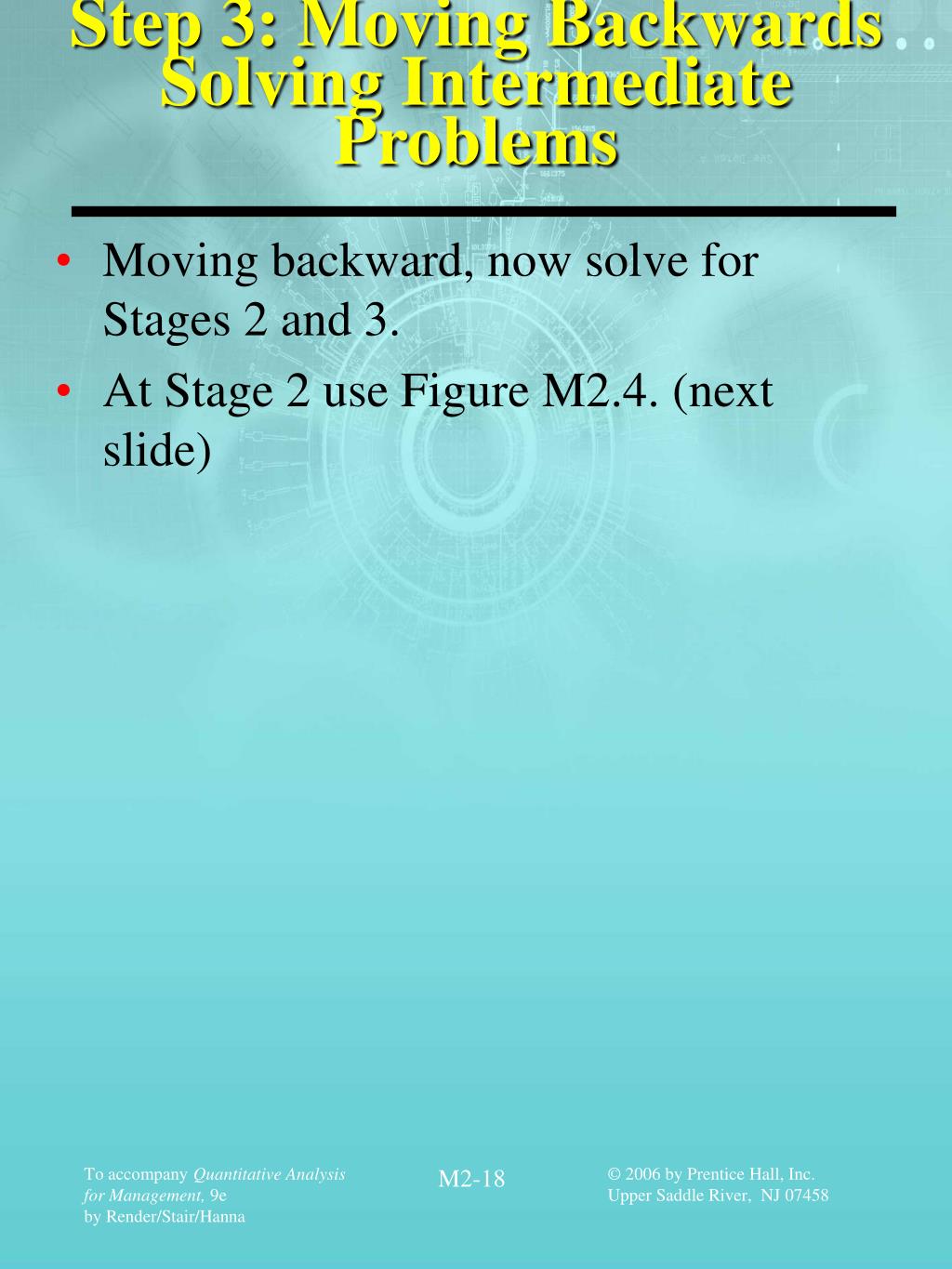

  18. Step 3: Moving Backwards Solving Intermediate Problems • Moving backward, now solve for Stages 2 and 3. • At Stage 2 use Figure M2.4. (next slide) M2-18

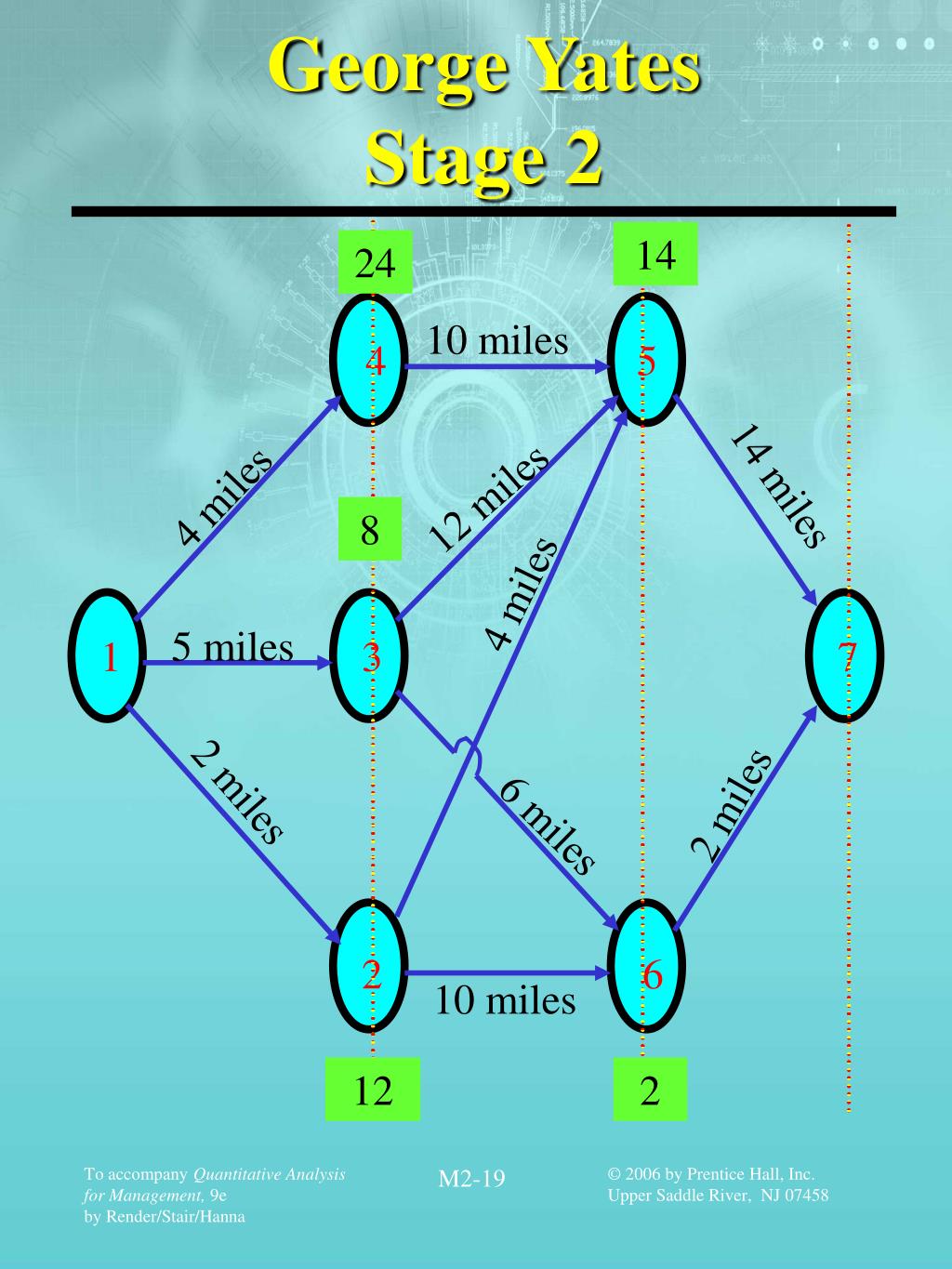

  19. George YatesStage 2 14 24 10 miles 4 5 14 miles 4 miles 12 miles 8 4 miles 5 miles 1 3 7 2 miles 2 miles 6 miles 2 6 10 miles 12 2 M2-19

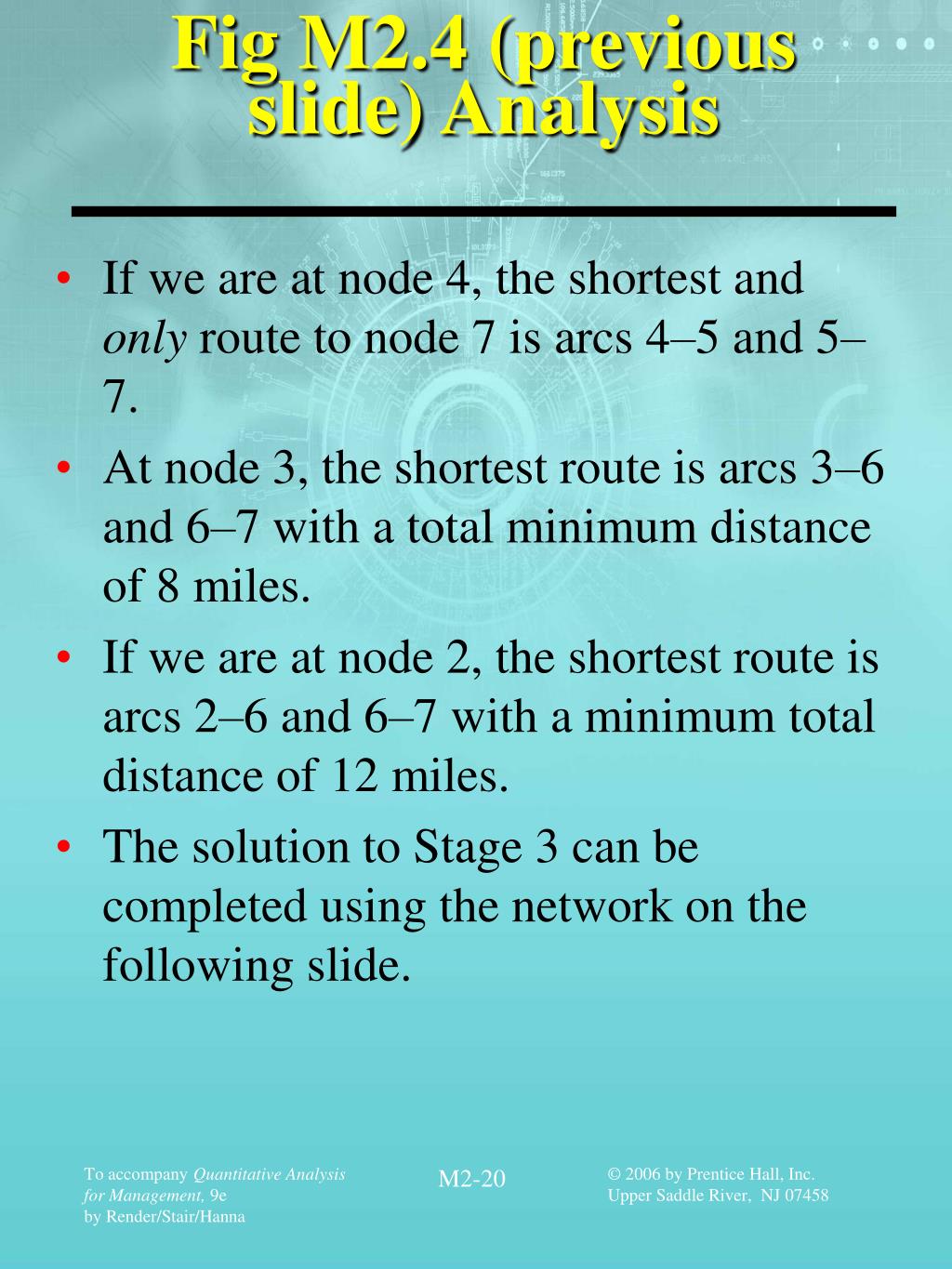

  20. Fig M2.4 (previous slide) Analysis • If we are at node 4, the shortest and only route to node 7 is arcs 4–5 and 5–7. • At node 3, the shortest route is arcs 3–6 and 6–7 with a total minimum distance of 8 miles. • If we are at node 2, the shortest route is arcs 2–6 and 6–7 with a minimum total distance of 12 miles. • The solution to Stage 3 can be completed using the network on the following slide. M2-20

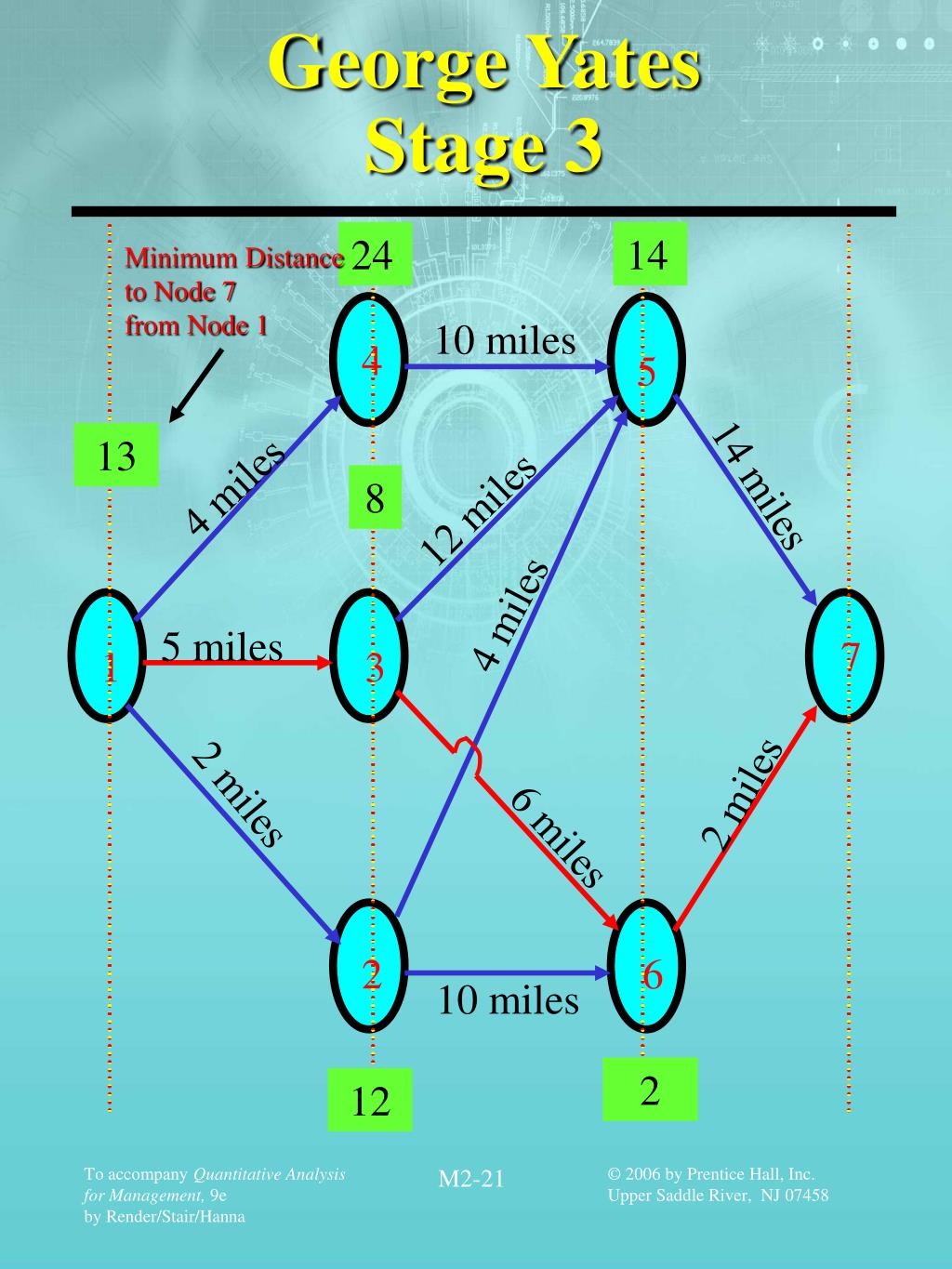

  21. George YatesStage 3 24 14 Minimum Distance to Node 7 from Node 1 10 miles 4 5 13 14 miles 4 miles 8 12 miles 4 miles 5 miles 7 1 3 2 miles 2 miles 6 miles 2 6 10 miles 2 12 M2-21

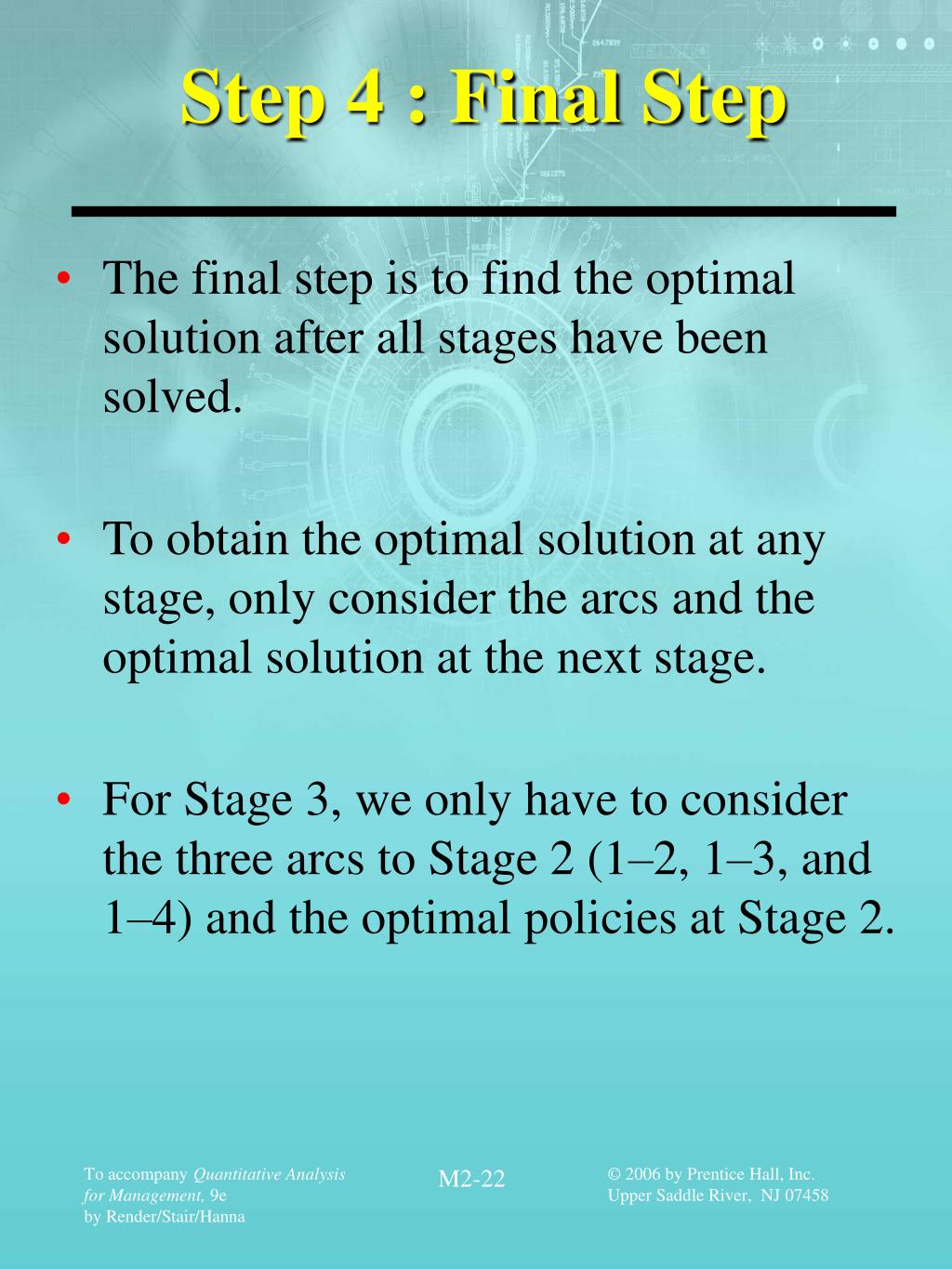

  22. Step 4 : Final Step • The final step is to find the optimal solution after all stages have been solved. • To obtain the optimal solution at any stage, only consider the arcs and the optimal solution at the next stage. • For Stage 3, we only have to consider the three arcs to Stage 2 (1–2, 1–3, and 1–4) and the optimal policies at Stage 2. M2-22

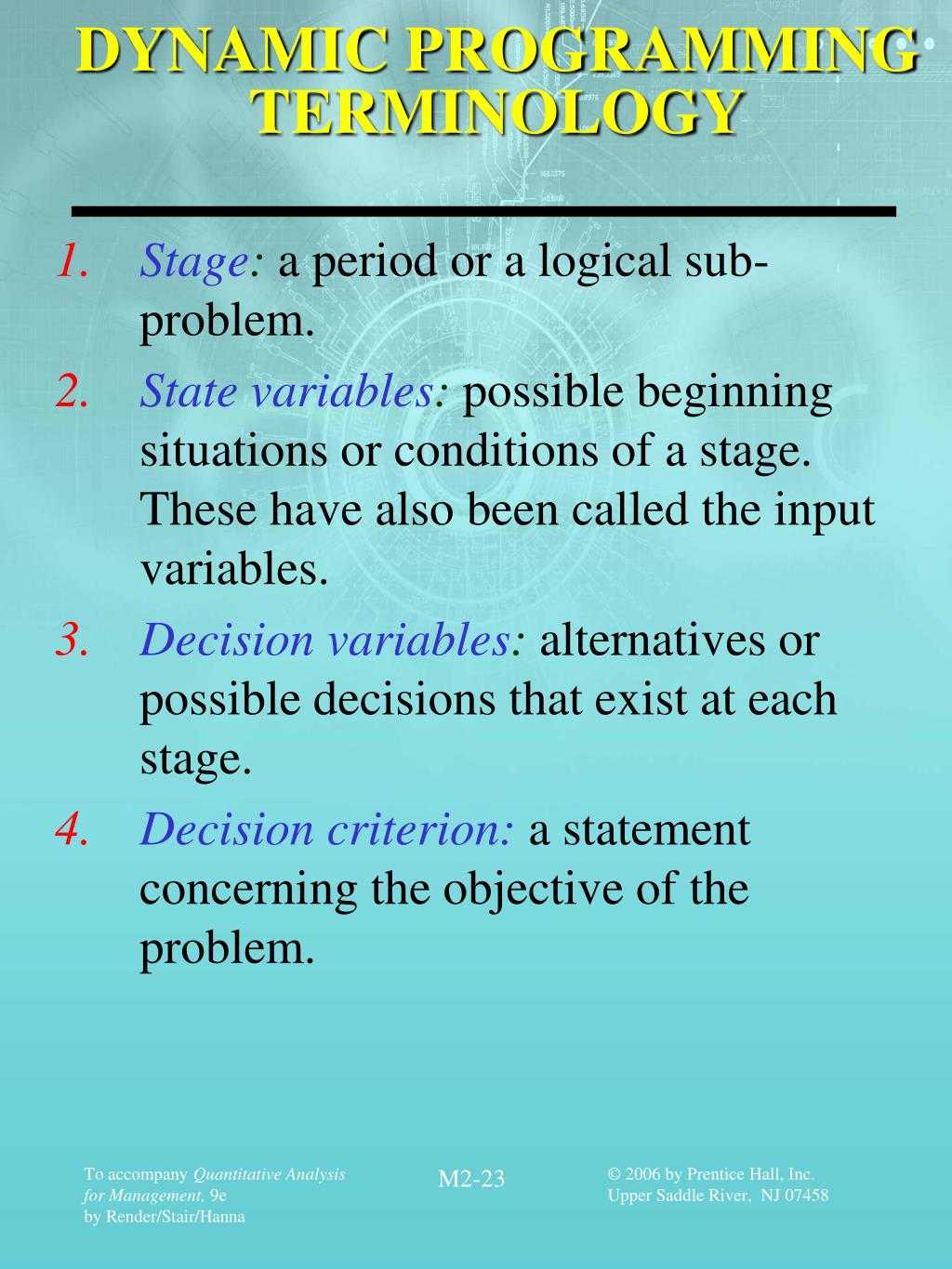

  23. DYNAMIC PROGRAMMING TERMINOLOGY • Stage: a period or a logical sub-problem. • State variables: possible beginning situations or conditions of a stage. These have also been called the input variables. • Decision variables: alternatives or possible decisions that exist at each stage. • Decision criterion:a statement concerning the objective of the problem. M2-23

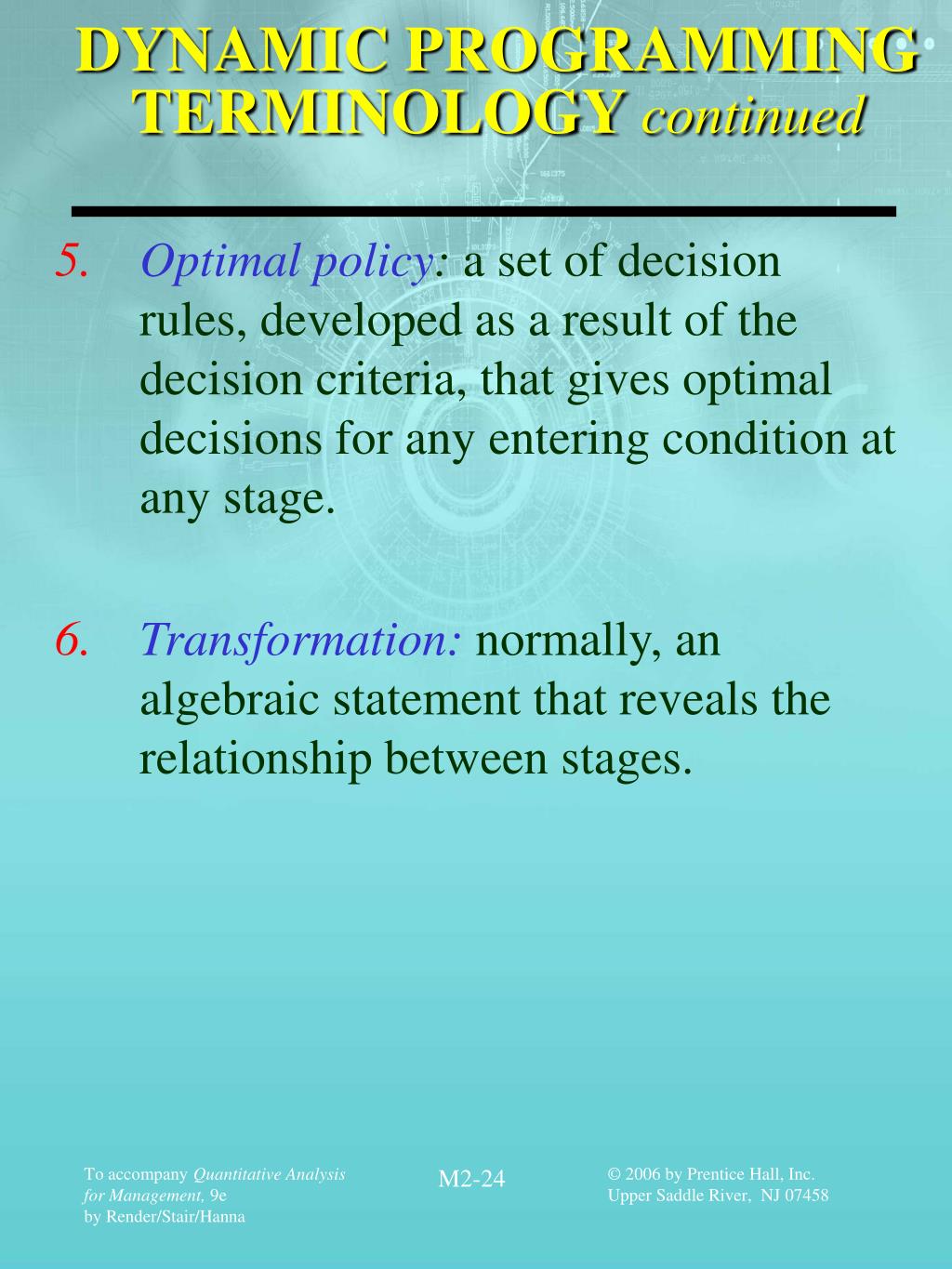

  24. DYNAMIC PROGRAMMING TERMINOLOGY continued • Optimal policy: a set of decision rules, developed as a result of the decision criteria, that gives optimal decisions for any entering condition at any stage. • Transformation:normally, an algebraic statement that reveals the relationship between stages. M2-24

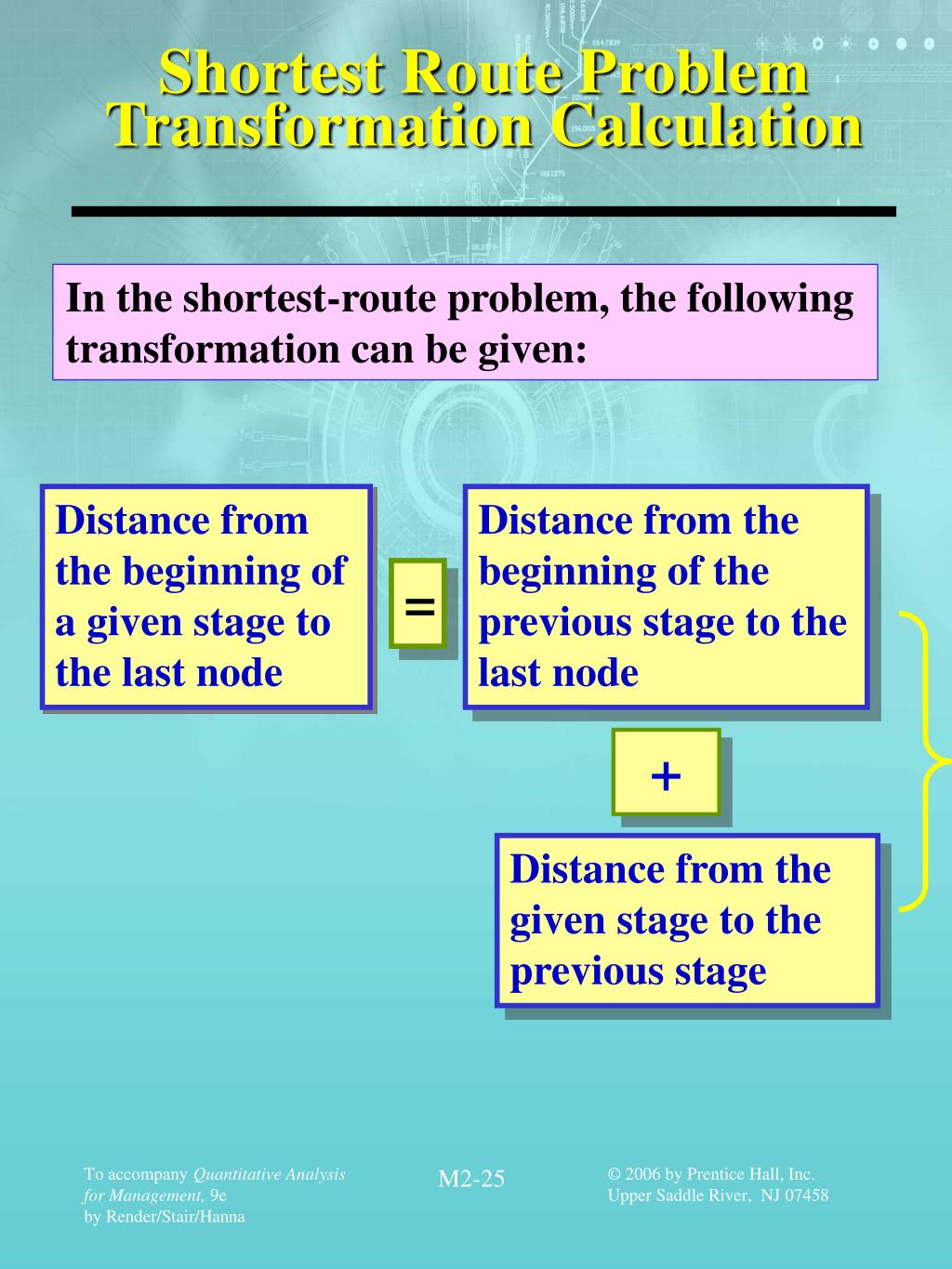

  25. Shortest Route Problem Transformation Calculation In the shortest-route problem, the following transformation can be given: Distance from the beginning of a given stage to the last node Distance from the beginning of the previous stage to the last node = + Distance from the given stage to the previous stage M2-25

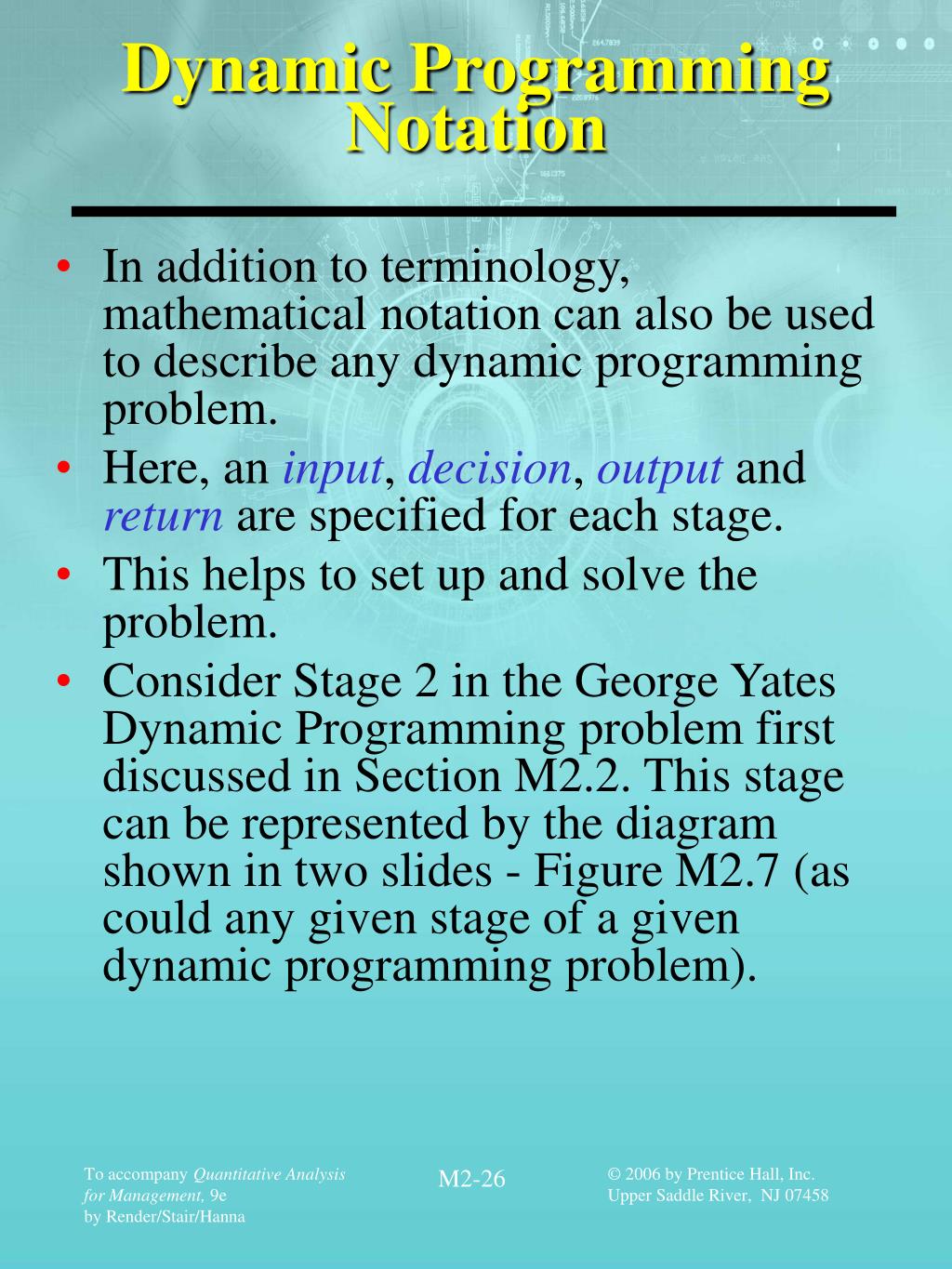

  26. Dynamic Programming Notation • In addition to terminology, mathematical notation can also be used to describe any dynamic programming problem. • Here, an input, decision, output and return are specified for each stage. • This helps to set up and solve the problem. • Consider Stage 2 in the George Yates Dynamic Programming problem first discussed in Section M2.2. This stage can be represented by the diagram shown in two slides - Figure M2.7 (as could any given stage of a given dynamic programming problem). M2-26

  27. Input, Decision, Output,and Return for Stage 2 inGeorge Yates’s Problem sn = input to stage n (M2-1) dn = decision at stage n (M2-2) rn = return at stage n (M2-3) • Please note that the input to one stage is also the output from another stage. e.g., the input to Stage 2, s2, is also the output from Stage 3 (see Figure M2.7 in the next slide). • This leads us to the following equation: s n −1 = 1 output from Stage n M2-27

  28. Input, Decision, Output,and Return for Stage 2 inGeorge Yates’s Problem Decision d2 Stage 2 Input s2 Output s1 Return r2 Fig M2.7 M2-28

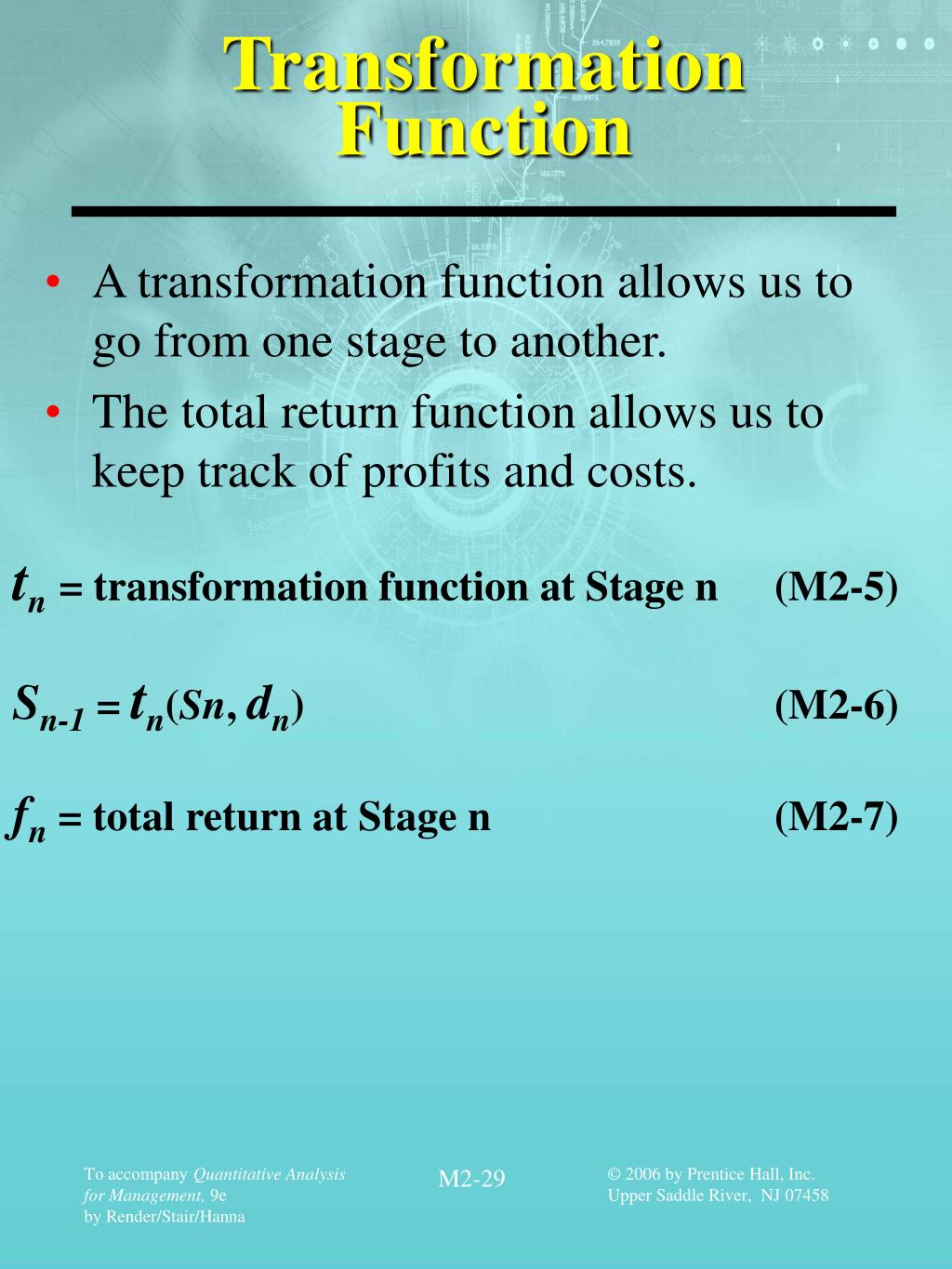

  29. Transformation Function • A transformation function allows us to go from one stage to another. • The total return function allows us to keep track of profits and costs. tn= transformation function at Stage n (M2-5) Sn-1 = tn(Sn, dn) (M2-6) fn = total return at Stage n (M2-7) M2-29

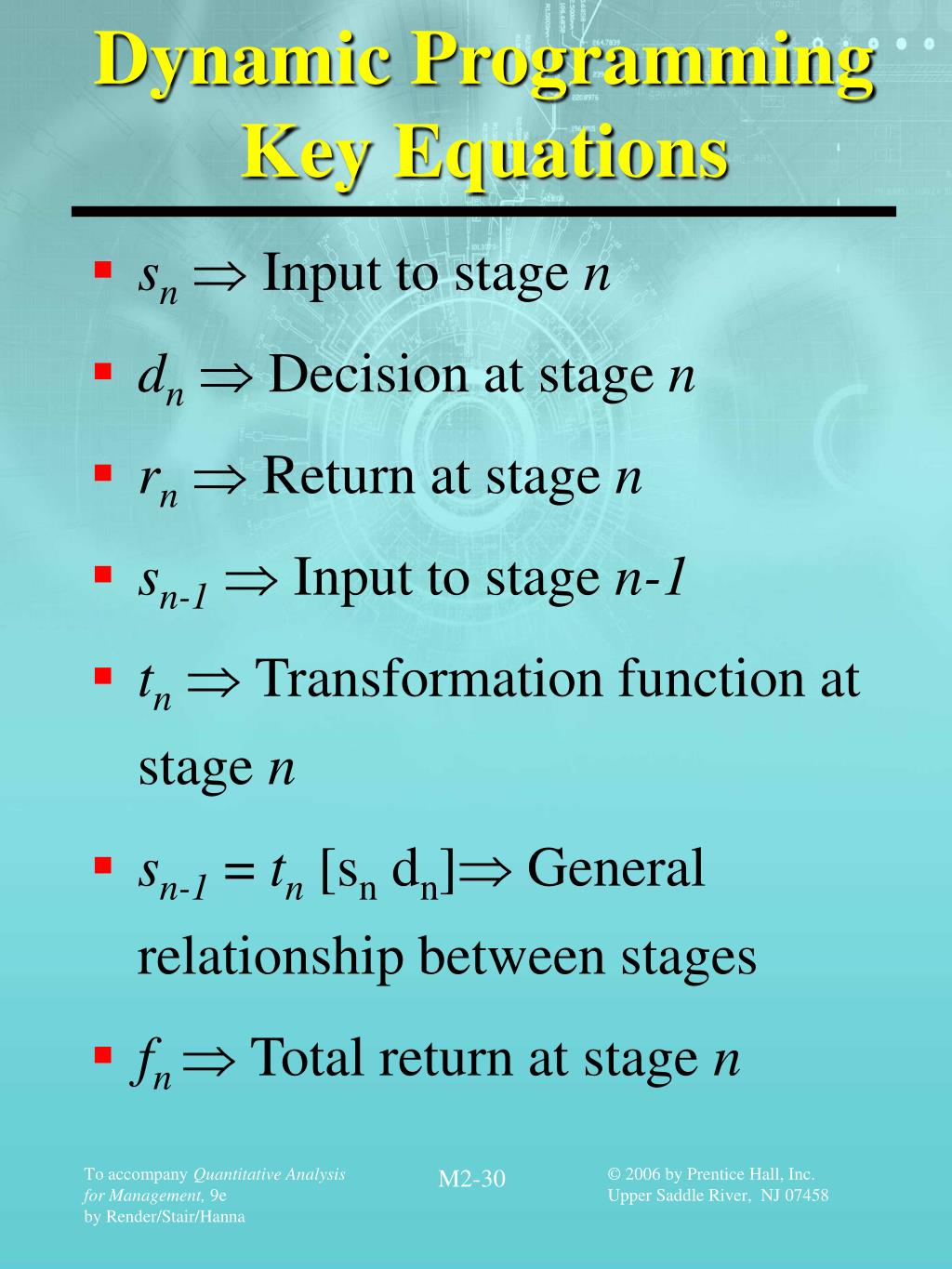

  30. Dynamic ProgrammingKey Equations • sn Input to stage n • dn Decision at stage n • rn Return at stage n • sn-1 Input to stage n-1 • tn Transformation function at stage n • sn-1 = tn [sn dn] General relationship between stages • fn  Total return at stage n M2-30

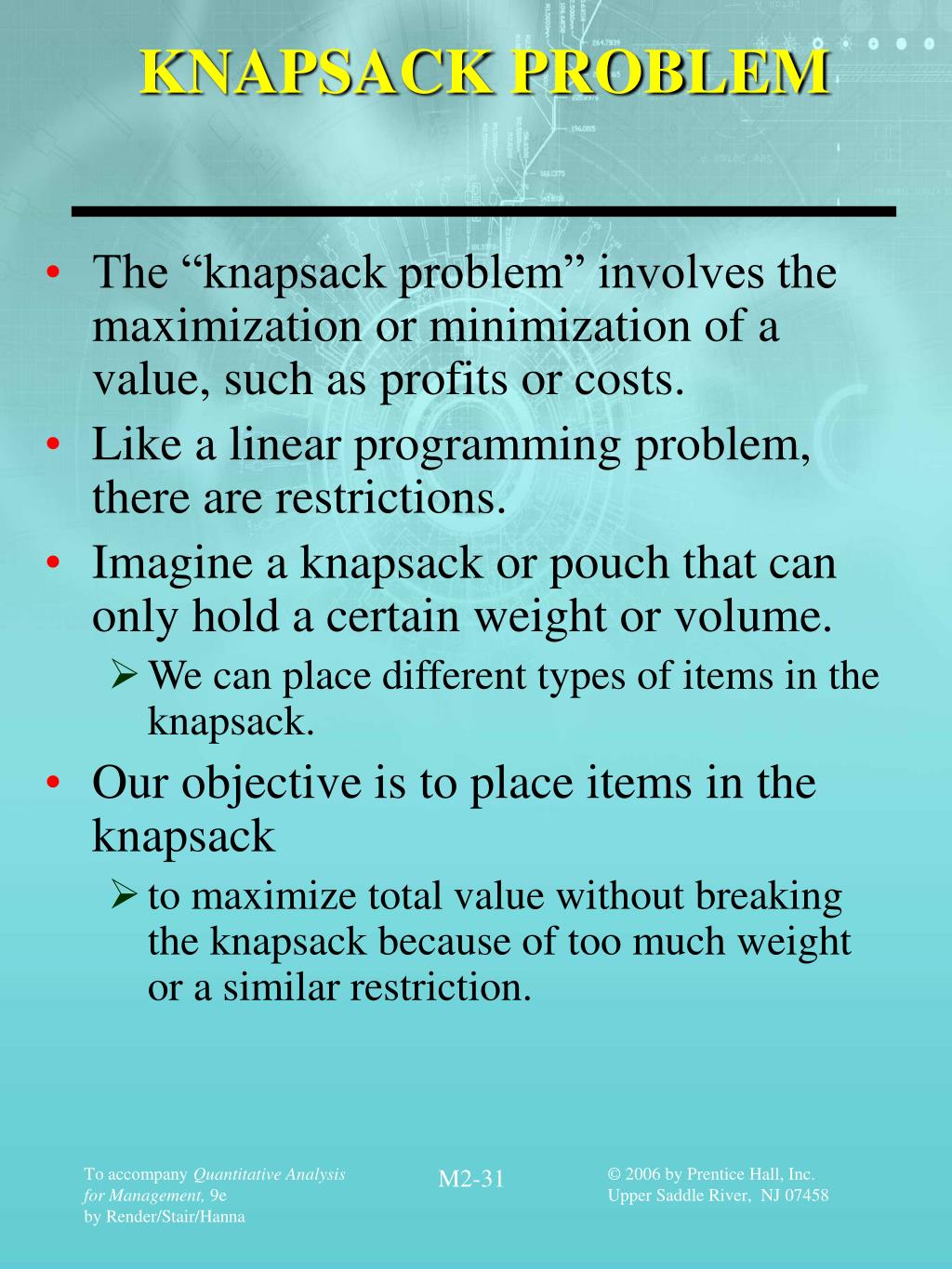

  31. KNAPSACK PROBLEM • The “knapsack problem” involves the maximization or minimization of a value, such as profits or costs. • Like a linear programming problem, there are restrictions. • Imagine a knapsack or pouch that can only hold a certain weight or volume. • We can place different types of items in the knapsack. • Our objective is to place items in the knapsack • to maximize total value without breaking the knapsack because of too much weight or a similar restriction. M2-31

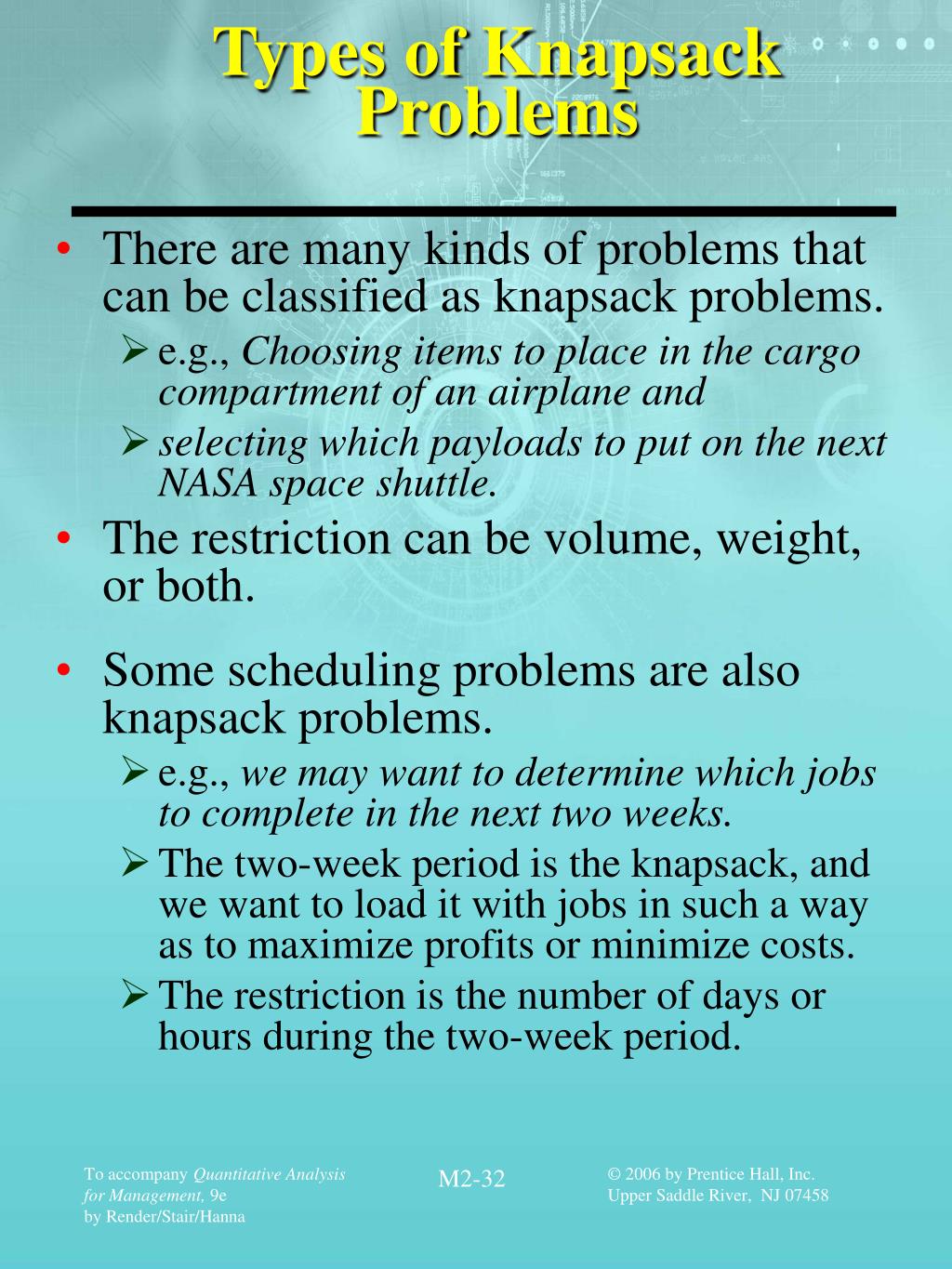

  32. Types of Knapsack Problems • There are many kinds of problems that can be classified as knapsack problems. • e.g., Choosing items to place in the cargo compartment of an airplane and • selecting which payloads to put on the next NASA space shuttle. • The restriction can be volume, weight, or both. • Some scheduling problems are also knapsack problems. • e.g., we may want to determine which jobs to complete in the next two weeks. • The two-week period is the knapsack, and we want to load it with jobs in such a way as to maximize profits or minimize costs. • The restriction is the number of days or hours during the two-week period. M2-32

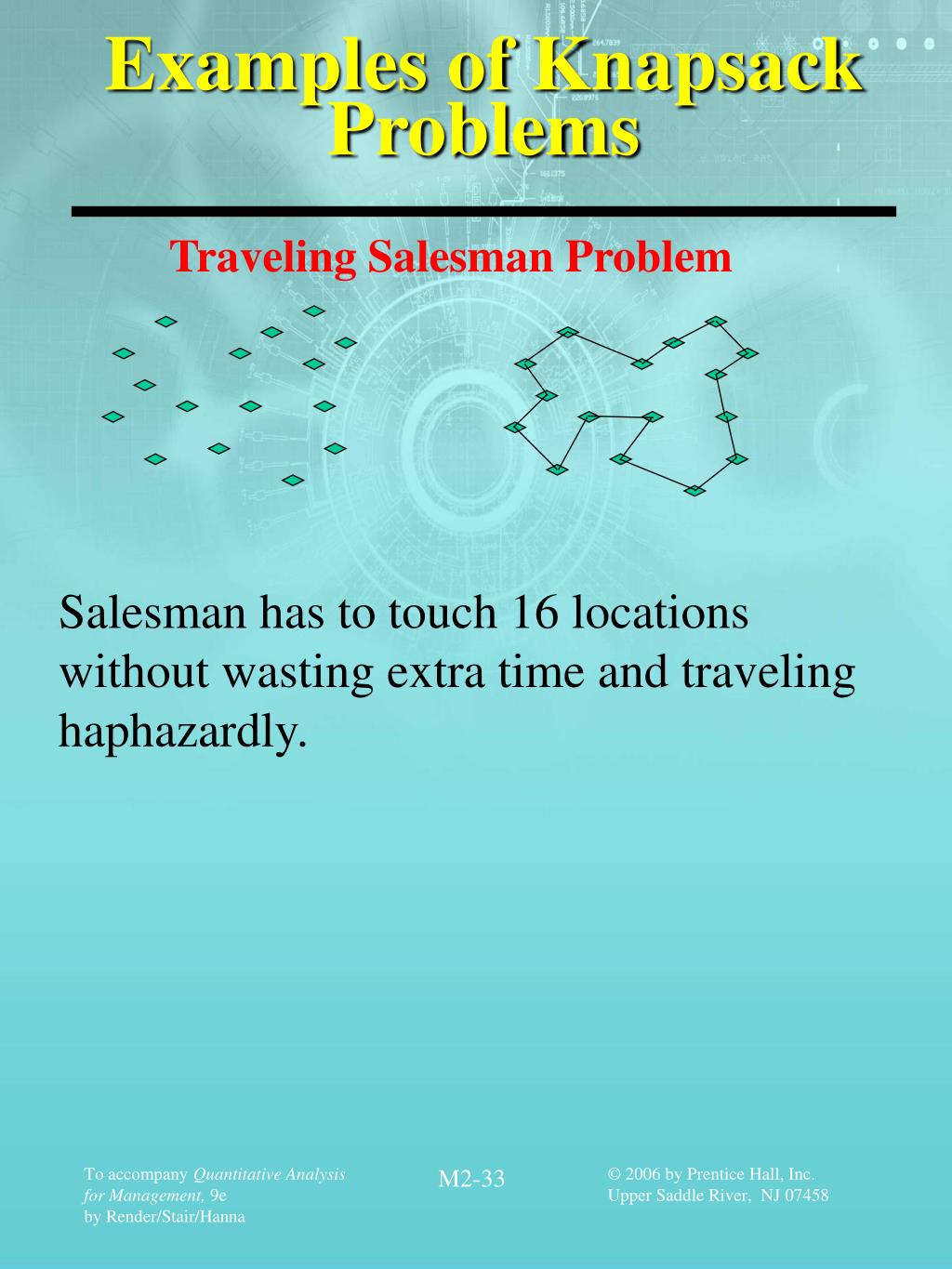

  33. Examples of Knapsack Problems Traveling Salesman Problem Salesman has to touch 16 locations without wasting extra time and traveling haphazardly. M2-33

  34. Example 2: Scenario • Consider packing a knapsack for a picnic in the country. There are many different items that you could bring, but the knapsack is not big enough to contain all items. • Decide what is appropriate for the trip and leave the not so important things behind. • Evaluate the importance of different items for this situation. • Bringing food may be deemed very important and bringing a DVD as not important, even if it can yield a pleasant day. M2-34

  35. Scenario continued • In theory, values must be assigned to each item. Items must be rated in terms of profit and cost. • Profit would be the importance of the item, while the cost is the amount of space it occupies in the knapsack. That is a multi-objective problem. • You want to maximize the profit while minimizing the total cost. • To maximize profit would mean taking all the items. However, this would exceed the capacity of the backpack. • To minimize cost, we would take none of the items, but this would mean that we have no profit. You have to find the best compromise. M2-35

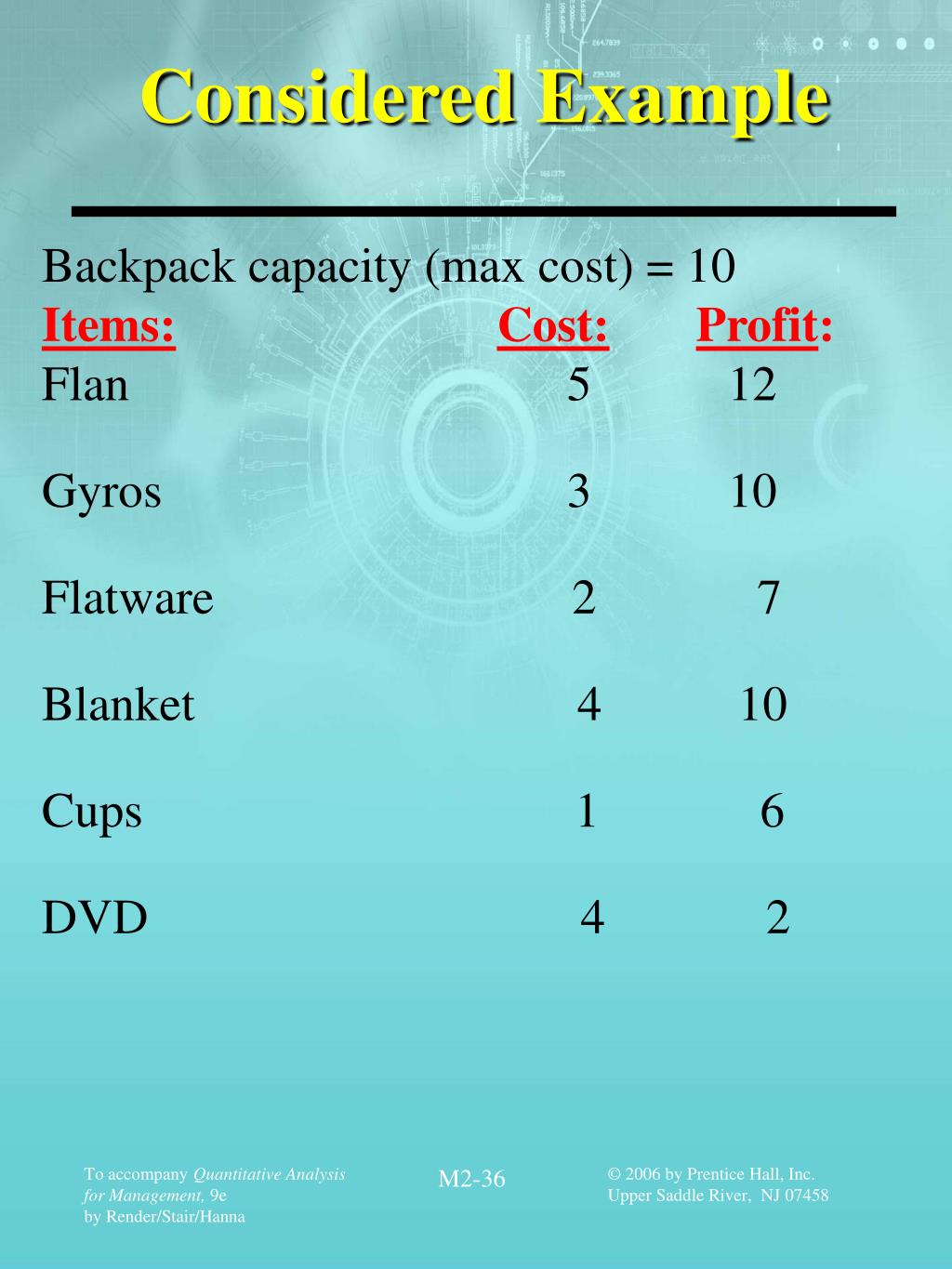

  36. Considered Example Backpack capacity (max cost) = 10 Items:Cost:Profit: Flan                      5           12 Gyros                     3           10 Flatware                        2             7 Blanket                               4           10 Cups                              1             6 DVD                                  4             2 M2-36

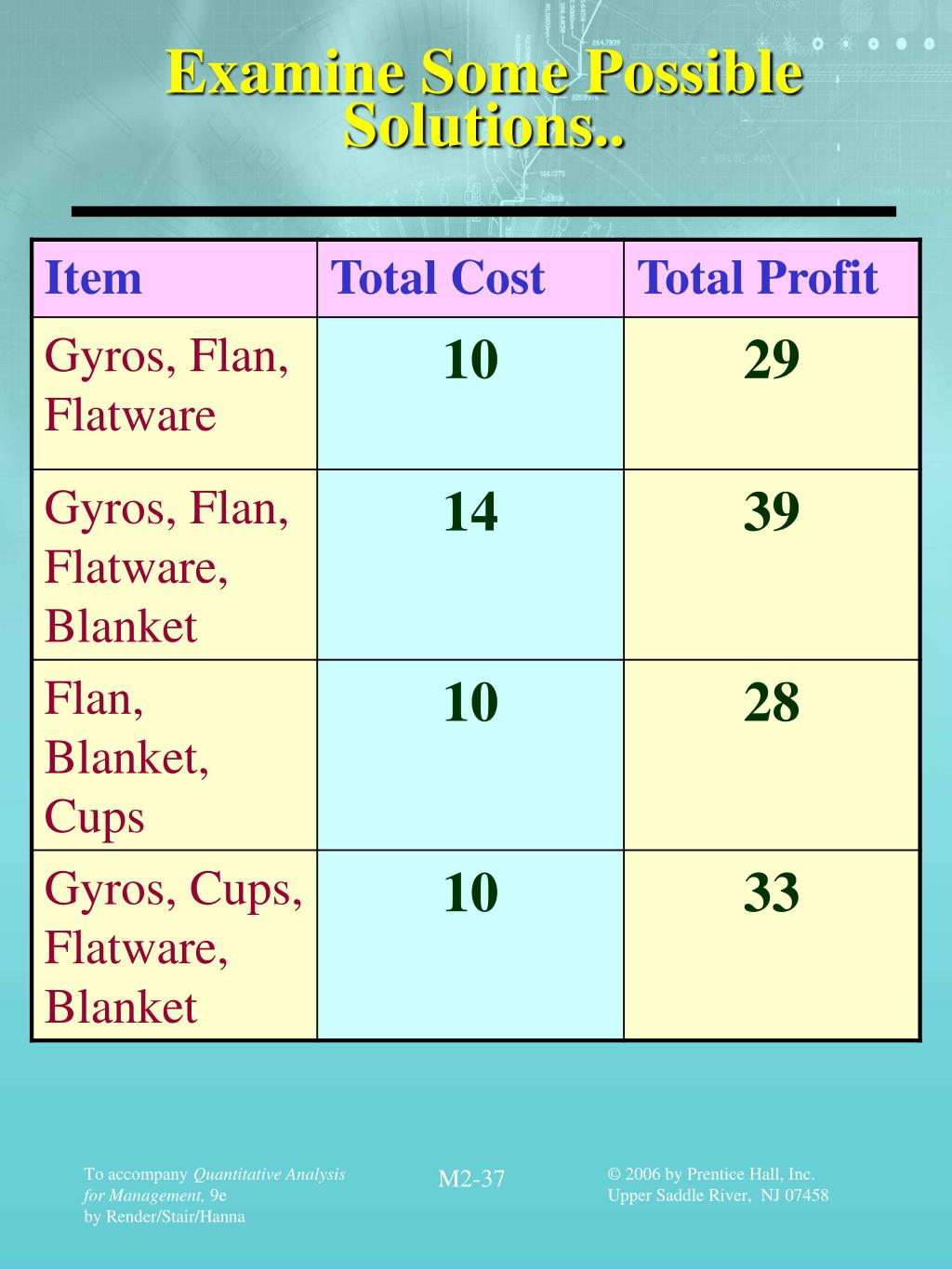

  37. Examine Some Possible Solutions.. M2-37

  38. More on Knapsack Problems • The knapsack problem concerns many situations of resource allocation with financial constraints, for instance, • to select what things we should buy, given a fixed budget. • Everything has a cost and a profit, so seek the most value for a given cost. • The term knapsack problem invokes the image of the backpacker who is constrained, by a fixed-size knapsack, to fill it only with the most useful items. M2-38

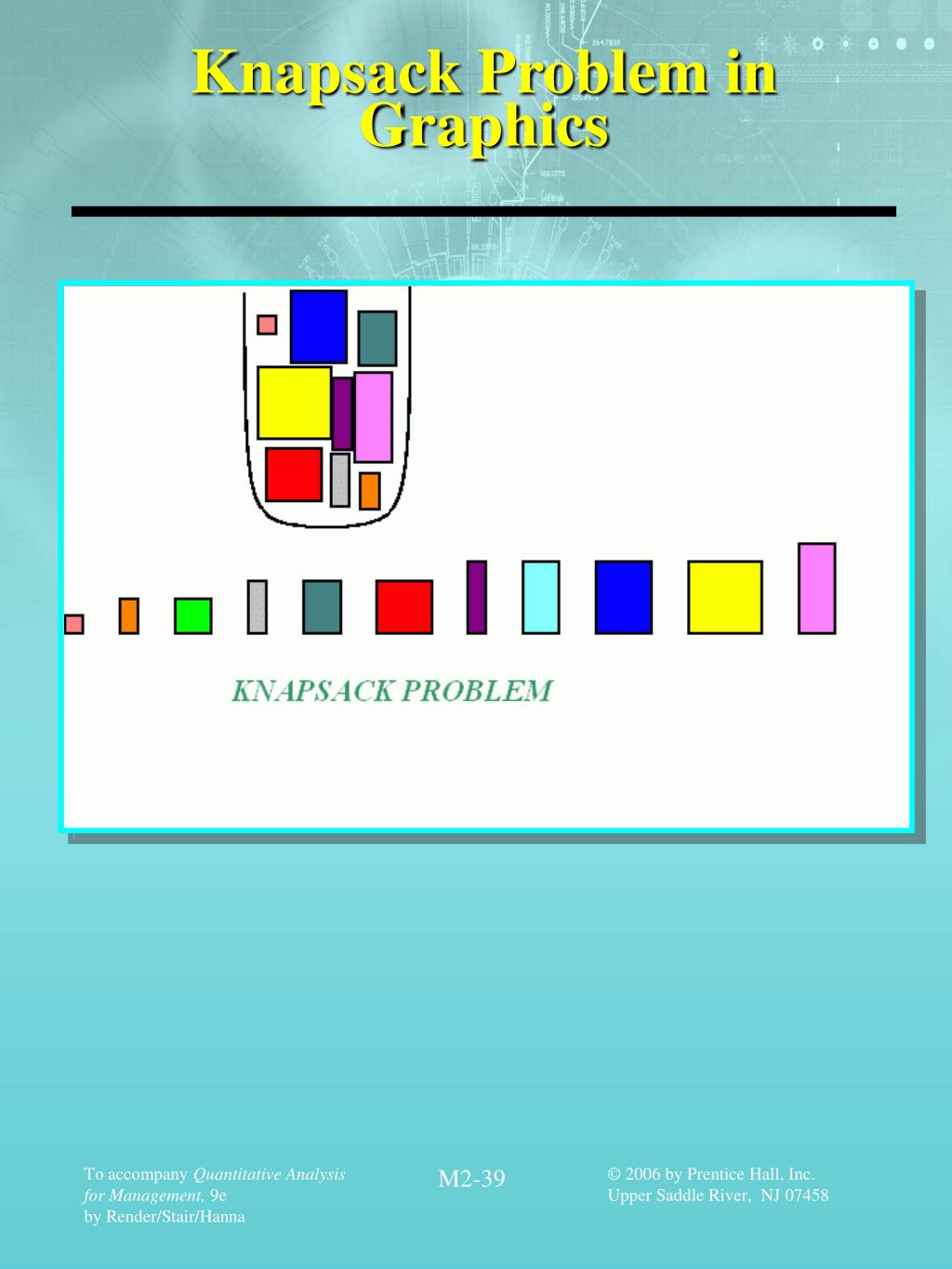

  39. Knapsack Problem in Graphics M2-39

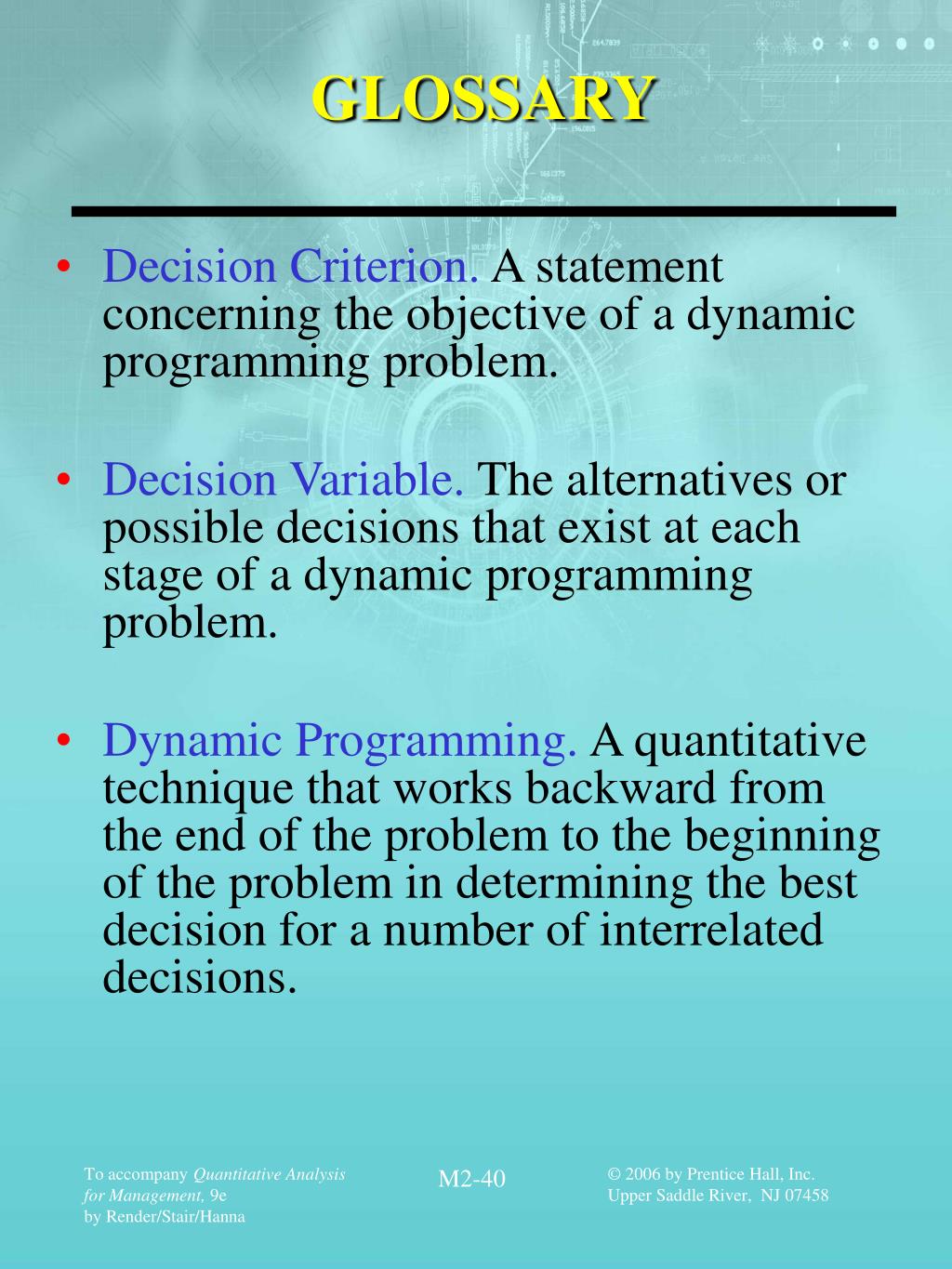

  40. GLOSSARY • Decision Criterion.A statement concerning the objective of a dynamic programming problem. • Decision Variable.The alternatives or possible decisions that exist at each stage of a dynamic programming problem. • Dynamic Programming.A quantitative technique that works backward from the end of the problem to the beginning of the problem in determining the best decision for a number of interrelated decisions. M2-40

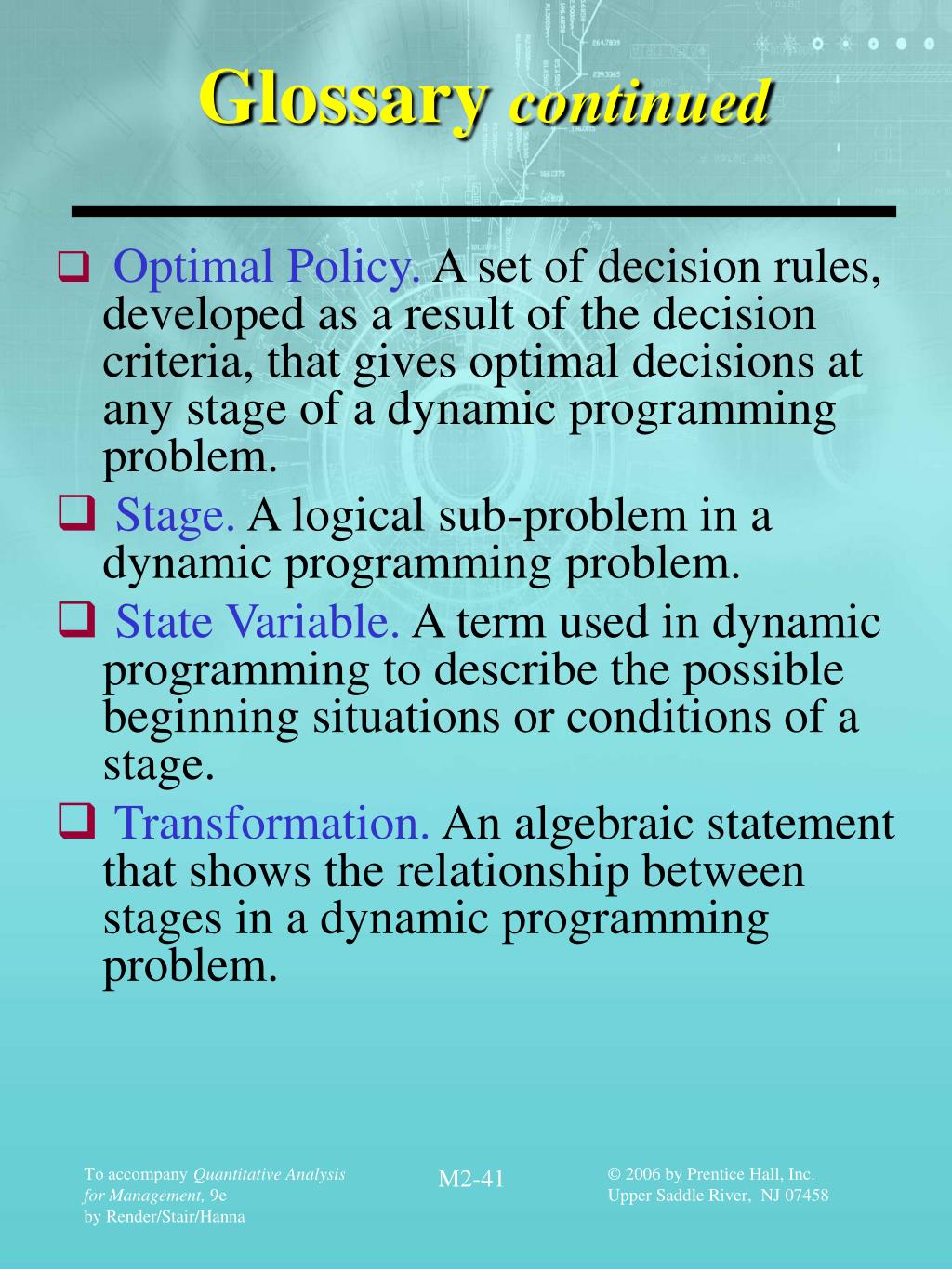

  41. Glossary continued • Optimal Policy.A set of decision rules, developed as a result of the decision criteria, that gives optimal decisions at any stage of a dynamic programming problem. • Stage.A logical sub-problem in a dynamic programming problem. • State Variable.A term used in dynamic programming to describe the possible beginning situations or conditions of a stage. • Transformation.An algebraic statement that shows the relationship between stages in a dynamic programming problem. M2-41
