Presentation Transcript
summary slide
Summary Slide
  • Printers
    • Definition
  • Types of printers
    • Ink-Jet
    • Laser
    • Dot Matrix
    • Snapshot
    • Other high quality printers
  • How the different printers work
  • Choosing a printer
  • Connection and setup of a printer
  • General Troubleshooting
printer definition
Printer Definition
  • A printer produces a paper copy of information generated by a computer.
types of printers
Types of Printers

Printers fall into two categories:

  • Impact printers use a device to strike an inked ribbon, pressing ink from the ribbon onto the paper.
  • Non-impact printers use different methods to place ink (or another substance) on the page.
types of printers cont
Types of Printers Cont.

Some of the printers out in the market today

include the following:

  • Dot Matrix Printers
  • Ink Jet Printers
  • Laser Printers
  • Snapshot Printers
  • Other High-Quality Printers
types of printers cont1

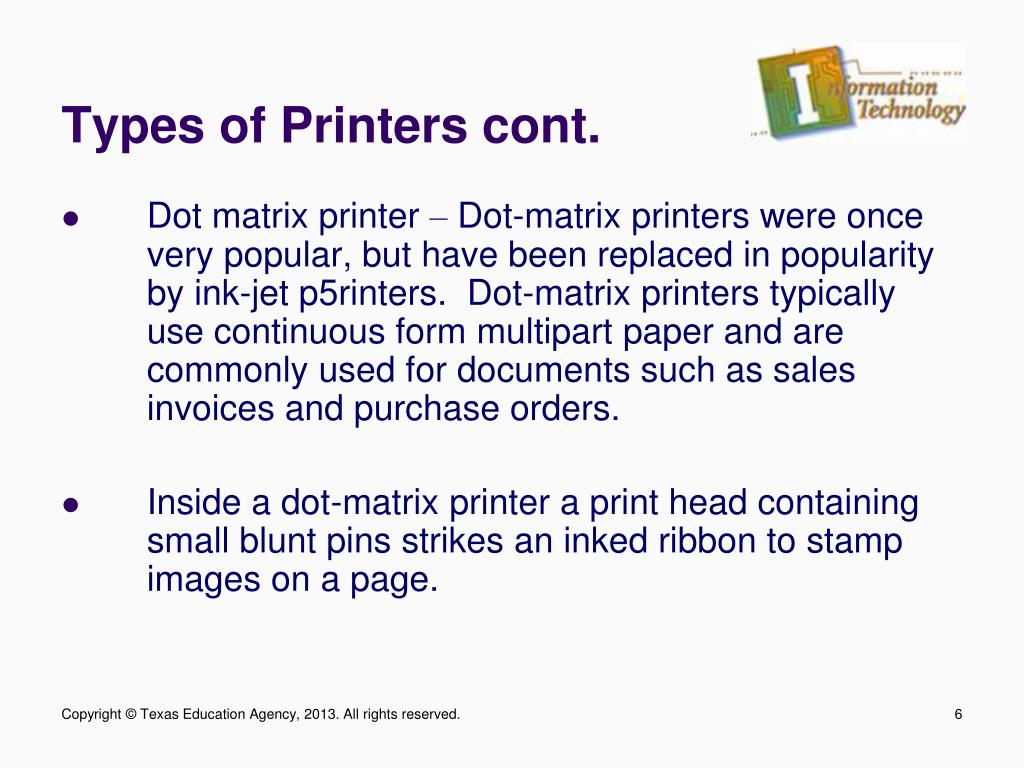

Types of Printers cont.
  • Dot matrix printer – Dot-matrix printers were once very popular, but have been replaced in popularity by ink-jet p5rinters. Dot-matrix printers typically use continuous form multipart paper and are commonly used for documents such as sales invoices and purchase orders.
  • Inside a dot-matrix printer a print head containing small blunt pins strikes an inked ribbon to stamp images on a page.
types of printers cont2
Types of Printers cont.
  • In a 9-pin print head, the pins are aligned in a single row.
  • In a 24-pin print head, the pins are “staggered” in two rows. This enables it to print over-lapping dots, creating finer characters and lines.
  • The bottom pins are used for the portions of lowercase letters that extend below the line, such as ‘g’ or ‘q’.

9-pin print head

24-pin print head

types of printers cont3

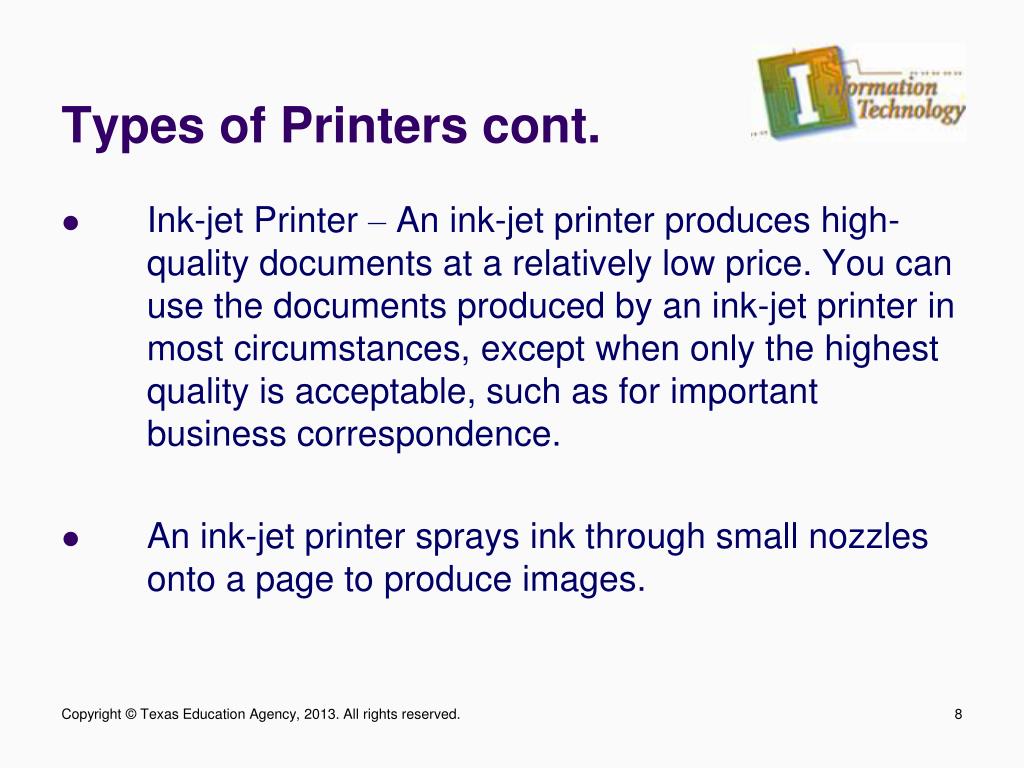

Types of Printers cont.
  • Ink-jet Printer – An ink-jet printer produces high-quality documents at a relatively low price. You can use the documents produced by an ink-jet printer in most circumstances, except when only the highest quality is acceptable, such as for important business correspondence.
  • An ink-jet printer sprays ink through small nozzles onto a page to produce images.
types of printers cont4
Types of Printers cont.
  • Laser Printer – A laser printer is a high-speed printer that is ideal for business documents and graphics. Laser printers produce the highest quality images, but are relatively expensive.
  • A laser printer works like a photocopier to produce images on a page. A laser beam draws images on a light-sensitive drum. The drum picks up a fine powdered ink called toner, and then transfers the toner to the paper to create the images.
  • Laser printers produce higher-quality print than ink jet printers, but are more expensive.
snapshot printer

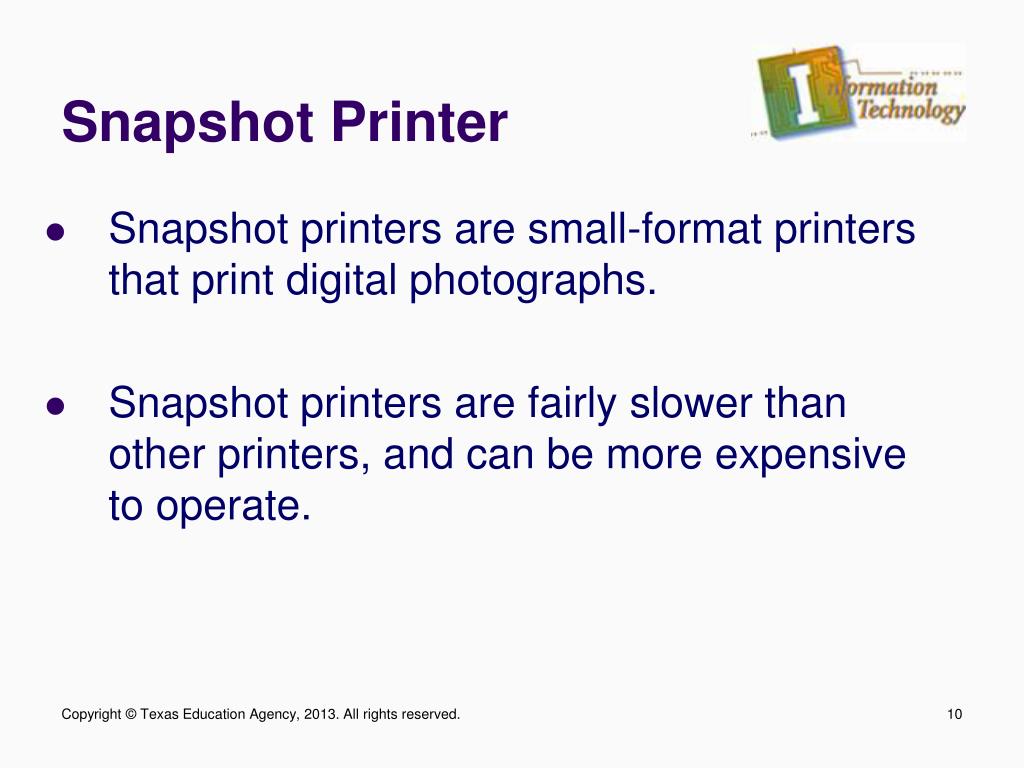

Snapshot Printer
  • Snapshot printers are small-format printers that print digital photographs.
  • Snapshot printers are fairly slower than other printers, and can be more expensive to operate.
other high quality printers
Other High Quality Printers

High quality images use different types of

other high Quality printers such as:

  • Thermal-wax
  • Dye-sublimation
  • Fiery
  • IRIS
  • Plotters
choosing a printer

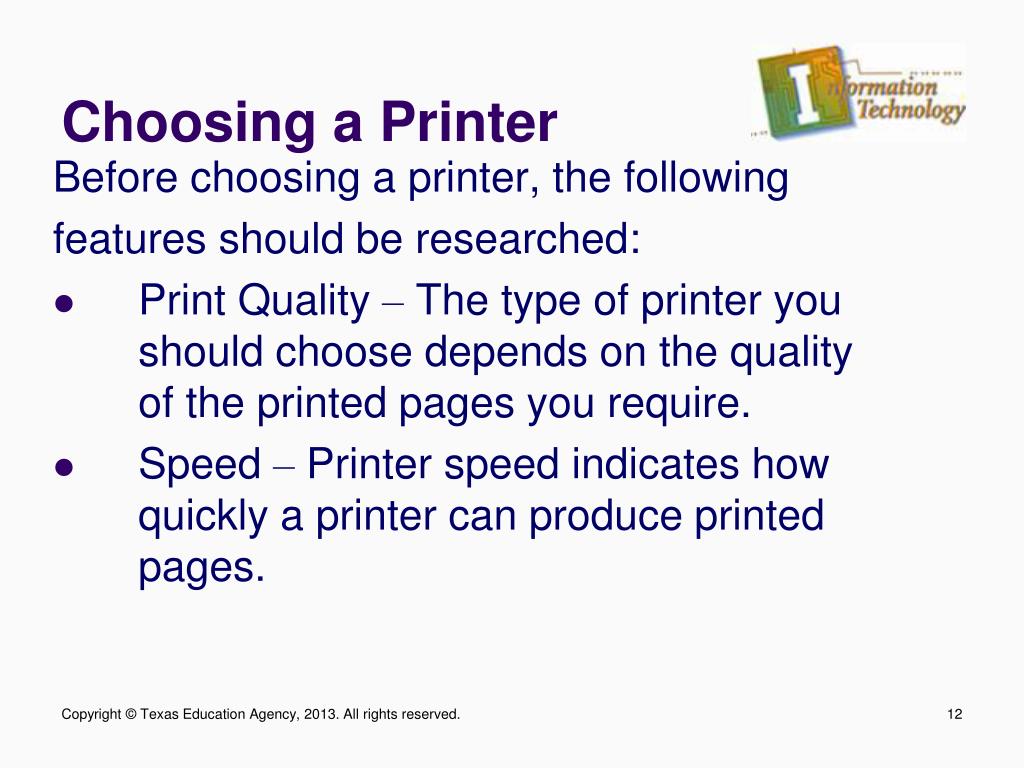

Choosing a Printer

Before choosing a printer, the following

features should be researched:

  • Print Quality – The type of printer you should choose depends on the quality of the printed pages you require.
  • Speed – Printer speed indicates how quickly a printer can produce printed pages.
choosing a printer1
Choosing a Printer
  • Resolution – Printer resolution determines the quality of the images the printer can produce.
  • Software – Most printers intended for home sue include software you can use to create special documents, such as greeting cards.
choosing a printer2
Choosing a Printer
  • Consumables – All printers require items that have to be replaced on a regular basis, such as ink or toner. Make sure you are aware of how they cost.
  • Print Media – when choosing a printer, you should check the size and type of paper the printer accepts. If you are going to need to print on envelopes and labels, make sure the printer has that feature.
choosing a printer3
Choosing a Printer
  • Color – Color printers usually use cyan, magenta, yellow and black ink to create color images on a page. Color ink jet printers are the most popular because they are less expensive.
  • Warranty – The length of a printer warranty may range from 90 days to one year. Consider an extended warranty or service contract for you printer.
connection and set up
Connection and Set Up
  • Before connecting a printer, turn off the computer.
  • If necessary, remove any spacers or tape used to secure the printer's internal components during shipping. Then assemble the printer according to the instructions in the printer’s documentation.
  • Connect the printer cable to the port on the printer.
connection and set up1
Connection and Set Up
  • Connect the printer cable to a parallel port at the back of the computer. Some printers connect to a USB port.
  • Connect the power cable to the power connector on the printer.
  • Plug the power cable into an electrical outlet.
  • All printers require a driver to operate. A driver is the software that allows the computer’s operating system to communicate with and control the printer.
network printers

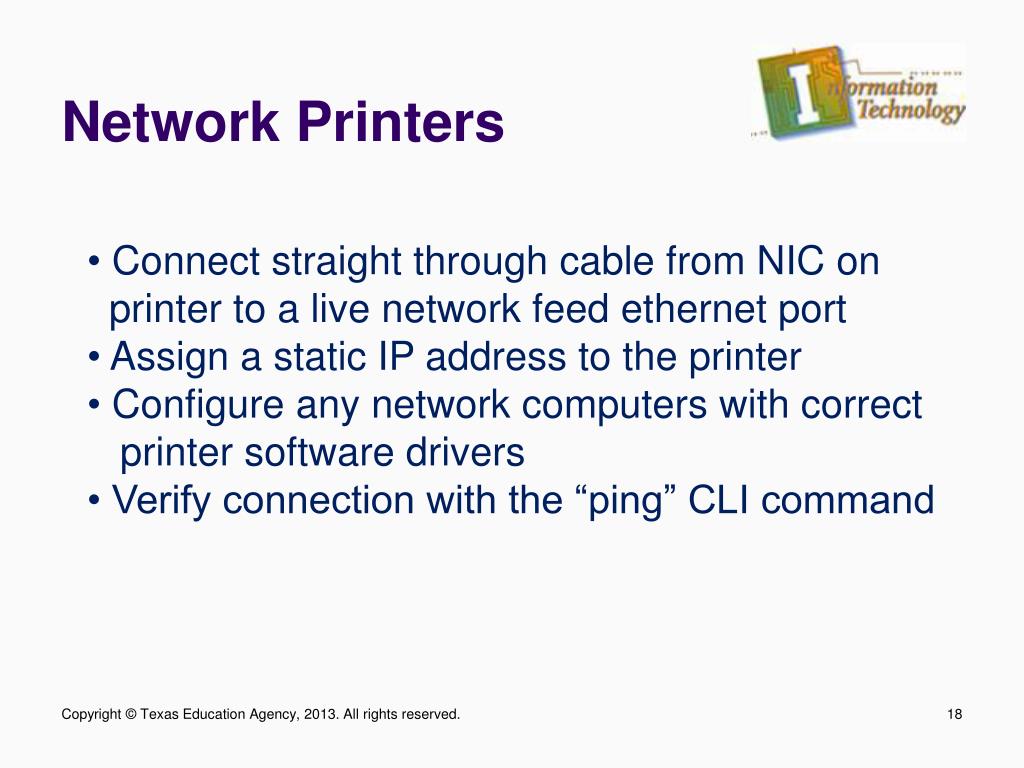

Network Printers
  • Connect straight through cable from NIC on
  • printer to a live network feed ethernet port
  • Assign a static IP address to the printer
  • Configure any network computers with correct
  • printer software drivers
  • Verify connection with the “ping” CLI command
connection and set up2

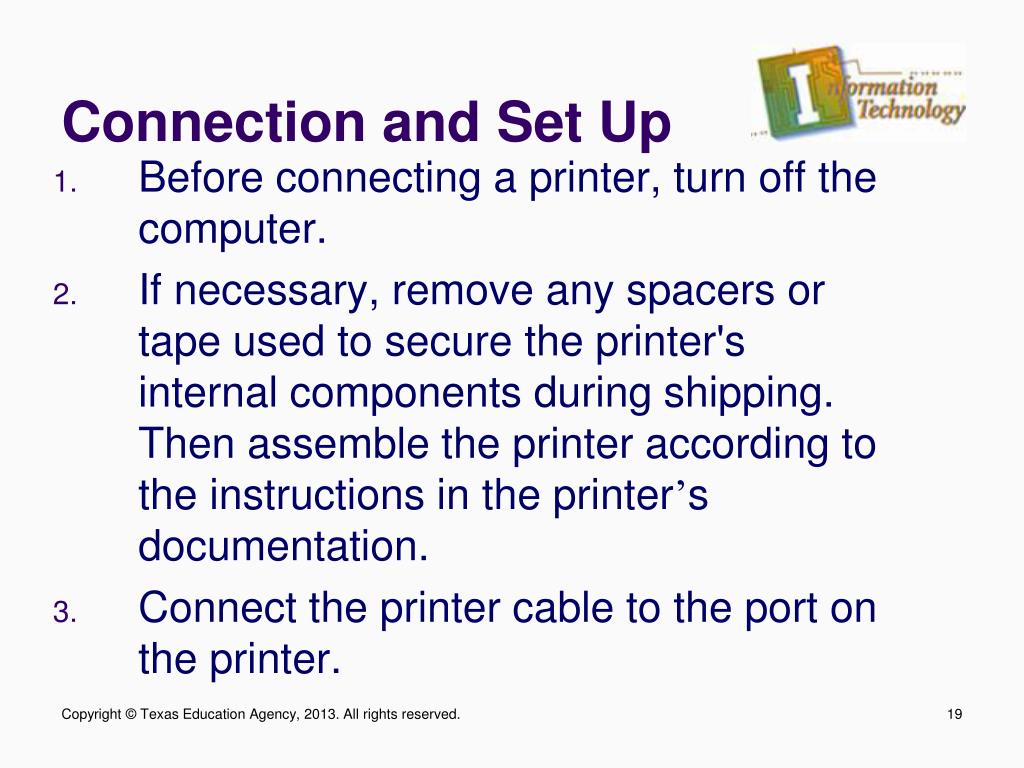

Connection and Set Up
  • Before connecting a printer, turn off the computer.
  • If necessary, remove any spacers or tape used to secure the printer's internal components during shipping. Then assemble the printer according to the instructions in the printer’s documentation.
  • Connect the printer cable to the port on the printer.
general troubleshooting
General Troubleshooting
  • Most printers, such as ink-jet printers, use a series of beeps to alert you or display a message that tell you a problem has occurred.
  • Paper jams are the most common type of printer problem. Most printers have panels that can be opened to check the paper jam. Be careful when pulling a jammed paper, some printers contain many small sensors that may be damaged by forceful pulling.
general troubleshooting cont
General Troubleshooting Cont.
  • To improve the quality of printed images, check the printer's documentation to find the size, composition and weight of the paper the printer can use.
  • You should clean your printer on a regular basis. You can use a computer vacuum cleaner or a can of compressed air to remove dust and dirt from most printers.
general troubleshooting cont1

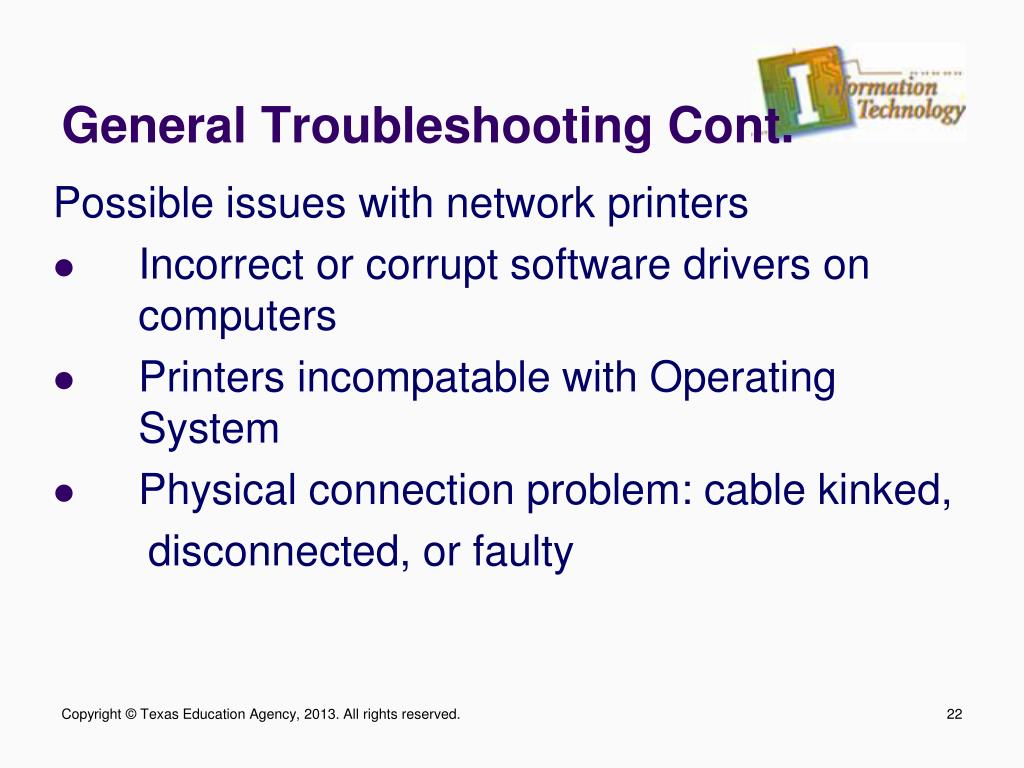

General Troubleshooting Cont.

Possible issues with network printers

  • Incorrect or corrupt software drivers on computers
  • Printers incompatable with Operating System
  • Physical connection problem: cable kinked,

disconnected, or faulty
