Cable Assembly for RG174 Connection to Transition Board LEMO Shield

This cable assembly is 20 to 40 feet long and connects to the ASD transition board. The primary end features a male LEMO shield and connects to the secondary output. With a -0.15 input signal and 5 turns, it further links to the PMT anode and the original ADMEM line. The primary end also has a male LEMO shield and ferrite, while the secondary end has a female LEMO shield. Measuring 4 inches and made of RG174, the cable links the primary output to the front and back of the PCB.

lareina-gordon
Download Presentation

Cable Assembly for RG174 Connection to Transition Board LEMO Shield

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

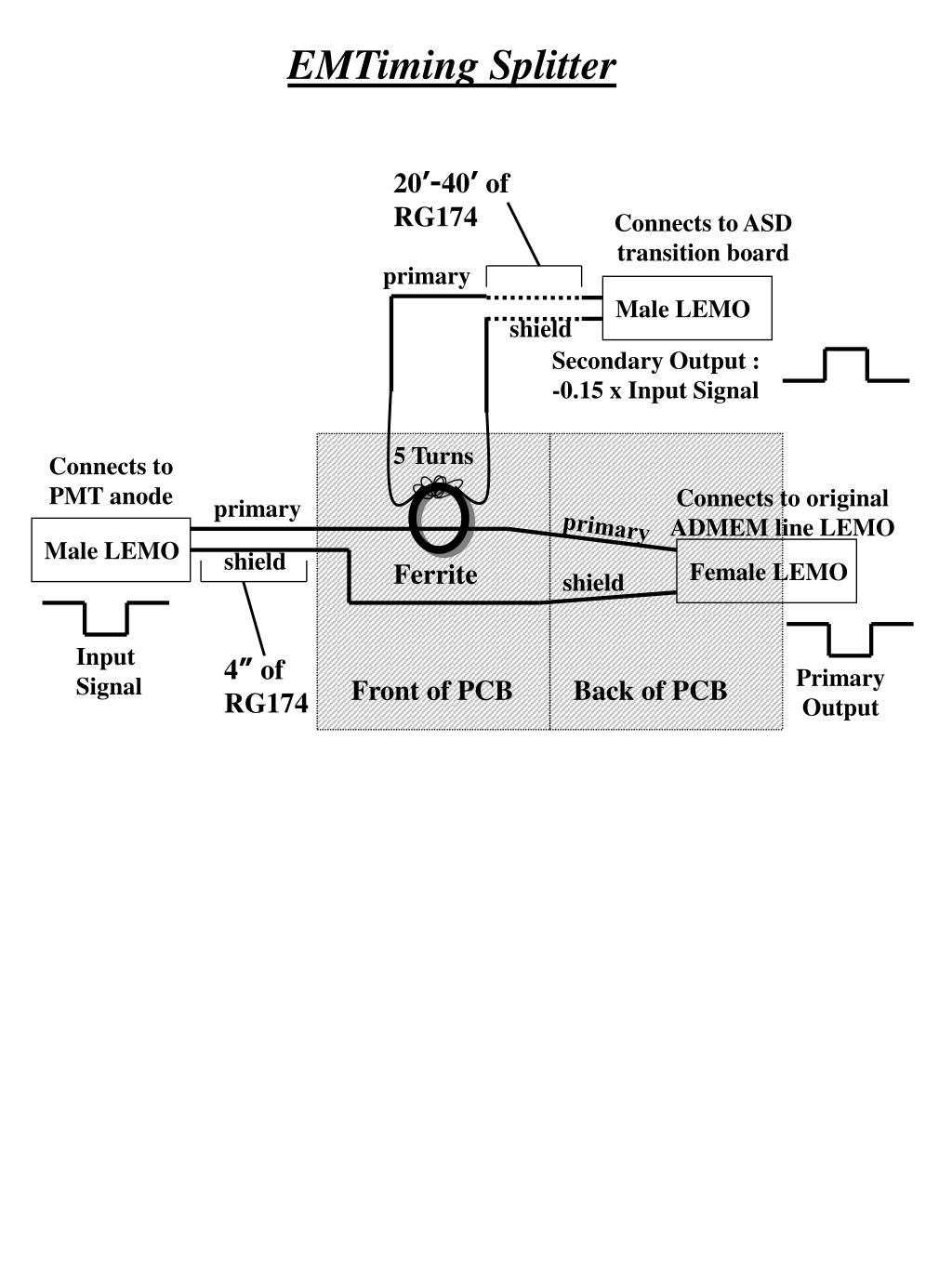

  1. EMTiming Splitter 20’-40’ of RG174 Connects to ASD transition board primary Male LEMO shield Secondary Output : -0.15 x Input Signal 5 Turns Connects to PMT anode Connects to original ADMEM line LEMO primary primary Male LEMO shield Ferrite Female LEMO shield Input Signal 4” of RG174 Primary Output Front of PCB Back of PCB
