  1. LevelOne Power-Over-Ethernet Repeater Aug. 2009 PM: Bruce Company Profile

  2. Introduction What is a PoE Repeater? A PoE PSE (Power Sourcing Equipment) sends power and data to a PoE (Powered Device).  This is great for flexible placement but it is limited to only 100 meters in length.   Frequently PoE PDs need to be connected at distances greater than 100 meters, which is why a LevelOne PoE Repeater lets you overcome this situation.  How it works? POE forwarding A PoE Repeater draws its power from the network cable using Power over Ethernet and requires no local power supply.  It can also forward PoE on to other connected devices that require distance deployment such as IP Cameras and wireless outdoor APs.

  3. 1-Port PoE Repeater Daisy-Chaining It’s possible to connect two or more LevelOne POE Repeater in a chain, with up to 100 meters of cable between each POE Repeater or device. Links may be extended up to over 700meters in this way, depending on the power requirements of the connected POE device, and other factors. • Applications

  4. 2-Port PoE Repeater Daisy-Chaining

  5. Ethernet Cable (RJ-45) PoE Indoor PoE Repeater w/ LevelOne Indoor IP Cam FCS-3201 100m 100m 100m 100m Standard (15.4 W) POE PSE POR-0100 POR-0100 POR-0100 PoE Device ≦ 3.84w Requires No Local Power Supply 400m In the simplest application a POR-0100 allows an IP camera to be located 400m away from a POE switch The target market is : 1. Outdoor AP 2. Outdoor IP-Cam Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

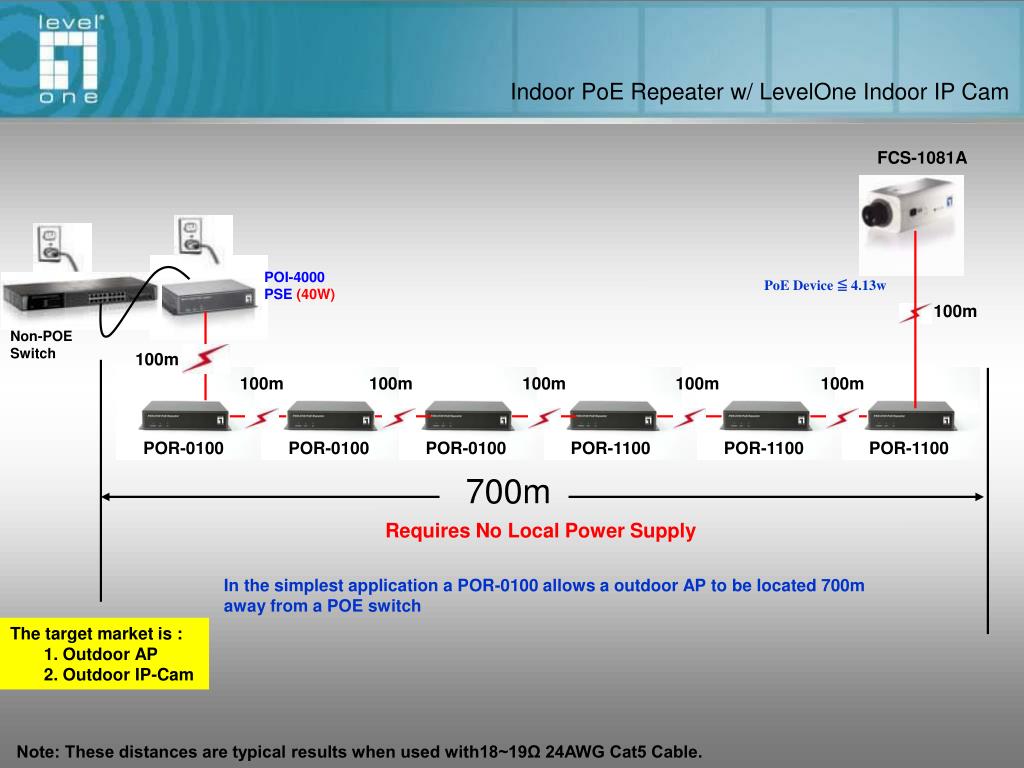

  6. Indoor PoE Repeater w/ LevelOne Indoor IP Cam FCS-1081A POI-4000 PSE (40W) PoE Device ≦ 4.13w 100m Non-POE Switch 100m 100m 100m 100m 100m 100m POR-0100 POR-0100 POR-0100 POR-1100 POR-1100 POR-1100 700m Requires No Local Power Supply In the simplest application a POR-0100 allows a outdoor AP to be located 700m away from a POE switch The target market is : 1. Outdoor AP 2. Outdoor IP-Cam Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  7. Ethernet Cable (RJ-45) PoE Outdoor PoE Repeater w/ LevelOne Outdoor AP Non-POE Switch PoE Device ≦ 5.85w 100 m 100 m 100 m 100 m POR-1100 POR-1100 WAB-3002 POR-1100 is compliant to IP-66 weather proof and can be deployed in any harsh weather condition The target market is : 1. Outdoor AP 2. Outdoor IP-Cam Requires No Local Power Supply Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  8. Ethernet Cable (RJ-45) PoE Outdoor PoE Repeater w/ LevelOne Outdoor IP Cam FCS-5011 PoE Device ≦ 6.5w Non-POE Switch POI-4000 PSE (40W) 100 m 100 m 100 m 100 m 100 m 100 m 100 m POR-1100 POR-1100 POR-1100 POR-1100 POR-1100 POR-1100 POR-1100 is compliant to IP-66 weather proof and can be deployed in any harsh weather condition The target market is : 1. Outdoor AP 2. Outdoor IP-Cam Requires No Local Power Supply Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  9. Ethernet Cable (RJ-45) PoE 2-Port Outdoor PoE Repeater w/ LevelOne Outdoor IP Cam PD1 100 m FCS-5011 POR-1102 PD 1+ PD 2 ≦ 16.5w PD2 Non-POE Switch POI-4000 PSE (40W) 100 m 100 m 100 m FCS-1091+BOH-1100/1200/1300 100 m 100 m POR-1100 POR-1100 POR-1100 Requires No Local Power Supply The target market is : 1. Outdoor AP 2. Outdoor IP-Cam Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  10. Ethernet Cable (RJ-45) PoE POI-4000 works well with POS-4000 & FCS-4300/4400/4500 (indoor solution) Non-POE Switch DC Output 12V Non-PoE PD 100 m POS-4000 POI-4000 PSE(40W) POS-4000 can also work together with LevelOne’s high-power PoE injector, POI-4000. This can extend Ethernet connectivity an additional 100 meters for high power non PoE PD devices FCS-4300/4400/4500 Non-POE Switch Maximum 300 m Non-PoE PD 100m 100m 100m POI-4000 PSE (40W) POR-0100 POR-0100 POS-4000 FCS-4000 Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  11. Ethernet Cable (RJ-45) PoE POI-4000 works well with POS-4001 & FCS-4000/4100/4200 (Outdoor solution) Non-POE Switch DC Output 12V Non-PoE PD 100 m POI-4000 PSE(40W) POS-4001 can also work together with LevelOne’s high-power PoE injector, POI-4000. This can extend Ethernet connectivity an additional 100 meters for high power non PoE PD devices FCS-4000/4100/4200 POS-4001 Non-POE Switch Maximum 300 m Non-PoE PD 100m 100m 100m POI-4000 PSE (40W) POR-1100 POR-1100 POS-4001 FCS-4000/4100/4200

  12. POS-1100 PoE Module forFCS-1091+BOH/1100/1200/1300 100m 100m FCS-1091+BOH-/1200 POR-1100 100m 100m 100m 100m 100m 100m POR-1100 POR-1100 POR-1100 POR-1100 POR-1100 POR-1100 POI-4000-Z POC-4000 19" 8-Bay High Power Chassis for POI-4000-Z PoE *FCS-1091 + BOH-1100/1200/1300 is powered by POS-1100 GSW-2473 FCS-5011 POR-1100 100m 100m 100m 100m FCS-5011 POC-4000 POR-1102 POR-1100 POR-1100 POR-1100 100m 100m 100m WAB-3002 POS-1100 PoE Module forFCS-1081A+BOH1300 100m 100m 100m aFCS-1081A+BOH-1300 POR-1100 POR-1100

  13. POC-6000 19" 8-Bay High Power Chassis for FSW-0513Z PoE FSW-0513-Z Easy Power Control via DIP Switch X 8 GSW-2473 POC-6000 48W 48W 100m 100m 100m POR-1100 POR-1100 100m 100m POR-1100 POR-1100 100m 100m 100m POR-1100 POR-1100 POR-1100 100m 100m 100m POR-1100 POR-1100 POR-1100 FCS-5011

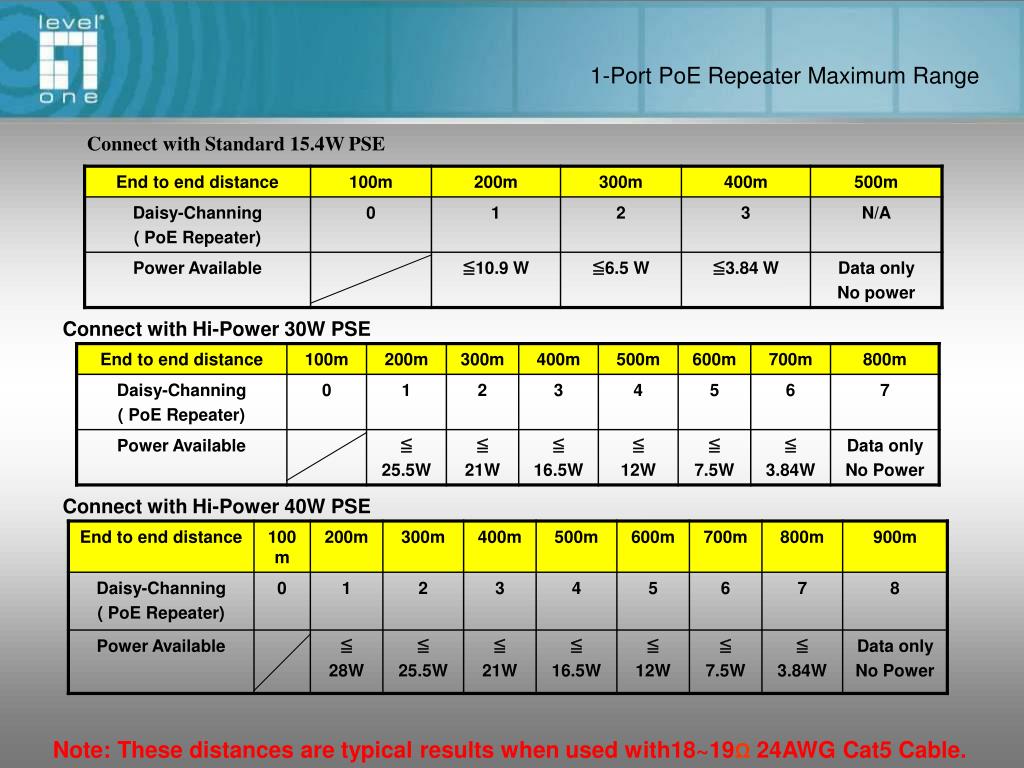

  14. 1-Port PoE Repeater Maximum Range Connect with Standard 15.4W PSE Connect with Hi-Power 30W PSE Connect with Hi-Power 40W PSE Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  15. 2-Port PoE Repeater Maximum Range Connect with Standard 15.4W PSE Connect with Hi-Power 30W PSE Connect with Hi-Power 40W PSE Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.

  16. LevelOne PoE Repeaters Work w/ LevelOne Outdoor AP Note: These distances are typical results when used with18~19Ω 24AWG Cat5/67 Cables.

  17. LevelOne PoE Repeaters Work w/ LevelOne IP Cam Note: These distances are typical results when used with18~19Ω 24AWG Cat5/67 Cables.

  18. Technical Specifications POR-0100 & POR-1100

  19. Technical Specifications POR-0102 & POR-1102

  20. Technical Specifications POI-4000

  21. Technical Specifications POS-4000

  22. Thank You !
