slide1

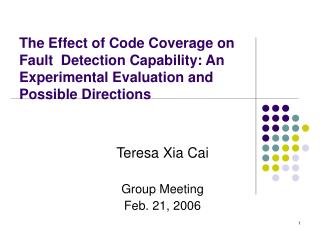

The Effect of Code Coverage on Fault Detection Capability: An Experimental Evaluation and Possible Directions

Teresa Xia Cai

Group Meeting

Feb. 21, 2006

outline
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
  • Discussions and conclusions
introduction
Introduction
  • Test case selection and evaluation is a key issue in software testing
  • Testing strategies aim to select an effective test set to detect as more faults as possible
    • Black-box testing (functional testing)
    • White-box testing (structural testing)
white box testing schemes control data flow coverage
White-box testing schemes:Control/data flow coverage
  • Code coverage - measured as the fraction of program codes that are executed at least once during the test.
    • Block coverage - the portion of basic blocks executed.
    • Decision coverage - the portion of decisions executed
    • C-Use- computational uses of a variable.
    • P-Use- predicate uses of a variable
code coverage an indicator for test effectiveness
Code coverage: an indicator for test effectiveness?
  • Supportive empirical studies
    • high code coverage brings high software reliability and low fault rate
    • both code coverage and fault detected in programs grow over time, as testing progresses.
      • Weyuker et al (1985, 1988, 1990)
      • Horgan, London & Lyu (1994)
      • Wong, Horgan, London & Mathur (1994)
      • Frate, Garg, Mathur & Pasquini (1995)
  • Oppositive empirical studies
    • Can this be attributed to causal dependency between code coverage and defect coverage?
      • Briand & Pfahl (2000)
black box testing schemes testing profiles
Black-box testing schemes:testing profiles
  • Functional testing– based on specified functional requirements
  • Random testing- the structure of input domain based on a predefined distribution function
  • Normal operational testing– based on normal operational system status
  • Exceptional testing- based on exceptional system status

{

{

outline7
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
  • Discussions and conclusions
research questions
Research questions
  • Is code coverage a positive indicator for testing effectiveness?
  • Does such effect vary under various testing profiles?
  • Does such effect vary with different coverage measurements?
  • Is code coverage a good filter to reduce the size of effective test set?
outline9
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
  • Discussions and conclusions
experimental setup
Experimental setup
  • In spring of 2002, 34 teams are formed to develop a critical industry application for a 12-week long project in a software engineering course
  • Each team composed of 4 senior-level undergraduate students with computer science major from the Chinese University of Hong Kong
experimental project description
Experimental project description

Redundant Strapped-Down Inertial Measurement Unit (RSDIMU)

  • Geometry
  • Data flow diagram
software development procedure
Software development procedure
  • Initial design document ( 3 weeks)
  • Final design document (3 weeks)
  • Initial code (1.5 weeks)
  • Code passing unit test (2 weeks)
  • Code passing integration test (1 weeks)
  • Code passing acceptance test (1.5 weeks)
mutant creation
Mutant creation
  • Revision control was applied in the project and code changes were analyzed
  • Faults found during each stage were also identified and injected into the final program of each version to create mutants
  • Each mutant contains one design or programming fault
  • 426 mutants were created for 21 program versions
setup of evaluation test
Setup of evaluation test
  • A test coverage tool was employed to analyze the compare testing coverage
  • 1200 test cases were exercised on 426 mutants
  • All the resulting failures from each mutant were analyzed, their coverage measured, and cross-mutant failure results compared
  • 60 Sun machines running Solaris were involved in the test, where one cycle took 30 hours and a total of 1.6 million files around 20GB were generated
outline18
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
    • Effective of code coverage
    • Under various testing profiles
    • With different coverage measurements
    • Effective test set
  • Discussions and conclusions
the correlation various test regions
The correlation: various test regions
  • Test case coverage contribution on mutant coverage
  • Test case coverage contribution on block coverage

I II III IV V VI

I II III IV V VI

outline27
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
    • Effective of code coverage
    • Under various testing profiles
    • With different coverage measurements
    • Effective test set
  • Discussions and conclusions
in various test regions
In various test regions
  • Linear regression relationship between block coverage and defect coverage in the whole test set
  • Linear modeling fitness in various test case regions
in various test regions cont
In various test regions (cont’)
  • Linear regression relationship between block coverage and defect coverage in region IV
  • Linear regression relationship between block coverage and defect coverage in region VI
in various test regions cont30
In various test regions (cont’)

Observations:

  • Code coverage: a moderate indicator
  • Reasons behind the big variance between region IV and VI
with functional random testing
With functional/random testing
  • Code coverage:

– a moderate indicator

  • Random testing

– a necessary complement to functional testing

    • Similar code coverage
    • Both have high fault detection capability
with functional random testing cont
With functional/random testing (cont’)
  • Failure number of mutants detected only by functional testing or random testing
under normal operational exceptional testing
Under normal operational / exceptional testing
  • The definition of operational status and exceptional status
    • Defined by specification
    • Application-dependent
  • For RSDIMU application
    • Operational status: at most two sensors failed as the input and at most one more sensor failed during the test
    • Exceptional status: all other situations
  • The 1200 test cases are classified to operational and exceptional test cases according to their inputs and outputs
under normal operational exceptional testing cont
Under normal operational / exceptional testing (cont’)
  • Normal operational testing
    • very weak correlation
  • Exceptional testing
    • strong correlation
under normal operational exceptional testing cont35
Under normal operational / exceptional testing (cont’)
  • Normal testing: small coverage range (48%-52%)
  • Exceptional testing: two main clusters
under normal operational exceptional testing cont36
Under normal operational / exceptional testing (cont’)
  • Failure number of mutants detected only by normal operational testing or exceptional testing
under testing profile combinations
Under testing profile combinations
  • Combinations of testing profiles
  • Observations:
    • Combinations containing exceptional testing indicate strong correlations
    • Combinations containing normal testing inherit weak correlations
outline38
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
    • Effective of code coverage
    • Under various testing profiles
    • With different coverage measurements
    • Effective test set
  • Discussions and conclusions
with different coverage measurements
With different coverage measurements
  • Similar patterns as block coverage
  • Insignificant difference under normal testing
  • Decision and P-use have a bit larger correlation, as they relate to change of control flow
outline40
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
    • Effective of code coverage
    • Under various testing profiles
    • With different coverage measurements
    • Effective test set
  • Discussions and conclusions
outline42
Outline
  • Testing coverage and testing strategies
  • Research questions
  • Experimental setup
  • Results and analysis
  • Discussions and conclusions
answers to rqs
Answers to RQs
  • Is code coverage a positive indicator for testing effectiveness?
    • Our answer is supportive
      • At most situations (61.5%), there is an coverage increase when a test case detect additional faults.
      • Under some functional and exceptional testing region, the correlation between code coverage and fault coverage is pretty high
      • When more cumulated code coverage have been achieved, more faults are detected.
answers to rqs cont
Answers to RQs (cont’)
  • Does such effect vary under various testing profiles?
    • A significant correlation exists in exceptional test cases, while no correlation in normal operational test cases.
    • Higher correlation is revealed in functional testing than in random testing, but the difference is insignificant
answers to rqs cont45
Answers to RQs (cont’)
  • Does such effect vary with different coverage measurements?
    • Not obvious with four coverage measurements
  • Is code coverage a good filter to reduce the size of effective test set?
    • Yes, 203 test cases (17% of the original test set) which achieve any coverage increase can detect 98% of the faults.
conclusion
Conclusion
  • Code coverage is a reasonably good indictor for fault detection capability.
  • The strong correlation revealed in exceptional testing implies that coverage works predictably better in certain testing profiles than others.
  • Testing guidelines and strategy can be established for coverage-based testing:
    • For normal operational testing: specification-based, regardless of code coverage
    • For exceptional testing: code coverage is an important metrics for testing capability
  • A quantifiable testing strategy may emerge by combining black-box and white-box testing strategies appropriately.
