pre financial sector reforms 1991
Pre-Financial Sector Reforms (1991)
  • Geographical spread of Bank branches
  • Directed Investments / Credit Programs
  • Administered Rates of Interest
  • Accrual based accounting
  • Problems of Recovery of Loans
  • Deterioration in Quality of Assets /Loans
  • Erosion of Profits
  • No Computerisation
  • Trade Union Issues

ALM 2008

banking reforms 1993 onwards

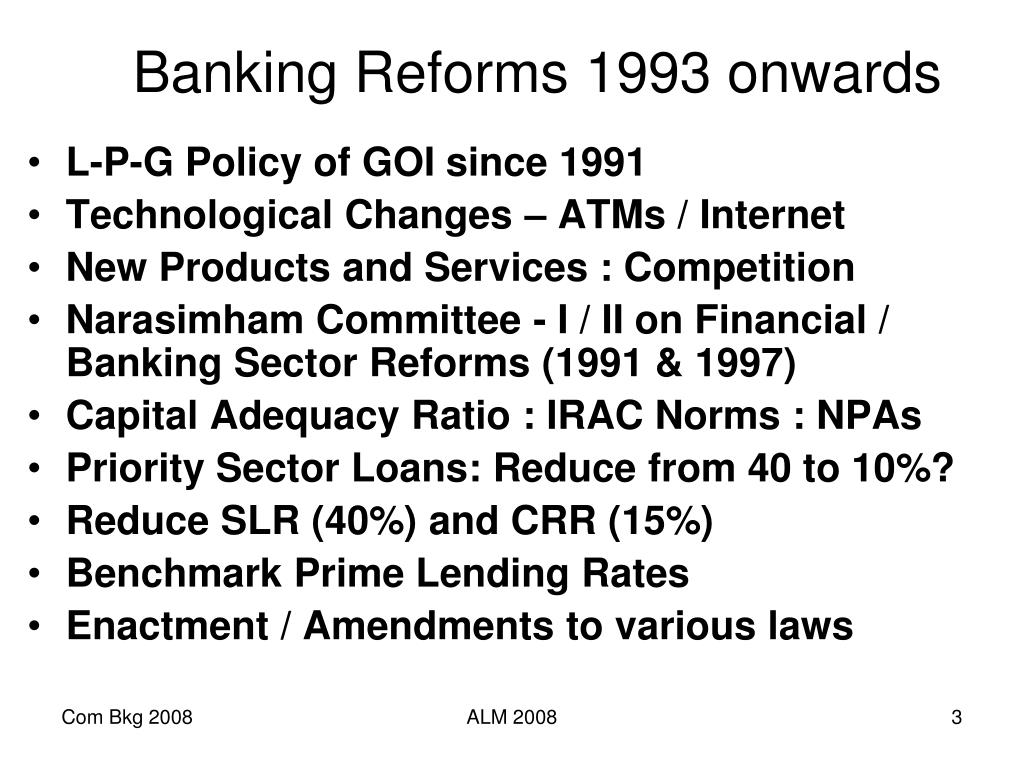

Banking Reforms 1993 onwards
  • L-P-G Policy of GOI since 1991
  • Technological Changes – ATMs / Internet
  • New Products and Services : Competition
  • Narasimham Committee - I / II on Financial / Banking Sector Reforms (1991 & 1997)
  • Capital Adequacy Ratio : IRAC Norms : NPAs
  • Priority Sector Loans: Reduce from 40 to 10%?
  • Reduce SLR (40%) and CRR (15%)
  • Benchmark Prime Lending Rates
  • Enactment / Amendments to various laws

ALM 2008

banking sector reforms

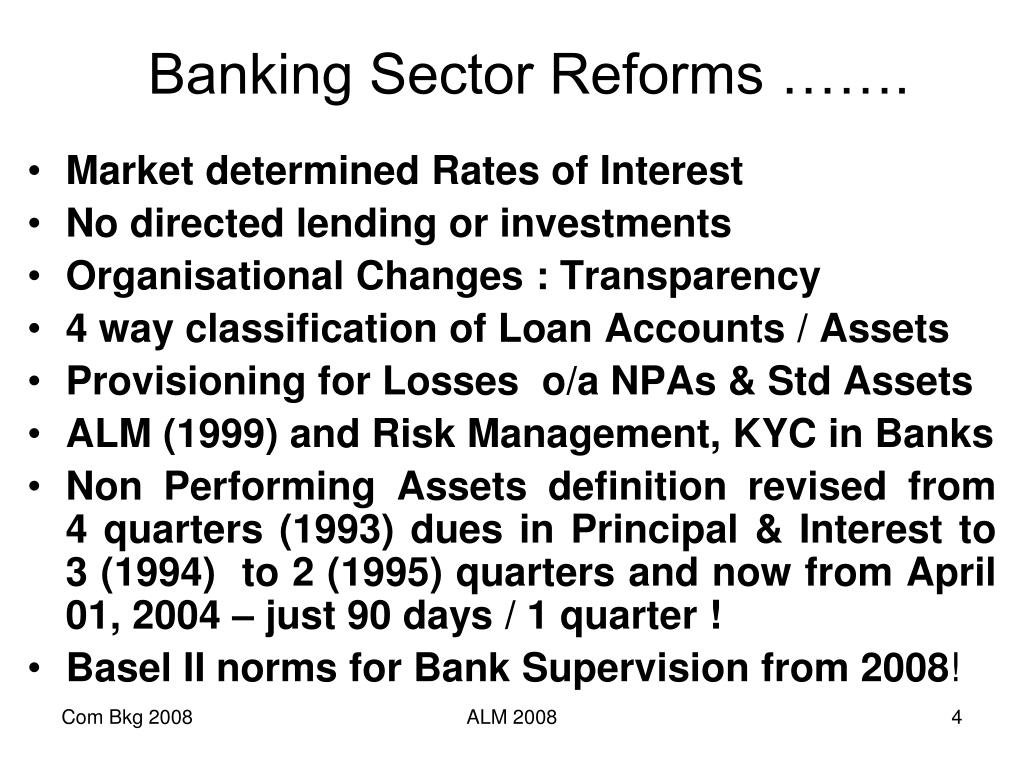

Banking Sector Reforms …….
  • Market determined Rates of Interest
  • No directed lending or investments
  • Organisational Changes : Transparency
  • 4 way classification of Loan Accounts / Assets
  • Provisioning for Losses o/a NPAs & Std Assets
  • ALM (1999) and Risk Management, KYC in Banks
  • Non Performing Assets definition revised from 4 quarters (1993) dues in Principal & Interest to 3 (1994) to 2 (1995) quarters and now from April 01, 2004 – just 90 days / 1 quarter !
  • Basel II norms for Bank Supervision from 2008!

ALM 2008

alm introduction

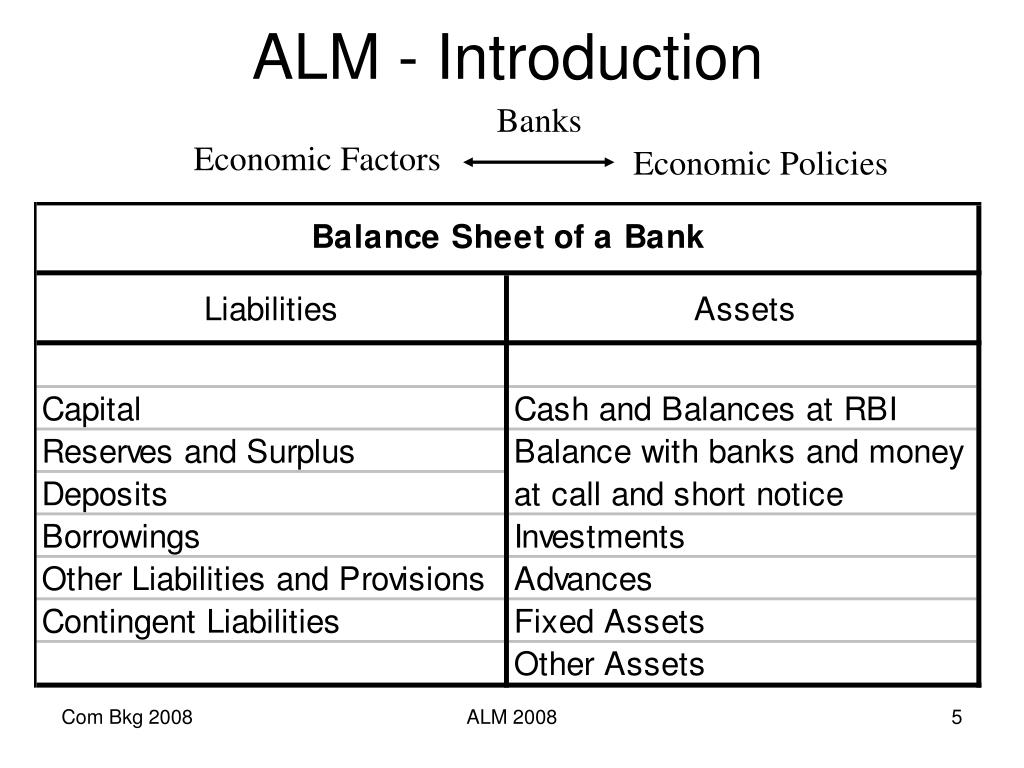

Economic Factors

Economic Policies

ALM - Introduction

ALM 2008

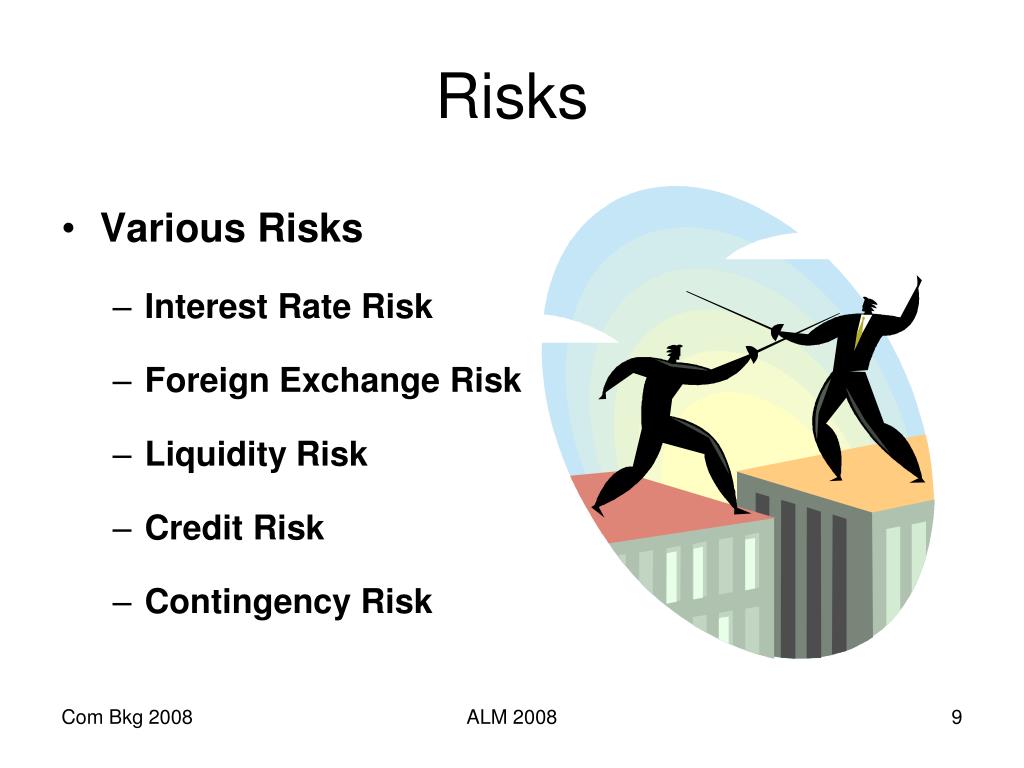

  • Various Risks
    • Interest Rate Risk
    • Foreign Exchange Risk
    • Liquidity Risk
    • Credit Risk
    • Contingency Risk

ALM 2008

international initiatives in managing risks

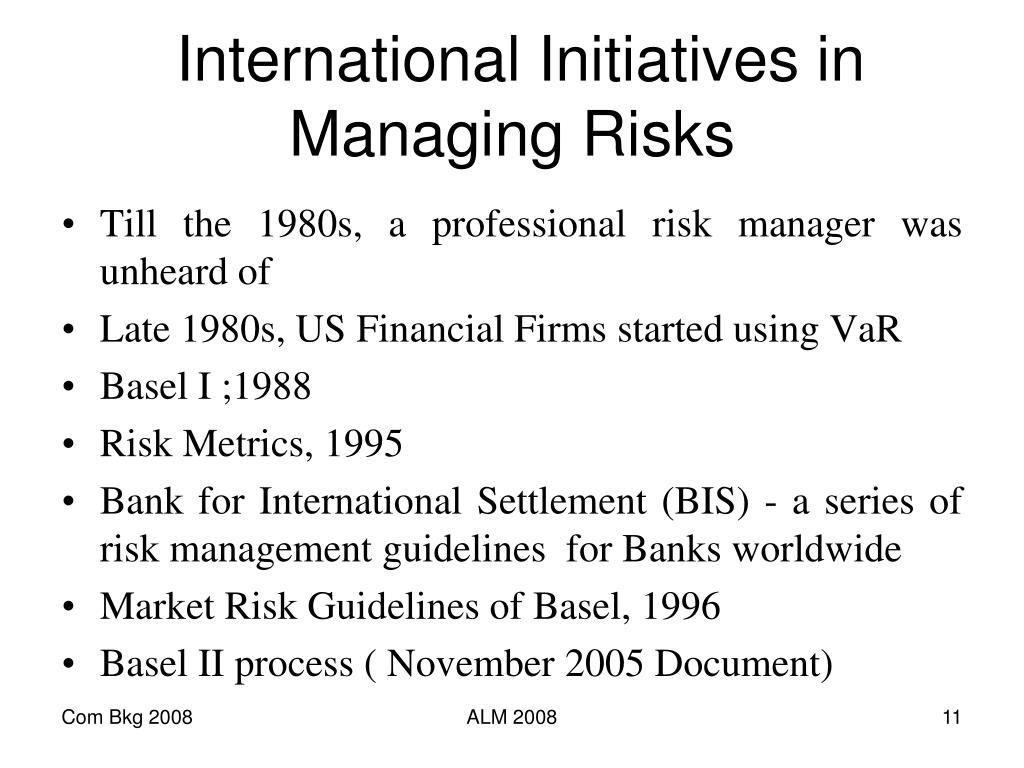

International Initiatives in Managing Risks
  • Till the 1980s, a professional risk manager was unheard of
  • Late 1980s, US Financial Firms started using VaR
  • Basel I ;1988
  • Risk Metrics, 1995
  • Bank for International Settlement (BIS) - a series of risk management guidelines for Banks worldwide
  • Market Risk Guidelines of Basel, 1996
  • Basel II process ( November 2005 Document)

ALM 2008

risk management
Risk Management
  • How to bring it (Risks) down to manageable levels?
    • The 5-step process
      • Identification of risks
      • Quantification
      • Policy formulation
      • Strategy formulation
      • Monitoring

ALM 2008

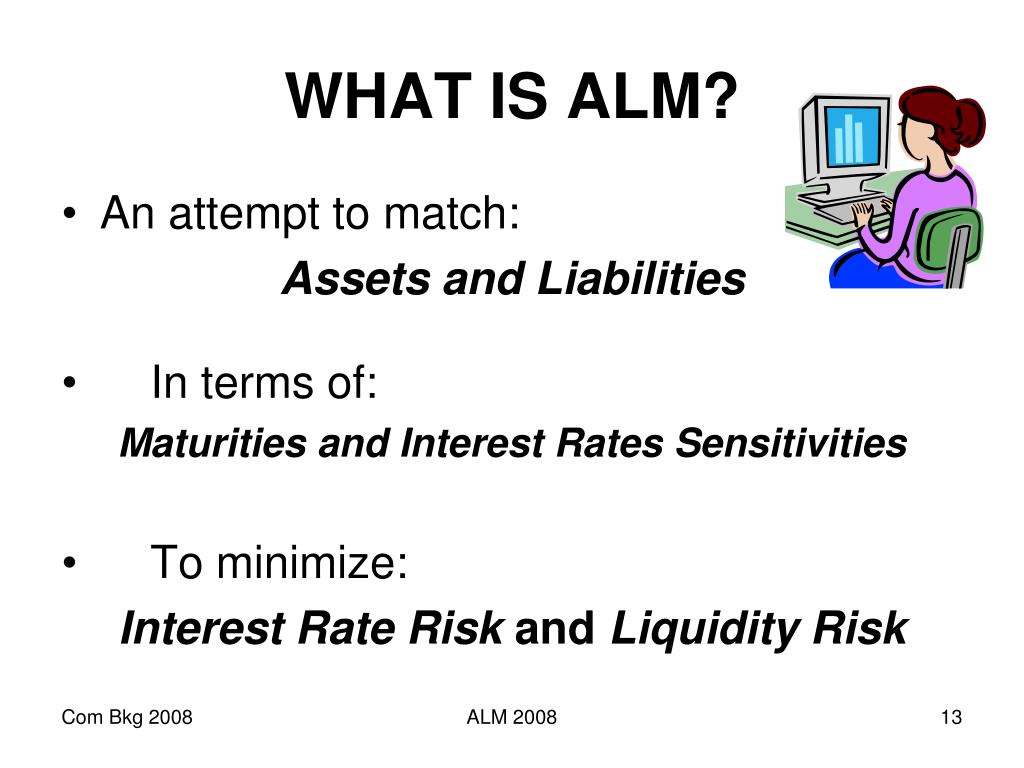

what is alm
  • An attempt to match:

Assets and Liabilities

  • In terms of:

Maturities and Interest Rates Sensitivities

  • To minimize:

Interest Rate Risk and Liquidity Risk

ALM 2008


Asset Management

Liability Management

Asset Liability Management

How easily can

the Bank generate

loans from market

How Liquid are the

assets of the Bank

ALM 2008

asset liability management1
Asset Liability Management
  • ALM is an integral part of the financial management process of any bank.
  • ALM is concerned with strategic balance sheet management involving risks caused by changes in the interest rates, exchange rates and the liquidity position of the bank.
asset liability management2

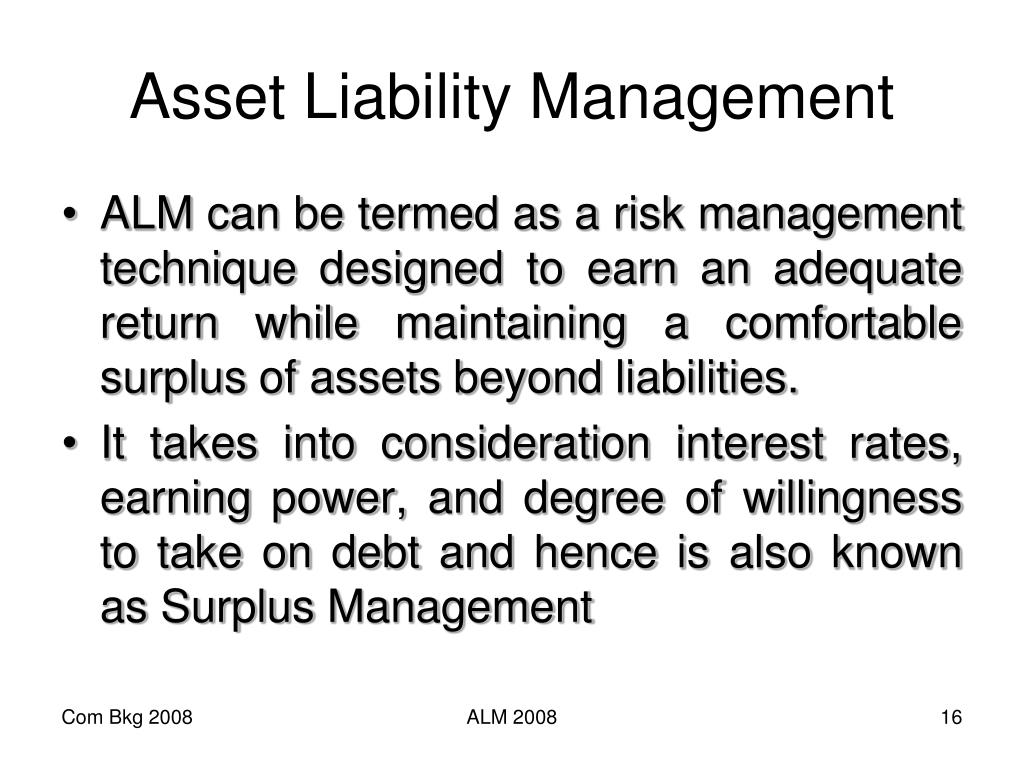

Asset Liability Management
  • ALM can be termed as a risk management technique designed to earn an adequate return while maintaining a comfortable surplus of assets beyond liabilities.
  • It takes into consideration interest rates, earning power, and degree of willingness to take on debt and hence is also known as Surplus Management

ALM 2008

alm and nim
  • ALM is all about efficient management of balance sheet dynamics with regard to its size, constituents and quality.
  • It is the process of managing the Net Interest Margin (NIM) within the overall risk bearing ability of a bank
  • ALM process depends on the understanding of the balance sheet; the availability, accuracy, adequacy and expediency of the data and the MIS system

ALM 2008

gap analysis

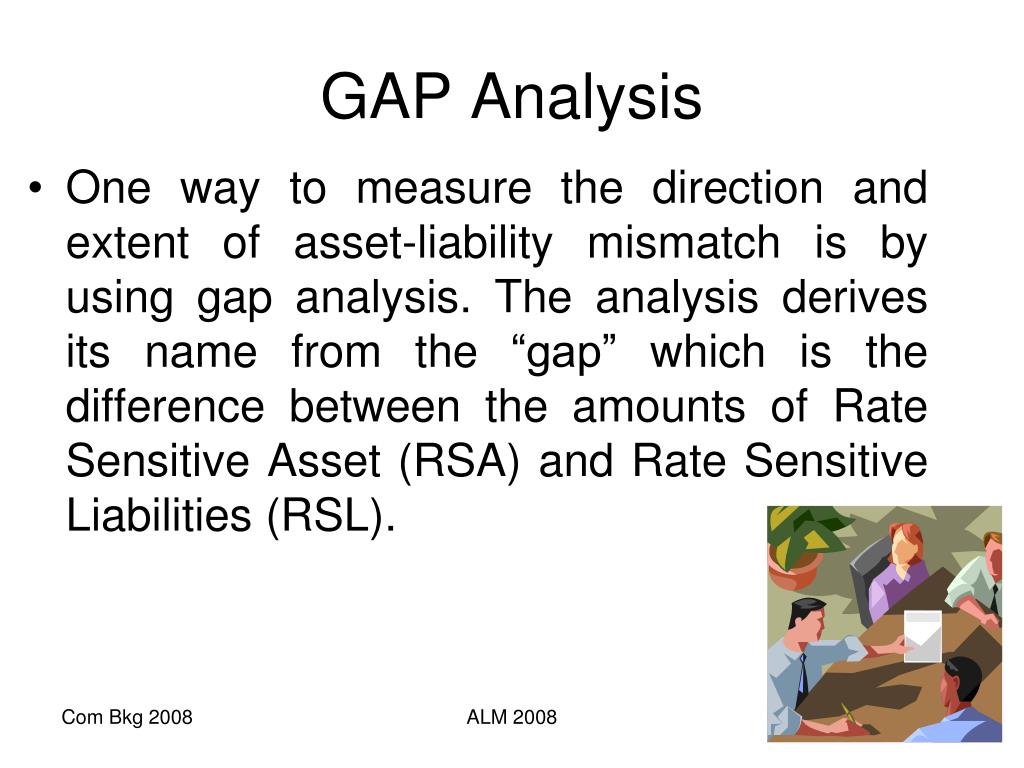

GAP Analysis
  • One way to measure the direction and extent of asset-liability mismatch is by using gap analysis. The analysis derives its name from the “gap” which is the difference between the amounts of Rate Sensitive Asset (RSA) and Rate Sensitive Liabilities (RSL).

ALM 2008

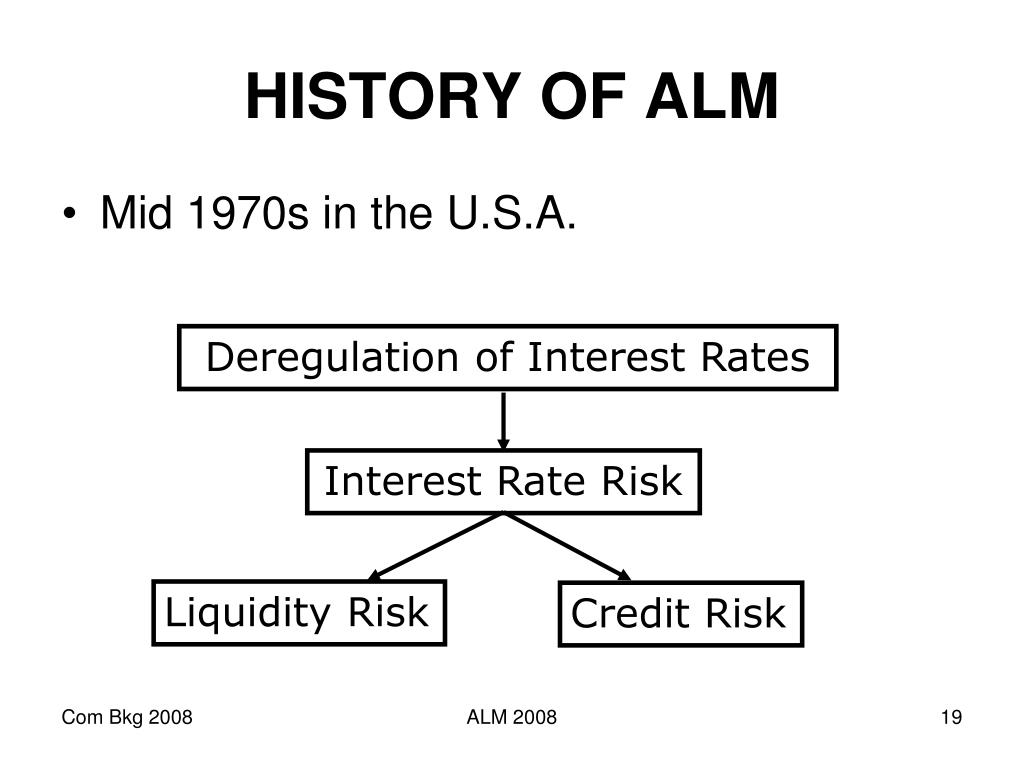

history of alm
  • Mid 1970s in the U.S.A.

Deregulation of Interest Rates

Interest Rate Risk

Liquidity Risk

Credit Risk

ALM 2008

definition of alm
Definition of ALM
  • ALM is defined as, “the process of decision – making to control risks of existence, stability and growth of a system through the dynamic balances of its assets and liabilities.”
  • The text book definition of ALM is “a risk management technique designed to earn an adequate return while maintaining a comfortable surplus of assets beyond liabilities. It takes into consideration interest rates, earning power and degree of willingness to take on debt. It is also called surplus- management”.

ALM 2008



  • The ALM process rests on Three Pillars:
  • ALM Information Systems
  • ALM Organisation
  • ALM Process

ALM 2008

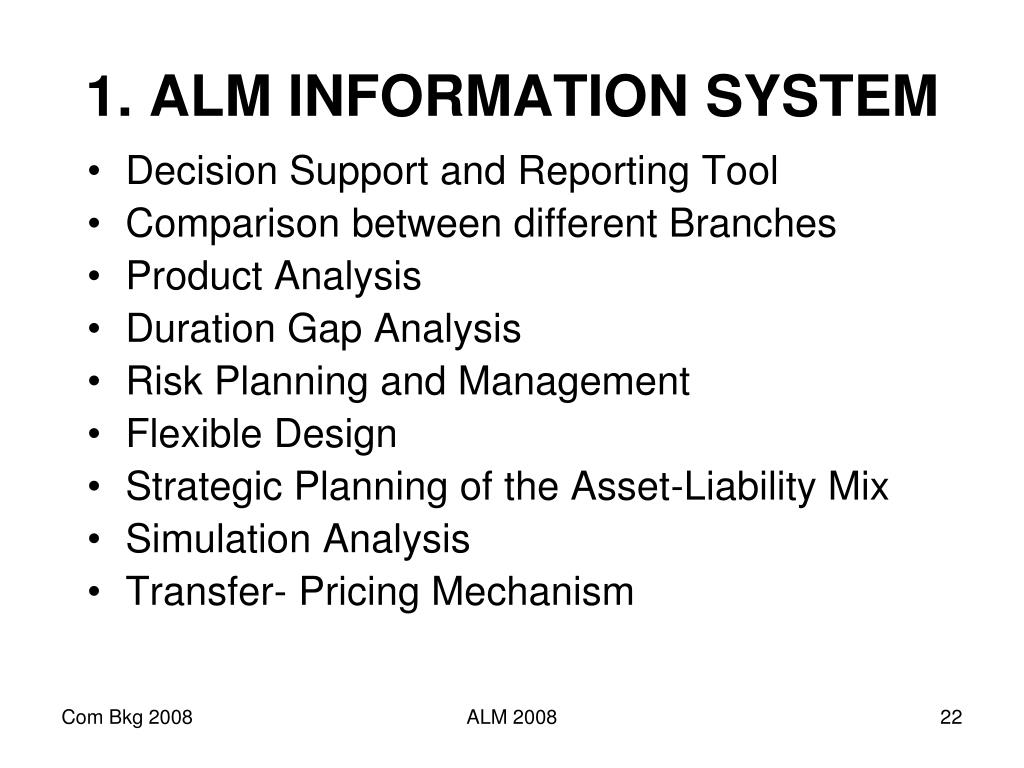

1 alm information system
  • Decision Support and Reporting Tool
  • Comparison between different Branches
  • Product Analysis
  • Duration Gap Analysis
  • Risk Planning and Management
  • Flexible Design
  • Strategic Planning of the Asset-Liability Mix
  • Simulation Analysis
  • Transfer- Pricing Mechanism

ALM 2008

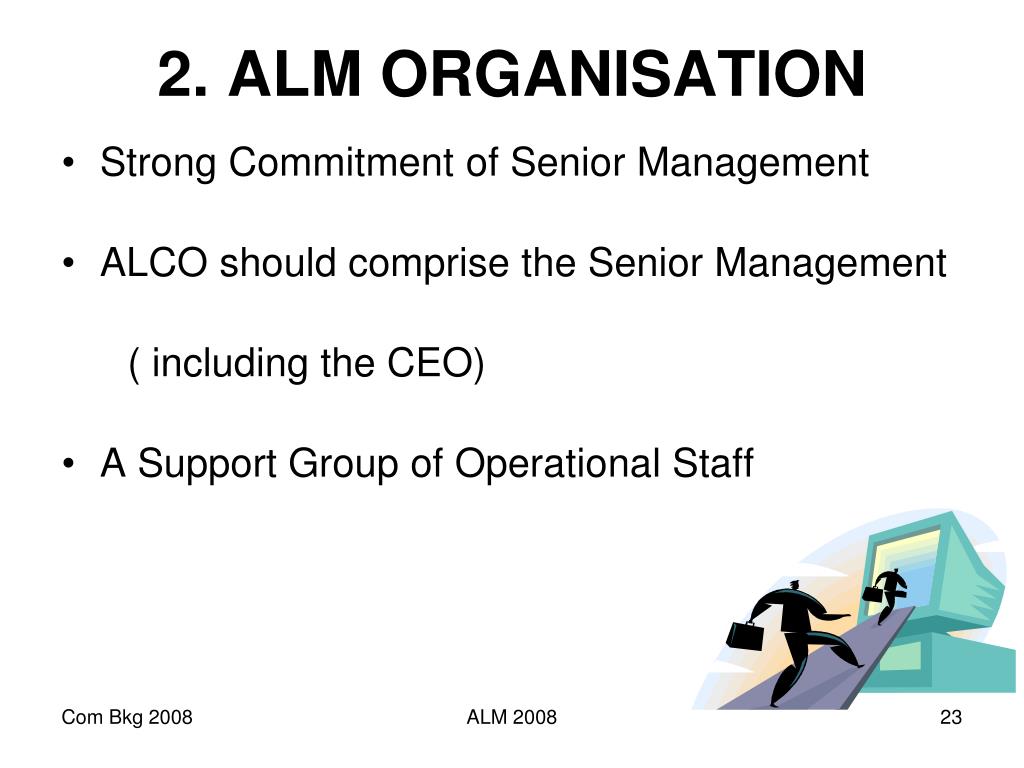

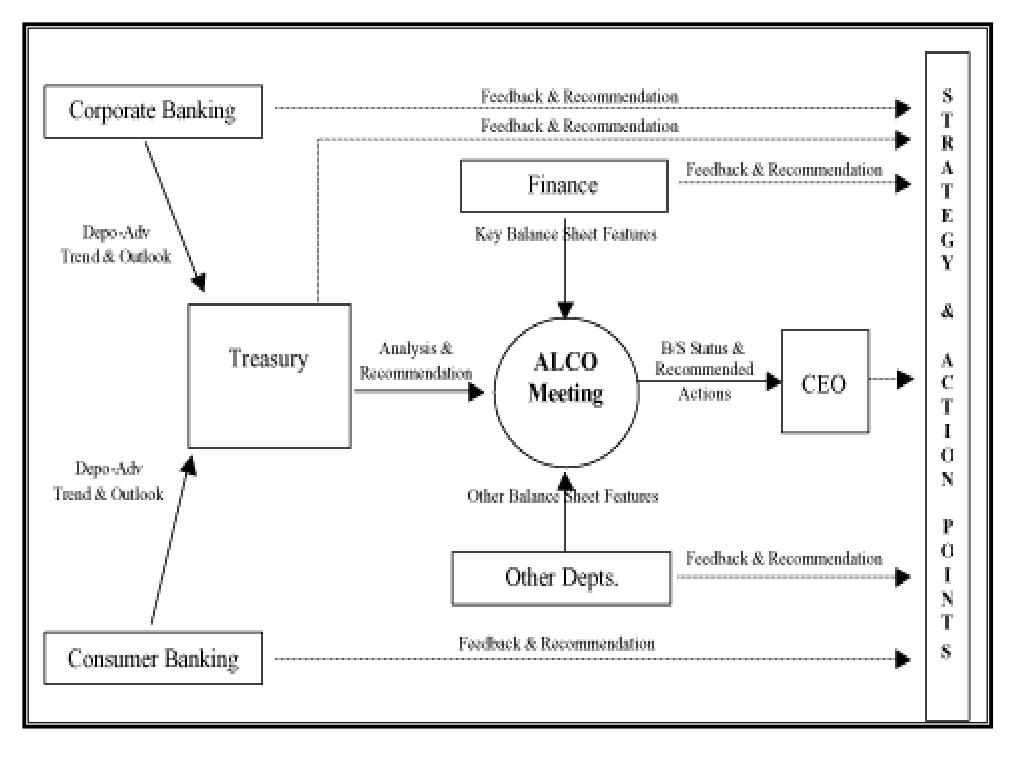

2 alm organisation
  • Strong Commitment of Senior Management
  • ALCO should comprise the Senior Management

( including the CEO)

  • A Support Group of Operational Staff

ALM 2008


Board of Directors

Management Committee

Asset Liability Committee (ALCO)

Asset Liability Management Cell

Finance Planning Department

Credit Analysis Department

Credit Risk Management Department


Investment and Loan Departments

ALM 2008

3 alm process
  • The scope of ALM function can be described as follows:
  • Liquidity Risk Management
  • Management of Market Risks
  • Trading Risk Management
  • Funding and Capital Planning
  • Profit Planning and Growth Projection

ALM 2008

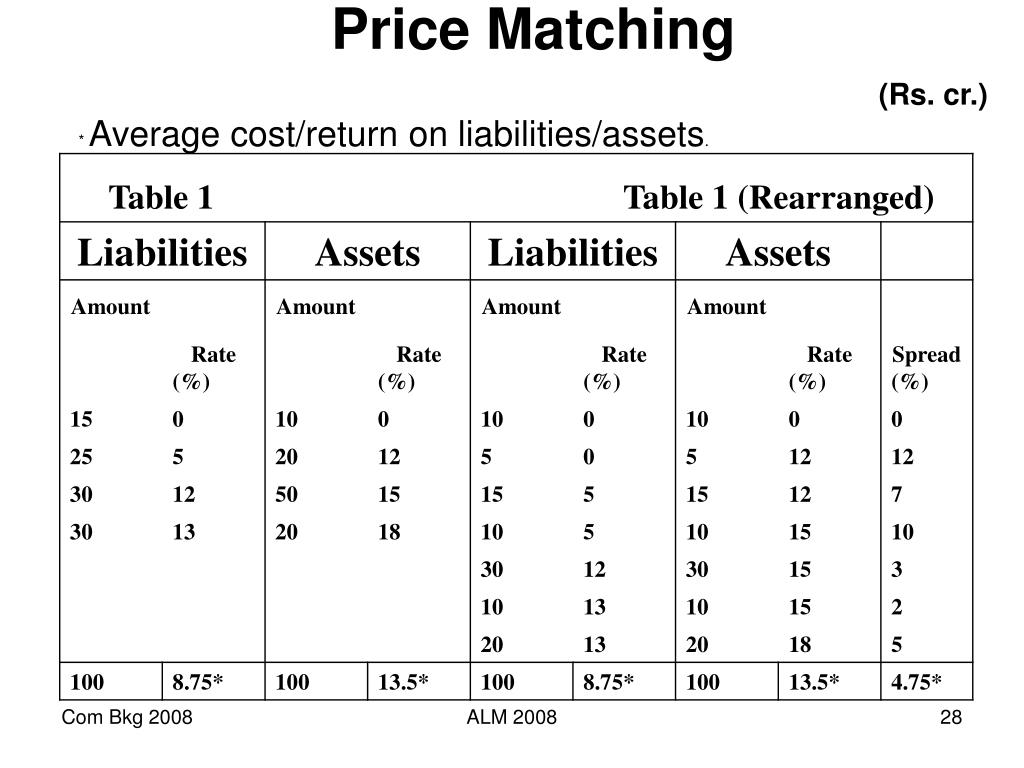

Price Matching

(Rs. cr.)

* Average cost/return on liabilities/assets.

ALM 2008


Maturity Matching(Rs. cr.) (period in months)

ALM 2008

risks in alm
Risks in ALM
  • Interest Rate Risk: It is the risk of having a negative impact on a bank’s future earnings and on the market value of its equity due to changes in interest rates.
  • Liquidity Risk: It is the risk of having insufficient liquid assets to meet the liabilities at a given time.
  • Forex Risk: It is the risk of having lossesin foreign exchange assets and liabilities due to exchanges in exchange rates among multi-currencies under consideration.

ALM 2008

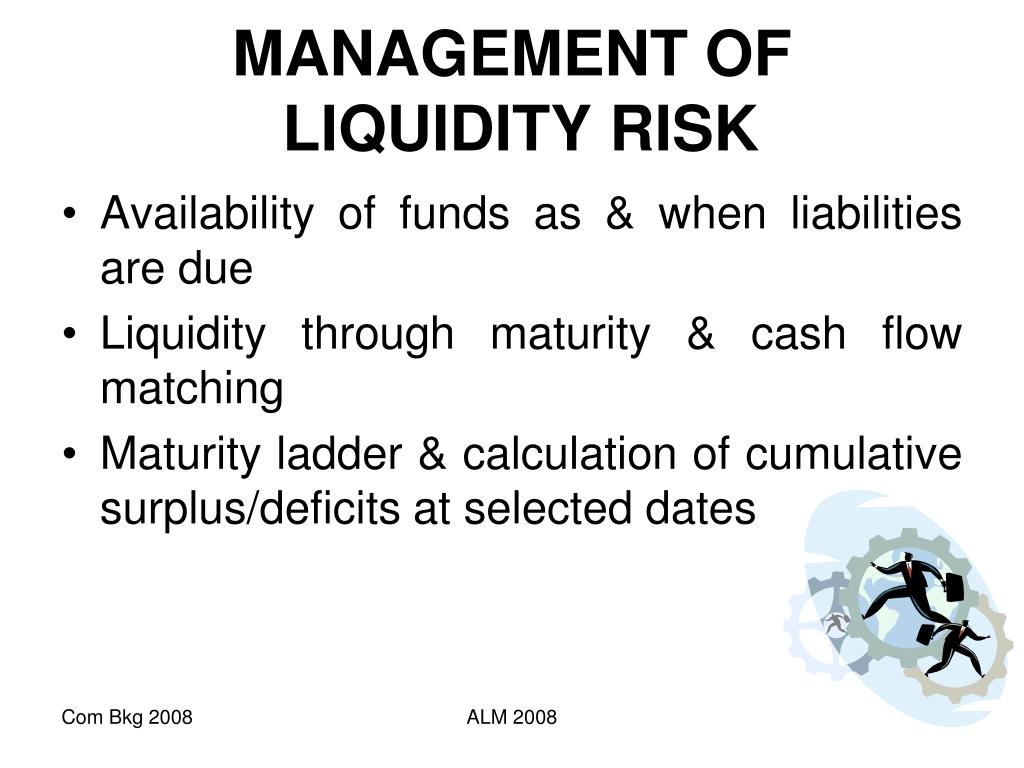

management of liquidity risk
  • Availability of funds as & when liabilities are due
  • Liquidity through maturity & cash flow matching
  • Maturity ladder & calculation of cumulative surplus/deficits at selected dates

ALM 2008

management of liquidity risk1

Construction of time buckets:

1 to 30/31 days

Over 1 month and upto 2 months

Over 2 months and upto 3 months

Over 3 months and upto 6 months

Over 6 months and upto 1 year

Over 1 year and upto 3 years

Over 3 years and upto 5 years

Over 5 years

ALM 2008

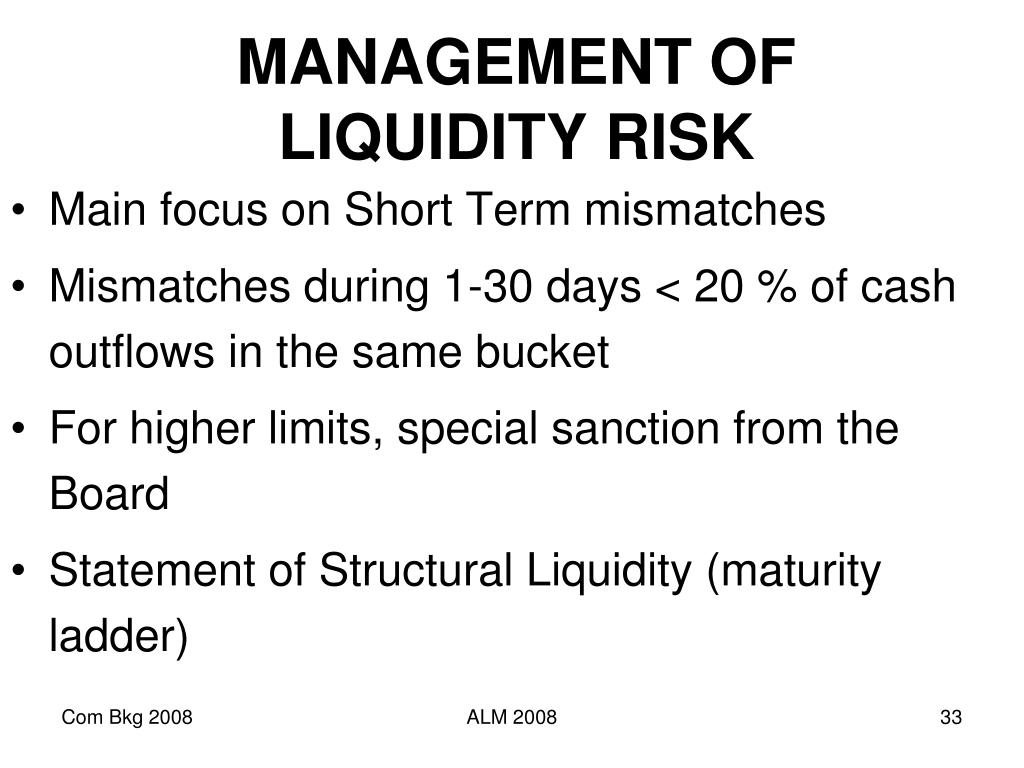

management of liquidity risk2
  • Main focus on Short Term mismatches
  • Mismatches during 1-30 days < 20 % of cash outflows in the same bucket
  • For higher limits, special sanction from the Board
  • Statement of Structural Liquidity (maturity ladder)

ALM 2008

management of interest rate risk

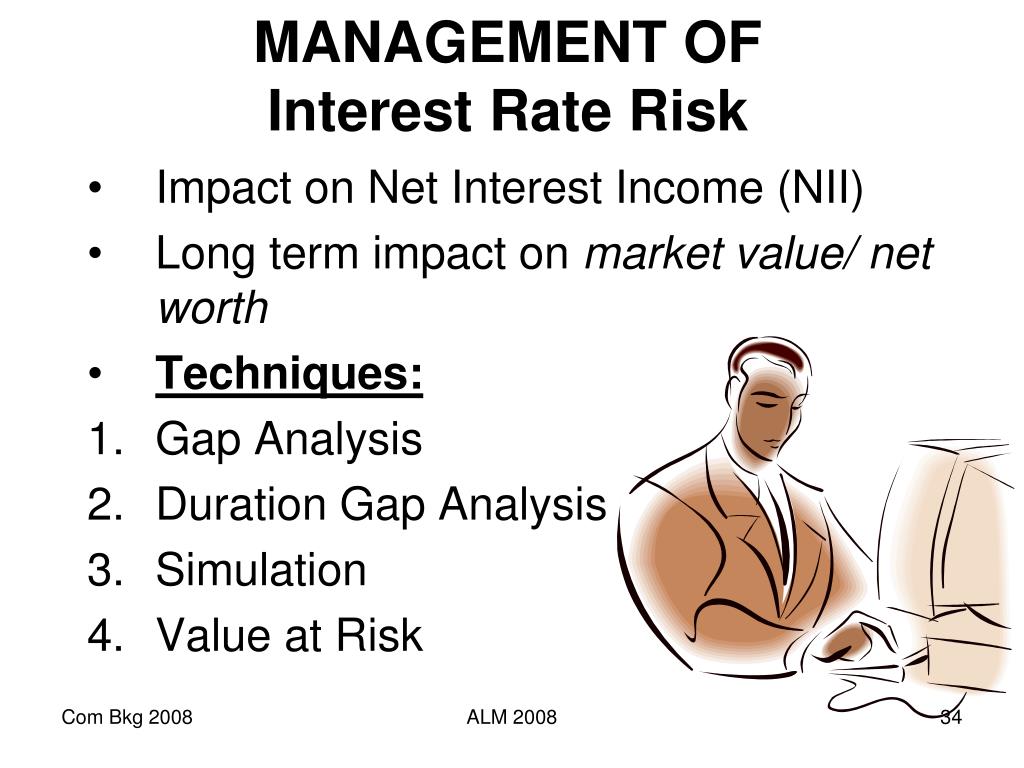

MANAGEMENT OF Interest Rate Risk
  • Impact on Net Interest Income (NII)
  • Long term impact on market value/ net worth
  • Techniques:
  • Gap Analysis
  • Duration Gap Analysis
  • Simulation
  • Value at Risk

ALM 2008

1 gap analysis
  • Calculating Gap over different time intervals at a given date
  • Mismatches between RSL and RSA
  • GAP = RSA( i) - RSL( i) = NII( i) for each time bucket
  • Positive GAP ( RSA > RSL )
    • Increasing Interest Rates would be beneficial for a Bank
  • Negative GAP ( RSL > RSA )
    • Falling Interest Rates would be beneficial for a Bank

ALM 2008

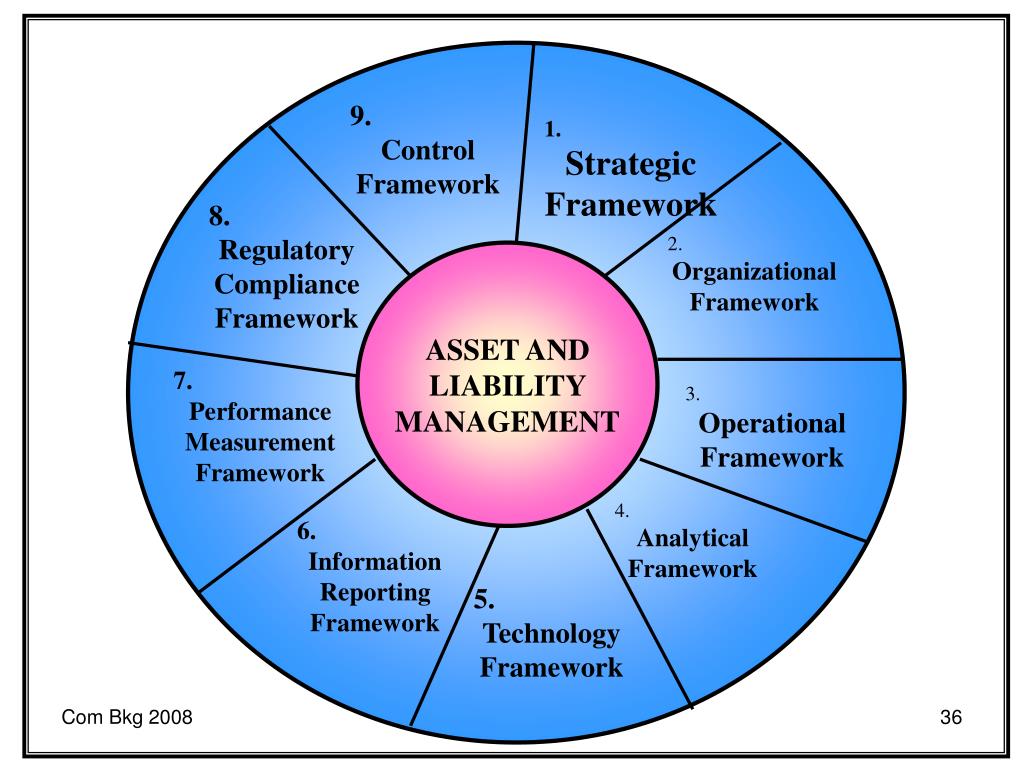

Control Framework


Strategic Framework


Regulatory Compliance Framework


Organizational Framework



Performance Measurement Framework


Operational Framework


Analytical Framework


Information Reporting Framework


Technology Framework

ALM 2008

gap analysis1
Gap Analysis
  • Simple maturity/re-pricing Schedules can be used to generate simple indicators of interest rate risk sensitivity of both earnings and economic value to changing interest rates

- If a negative gap occurs (RSA<RSL) in given time band, an increase in market interest rates could cause a decline in NII

- conversely, a positive gap (RSA>RSL) in a given time band, an decrease in market interest rates could cause a decline in NII

  • The basic weakness with this model is that this method takes into account only the book value of assets and liabilities and hence ignores their market value.
duration analysis

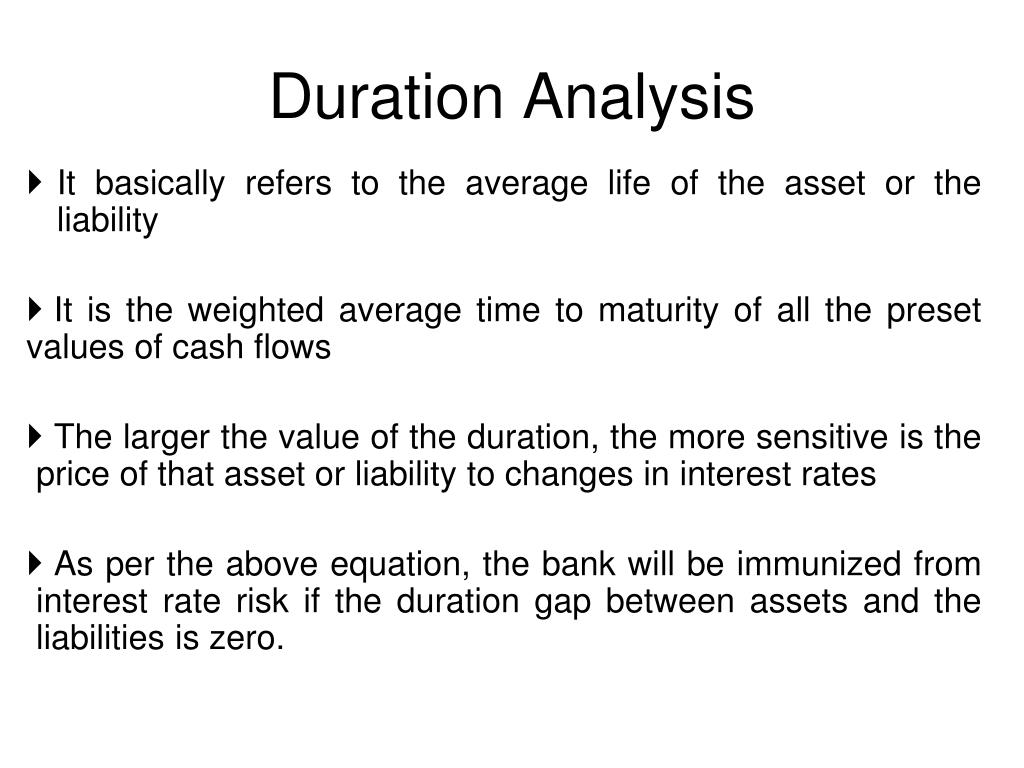

Duration Analysis
  • It basically refers to the average life of the asset or the liability
  • It is the weighted average time to maturity of all the preset values of cash flows
  • The larger the value of the duration, the more sensitive is the price of that asset or liability to changes in interest rates
  • As per the above equation, the bank will be immunized from interest rate risk if the duration gap between assets and the liabilities is zero.

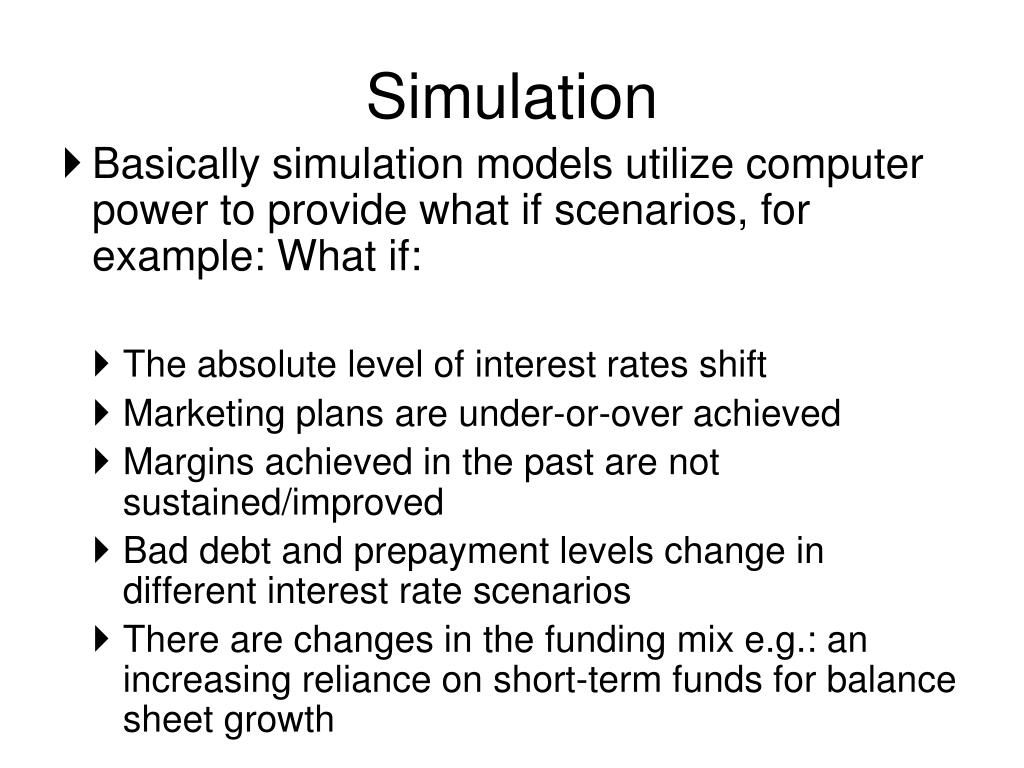

  • Basically simulation models utilize computer power to provide what if scenarios, for example: What if:
    • The absolute level of interest rates shift
    • Marketing plans are under-or-over achieved

    • Margins achieved in the past are not sustained/improved

    • Bad debt and prepayment levels change in different interest rate scenarios
    • There are changes in the funding mix e.g.: an increasing reliance on short-term funds for balance sheet growth
  • This dynamic capability adds value to this method and improves the quality of information available to the management
value at risk var
Value at Risk (VaR)
  • Refers to the maximum expected loss that a bank can suffer in market value or income:
    • Over a given time horizon,
    • Under normal market conditions,
    • At a given level or certainty
  • It enables the calculation of market risk of a portfolio for which no historical data exists. VaR serves as Information Reporting to stakeholders
  • It enables one to calculate the net worth of the organization at any particular point of time so that it is possible to focus on long-term risk implications of decisions that have already been taken or that are going to be taken
regulatory environment risk management guidelines in india

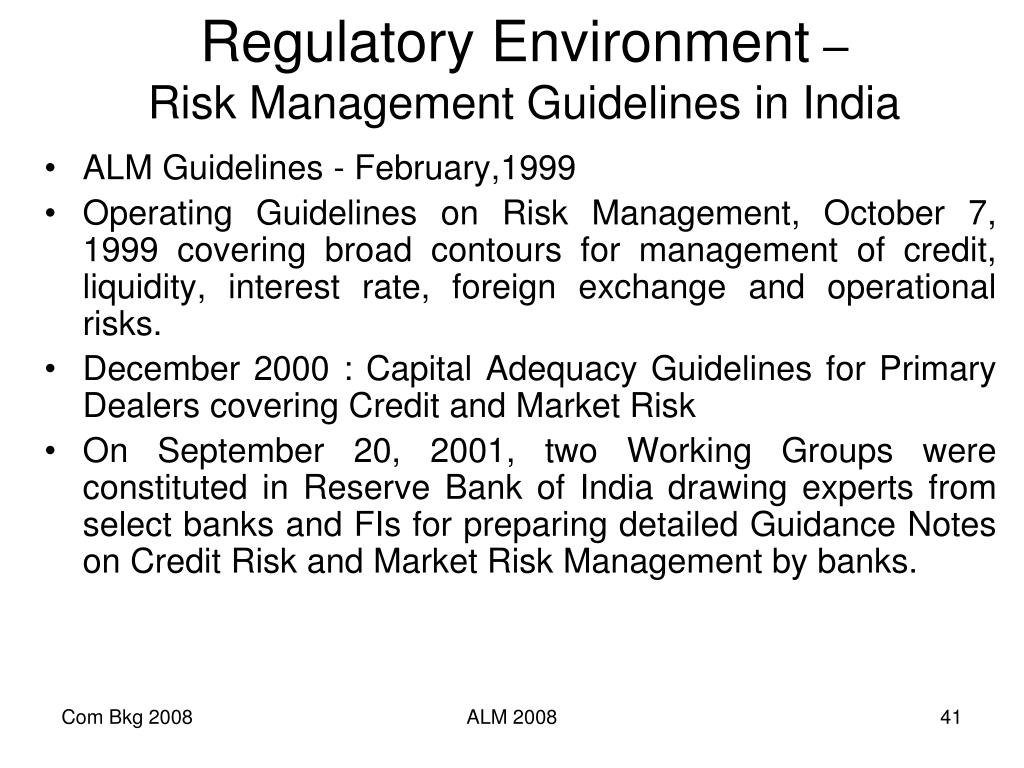

Regulatory Environment – Risk Management Guidelines in India
  • ALM Guidelines - February,1999
  • Operating Guidelines on Risk Management, October 7, 1999 covering broad contours for management of credit, liquidity, interest rate, foreign exchange and operational risks.
  • December 2000 : Capital Adequacy Guidelines for Primary Dealers covering Credit and Market Risk
  • On September 20, 2001, two Working Groups were constituted in Reserve Bank of India drawing experts from select banks and FIs for preparing detailed Guidance Notes on Credit Risk and Market Risk Management by banks.

ALM 2008

risk regulation in india
Risk Regulation in India
  • Identified further steps to be taken by banks for improving their existing risk management framework, suiting to Indian conditions
  • 2005 – Detailed Capital Adequacy guidelines for Banks to move towards Basel II, 2007- final guidelines
  • 2006 – April 17, the ALM framework of 1999 updated.
  • 2007- Pillar II guidelines being issued

ALM 2008

rbi revised guidelines 2007 08
RBI revised guidelines 2007-08
  • Issued on Sept 05, 2007
  • Feb 10, 1999 guidelines covered Interest Rate and Liquidity Risk Management
  • Cumulative mis-matches in first bucket to be reported in Statement of Structural Liquidity
  • -ve Gap in 1-14 and 15-28 days buckets not to exceed 20 % of the cash flows
  • Need for revising this position – Hence revised the first bucket to 1, 2-7 & 8-14 days

ALM 2008

rbi revised alm

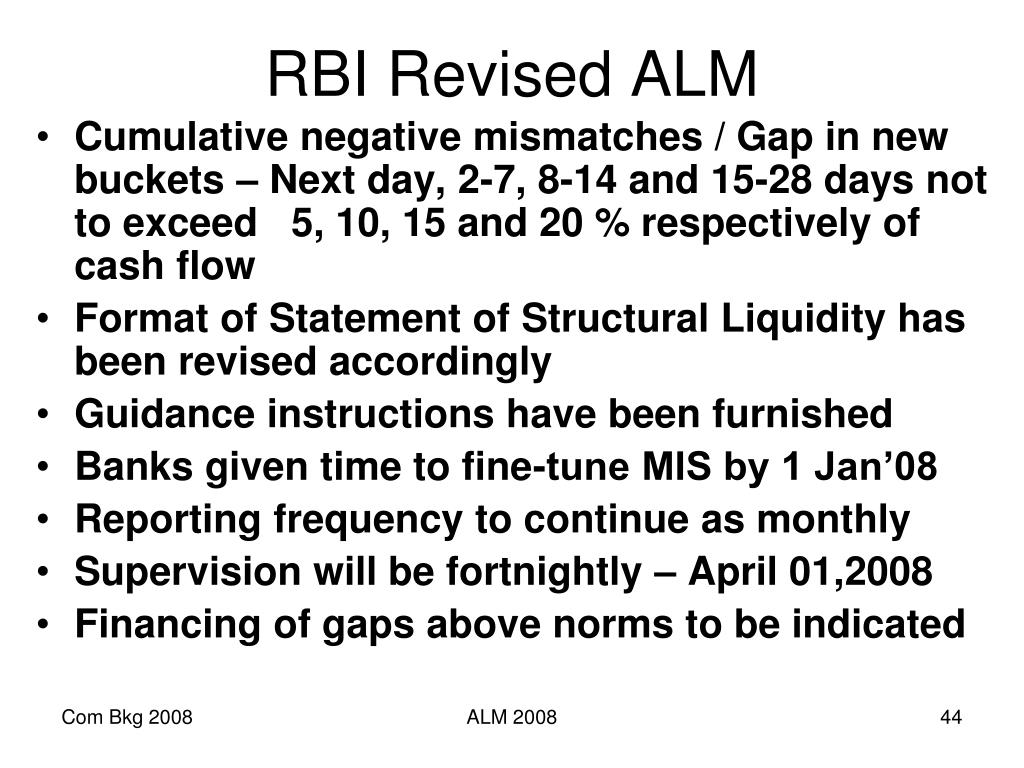

RBI Revised ALM
  • Cumulative negative mismatches / Gap in new buckets – Next day, 2-7, 8-14 and 15-28 days not to exceed 5, 10, 15 and 20 % respectively of cash flow
  • Format of Statement of Structural Liquidity has been revised accordingly
  • Guidance instructions have been furnished
  • Banks given time to fine-tune MIS by 1 Jan’08
  • Reporting frequency to continue as monthly
  • Supervision will be fortnightly – April 01,2008
  • Financing of gaps above norms to be indicated

ALM 2008
