  1. Dependability TSW 10 Anders P. Ravn Aalborg University November 2009

  2. Characteristics of a RTS • Timing Constraints • Dependability Requirements • Concurrent control of separate components • Facilities to interact with special purpose hardware

  3. ... Fault Error Failure Fault Dependability - impediments • Faults • Errors • Failures BW Ch 2, ...

  4. System and Component

  5. Dependability - attributes • Availability • Reliability • Safety • Confidentiality • Integrity • Maintainability BW Ch 2

  6. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting BW Ch 2

  7. byzantine Fault classification • physical (internal/external) • logical (design/interaction) • Origin • Kind • Property • omission • value • timing • duration (permanent, transient) • consistency (determinate, nondeterminate) • autonomy (spontaneous, event-dependent)

  8. Error Classification • (Fault  Error) • Effect • Extent • latent • effective • local • distributed

  9. Failure Classification • (Fault  Failure) • Consequence • benign • malign (a mishap) BW (Failure modes) Ch 2

  10. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting

  11. Fault Prevention • process (procedures) • notations • tools • Careful Design • Conservative Design • robust functionality • testability • tracability

  12. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting

  13. Error Removal • Verification (analysis of design) • Test (analysis of implementation)

  14. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting

  15. Failure Forecasting • Calculation – analysis of design • Simulation – measurement on design • Test -- measurement on implementation

  16. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting BW Ch 2

  17. Fault Tolerance Means to isolate componentfaults ... And mask them Prevents systemfailures May increase systemdependability

  18. Fault Tolerance

  19. Full tolerance • Graceful Degradation • Fail safe FT - levels BW Ch 2

  20. Retry ... ... Try Try Try FT basis: Redundancy • Time • Space Try Retry BW Ch 2

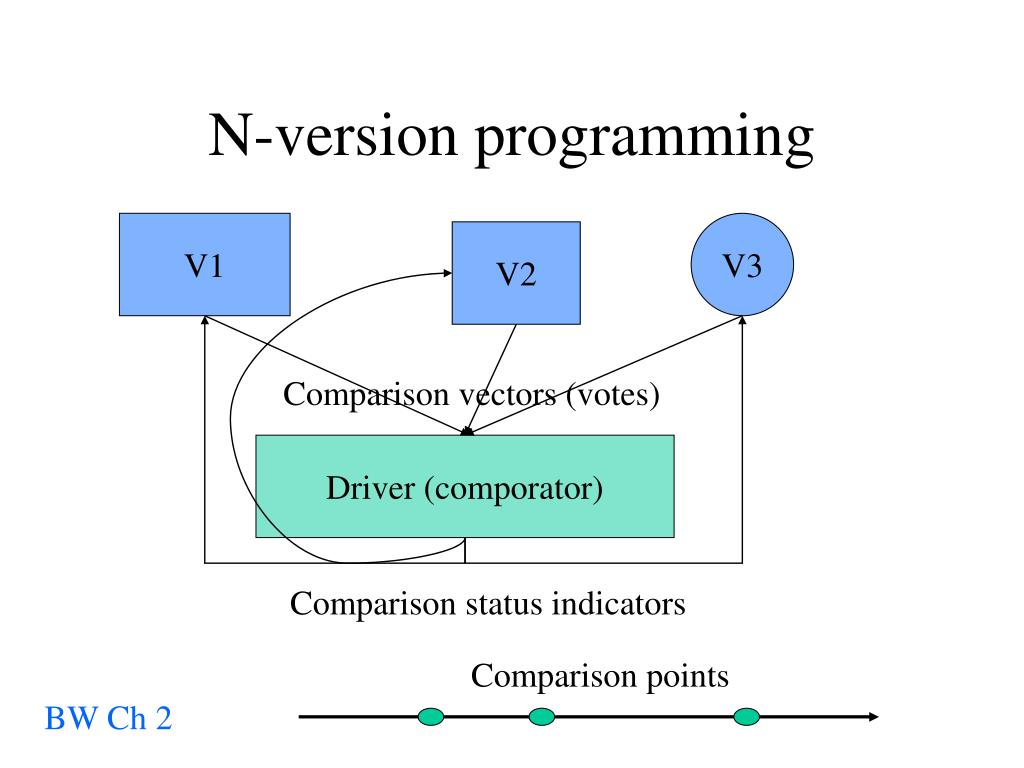

  21. N-version programming V1 V3 V2 Comparison vectors (votes) Driver (comporator) Comparison status indicators Comparison points BW Ch 2

  22. byzantine Fault classification (scope of N-VP) + + (+) ++ (+) + / (+) + / + + / + • physical (internal/external) • logical (design/interaction) • Origin • Kind • Property • omission • value • timing • duration (permanent, transient) • consistency (determinate, nondeterminate) • autonomy (spontaneous, event-dependent)

  23. Dynamic Redundancy • Error detection • Damage confinement and assessment • Error recovery • Fault treatment and continued service BW Ch 2

  24. D Error Detection f: State x Input  State x Output • Environment (exception) • Application • Assertion: • precondition (input) • postcondition (input, output) • invariant(state, state’) • Timing: • WCET(f, input) • Deadline (f,input) BW Ch 2

  25. object I object I Damage Confinement • Static structure • Dynamic structure BW Ch 2

  26. Error Recovery • Forward • Backward Repair the state – if you can ! • define recovery points • checkpoint state at r. p. • roll back • retry Domino effect BW Ch 2

  27. Recovery blocks ENSURE acceptance_test BY { module_1 } ELSE BY { module_2 } ... ELSE BY { module_m } ELSE ERROR BW Ch 2

  28. Failure exception Interface exception Request/response Interface exception Failure exception Request/response The ideal FT-component Normal mode Exception Handler BW Ch 2
