latest wbsn release v1 3 news
Latest WBSn Release V1.3 – News!
  • New firmware v1.3.2
    • Market leading radio performance
      • Up to double the capacity and the reach than competition
      • Up-to 20Km with outdoor CPE
  • New FCC products
  • CPEs
    • WCPEn-5000-O – outdoor CPE
    • WCPEn-2400-I – best-in-class, dual-zone indoor CPE
  • Enhanced service flexibility
    • Router / NAT-Router
    • Web Authentication
    • MAC Authentication

300m

Competitor w/o BF

Alvarion w/ BF

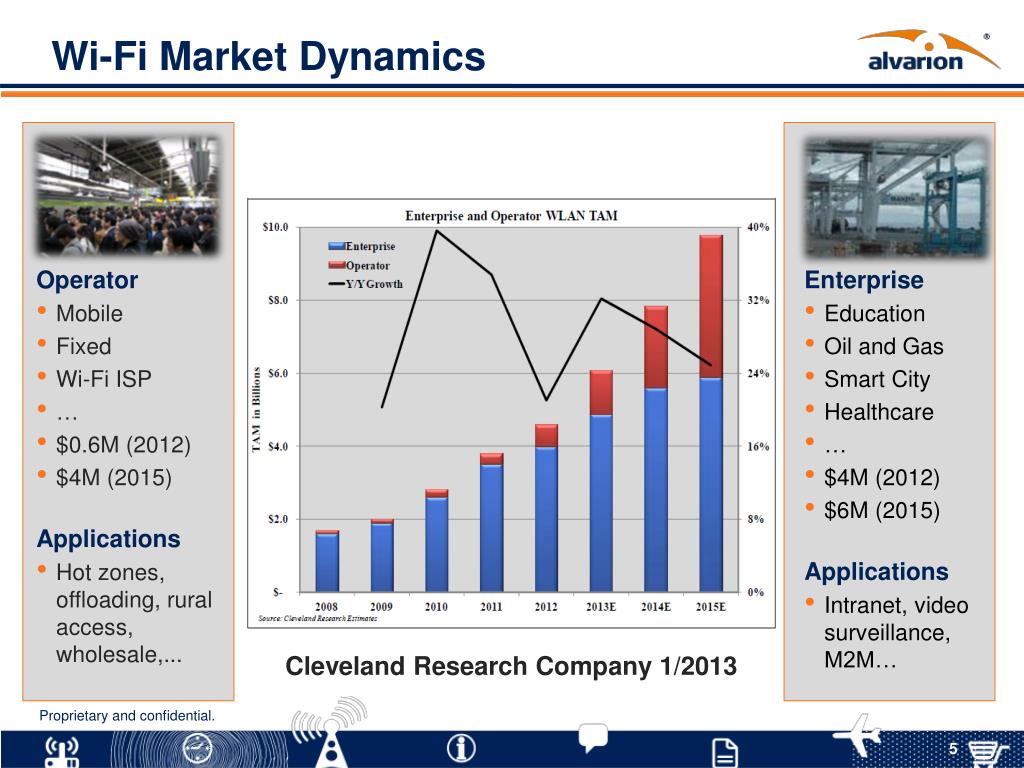

wi fi market dynamics
Wi-Fi Market Dynamics

Operator

  • Mobile
  • Fixed
  • Wi-Fi ISP
  • $0.6M (2012)
  • $4M (2015)

Applications

  • Hot zones, offloading, rural access, wholesale,...

Enterprise

  • Education
  • Oil and Gas
  • Smart City
  • Healthcare
  • $4M (2012)
  • $6M (2015)

Applications

  • Intranet, video surveillance, M2M…

Cleveland Research Company 1/2013

public wi fi expands
Public Wi-Fi Expands

Market size: $530M (2012), $2.1B (2016), 47% CAGR

  • Street coverage is seen as one of the areas of greatest deficit for Wi-Fi coverage. By 2013, the percentage of service providers planning to deploy Wi-Fi for street coverage jumps to 79%Global Service Provider Survey, April 2012, Infonetics Research
  • “…sales of outdoor APsdoubling over the past year”Mathias Machowinski, December 2012Infonetics Researchhttp://www.fiercebroadbandwireless.com/press-releases/infonetics-wireless-lan-gear-star-networking-industry-tops-1-billion-quarte
  • Next is 802.11ac, ~2014
    • Additional capacity…
hot zones and 3go pldt philippines
Hot Zones and 3GO – PLDT Philippines

Tier #1 Incumbent Carrier

  • Nationwide
  • Hot zones
  • Bundling, DSL + Wi-Fi
  • Web-portal authentication
  • 1,000 WBSn under deployment now
  • 80% Indoor & 20% Outdoor
  • 1:10 – One WBSn replaces10 Indoor Radios

Network Architecture

colombo tier 1 operator
Colombo, Tier #1 Operator

Point Measurements

  • Installation: 3 floor Building
  • Suburban, foliage
  • End device: Acer laptop
nepal wi fi sp 11 2012
Nepal, Wi-Fi SP, 11/2012

Site Survey

  • Sector radio comparison
  • Urban, narrow streets, foliage
  • 30% interference
  • End device: USB 11n dongle
  • Up to 36Mbps at 100m with WBSn

Competitor

Alvarion

300m

pardes hanna israel 12 2012

300m

300m

Alvarion

200m

200m

100m

100m

Pardes Hanna Israel, 12/2012

Site Survey

  • Omni radio comparison
  • Sub urban, foliage
  • Low interference level, 30%
  • End device: 11n CPE
  • Close to 70Mbps near the WBSn base station

Alvarion

Competitor

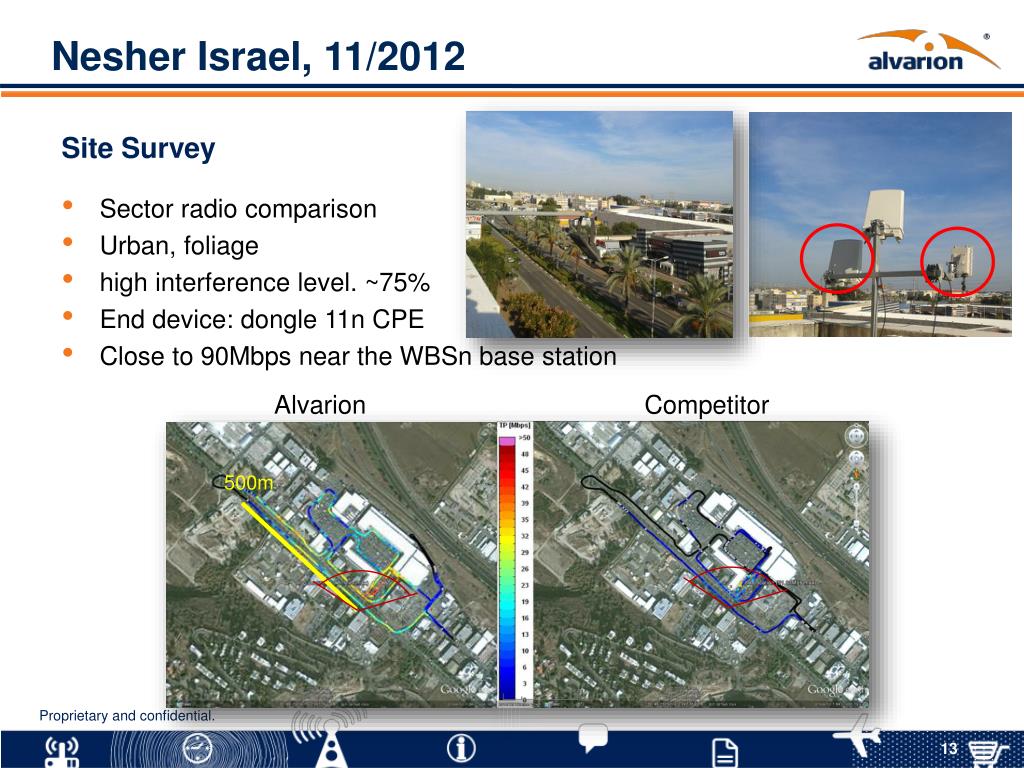

nesher israel 11 2012
Nesher Israel, 11/2012

Site Survey

  • Sector radio comparison
  • Urban, foliage
  • high interference level. ~75%
  • End device: dongle 11n CPE
  • Close to 90Mbps near the WBSn base station

Alvarion

Competitor

500m

naha okinawa japan ntt west 12 2012
Naha Okinawa Japan, NTT-West, 12/2012

Site Survey, tier #1 carrier

  • Sector radio test
  • Urban, LOS and near-LOS, low interference
  • Base station at 1st floor height installation
  • End device: dual-stream laptop
  • Up to 200m while competition could do up to 50m

200m

multi users performance

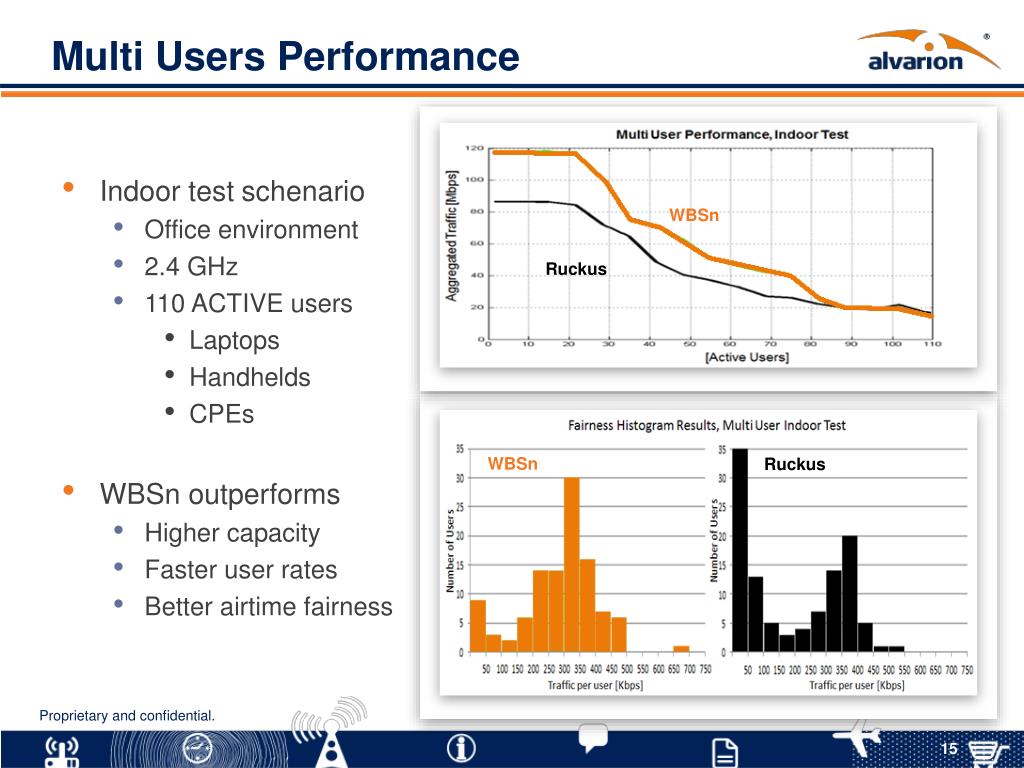

Multi Users Performance
  • Indoor test schenario
    • Office environment
    • 2.4 GHz
    • 110 ACTIVE users
      • Laptops
      • Handhelds
      • CPEs
  • WBSn outperforms
    • Higher capacity
    • Faster user rates
    • Better airtime fairness

WBSn

Ruckus

WBSn

Ruckus

alvarion carrier grade wi fi solution
Alvarion Carrier Grade Wi-Fi Solution

Industry’s first two-way Beamforming with 802.11n outdoor

  • WBSn – Wi-Fi base stations
    • Outdoor
  • WCPEn – Wi-Fi CPE
    • Outdoor and indoor
  • WavionNet – NMS
  • WCC – Wi-Fi Cloud Controller
    • Wi-Fi manager
    • Cellular GW
  • WSP – Service Provisioning
    • AAA and billing solutions
outdoor wi fi radio challenges
Outdoor Wi-Fi Radio Challenges

Outdoor Wi-Fi ≠ Indoor Wi-Fi

  • Reach, Non-Line-of-Sight
  • Heavy interference
  • Regulation power limits
  • High multi-path delay spread
  • Extremely dynamic
  • Foliage
  • Indoor penetration
beamforming explained

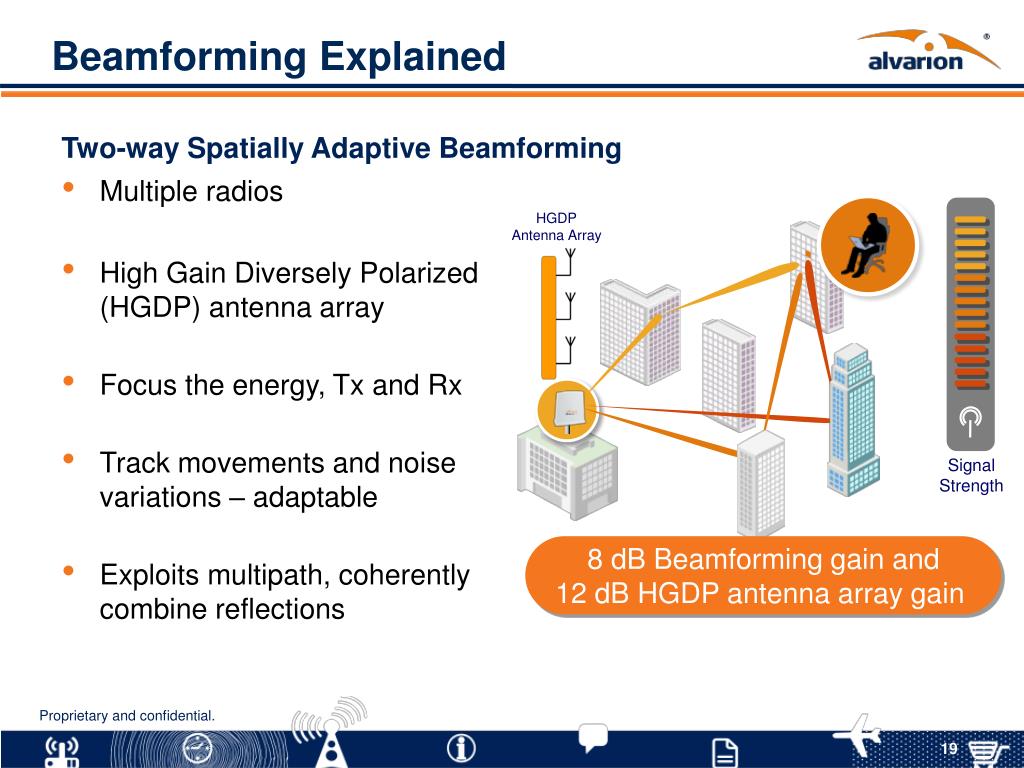

Beamforming Explained

Two-way Spatially Adaptive Beamforming

  • Multiple radios
  • High Gain Diversely Polarized (HGDP) antenna array
  • Focus the energy, Tx and Rx
  • Track movements and noise variations – adaptable
  • Exploits multipath, coherently combine reflections

HGDPAntenna Array

Signal

Strength

8 dB Beamforming gain and

12 dB HGDP antenna array gain

field proven interference immunity

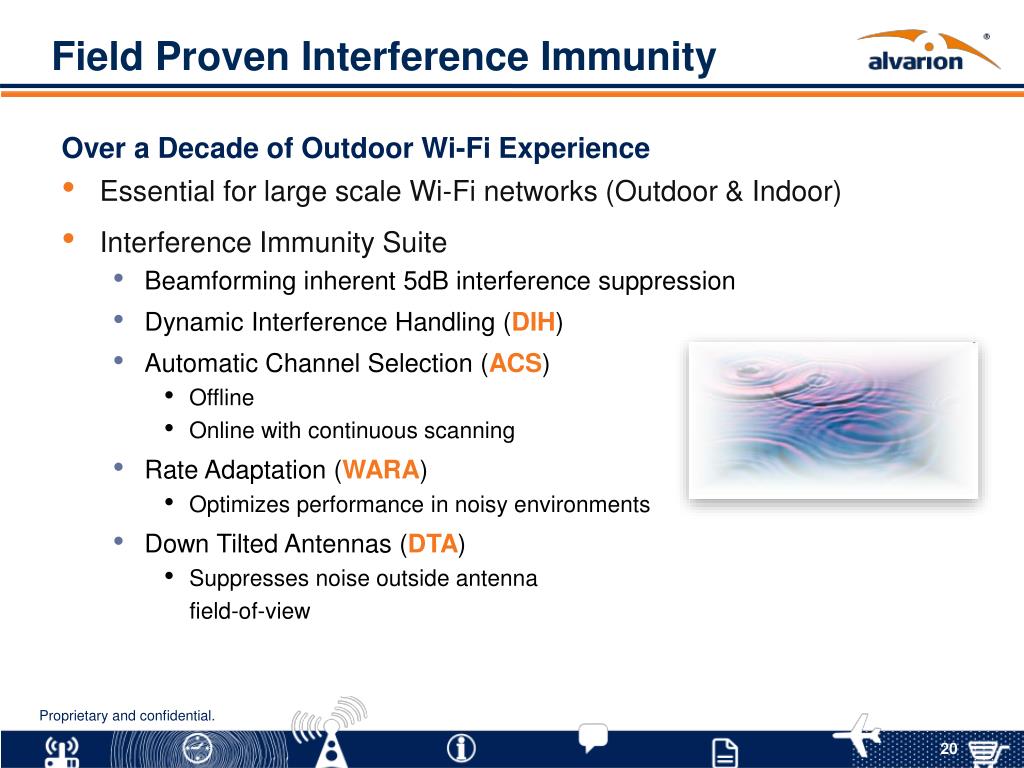

Field Proven Interference Immunity

Over a Decade of Outdoor Wi-Fi Experience

  • Essential for large scale Wi-Fi networks (Outdoor & Indoor)
  • Interference Immunity Suite
    • Beamforming inherent 5dB interference suppression
    • Dynamic Interference Handling (DIH)
    • Automatic Channel Selection (ACS)
      • Offline
      • Online with continuous scanning
    • Rate Adaptation (WARA)
      • Optimizes performance in noisy environments
    • Down Tilted Antennas (DTA)
      • Suppresses noise outside antenna

field-of-view

key features and specification
Key Features and Specification

Versatility

  • Concurrent operation in 2.4GHz & 5GHz
  • Flexible antenna field of View
  • AC and DC feeding
  • Total capacity of up to Gbps
    • 3x3:3 MIMO
  • Smart antenna
    • Beamforming 802.11n
    • High gain diversely polarized
    • Dual band
    • Down tilted
  • Up to 512 connected users

Omni

Capacity and Coverage

Sector

Sector & Omni

wcpen family of cpes
WCPEn Family of CPEs

Best-in-class Wi-Fi CPEs

  • The only Beamforming indoor CPE on the market
  • Extended reach
  • Highest speeds
  • Improved indoor signal penetration
  • Fast ROI for access services
  • Excellent user experience
  • Interoperable with any standard Wi-Fi certified devices in both 2.4 and 5 GHz

USB Adaptor

Outdoor CPE

Indoor CPE

best wireless xdsl service
Best “Wireless xDSL” Service
  • WCPEn-2400-I provides Wi-Fi and LAN access for indoor users
  • Extended coverage
  • Indoor penetration
  • High throughput

CPE

WWW

WBSn

WCPEn-2400-I

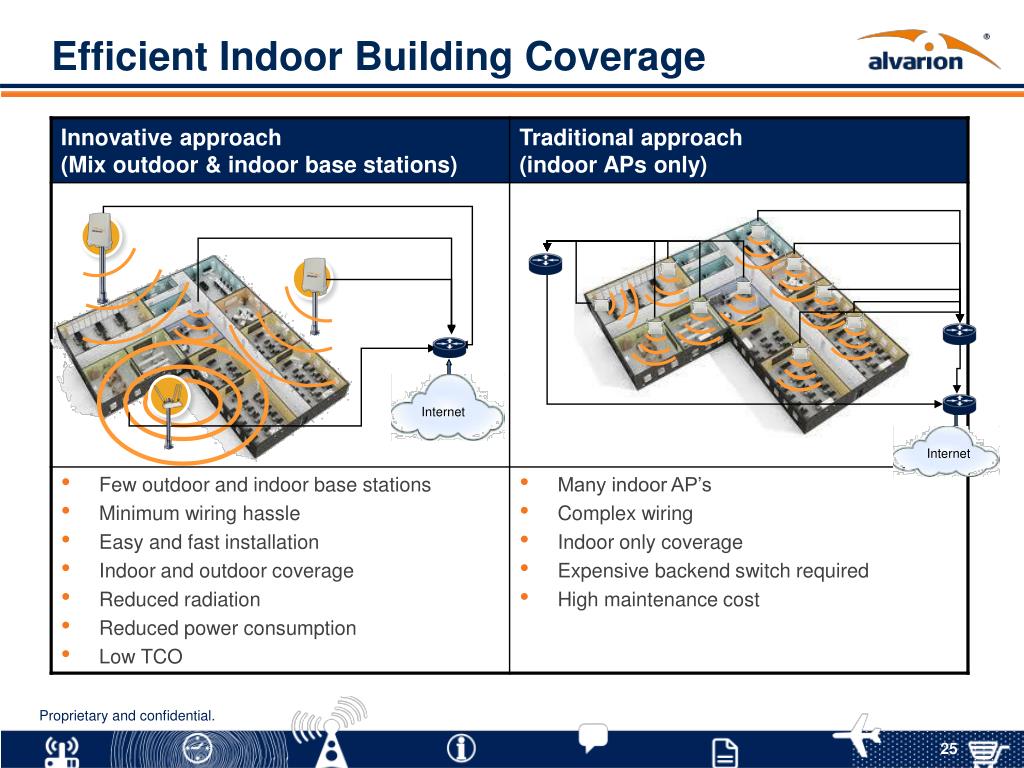

outdoor to indoor coverage examples
Outdoor to Indoor Coverage Examples

Mumbai, India

16 floor building covered with a single base station

Abuja Nigeria, Sheraton Hotel

Full wing coverage, two base stations

Suihua, China

12 residence buildings, Indoor coverage

main networking features

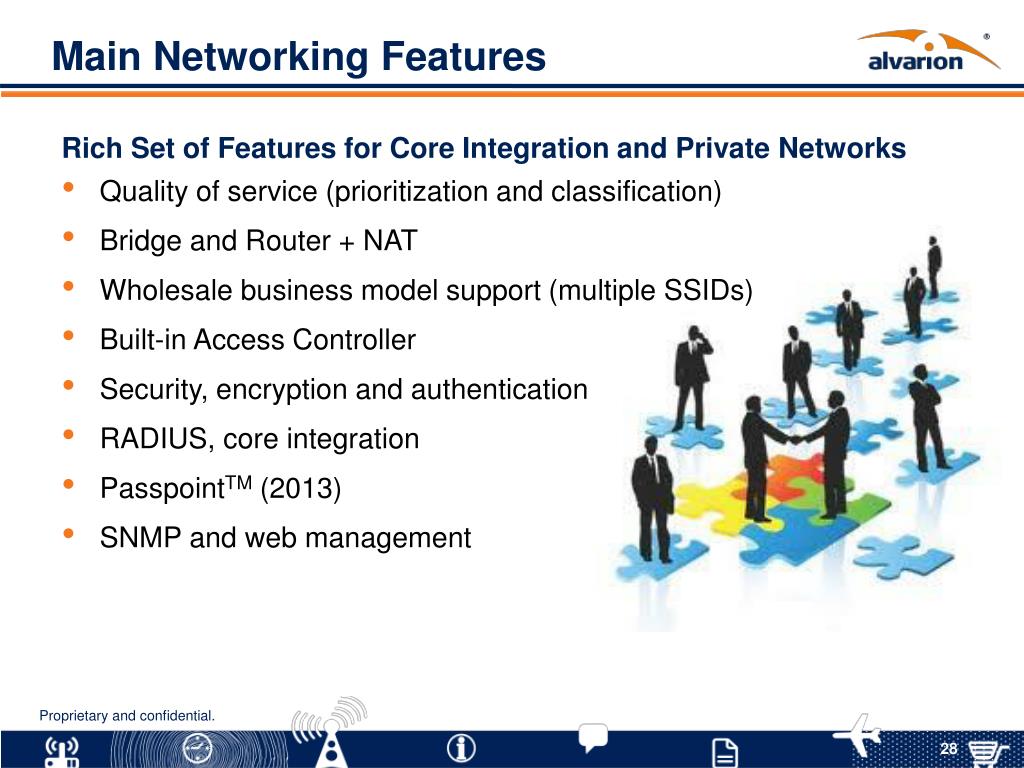

Main Networking Features

Rich Set of Features for Core Integration and Private Networks

  • Quality of service (prioritization and classification)
  • Bridge and Router + NAT
  • Wholesale business model support (multiple SSIDs)
  • Built-in Access Controller
  • Security, encryption and authentication
  • RADIUS, core integration
  • PasspointTM (2013)
  • SNMP and web management
embedded access controller

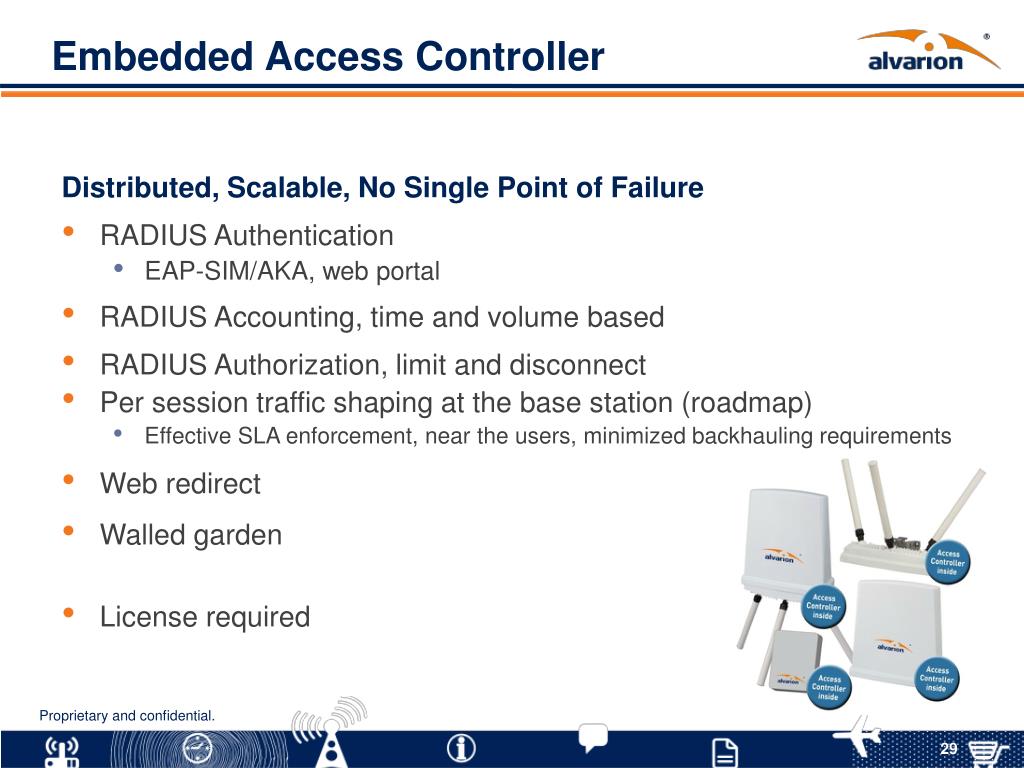

Embedded Access Controller

Distributed, Scalable, No Single Point of Failure

  • RADIUS Authentication
    • EAP-SIM/AKA, web portal
  • RADIUS Accounting, time and volume based
  • RADIUS Authorization, limit and disconnect
  • Per session traffic shaping at the base station (roadmap)
    • Effective SLA enforcement, near the users, minimized backhauling requirements
  • Web redirect
  • Walled garden
  • License required
3g lte data offloading
3G / LTE Data Offloading

Indoor and Outdoor Wi-Fi

  • Seamless authentication
    • 802.11u
    • AAA integration
    • Unified user profile
  • End-to-end security
    • 802.1x, EAP-SIM/AKA
  • Handover and mobility
  • PasspointTM *
  • Minimize backhauling and core load
  • Leverage on cellular core components

*Road Map

hot zones and cellular offloading gw
Hot-Zones and Cellular Offloading GW

WCC-1000 Wi-Fi Cloud Controller *

  • Focal point of Wi-Fi control
    • RADIUS GW
    • Passpoint GW
  • Hides Wi-Fi complexity from cellular core
    • AP registration, Zero-IT (configuration and firmware), scalability
  • Wholesales business model support
  • In-band/out-band
  • 3rdparty integration
    • Aptilo, Aradial, Inventum, EliteCore, …

*Road Map

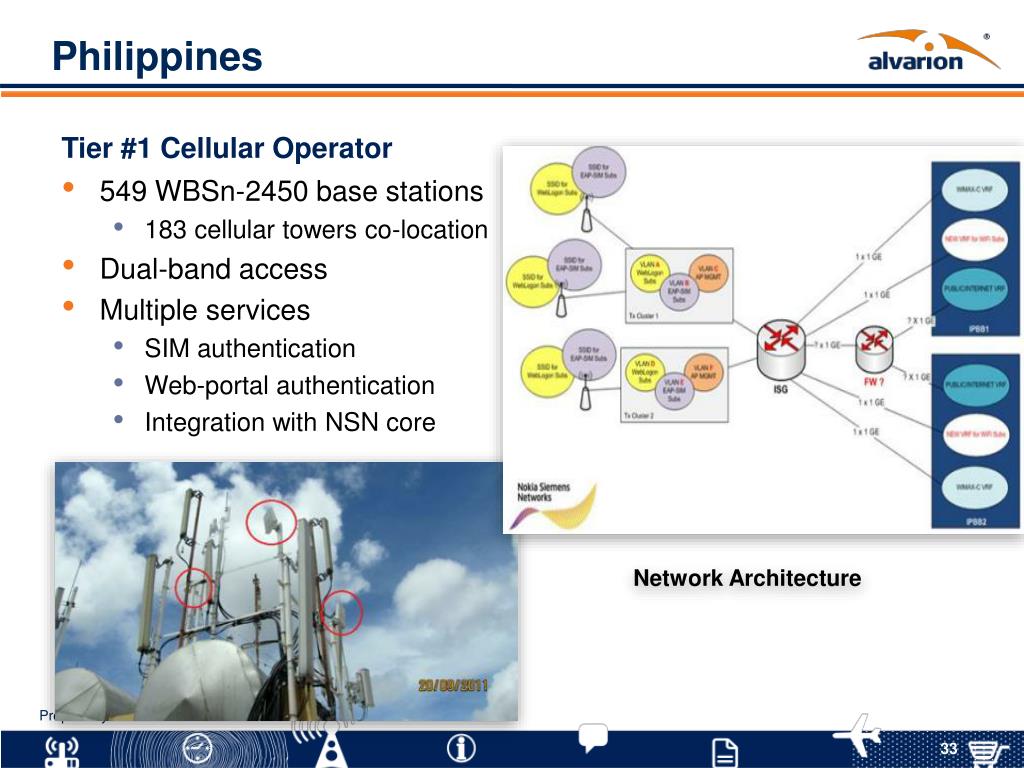

philippines
Philippines

Tier #1 Cellular Operator

  • 549 WBSn-2450 base stations
    • 183 cellular towers co-location
  • Dual-band access
  • Multiple services
    • SIM authentication
    • Web-portal authentication
    • Integration with NSN core

Network Architecture

russia
Russia

Tier #1 (CDMA) Cellular Carrier

  • Four cities coverage
  • Cellular offload
    • Wi-Fi service to existing customers
  • Authentication via SMS + portal
  • Above 500 WBSn-2400 base stations
    • Distributed Access Controller
    • Base station in Bridge mode
    • Wireless client isolation across base stations
  • NMS (WavioNet)
china
China

China Mobile, China Telecom, China Unicom

  • CAPWAP based architecture
    • 3rd party CAPWAP controller
  • Over 10,000 Wi-Fi base stations shipped, expending
  • Metro zones and 3G offloading
    • Campuses, railway stations, parks,airports and business districts
  • Co-location with cellular
    • Minimum costs

China, numerous cities

south korea
South Korea

Tier #1 Cellular Operator

  • 27 Wi-Fi base stations, full airport terminals coverage
  • Multiple services
    • SIM authentication
    • Wholesale, 2nd operator
    • Terminal staff
    • Free Wi-Fi service, low speed

Seoul International Airport

- - - - - - - - - - Wi-Fi Base Stations - - - - - - - - - - -

san pedro day philippines 11 2012
San Pedro Day, Philippines,11/2012

Free Wi-Fi Zone to Over 100,000 People

  • Excellent 2-3 Mbps user service
  • Blanket service with10 WBSn-2400-S Wi-Fi base stations
    • Down tilted 30 deg., reducing noise level
  • 100 Mbps fiber connection per AP
  • 80-100 concurrent users per AP
  • Mainly Apple and Android smart phones

Cebu Island, Philippines

wrap up

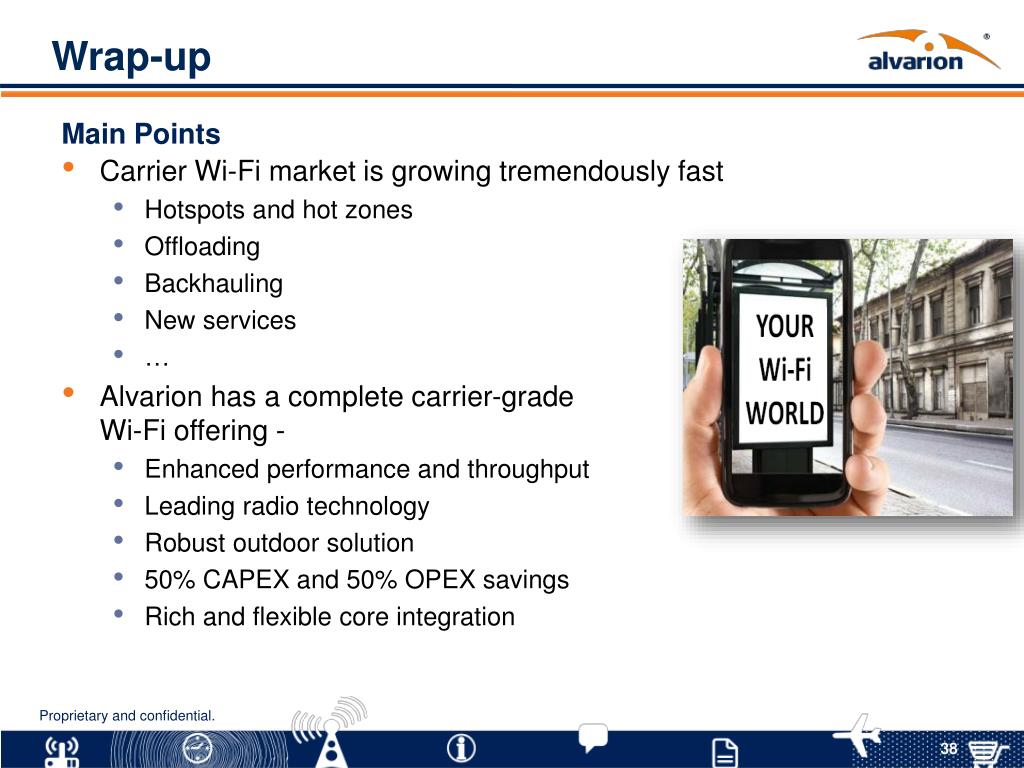

Wrap-up

Main Points

  • Carrier Wi-Fi market is growing tremendously fast
    • Hotspots and hot zones
    • Offloading
    • Backhauling
    • New services
  • Alvarion has a complete carrier-grade Wi-Fi offering -
    • Enhanced performance and throughput
    • Leading radio technology
    • Robust outdoor solution
    • 50% CAPEX and 50% OPEX savings
    • Rich and flexible core integration
thank you

Thank You
