  1. Dispatch Software for MOTOTRBO

  2. Integrated Dispatch Solution

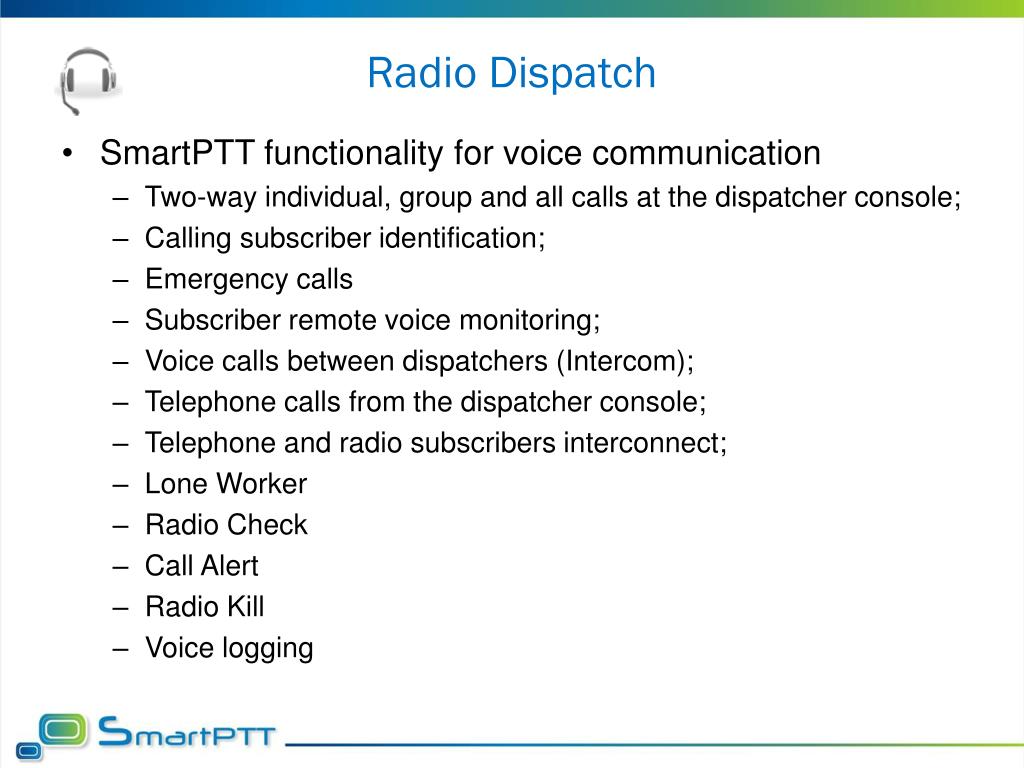

  3. Radio Dispatch • SmartPTT functionality for voice communication • Two-way individual, group and all calls at the dispatcher console; • Calling subscriber identification; • Emergency calls • Subscriber remote voice monitoring; • Voice calls between dispatchers (Intercom); • Telephone calls from the dispatcher console; • Telephone and radio subscribers interconnect; • Lone Worker • Radio Check • Call Alert • Radio Kill • Voice logging

  4. Sound Panel Subscriber Call Window

  5. GPS Monitoring • Real-time subscriber location tracking • Many map formats supported • Subscriber location logging • Track drawing for specified period of time • Subscriber movement animation in scope of the track • Subscriber track details • Geofencing • Predefined routes • Automatic location request • Location request by event • Manual location request • Export locations to KML

  6. Real-Time Monitoring

  7. Track Animation

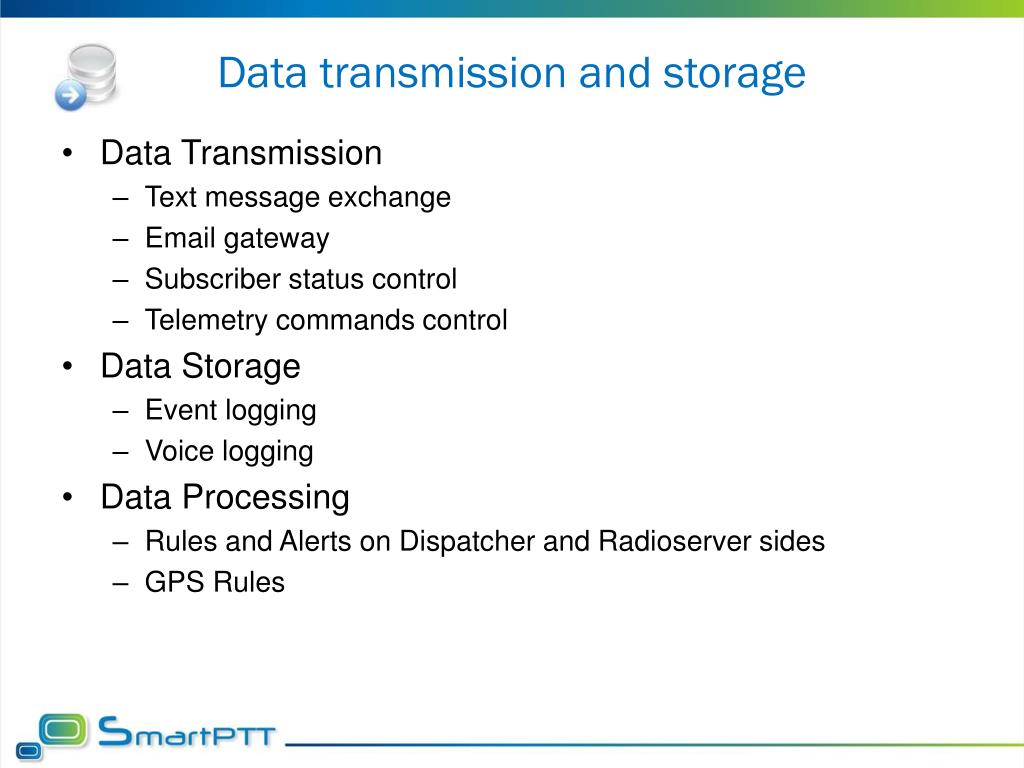

  8. Data transmission and storage • Data Transmission • Text message exchange • Email gateway • Subscriber status control • Telemetry commands control • Data Storage • Event logging • Voice logging • Data Processing • Rules and Alerts on Dispatcher and Radioserver sides • GPS Rules

  9. Event Log

  10. Telephone Interconnect • Telephone Interconnect can be initiated by: • Telephone subscriber (dial Radio IDor Group ID from telephone set) • Radio subscriber (dial phone number with keypad, sending text message) • Dispatcher Console

  11. Intelligent Bridging Service

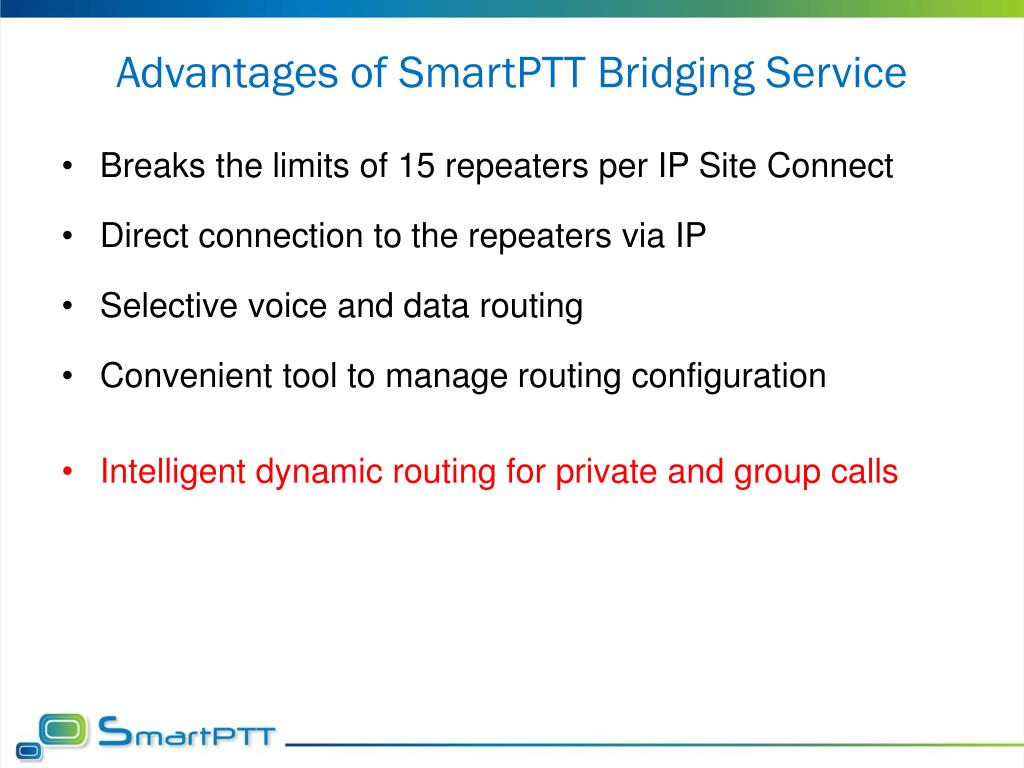

  12. Advantages of SmartPTT Bridging Service • Breaks the limits of 15 repeaters per IP Site Connect • Direct connection to the repeaters via IP • Selective voice and data routing • Convenient tool to manage routing configuration • Intelligent dynamic routing for private and group calls

  13. SmartPTT Monitoring In-depth analysis and control over connected MOTOTRBO infrastructure • Real Time Monitoring • Coverage Map • Network Topology • Hardware Diagnostics • Monitoring Analytics • Monitoring Reports

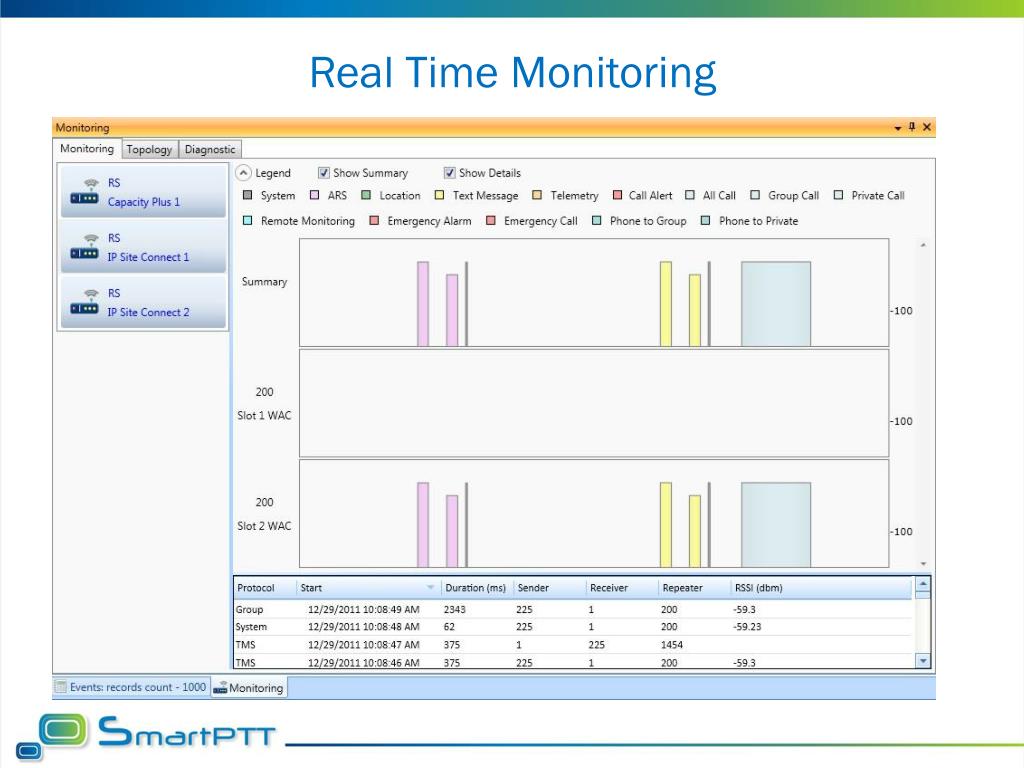

  14. Real Time Monitoring

  15. Hardware Diagnostics

  16. Coverage Map

  17. SmartPTT Architecture Approaches

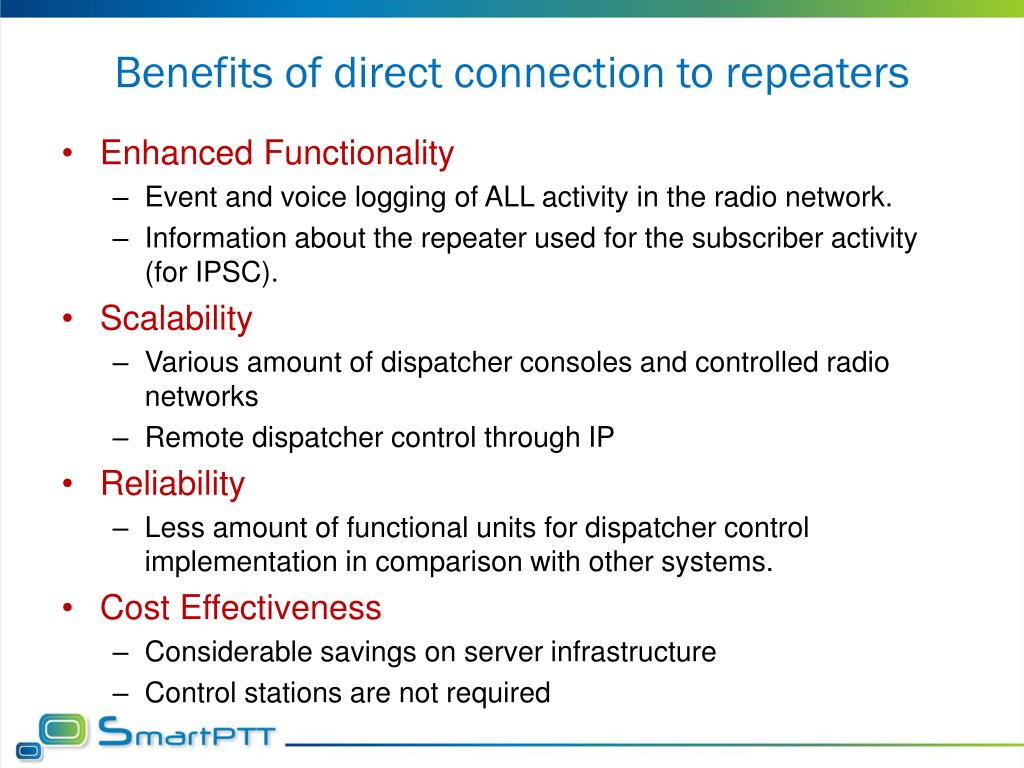

  18. Benefits of direct connection to repeaters • Enhanced Functionality • Event and voice logging of ALL activity in the radio network. • Information about the repeater used for the subscriber activity (for IPSC). • Scalability • Various amount of dispatcher consoles and controlled radio networks • Remote dispatcher control through IP • Reliability • Less amount of functional units for dispatcher control implementation in comparison with other systems. • Cost Effectiveness • Considerable savings on server infrastructure • Control stations are not required

  19. Reliable Architecture • Multiple Radioservers connected from the Dispatch Console • Distributed log storage (at both Radioserver and Dispatch Console) • Offline mode for Dispatch Consoles

  20. SmartPTT Target Areas • Heat and power industry • Oil and gas transportation • Oil refactoring • Mining • Chemical industry • Power distribution • Emergency services • Transportation • Airports • Safeguarding

  21. Key Benefits of SmartPTT & MotoTRBO

  22. SmartPTT & MOTOTRBO vs. Tetra and MPT1327

  23. Service & Consulting • Technical support • 3 SmartPTT engineers • 3 Radio engineers • 3 Telephone engineers • 2 Network engineers • Certified by Motorola, Cisco, LG, Coral, MiniCom… • Remote support by • System deployment consulting • Over 17 years of experience • Technical trainings • System Design Office • Marketing support

  24. Case studies

  25. Shell Refinery, Malaysia • GPS monitoring • Voice and event logging • CapacityPlus • 2 voice + 2 data revert channels • 250 subscribers

  26. SAMU – Ambulance, Brazil • GPS monitoring • Voice and events logging • IP Site Connect for 2 sites • 70 subscribers • 7 dispatchers

  27. EMDEC – Public Transportation Authority, Brazil • GPS Monitoring • Voice and events logging • Voice calls from dispatch consoles • 4 sites • 5 dispatchers • 250 subscribers

  28. Centrovias – Autobahn, Brazil • GPS Monitoring • Voice calls from dispatch consoles • Voice and events logging • 120subscribers • 18sites • 6dispatchers

  29. FCA – Railways, Brazil • GPS Monitoring • Voice calls from dispatch consoles • Voice and events logging • 500subscribers • 20sites • 3dispatchers

  30. PDI – Investigations Police, Chile • Voice and events logging • Voice calls from dispatch consoles • 4 sites • 90 subscribers • 2 dispatchers

  31. Advanced Elastomers – Chemical plant, UK • Telephone interconnect • Voice and events logging • Voice calls from dispatch consoles • 50 subscribers • 2 dispatchers

  32. RapidKL – Public Transportation, Malaysia • GPS monitoring • Events and voice logging • 1600 subscribers at final stage

  33. RussNeft – 2 oilfields, Russia • GPS monitoring • Voice and events logging • Voice calls from dispatch consoles • 1 voice channel + 1 data revert channel

  34. Emergency Service, Komi Republic, Russia • Voice calls and logging • Telephone interconnect • Over 50 regional fire brigades • Central Dispatch Console at HQ
