Rubono setiawan m sc

Rubono Setiawan, M.Sc.

Analytic Geometry of SpaceSecond Lecture


Contents
Contents

  • Orthogonal Projection

  • Direction Cosines of a line

  • Angle Between Two Directed Lines


1 orthogonal projection

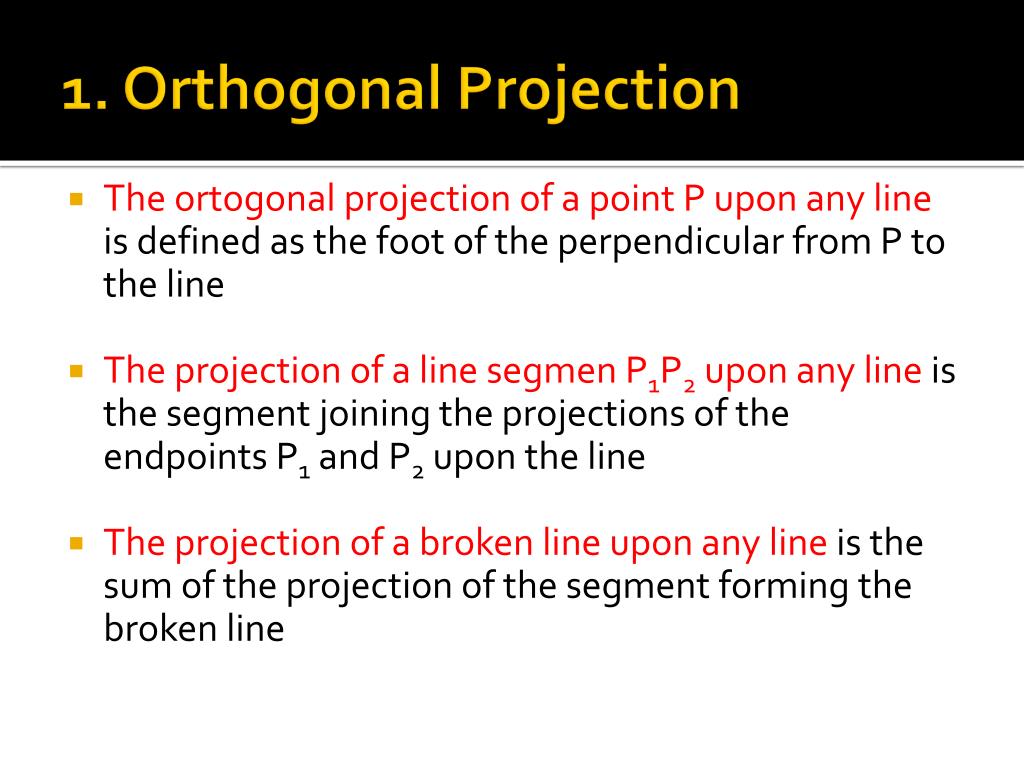

1. Orthogonal Projection

  • The ortogonal projection of a point P upon any line is defined as the foot of the perpendicular from P to the line

  • The projection of a line segmen P1P2 upon any line is the segment joining the projections of the endpoints P1 and P2 upon the line

  • The projection of a broken line upon any line is the sum of the projection of the segment forming the broken line


1 orthogonal projection1
1. Orthogonal Projection

  • Example


1 orthogonal projection2
1. Orthogonal Projection

  • The orthogonal projection of a point on a plane is the foot of the perpendicular from the point to a plane.

  • The orthogonal projection on plane of a segment PQ of a line is the segment P’Q’ joining the projections P’ and Q’ of P and Q on the plane


1 orthogonal projection3

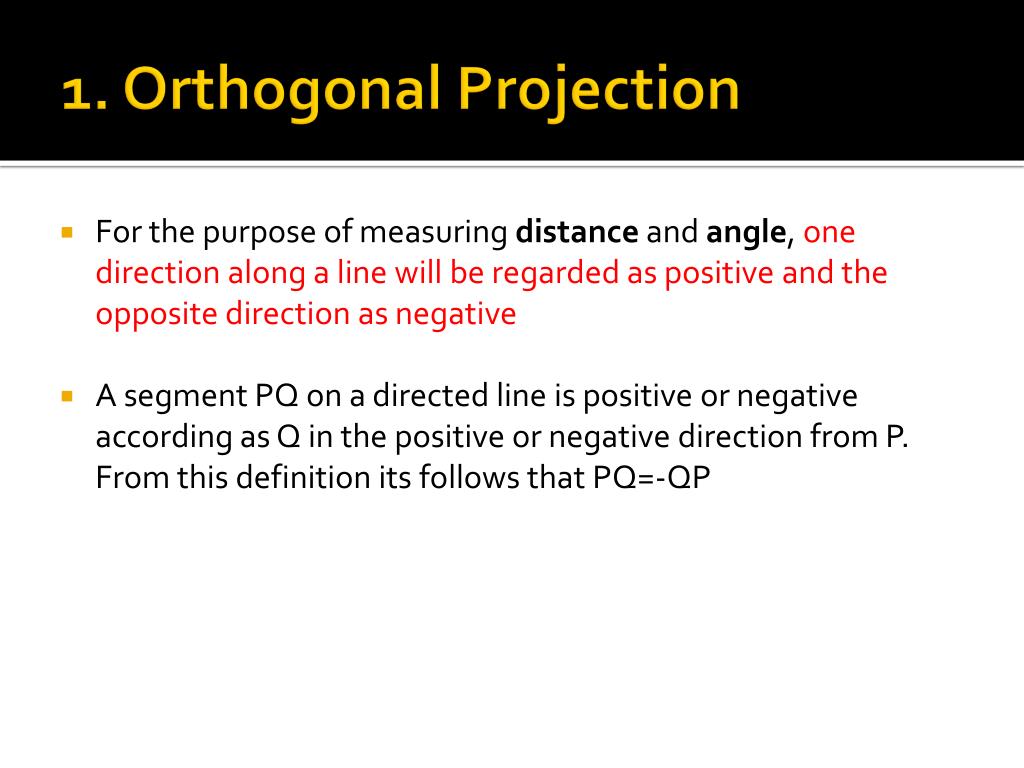

1. Orthogonal Projection

  • For the purpose of measuring distance and angle, one direction along a line will be regarded as positive and the opposite direction as negative

  • A segment PQ on a directed line is positive or negative according as Q in the positive or negative direction from P. From this definition its follows that PQ=-QP


2 direction cosine s of a line

z

P3



C

P2

P

B

y

O

A

P1

x

2. Direction Cosines of a Line

  • Given a direct line  in 3D rectangular coordinate system. The angle , ,  formed by this line with the positive x-, y-, and z-axis are called direction angle.

  • If we make a direct line ’, parallel to  trough the origin and point P (x,y,z). The direction angles of ' is also the direction angle of 

  • The cosine of these angles

    are the direction cosines

    of the line

    l= cos  = x/|OP|

    m=cos  = y/|OP|

    n=cos  = z/|OP|


2 direction cosine s of a line1
2. Direction Cosines of a Line

  • In fact that

    |OP|=

  • We can easily get

    cos2 + cos2 + cos2 =

  • Consider any line (not necessarily trough the origin) whose direction cosines are proporsional to three numbers a, b, c,

    a:b:c= cos : cos : cos

    a,b, and c arecalled direction components of 

  • Now the problem is How to determine direction cosine form known a, b, and c?

  • We use square bracket to denote direction component as [a, b, c] to distinguish it with coordinates (x, y, z)


2 direction cosine s of a line2
2. Direction Cosines of a Line

  • Let

    cos = a ; cos = b; and cos = c

  • Find  so that

    cos2 + cos2 + cos2 = 1

    (a2 + b2 + c2) 2 = 1

     =

    So we get


2 direction components of the line t h rough two points

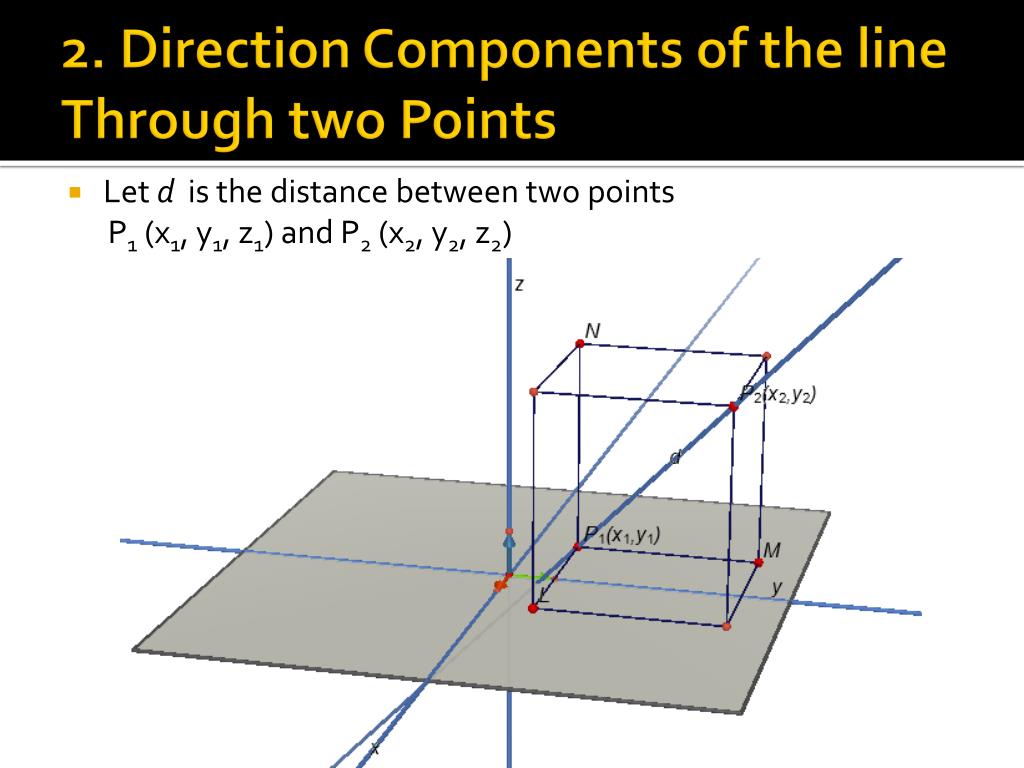

2. Direction Components of the line Through two Points

  • Let d is the distance between two points

    P1 (x1, y1, z1) and P2 (x2, y2, z2)


2 direction components of the line t h rough two points1
2.Direction Components of the line Through two Points

  • The direction cosines of the line P1P2 are

    l=cos  = |P1L|/d= (x2-x1)/d

    m= cos  =|P1M|/d= (y2-y1)/d

    n =cos  = |P1N|/d =(z2-z1)/d

  • Hence, a set of direction component of the line joiningP1the points (x1, y1, z1) andP2 (x2, y2, z2) is [x2-x1, y2-y1, z2-z1]


3 angle between two directed lines

z

2 : 2, 2, 2

1 : 1, 1, 1

P

O

y

R

P1

x

3. Angle between Two Directed lines

  • Let line 1 and 2 are two lines intersecting at the origin with direction angle 1, 1, 1 and 2, 2, 2

  • What is ?

  • Let P(x,y,z) a point

    on 1

    x = r cos 1,

    y = r cos 1,

    z = r cos 1


3 angle between two directed lines1

z

2 : 2, 2, 2

1 : 1, 1, 1

P

O

y

R

P1

x

3. Angle Between Two Directed lines

  • If |OP|=r, OP’ is projection segment OP upon 2 we get length of OP’ is

    |OP’|=r cos

  • In other side we can get this OP’ by make projection of broken segment ORP1P upon 2 as OR’P1’P’

    |OR’P1’P’| =

    x cos2 + y cos2, + z cos2


3 angle between two directed lines2

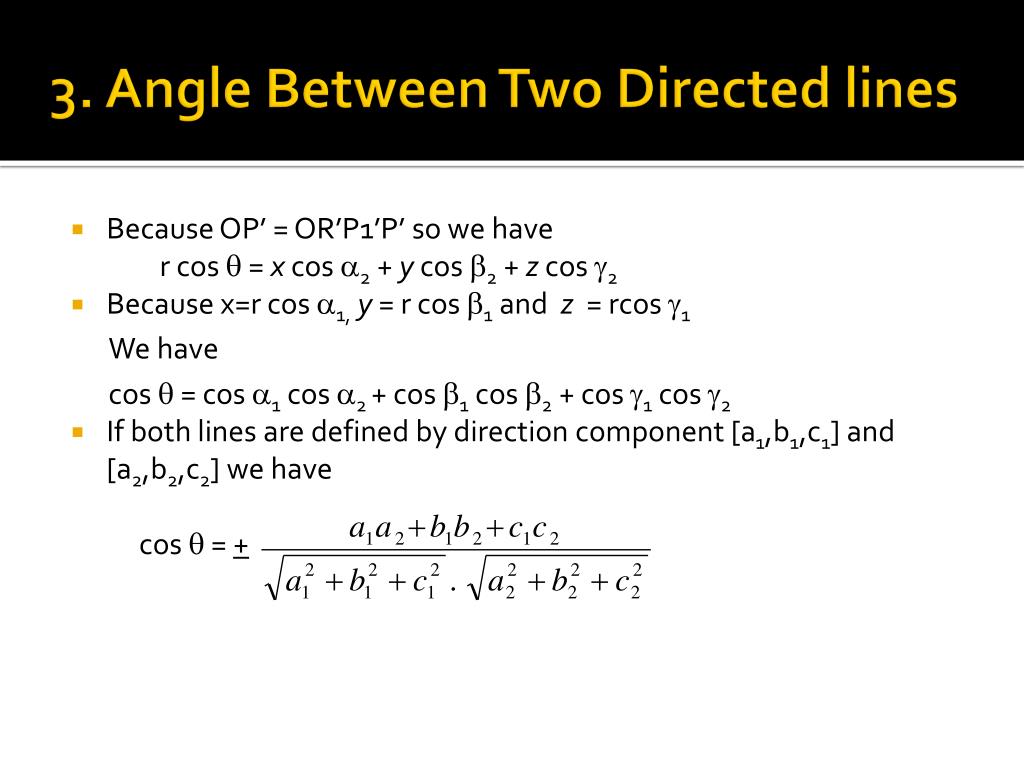

3. Angle Between Two Directed lines

  • Because OP’ = OR’P1’P’ so we have

    r cos = xcos2 + ycos2 + zcos2

  • Because x=r cos1,y = r cos1 and z = rcos1

    We have

    cos = cos1cos2 + cos­1cos2 + cos1cos2

  • If both lines are defined by direction component [a1,b1,c1] and [a2,b2,c2] we have

    cos = +


3 angle between two directed lines3

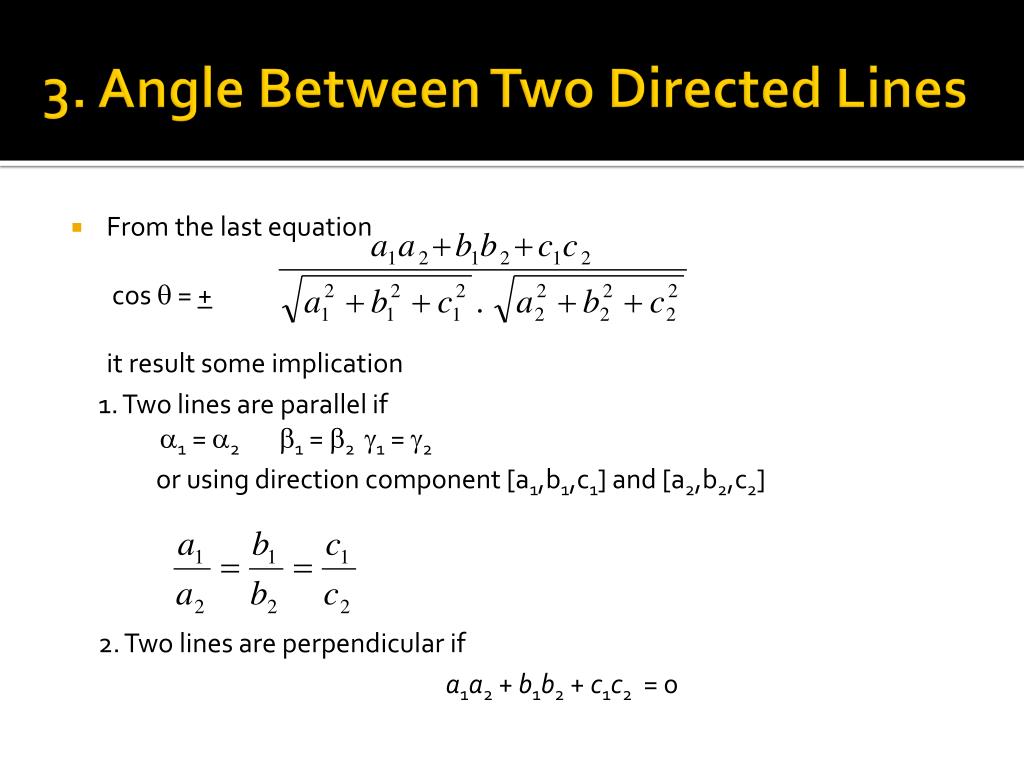

3. Angle Between Two Directed Lines

  • From the last equation

    cos = +

    it result some implication

    1. Two lines are parallel if

    1 = 21 = 21 = 2

    or using direction component [a1,b1,c1] and [a2,b2,c2]

    2. Two lines are perpendicular if

    a1a2 + b1b2 + c1c2 = 0


3 angle between two directed lines4

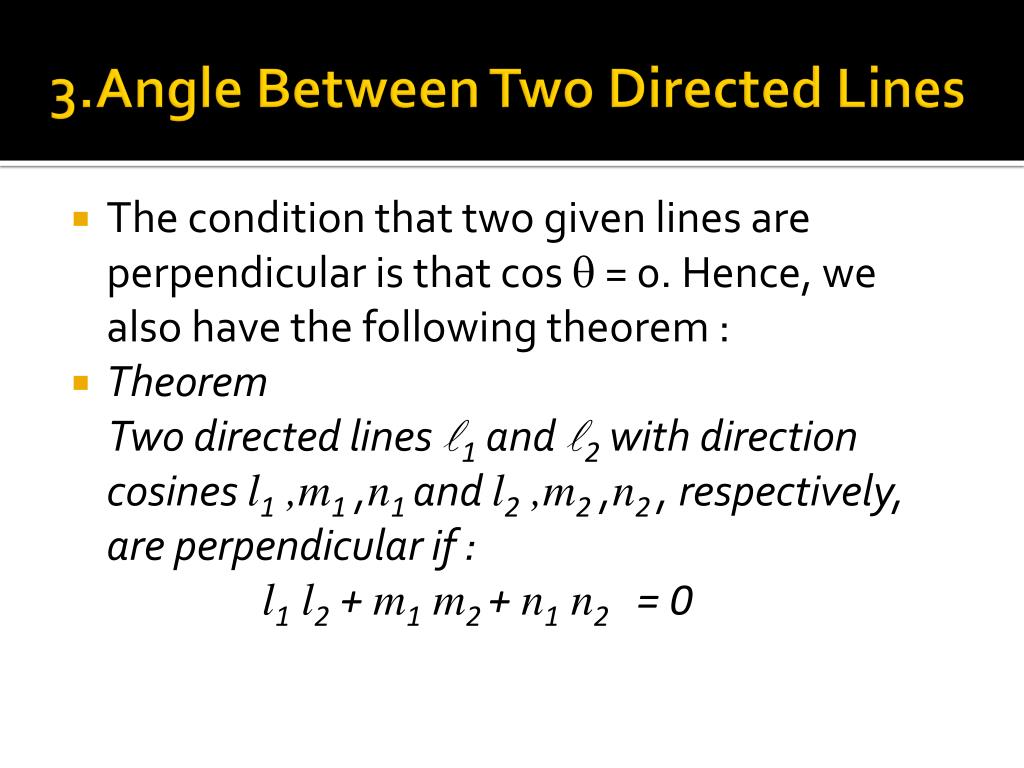

3.Angle Between Two Directed Lines

  • The condition that two given lines are perpendicular is that cos = 0. Hence, we also have the following theorem :

  • Theorem

    Two directed lines 1 and 2 with direction cosines l1,m1 ,n1 and l2,m2 ,n2, respectively, are perpendicular if :

    l1 l2 + m1 m2 + n1 n2 = 0


4 set of problems 1
4. Set Of Problems - 1

  • Show that the quadriliteral with vertices (5,1,1), (3,1,0), (4,3,-2), and (6,3,-1) is a rectangle

  • Find the area of the triangle with the given points A(2,2,-1), B(3,1,2) and C(4,2,-2)

  • What is known about the direction of a line if a.) cos α = 0 b.) cos α=0 and cos β=0

    c.) cos α = 1.

  • Find the direction cosines of a line which makes equal angles with the coordinate axes.

  • A line has direction cosines l =cos = 3/10, m = cos= 2/5. What angle does it make with z-axis? If thisline pass through the origin give a point that passed through by this line and sketch it!


4 set of problems 2
4. Set Of Problems-2

  • Find the angle between two lines whose direction component are

    and
