Rethinking Networking: Emerging Architectures for a Post-IP Era

In the modern digital landscape, the Internet Protocol (IP) showcases limitations due to its design, affecting node mobility, the Internet of Things (IoT), and management complexities. This paper explores the need for transitioning to Post-IP architectures, addressing research challenges and potential solutions such as Autonomic Networks and Role-Based Architectures. We discuss the possibility of redesigning the Internet to support seamless multimedia content delivery, mobility, and improved management. New innovations in architecture must consider security, dependability, and the need for compatibility with existing technologies.

lance
Download Presentation

Rethinking Networking: Emerging Architectures for a Post-IP Era

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Emerging Architectures for Post-IP Networking* Daniel F. Macedo1, Aldri L. dos Santos2,Guy Pujolle1 1 Université Pierre et Marie Curie-Paris VI, France 2 Federal University of Paraná, Brazil *This work has been partially financed by CNPq, a funding organization from the science and technology ministry, Brazil.

  2. Outline Why should we replace IP? Post-IP Architectures Research Challenges and Directions in Post-IP

  3. The Internet Nowadays IP was very well-designed, being used for more than 30 years now IP is a victim of its own success: new scenarios with significant challenges: • Node mobility • The Internet of things: small, restricted devices

  4. Why should we replace IP networks? Need to decouple routing and addressing! IP is used for identification and routing • It changes when stations roam from one network to another to allow proper routing • Packets addressed to the ancient IP of a station are routed to the old network, breaking connections

  5. Why should we replace IP networks? The End-to-End (E2E) principle is frequently violated • Smart middle-boxes, e.g. NAT and proxies that break other E2E applications • Proxies do not work with SSL connections • NATs are not compatible with P2P • Context-aware networks

  6. Why should we replace IP networks? Too difficult to be managed by humans • Too many nodes • Changes are frequent due to mobility Shift from operator-based management to autonomic-based management Scalable self-organizing solutions, where local decisions lead to near optimal global behavior

  7. An Overview of Post-IP Architectures

  8. AdaptNet Goals • Support mobile users roaming among BSs • Deliver multimedia content over wireless links • IP-compatible Solution: heavy use of cross-layering • Proactively opens TCP connections before handover to allow seamless operation • Automatically changes the codec in the app. Layer

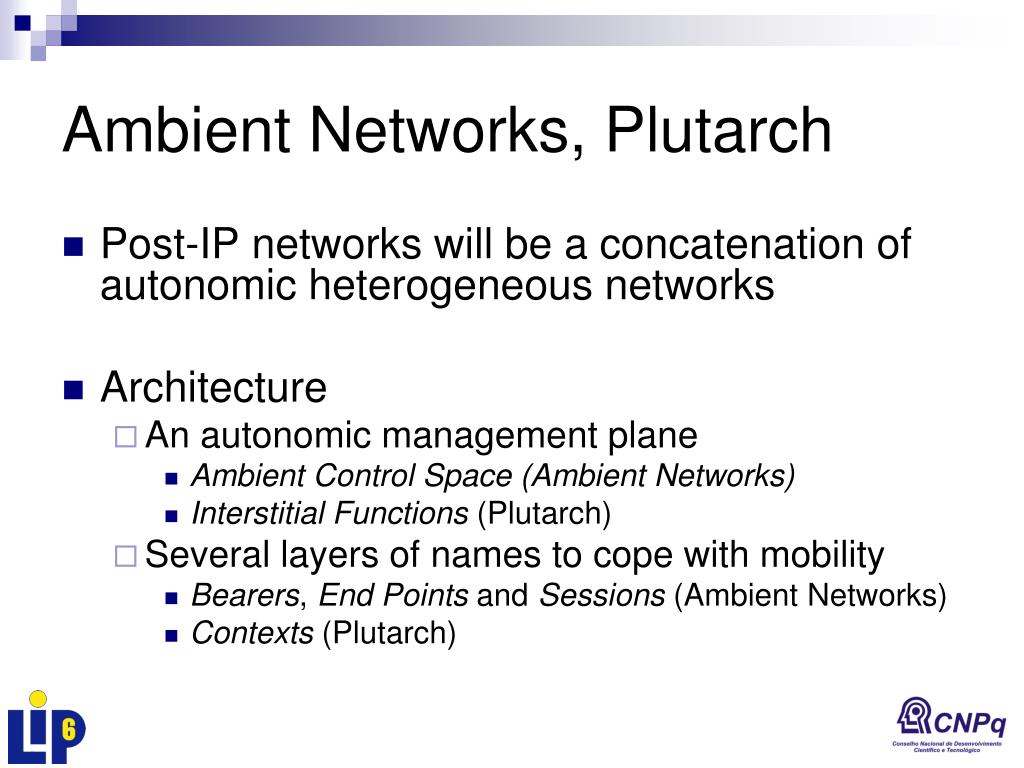

  9. Ambient Networks, Plutarch Post-IP networks will be a concatenation of autonomic heterogeneous networks Architecture • An autonomic management plane • Ambient Control Space (Ambient Networks) • Interstitial Functions (Plutarch) • Several layers of names to cope with mobility • Bearers, End Points and Sessions (Ambient Networks) • Contexts (Plutarch)

  10. Ambient Networks

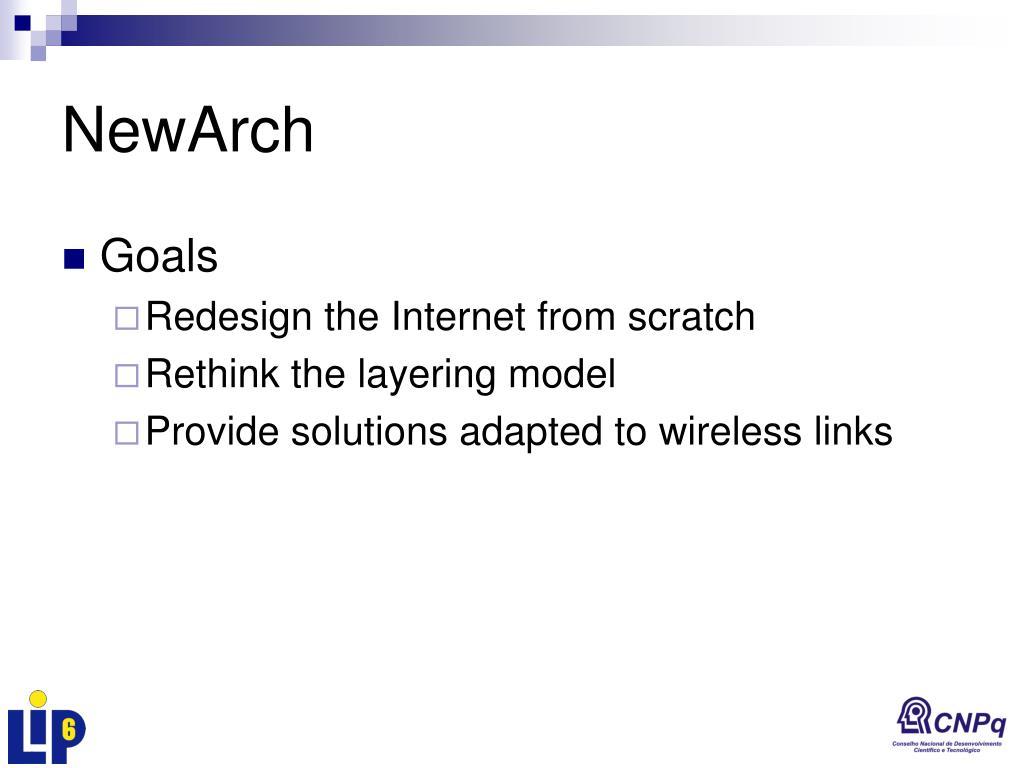

  11. NewArch Goals • Redesign the Internet from scratch • Rethink the layering model • Provide solutions adapted to wireless links

  12. NewArch The RBA architecture • Role-based forwarding • Improvement of active networks, where roles define the code to be executed in routers • Resembles the stratum paradigm Addressing mobility • Three levels of naming, allowing node and agent mobility

  13. Challenges and Directions

  14. Challenges and Directions An urgent need to rethink layering • IP is hard to kill: Post-IP must support old equipment • Autonomic management of post-IP networks • No attention has been given to • Emergent networks (ad hoc, WSNs, home networks) • QoS • Security

  15. Challenges and Directions Security and Dependability • Standards (benchmarks, tools, etc…) to validate the dependability and security of networks Large scale test-beds • Fast, low-cost testing of new protocols of planetary-scale networks • Several initiatives: PlanetLab, VINI, GENI Virtualization

  16. Questions? Daniel.Macedo@rp.lip6.fr
