  1. PETE 216 Reservoir Rock and Fluid Properties Fall 2006-2007 Dr. Mahmut Parlaktuna CONVENTIONAL PVT MEASUREMENTS PETE 216

  2. STANDARD PVT TESTS Compositional Analysis (CA) Multistage Separation (MSS) Constant Composition Expansion (CCE) (Flash vaporization test) Differential Liberation Expansion (DLE) (Differential vaporization test) Constant Volume Depletion (CVD) PETE 216

  3. PETE 216

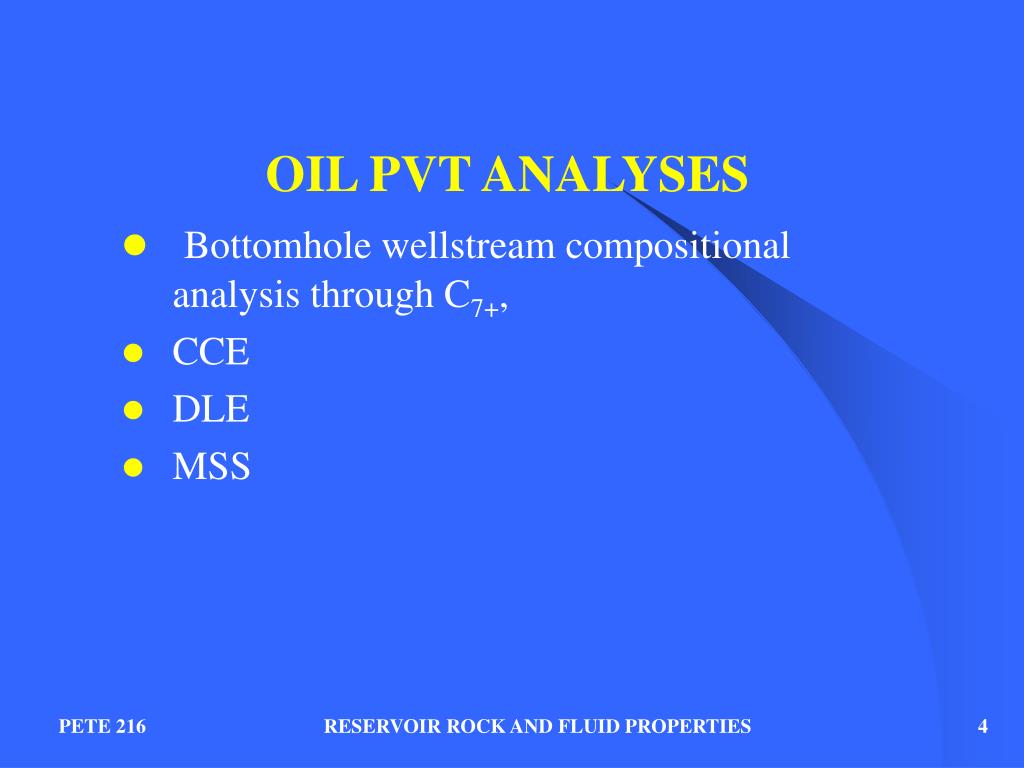

  4. OIL PVT ANALYSES Bottomhole wellstream compositional analysis through C7+, CCE DLE MSS PETE 216

  5. COMPOSITIONAL ANALYSIS GAS CHROMATOGRAPHY (GC) LIQUID CHROMATOGRAPHY (LC) PETE 216

  6. PETE 216

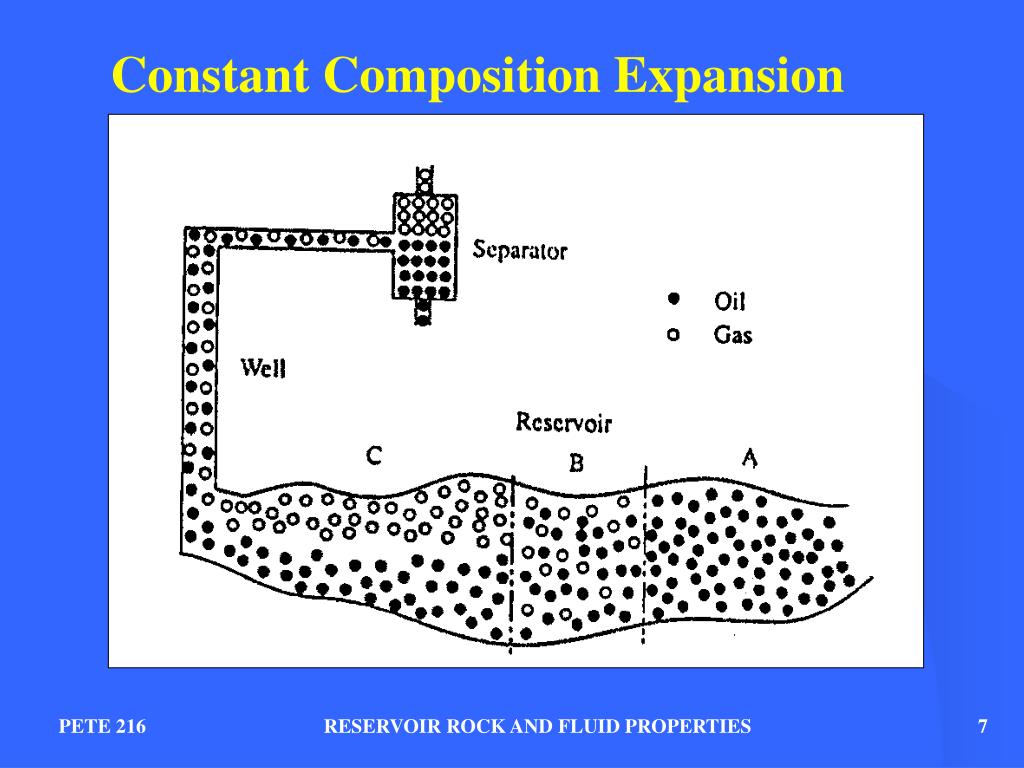

  7. Constant Composition Expansion PETE 216

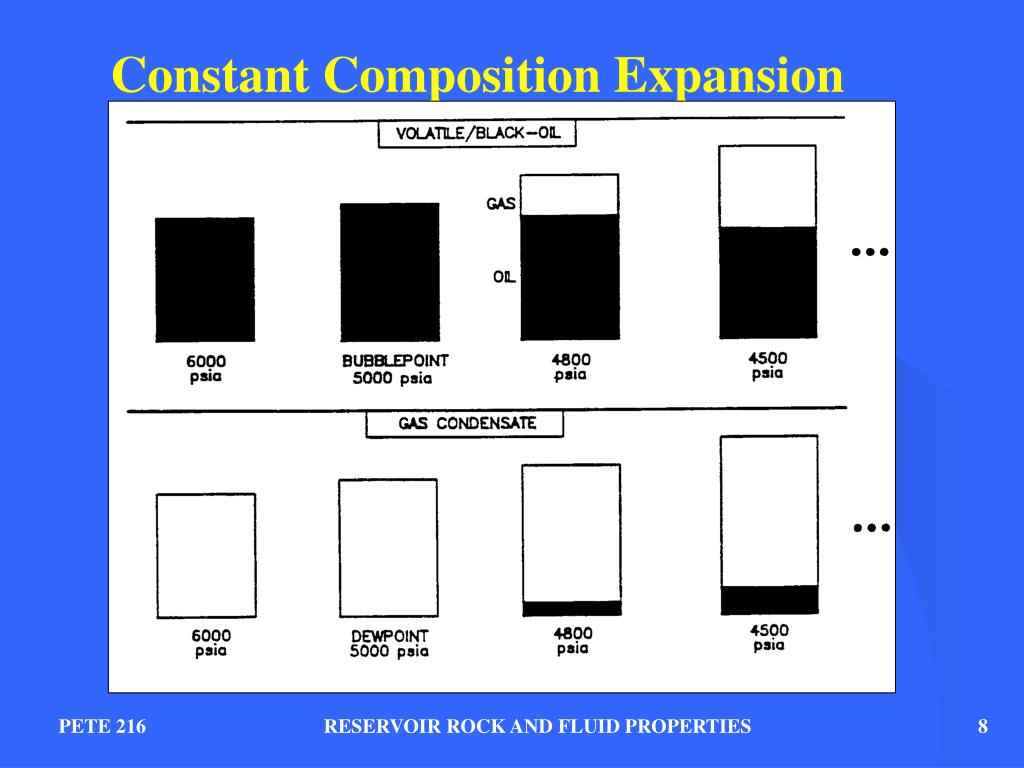

  8. Constant Composition Expansion PETE 216

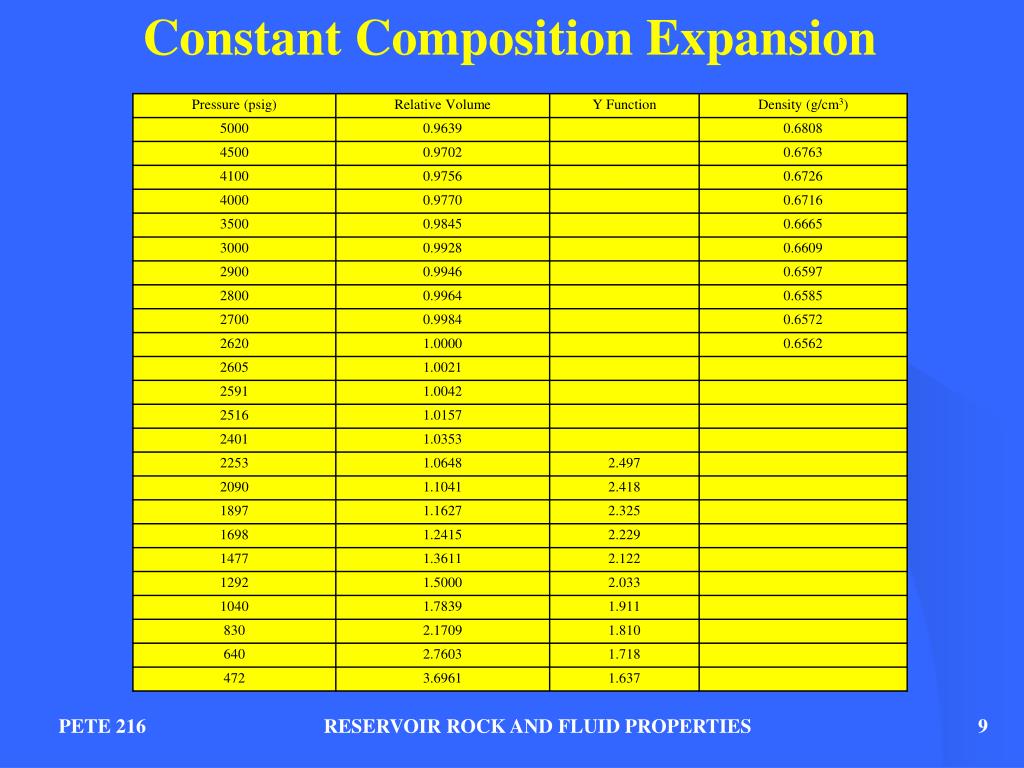

  9. Constant Composition Expansion PETE 216

  10. Constant Composition Expansion PETE 216

  11. Constant Composition Expansion Above bubblepoint PETE 216

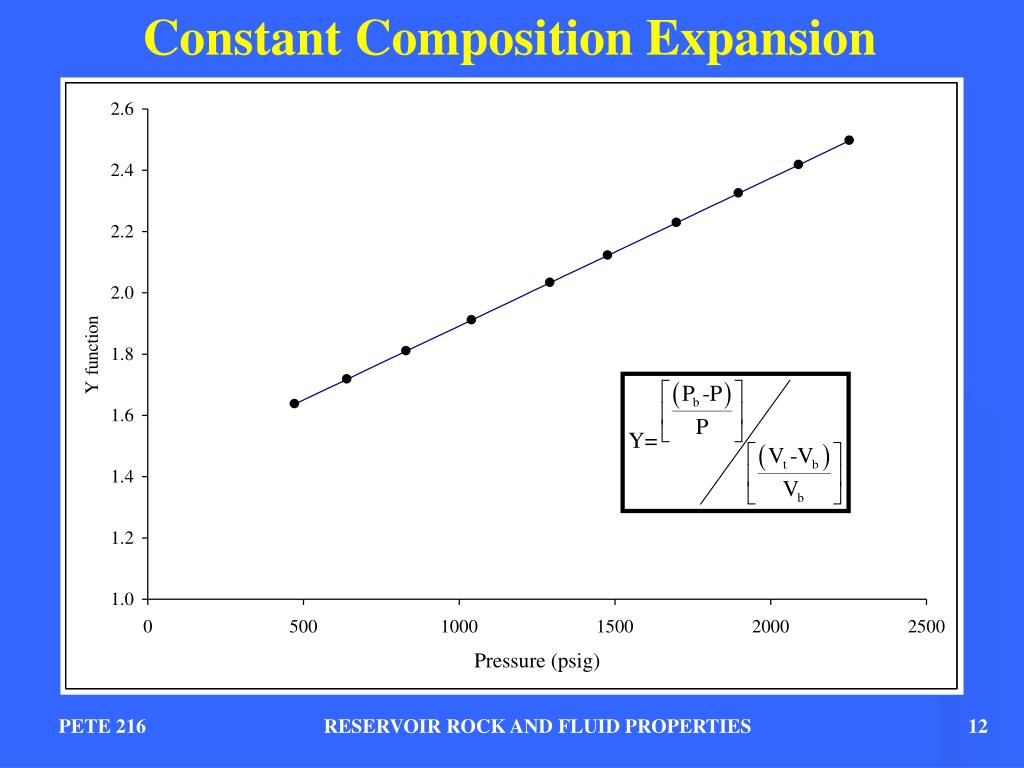

  12. Constant Composition Expansion PETE 216

  13. Differential Liberation Expansion PETE 216

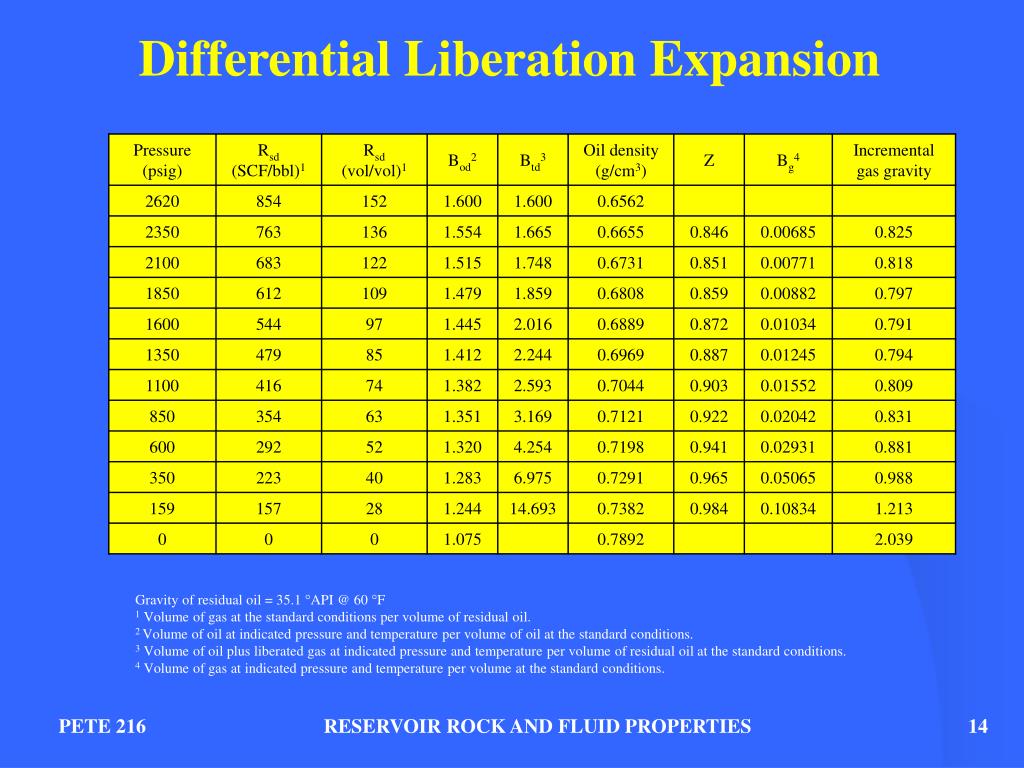

  14. Differential Liberation Expansion Gravity of residual oil = 35.1 °API @ 60 °F 1 Volume of gas at the standard conditions per volume of residual oil. 2 Volume of oil at indicated pressure and temperature per volume of oil at the standard conditions. 3 Volume of oil plus liberated gas at indicated pressure and temperature per volume of residual oil at the standard conditions. 4 Volume of gas at indicated pressure and temperature per volume at the standard conditions. PETE 216

  15. Multistage Separation Test PETE 216

  16. Multistage Separation Test 1 GOR per barrel of oil at indicated pressure and temperature. 2 GOR per barrel of stock-tank oil at 60 °F. 3 FVF per barrel of stock-tank oil at 60 °F. 4 Separator oil volume factor per barrel of stock-tank oil at 60 °F. PETE 216

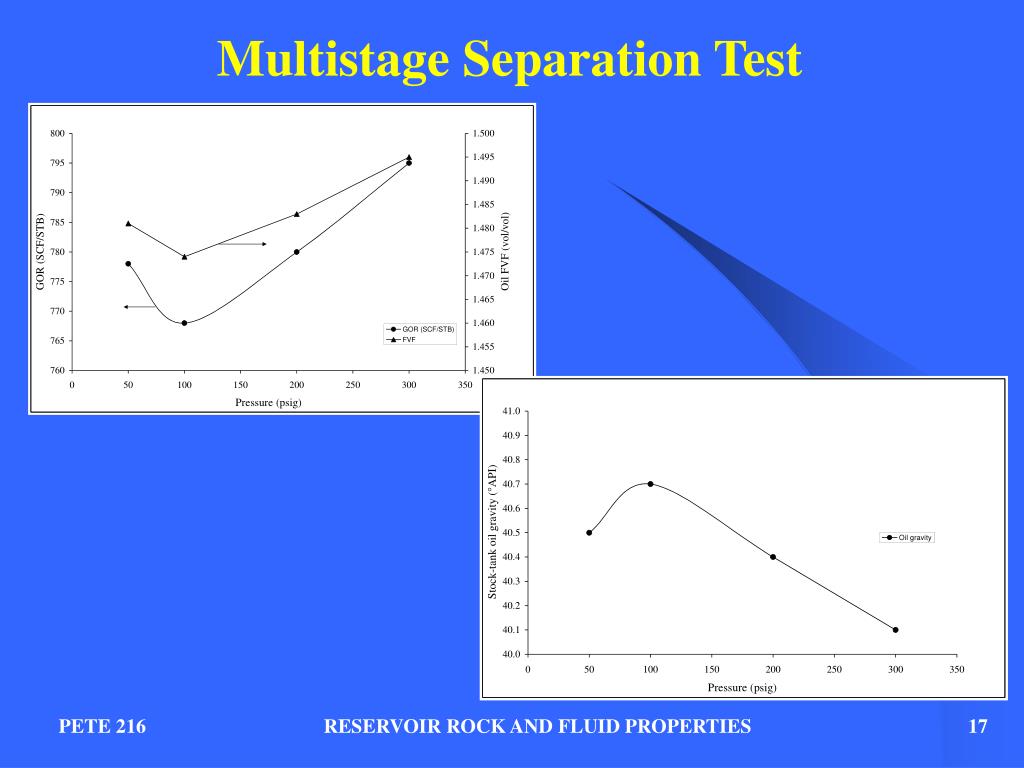

  17. Multistage Separation Test PETE 216

  18. GAS CONDENSATE PVT ANALYSES Recombined Wellstream Compositional Analysis (CA) Constant Composition Expansion (CCE) (Flash vaporization test) Constant Volume Depletion (CVD) PETE 216

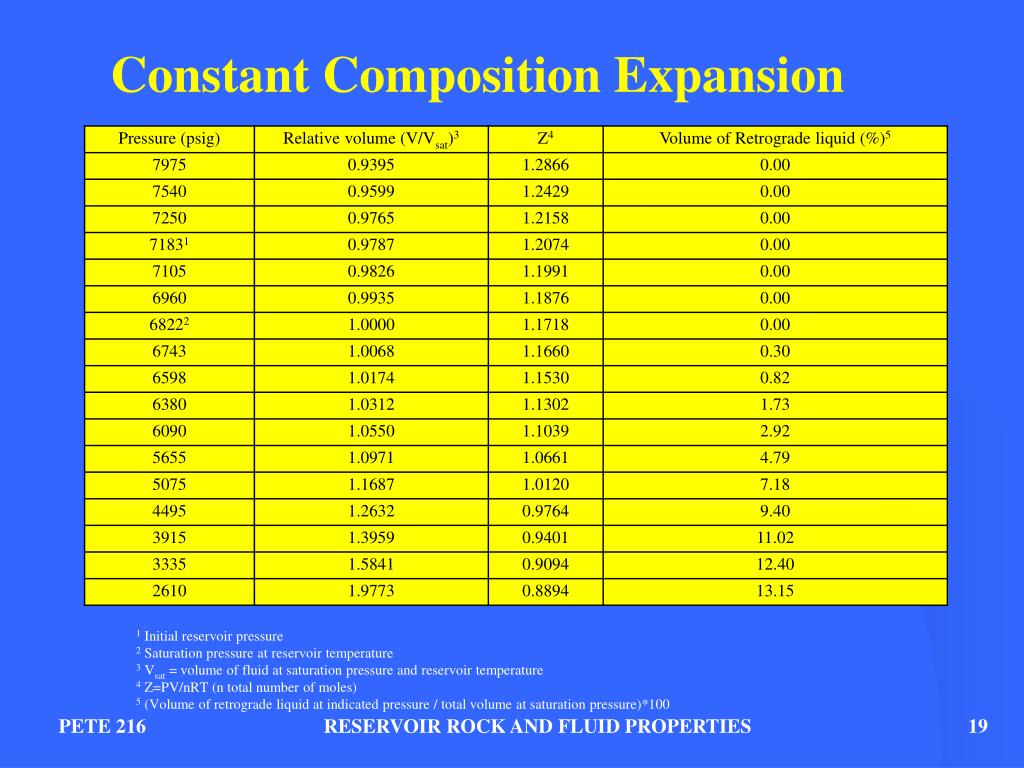

  19. Constant Composition Expansion 1 Initial reservoir pressure 2 Saturation pressure at reservoir temperature 3 Vsat = volume of fluid at saturation pressure and reservoir temperature 4 Z=PV/nRT (n total number of moles) 5 (Volume of retrograde liquid at indicated pressure / total volume at saturation pressure)*100 PETE 216

  20. Constant Composition Expansion PETE 216

  21. Constant Volume Depletion PETE 216

  22. Constant Volume Depletion PETE 216

  23. Constant Volume Depletion PETE 216

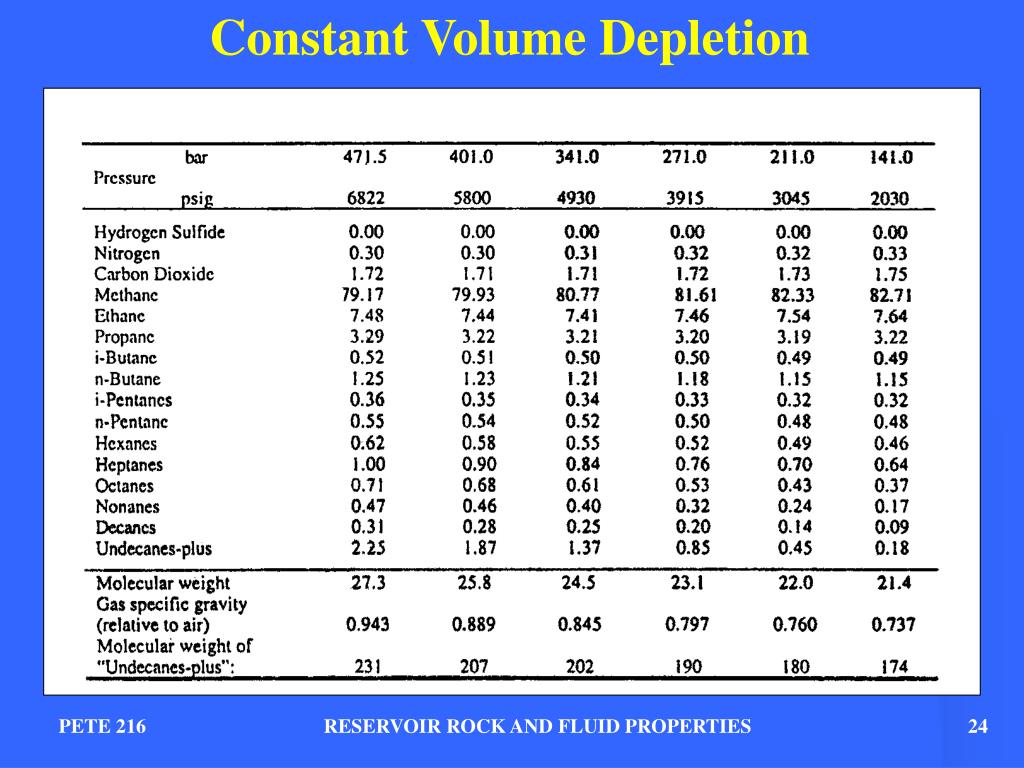

  24. Constant Volume Depletion PETE 216

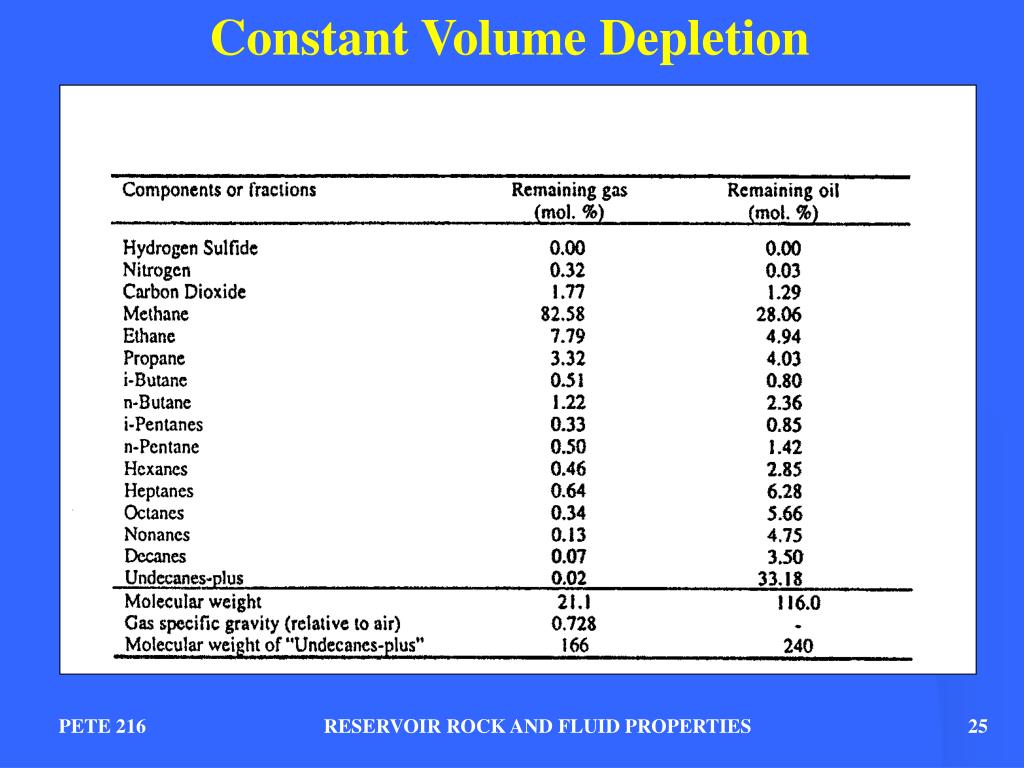

  25. Constant Volume Depletion PETE 216
