differentiation in economics objectives 1
Differentiation in Economics –Objectives 1
  • Understand that differentiation lets us identify marginal relationships in economics
  • Measure the rate of change along a line or curve
  • Find dy/dx for power functions and practise the basic rules of differentiation
  • Apply differentiation notation to economics examples
differentiation in economics objectives 2
Differentiation in Economics–Objectives 2
  • Differentiate a total utility function to find marginal utility
  • Obtain a marginal revenue function as the derivative of the total revenue function
  • Differentiate a short-run production function to find the marginal product of labour
differentiation in economics objectives 3
Differentiation in Economics –Objectives 3
  • Understand the relationship between total cost and marginal cost
  • Measure point elasticity of demand and supply
  • Find the investment multiplier in a simple macroeconomic model
differentiation
Differentiation
  • Differentiation provides a technique of measuring the rate at which one variable alters in response to changes in another
changes for a linear function
Changes for a Linear Function
  • For a linear function
  • The rate of change of y with respect to x is measured by
  • The slope of the line =
differentiation terminology

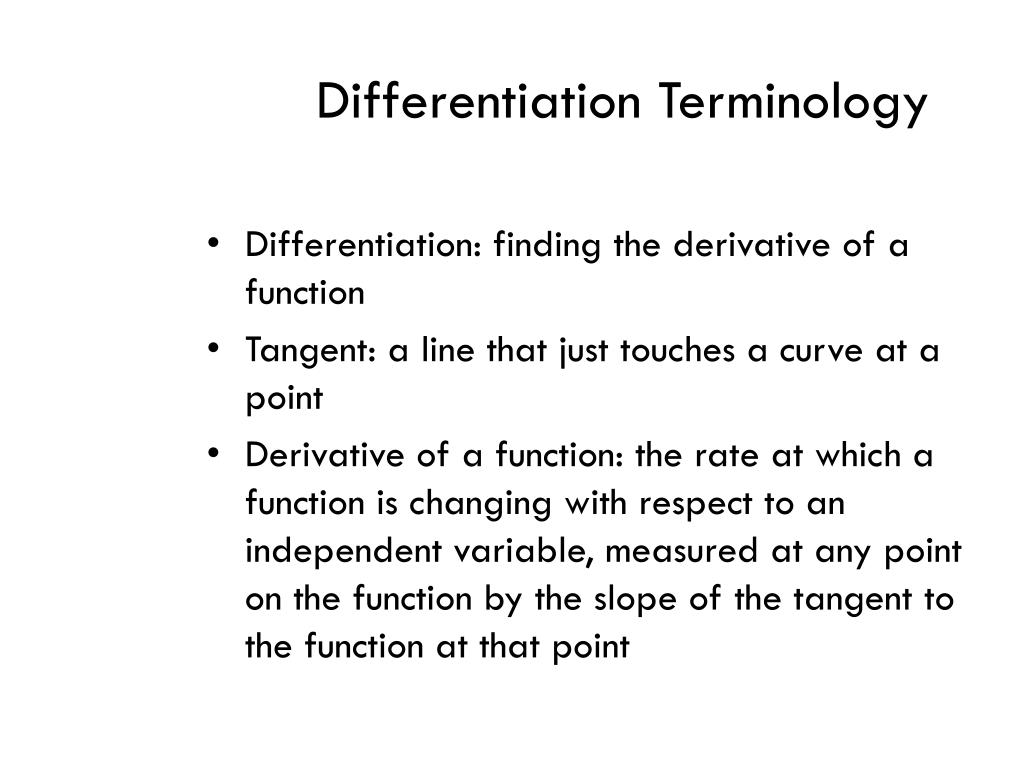

Differentiation Terminology
  • Differentiation: finding the derivative of a function
  • Tangent: a line that just touches a curve at a point
  • Derivative of a function: the rate at which a function is changing with respect to an independent variable, measured at any point on the function by the slope of the tangent to the function at that point
derivatives
Derivatives
  • The derivative of y with respect to x is

denoted

  • The expression

should be regarded as a single symbol and you should not try to work separately with parts of it

using derivatives
Using Derivatives
  • The derivative

is an expression that measures the slope of the tangent to the curve at any point on the function y = f(x)

  • A derivative measures the rate of change of y with respect to x and can only be found for smooth curves
  • To be differentiable, a function must be continuous in the relevant range
slide9
Tangents at points A, B and CThe slope of the tangent at A is steeper than that at B; the tangent at C has a negative slope
working with derivatives
Working with Derivatives
  • The derivative

is itself a function of x

  • If we wish we can evaluate

for any particular x value by substituting that value of x

small increments formula
Small Increments Formula
  • For small changes Dx it is approximately true that

D y = Dx.

  • We can use this formula to predict the effect on y,Dy, of a small change in x, Dx
  • This method is approximate and is valid only for small changes in x
rules of differentiation for functions of the form y f x
Rules of Differentiation for Functions of the Form y = f(x)
  • The Constant Rule

Constants differentiate to zero, i.e. if y = c where c is a constant

= 0

slide13

Power-Function Rule

  • If y = axn where a and n are constants

= n.axn–1

  • Multiply by the power, then subtract 1 from the power
slide14

Constant Times a Function Rule

  • Another way of handling the constant a in the function y = a.f(x) is to write it down as you begin differentiating and multiply it by the derivative of f(x)

=

  • The derivative of a constant times a function is the constant times the derivative of the function
indices in differentiation
Indices in Differentiation
  • When differentiating power functions, remember the following from the rules of indicesx1 = x x0 = 1

= x – n

x = x0.5 = x1/2

slide16

Sum – Difference Rule

  • If y = f(x) + g(x)

=

  • If y = f(x) – g(x)

=

  • The derivative of a sum (difference) is the sum (difference) of the derivatives
slide17

Linear – Function Rule 1

  • If y = c + mx

= m

  • The derivative of a linear function is the slope of the line
slide18

Linear – Function Rule 2

  • If y = mx

= m

  • The derivative of a constant times the variable with respect to which we are differentiating is the constant
slide19

Inverse Function Rule

  • To find dy/dx, we may obtain dx/dy and turn it upside down, i.e.

=

  • There must be just one y value corresponding to each x value so that the inverse function exists
when differentiating
When Differentiating
  • Ascertain which letters represent constants
  • Identify the variable with respect to which you are differentiating and use it as x in the rules
utility functions
Utility Functions
  • To find an expression for marginal utility, differentiate the total utility function
  • If total utility is given by U = f(x)
  • MU =
revenue functions
Revenue Functions
  • To find marginal revenue, MR, differentiate total revenue, TR, with respect to quantity, Q
  • If TR = f(Q)
  • MR =
short run production functions
Short-run Production Functions
  • The marginal product of labour is found by differentiating the production function with respect to labour
  • If output produced, Q, is a function of the quantity of labour employed, L, then
  • Q = f(L)
  • MPL =
total and marginal cost
Total and Marginal Cost
  • Marginal cost is the derivative of total cost, TC, with respect to Q, the quantity of output, i.e.
  • MC =
  • When MC is falling, TC bends downwards When MC is rising, TC bends upwards
variable and marginal cost
Variable and Marginal Cost
  • Marginal cost is also the derivative of variable cost, VC, with respect to Q, i.e.
  • MC =
point elasticity of demand and of supply
Point Elasticity of Demand and of Supply
  • Point price elasticity =
  • For price elasticity of demand use the equation for the demand curve
  • Differentiate it to find dQ/dP then substitute as appropriate
  • Supply elasticity is found from the supply equation in a similar way
finding point elasticities
Finding Point Elasticities
  • Point price elasticity =
  • If the demand or supply function is given in the form P = f(Q), use the inverse function rule
  • =
  • For downward sloping demand curves, dQ/dP is negative, so point elasticity is negative
    • as price falls the quantity demanded increases
elasticity values
Elasticity Values
  • Demand elasticities are negative, but we ignore the negative sign in discussion of their size
  • As you move along a demand or supply curve, elasticity usually changes
  • Functions with constant elasticity:
    • Demand: Q = k/P where k is a constant has E = – 1 at all prices
    • Supply: Q = kPwhere k is a constant has E = 1 at all prices
elasticity at different points on linear demand curves
Elasticity at Different Points on Linear Demand Curves
  • Elasticity varies from –  to 0 as you move down a linear demand curve
  • Two demand curves with the same intercept on the P axis have the same elasticity at every price
  • For two demand curves with different intercepts on the P axis, the one with the lower intercept has the greater elasticity at every price
finding the investment multiplier 1
Finding the Investment Multiplier 1

1. Write down the equilibrium condition for the economy

Y = AD

Income = Aggregate Demand

2. Write an expression for AD

AD = C + I + G + X – Z

Substitute into this, but do not substitute a numerical value for the autonomous expenditure I so

AD = f(Y, I)

finding the investment multiplier 2
Finding the Investment Multiplier 2

Substituting AD in the equilibrium condition gives an equation where Y occurs on both sides

3. Collect terms in Y on the left-hand side and solve for Y

4. Now differentiateIf Y = income and I = investment dY/dI is the investment multiplier

maximum and minimum values objectives 1
Maximum and Minimum Values – Objectives 1
  • Appreciate that economic objectives involve optimization
  • Identify maximum and minimum turning points by differentiating and then finding the second derivative
  • Find maximum revenue
  • Show which output maximizes profit and whether it changes if taxation is imposed
maximum and minimum values objectives 2
Maximum and Minimum Values – Objectives 2
  • Identify minimum turning points on cost curves
  • Find the level of employment at which the average product of labour is maximized
  • Choose the per unit tax which maximizes tax revenue
  • Identify the economic order quantity which minimizes total inventory costs
derivatives and turning points
Derivatives and Turning Points
  • Sign of around a turning point:

before at critical value after

  • Maximum + 0 –
  • Minimum – 0 +
second derivative of a function
Second Derivative of a Function
  • After obtaining the first derivative

of the function we differentiate that and the result is called the second derivative of the original function

=

  • Second derivative: is obtained by differentiating a derivative
to identify possible turning points
To Identify Possible Turning Points:
  • Differentiate, set equal to zero and solve for x
  • Find and look at its sign to distinguish

a maximum from a minimum

  • The first and second order conditions are:

Maximum Minimum

0 0

– ve +ve

point of inflexion
Point of Inflexion
  • There is also the possibility that d2y/dx2 may be zero
  • In this case we have neither a maximum nor a minimum
  • Here the curve changes its shape, bending in the opposite direction
  • This is called a point of inflexion
maximum total revenue
Maximum Total Revenue
  • For maximum total revenue
  • Differentiate the TR function with respect to output, Q
  • Set the derivative equal to zero and solve for Q
  • Find the second derivative and check that it is negative
maximum profit
Maximum Profit
  • For maximum profit, p = TR – TC
  • Substitute the expressions for TR and TC in the profit function so p = f(Q)
  • Differentiate the profit function with respect to output, Q
  • Set the derivative equal to zero and solve for Q
  • Find the second derivative and check that it is negative
indirect taxation 1
Indirect taxation 1
  • A lump sum tax, T, increases fixed cost but does not affect marginal cost or average variable cost
  • Price and quantity are unchanged
  • Profit falls by the amount of the lump sum tax
  • The effect of the tax falls on the producer
indirect taxation 2
Indirect taxation 2
  • A per unit tax, t, shifts the average and marginal cost curves up by the amount of the tax and total cost increases by t.Q, where Q is the quantity of output sold
  • Price rises and quantity falls
  • Profit is reduced
  • The effect of a per unit tax is shared between the producer and buyers of the good
minimum average cost
Minimum Average Cost
  • At the minimum point of AC AC = MC
  • Marginal Cost intersects Average Cost at the minimum point of the AC curve
average and marginal product of labour
Average and Marginal Product of Labour
  • When average product is maximized, APL=MPL
  • The MPL curve intersects the APL curve at that point
  • MPL reaches a maximum at a lower value of L than that where APL is a maximum
  • After the maximum of MPL there are diminishing marginal returns, since the marginal product of labour is falling
tax rate which maximizes tax revenue

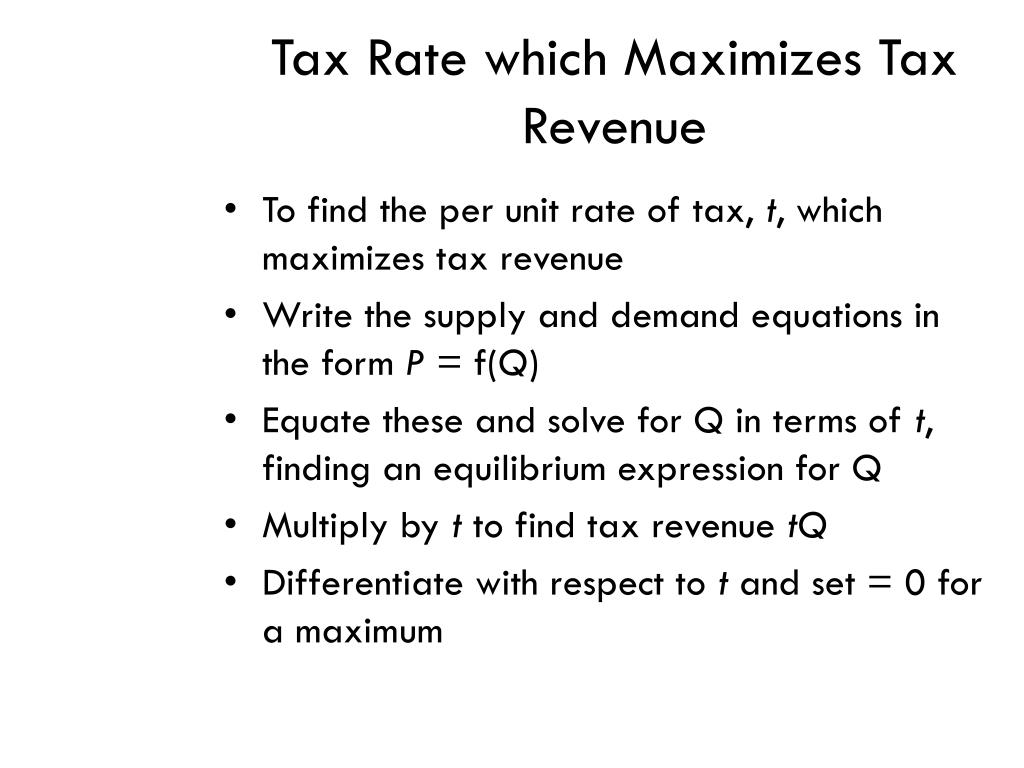

Tax Rate which Maximizes Tax Revenue
  • To find the per unit rate of tax, t, which maximizes tax revenue
  • Write the supply and demand equations in the form P = f(Q)
  • Equate these and solve for Q in terms of t, finding an equilibrium expression for Q
  • Multiply by t to find tax revenue tQ
  • Differentiate with respect to t and set = 0 for a maximum
minimizing total inventory costs
Minimizing Total Inventory Costs
  • To find economic order quantity EOQ, choose Q to minimize

Total Inventory Cost =

  • Differentiate with respect to Q and

set = 0 for a minimum

further rules of differentiation mathematics objectives
Further Rules of Differentiation – Mathematics Objectives
  • Appreciate when further rules of differentiation are needed
  • Differentiate composite functions using the chain rule
  • Use the product rule of differentiation
  • Apply the quotient rule
further rules of differentiation economics objectives
Further Rules of Differentiation – Economics Objectives
  • Show the relationship between marginal revenue, elasticity and maximum total revenue
  • Analyse optimal production and cost relationships
  • Differentiate natural logarithmic and exponential functions
  • Use logarithmic and exponential relationships in economic analysis
chain rule

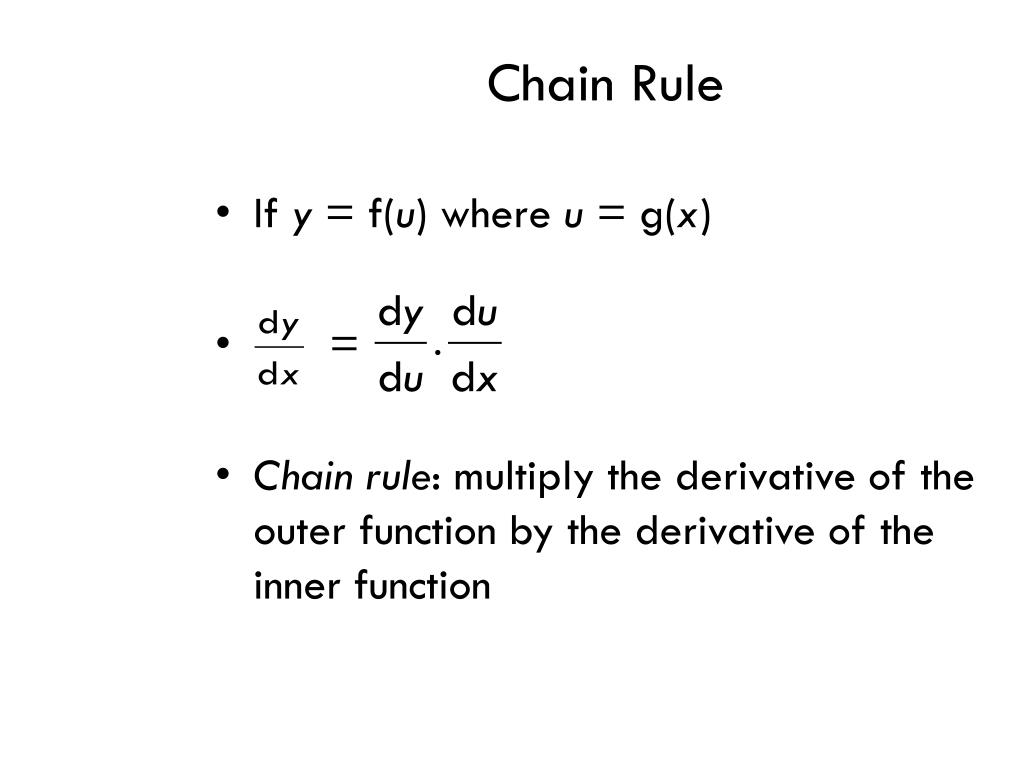

Chain Rule
  • If y = f(u) where u = g(x)
  • =
  • Chain rule: multiply the derivative of the outer function by the derivative of the inner function
product rule
Product Rule
  • If y = f(x)g(x)
  • u = f(x), v = g(x)
  • = v. + u.
  • Product rule: the derivative of the first term times the second plus the derivative of the second term times the first
quotient rule

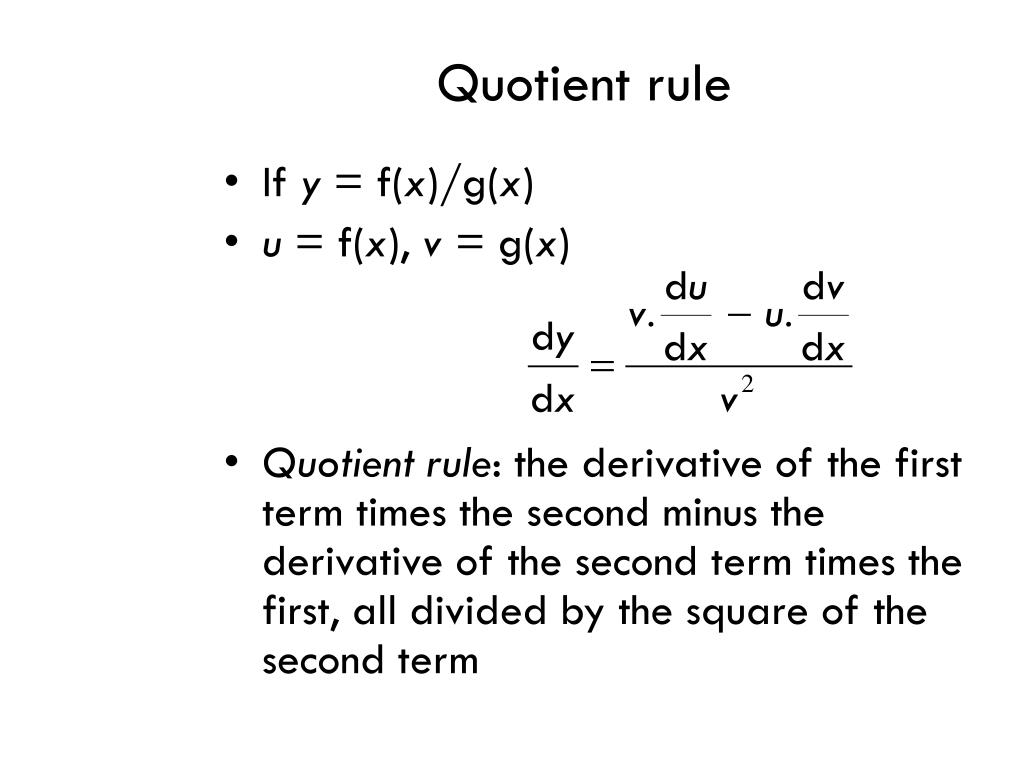

Quotient rule
  • If y = f(x)/g(x)
  • u = f(x), v = g(x)
  • Quotient rule: the derivative of the first term times the second minus the derivative of the second term times the first, all divided by the square of the second term
marginal revenue price elasticity and maximum total revenue
Marginal Revenue, Price Elasticity and Maximum Total Revenue
  • For any demand curve, given that E is point price elasticity of demand and is negative

and maximum total revenue occurs when E = – 1

optimal production and cost relationships
Optimal Production and Cost Relationships
  • Maximum output occurs where dQ/dL = 0
  • A firm operating in perfectly competitive product and labour markets:
    • has short-run marginal cost curve MC = W/MPL where MPL is the marginal product of labour and W is the wage rate
    • to maximize profits, it employs labour until MVP = Wwhere P is the price of its product and

MVP = P.MPL is the marginal value product of labour

marginal and average cost
Marginal and average cost
  • MC is below AC before a minimum turning point of AC
  • At the turning point of AC, MC intersects AC from below
exponential functions
Exponential Functions
  • For the exponential function y = ex
  • = ex
  • More generally we can write the rule as shown below:
  • For the exponential function y = aemx
  • = maemx
natural logarithmic functions 1
Natural Logarithmic Functions 1
  • If y = logex

= x –1

natural logarithmic functions 2
Natural Logarithmic Functions 2
  • More generally: if y = loge mx

= x –1

  • and if y = loge axm
