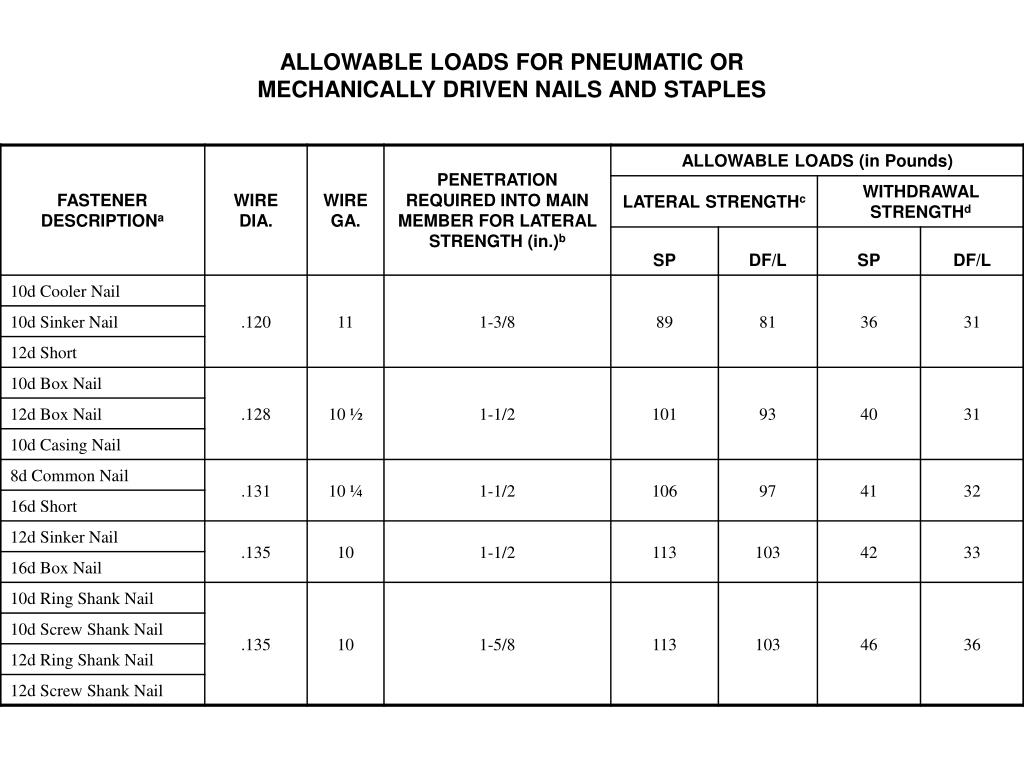

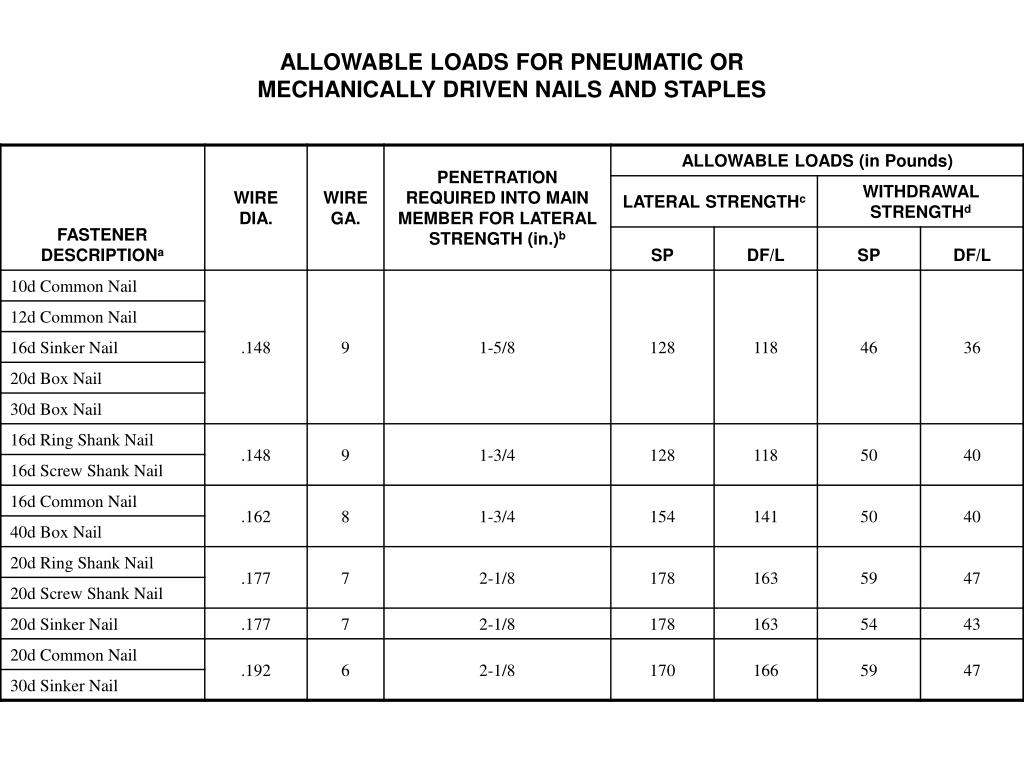

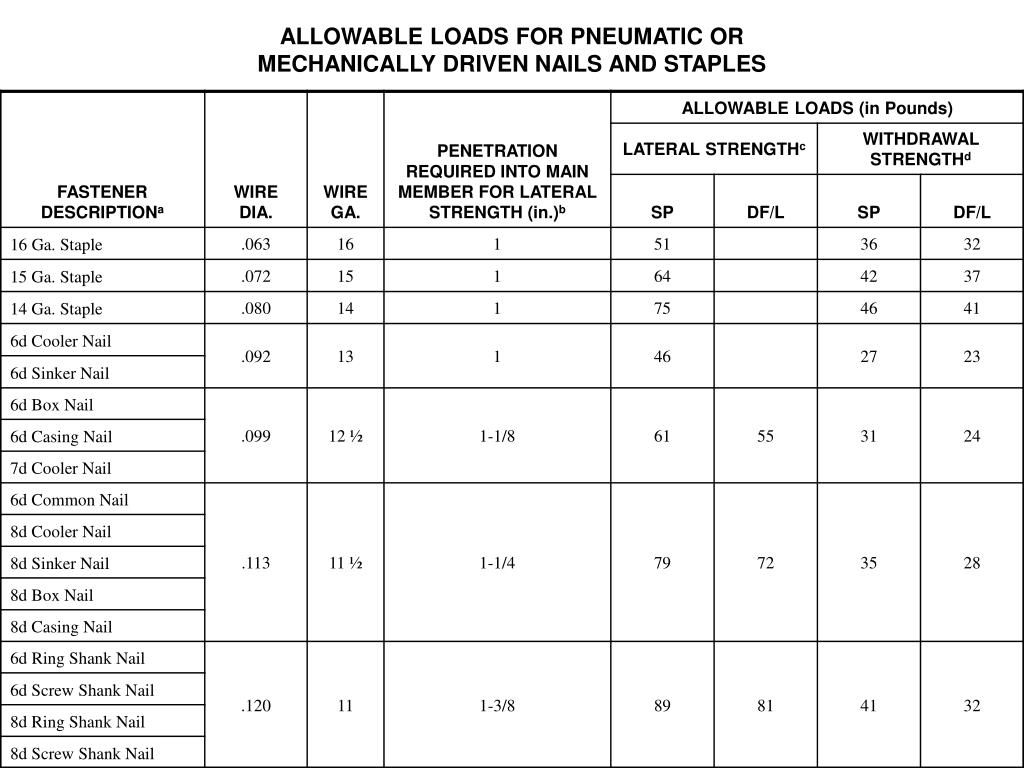

  1. ALLOWABLE LOADS FOR PNEUMATIC OR MECHANICALLY DRIVEN NAILS AND STAPLES

  2. ALLOWABLE LOADS FOR PNEUMATIC OR MECHANICALLY DRIVEN NAILS AND STAPLES

  3. ALLOWABLE LOADS FOR PNEUMATIC OR MECHANICALLY DRIVEN NAILS AND STAPLES

  4. Nail head styles Round Offset Oval Clipped Notched

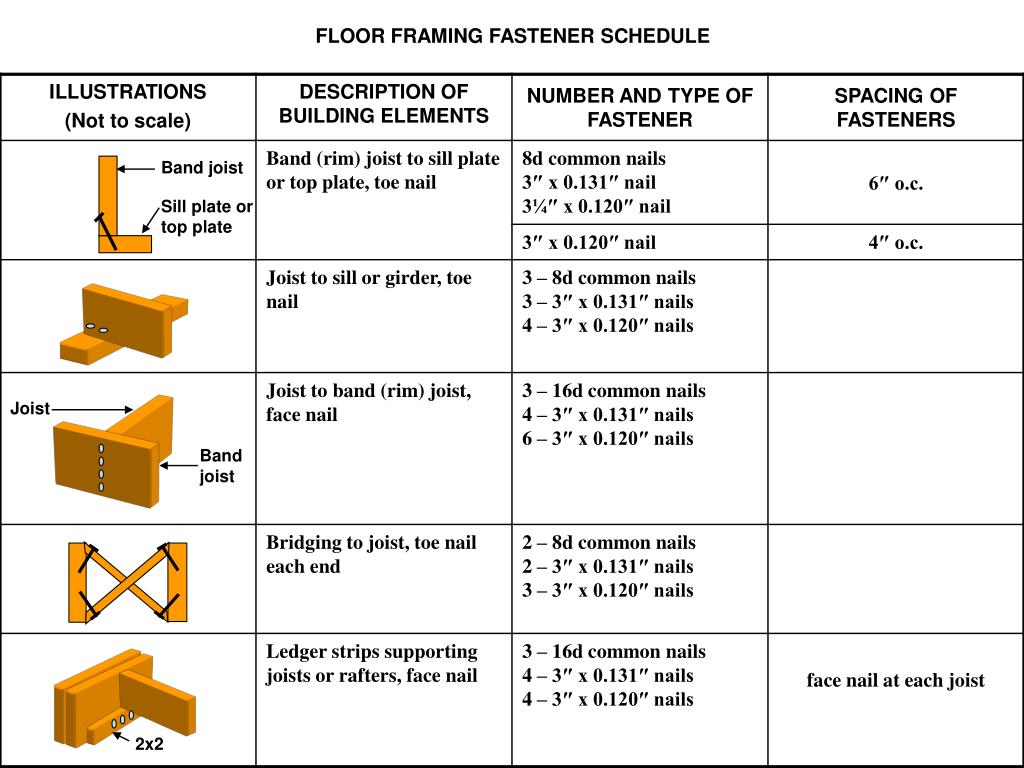

  5. Band joist Sill plate or top plate Joist Band joist 2x2 FLOOR FRAMING FASTENER SCHEDULE

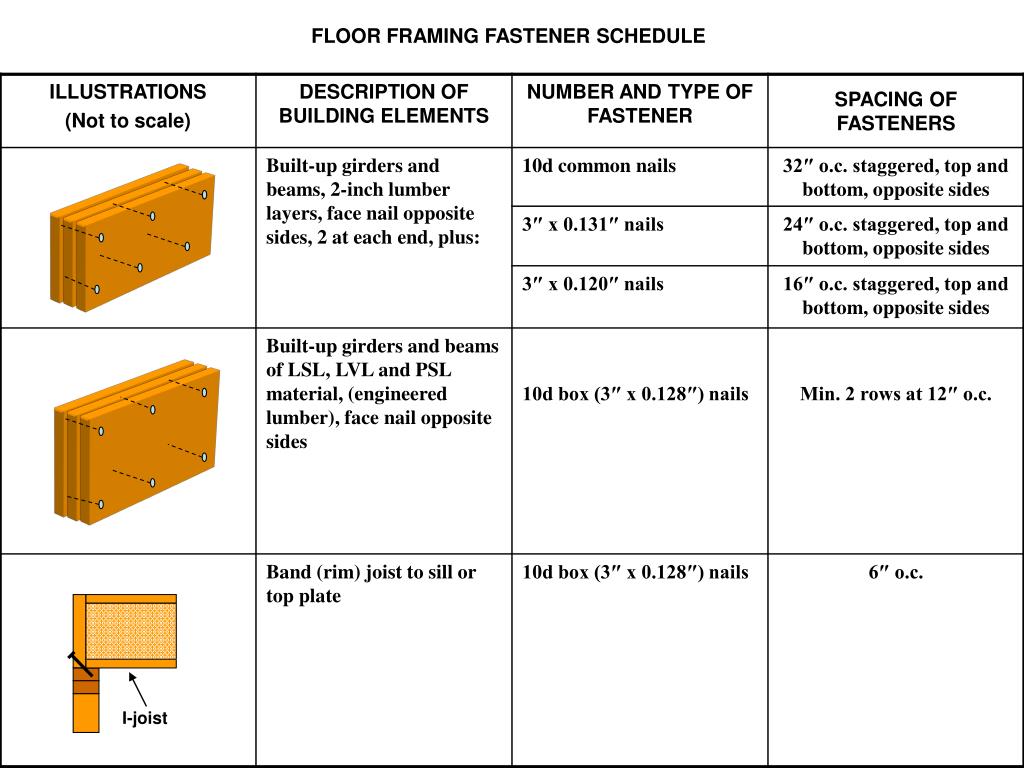

  6. I-joist FLOOR FRAMING FASTENER SCHEDULE

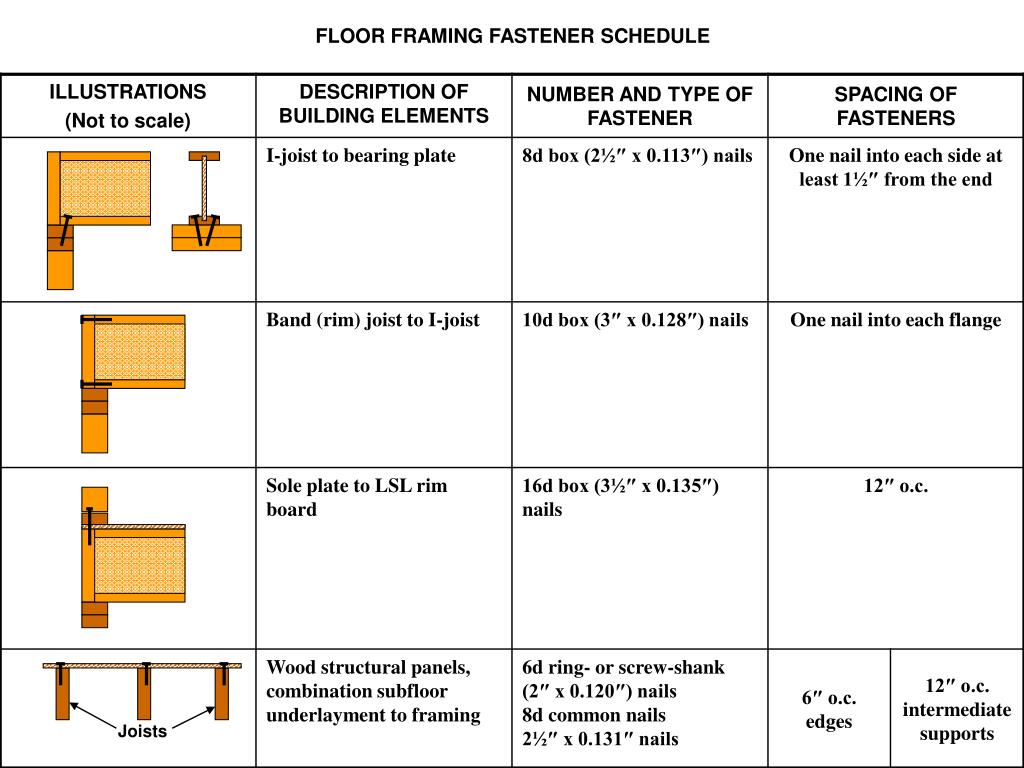

  7. Joists FLOOR FRAMING FASTENER SCHEDULE

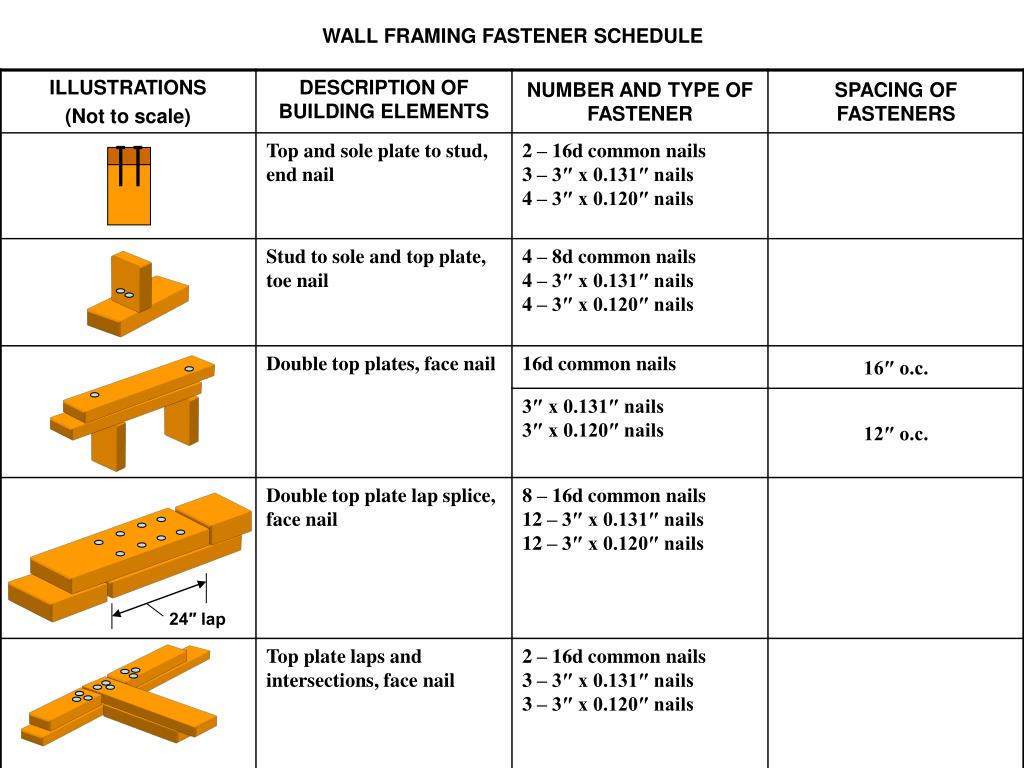

  8. 24″ lap WALL FRAMING FASTENER SCHEDULE

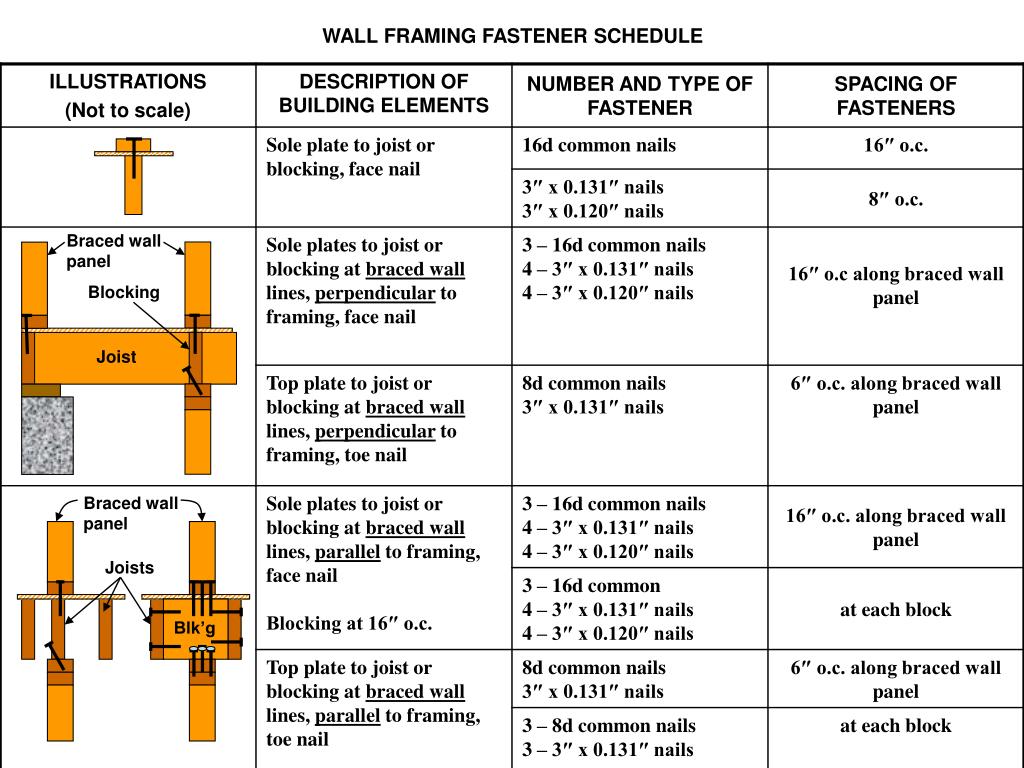

  9. WALL FRAMING FASTENER SCHEDULE

  10. Braced wall panel Blocking Joist Braced wall panel Joists Blk’g WALL FRAMING FASTENER SCHEDULE

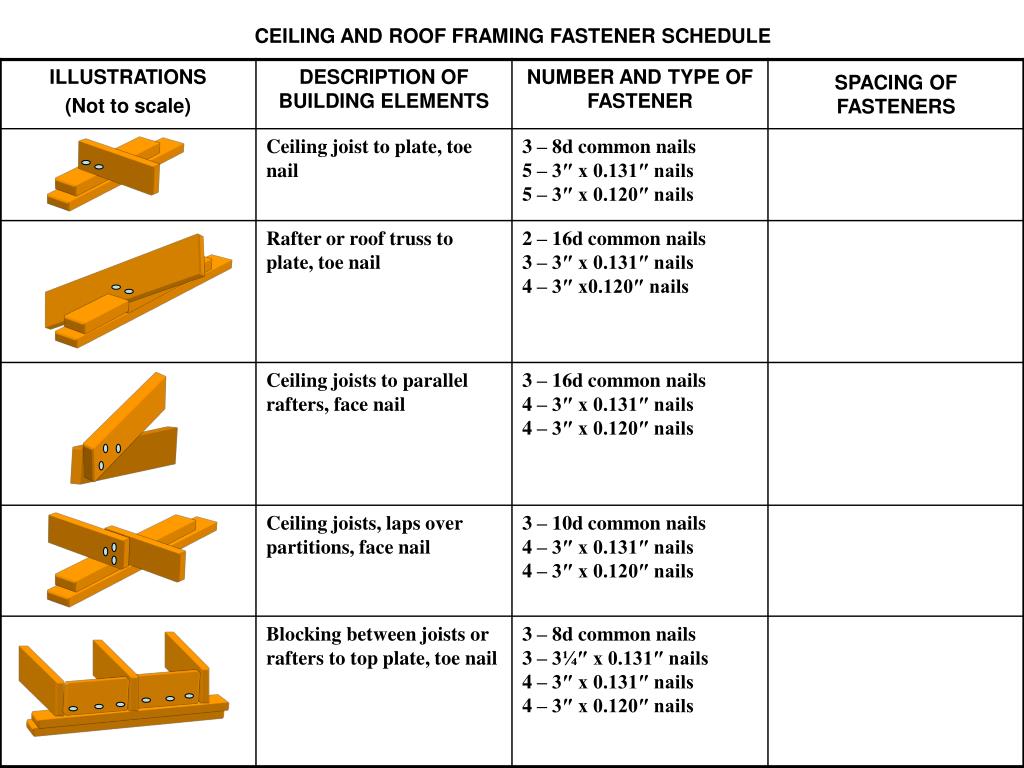

  11. CEILING AND ROOF FRAMING FASTENER SCHEDULE

  12. Rafter Ridge ROOF FRAMING FASTENER SCHEDULE

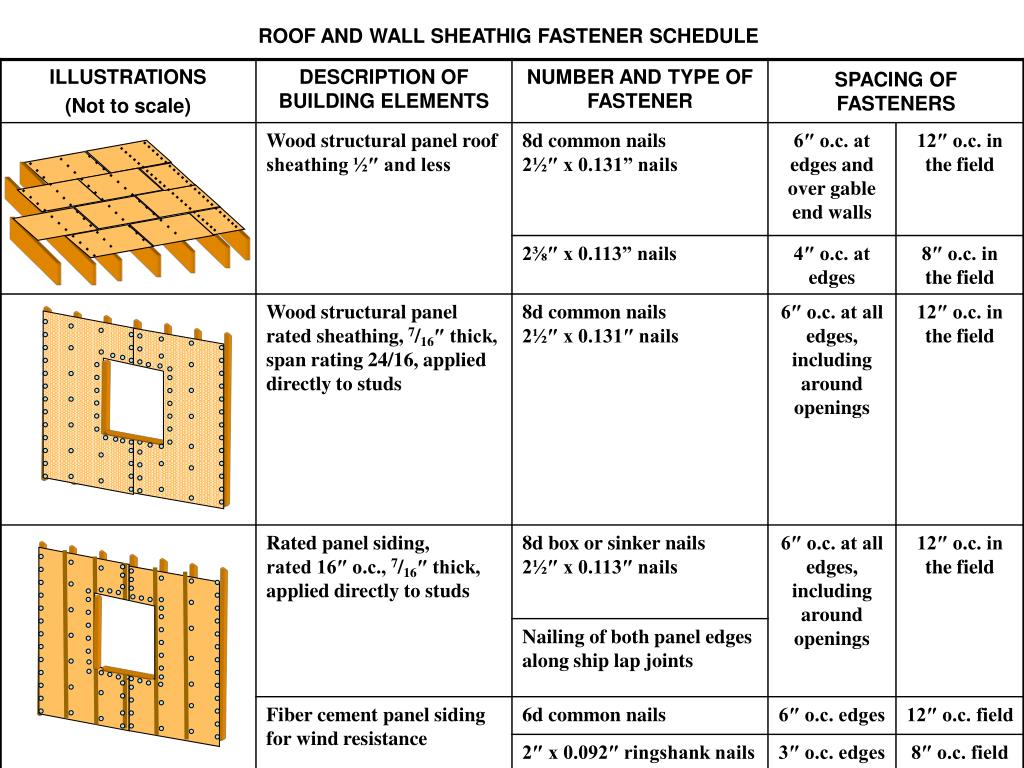

  13. ………………….. ………………….. ………………….. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ROOF AND WALL SHEATHIG FASTENER SCHEDULE

  14. Structural sheathing with water barrier Siding MISC. FRAMING FASTENER SCHEDULE
