Software simulation of Virtual Memory using Demand Paging Dharma Prakash Natarajan. Goals of the Project Construct the Virtual Memory Elements: Memory, Disk, Page Table,TLB.

Download Presentation
## Software simulation of Virtual Memory using Demand Paging Dharma Prakash Natarajan

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

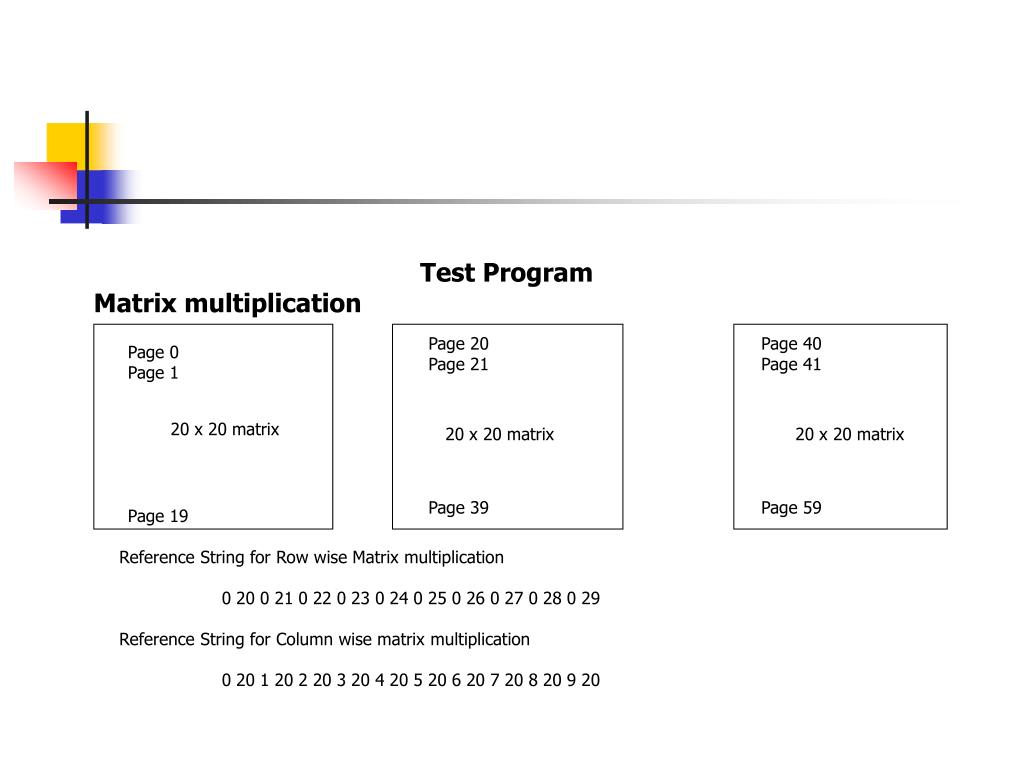

**Software simulation of Virtual Memory using Demand Paging**Dharma Prakash Natarajan • Goals of the Project • Construct the Virtual Memory Elements: Memory, Disk, Page Table,TLB. • Generate the test program for matrix multiplication to create the address sequence. Row wise and column wise matrix multiplication reference strings are generated. • Find out the TLB miss ratio • Find out the Page fault ratio. • Vary the associativity, TLB and memory size and study the effects on TLB miss ratio and Page fault ratio • Study the effects of LRU, FIFO and Random replacement strategies on TLB miss ratio**Program Basics**• Disk is created as an array each holding a page • Memory is created as a vector of memory entries • Page table is created as a vector of page table entries. • Each page table entry contains valid bit, reference bit and dirty bit • TLB is created as vector of TLB sets • Each TLB contains a vector of TLB entries. • Each TLB entry contains valid, reference and dirty bits • Main simulates the process execution**Test Program**Matrix multiplication Page 20 Page 21 Page 39 Page 40 Page 41 Page 59 Page 0 Page 1 Page 19 20 x 20 matrix 20 x 20 matrix 20 x 20 matrix Reference String for Row wise Matrix multiplication 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 0 29 Reference String for Column wise matrix multiplication 0 20 1 20 2 20 3 20 4 20 5 20 6 20 7 20 8 20 9 20**Conclusion**• Mostly expected results on associativity, replacement strategy • Test case not able to distinguish between FIFO and LRU • Simulates only once process. Could be extended for multiple processes. • Context switch. Page table for each process • Byte addressing could be used. • Can be used to simulate multiple levels of page tables.
