fischer technik

fischertechnik®

Interface Connections

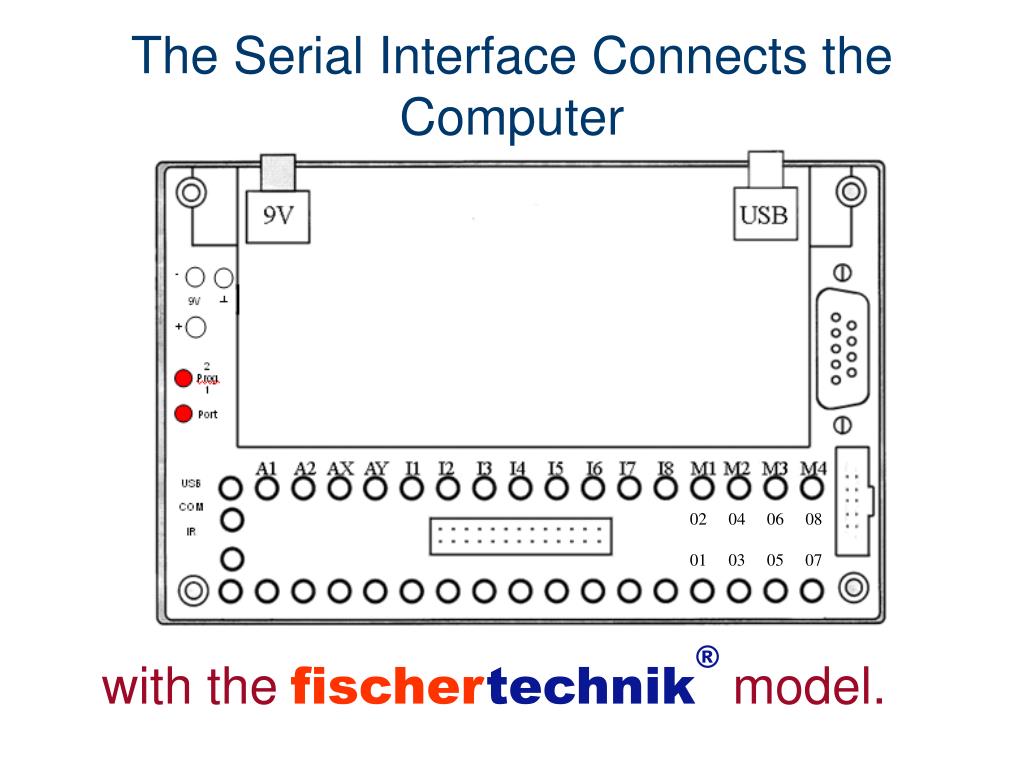

the serial interface connects the computer
The Serial Interface Connects the Computer

02 04 06 08

01 03 05 07

with thefischertechnik®model.

interface
Interface

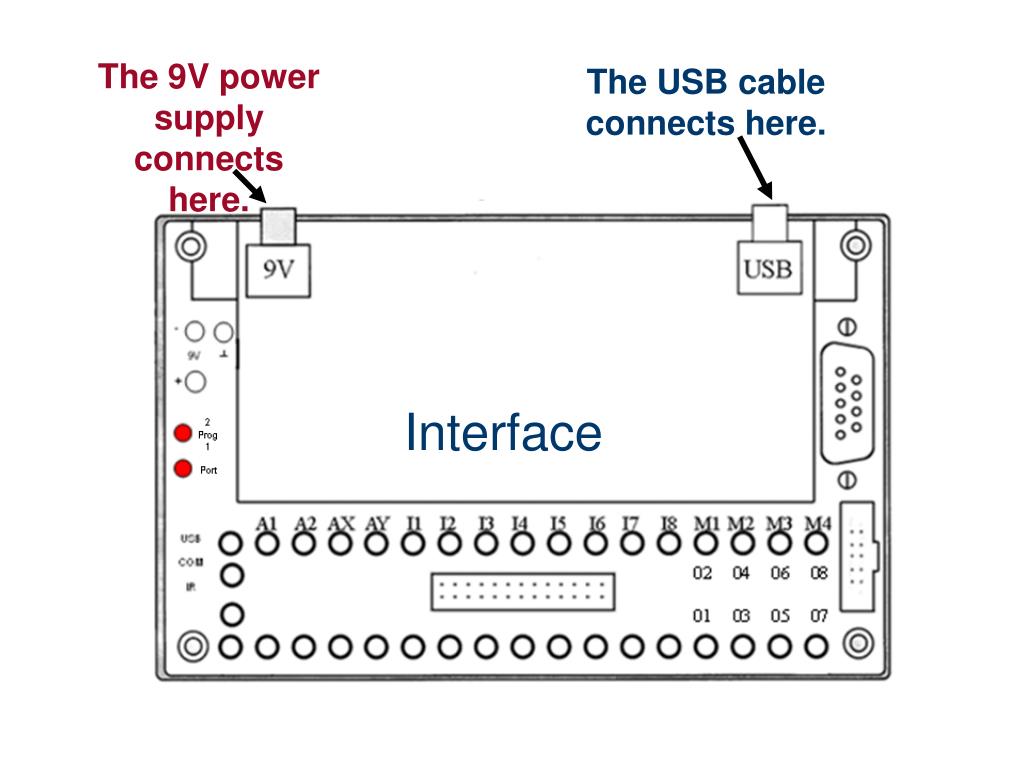

The 9V power supply connects here.

The USB cable connects here.

motor outputs
Motor Outputs

Motor

Lamp

Electromagnet

Buzzer

Solenoid Valve

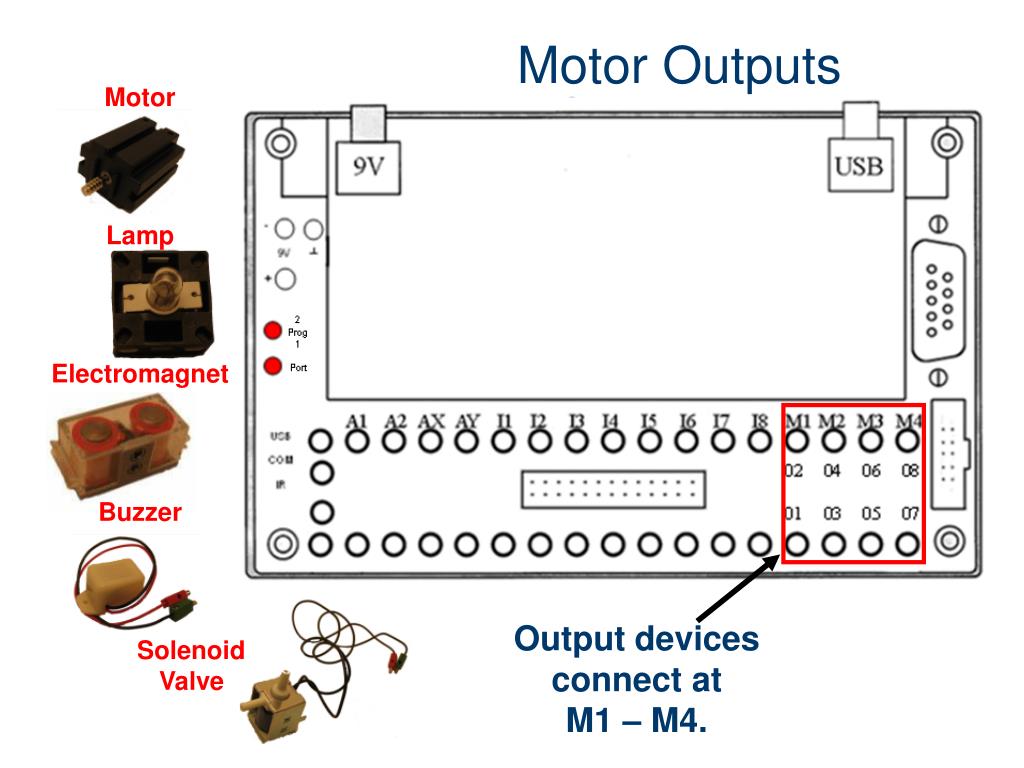

Output devices connect at

M1 – M4.

lamp outputs

Motor

Lamp

Electromagnet

Buzzer

Solenoid Valve

Lamp Outputs

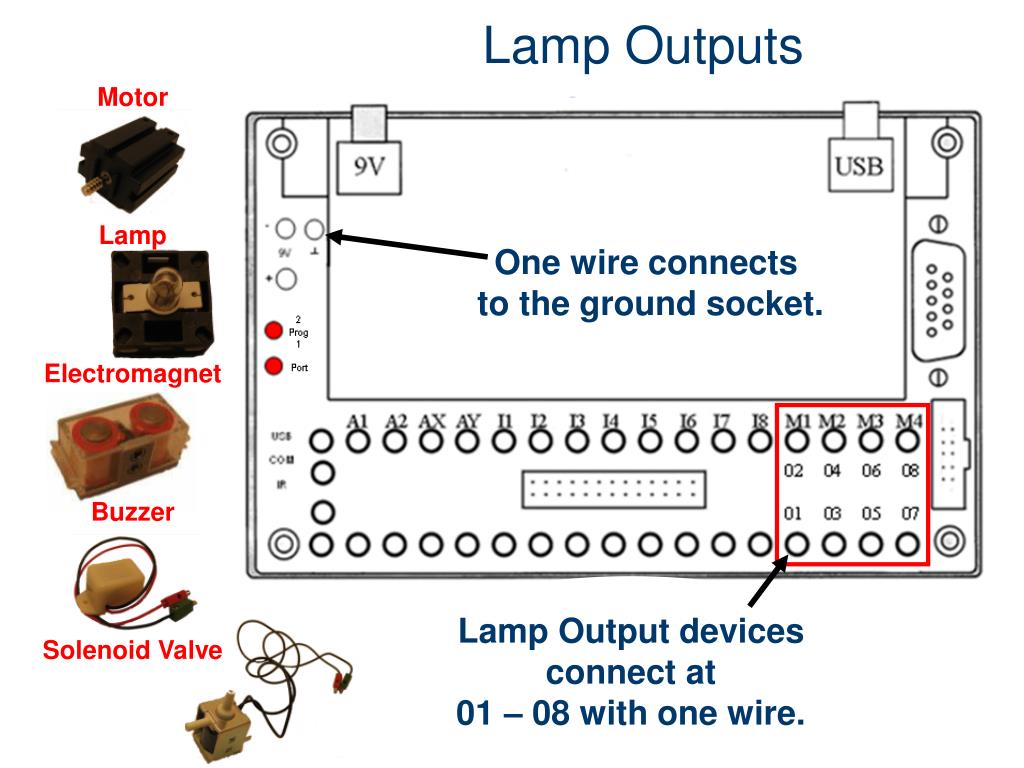

One wire connects

to the ground socket.

Lamp Output devices connect at

01 – 08 with one wire.

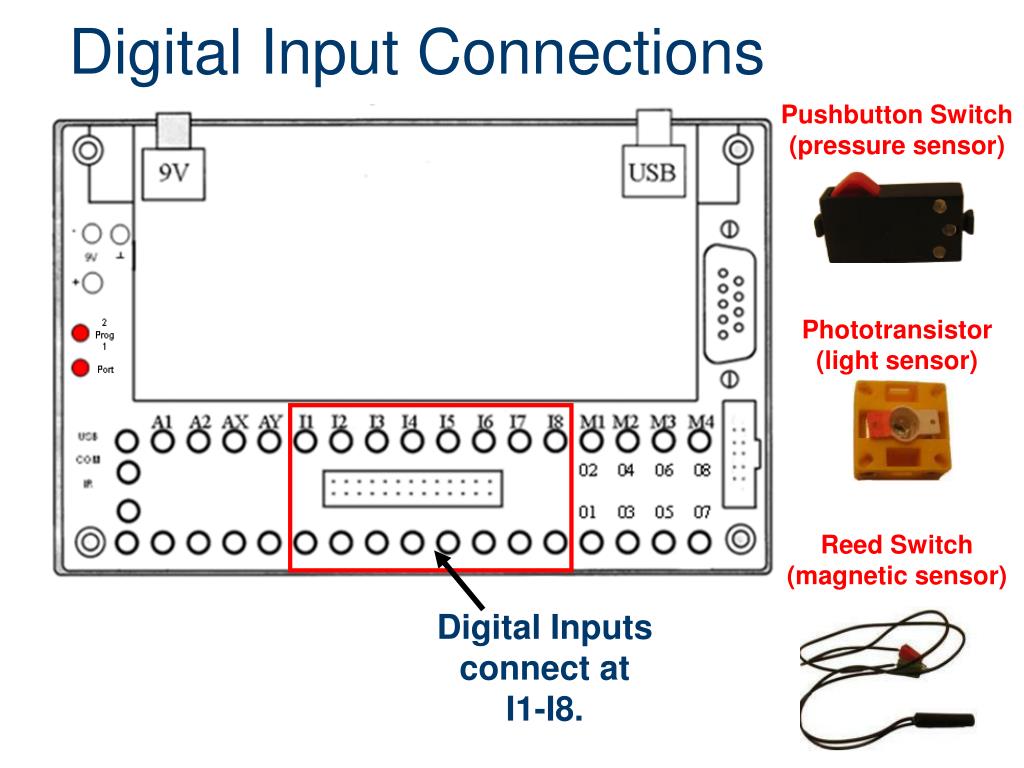

digital input connections
Digital Input Connections

Pushbutton Switch

(pressure sensor)

Phototransistor

(light sensor)

Reed Switch

(magnetic sensor)

Digital Inputs connect at

I1-I8.

analog input connections
Analog Input Connections

Thermistor

(temperature sensor)

Photocell

(light sensor)

Analog Input Devices connect at AX and AY.

a few tips
A Few Tips

Building models is fun when they work. This is why you should follow a few basic rules

  • Work carefully.
  • Check the movement of all parts.

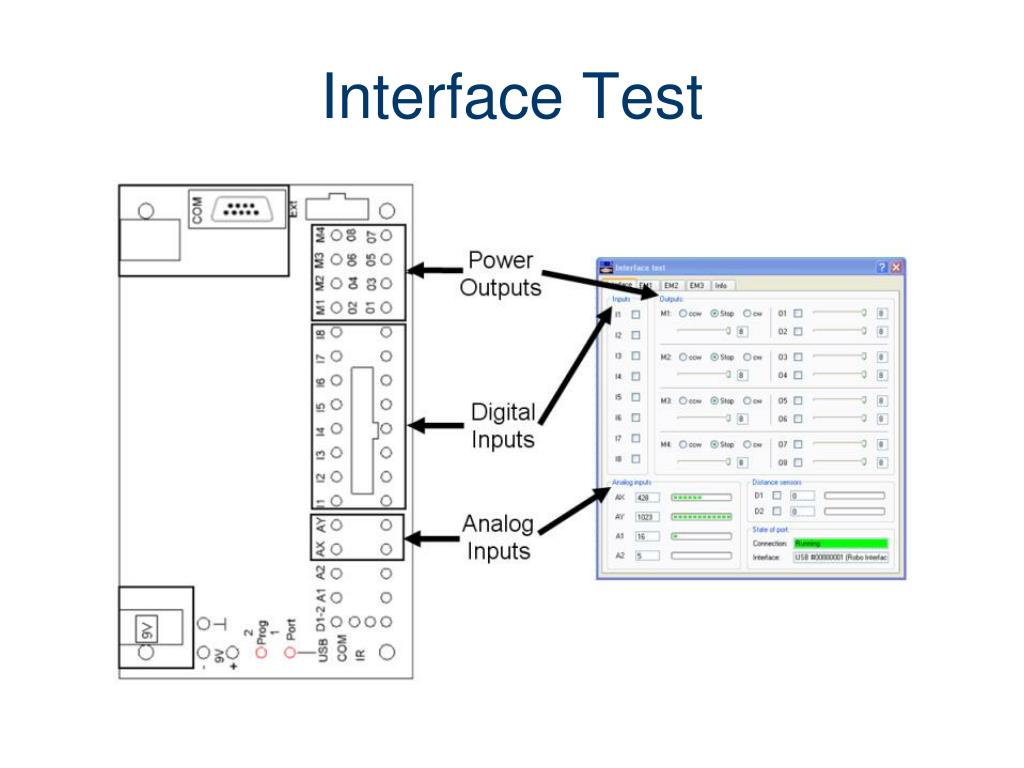

  • Use the interface test.
    • Before you start to write a program for a model, you should test all parts that are connected to the Interface, using the interface test from the ROBO Pro software.

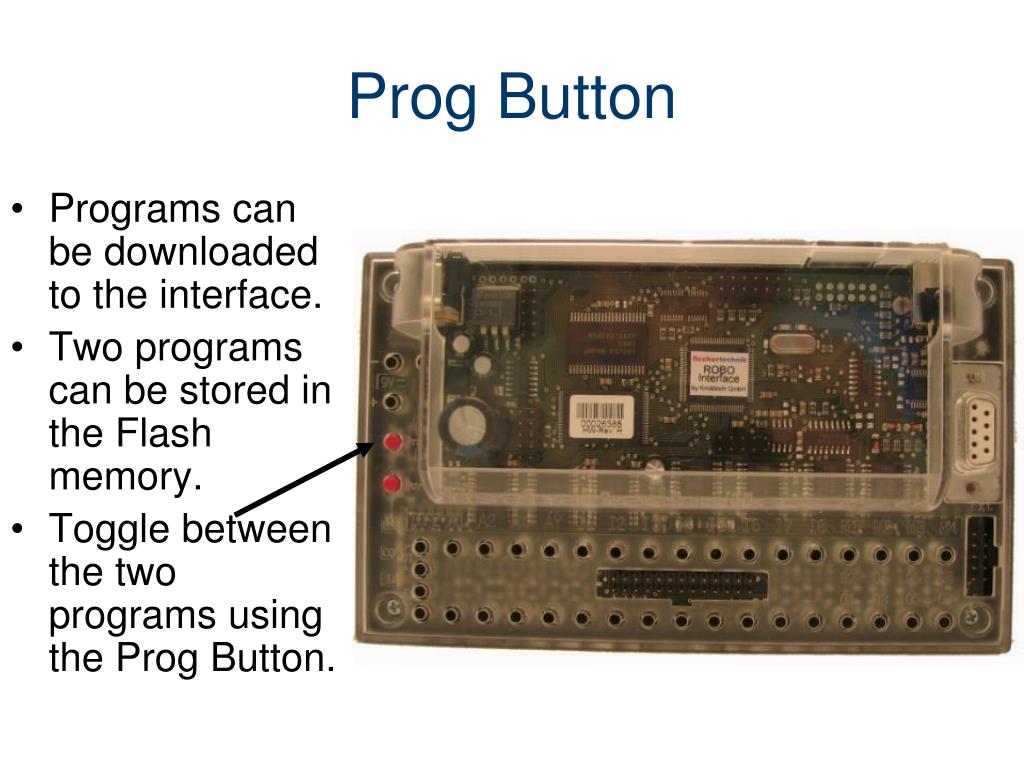

prog button
Prog Button
  • Programs can be downloaded to the interface.
  • Two programs can be stored in the Flash memory.
  • Toggle between the two programs using the Prog Button.

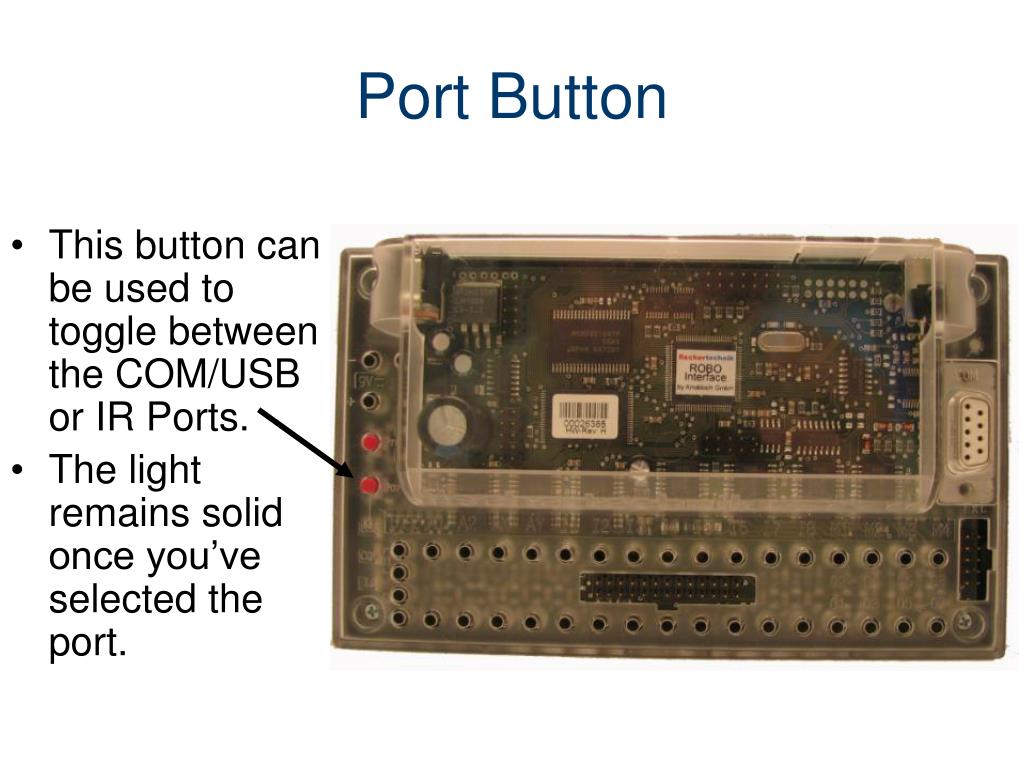

port button
Port Button
  • This button can be used to toggle between the COM/USB or IR Ports.
  • The light remains solid once you’ve selected the port.
troubleshooting
Troubleshooting
  • Interface Test
  • Cables and Wiring
  • Loose Connection
    • Loose plugs
    • Poor contact between wire and plug
  • Short Circuits
  • Programming Errors
