  1. XML Validation IDTDs Robin Burke ECT 360 Winter 2004

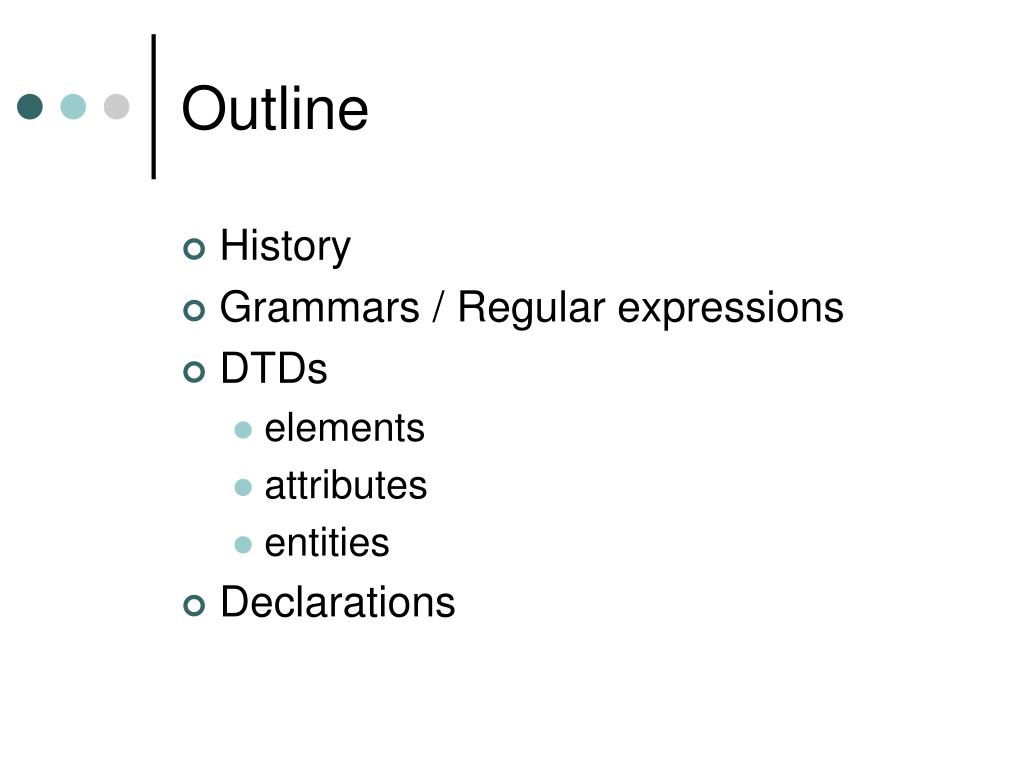

  2. Outline • History • Grammars / Regular expressions • DTDs • elements • attributes • entities • Declarations

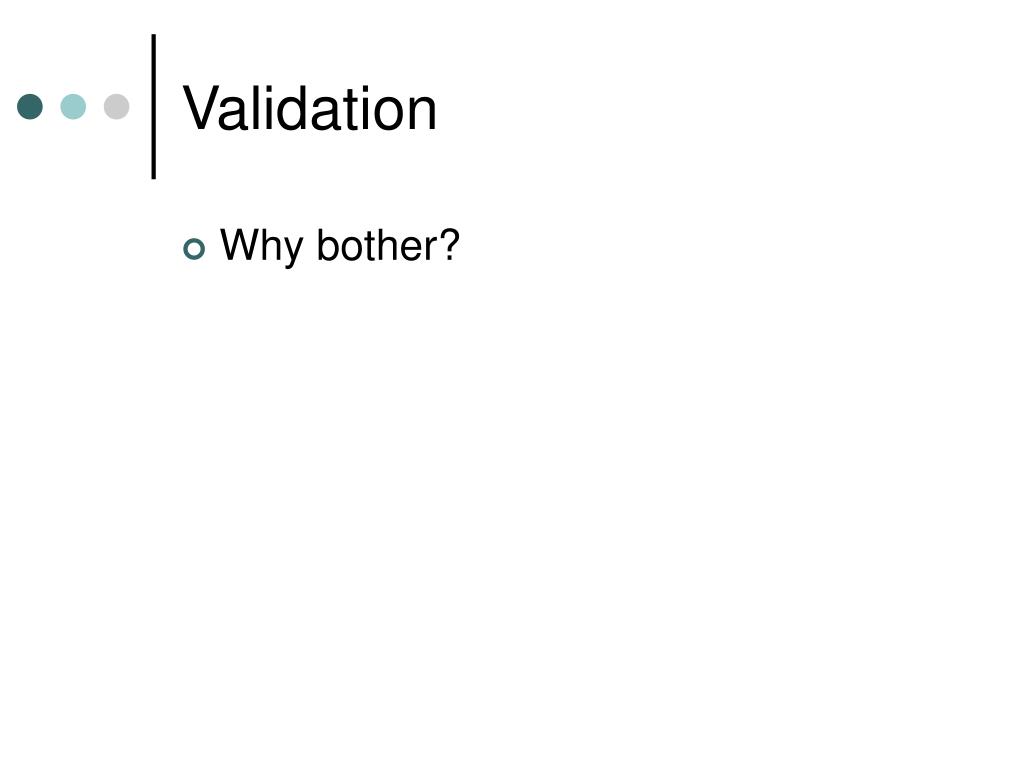

  3. Validation • Why bother?

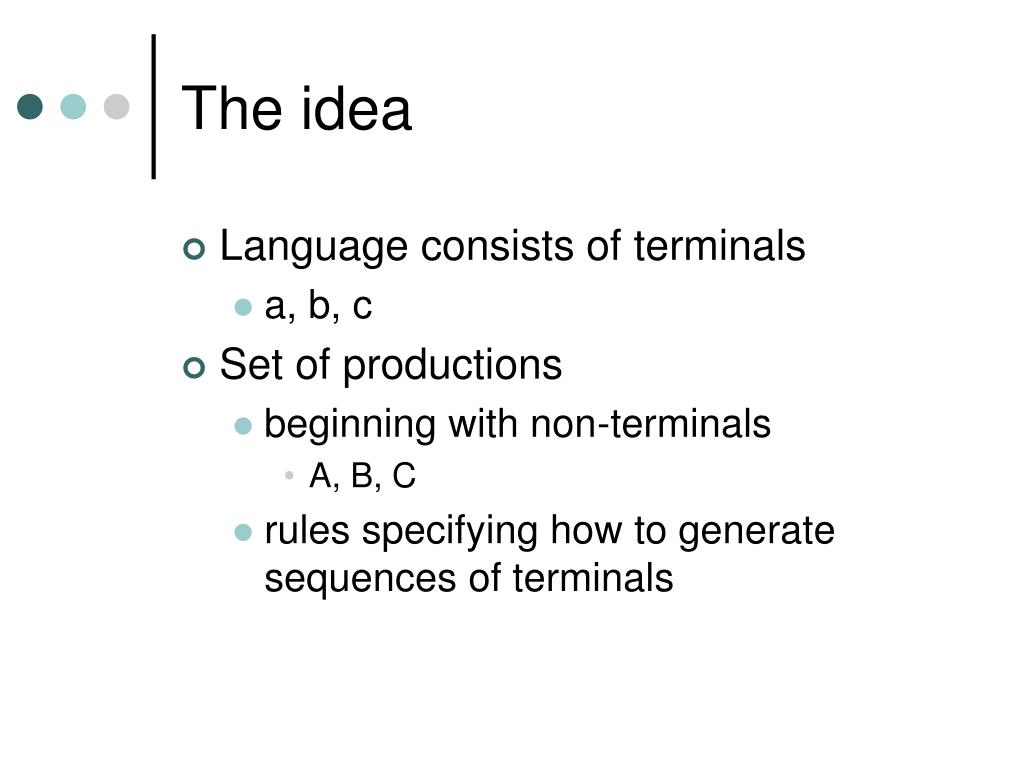

  4. The idea • Language consists of terminals • a, b, c • Set of productions • beginning with non-terminals • A, B, C • rules specifying how to generate sequences of terminals

  5. Example • A  aB • A  aBA • B  b • generates strings • ababab etc.

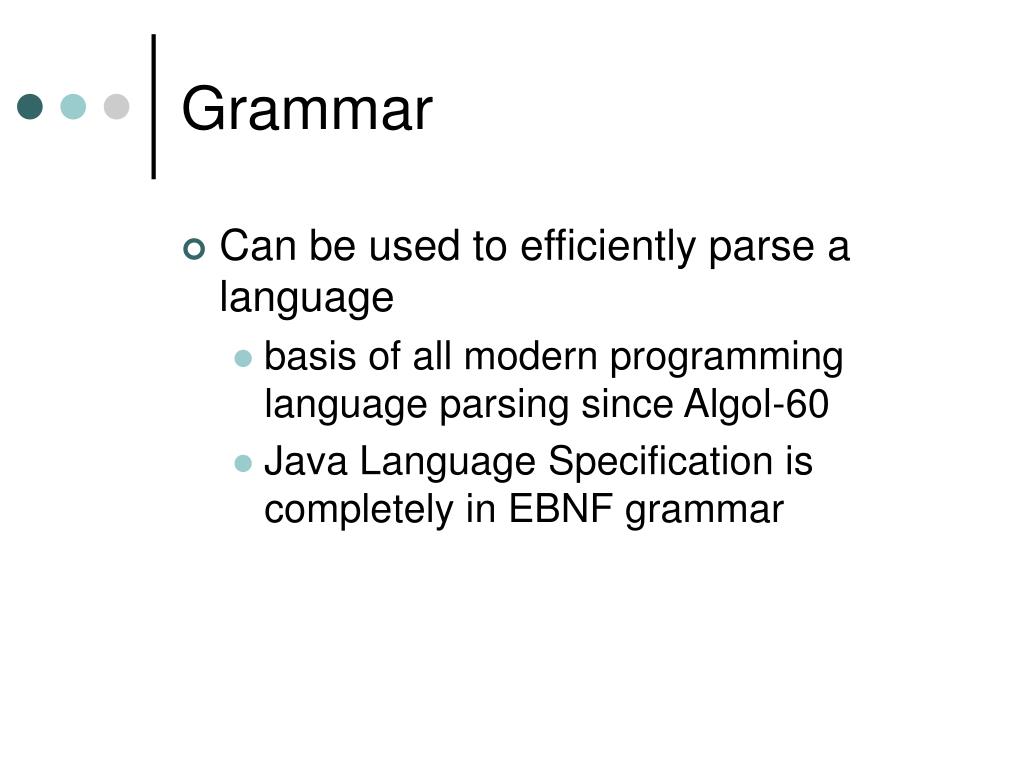

  6. Grammar • Can be used to efficiently parse a language • basis of all modern programming language parsing since Algol-60 • Java Language Specification is completely in EBNF grammar

  7. Grammar • XML • grammar-based syntax • adheres to EBNF • SGML • SGML had a more complex language definition syntax • HTML is defined the SGML way

  8. Regular expressions • Language for expressing patterns • Basic components • pattern elements • optional element = ? • repetition (1 or more) = + • repetition (0 or more) = * • choice = | • grouping = ( ) • sequence = ,

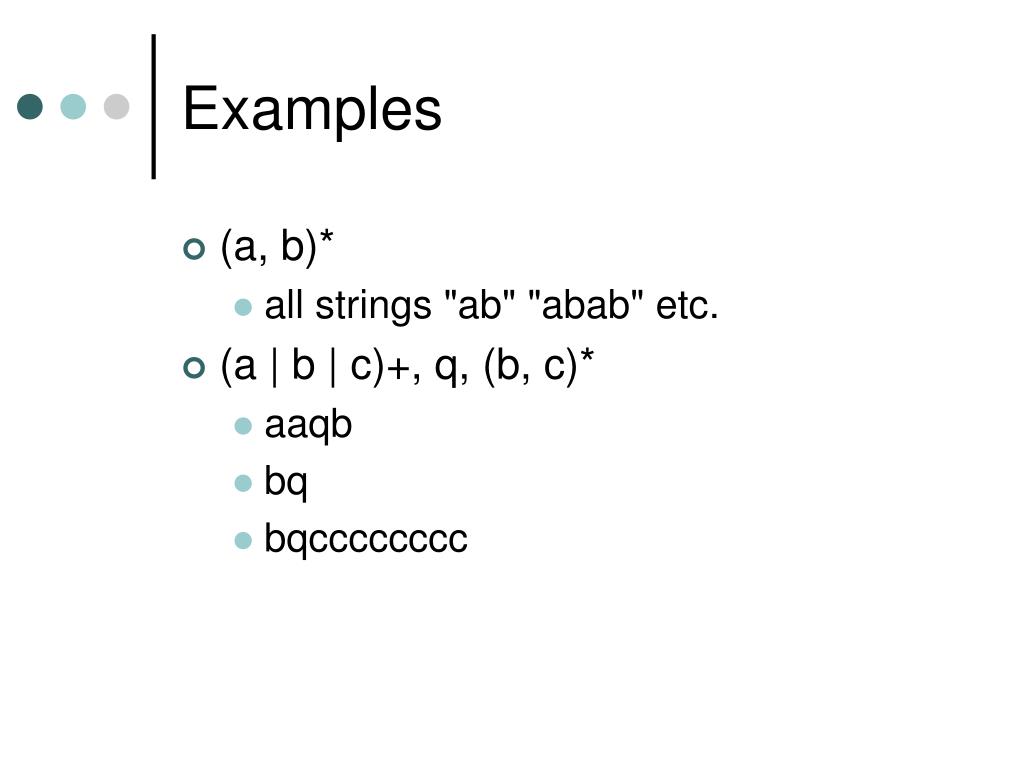

  9. Examples • (a, b)* • all strings "ab" "abab" etc. • (a | b | c)+, q, (b, c)* • aaqb • bq • bqcccccccc

  10. Note • Regular expressions are different in different applications • Perl • Javascript • XML Schemas • DTDs only support • ?+*|,()

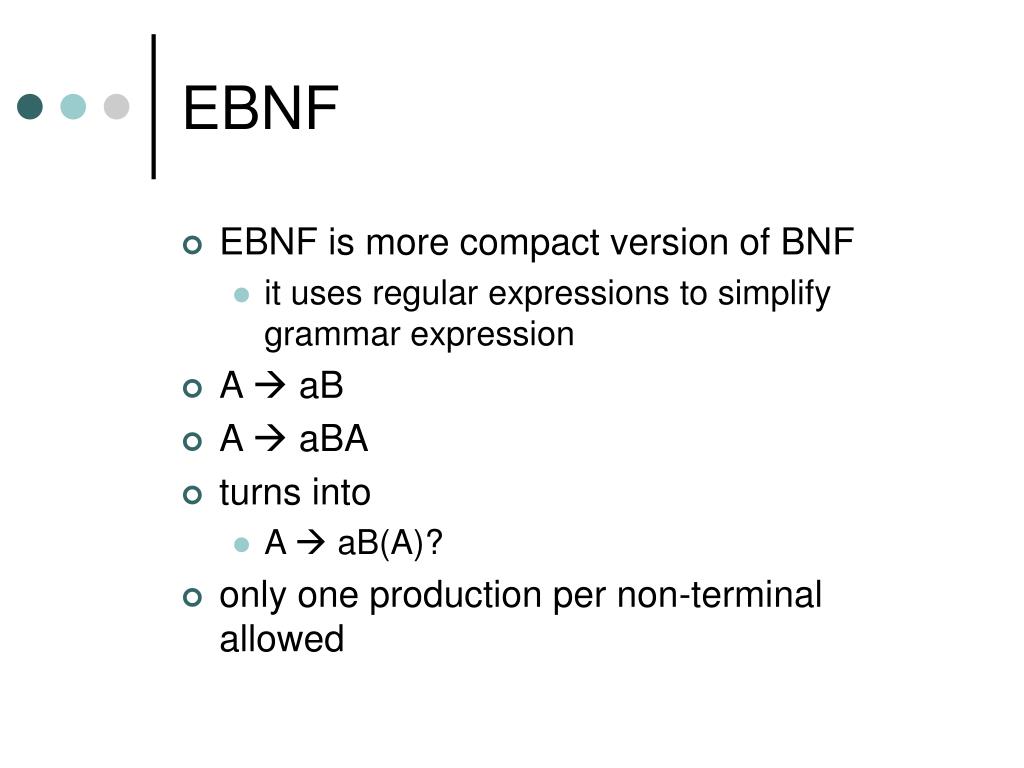

  11. EBNF • EBNF is more compact version of BNF • it uses regular expressions to simplify grammar expression • A  aB • A  aBA • turns into • A  aB(A)? • only one production per non-terminal allowed

  12. DTDs • Use EBNF to specify structure of XML documents • Plus • attributes • entities • Syntax • holdover from SGML • Ugly

  13. DTD Syntax • <!ELEMENT element-namecontent_model> • Content model contains the RHS of the production rule • Example <!ELEMENT name (firstName, lastName)>

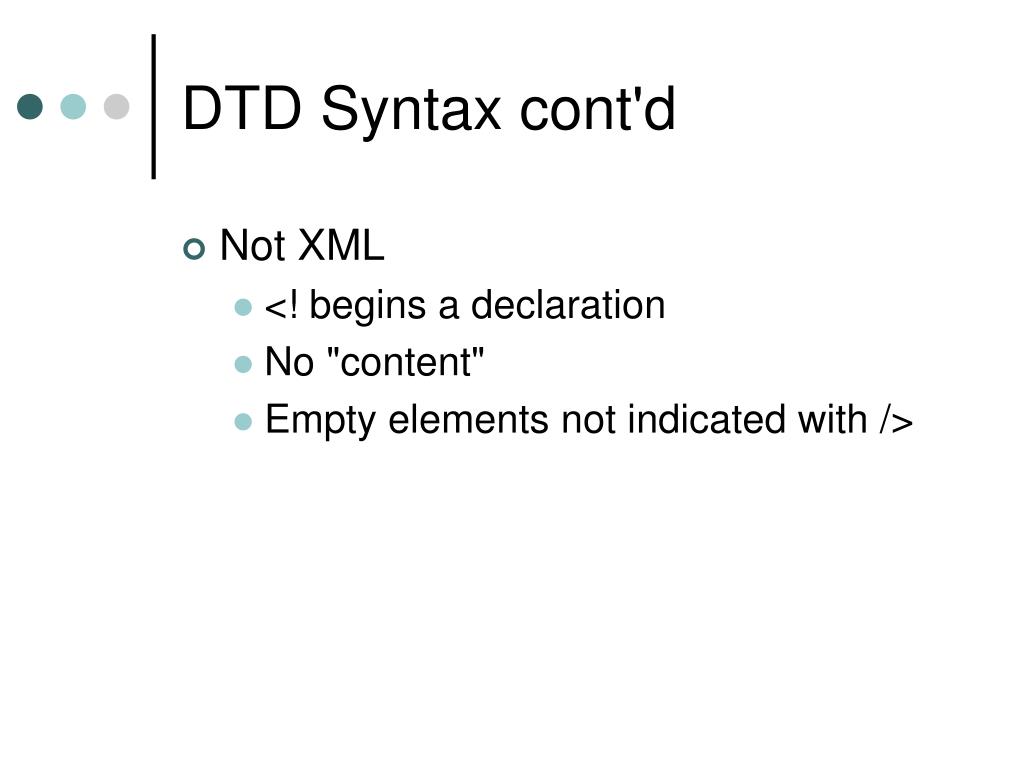

  14. DTD Syntax cont'd • Not XML • <! begins a declaration • No "content" • Empty elements not indicated with />

  15. Simple content models • Content can be any text • #PCDATA • Content can be anything at all • (useful for debugging) • ANY • Element has no content • EMPTY

  16. Example <grades> <grade> <student>Jane Doe</student> <assigned-grade>A</assigned-grade> </grade> <grade> <student>John Doe</student> <assigned-grade>A-</assigned-grade> </grade> </grades>

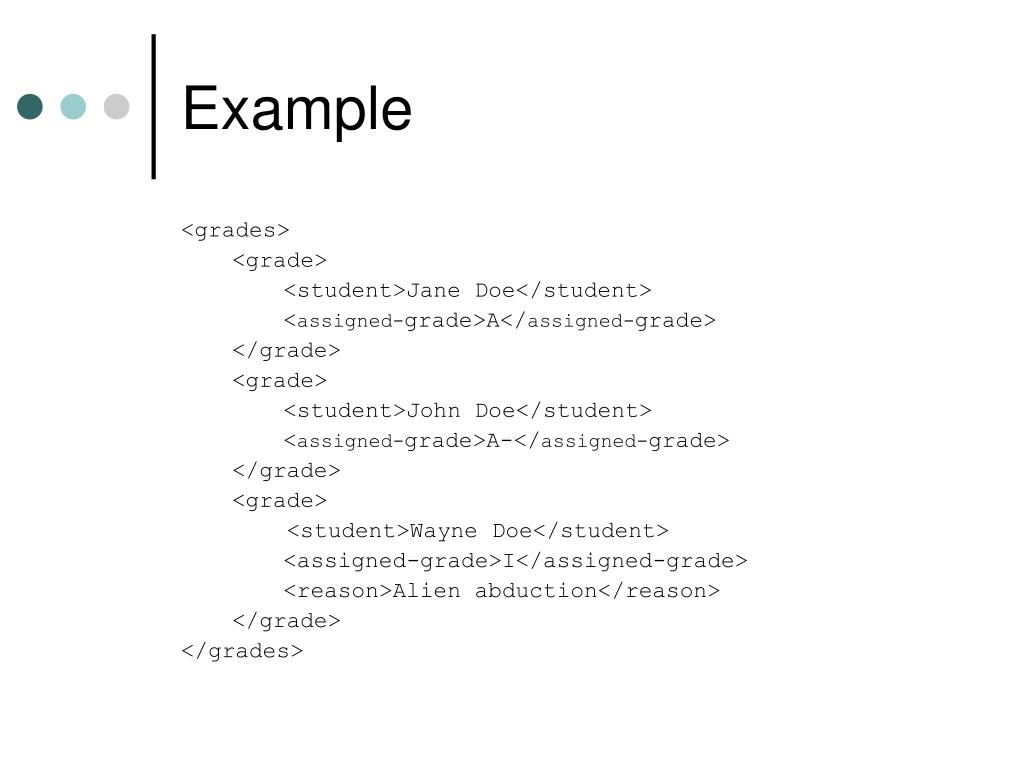

  17. Example <grades> <grade> <student>Jane Doe</student> <assigned-grade>A</assigned-grade> </grade> <grade> <student>John Doe</student> <assigned-grade>A-</assigned-grade> </grade> <grade> <student>Wayne Doe</student> <assigned-grade>I</assigned-grade> <reason>Alien abduction</reason> </grade> </grades>

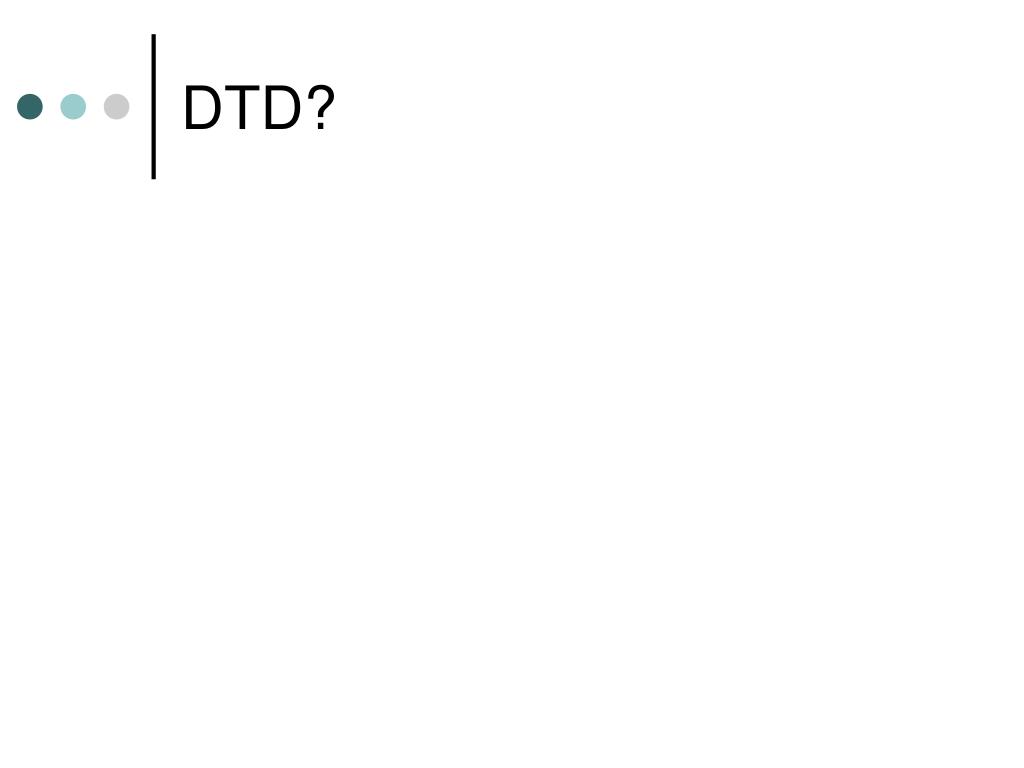

  18. DTD?

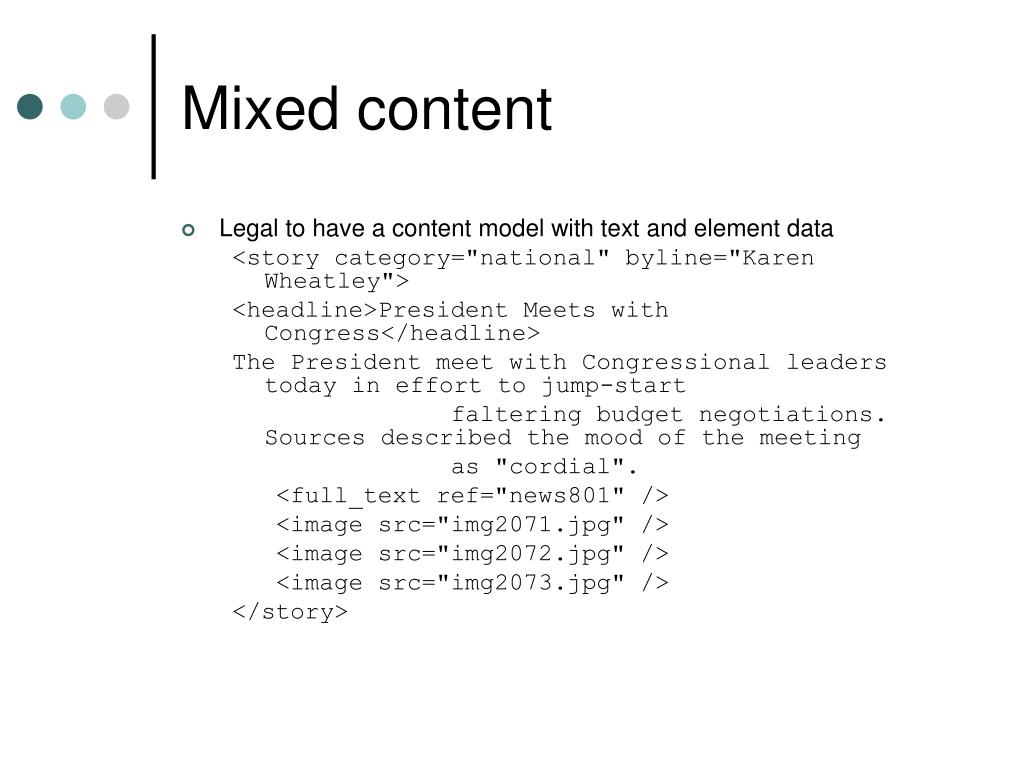

  19. Mixed content • Legal to have a content model with text and element data <story category="national" byline="Karen Wheatley"> <headline>President Meets with Congress</headline> The President meet with Congressional leaders today in effort to jump-start faltering budget negotiations. Sources described the mood of the meeting as "cordial". <full_text ref="news801" /> <image src="img2071.jpg" /> <image src="img2072.jpg" /> <image src="img2073.jpg" /> </story>

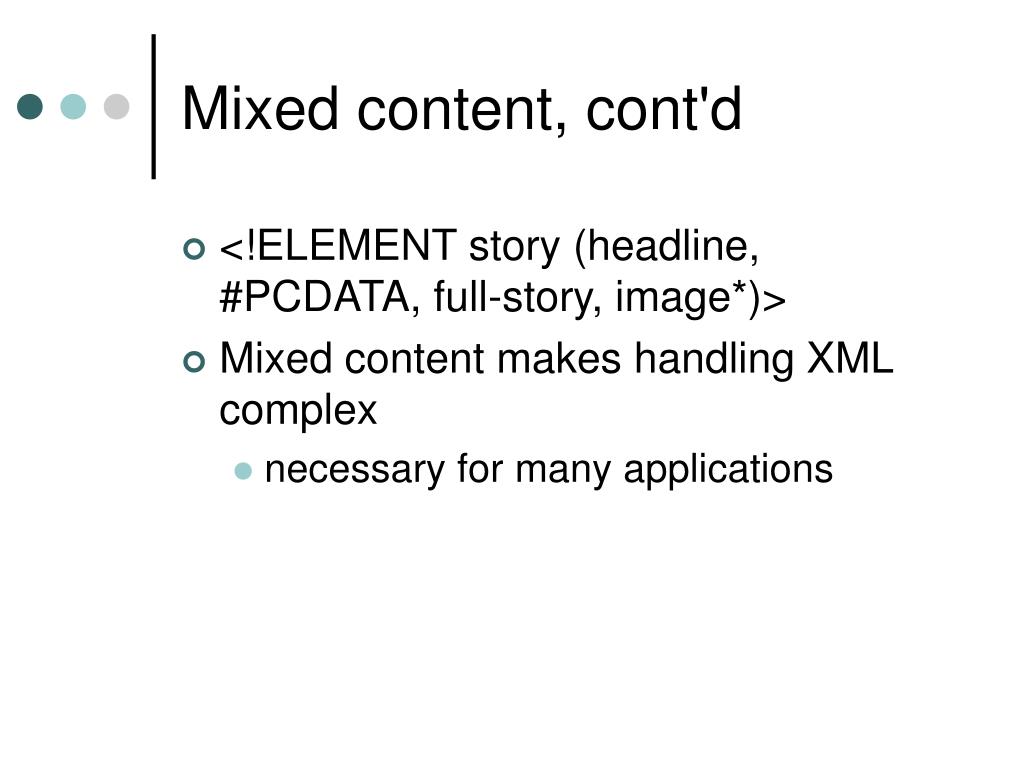

  20. Mixed content, cont'd • <!ELEMENT story (headline, #PCDATA, full-story, image*)> • Mixed content makes handling XML complex • necessary for many applications

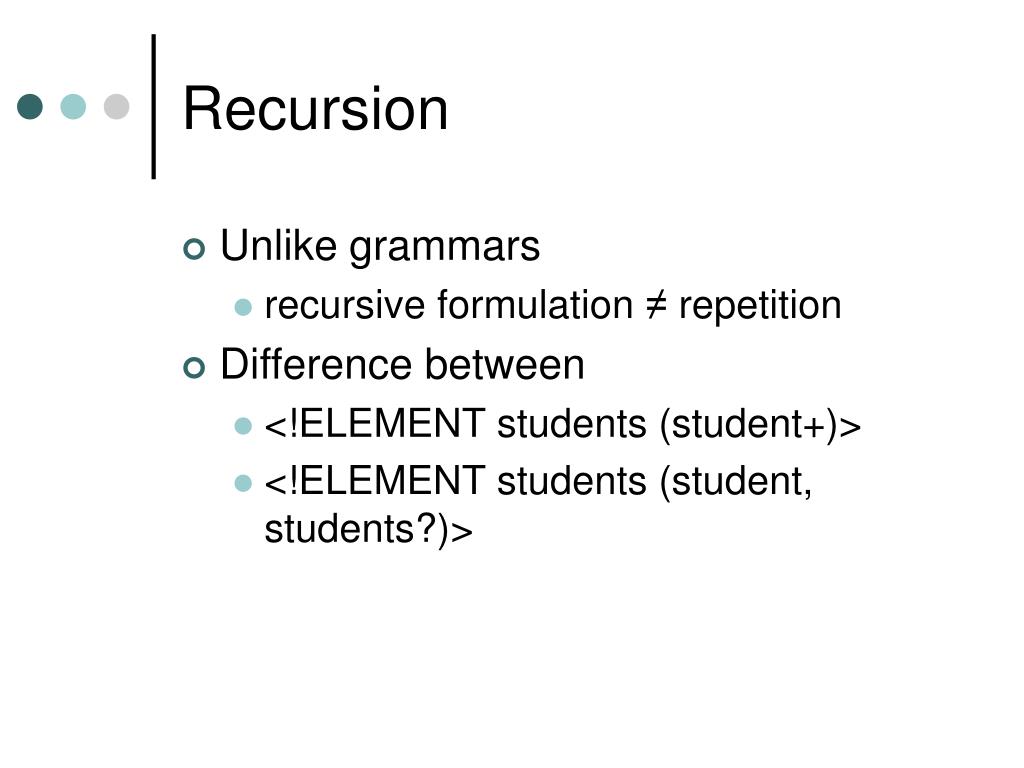

  21. Recursion • Unlike grammars • recursive formulation ≠ repetition • Difference between • <!ELEMENT students (student+)> • <!ELEMENT students (student, students?)>

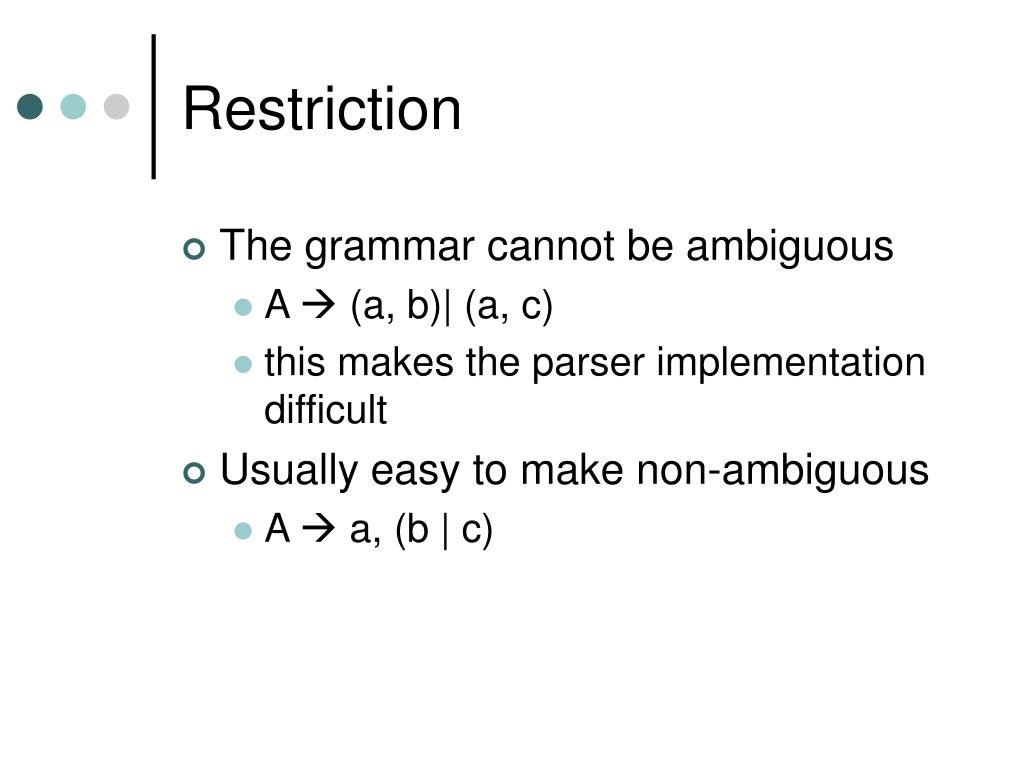

  22. Restriction • The grammar cannot be ambiguous • A  (a, b)| (a, c) • this makes the parser implementation difficult • Usually easy to make non-ambiguous • A  a, (b | c)

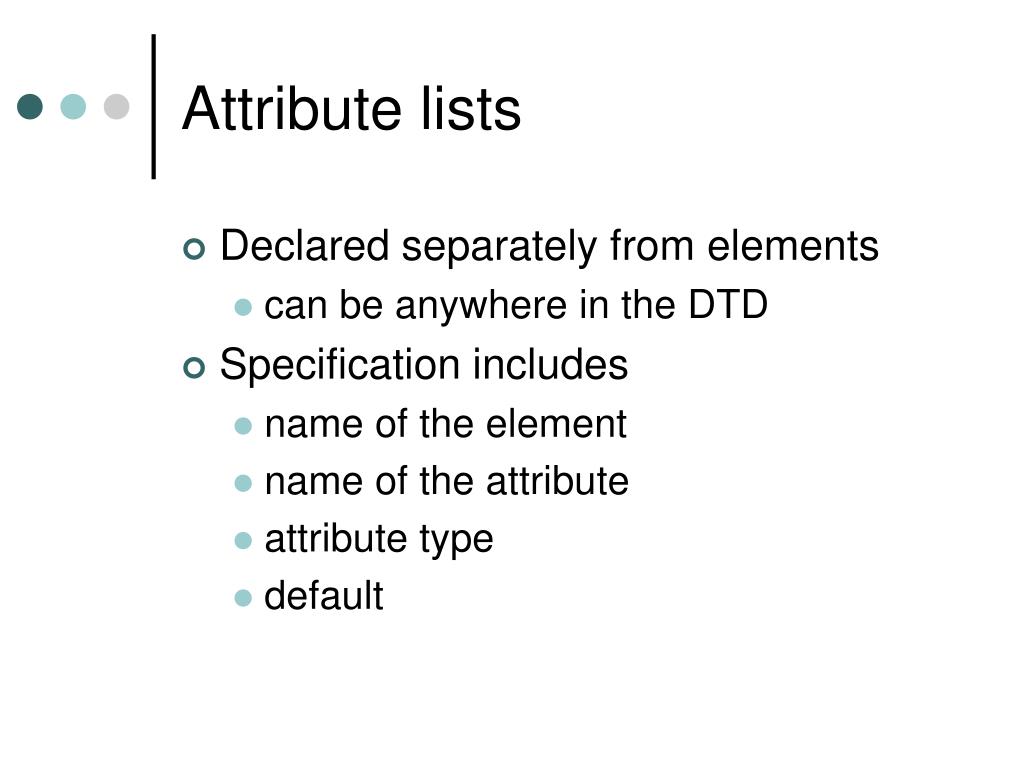

  23. Attribute lists • Declared separately from elements • can be anywhere in the DTD • Specification includes • name of the element • name of the attribute • attribute type • default

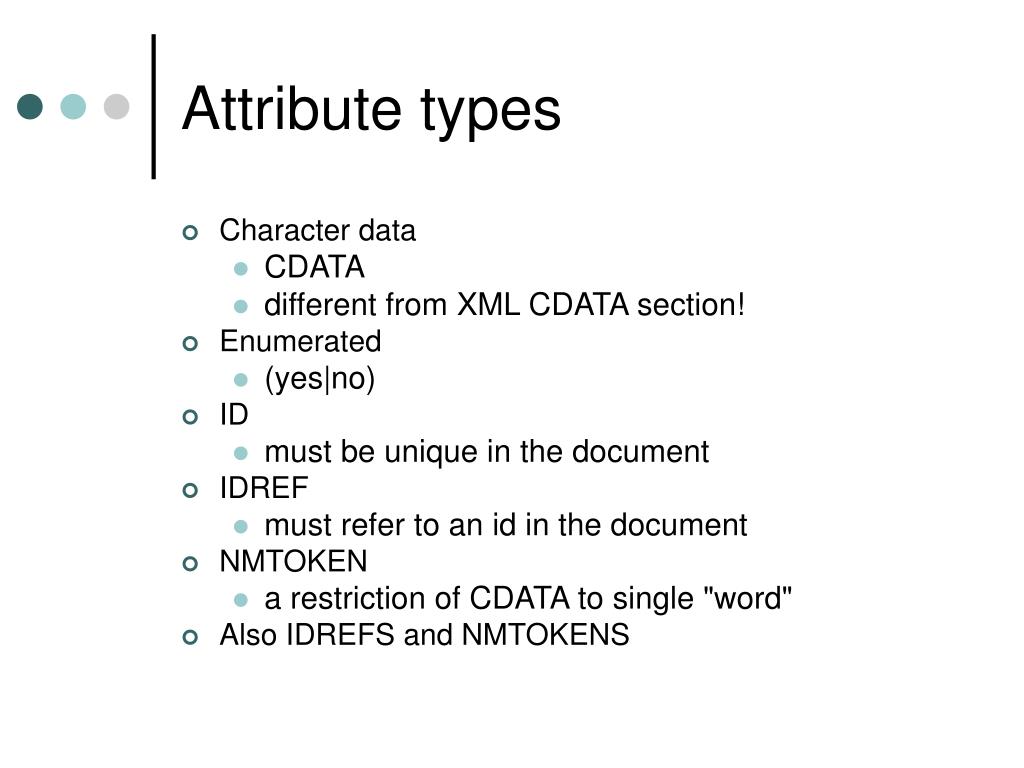

  24. Attribute types • Character data • CDATA • different from XML CDATA section! • Enumerated • (yes|no) • ID • must be unique in the document • IDREF • must refer to an id in the document • NMTOKEN • a restriction of CDATA to single "word" • Also IDREFS and NMTOKENS

  25. Default declaration • #REQUIRED • #IMPLIED • means optional • Value • this becomes the default • #FIXED • value provided

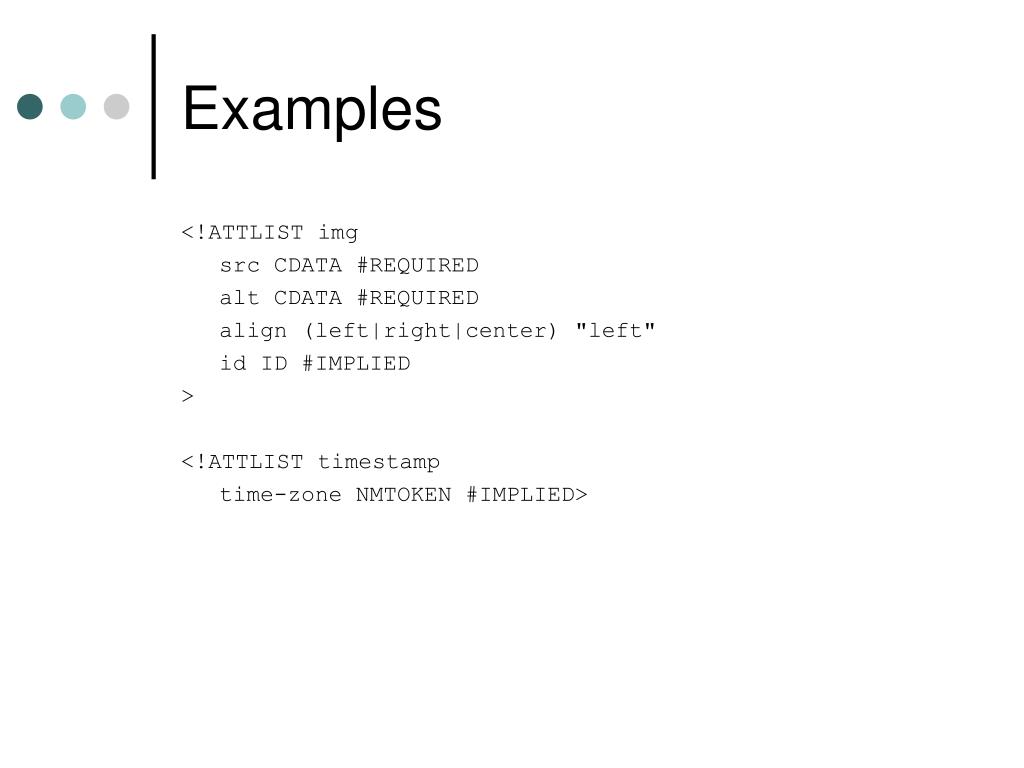

  26. Examples <!ATTLIST img src CDATA #REQUIRED alt CDATA #REQUIRED align (left|right|center) "left" id ID #IMPLIED > <!ATTLIST timestamp time-zone NMTOKEN #IMPLIED>

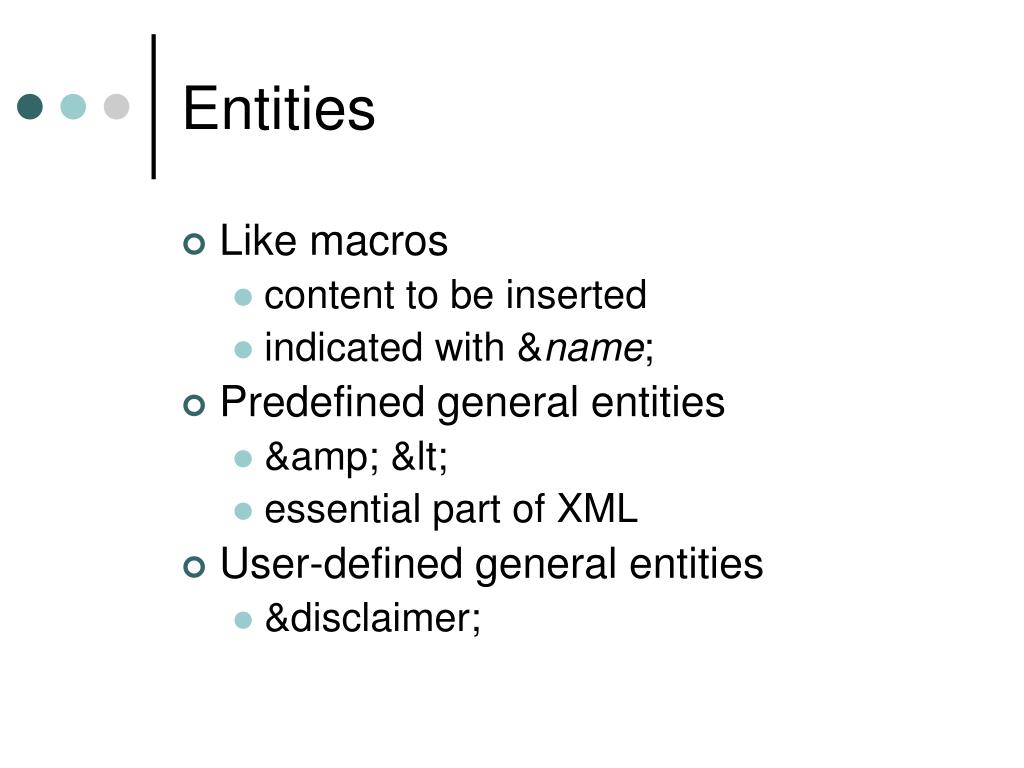

  27. Entities • Like macros • content to be inserted • indicated with &name; • Predefined general entities • &amp; &lt; • essential part of XML • User-defined general entities • &disclaimer;

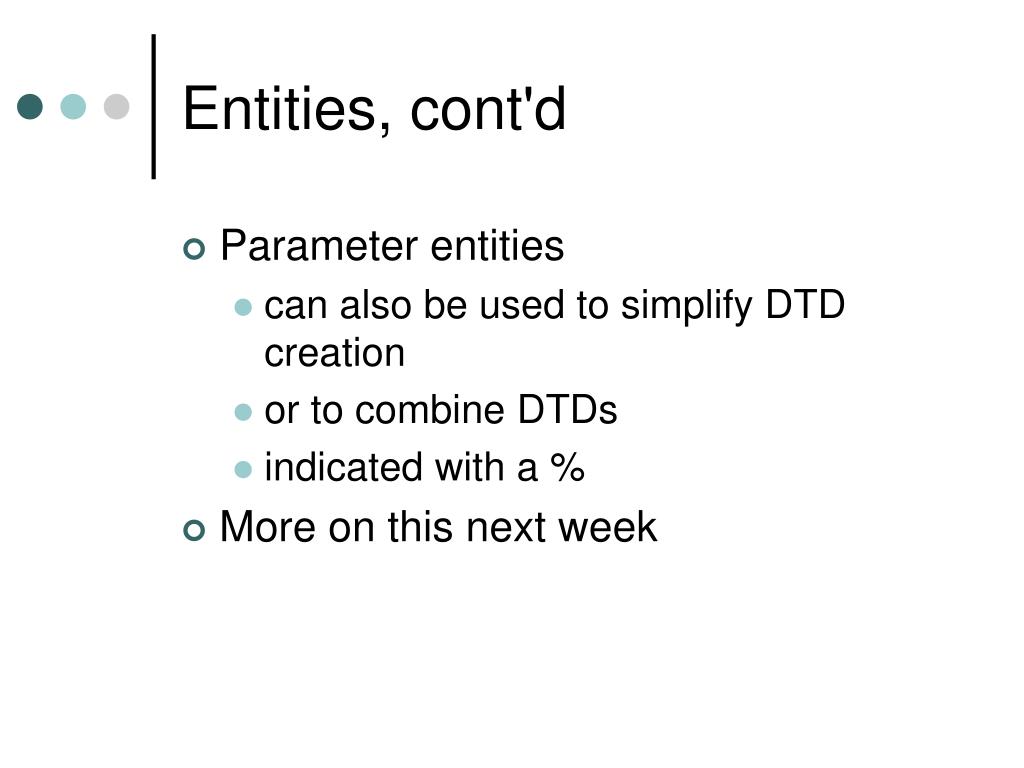

  28. Entities, cont'd • Parameter entities • can also be used to simplify DTD creation • or to combine DTDs • indicated with a % • More on this next week

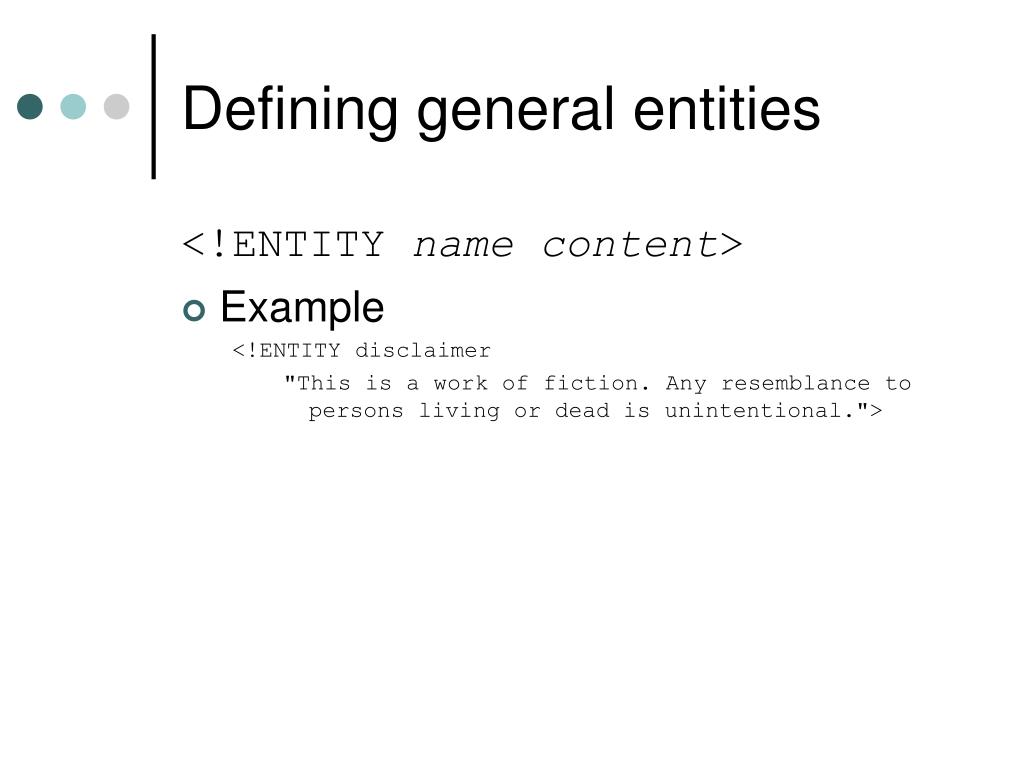

  29. Defining general entities <!ENTITY name content> • Example <!ENTITY disclaimer "This is a work of fiction. Any resemblance to persons living or dead is unintentional.">

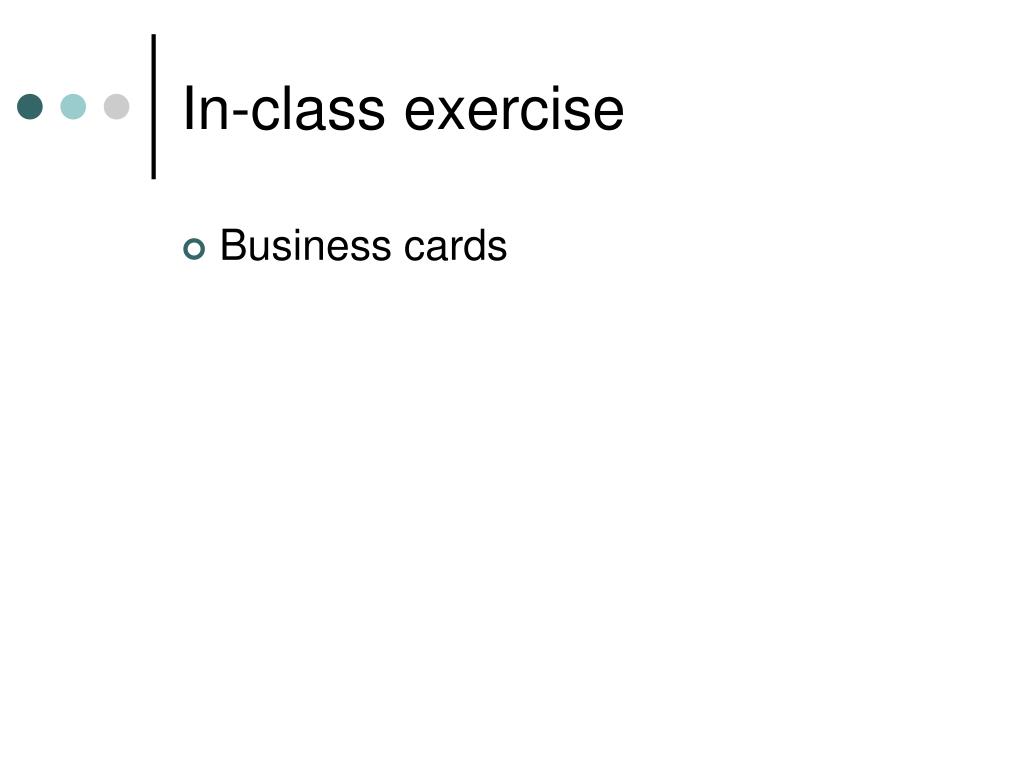

  30. In-class exercise • Business cards

  31. Next week • More DTDs • Entities • Modularization and parameterization • pg. 129-148

  32. Lab
