  1. PRODUCT CATALOG2009

  2. ILS: LED: Public areas & Industrial purposes INduciton light Light Sources * Self - Ballasted Series- ESB * Spherical Series - ESQ * Square Tubular Series - EST * Round Tubular Series - ERT High Bay Light Series- HBTunnel Light Series - TNFlood Light & Shoebox Series - FL&SBStreet Light Series - STArchitectural Light Series - ACAnti – Explosive Light Series - AE Product Index ELA- AR111 ELD- Down LightELE - E27 ELG - GU10ELGN -Goose neck Light ELM - MR11/16 ELP - PARELS - Spot LightELT - Strip LightET8 - T8 LED Tubular T5: Commercial & Residential purposes ESHE - High Efficiency Tubular Fluorescent LampESHO - High Power Tubular Fluorescent Lamp

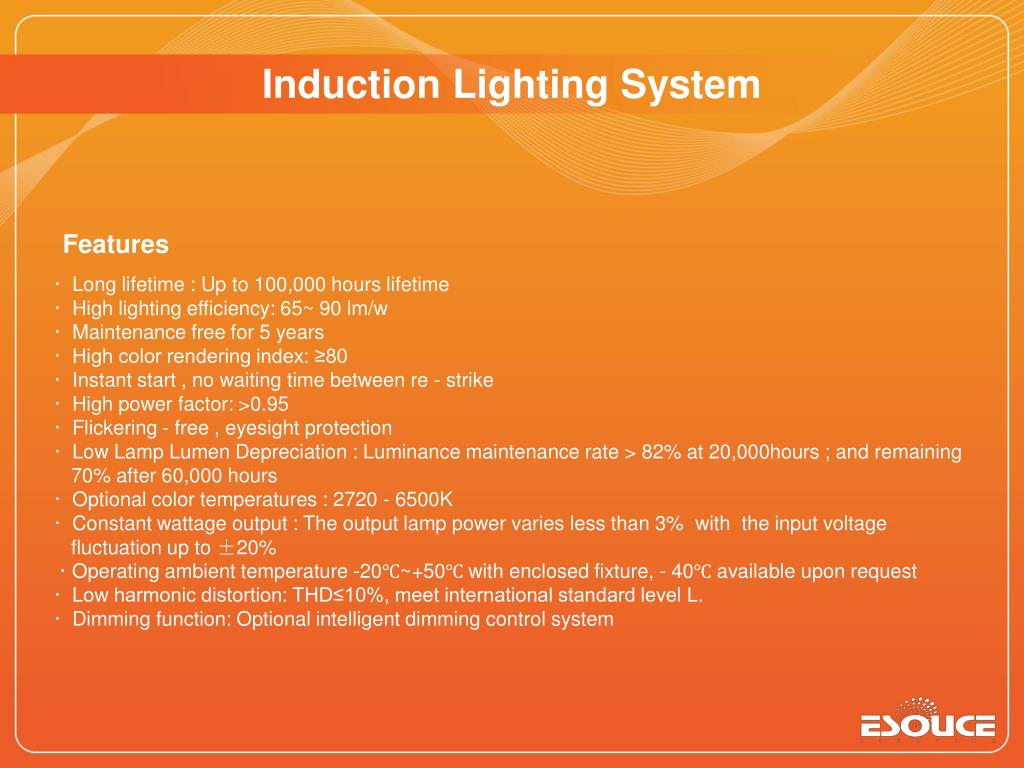

  3. Induction Lighting System Features ·  Long lifetime : Up to 100,000 hours lifetime ·  High lighting efficiency: 65~ 90 lm/w · Maintenance free for 5 years ·  High color rendering index: ≥80 ·  Instant start , no waiting time between re - strike · High power factor: >0.95 ·  Flickering - free , eyesight protection · Low Lamp Lumen Depreciation : Luminance maintenance rate > 82% at 20,000hours ; and remaining 70% after 60,000 hours · Optional color temperatures : 2720 - 6500K ·  Constant wattage output : The output lamp power varies less than 3%  with  the input voltage fluctuation up to ±20%  · Operating ambient temperature -20℃~+50℃ with enclosed fixture, - 40℃ available upon request ·  Low harmonic distortion: THD≤10%, meet international standard level L. ·  Dimming function: Optional intelligent dimming control system

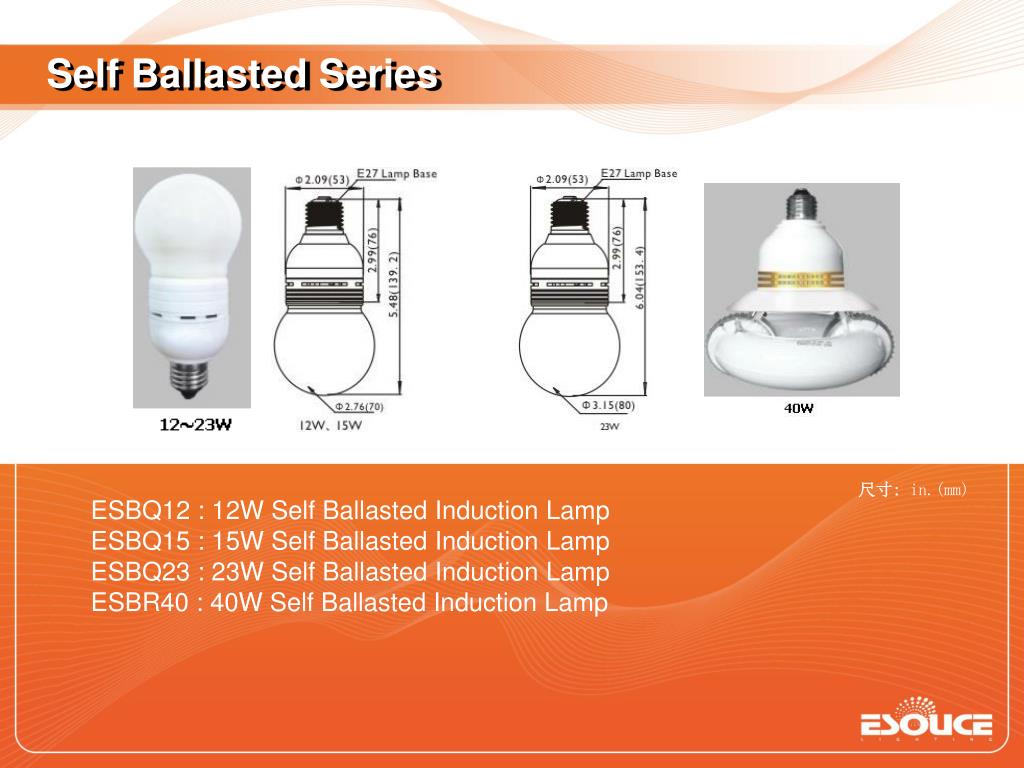

  4. Self Ballasted Series 尺寸: in.(mm) ESBQ12 : 12W Self Ballasted Induction Lamp ESBQ15 : 15W Self Ballasted Induction Lamp ESBQ23 : 23W Self Ballasted Induction Lamp ESBR40 : 40W Self Ballasted Induction Lamp

  5. Spherical Series 尺寸: in.(mm) ESQ35 : 35W Spherical Induction Lamp ESQ55 : 55W Spherical Induction Lamp ESQ85 : 85W Spherical Induction Lamp ESQ100 : 100W Spherical Induction Lamp ESQ120 : 120W Spherical Induction Lamp ESQ165 : 165W Spherical Induction Lamp ESQ200 : 200W Spherical Induction Lamp

  6. Induction Lamp ~ Square Tubular Series Dimensions: Unit: in. (mm) EST40 : 40W Square Tubular Induction Lamp EST70 : 70W Square Tubular Induction Lamp EST100 : 100W Square Tubular Induction Lamp EST120 : 120W Square Tubular Induction Lamp EST150 : 150W Square Tubular Induction Lamp EST200 : 200W Square Tubular Induction Lamp EST250 : 250W Square Tubular Induction Lamp EST300 : 300W Square Tubular Induction Lamp EST400 : 400W Square Tubular Induction Lamp

  7. Induction Lamp ~ Round Tubular Series Dimensions: Unit: in. (mm) ERT40 : 40W Round Tubular Induction Lamp ERT70 : 70W Round Tubular Induction Lamp ERT80 : 80W Round Tubular Induction Lamp ERT100 : 100W Round Tubular Induction Lamp ERT120 : 120W Round Tubular Induction Lamp ERT150 : 150W Round Tubular Induction Lamp ERT200 : 200W Round Tubular Induction Lamp ERT250 : 250W Round Tubular Induction Lamp ERT300 : 300W Round Tubular Induction Lamp

  8. Tunnel Light Series- TN Series

  9. TNS 4110/4111/4112 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 70/80/100W Square tubular induction lamp IP class : IP65 Applications: Tunnel, freeway, highway, parking lots, public entrance, off-street area

  10. TNS 4113/4114 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 120/150W Square tubular induction lamp IP class : IP65 Applications: Tunnel, freeway, highway, parking lots, public entrance, off- street area

  11. TN S4115 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 200W Square tubular induction lamp IP class : IP65 Applications: Tunnel, freeway, highway, parking lots, public entrance, off- street area

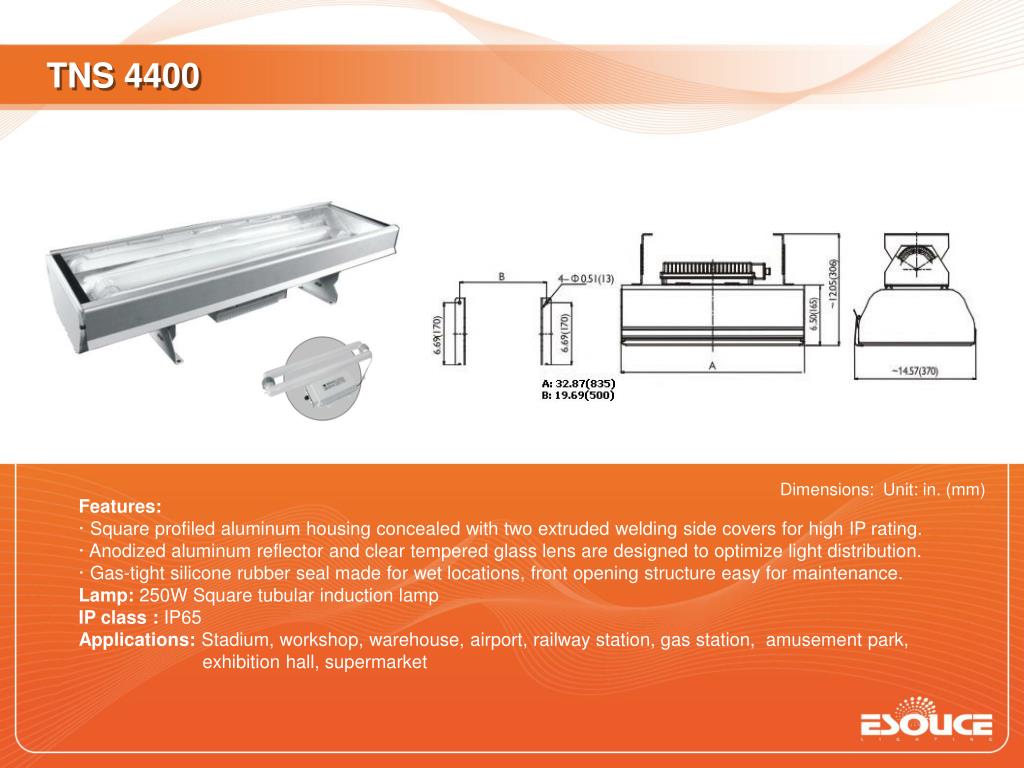

  12. TNS 4400 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 250W Square tubular induction lamp IP class : IP65 Applications: Stadium, workshop, warehouse, airport, railway station, gas station, amusement park, exhibition hall, supermarket

  13. TNS 4410 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 300W Square tubular induction lamp IP class : IP65 Applications : Stadium, workshop, warehouse, airport, railway station, gas station, amusement park, exhibition hall, supermarket

  14. TNS 4420 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 400W Square tubular induction lamp IP class : IP65 Applications: Stadium, workshop, warehouse, airport, railway station, gas station, amusement park, exhibition hall, supermarket

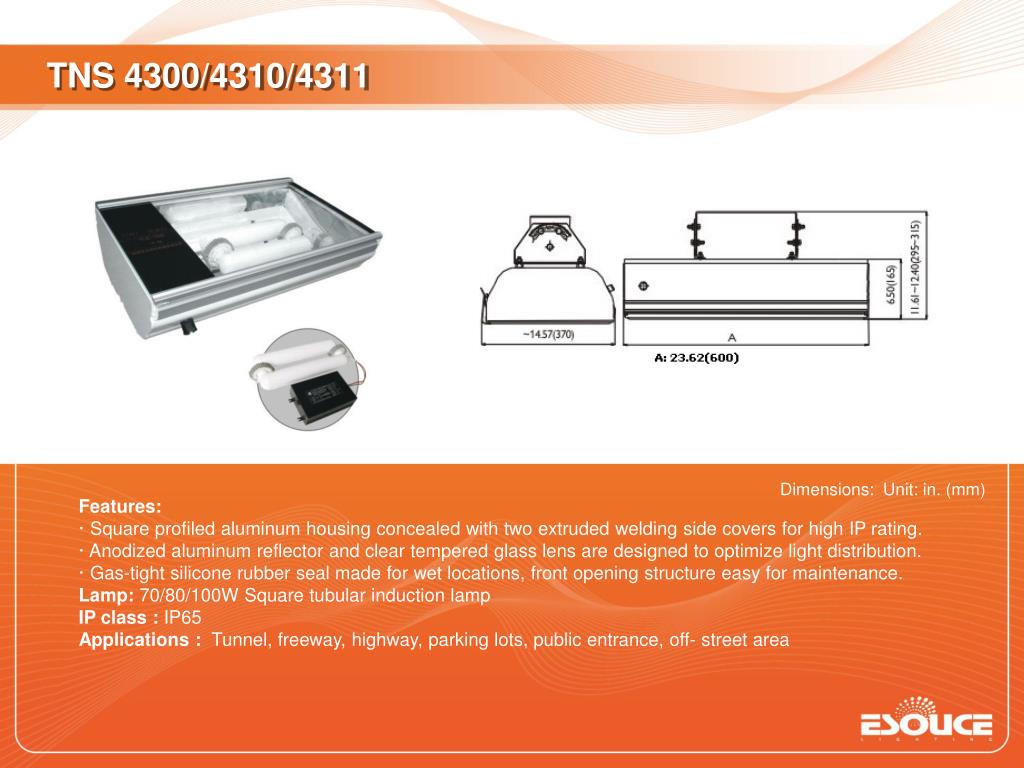

  15. TNS 4300/4310/4311 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 70/80/100W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

  16. TNS 4312/4313 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 120/150W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

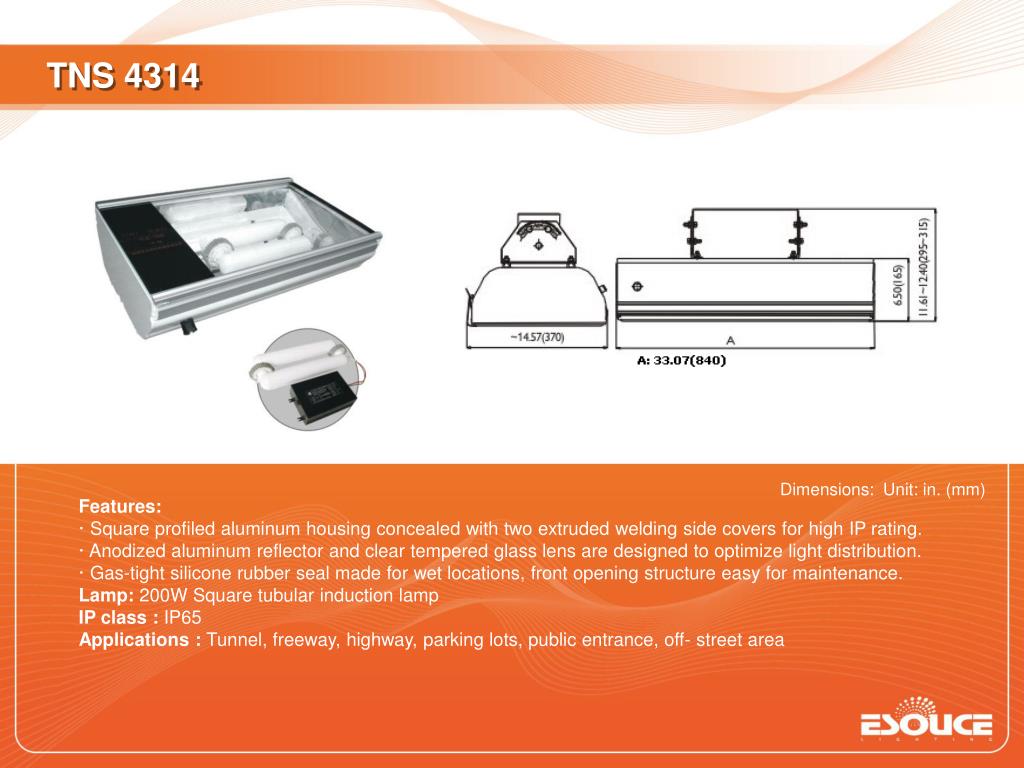

  17. TNS 4314 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 200W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

  18. TNS 4510 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 250W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

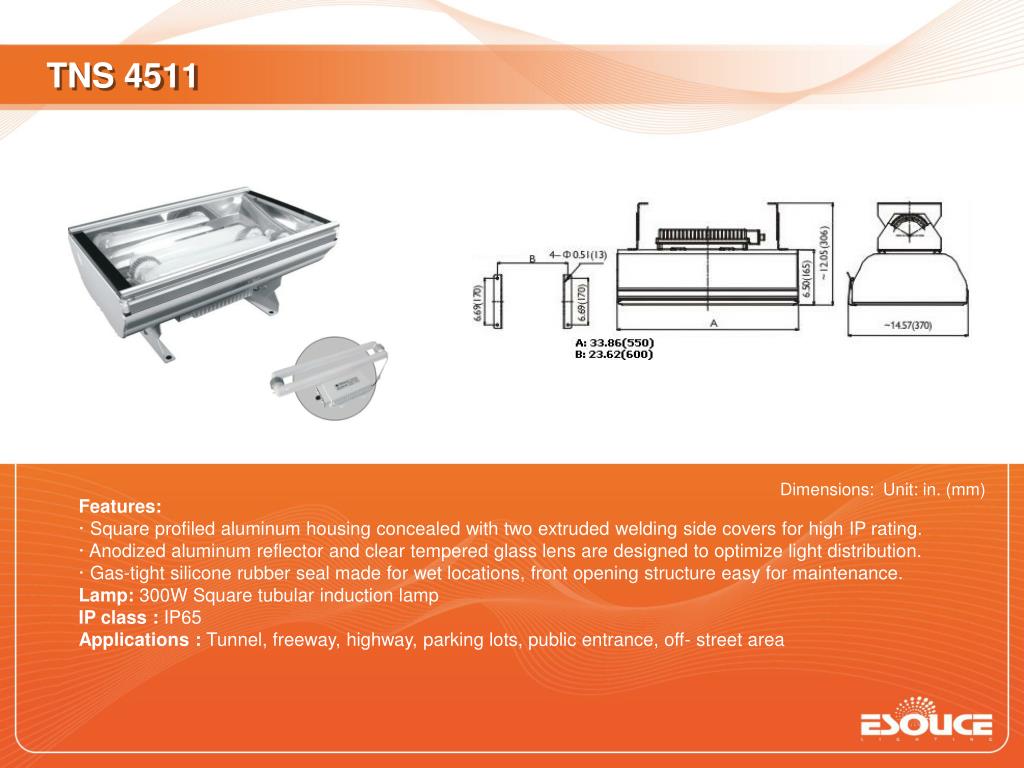

  19. TNS 4511 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 300W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

  20. TNS 4512 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. Lamp: 400W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off- street area

  21. TNS 4600 Dimensions: Unit: in. (mm) Features: · Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating. · Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution. · Gas-tight silicone rubber seal made for wet locations, front opening structure easy for maintenance. · 100W fixture with emergency function: DC 24V running for two hours with 25W lamp watt dimming during power offer, emergency lamp watts and emergency time can be varied upon request. Lamp: 100W Square tubular induction lamp IP class : IP65 Applications : Tunnel, freeway, highway, parking lots, public entrance, off-street area

  22. Street Light Series- ST Series

  23. STSP 7100/7110/7111/7112 Dimensions: Unit: in. (mm) Features: · Newest type high wattage induction lighting fixture with novel design and beautiful contour. · High-pressure die cast alloy aluminum lamp frame and strong stretched aluminum alloy upper casing with the surface of electrostatic painting for corrosion resistance and durable use. · High purity aluminum reflector with vacuum coated inner surface. · Polycarbonate lens available. · Heat –resistant silicone rubber sealing ring to ensure high level of IP rating. · Optional photocell to maximize energy saving. · Timer dimming function is available upon request. Lamp:80/100/120/150W  Square tubular induction lamp IP class:IP65 Applications: Freeway, highway, parking lots, public entrance, area

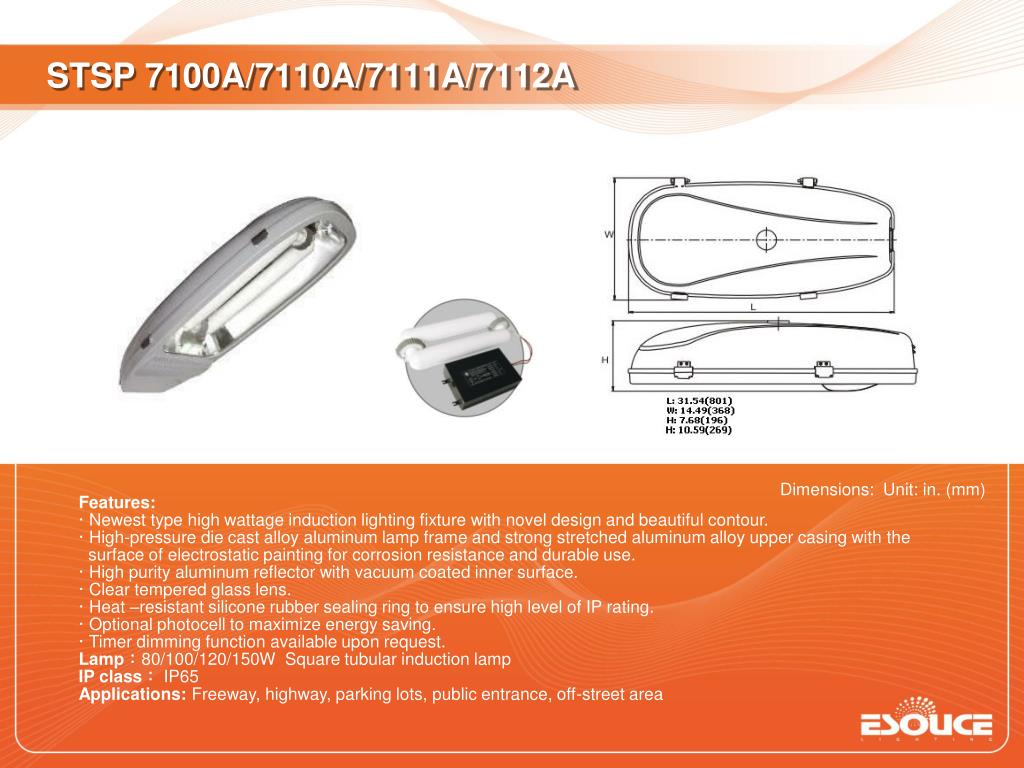

  24. STSP 7100A/7110A/7111A/7112A Dimensions: Unit: in. (mm) Features: · Newest type high wattage induction lighting fixture with novel design and beautiful contour. · High-pressure die cast alloy aluminum lamp frame and strong stretched aluminum alloy upper casing with the surface of electrostatic painting for corrosion resistance and durable use. · High purity aluminum reflector with vacuum coated inner surface. · Clear tempered glass lens. · Heat –resistant silicone rubber sealing ring to ensure high level of IP rating. · Optional photocell to maximize energy saving. · Timer dimming function available upon request. Lamp:80/100/120/150W  Square tubular induction lamp IP class:IP65 Applications: Freeway, highway, parking lots, public entrance, off-street area

  25. STSP 7113/7114 Dimensions: Unit: in. (mm) Features: · Newest type high wattage induction lighting fixture with novel design and beautiful contour. · High-pressure die cast alloy aluminum lamp frame and strong stretched aluminum alloy upper casing with the surface of electrostatic painting for corrosion resistance and durable use. · High purity aluminum reflector with vacuum coated inner surface. · Polycarbonate lens available. · Heat –resistant silicone rubber sealing ring to ensure high level of IP rating. · Optional photocell to maximize energy saving. · Timer dimming function available upon request. Lamp:200/250W  Square tubular induction lamp IP class:IP65 Applications : Freeway, highway, parking lots, public entrance, off-street area

  26. STS 7113A/7114A Dimensions: Unit: in. (mm) Features: · Newest type high wattage induction lighting fixture with novel design and beautiful contour. · High-pressure die cast alloy aluminum lamp frame and strong stretched aluminum alloy upper casing with the surface of electrostatic painting for corrosion resistance and durable use. · High purity aluminum reflector with vacuum coated inner surface. · Clear tempered glass lens. · Heat –resistant silicone rubber sealing ring to ensure high level of IP rating. · Optional photocell to maximize energy saving. · Timer dimming function available upon request. Lamp:200/250W Square tubular induction lamp IP class:IP65 Applications : Freeway, highway, parking lots, public entrance, off- street area

  27. STQ 7210 & STR7310/ 7311/7312 Dimensions: Unit: in. (mm) Features: · High pressure die cast aluminum frame and stretched aluminum housing with powder coated finish for corrosion- resistance. · Heat-resistant polycarbonate or tempered glass lens. · High purity aluminum reflector with vacuum coated inner surface. · Heat-resistant gas-tight silicone rubber seal. · Timer dimming function available upon request. Lamp : 55W Spherical or 40/70/80/100W Round tubular induction lamp Applications : Freeway, highway, parking lots, public entrance, off-street area

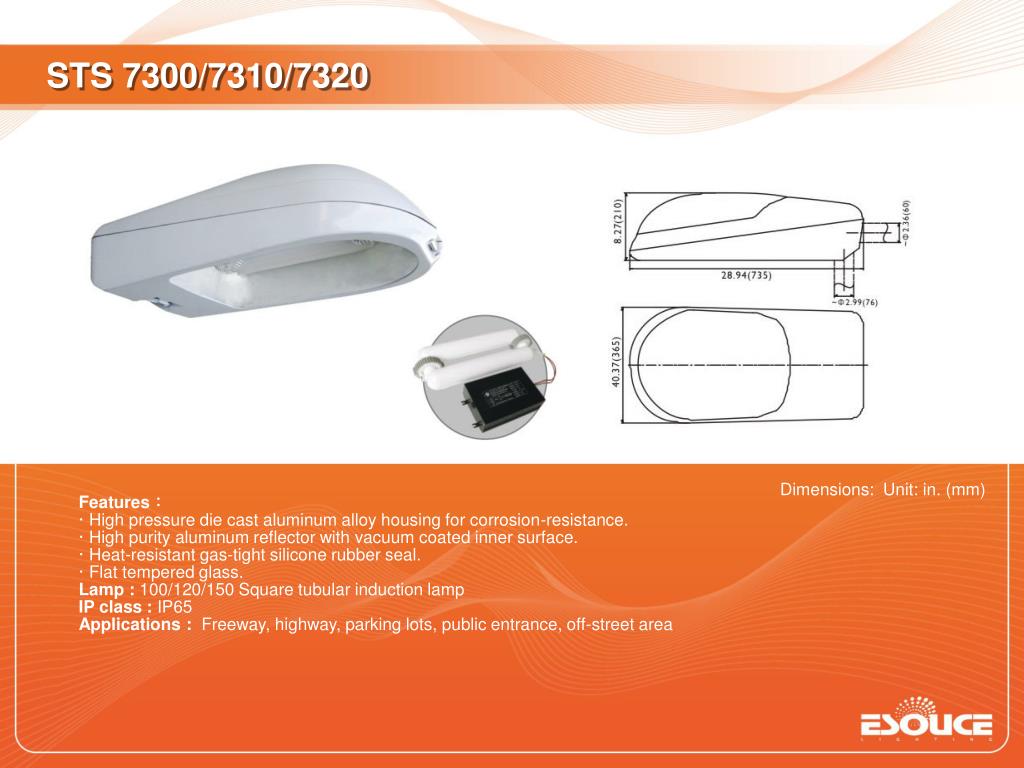

  28. STS 7300/7310/7320 Dimensions: Unit: in. (mm) Features: · High pressure die cast aluminum alloy housing for corrosion-resistance. · High purity aluminum reflector with vacuum coated inner surface. · Heat-resistant gas-tight silicone rubber seal. · Flat tempered glass. Lamp : 100/120/150 Square tubular induction lamp IP class : IP65 Applications : Freeway, highway, parking lots, public entrance, off-street area

  29. STO 7410 Dimensions: Unit: in. (mm) Features: · High pressure die cast aluminum alloy housing for corrosion-resistance. · High purity aluminum reflector with vacuum coated inner surface. · Heat-resistant polycarbonate lens designed to optimize light distribution. · Timer dimming function is available upon request. Lamp : 150W Oval- shaped tubular induction lamp IP class : IP54 Applications : Freeway, highway, parking lots, public entrance, off-street area

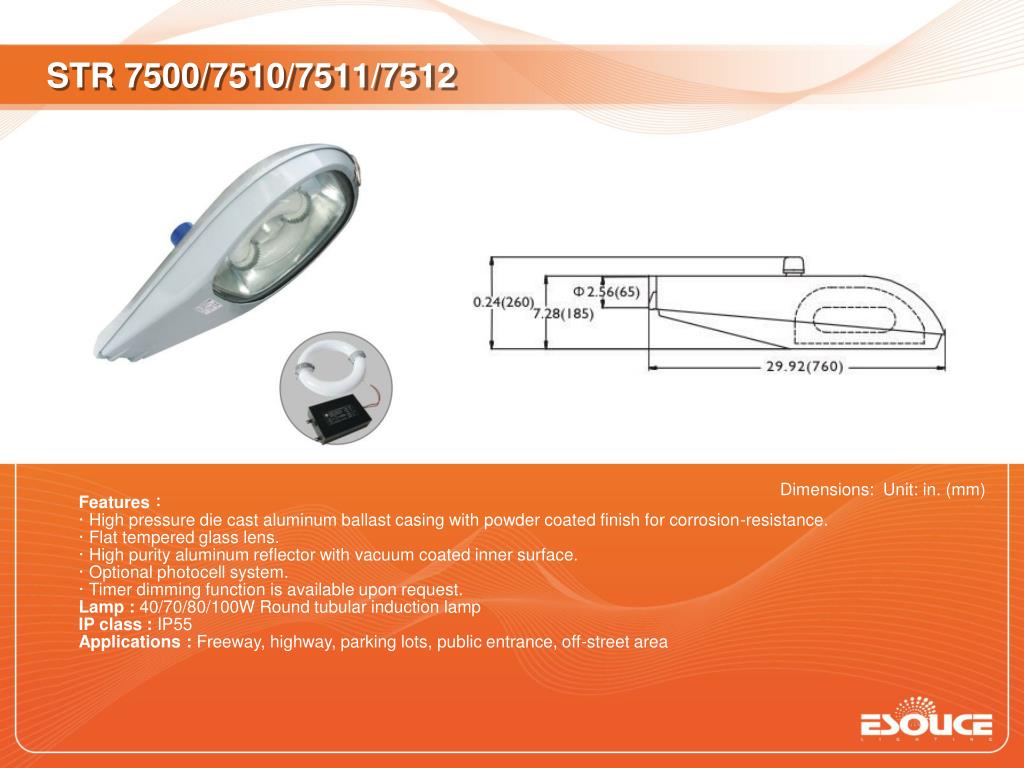

  30. STR 7500/7510/7511/7512 Dimensions: Unit: in. (mm) Features: · High pressure die cast aluminum ballast casing with powder coated finish for corrosion-resistance. · Flat tempered glass lens. · High purity aluminum reflector with vacuum coated inner surface. · Optional photocell system. · Timer dimming function is available upon request. Lamp : 40/70/80/100W Round tubular induction lamp IP class : IP55 Applications : Freeway, highway, parking lots, public entrance, off-street area

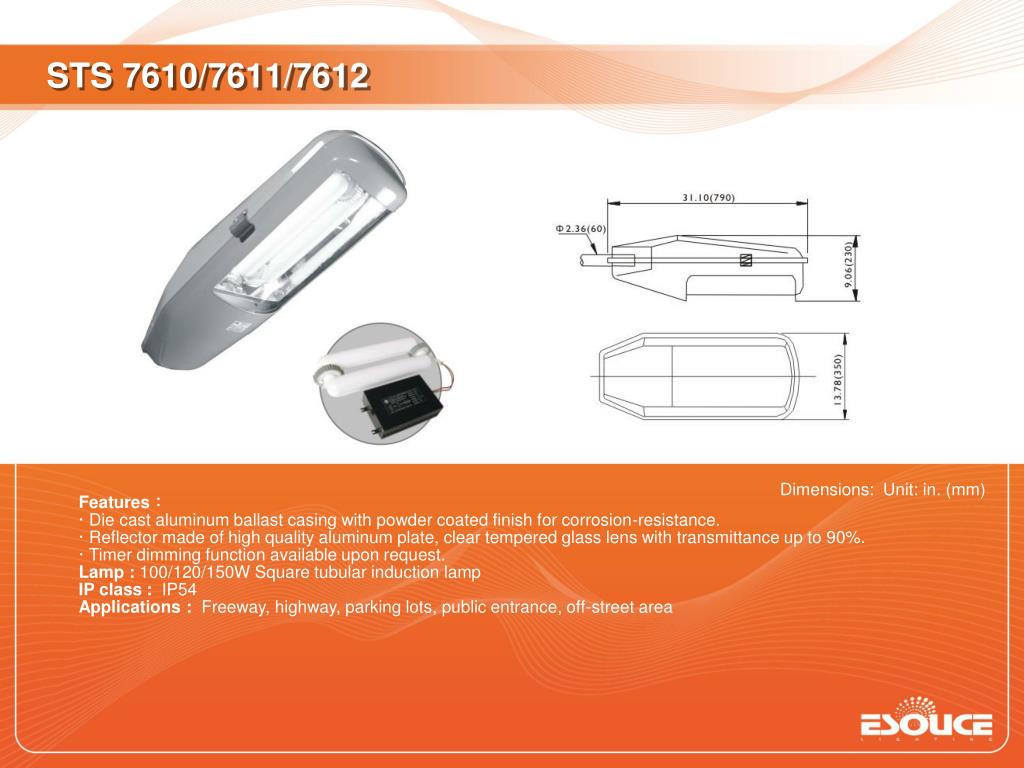

  31. STS 7610/7611/7612 Dimensions: Unit: in. (mm) Features: · Die cast aluminum ballast casing with powder coated finish for corrosion-resistance. · Reflector made of high quality aluminum plate, clear tempered glass lens with transmittance up to 90%. · Timer dimming function available upon request. Lamp : 100/120/150W Square tubular induction lamp IP class :IP54 Applications : Freeway, highway, parking lots, public entrance, off-street area

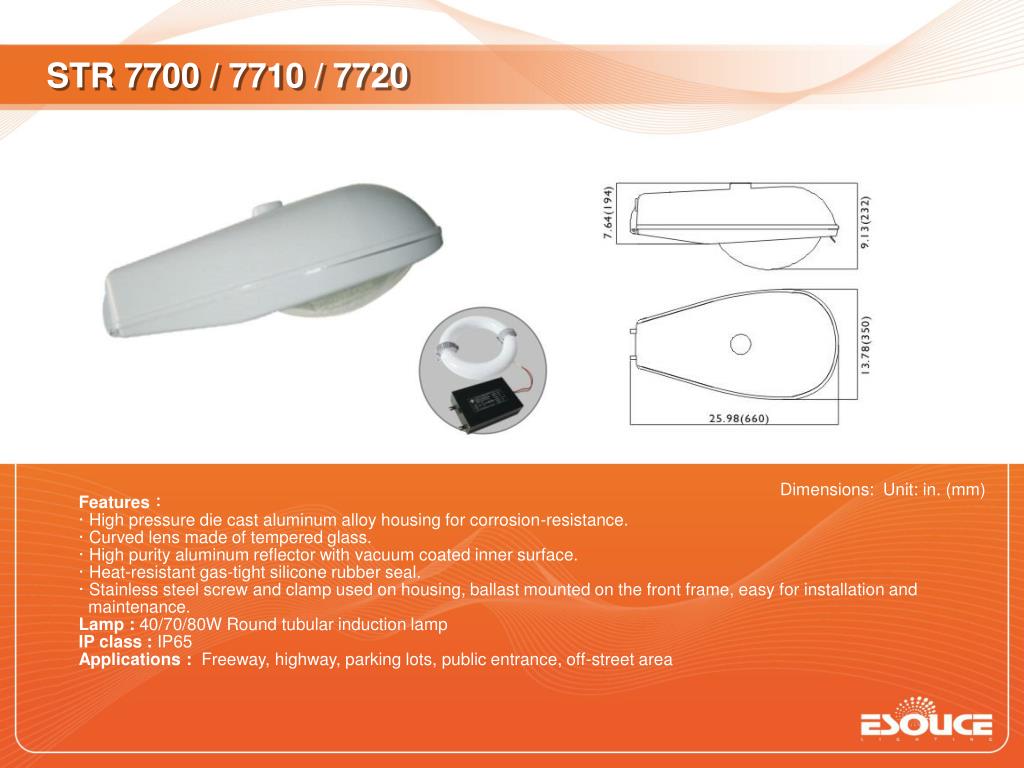

  32. STR 7700 / 7710 / 7720 Dimensions: Unit: in. (mm) Features: · High pressure die cast aluminum alloy housing for corrosion-resistance. · Curved lens made of tempered glass. · High purity aluminum reflector with vacuum coated inner surface. · Heat-resistant gas-tight silicone rubber seal. · Stainless steel screw and clamp used on housing, ballast mounted on the front frame, easy for installation and maintenance. Lamp : 40/70/80W Round tubular induction lamp IP class : IP65 Applications : Freeway, highway, parking lots, public entrance, off-street area

  33. Architectural Light Series- AC Series

  34. ACQ 8000/8010/8020 Dimensions: Unit: in. (mm) Features: · Aluminum alloy housing with powder coated finish for corrosion-resistance. · Frost glass lens. · Suitable for lamp pole with height of 3m~4m. Lamp: 35/55/85W Spherical induction lamp IP class : IP43 Applications : Plaza, footpath, park, pedestrian street

  35. ACQ 8100 Dimensions: Unit: in. (mm) Features: · Aluminum alloy housing with grey powder coated finish for corrosion-resistance. · Anodized aluminum reflector and frost glass lens. Lamp: 85W Spherical induction lamp IP class : IP43 Applications : Park, shopping mall, outlet, plaza, city hall, historic area

  36. ACSB 8200 & ACQ 8211/8222 Dimensions: Unit: in. (mm) Features: · Die cast aluminum ballast casing with powder coated finish for corrosion-resistance. · Acrylic lens with good transparency, free of glaring. · High quality heat resistant and gas-tight silicone rubber seal. Lamp: 40W Round tubular or 55/85W Spherical induction lamp IP class : IP43 Applications : Park, shopping mall, outlet, plaza, city hall, historic area, garden

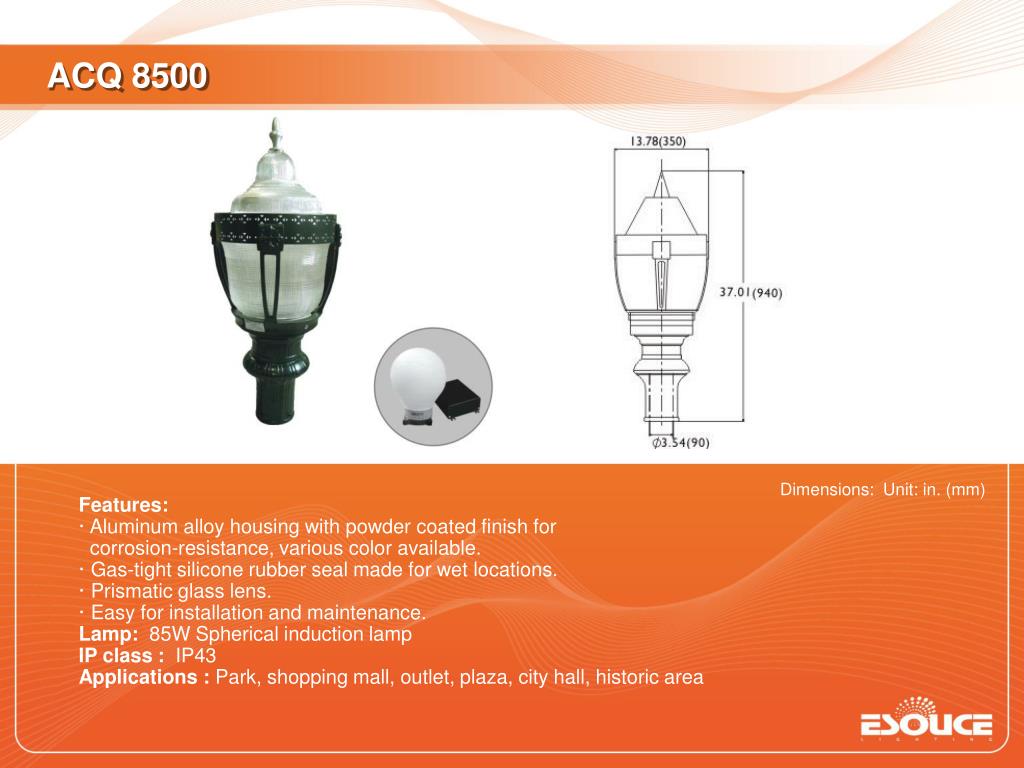

  37. ACQ 8500 Dimensions: Unit: in. (mm) Features: · Aluminum alloy housing with powder coated finish for corrosion-resistance, various color available. · Gas-tight silicone rubber seal made for wet locations. · Prismatic glass lens. · Easy for installation and maintenance. Lamp: 85W Spherical induction lamp IP class : IP43 Applications : Park, shopping mall, outlet, plaza, city hall, historic area

  38. ACQ 8600 Dimensions: Unit: in. (mm) Features: · Die cast aluminum ballast casing with powder coated finish for corrosion-resistance. · Pre-embedded parts made of high quality polypropylene. · Heat-resistant 10mm thick glass and gas-tight silicone rubber seal. Lamp: 35W Spherical induction lamp IP class : IP67 Applications : Park, shopping mall, outlet, plaza, city hall, historic area, garden

  39. ACQ 8700 Dimensions: Unit: in. (mm) Features: · Die cast aluminum casing with powder coated finish for corrosion-resistance. · High quality tempered 12mm thick glass with gas-tight silicone rubber seal. Lamp: 35W Spherical induction lamp IP class : IP67 Applications : Park, shopping mall, outlet, plaza, city hall, historic area, garden

  40. ACR 8800/8801/8802/8803 Dimensions: Unit: in. (mm) Features: · High-pressure die cast aluminum alloy casing with electrostatic painted surface, corrosion- resistance and durable use. · Heat resistant acrylic hood with beautiful contour and dizzy-free lighting. · Intelligent infrared sensor. Lamp: 40/70/80/100W Round tubular induction lamp IP class : IP55 Applications : Floodlighting of roadway, building, garden

  41. ACQ 8804/8805/8806 Dimensions: Unit: in. (mm) Features: · High-pressure die cast aluminum alloy casing with electrostatic painted surface, corrosion- resistance and durable use. · Heat resistant acrylic hood with beautiful contour and dizzy-free lighting. · Intelligent infrared sensor. Lamp: 35/55/85W Spherical induction lamp IP class : IP55 Applications : Floodlighting of roadway, building, garden

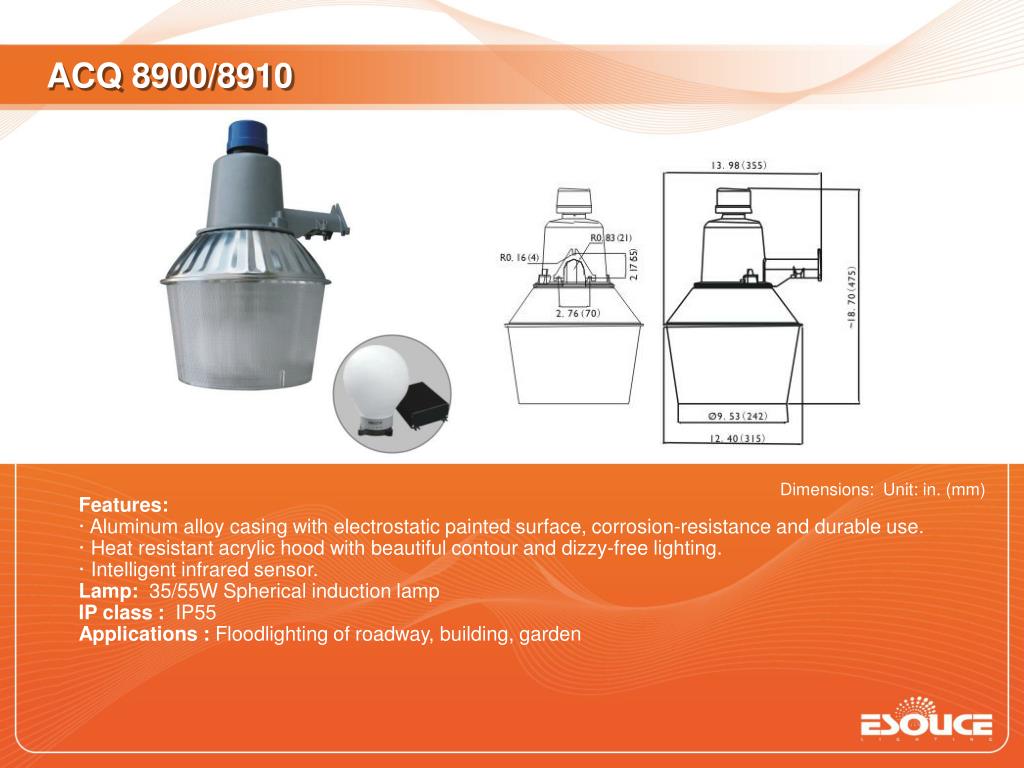

  42. ACQ 8900/8910 Dimensions: Unit: in. (mm) Features: · Aluminum alloy casing with electrostatic painted surface, corrosion-resistance and durable use. · Heat resistant acrylic hood with beautiful contour and dizzy-free lighting. · Intelligent infrared sensor. Lamp: 35/55W Spherical induction lamp IP class : IP55 Applications : Floodlighting of roadway, building, garden

  43. Anti - Explosive Series- AE Series

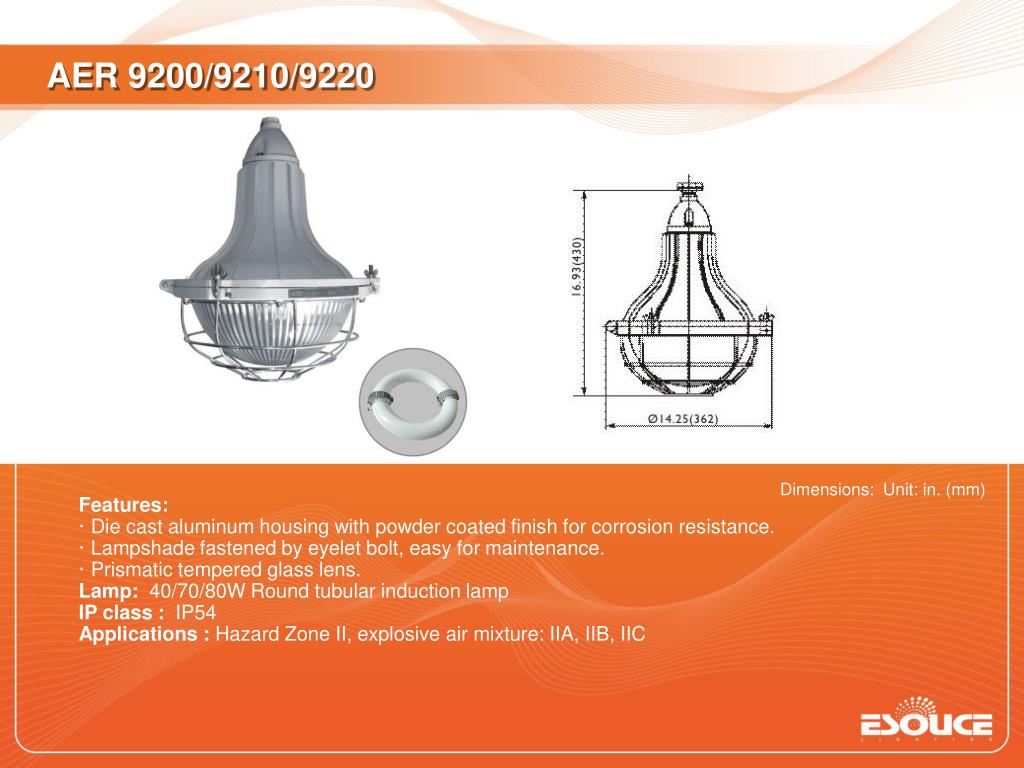

  44. AER 9200/9210/9220 Dimensions: Unit: in. (mm) Features: · Die cast aluminum housing with powder coated finish for corrosion resistance. · Lampshade fastened by eyelet bolt, easy for maintenance. · Prismatic tempered glass lens. Lamp: 40/70/80W Round tubular induction lamp IP class : IP54 Applications :Hazard Zone II, explosive air mixture: IIA, IIB, IIC

  45. AEO 589 Dimensions: Unit: in. (mm) Features: · Die cast aluminum housing . · Tempered glass lens. Lamp: 55 / 85W spherical induction lamp IP class : IP66 Applications :Hazard Zone II, explosive air mixture: IIA, IIB, IIC
