Presentation Transcript
slide1

Departmental Computing Services

DCS-4

“Security, Performance, and Support Benefits of Virtualizing the Desktop PC Using a Zero-Client”

Kenneth Martinez, Team Leader

Greg Belyeu Michael Johnson Dave Jones

505/665-6375 505/667-8696 505/665-3889e-mail: gbelyeu@lanl.gov e-mail: michaelj@lanl.gov e-mail: dmj@lanl.gov

LA-UR 09-03356

UNCLASSIFIED

slide2

Departmental Computing Services

DCS-4

Knowledge and Technology Increases Productivity

- 1st Century Farmer – 1 bushel/acre

- 16th Century Farmer – 10 bushels/acre

- Modern Day Farmer – 100+ bushels/acre

With Improved Knowledge and Technology

UNCLASSIFIED

slide3

Departmental Computing Services

DCS-4

Today New Approaches to IT Infrastructures Are Promising Greater Efficiency

UNCLASSIFIED

slide4

Departmental Computing Services

DCS-4

Desktop PCs: A Major Management Problem

Desktop PCs today are complex stacks of multiple hardware components, operating systems, drivers and applications. Maintaining and managing this hardware and software consumes more than 70% of the TCO of a typical PC, and represents the bulk of the workload of PC support staff – an estimated $4000 - $6000 per desktop per year.*

*According to Gartner Inc. and IDC estimates

UNCLASSIFIED

slide5

Departmental Computing Services

DCS-4

A Virtualized Desktop Infrastructure (VDI)

A virtualization infrastructure moves the PC and all its software off the desktop and into the data center.

UNCLASSIFIED

slide6

Departmental Computing Services

DCS-4

New Innovations by Leading Technology Companies

  • Zero-Client
  • Wyse Technology
  • Pano Logic
  • Teradici
  • Thin-Client
  • Digi
  • ClearCube
  • HP
  • Citrix

UNCLASSIFIED

slide7

Departmental Computing Services

DCS-4

Zero-Client verse Thin-Client

  • Local processing capabilities
  • Operating Systems
  • No operating system
  • No CPU or non-volatile Memory located at the end point

A true zero-client device only connects a monitor and peripherals (mouse, keyboard, USB devices) back to a VDI or similar infrastructure in the data center.

VNC- or RDP-equipped PCs (or blades) are deployed in the back room – work along the lines of a Hosted PC solution

UNCLASSIFIED

slide8

Departmental Computing Services

DCS-4

The Pano Device

Features:

Zero Client - No CPU No Memory No Drivers

No Operating System No Software No Moving Parts

Power Friendly: Consumes only 5 watts - 3% of a typical PC - making it the ultimate green alternative

UNCLASSIFIED

slide9

Departmental Computing Services

DCS-4

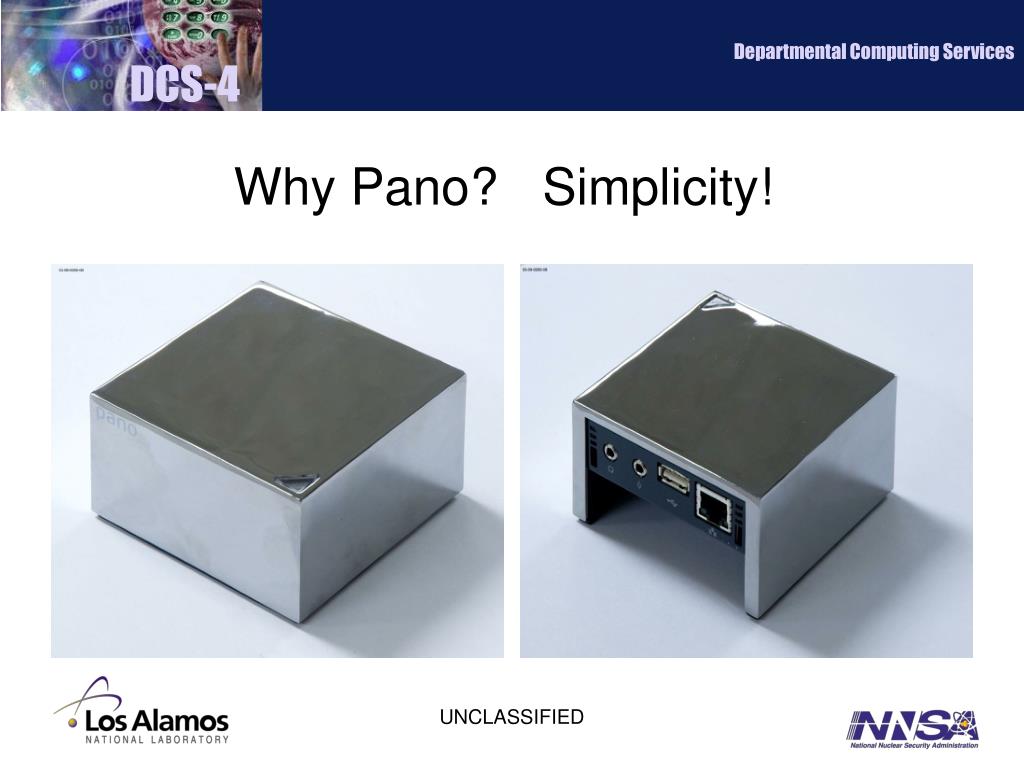

Why Pano? Simplicity!

UNCLASSIFIED

slide10

Departmental Computing Services

DCS-4

FEATURES

  • Solid State Construction
  • Minimized Footprint
  • 1920 x 1200 Resolution & Dual Monitor Capable
  • USB Device Capable and Controllable
  • Ease of Setup and Configuration

UNCLASSIFIED

slide11

Departmental Computing Services

DCS-4

BENEFITS

  • Lower Replacement Costs
  • System Configuration Control
  • VM Assignments to
    • Users (Single)
    • Pano Devices (Multiple)
  • Centrally Managed
    • Minimizes Support Staff
    • Apply and Enforce Security Policies
  • Auto Assignment

UNCLASSIFIED

slide12

Departmental Computing Services

DCS-4

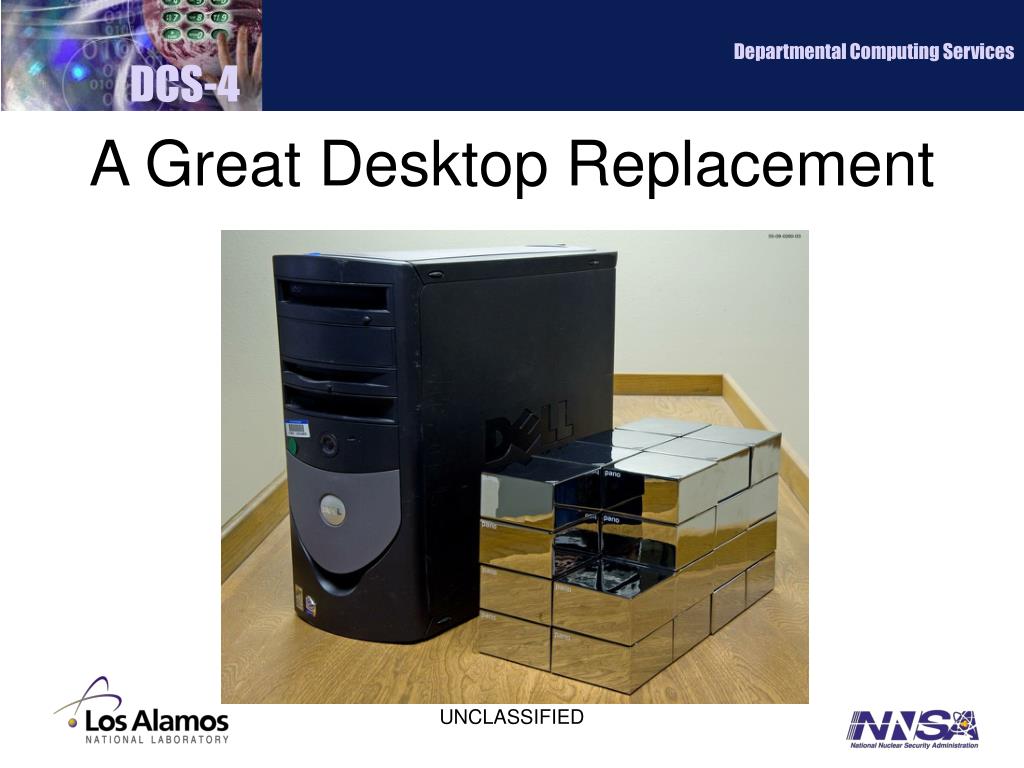

A Great Desktop Replacement

UNCLASSIFIED

slide13

Departmental Computing Services

DCS-4

Reduced Waste

30 to One

UNCLASSIFIED

slide14

Departmental Computing Services

DCS-4

Adaptable to Specific Applications

UNCLASSIFIED

slide15

Departmental Computing Services

DCS-4

SECURITY ENHANCEMENTS

  • No User Data on Local Machines
  • Simpler Cleanup of Contamination Incidents
  • Immediate System Lock-Out
  • USB Security
  • Network Security - Traffic is protected using 128-bit AES encryption.

UNCLASSIFIED

slide16
Minimum (Mandatory) ReQ:

9-Point Disablement

NNSA Diskless Compliance

Support 1024x768 (XGA)

Recommended ReQs

IP-Based Operation

Multiple Users to Multiple Servers

No HD Capability

Controlled Supply Chain

Strongly Authenticated and Encrypted access (A&E)

320x200 (QVGA) Full Screen, Full-Motion Video

Departmental Computing Services

DCS-4

Security Matrix Requirements

UNCLASSIFIED

slide17

Departmental Computing Services

DCS-4

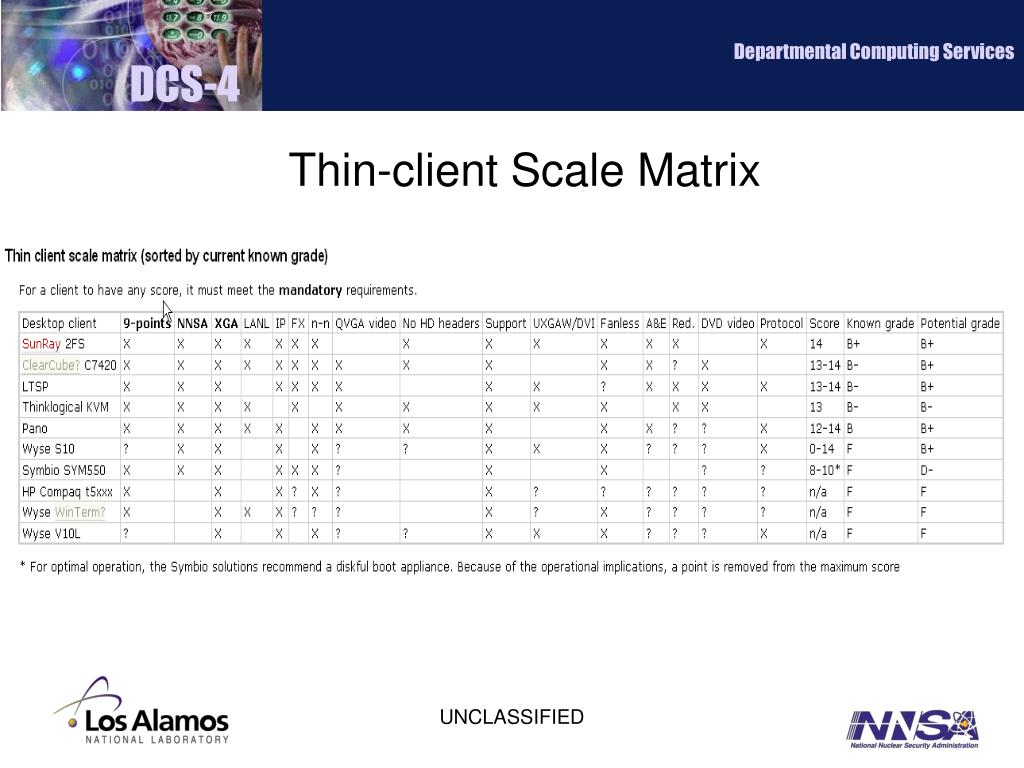

Thin-client Scale Matrix

UNCLASSIFIED

slide18

Departmental Computing Services

DCS-4

Thin client scale matrix

UNCLASSIFIED

slide19

Departmental Computing Services

DCS-4

Control & Configure with PanoManager

UNCLASSIFIED

slide20

Departmental Computing Services

DCS-4

Managing Devices

UNCLASSIFIED

slide21

Departmental Computing Services

DCS-4

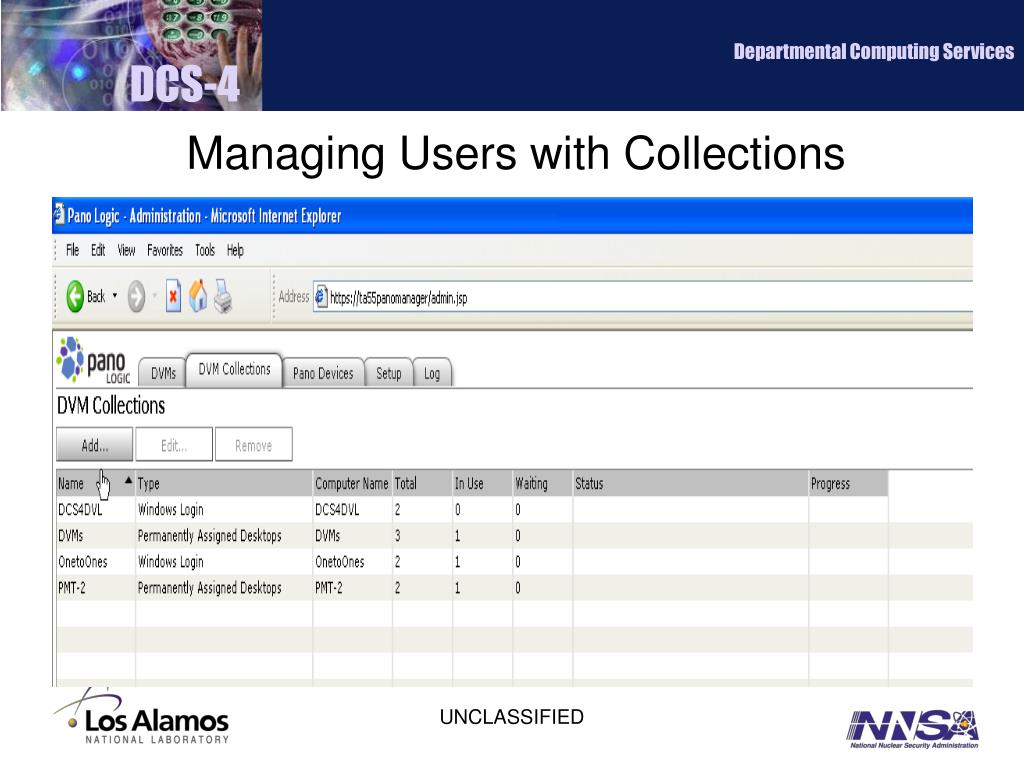

Managing Users with Collections

UNCLASSIFIED

slide22

Departmental Computing Services

DCS-4

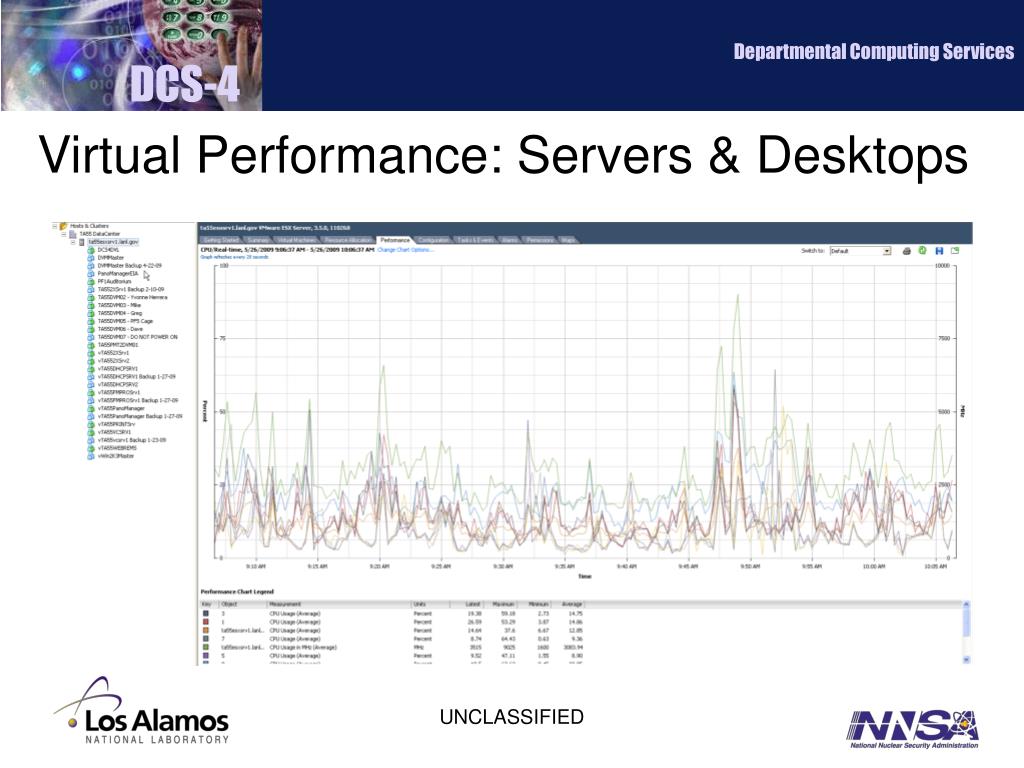

Virtual Performance: Servers & Desktops

UNCLASSIFIED

resource use overview

Resource Use Overview

Departmental Computing Services

DCS-4

UNCLASSIFIED

slide24

Departmental Computing Services

DCS-4

DCS-4 Virtual Infrastructure

UNCLASSIFIED

slide25

Departmental Computing Services

DCS-4

Status & Development Goals

  • Initial Configuration
    • DCS-4 Obtained and Configured the Initial “Test” Servers and Desktops
    • (2) 42 TB Nexsan SataBeast Fibre Channel Storage Provided and Configured on Network
  • Infrastructure Upgrade (moving toward production)
  • Phase I Completion
    • Transition all Common Use Workstations (CUWs) to Virtual Machines by End of FY 2009
    • – Transition Servers & Desktops to VMs end of FY 2010

UNCLASSIFIED
