  1. MVSIS MVSIS Group Minxi Gao,, Jie-Hong Jiang, Yunjian Jiang, Yinghua Li, Subarna Sinha and Robert K. Brayton Dept. of Electrical Engineering and Computer Science University of California, Berkeley

  2. Outline • Motivation: From binary to multi-value • Design specification • MVSIS optimizations • Node simplification • Kernel and cube extraction • Pairing and encoding • Network manipulation • Demo • Conclusions

  3. History • Multi-valued logic Incomplete references E. L. Post, “Introdution to a general theory of elementary propositions”,Amer. J. Math., Jun 1921 J. C. Muzio and D. M. Miller, “On the minimization of many-valued functions”,Proc. 9th Int. Symp. Multiple-valued Logic, 1979 S. L. Hurst, “Multiple-valued logic – its status and its future”, IEEE Trans. On Computers, Jun 1984 J. C. Muzio and T. C. Wesselkamper, “Multiple-valued switching theory”Bristol: Hilger, 1986 R. K. Brayton and S. P. Khatri, “Multi-valued logic synthesis”,Proc. 12th Int. Conf. On VLSI Design, Jan 1999

  4. Motivations • Synchronous hardware synthesis • Software synthesis from synchronous specifications • Asynchronous hardware synthesis • Multi-valued devices? • Current-mode CMOS devices • Optical logic circuits

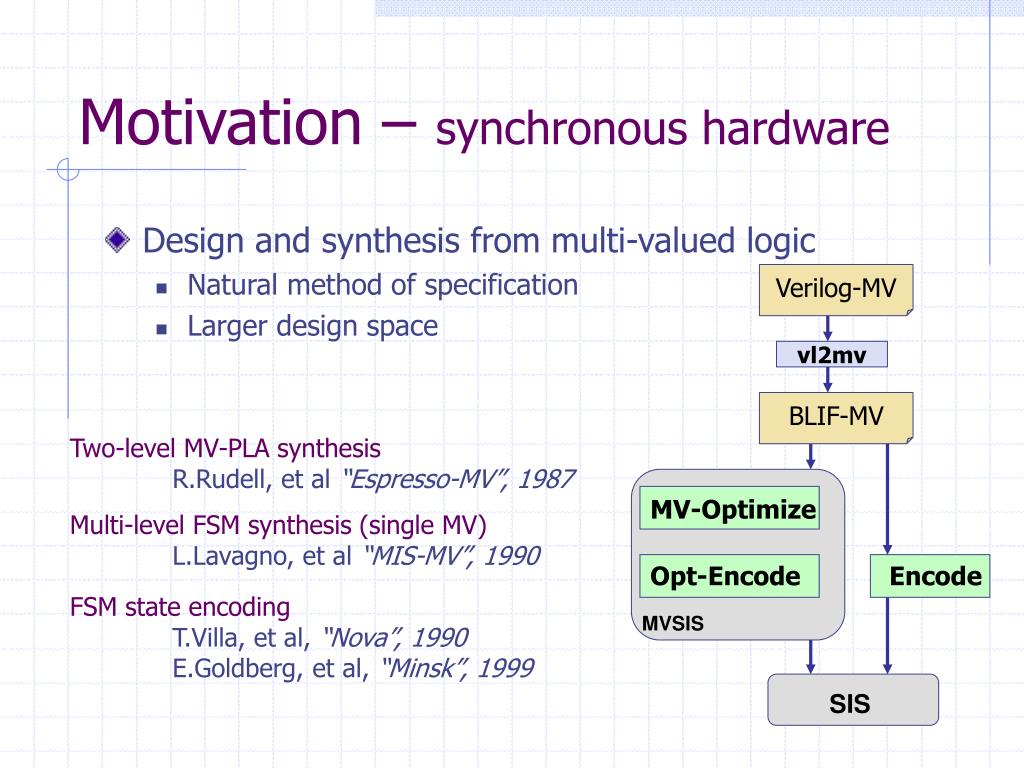

  5. Motivation – synchronous hardware • Design and synthesis from multi-valued logic • Natural method of specification • Larger design space Verilog-MV vl2mv BLIF-MV Two-level MV-PLA synthesis R.Rudell, et al “Espresso-MV”, 1987 MV-Optimize Multi-level FSM synthesis (single MV) L.Lavagno, et al “MIS-MV”, 1990 Opt-Encode Encode FSM state encoding T.Villa, et al, “Nova”, 1990E.Goldberg, et al, “Minsk”, 1999 MVSIS SIS

  6. Motivation – software synthesis • Synchronous programming of embedded systems • Esterel/Lustre/Signal • Interactive FSM semantics • Code generation from logic FSM’s POLIS F.Balerin, et al, “Synthesis of software programsfor embedded control applications”, TCAD 1999 MV-Optimize ESTEREL G.Berry, “The foundations of Esterel”, 2000 Code Gen POLISVCC MVSIS MVSIS Y.Jiang, et al, “Logic optimization and code generationfor embedded control applications”, CODES 2000 C/Assembly

  7. x m x+y vm y Motivation – multi-valued devices • Multi-valued current-mode MOS • signed digit arithmetic • High-speed, Low supply voltage Building blocks Iy Ix IT x y1 y2 T. Hanyu and M. Kameyama, “A 200 MHz pipelined multiplier using 1.5 V-supplymultiple-valued MOS current-mode circuits with dual-rail source-coupled logic”, IEEE Journal of Solid-Statee Circuits, 1995

  8. Each output value is called an i-set F(u,v,w): {0,1} x {0,1,2} x {0,1,2} {0,1,2} 0-set: F{0} = u{0} v{0} + u{0} v{1} w{0,1} 2-set: F{2} = u{1} v{1,2} + u{1} v{0} w{1,2} 1-set: F{1} = <default> Functional Semantics F • Network of MV-nodes • Each variable xn has its own range{0, 1,…, |Pn|-1} • Values are treated uniformly • MV-literal: X{0,2} • MV-cube: X{0,2}Z{0,1} • MV-function Latch

  9. Design Specification .model simple .inputs a b .outputs f .mv f 3 .mv x 3 .table x a b -> f .def 0 0 1 1 1 1 0 - 1 1 1 1 2 0 - 0 2 .reset x 0 .latch f x .exdc .inputs a b .outputs f .table a b -> f .def 0 0 0 1 .end • BLIF-MV subset • Deterministic (no pseudo inputs) • Single output MV nodes • Flat network, no hierarchy • Constant initial states (.reset) • Extension • External don’t care networks (.exdc)

  10. MVSIS Optimization • MVSIS optimizations • Node simplification • Kernel and cube extraction • Pairing • Encoding • Network manipulations

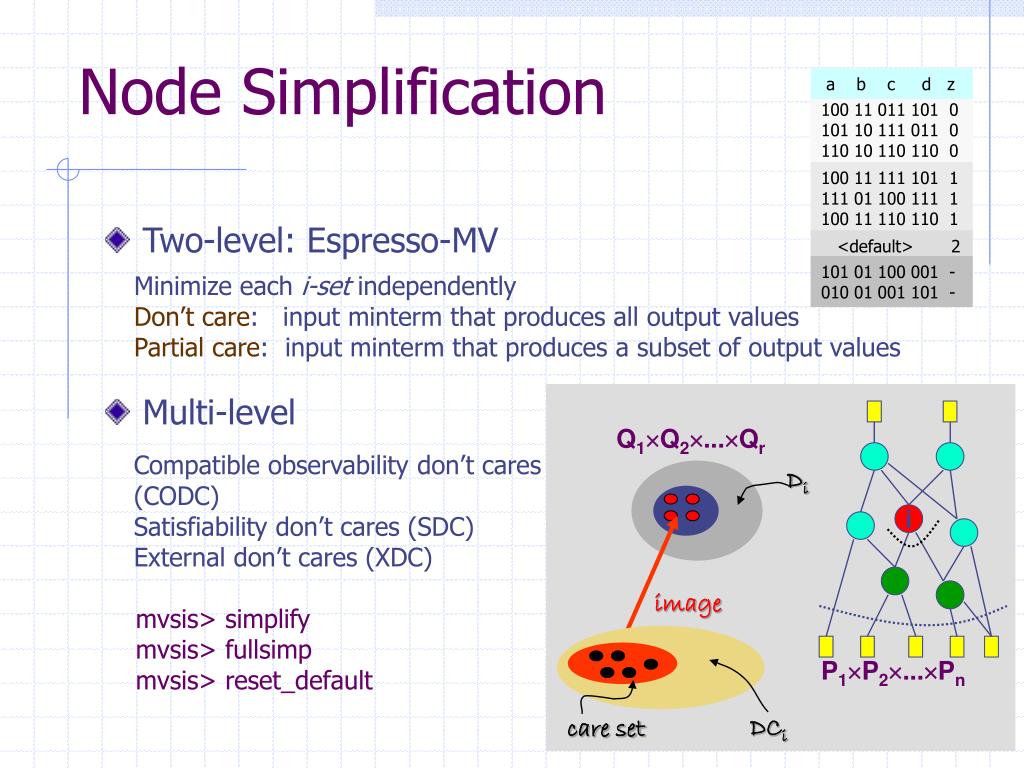

  11. Q1Q2...Qr Di i image P1P2...Pn DCi care set Node Simplification a b c d z 100 11 011 101 0 101 10 111 011 0 110 10 110 110 0 100 11 111 101 1 111 01 100 111 1 100 11 110 110 1 • Two-level: Espresso-MV • Multi-level <default> 2 101 01 100 001 - 010 01 001 101 - Minimize each i-set independently Don’t care: input minterm that produces all output values Partial care: input minterm that produces a subset of output values Compatible observability don’t cares(CODC) Satisfiability don’t cares (SDC) External don’t cares (XDC) mvsis> simplify mvsis> fullsimp mvsis> reset_default

  12. Algebraic Decomposition M. Gao and R. K. Brayton, “Multi-valued Multi-level Network Decomposition”, IWLS, June 2001. • Kernel extraction • Semi-algebraic division • Resubstitution • Factoring/Decomposition • F = a{0,1,2} b{0,1,2,3}c{3} + b{1,2,3} c{3} • + a{0}b{1,2,3} c{0} +a{0} b{0,1,2,3}c{1} [-q]: Two-cube divisors [-g]: Best divisors • = (c{3} +a{0}c{0,1})(a{0,1,2} c{1,3} +b{1,2,3} c{0,3}) mvsis> fx [-q] [-g] mvsis> decomp mvsis> factor mvsis> resub

  13. a b c d x a b c d y 100 11 011 101 0 101 10 111 011 0 110 10 110 110 0 100 11 011 101 0 101 10 111 011 0 <default> 1 <default> 1 merge a b c d z x0y0 z0 100 11 011 101 0 101 10 111 011 0 x0y1 z1 100 11 111 101 1 111 01 100 111 1 110 10 110 110 1 x1y0 z2 x1y1 z3 <empty> 2 <default> 3 Pairing and Encoding • Pair_decode/Merge • Encode • Merge some i-sets Bit-pairing to create multi-valued node Explore different encodings SOP further simplified Output literal count reduced mvsis> pair_decode mvsis> merge mvsis> encode mvsis> elim_part

  14. Other Commands • Network manipulations • IO interface • Verification Printing Sequential mvsis> eliminate mvsis> collapse Mvsis> sweep mvsis> print_stats mvsis> print_factor mvsis> print_range mvsis> print_io mvsis> print_value mvsis> print_part_value mvsis> read_blifmv mvsis> read_blif mvsis> write_blifmv mvsis> extract_seq_dc mvsis> validate –m [mdd|simu] mvsis> gen_vec mvsis> simulate mvsis> qcheck

  15. Design Flow • Typical design flow mvsis> source mvsis.script mvsis> encode -i mvsis> source mvsis.scriptb

  16. Example #1 • Matrix multiplication (3 values) .table a21 a22 b12 b22 c22 0 0 - - 0 0 1 - - =b22 0 2 - 0 0 0 2 - 1 2 0 2 - 2 1 1 0 - - =b12 1 1 0 0 0 1 1 0 1 1 1 1 0 2 2 1 1 1 0 1 … … .end #2 X 2 matrix mult over the ring Z_3 .model matmul .inputs a11 a12 a21 a22 .inputs b11 b12 b21 b22 .outputs c11 c12 c21 c22 .mv a11, a12, a21, a22 3 .mv b11, b12, b21, b22 3 .mv c11, c12, c21, c22 3 .table a11 a12 b11 b21 c11 0 0 - - 0 0 1 - - =b21 0 2 - 0 0 0 2 - 1 2 0 2 - 2 1 1 0 - - =b11 1 1 0 0 0 1 1 0 1 1 1 1 0 2 2 1 1 1 0 1 … … .table a11 a12 b12 b22 c12 0 0 - - 0 0 1 - - =b22 0 2 - 0 0 0 2 - 1 2 0 2 - 2 1 1 0 - - =b12 1 1 0 0 0 1 1 0 1 1 1 1 0 2 2 … … .table a21 a22 b11 b21 c21 0 0 - - 0 0 1 - - =b21 0 2 - 0 0 0 2 - 1 2 0 2 - 2 1 1 0 - - =b11 1 1 0 0 0 1 1 0 1 1 1 1 0 2 2 1 1 1 0 1 1 1 1 1 2 1 1 1 2 0 1 1 2 0 2 1 1 2 1 0 1 1 2 2 1 1 2 0 0 0 1 2 0 1 2 1 2 0 2 1 1 2 1 0 1 1 2 1 1 0 … …

  17. [cadntws11:/home/wjiang/mvsis/examples/bob] mvsis UC Berkeley, MVSIS 0.95 (compiled 24-May-01 at 2:19 PM) mvsis> help alias chng_name collapse decomp delete echo elim_part eliminate encode extract_seq_dc factor fullsimp fx gen_vec help history merge pair_decode print print_altname print_factor print_io print_level print_part_value print_range print_stats print_value qcheck quit read_blif read_blifmv reset_default reset_name resub runtime set simplify simulate source sweep unalias undo unset usage validate write_blifmv mvsis> mvsis> read_blifmv matmul-c mvsis> mvsis> chng_name changing to short-name mode mvsis> print_stats matmul: 4 nodes, 4 POs, 128 cubes(sop), 480 lits(sop) mvsis>

  18. mvsis> print_io primary inputs: a b c d e f g h primary outputs: {i} {j} {k} {l} mvsis> mvsis> set autoexec pfs matmul: 4 nodes, 4 POs, 128 cubes(sop), 480 lits(sop), 216 lits(fact.) mvsis> mvsis> print_range {i}: 3 {j}: 3 {k}: 3 {l}: 3 a: 3 b: 3 c: 3 d: 3 e: 3 f: 3 g: 3 h: 3 matmul: 4 nodes, 4 POs, 128 cubes(sop), 480 lits(sop), 216 lits(fact.) mvsis> mvsis> simplify matmul: 4 nodes, 4 POs, 96 cubes(sop), 320 lits(sop), 160 lits(fact.) mvsis> mvsis> reset_default matmul: 4 nodes, 4 POs, 96 cubes(sop), 320 lits(sop), 160 lits(fact.) mvsis>

  19. mvsis> fullsimp matmul: 4 nodes, 4 POs, 96 cubes(sop), 320 lits(sop), 160 lits(fact.) mvsis> mvsis> pair_decode 1 m{0} = a{0}e{2} + e{0} m{1} = a{0}e{1} m{3} = a{1}e{2} + a{2}e{1} n{0} = a{0}f{2} + f{0} n{1} = a{0}f{1} n{3} = a{1}f{2} + a{2}f{1} o{0} = e{0}c{2} + c{0} o{1} = e{0}c{1} o{3} = e{1}c{2} + e{2}c{1} p{0} = f{0}c{2} + c{0} p{1} = f{0}c{1} p{3} = f{1}c{2} + f{2}c{1} q{0} = b{0}g{2} + g{0} q{1} = b{0}g{1} q{3} = b{1}g{2} + b{2}g{1} r{0} = b{0}h{2} + h{0} r{1} = b{0}h{1} r{3} = b{1}h{2} + b{2}h{1} s{0} = g{0}d{2} + d{0} s{1} = g{0}d{1} s{3} = g{1}d{2} + g{2}d{1} t{0} = h{0}d{2} + d{0} t{1} = h{0}d{1} t{3} = h{1}d{2} + h{2}d{1} matmul: 12 nodes, 4 POs, 64 cubes(sop), 184 lits(sop), 160 lits(fact.) mvsis>

  20. mvsis> simplify matmul: 12 nodes, 4 POs, 56 cubes(sop), 96 lits(sop), 96 lits(fact.) mvsis> mvsis> reset_default matmul: 12 nodes, 4 POs, 56 cubes(sop), 96 lits(sop), 96 lits(fact.) mvsis> mvsis> fullsimp matmul: 12 nodes, 4 POs, 56 cubes(sop), 96 lits(sop), 96 lits(fact.) mvsis>

  21. mvsis> print_factor {i}{1} = m{2}q{2} + m{1}q{0} + m{0}q{1} {i}{2} = m{2}q{0} + m{1}q{1} + m{0}q{2} {j}{1} = n{2}r{2} + n{1}r{0} + n{0}r{1} {j}{2} = n{2}r{0} + n{1}r{1} + n{0}r{2} {k}{1} = o{2}s{2} + o{1}s{0} + o{0}s{1} {k}{2} = o{2}s{0} + o{1}s{1} + o{0}s{2} {l}{1} = p{2}t{2} + p{1}t{0} + p{0}t{1} {l}{2} = p{2}t{0} + p{1}t{1} + p{0}t{2} m{0} = a{0} + e{0} m{2} = a{2}e{1} + a{1}e{2} n{0} = a{0} + f{0} n{2} = a{2}f{1} + a{1}f{2} o{0} = c{0} + e{0} o{2} = c{2}e{1} + c{1}e{2} p{0} = c{0} + f{0} p{2} = c{2}f{1} + c{1}f{2} q{0} = b{0} + g{0} q{2} = b{2}g{1} + b{1}g{2} r{0} = b{0} + h{0} r{2} = b{2}h{1} + b{1}h{2} s{0} = d{0} + g{0} s{2} = d{2}g{1} + d{1}g{2} t{0} = d{0} + h{0} t{2} = d{2}h{1} + d{1}h{2} matmul: 12 nodes, 4 POs, 56 cubes(sop), 96 lits(sop), 96 lits(fact.) mvsis>

  22. mvsis> validate -m mdd matmul-c Networks are combinationally equivalent according to MDD method. matmul: 12 nodes, 4 POs, 56 cubes(sop), 96 lits(sop), 96 lits(fact.) mvsis>

  23. [cadntws11:/home/wjiang/mvsis/examples/bob] mvsis UC Berkeley, MVSIS 0.95 (compiled 24-May-01 at 2:19 PM) mvsis> mvsis> read_blifmv red-add.mv mvsis> mvsis> chng_name changing to short-name mode mvsis> mvsis> print_io primary inputs: a b c d e primary outputs: {f} {g} {h} mvsis> mvsis> set autoexec pfs red_adder: 3 nodes, 3 POs, 48 cubes(sop), 240 lits(sop), 69 lits(fact.) mvsis> mvsis> reset_default red_adder: 3 nodes, 3 POs, 48 cubes(sop), 240 lits(sop), 69 lits(fact.) mvsis> mvsis> simplify red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis> mvsis> fullsimp red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis>

  24. mvsis> print_range {f}: 2 {g}: 2 {h}: 2 a: 8 b: 8 c: 8 d: 8 e: 8 red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis> mvsis> encode red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis> mvsis> print_range {f}: 2 o: 2 {g}: 2 p: 2 {h}: 2 q: 2 i: 2 r: 2 j: 2 s: 2 k: 2 t: 2 l: 2 u: 2 m: 2 v: 2 n: 2 w: 2 red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis>

  25. mvsis> simplify red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis> mvsis> fullsimp red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis> mvsis> print_io primary inputs: i j k l m n o p q r s t u v w primary outputs: {f} {g} {h} red_adder: 3 nodes, 3 POs, 15 cubes(sop), 44 lits(sop), 28 lits(fact.) mvsis>

  26. mvsis> read_blifmv red-add.mv red_adder: 3 nodes, 3 POs, 48 cubes(sop), 240 lits(sop), 69 lits(fact.) mvsis> mvsis> help encode Feb 16, 2001 MVSIS(1) encode [-i] [-n] [-s] Encode the whole network into a binary one, considering both output and input constraints. For sequential networks, a latch is encoded with constraints generated from both its inputs and outputs -i keep primary inputs and outputs as multi-valued; add interface nodes between the internal encoded binary network and PI/POs. This option allows validation of the result. -n use natural code -s use NO_COMP rather than ESPRESSO as the intermediate minimization method. The difference is only in performance. Ordinary users should not be concerned with this option. red_adder: 3 nodes, 3 POs, 48 cubes(sop), 240 lits(sop), 69 lits(fact.) mvsis> mvsis> encode -n red_adder: 3 nodes, 3 POs, 1251 cubes(sop), 9432 lits(sop), 577 lits(fact.) mvsis>

  27. mvsis> simplify -t 1000 red_adder: 3 nodes, 3 POs, 315 cubes(sop), 2010 lits(sop), 156 lits(fact.) mvsis> mvsis> simplify -t 1000 -m exact red_adder: 3 nodes, 3 POs, 300 cubes(sop), 1989 lits(sop), 130 lits(fact.) mvsis> mvsis> validate -m mdd red-add-bin.mv Networks differ on (at least) primary output s1 i-set 0 Incorrect input is: 0 x1_b0 1 x1_b1 1 x1_b2 0 x0_b0 0 x0_b1 0 x0_b2 0 y1_b0 0 y1_b1 0 y1_b2 0 y0_b0 0 y0_b1 0 y0_b2 0 cin_b0 0 cin_b1 0 cin_b2 Networks are NOT combinationally equivalent. red_adder: 3 nodes, 3 POs, 300 cubes(sop), 1989 lits(sop), 130 lits(fact.) mvsis>

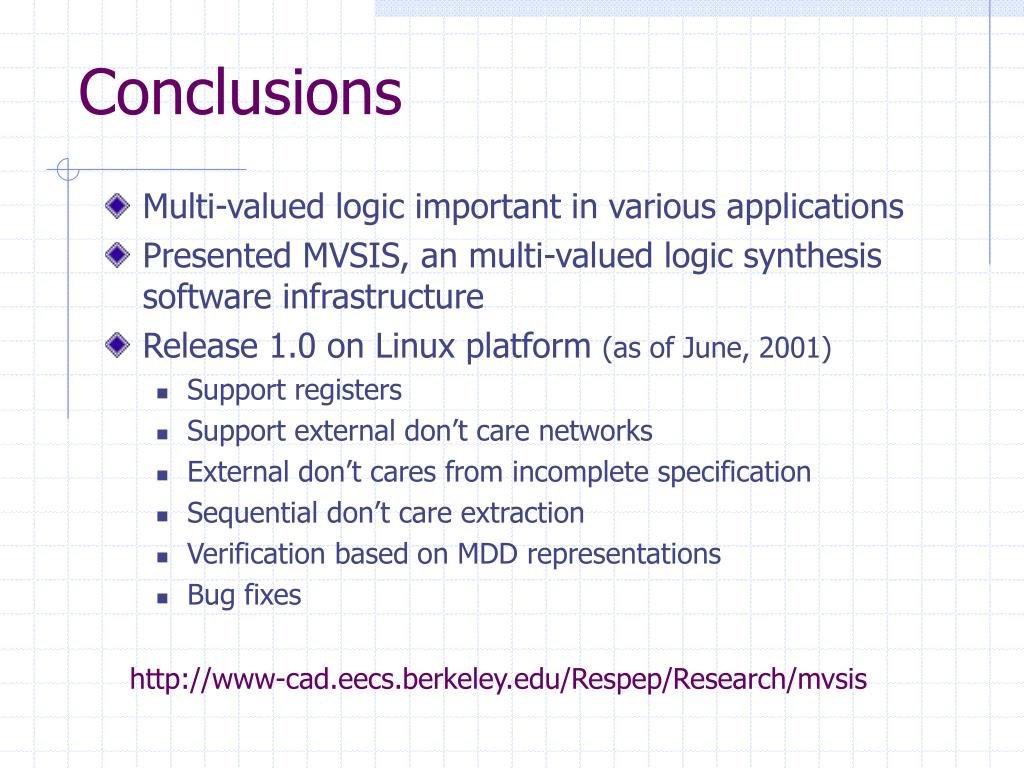

  28. Conclusions • Multi-valued logic important in various applications • Presented MVSIS, an multi-valued logic synthesis software infrastructure • Release 1.0 on Linux platform (as of June, 2001) • Support registers • Support external don’t care networks • External don’t cares from incomplete specification • Sequential don’t care extraction • Verification based on MDD representations • Bug fixes http://www-cad.eecs.berkeley.edu/Respep/Research/mvsis
