  1. Transaksi Perbankan Secara On Line Contoh : Anjungan tunai mandiri Materi KLKP sesudah UTS

  2. Cabang Pusat Data Komputer ATM Disaster Recovery Center Bank Lain TransaksiPerbankanSecara On Line

  3. Tampilan ATM

  4. Tampilan ATM

  5. B2C (Business to consumer) • Conventional 3-tier architectures are designed to operate within a single company  data exchanges occur within the safe boundaries of the company • in principle there are no reasons why the system could not be opened to other users if the need arises • ATM(automatic teller machines are an excellent example of the advantages if doing so

  6. B2C • ATM(automatic teller machines are an excellent example of the advantages if doing so • client/server system • a PC with a network connection to the information services of the bank • gives customers easier access to their accounts without the bank incurring • a significant part of manual work disappears • more efficient interactions with the customer  great service, but there are limitations

  7. ATM examples class

  8. Initial Object Diagram for ATM System

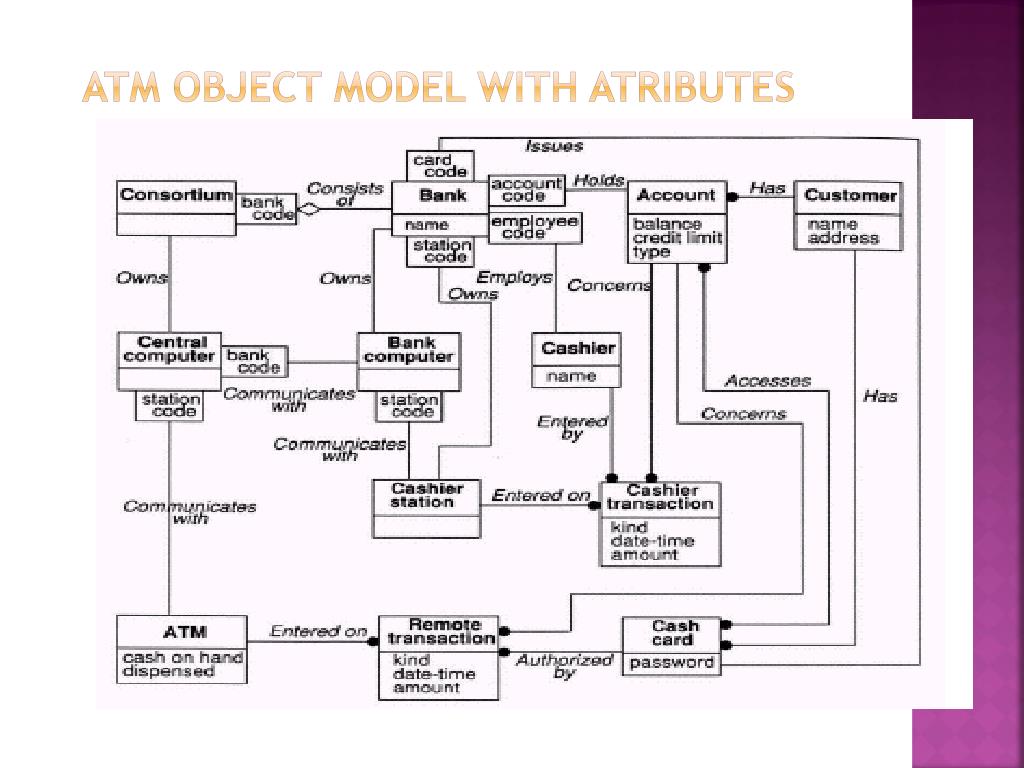

  9. ATM Object Model with Atributes

  10. ATM Object Model after revision
