Differential-Thermal-Analyzer

Theu00a0Differential Thermal Analyzer is intended to capture heat absorption or emission changes that happened in a sample at various phase transitions (both physically and chemically).for more visit www.labtron.uk

labtronuk
Download Presentation

Differential-Thermal-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

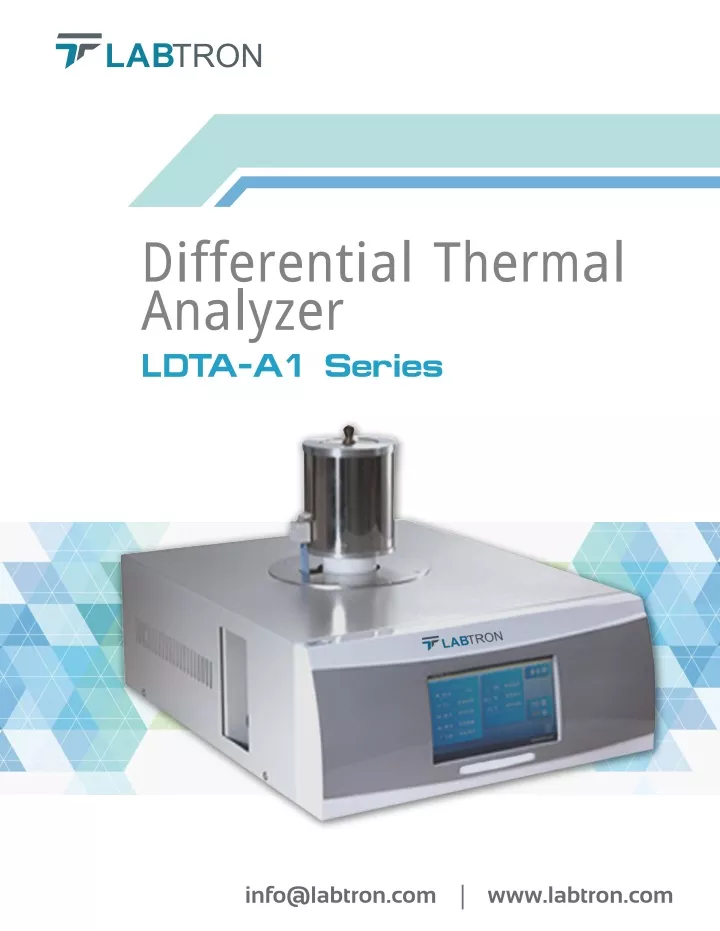

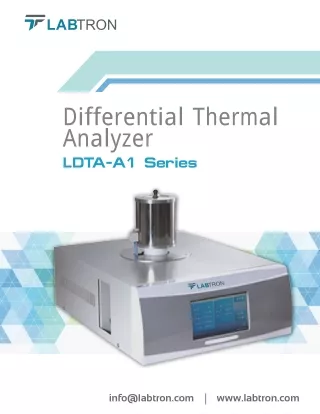

  1. Differential Thermal Analyzer LDTA-A1 Series info@labtron.com www.labtron.com

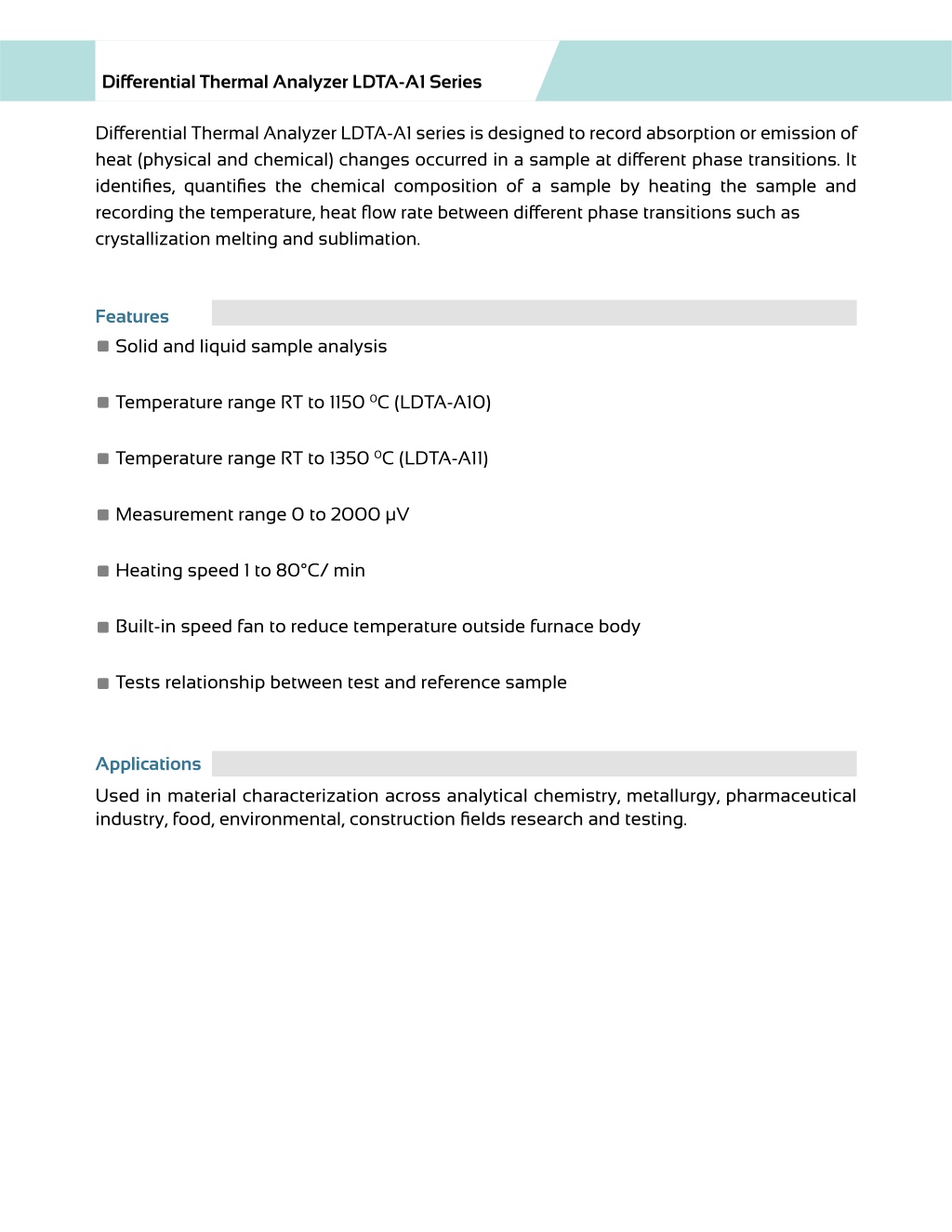

  2. identifies,quantifies the chemical composition of a sample by heating the sample and crystallization melting and sublimation. Features Solid and liquid sample analysis Temperature range RT to 1150 0C (LDTA-A10) Temperature range RT to 1350 0C (LDTA-A11) Measurement range 0 to 2000 µV Heating speed 1 to 80°C/ min Built-in speed fan to reduce temperature outside furnace body Tests relationship between test and reference sample Applications Used in material characterization across analytical chemistry,metallurgy, pharmaceutical industry, food, environmental, construction fields research and testing.

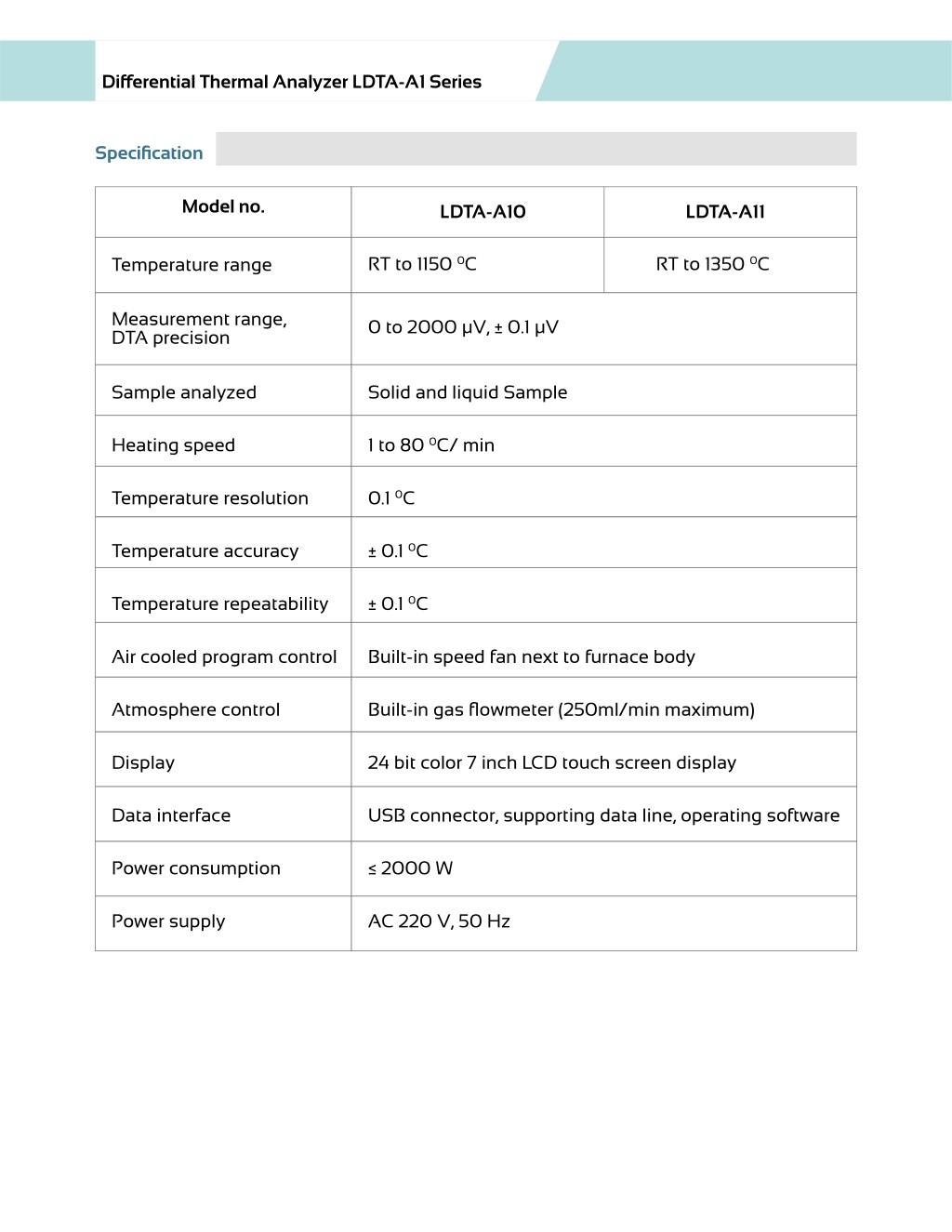

  3. Differential Thermal Analyzer LDTA-A1 Series Specification Model no. LDTA-A10 LDTA-A11 RT to 1150 0C RT to 1350 0C Temperature range Measurement range, DTA precision 0 to 2000 µV, ± 0.1 µV Solid and liquid Sample Sample analyzed 1 to 80 0C/ min Heating speed 0.1 0C Temperature resolution ± 0.1 0C Temperature accuracy Temperature repeatability ± 0.1 0C Air cooled program control Built-in speed fan next to furnace body Atmosphere control Built-in gas flowmeter (250ml/min maximum) Display 24 bit color 7 inch LCD touch screen display Data interface USB connector, supporting data line, operating software Power consumption ≤ 2000 W Power supply AC 220 V, 50 Hz
