Vertical-Laminar-Flow-Cabinet-LVAC-A1-Series

Vertical Laminar Flow Cabinet LVAC-A10 is one sided bench top device, operator can perform task conveniently. It offers fluorescent lamp with 8 W u00d7 1 and 99.999% efficiency at 0.3 u00b5m HEPA Filter. The particle-free working environment by taking air through filtration system and exhausting it across a work surface in a unidirectional air stream. It is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. The device is design with an internal dimension of 630 u00d7 375 u00d7 615 mm where as its external dimension is 680 u00d7 410 u00d7 1160

labtrondigital
Download Presentation

Vertical-Laminar-Flow-Cabinet-LVAC-A1-Series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

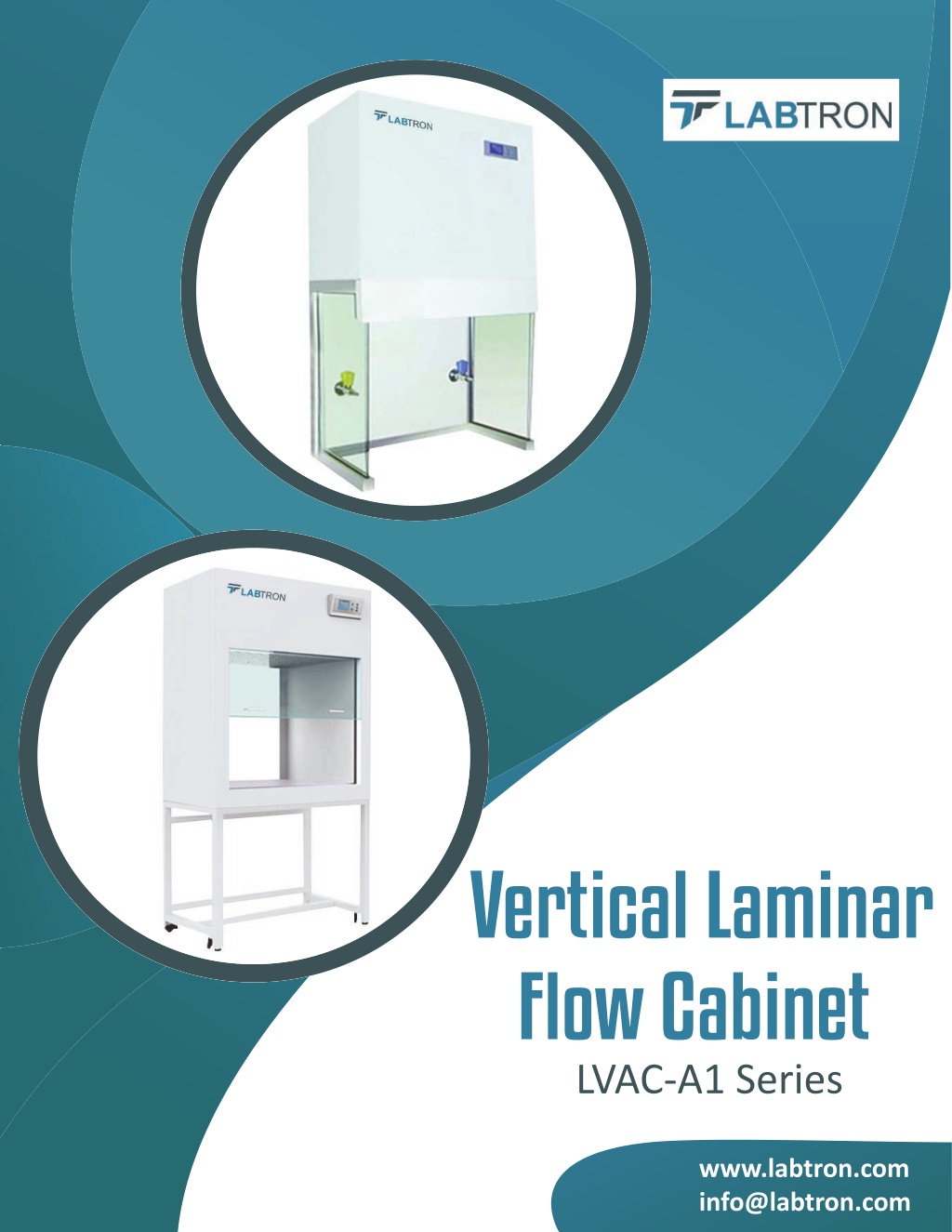

  1. Vertical Laminar Flow Cabinet LVAC-A1 Series www.labtron.com info@labtron.com

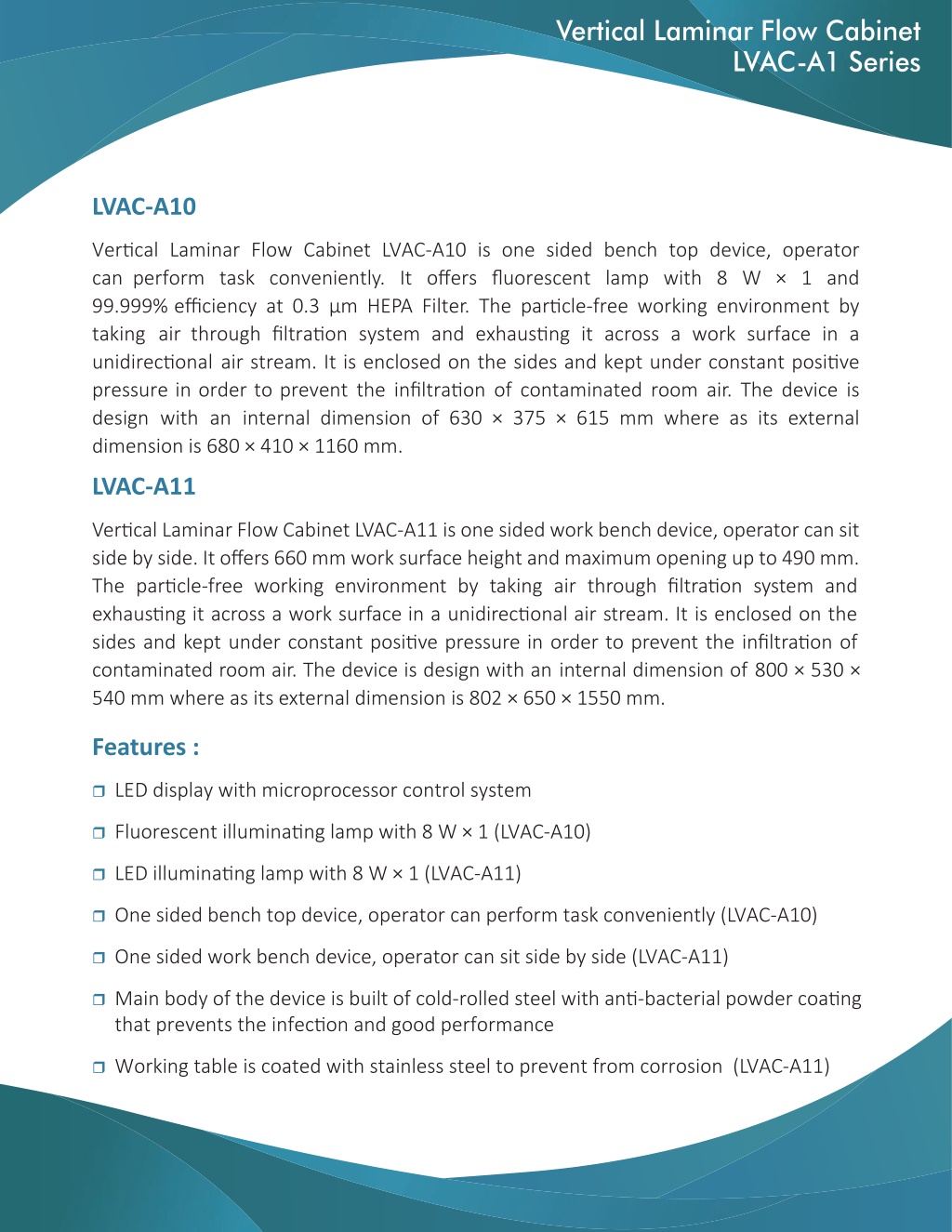

  2. Vertical Laminar Flow Cabinet LVAC-A1 Series LVAC-A10 Ver�cal Laminar Flow Cabinet LVAC-A10 is one sided bench top device, operator can perform task conveniently. It offers fluorescent lamp with 8 W × 1 and 99.999% efficiency at 0.3 µm HEPA Filter. The par�cle-free working environment by taking air through filtra�on system and exhaus�ng it across a work surface in a unidirec�onal air stream. It is enclosed on the sides and kept under constant posi�ve pressure in order to prevent the infiltra�on of contaminated room air. The device is design with an internal dimension of 630 × 375 × 615 mm where as its external dimension is 680 × 410 × 1160 mm. LVAC-A11 Ver�cal Laminar Flow Cabinet LVAC-A11 is one sided work bench device, operator can sit side by side. It offers 660 mm work surface height and maximum opening up to 490 mm. The par�cle-free working environment by taking air through filtra�on system and exhaus�ng it across a work surface in a unidirec�onal air stream. It is enclosed on the sides and kept under constant posi�ve pressure in order to prevent the infiltra�on of contaminated room air. The device is design with an internal dimension of 800 × 530 × 540 mm where as its external dimension is 802 × 650 × 1550 mm. Features :  LED display with microprocessor control system  Fluorescent illumina�ng lamp with 8 W × 1 (LVAC-A10)  LED illumina�ng lamp with 8 W × 1 (LVAC-A11)  One sided bench top device, operator can perform task conveniently (LVAC-A10)  One sided work bench device, operator can sit side by side (LVAC-A11)  Main body of the device is built of cold-rolled steel with an�-bacterial powder coa�ng that prevents the infec�on and good performance  Working table is coated with stainless steel to prevent from corrosion (LVAC-A11)

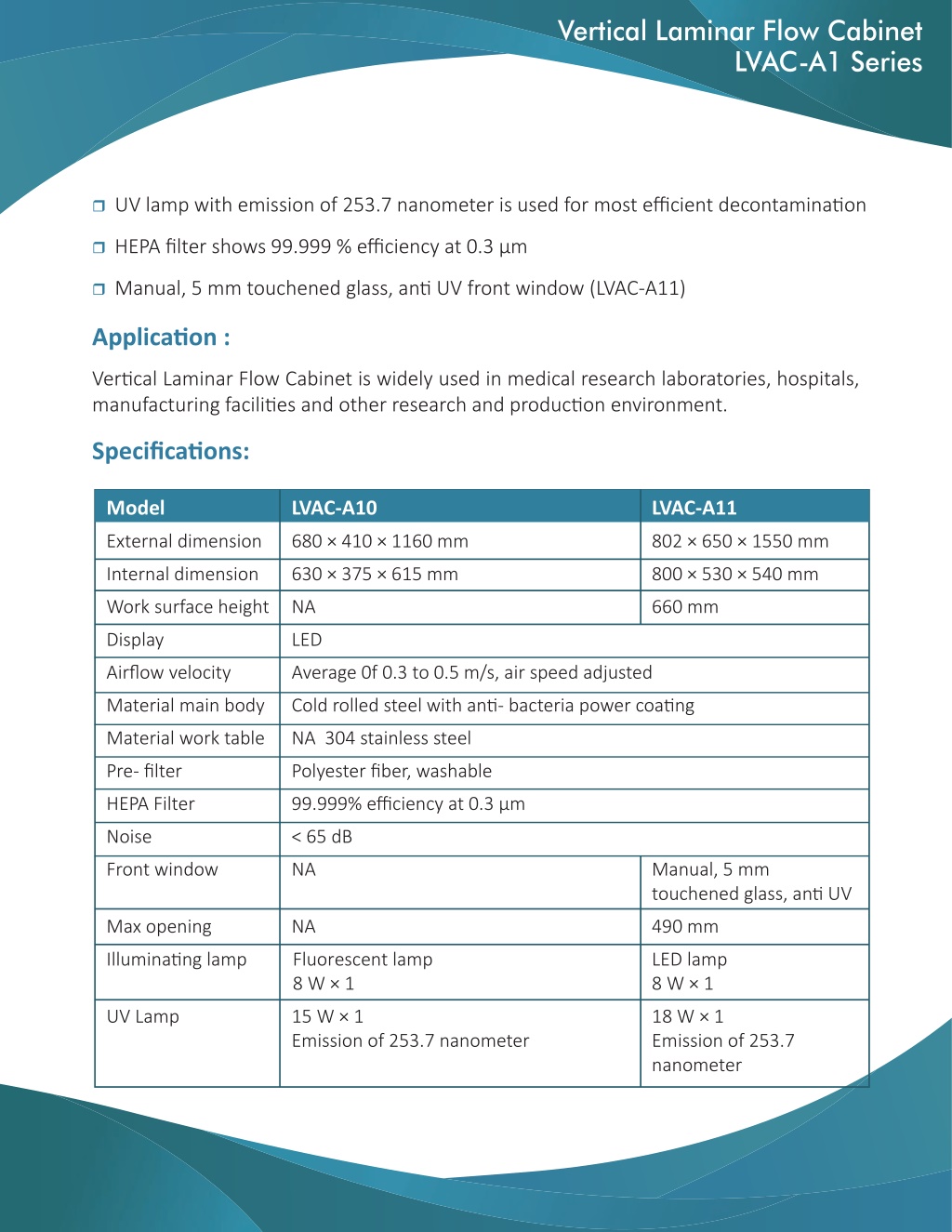

  3. Vertical Laminar Flow Cabinet LVAC-A1 Series  UV lamp with emission of 253.7 nanometer is used for most efficient decontamina�on  HEPA filter shows 99.999 % efficiency at 0.3 µm  Manual, 5 mm touchened glass, an� UV front window (LVAC-A11) Applica�on : Ver�cal Laminar Flow Cabinet is widely used in medical research laboratories, hospitals, manufacturing facili�es and other research and produc�on environment. Specifica�ons: Model LVAC-A10 LVAC-A11 External dimension 680 × 410 × 1160 mm 802 × 650 × 1550 mm Internal dimension 630 × 375 × 615 mm 800 × 530 × 540 mm Work surface height NA 660 mm Display LED Airflow velocity Average 0f 0.3 to 0.5 m/s, air speed adjusted Material main body Cold rolled steel with an�- bacteria power coa�ng Material work table NA 304 stainless steel Pre- filter Polyester fiber, washable HEPA Filter 99.999% efficiency at 0.3 µm Noise < 65 dB Front window NA Manual, 5 mm touchened glass, an� UV Max opening NA 490 mm Fluorescent lamp 8 W × 1 Illumina�ng lamp LED lamp 8 W × 1 UV Lamp 15 W × 1 Emission of 253.7 nanometer 18 W × 1 Emission of 253.7 nanometer

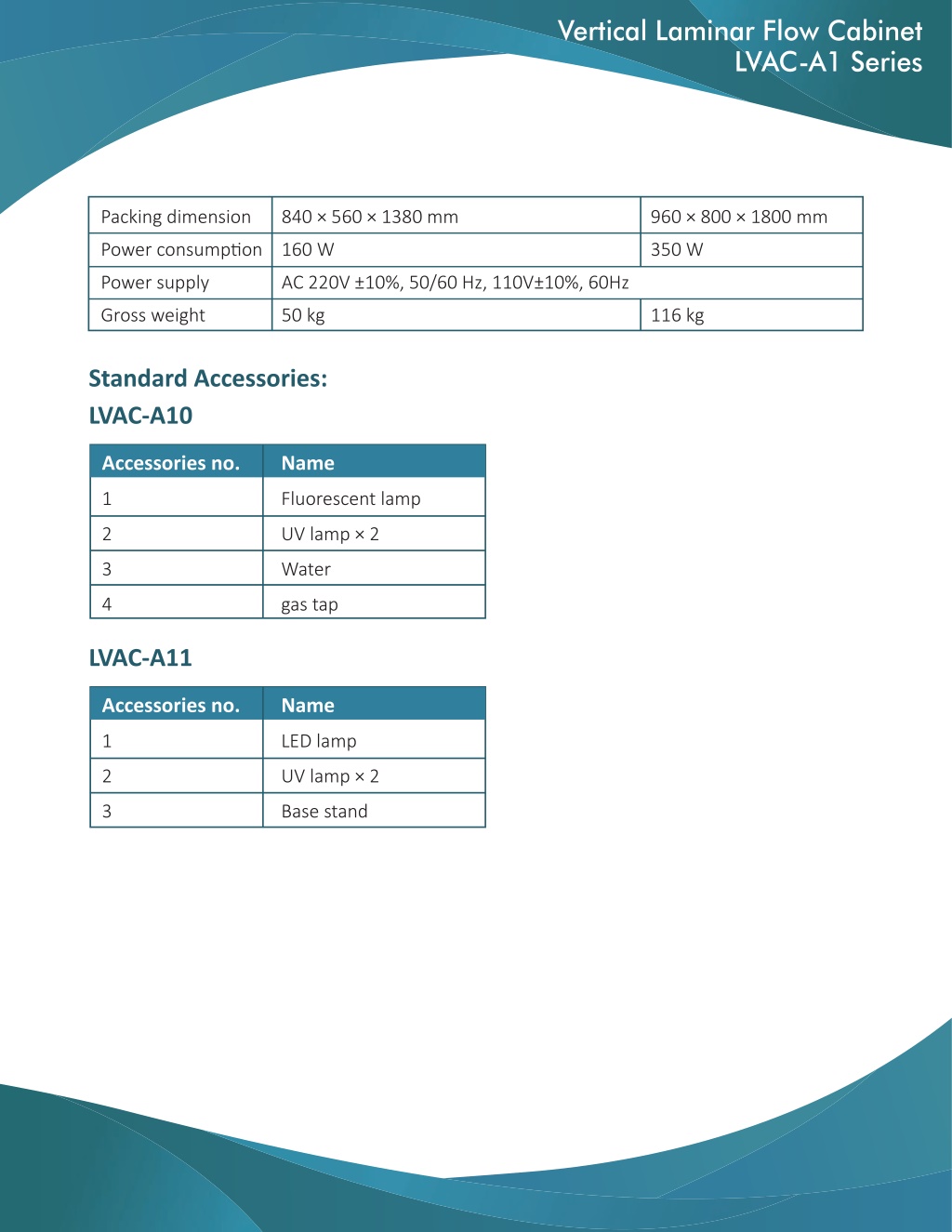

  4. Vertical Laminar Flow Cabinet LVAC-A1 Series Packing dimension 840 × 560 × 1380 mm 960 × 800 × 1800 mm Power consump�on 160 W 350 W Power supply AC 220V ±10%, 50/60 Hz, 110V±10%, 60Hz Gross weight 50 kg 116 kg Standard Accessories: LVAC-A10 Accessories no. Name 1 Fluorescent lamp 2 UV lamp × 2 3 Water 4 gas tap LVAC-A11 Accessories no. Name 1 LED lamp 2 UV lamp × 2 3 Base stand
