PLATELET-AGITATOR-LPTA

<br>Platelet Agitator LPTA-A10 is an open continuous side-to-side motion agitation system with storage capacity up to 30 apheresis bags. The shelves are constructed in stainless steel, favourable for easy sliding, mounting and dismounting. Specialized motor assembly allows shelf platform to produce smooth strokes reducing squeaks and noise. One-piece perforated drawers with non-slip textured coating provide uniform air circulation and dissipates heat to maintain RTP conditions.<br><br><br>

labtrondigital
Download Presentation

PLATELET-AGITATOR-LPTA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

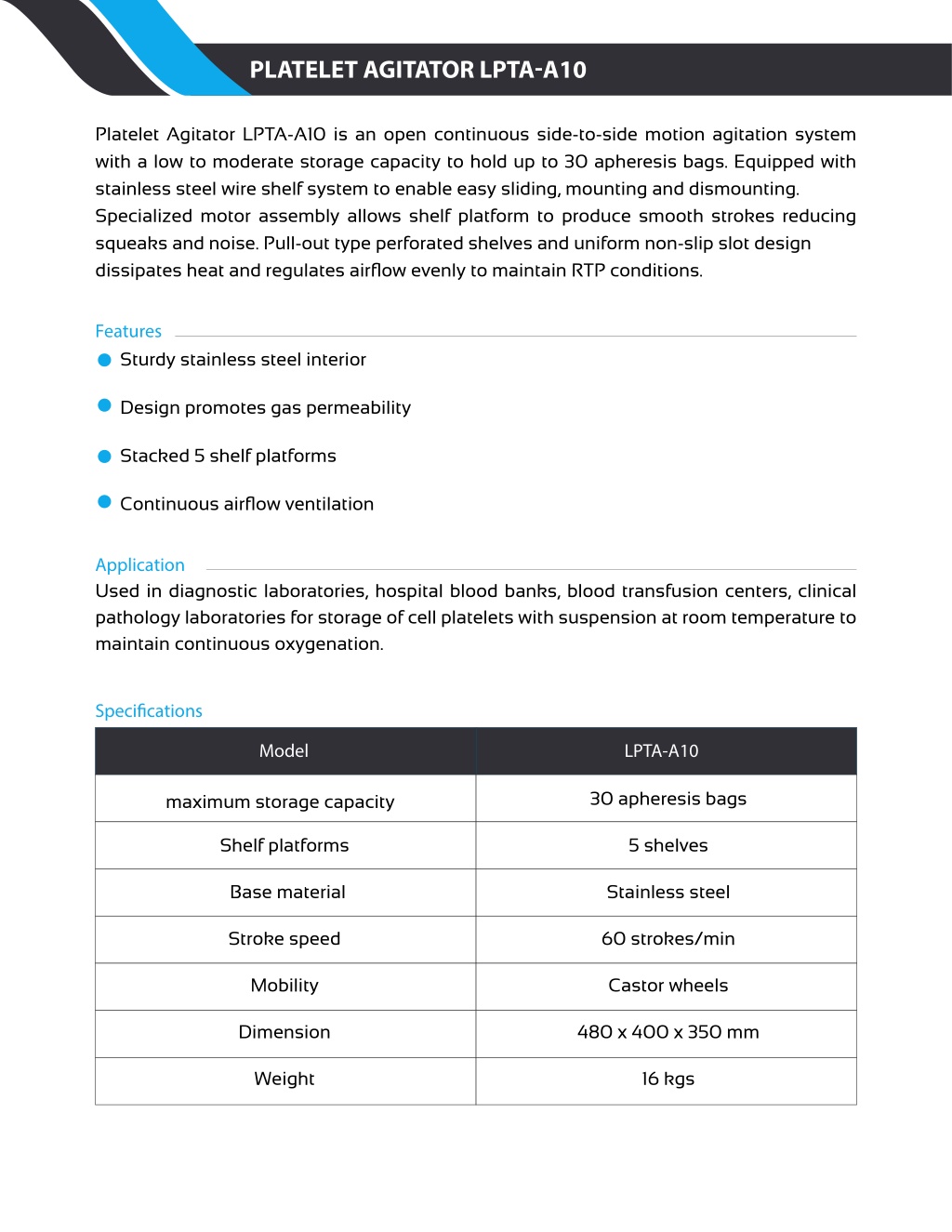

  1. Platelet Agitator LPTA-A10 is an open continuous side-to-side motion agitation system with a low to moderate storage capacity to hold up to 30 apheresis bags. Equipped with stainless steel wire shelf system to enable easy sliding, mounting and dismounting. Specialized motor assembly allows shelf platform to produce smooth strokes reducing squeaks and noise. Pull-out type perforated shelves and uniform non-slip slot design dissipates heat and regulates airflow evenly to maintain RTP conditions. Features Sturdy stainless steel interior Design promotes gas permeability Stacked 5 shelf platforms Continuous airflow ventilation Application Used in diagnostic laboratories, hospital blood banks, blood transfusion centers, clinical pathology laboratories for storage of cell platelets with suspension at room temperature to maintain continuous oxygenation. Specifications Model LPTA-A10 30 apheresis bags maximum storage capacity Shelf platforms 5 shelves Base material Stainless steel Stroke speed 60 strokes/min Mobility Castor wheels Dimension 480 x 400 x 350 mm Weight 16 kgs
