Semi-Auto--Chemistry-Analyzer

Semi Auto- Chemistry Analyzer LZ-SCA-A100; Wavelength: 340-405-450-510-546-578-630 nm; Wavelength Accuracy: plus mn-2 nm. For more information, visit www.Labozon.com.

labozonscientific
Download Presentation

Semi-Auto--Chemistry-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

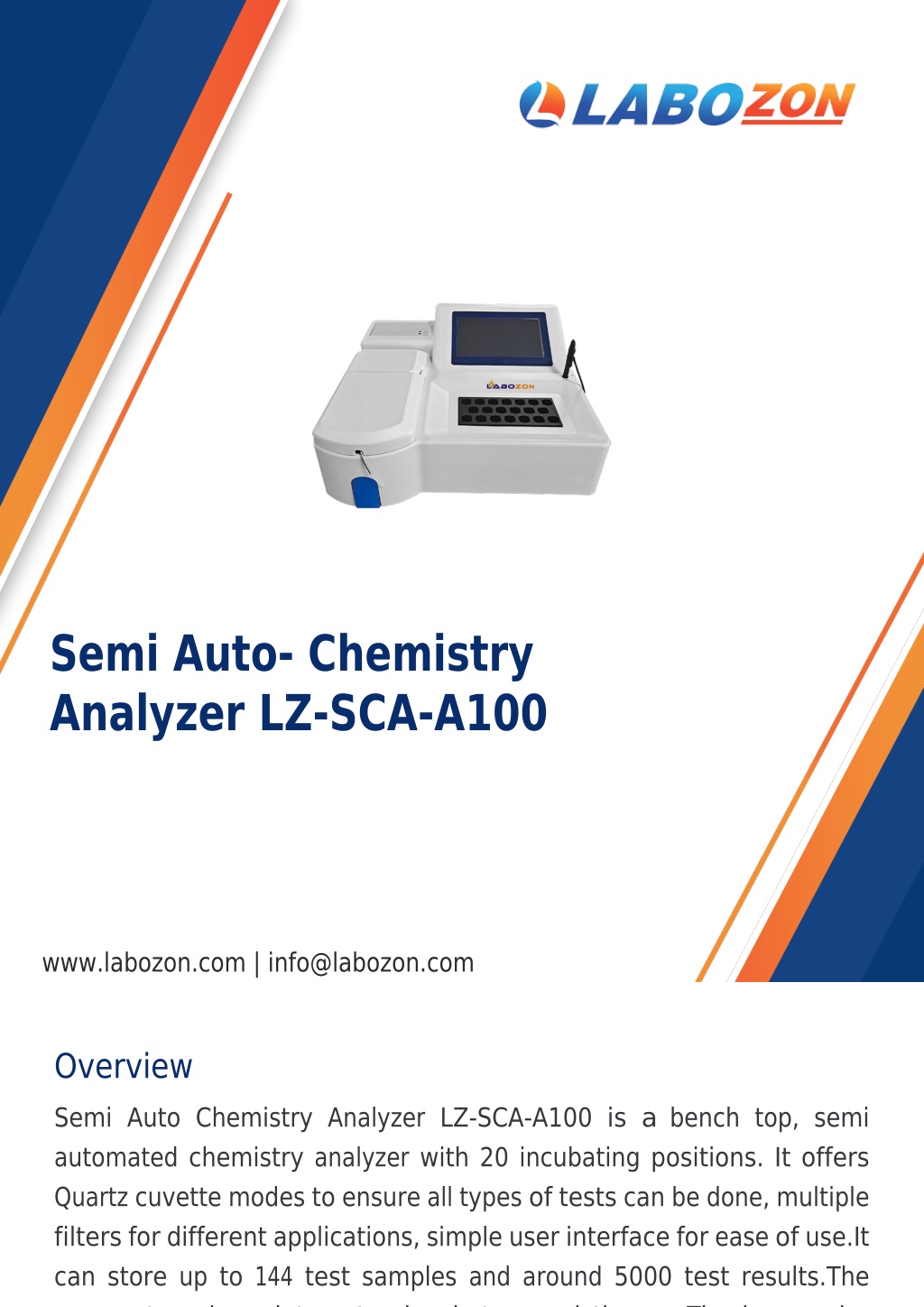

  1. Semi Auto- Chemistry Analyzer LZ-SCA-A100 www.labozon.com | info@labozon.com Overview Semi Auto Chemistry Analyzer LZ-SCA-A100 is a bench top, semi automated chemistry analyzer with 20 incubating positions. It offers Quartz cuvette modes to ensure all types of tests can be done, multiple filters for different applications, simple user interface for ease of use.It can store up to 144 test samples and around 5000 test results.The compact analyzer integrates incubators and timers. The large color

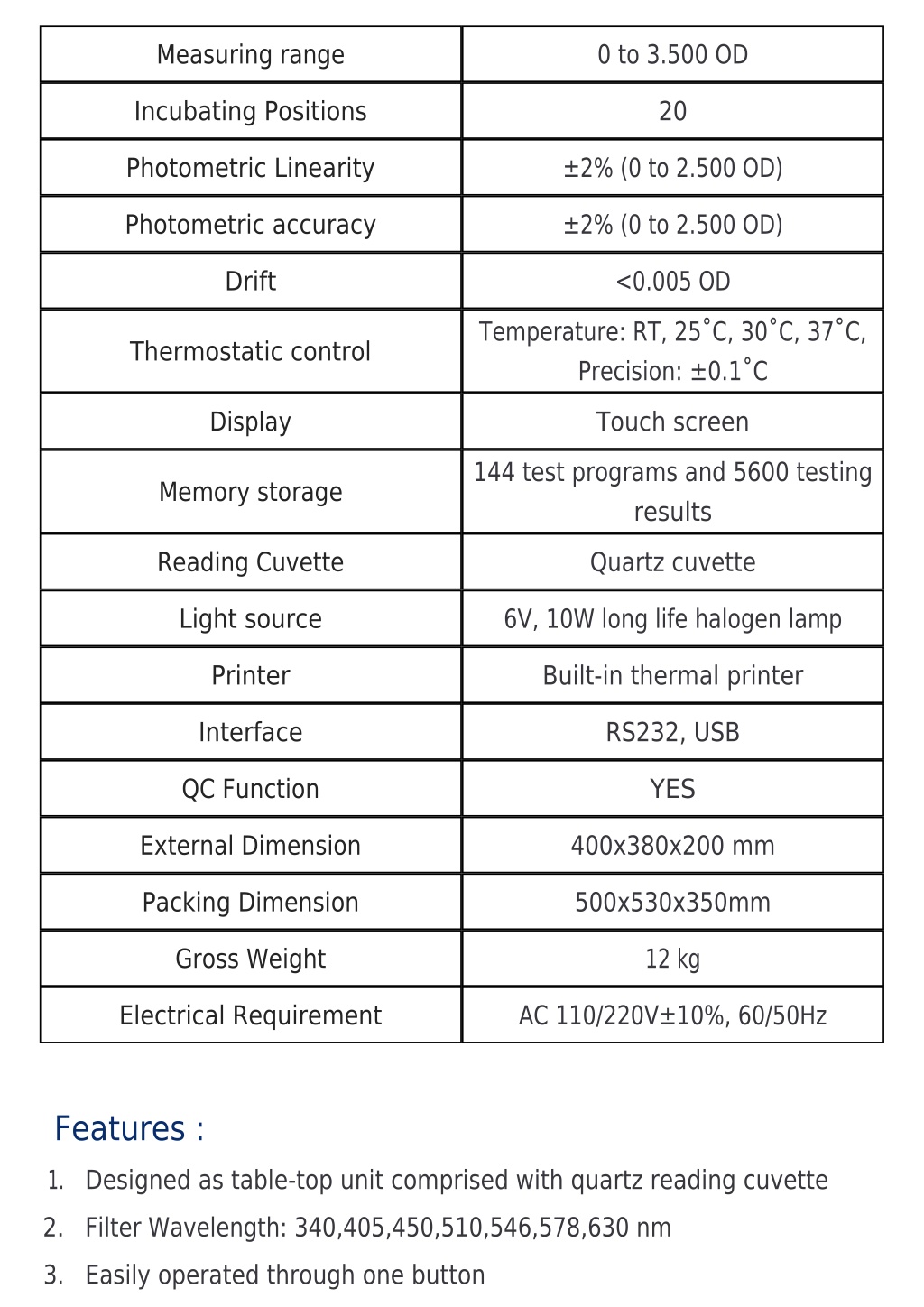

  2. Measuring range 0 to 3.500 OD Incubating Positions 20 Photometric Linearity ±2% (0 to 2.500 OD) Photometric accuracy ±2% (0 to 2.500 OD) Drift <0.005 OD Temperature: RT, 25˚C, 30˚C, 37˚C, Precision: ±0.1˚C Thermostatic control Display Touch screen 144 test programs and 5600 testing results Memory storage Reading Cuvette Quartz cuvette Light source 6V, 10W long life halogen lamp Printer Built-in thermal printer Interface RS232, USB QC Function YES External Dimension 400x380x200 mm Packing Dimension 500x530x350mm Gross Weight 12 kg Electrical Requirement AC 110/220V±10%, 60/50Hz Features : 1. Designed as table-top unit comprised with quartz reading cuvette 2. Filter Wavelength: 340,405,450,510,546,578,630 nm 3. Easily operated through one button

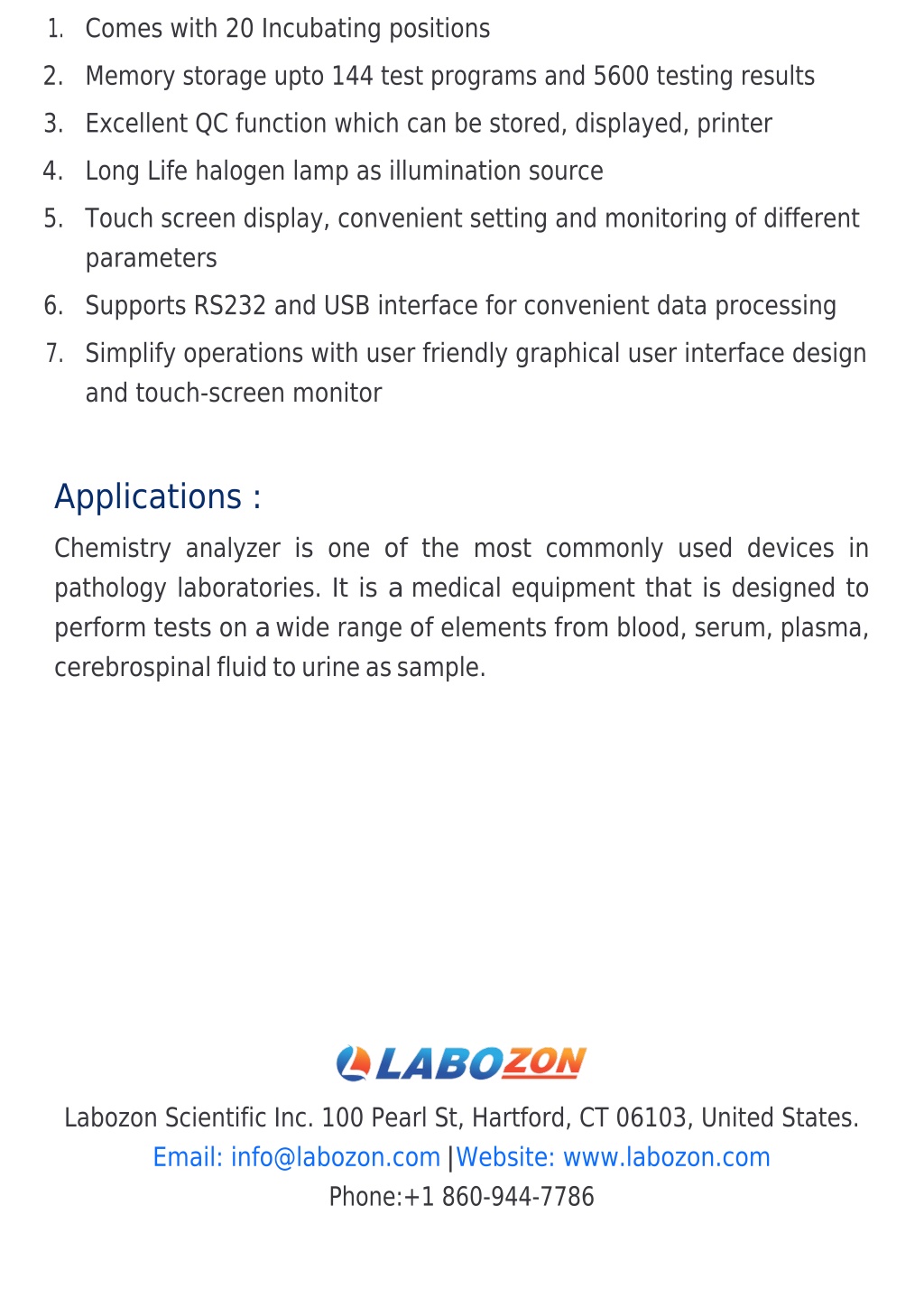

  3. 1. Comes with 20 Incubating positions 2. Memory storage upto 144 test programs and 5600 testing results 3. Excellent QC function which can be stored, displayed, printer 4. Long Life halogen lamp as illumination source 5. Touch screen display, convenient setting and monitoring of different parameters 6. Supports RS232 and USB interface for convenient data processing 7. Simplify operations with user friendly graphical user interface design and touch-screen monitor Applications : Chemistry analyzer is one of the most commonly used devices in pathology laboratories. It is a medical equipment that is designed to perform tests on awide range of elements from blood, serum, plasma, cerebrospinal fluid to urine as sample. Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
