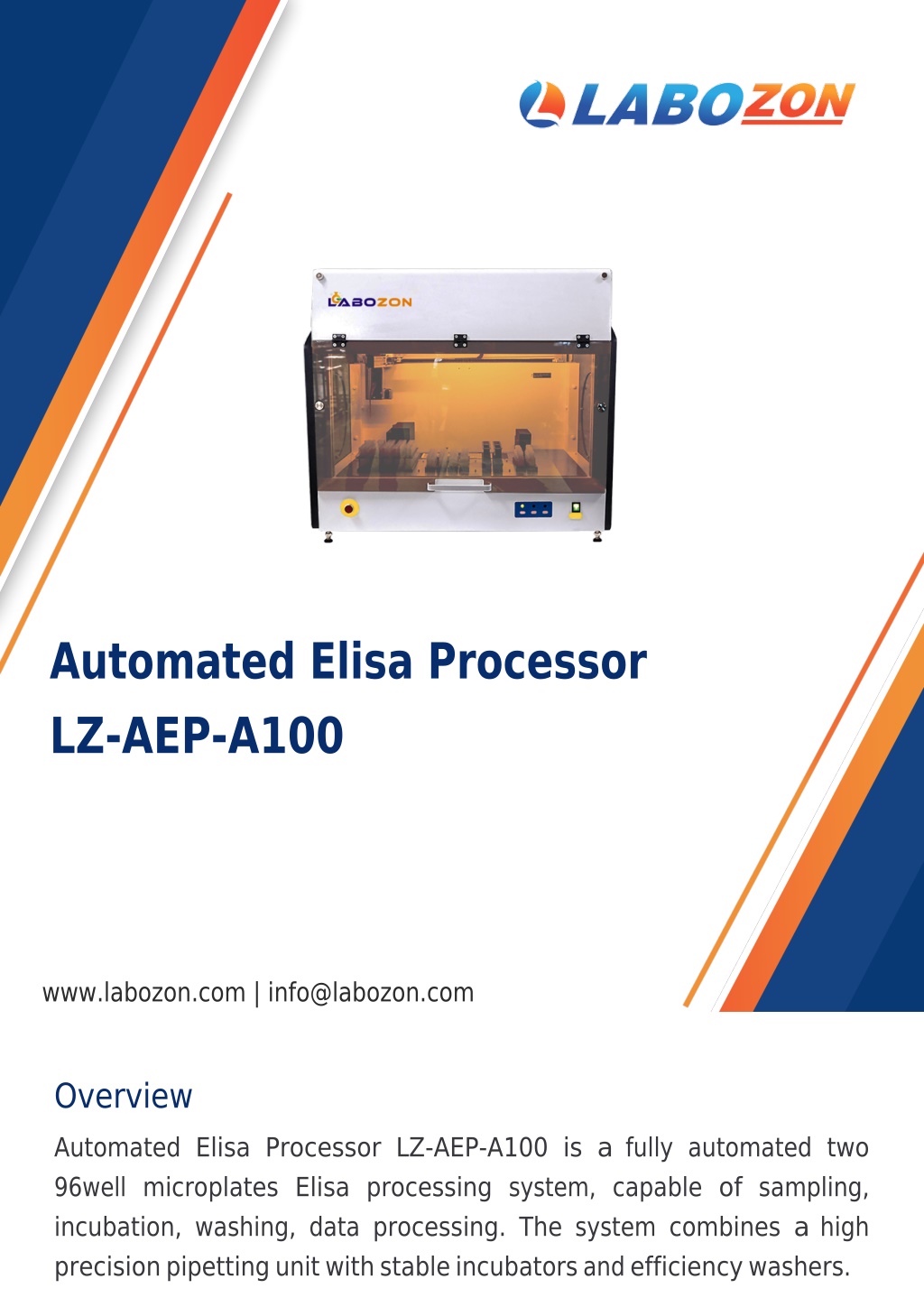

1. Automated Elisa Processor LZ-AEP-A100 www.labozon.com | info@labozon.com Overview Automated Elisa Processor LZ-AEP-A100 is a fully automated two 96well microplates Elisa processing system, capable of sampling, incubation, washing, data processing. The system combines a high precision pipetting unit with stable incubators and efficiency washers.

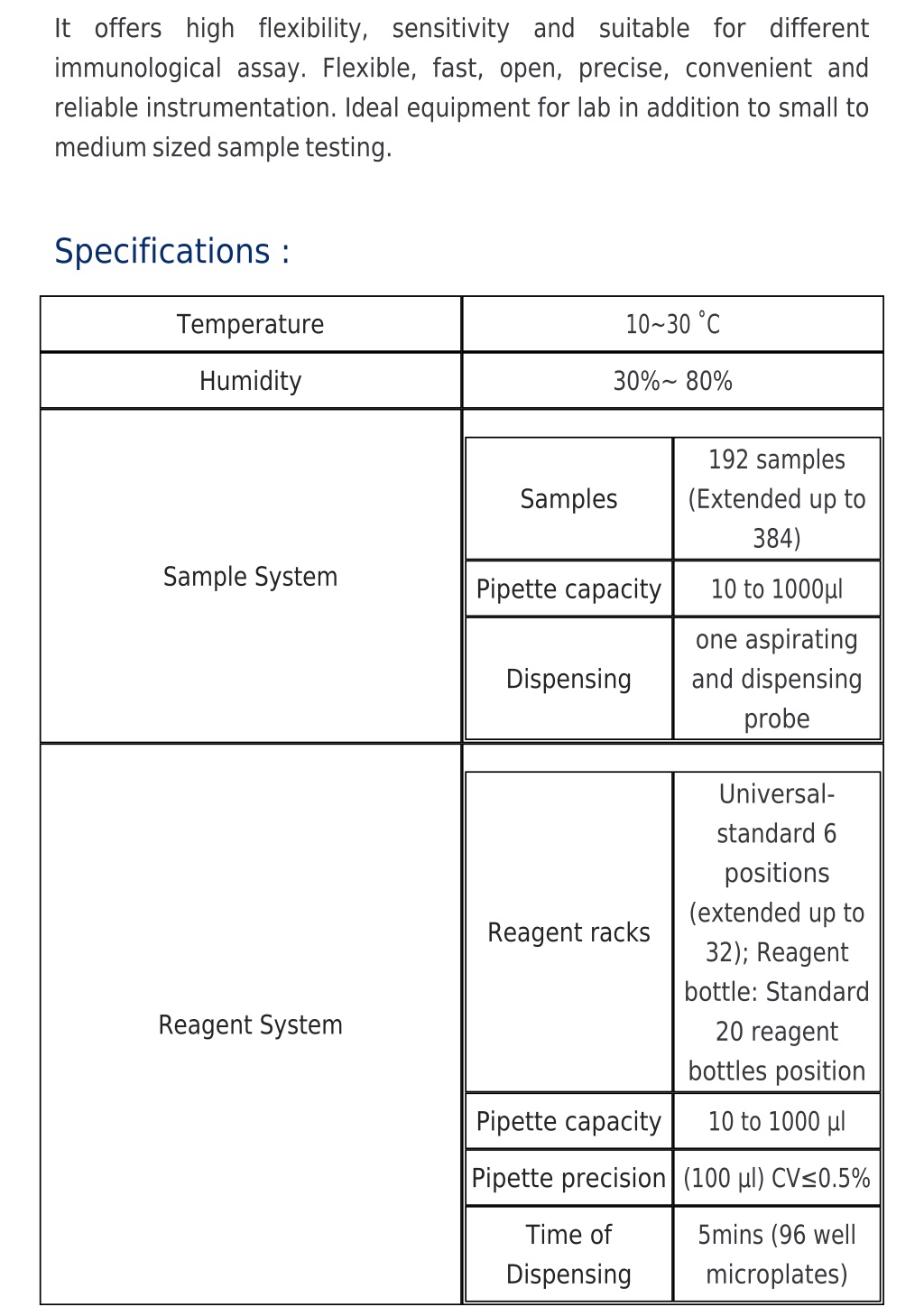

2. It immunological assay. Flexible, fast, open, precise, convenient and reliable instrumentation. Ideal equipment for lab in addition to small to medium sized sample testing. offers high flexibility, sensitivity and suitable for different Specifications : Temperature 10~30 ˚C Humidity 30%~ 80% 192 samples (Extended up to 384) Samples Sample System Pipette capacity 10 to 1000µl one aspirating and dispensing probe Dispensing Universal- standard 6 positions (extended up to 32); Reagent bottle: Standard 20 reagent bottles position Reagent racks Reagent System Pipette capacity 10 to 1000 µl Pipette precision (100 µl) CV≤0.5% Time of Dispensing 5mins (96 well microplates)

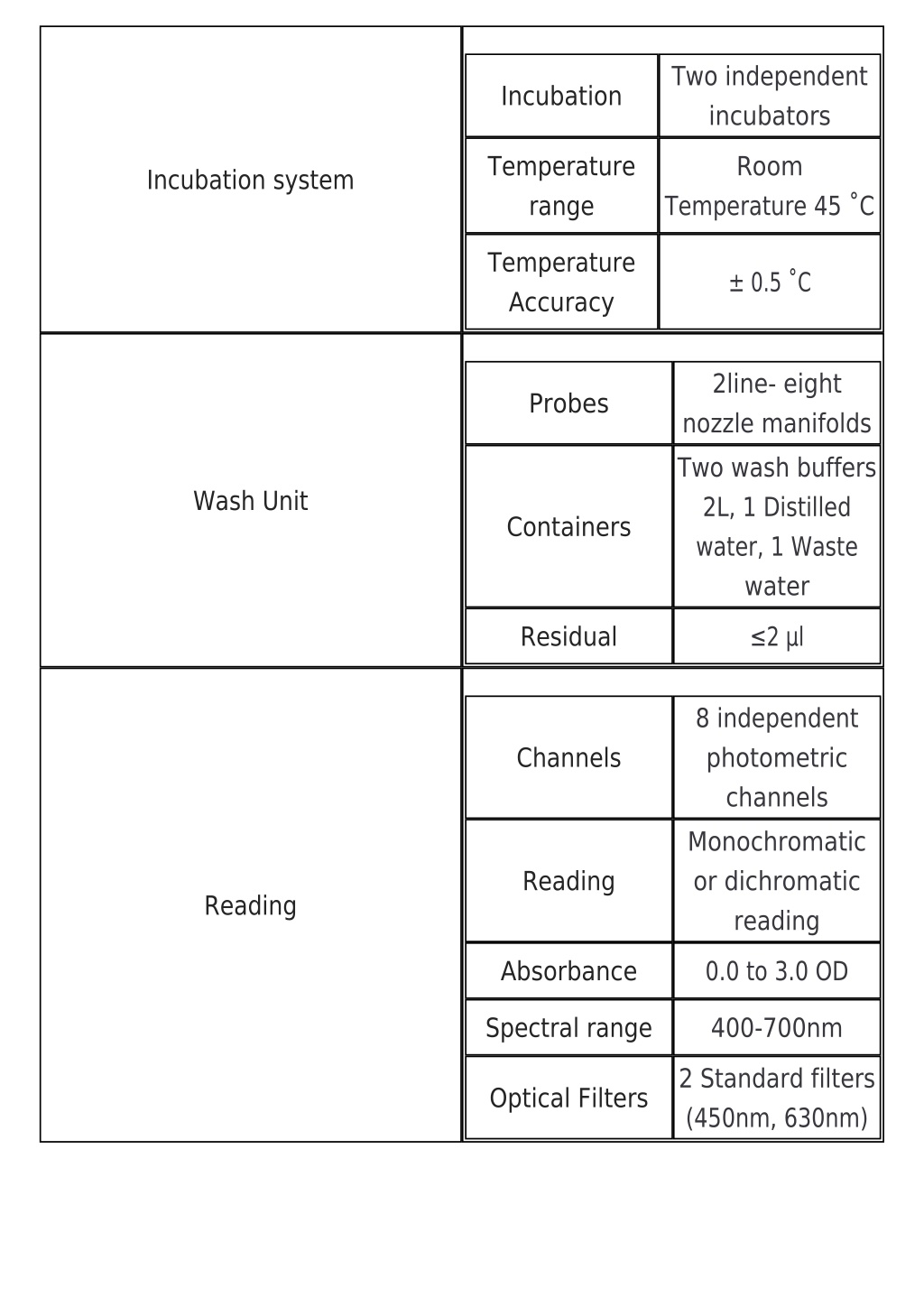

3. Two independent incubators Incubation Temperature range Room Incubation system Temperature 45 ˚C Temperature Accuracy ± 0.5 ˚C 2line- eight nozzle manifolds Probes Two wash buffers 2L, 1 Distilled water, 1 Waste water Wash Unit Containers Residual ≤2 µl 8 independent photometric channels Channels Monochromatic or dichromatic reading Reading Reading Absorbance 0.0 to 3.0 OD Spectral range 400-700nm 2 Standard filters (450nm, 630nm) Optical Filters

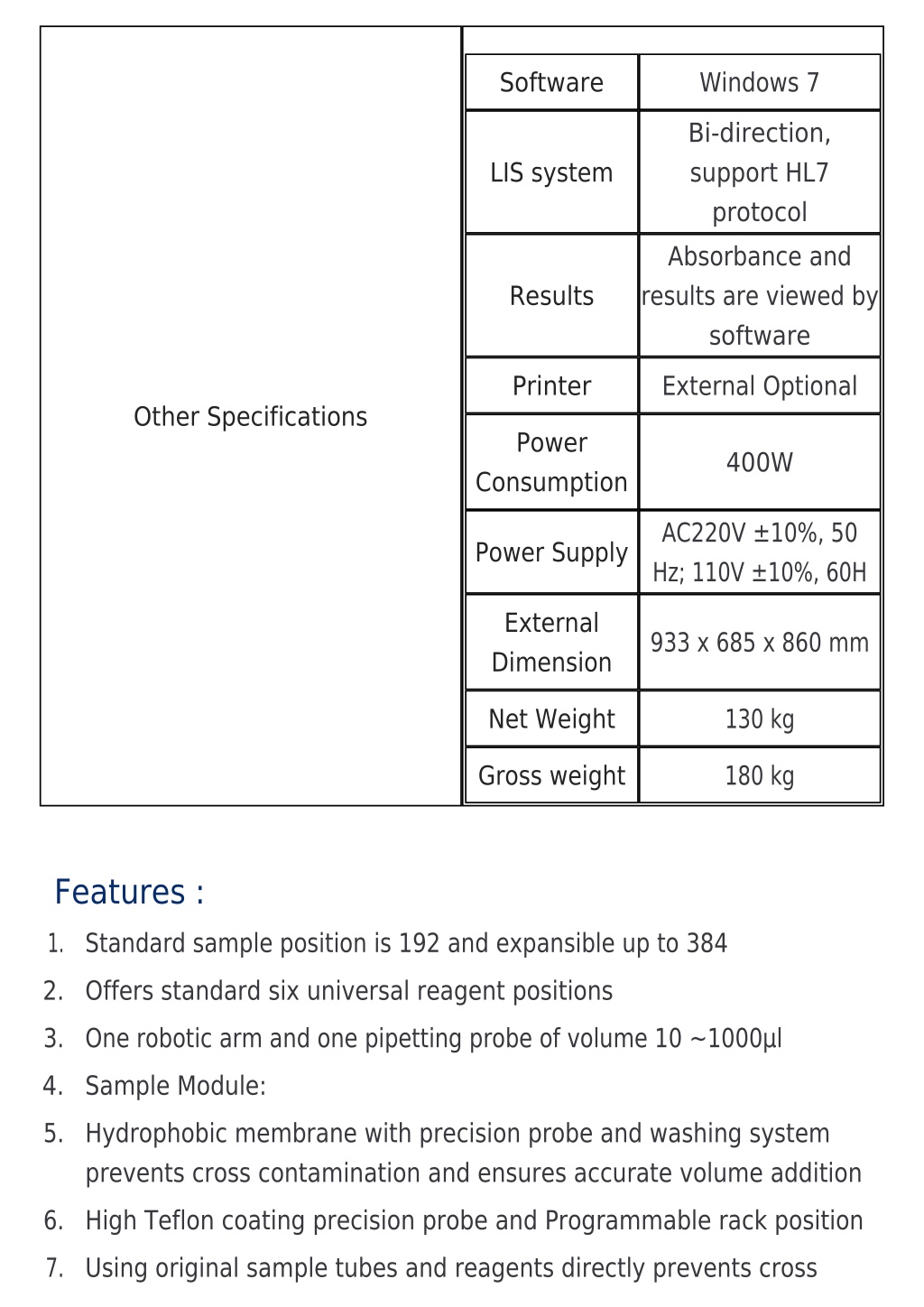

4. Software Windows 7 Bi-direction, support HL7 protocol LIS system Absorbance and results are viewed by software Results Printer External Optional Other Specifications Power 400W Consumption AC220V ±10%, 50 Hz; 110V ±10%, 60H Power Supply External Dimension 933 x 685 x 860 mm Net Weight 130 kg Gross weight 180 kg Features : 1. Standard sample position is 192 and expansible up to 384 2. Offers standard six universal reagent positions 3. One robotic arm and one pipetting probe of volume 10 ~1000µl 4. Sample Module: 5. Hydrophobic membrane with precision probe and washing system prevents cross contamination and ensures accurate volume addition 6. High Teflon coating precision probe and Programmable rack position 7. Using original sample tubes and reagents directly prevents cross

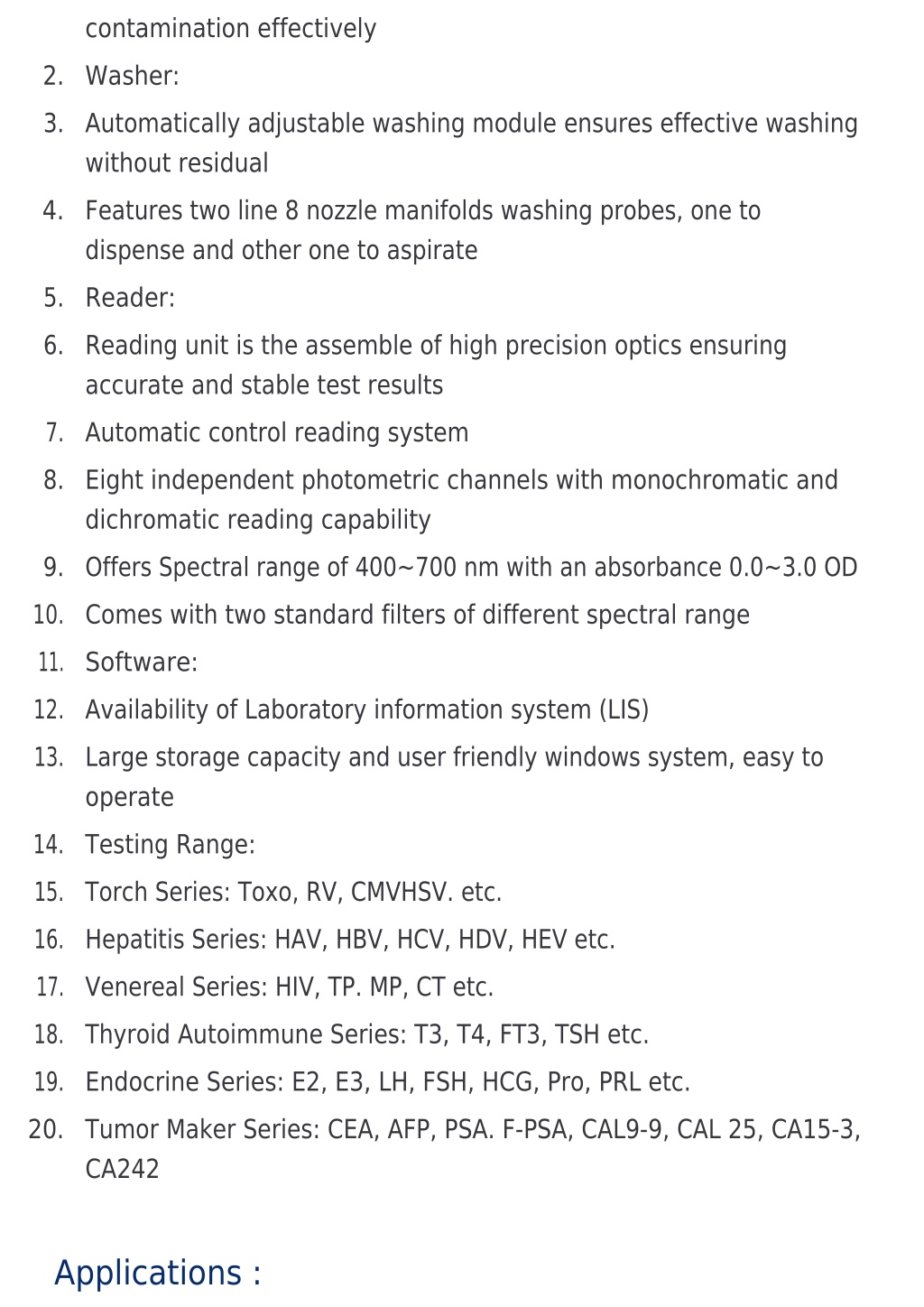

5. contamination effectively 2. Washer: 3. Automatically adjustable washing module ensures effective washing without residual 4. Features two line 8 nozzle manifolds washing probes, one to dispense and other one to aspirate 5. Reader: 6. Reading unit is the assemble of high precision optics ensuring accurate and stable test results 7. Automatic control reading system 8. Eight independent photometric channels with monochromatic and dichromatic reading capability 9. Offers Spectral range of 400~700 nm with an absorbance 0.0~3.0 OD 10. Comes with two standard filters of different spectral range 11. Software: 12. Availability of Laboratory information system (LIS) 13. Large storage capacity and user friendly windows system, easy to operate 14. Testing Range: 15. Torch Series: Toxo, RV, CMVHSV. etc. 16. Hepatitis Series: HAV, HBV, HCV, HDV, HEV etc. 17. Venereal Series: HIV, TP. MP, CT etc. 18. Thyroid Autoimmune Series: T3, T4, FT3, TSH etc. 19. Endocrine Series: E2, E3, LH, FSH, HCG, Pro, PRL etc. 20. Tumor Maker Series: CEA, AFP, PSA. F-PSA, CAL9-9, CAL 25, CA15-3, CA242 Applications :

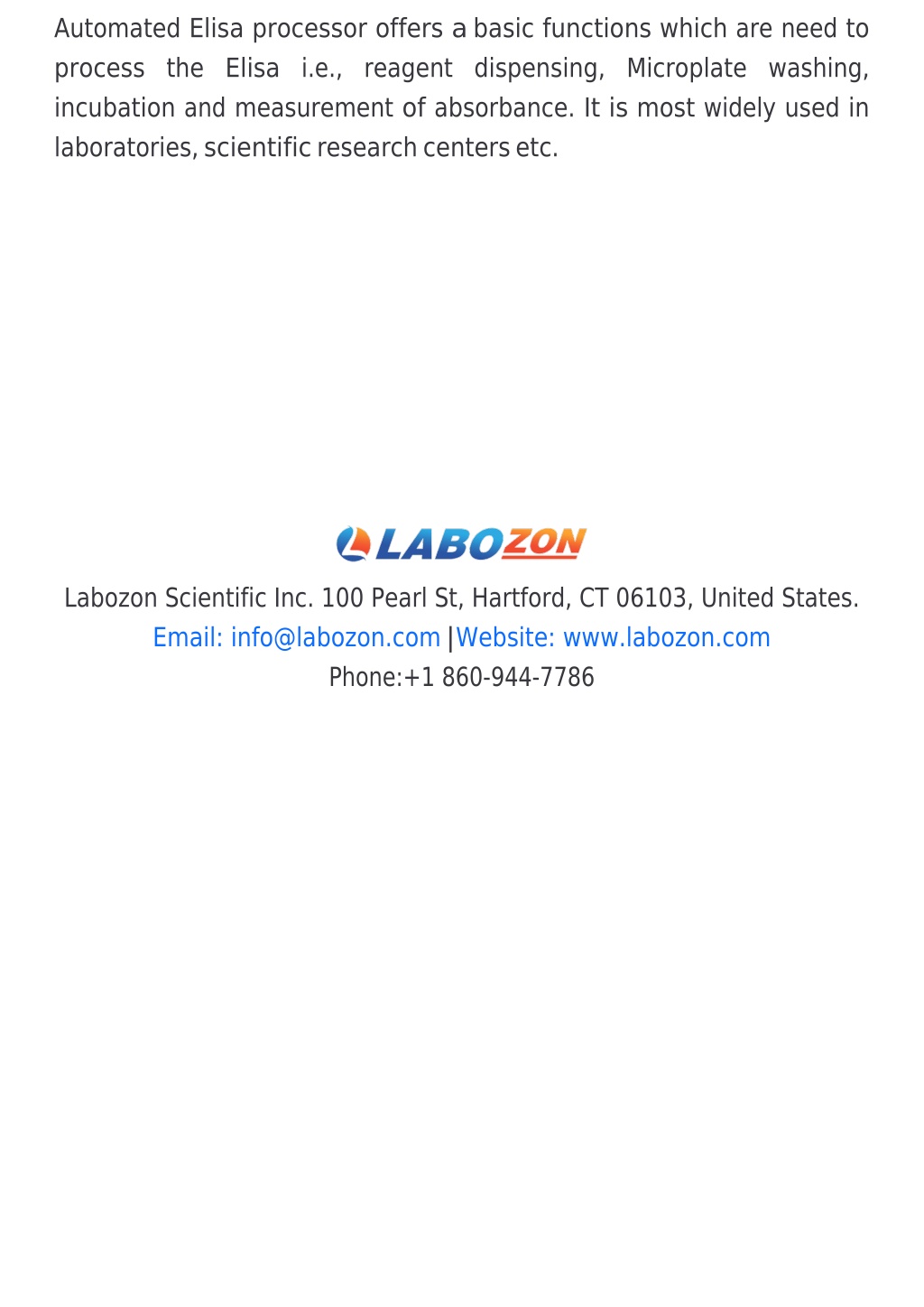

6. Automated Elisa processor offers a basic functions which are need to process the Elisa i.e., reagent dispensing, Microplate washing, incubation and measurement of absorbance. It is most widely used in laboratories, scientific research centers etc. Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
