Auto-Chemistry-Analyzer

"Auto Chemistry Analyzer LZ-ACA-A100; Wavelength: 340-405-450-510-546-578-630-700nm; Sample Volume: 2 70 microliters; Reagent Volume: 20 350 microliters; For more, visit Labozon.com!

labozonscientific
Download Presentation

Auto-Chemistry-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

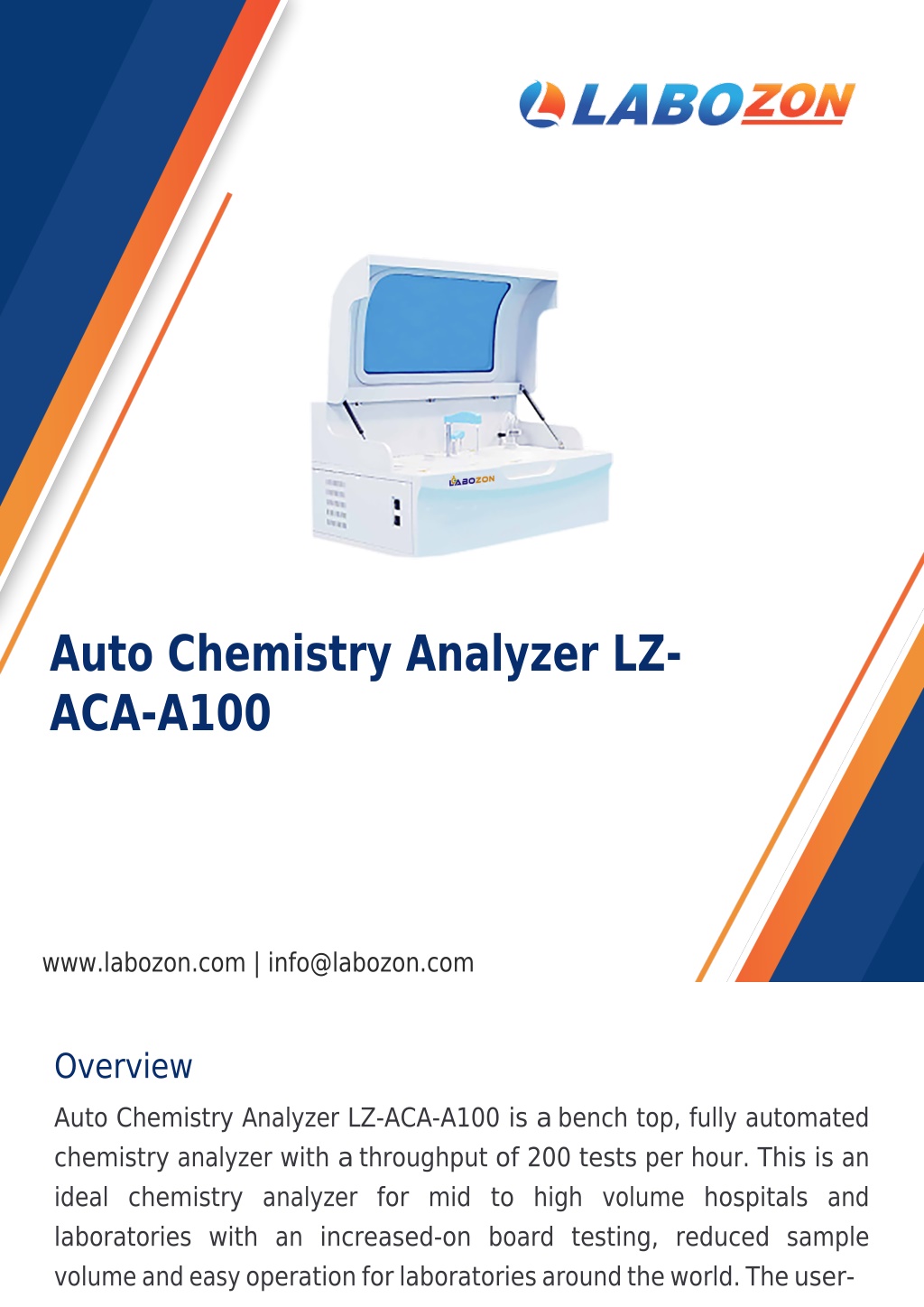

  1. Auto Chemistry Analyzer LZ- ACA-A100 www.labozon.com | info@labozon.com Overview Auto Chemistry Analyzer LZ-ACA-A100 is a bench top, fully automated chemistry analyzer with a throughput of 200 tests per hour. This is an ideal chemistry analyzer for mid to high volume hospitals and laboratories with an increased-on board testing, reduced sample volume and easy operation for laboratories around the world. The user-

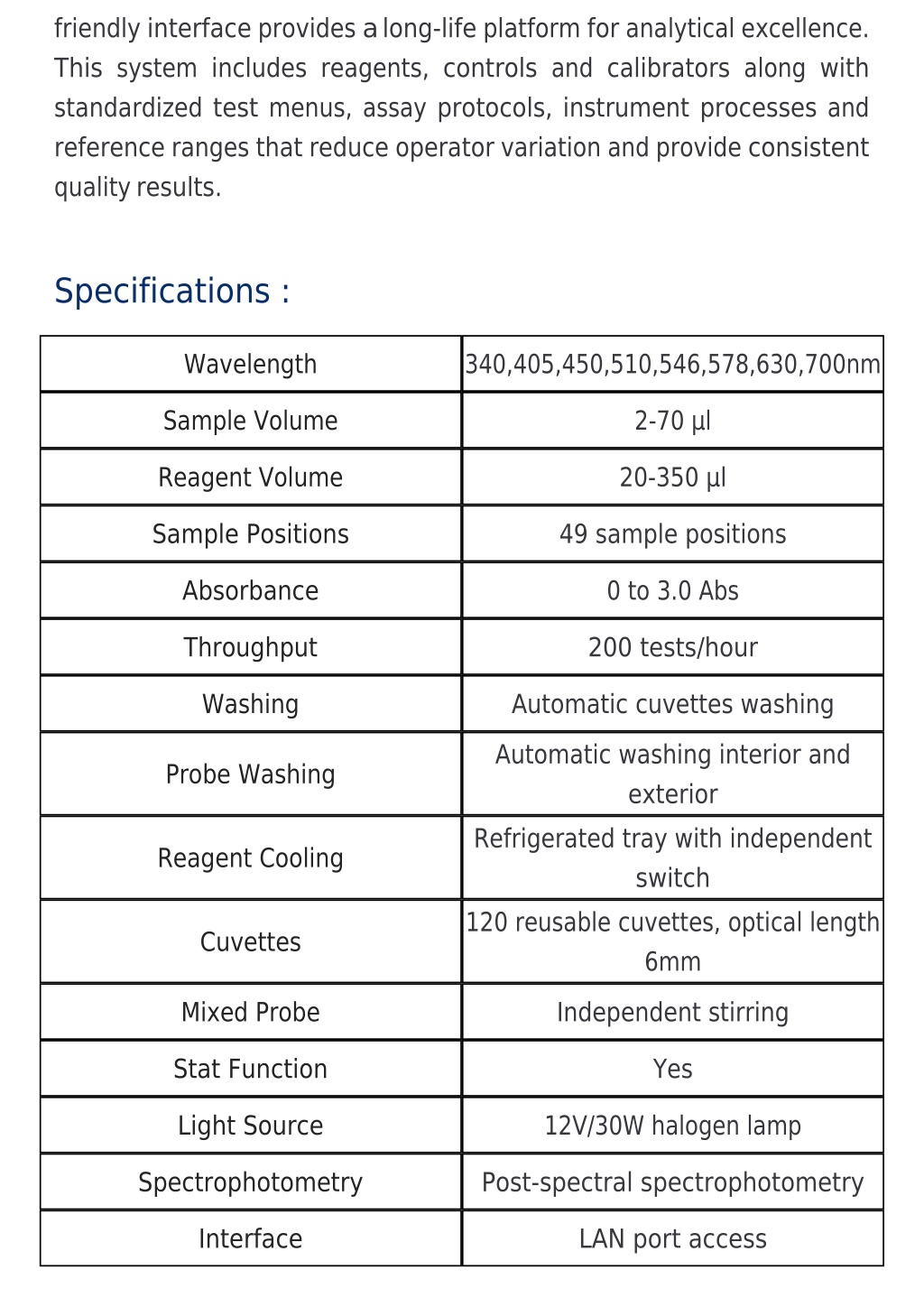

  2. friendly interface provides along-life platform for analytical excellence. This system includes reagents, controls and calibrators along with standardized test menus, assay protocols, instrument processes and reference ranges that reduce operator variation and provide consistent quality results. Specifications : Wavelength 340,405,450,510,546,578,630,700nm Sample Volume 2-70 µl Reagent Volume 20-350 µl Sample Positions 49 sample positions Absorbance 0 to 3.0 Abs Throughput 200 tests/hour Washing Automatic cuvettes washing Automatic washing interior and exterior Probe Washing Refrigerated tray with independent switch Reagent Cooling 120 reusable cuvettes, optical length 6mm Cuvettes Mixed Probe Independent stirring Stat Function Yes Light Source 12V/30W halogen lamp Spectrophotometry Post-spectral spectrophotometry Interface LAN port access

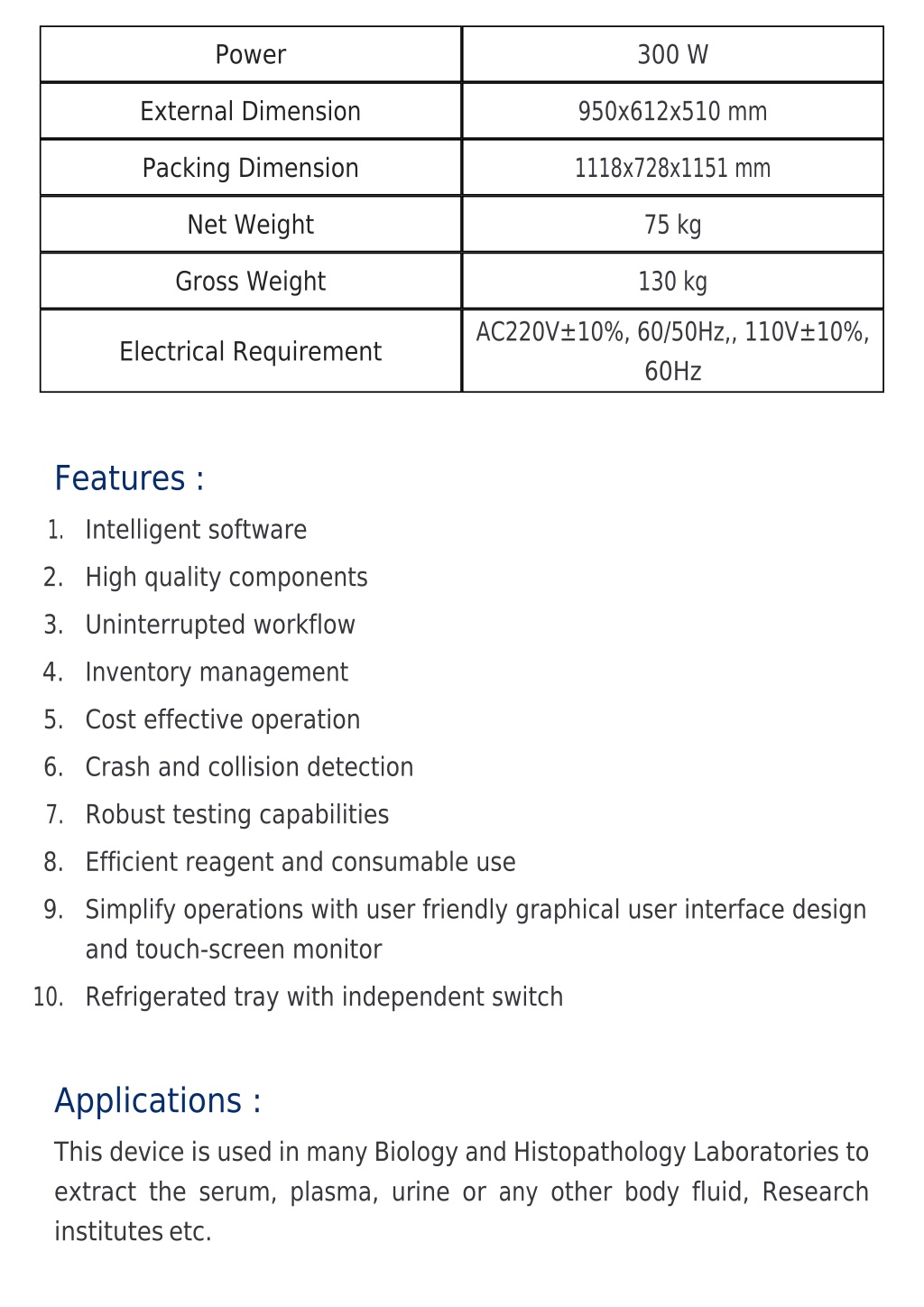

  3. Power 300 W External Dimension 950x612x510 mm Packing Dimension 1118x728x1151 mm Net Weight 75 kg Gross Weight 130 kg AC220V±10%, 60/50Hz,, 110V±10%, 60Hz Electrical Requirement Features : 1. Intelligent software 2. High quality components 3. Uninterrupted workflow 4. Inventory management 5. Cost effective operation 6. Crash and collision detection 7. Robust testing capabilities 8. Efficient reagent and consumable use 9. Simplify operations with user friendly graphical user interface design and touch-screen monitor 10. Refrigerated tray with independent switch Applications : This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.

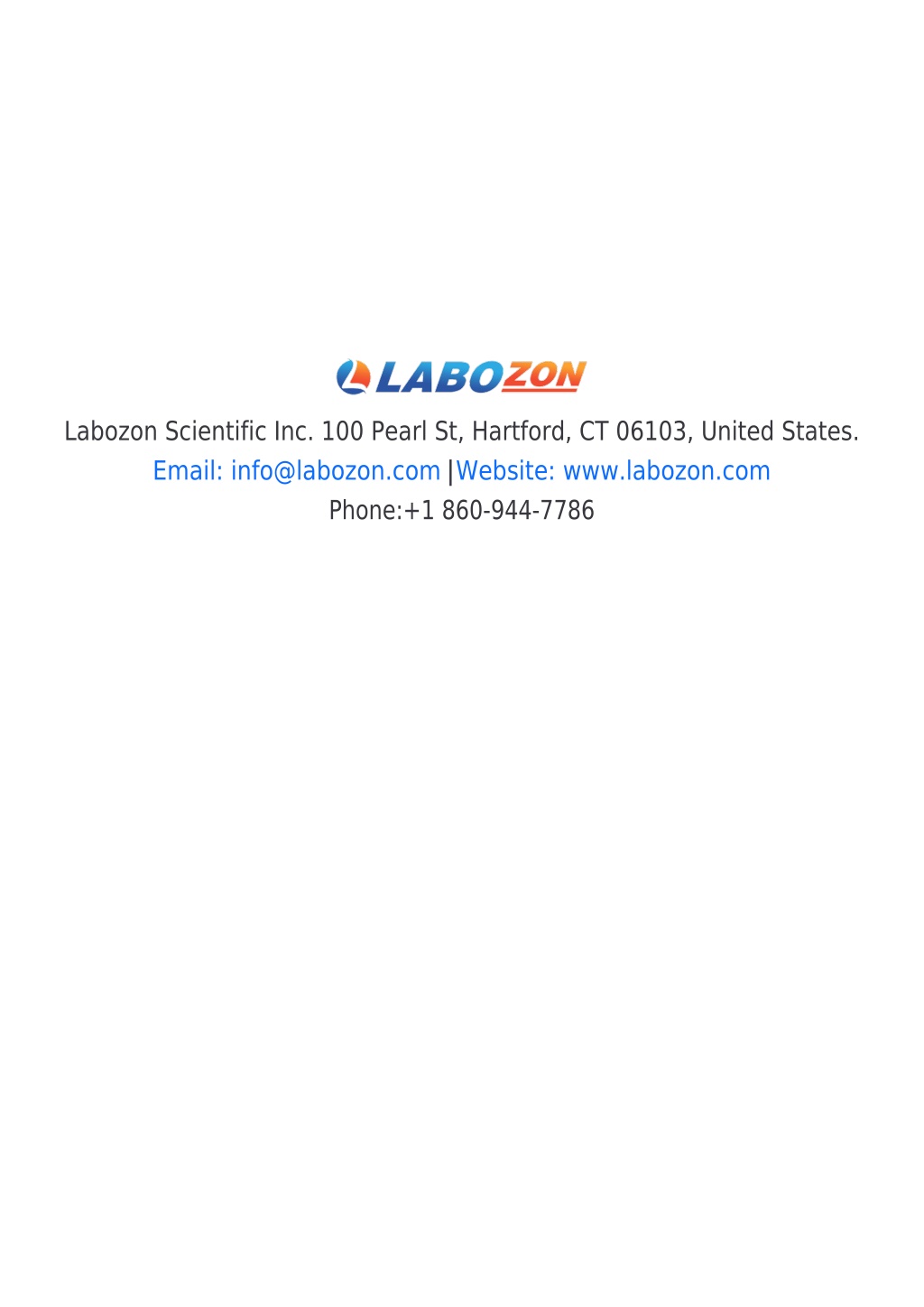

  4. Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
