LABNICS-Disc-Polarimeter-NDP-100

Disc Polarimeter NDP-100 is a device that employs sensitive, non-destructive technique to determine the optical rotation of chiral substances. It is easy-to-use and is an essential device in educational institutes and food industries. The polarimeter employs sodium lamp which is convectional source of light in polarimeters. Quality and process control applications

labnics14
Download Presentation

LABNICS-Disc-Polarimeter-NDP-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

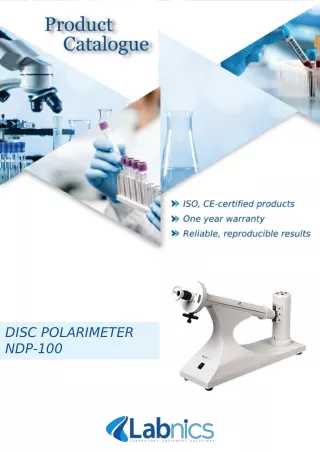

  1. DISC POLARIMETER NDP-100

  2. DISC POLARIMETER NDP-100 Disc Polarimeter NDP-100 is a device that employs sensitive, non-destructive technique to determine the optical rotation of chiral substances. It is easy-to-use and is an essential device in educational institutes and food industries. The polarimeter employs sodium lamp which is convectional source of light in polarimeters. Quality and process control applications, both in the laboratory or on-line in the factory used throughout the pharmaceutical, essential oil, flavor, food and chemical industries employ polarimeters. FEATURES ⇋ Manual operation ⇋ Sample chamber includes measurement tubes with a length of up to 200 mm ⇋ High precision and sensitive ⇋ Can be used for basic laboratory applications ⇋ Measurement results are read through an eyepiece SPECIFICATIONS Range Scale Value Vernier Magnifier Light Source Wavelength Parameter Tube Length Power Dimensions (L × W × H) Weight -180°+180° 1° 0.05° 3X Sodium lamp 589 nm Manual 100 or 200 mm AC 220V/50Hz 500 ×135 ×330 mm 6.5 kg APPLICATIONS Widely employed in quality control, process control and research in the pharmaceutical, chemical, essential oil, flavor and food industries

  3. Labnics product catalog Generated on: 19/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
