LABNICS-Differential-Thermal-Analyzer-NDTA-100

Differential Thermal Analyzer NDTA-100 is designed with a furnace body and lid. It quantitatively records absorption or emission of heat. The physical and chemical changes occurred in a sample are recorded with respect to a reference inert material at different phase transitions such as crystallization, melting and sublimation etc. The DTA curve states the changes in phase transition depending on time and temperature.

labnics14
Download Presentation

LABNICS-Differential-Thermal-Analyzer-NDTA-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

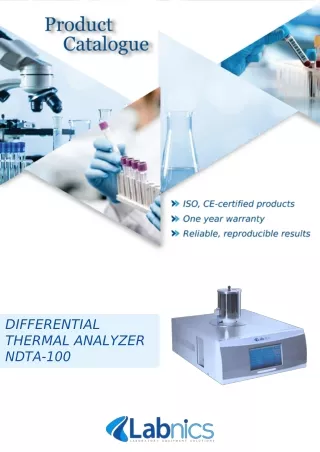

  1. DIFFERENTIAL THERMAL ANALYZER NDTA-100

  2. DIFFERENTIAL THERMAL ANALYZER NDTA-100 Differential Thermal Analyzer NDTA-100 is designed with a furnace body and lid. It quantitatively records absorption or emission of heat. The physical and chemical changes occurred in a sample are recorded with respect to a reference inert material at different phase transitions such as crystallization, melting and sublimation etc. The DTA curve states the changes in phase transition depending on time and temperature. FEATURES ⇋ Solid and liquid sample analysis ⇋ Temperature range RT to 1150 °C ⇋ Measurement range 0 to 2000 µV ⇋ Heating speed 1 to 80 °C/ min ⇋ Built-in speed fan to reduce temperature outside furnace body ⇋ Tests relationship between test and reference sample SPECIFICATIONS Temperature range Measurement range, DTA precision Sample analyzed Heating speed Temperature resolution Temperature accuracy Temperature repeatability Air cooled program control Atmosphere control Display Data interface RT to 1150°C 0 to 2000 µV, ± 0.1 µV Solid and liquid Sample 1 to 80°C/ min 0.1°C ± 0.1°C ± 0.1°C Built-in speed fan next to furnace body Built-in gas flowmeter (250ml/min maximum) 24 bit color 7 inch LCD touch screen display USB connector, supporting data line, operating software ≤ 2000 W AC 220 V, 50 Hz Power consumption Power supply

  3. APPLICATIONS Used in material characterization across analytical chemistry, metallurgy, pharmaceutical industry, food, environmental, construction fields research and testing.

  4. Labnics product catalog Generated on: 17/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
