LABNICS-Density-Meter-NDSM-100

Density Meter NDSM-100 is a plug-in type densitometer with a high-performance micro-controller integrated circuit providing high accuracy, good stability and strong anti-jamming function. The fluid density is directly proportional to the vibrational frequency obtained by the tuning fork when the sensor is put into the medium. Temperature compensation is provided by the built-in temperature sensor.

labnics14
Download Presentation

LABNICS-Density-Meter-NDSM-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

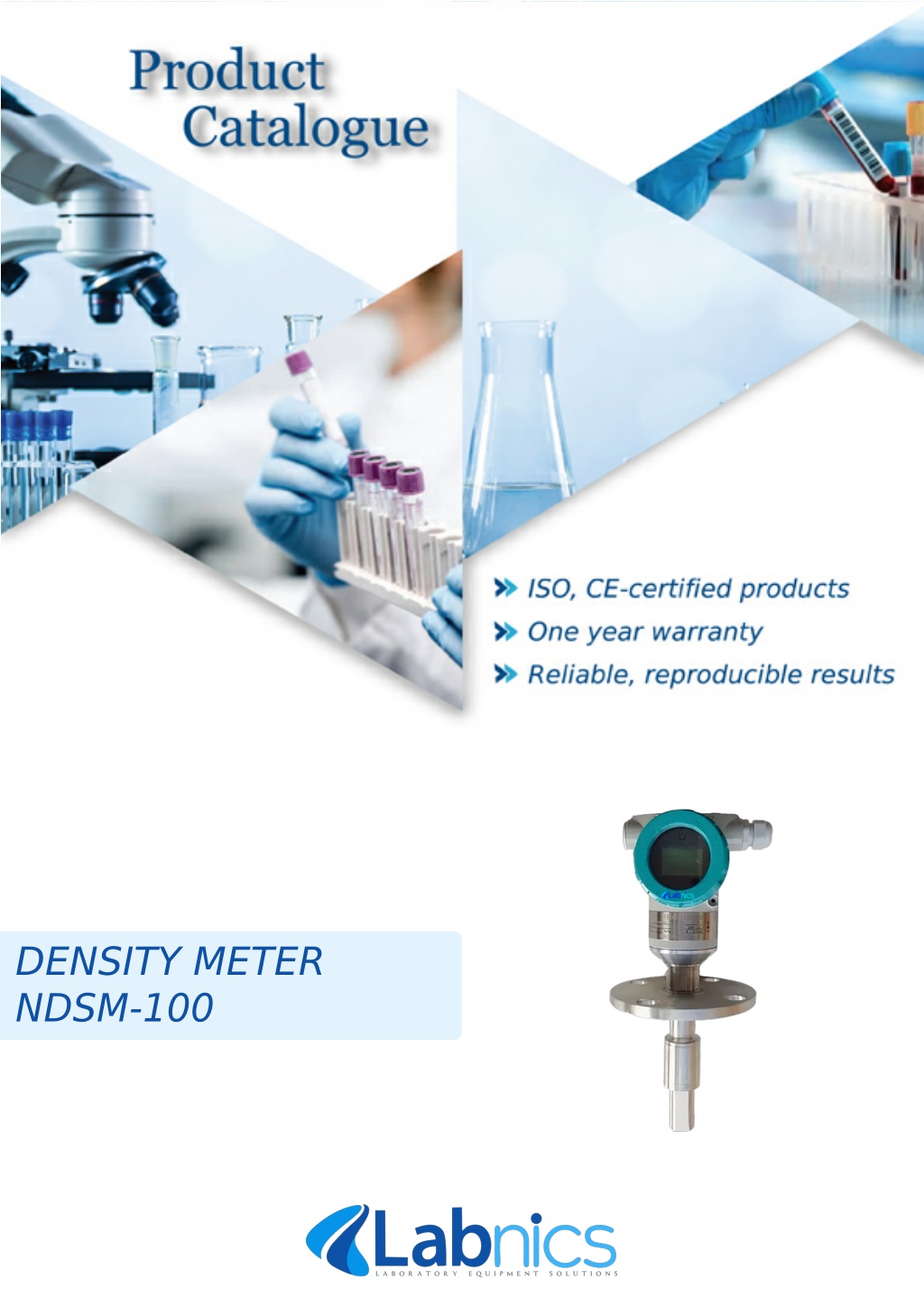

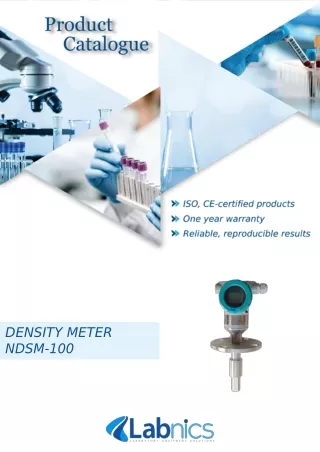

  1. DENSITY METER NDSM-100

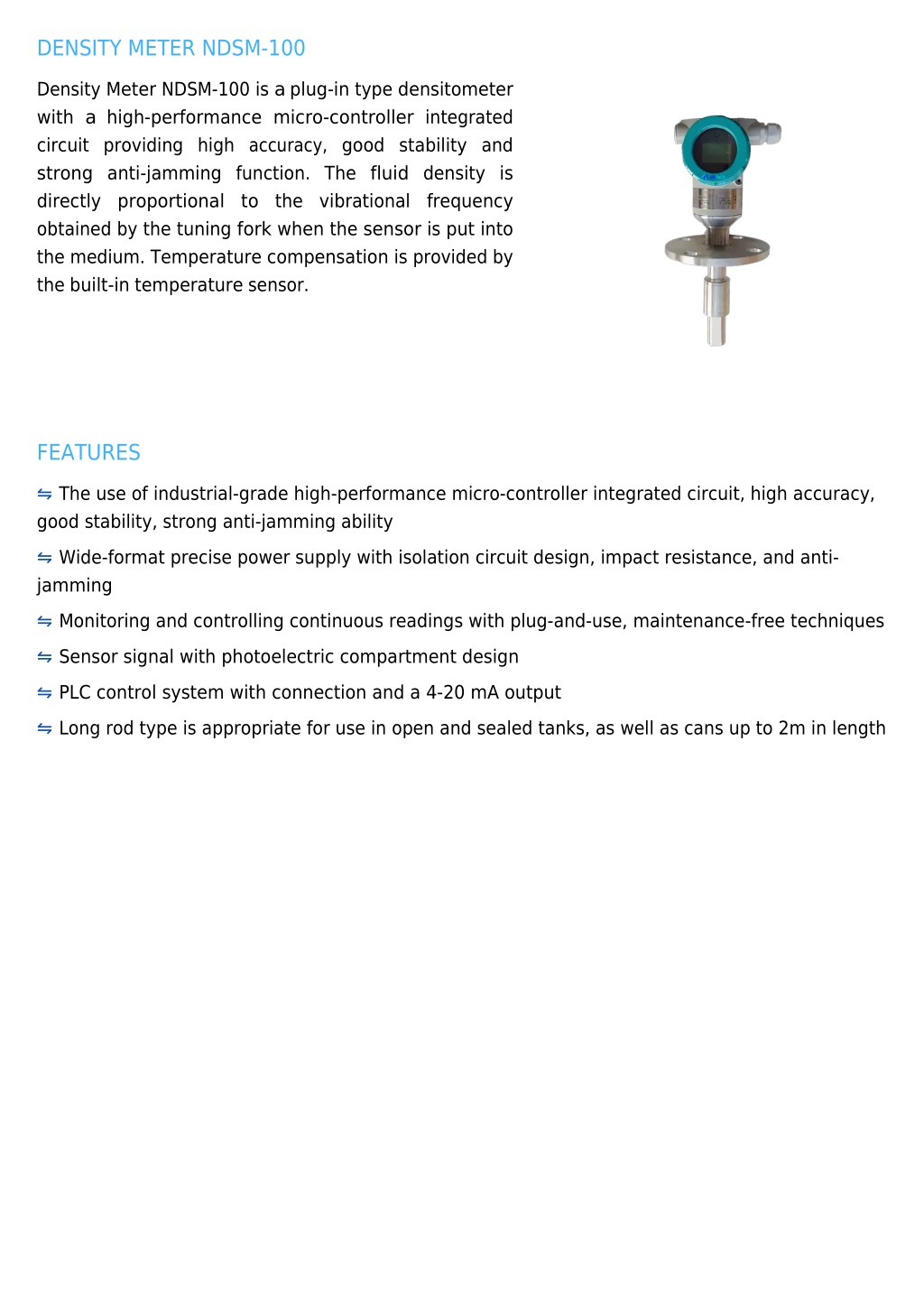

  2. DENSITY METER NDSM-100 Density Meter NDSM-100 is a plug-in type densitometer with a high-performance micro-controller integrated circuit providing high accuracy, good stability and strong anti-jamming function. The fluid density is directly proportional to the obtained by the tuning fork when the sensor is put into the medium. Temperature compensation is provided by the built-in temperature sensor. vibrational frequency FEATURES The use of industrial-grade high-performance micro-controller integrated circuit, high accuracy, good stability, strong anti-jamming ability ⇋ Wide-format precise power supply with isolation circuit design, impact resistance, and anti- jamming ⇋ ⇋ Monitoring and controlling continuous readings with plug-and-use, maintenance-free techniques ⇋ Sensor signal with photoelectric compartment design ⇋ PLC control system with connection and a 4-20 mA output ⇋ Long rod type is appropriate for use in open and sealed tanks, as well as cans up to 2m in length

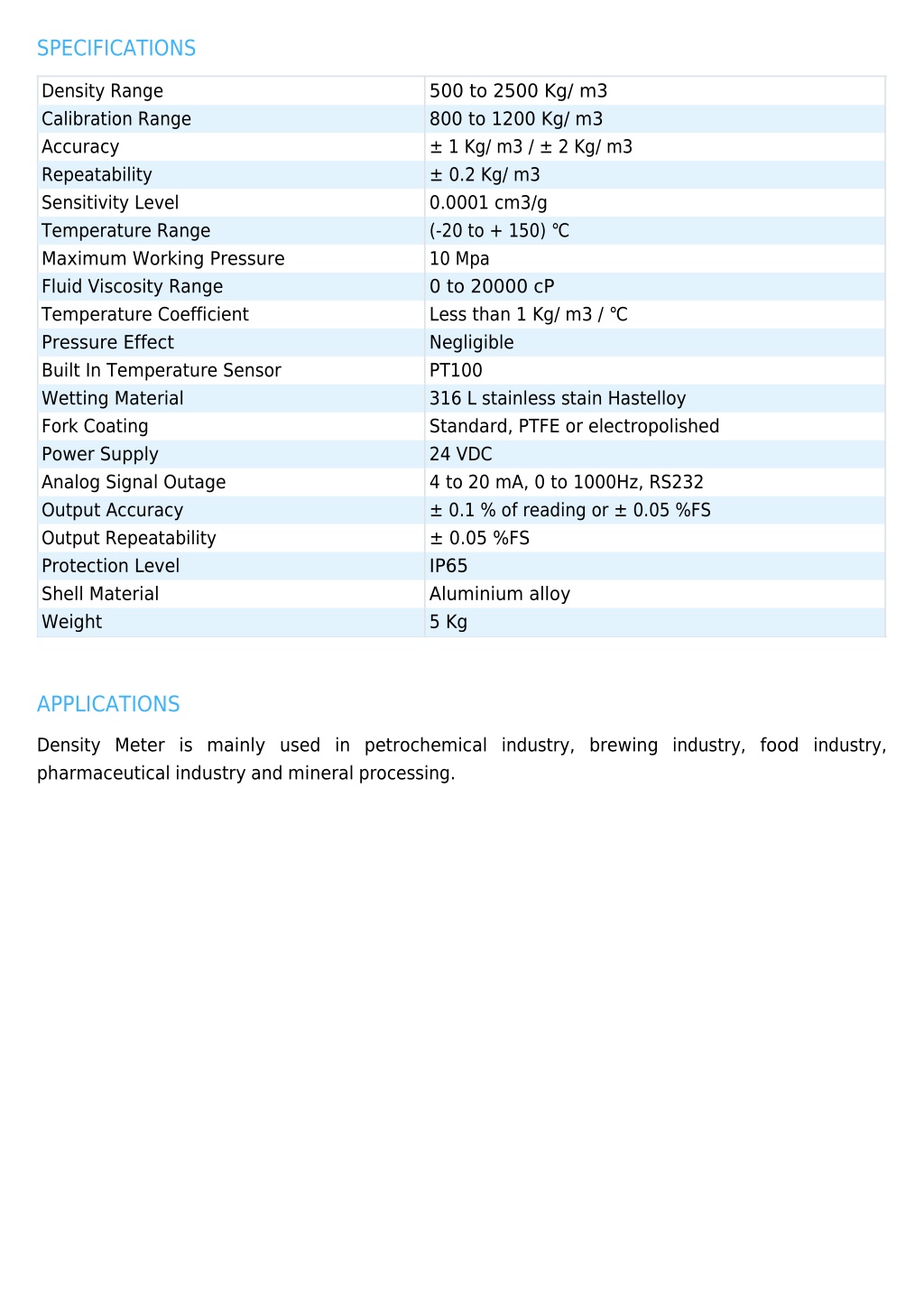

  3. SPECIFICATIONS Density Range Calibration Range Accuracy Repeatability Sensitivity Level Temperature Range Maximum Working Pressure Fluid Viscosity Range Temperature Coefficient Pressure Effect Built In Temperature Sensor Wetting Material Fork Coating Power Supply Analog Signal Outage Output Accuracy Output Repeatability Protection Level Shell Material Weight 500 to 2500 Kg/ m3 800 to 1200 Kg/ m3 ± 1 Kg/ m3 / ± 2 Kg/ m3 ± 0.2 Kg/ m3 0.0001 cm3/g (-20 to + 150) ℃ 10 Mpa 0 to 20000 cP Less than 1 Kg/ m3 / ℃ Negligible PT100 316 L stainless stain Hastelloy Standard, PTFE or electropolished 24 VDC 4 to 20 mA, 0 to 1000Hz, RS232 ± 0.1 % of reading or ± 0.05 %FS ± 0.05 %FS IP65 Aluminium alloy 5 Kg APPLICATIONS Density Meter is mainly used in petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing.

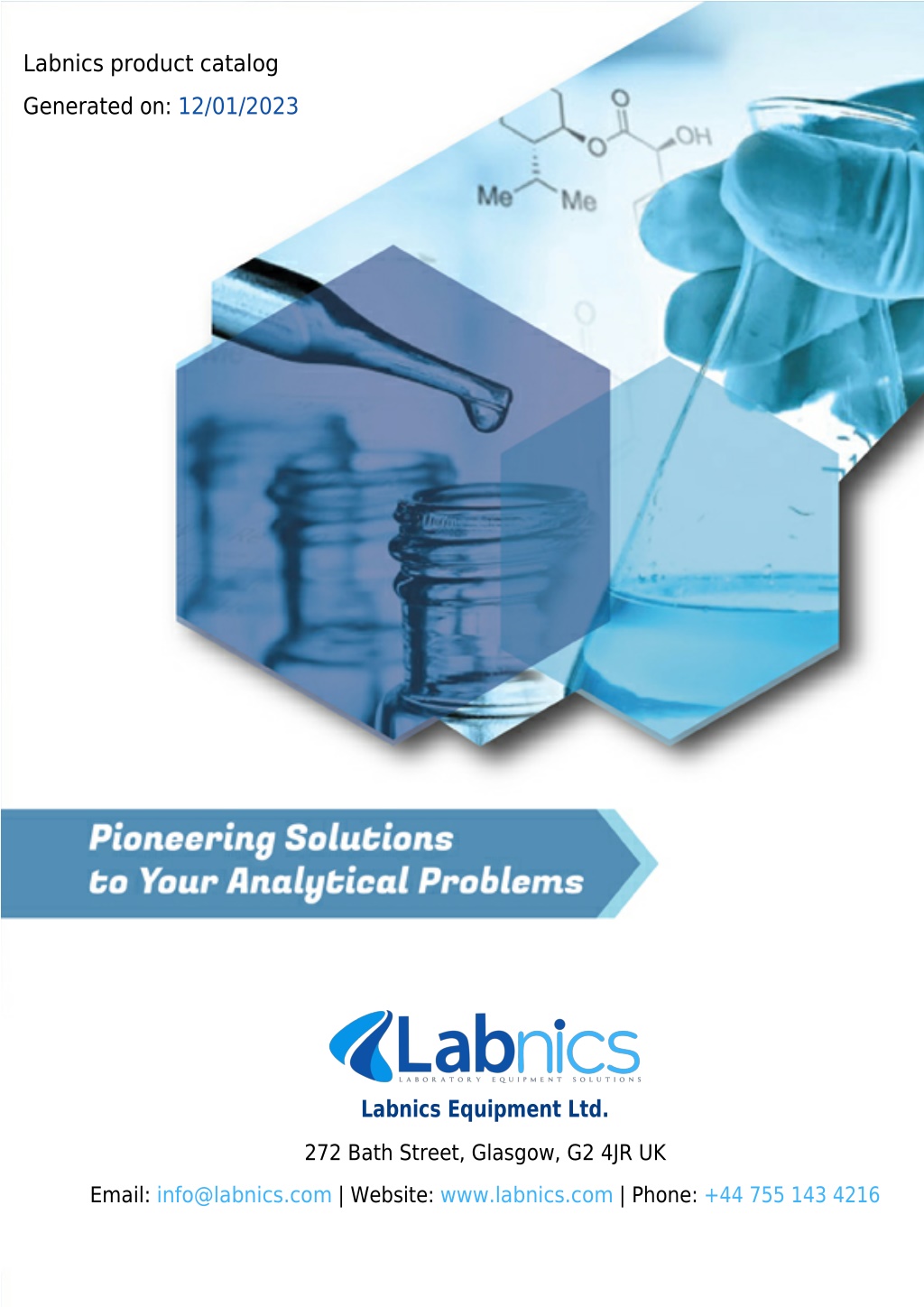

  4. Labnics product catalog Generated on: 12/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
