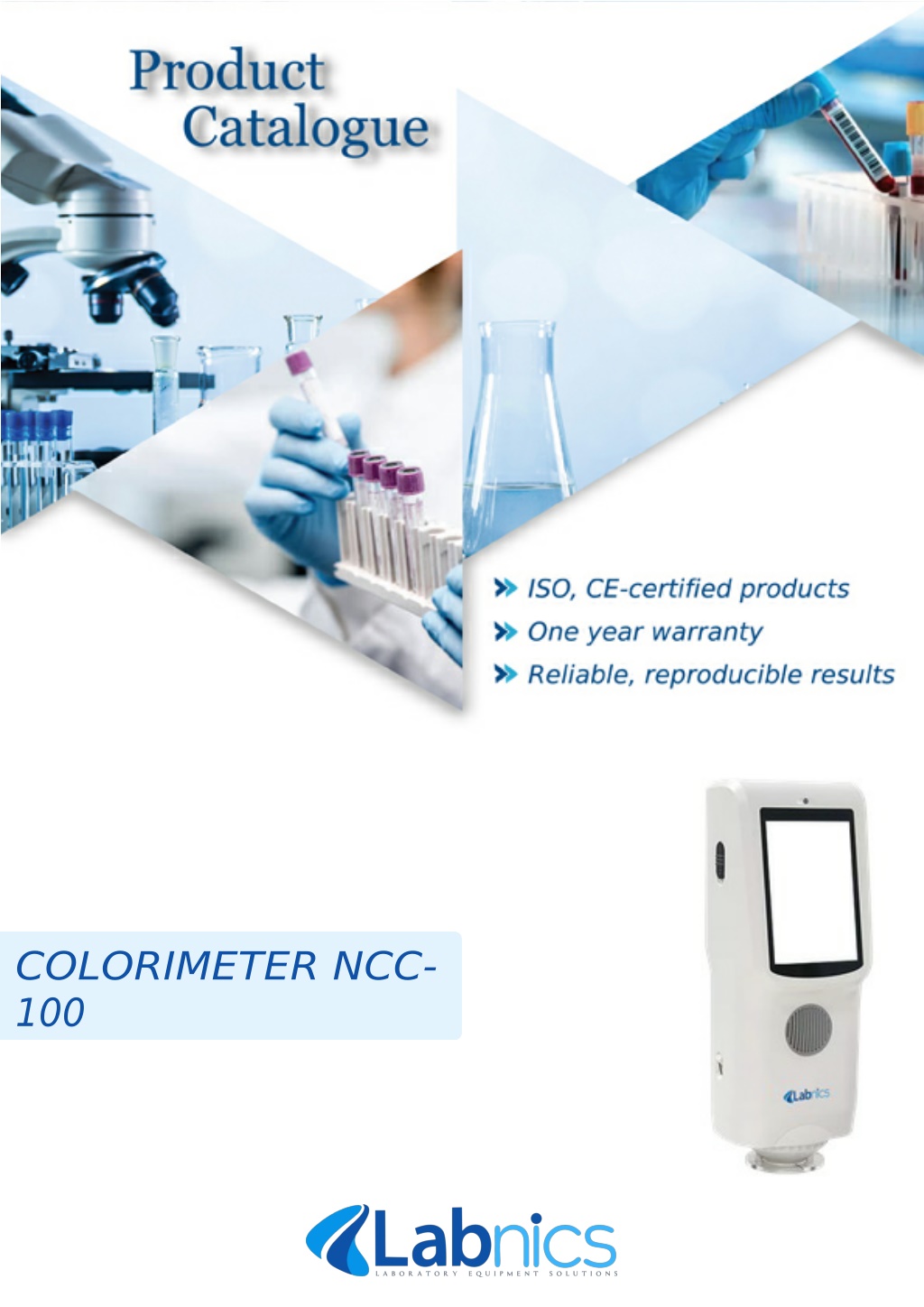

  1. COLORIMETER NCC- 100

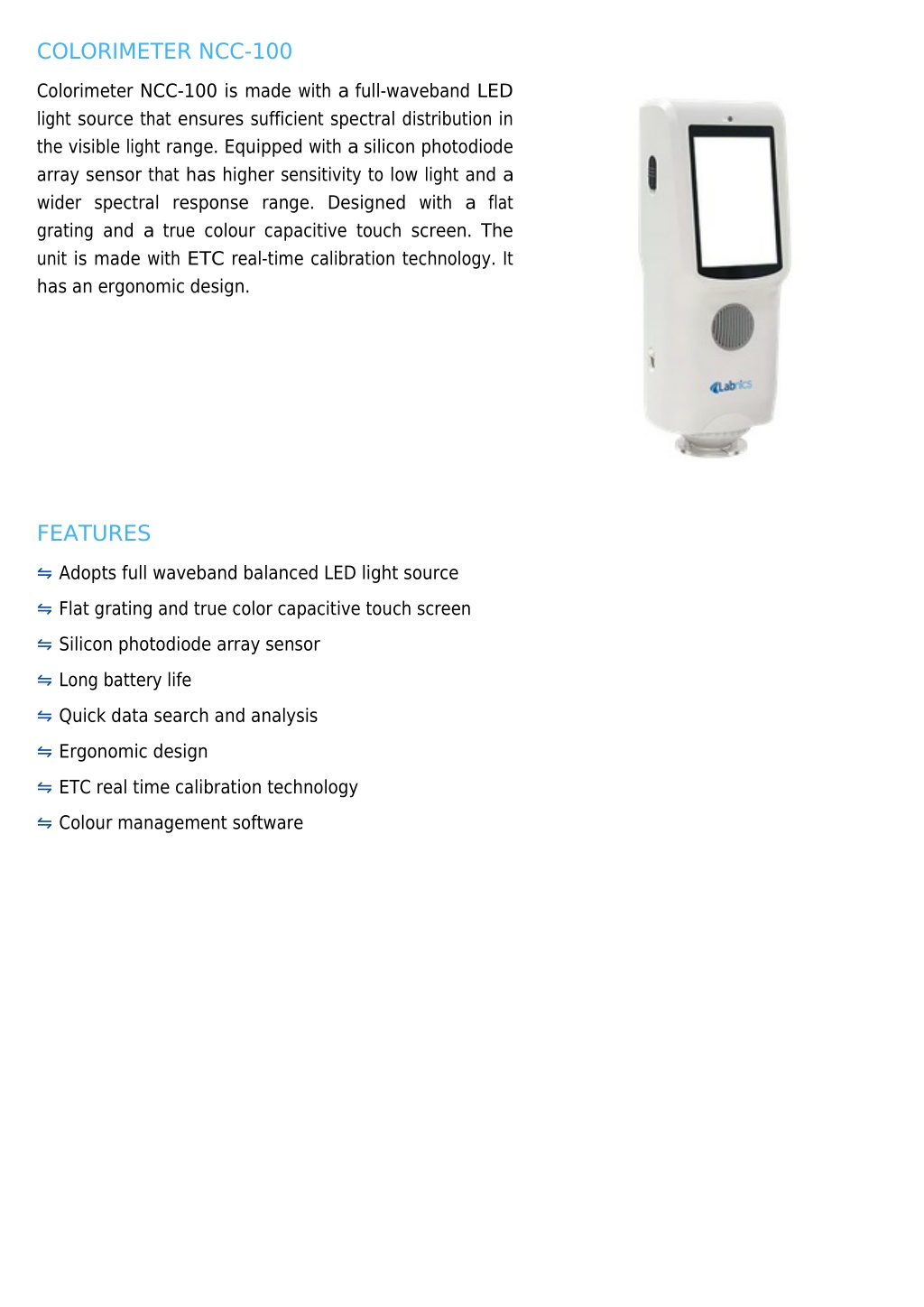

  2. COLORIMETER NCC-100 Colorimeter NCC-100 is made with a full-waveband LED light source that ensures sufficient spectral distribution in the visible light range. Equipped with a silicon photodiode array sensor that has higher sensitivity to low light and a wider spectral response range. Designed with a flat grating and a true colour capacitive touch screen. The unit is made with ETC real-time calibration technology. It has an ergonomic design. FEATURES ⇋ Adopts full waveband balanced LED light source ⇋ Flat grating and true color capacitive touch screen ⇋ Silicon photodiode array sensor ⇋ Long battery life ⇋ Quick data search and analysis ⇋ Ergonomic design ⇋ ETC real time calibration technology ⇋ Colour management software

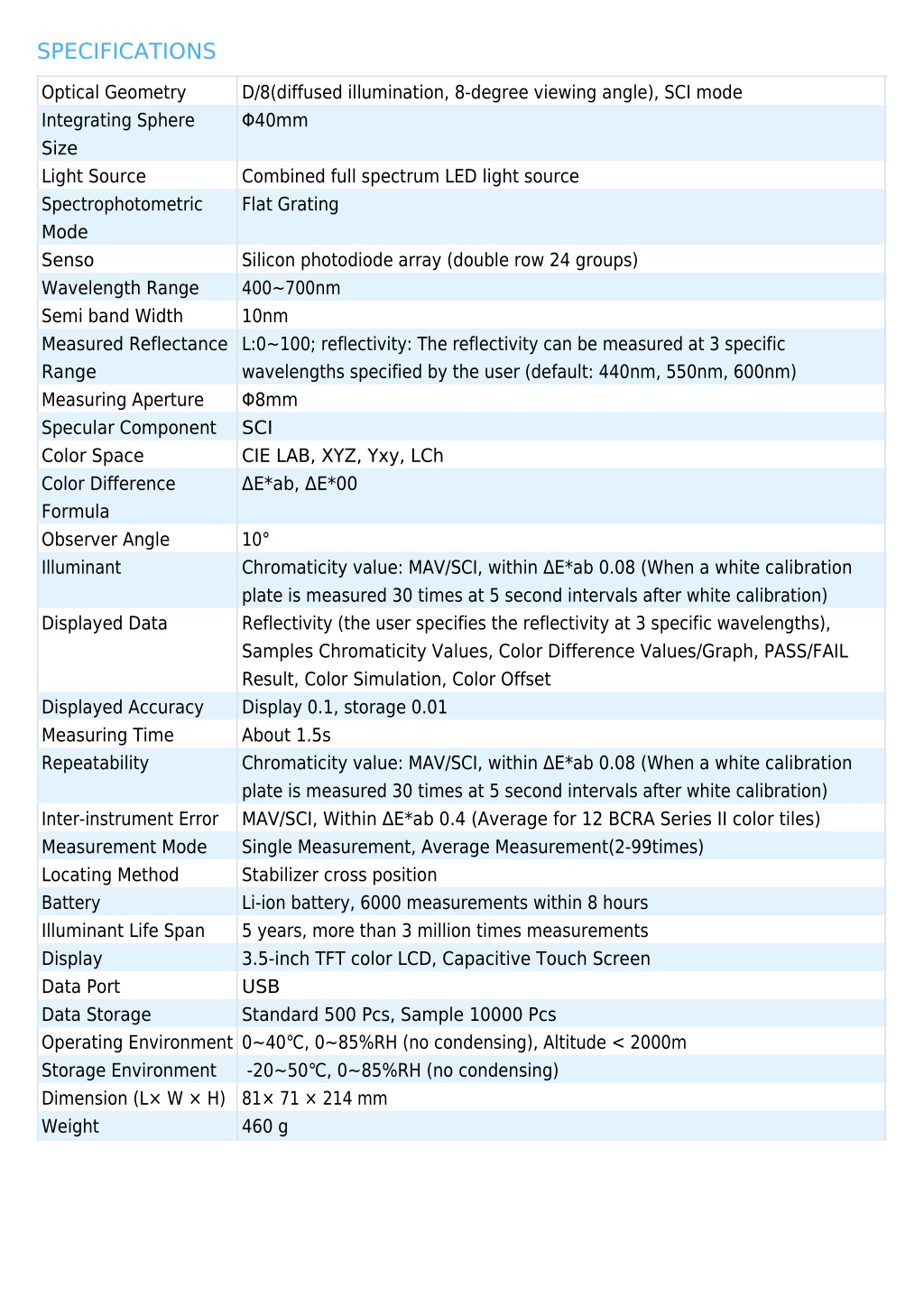

  3. SPECIFICATIONS Optical Geometry Integrating Sphere Size Light Source Spectrophotometric Mode Senso Wavelength Range Semi band Width Measured Reflectance Range Measuring Aperture Specular Component Color Space Color Difference Formula Observer Angle Illuminant D/8(diffused illumination, 8-degree viewing angle), SCI mode Φ40mm Combined full spectrum LED light source Flat Grating Silicon photodiode array (double row 24 groups) 400~700nm 10nm L:0~100; reflectivity: The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) Φ8mm SCI CIE LAB, XYZ, Yxy, LCh ΔE*ab, ΔE*00 10° Chromaticity value: MAV/SCI, within ΔE*ab 0.08 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Display 0.1, storage 0.01 About 1.5s Chromaticity value: MAV/SCI, within ΔE*ab 0.08 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) Single Measurement, Average Measurement(2-99times) Stabilizer cross position Li-ion battery, 6000 measurements within 8 hours 5 years, more than 3 million times measurements 3.5-inch TFT color LCD, Capacitive Touch Screen USB Standard 500 Pcs, Sample 10000 Pcs Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m Storage Environment -20~50℃, 0~85%RH (no condensing) Dimension (L× W × H) 81× 71 × 214 mm Weight 460 g Displayed Data Displayed Accuracy Measuring Time Repeatability Inter-instrument Error Measurement Mode Locating Method Battery Illuminant Life Span Display Data Port Data Storage

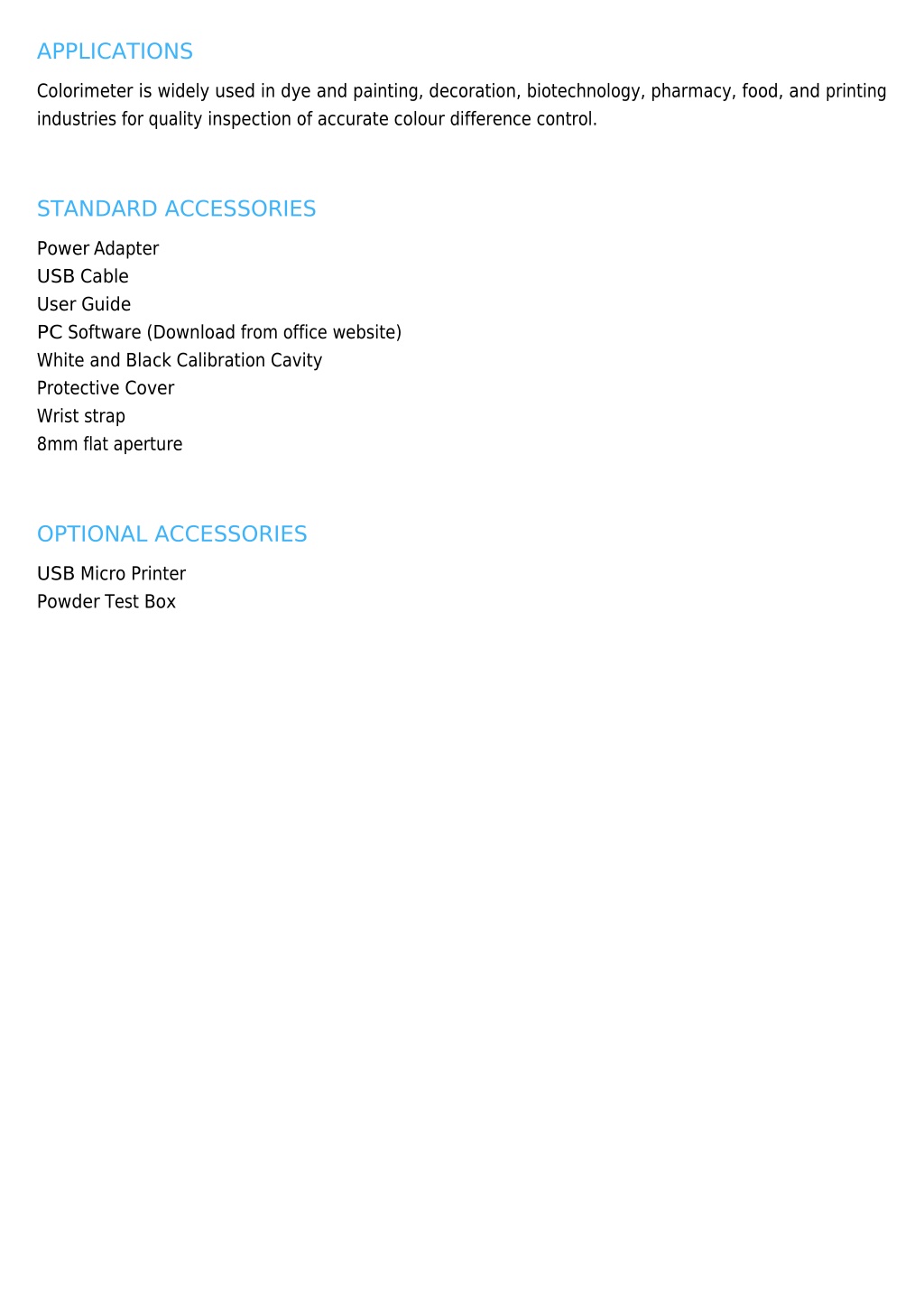

  4. APPLICATIONS Colorimeter is widely used in dye and painting, decoration, biotechnology, pharmacy, food, and printing industries for quality inspection of accurate colour difference control. STANDARD ACCESSORIES Power Adapter USB Cable User Guide PC Software (Download from office website) White and Black Calibration Cavity Protective Cover Wrist strap 8mm flat aperture OPTIONAL ACCESSORIES USB Micro Printer Powder Test Box

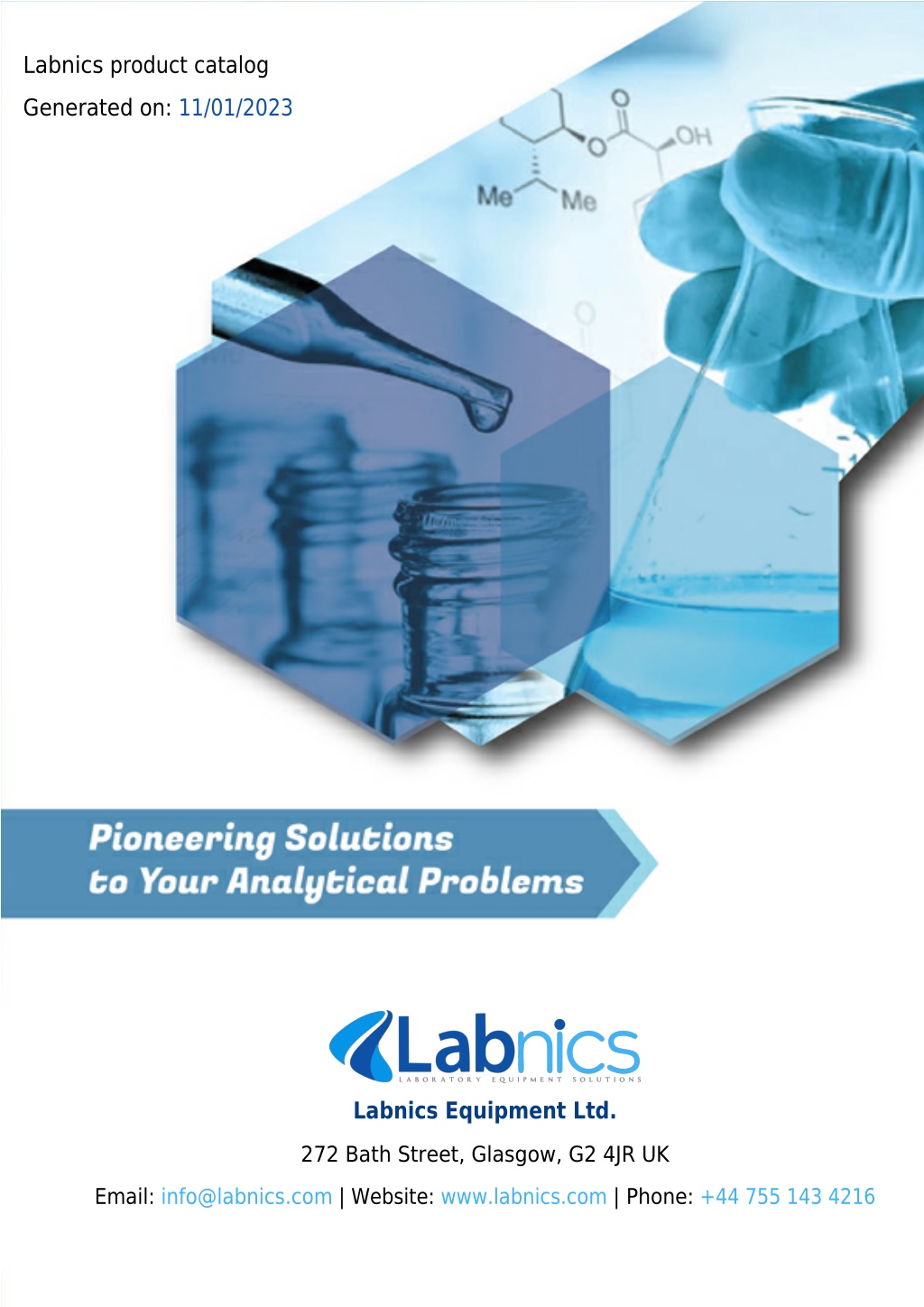

  5. Labnics product catalog Generated on: 11/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
