LABNICS-Biomedical-Freezer-NBMF-100

Biomedical Freezer NBMF-100 is an optimized self-cascade freezing unit enables maintaining low temperature range of -10oC to -40oC. It is equipped with platinum, resistance type sensor that allows sensitive detection of temperature inside the chamber. The superior silicone door seal design with thermal insulation aids in effective long-term preservation of biological materials, vaccines, blood, and serum samples etc.<br><br>

labnics14
Download Presentation

LABNICS-Biomedical-Freezer-NBMF-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

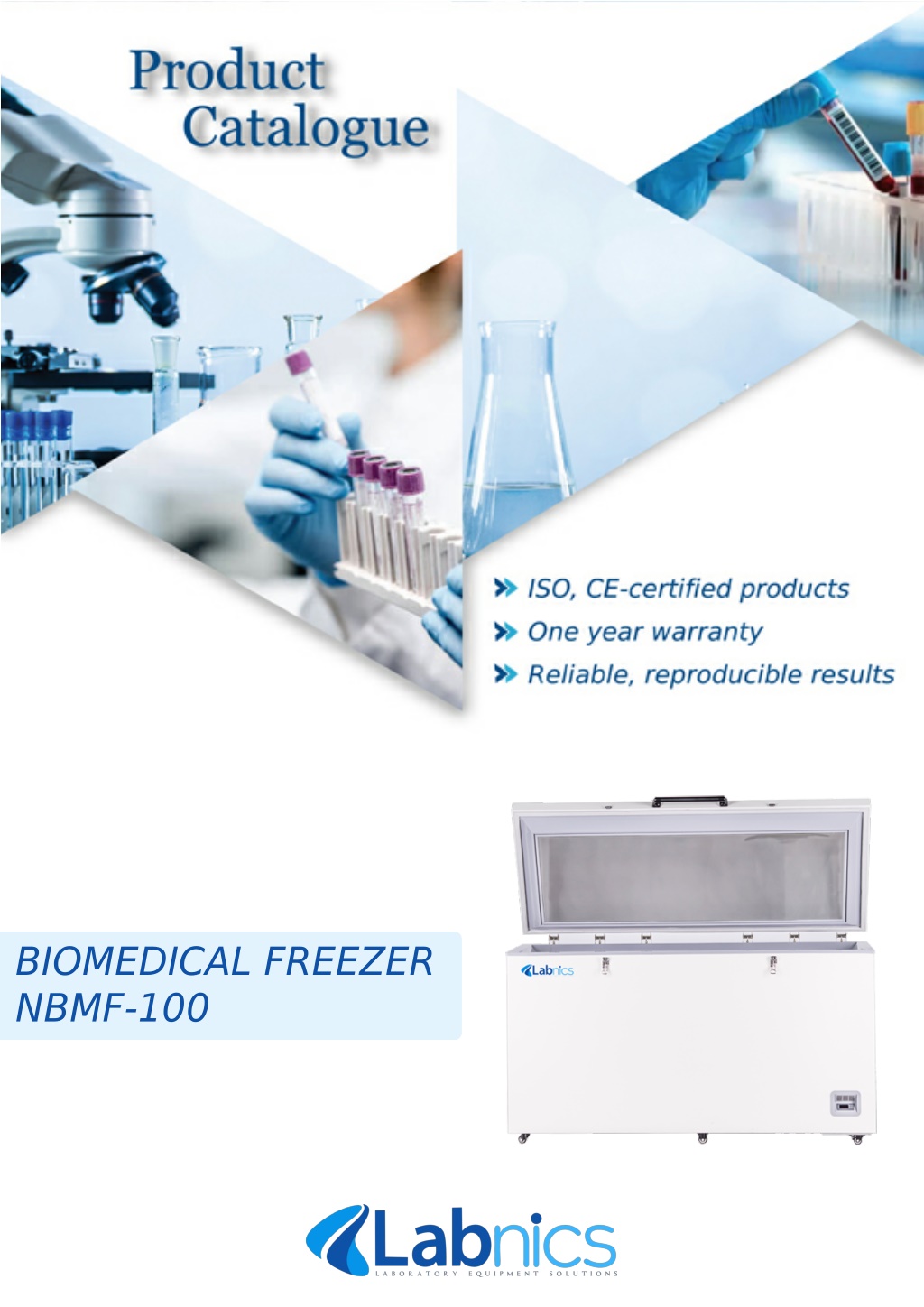

  1. BIOMEDICAL FREEZER NBMF-100

  2. BIOMEDICAL FREEZER NBMF-100 Biomedical Freezer NBMF-100 is an optimized self- cascade freezing unit enables temperature range of -10 Cto -40 C. It is equipped with platinum, resistance type sensor that allows sensitive detection of temperature inside the chamber. The superior silicone door seal insulation aids in effective long-term preservation of biological materials, vaccines, samples etc. maintaining low o o design with thermal blood, and serum FEATURES ⇋ Mobile and flexible structure with castor wheels ⇋ User friendly handle design for smooth operations ⇋ Inner layer made up of 304 stainless steel cold rolled plate material ⇋ It possesses advanced anticorrosion powder coating that ensures high durability and reliability ⇋ Large High Definition Digital display screen for real time monitoring ⇋ It is secured with audio-visual alarm system ⇋ Equipped with Safety door lock with password settings to prevent unauthorized access ⇋ Environment friendly, CFC free and chemically stable refrigerant ⇋ It operates with low noise levels

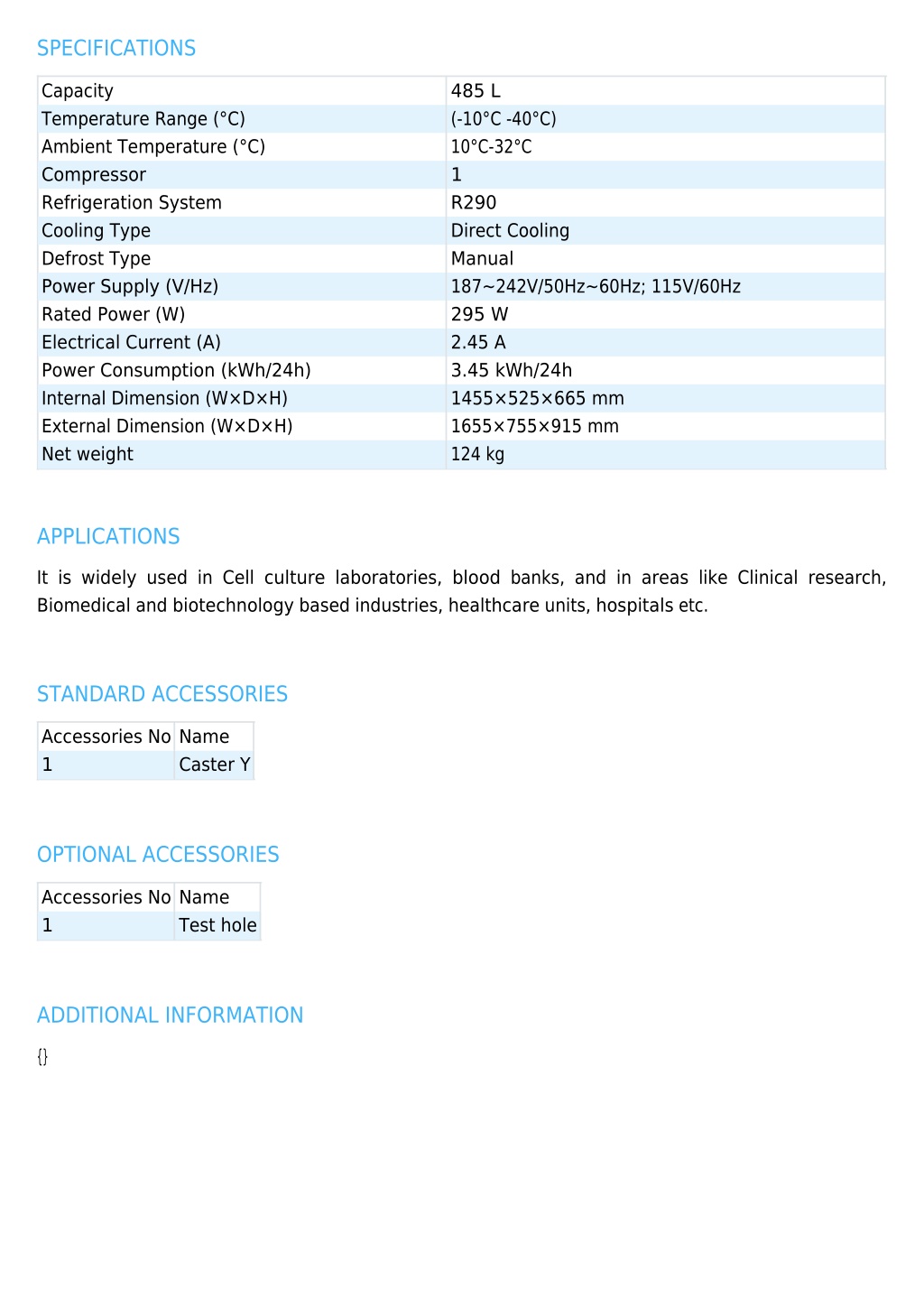

  3. SPECIFICATIONS Capacity Temperature Range (°C) Ambient Temperature (°C) Compressor Refrigeration System Cooling Type Defrost Type Power Supply (V/Hz) Rated Power (W) Electrical Current (A) Power Consumption (kWh/24h) Internal Dimension (W×D×H) External Dimension (W×D×H) Net weight 485 L (-10°C -40°C) 10°C-32°C 1 R290 Direct Cooling Manual 187~242V/50Hz~60Hz; 115V/60Hz 295 W 2.45 A 3.45 kWh/24h 1455×525×665 mm 1655×755×915 mm 124 kg APPLICATIONS It is widely used in Cell culture laboratories, blood banks, and in areas like Clinical research, Biomedical and biotechnology based industries, healthcare units, hospitals etc. STANDARD ACCESSORIES Accessories No Name 1 Caster Y OPTIONAL ACCESSORIES Accessories No Name 1 Test hole ADDITIONAL INFORMATION {}

  4. Labnics product catalog Generated on: 03/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
