LABNICS-Benchtop-Multi-Parameter-Meter-NBMM-100

Benchtop Multi-Parameter Meter NBMM-100 is a laboratory apparatus designed for measurement of pH, conductivity, temperature, salinity, TDS etc of water and various industrial samples. It is equipped with built-in real-time clock that meets the GLP regulatory standards of any laboratory setting. It enables automatic temperature compensation for accurate display of reading value over the entire pH range and other parameters. The subsequent reminder alerts for calibration aids in maintaining the smooth functionality of a meter.

labnics14
Download Presentation

LABNICS-Benchtop-Multi-Parameter-Meter-NBMM-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

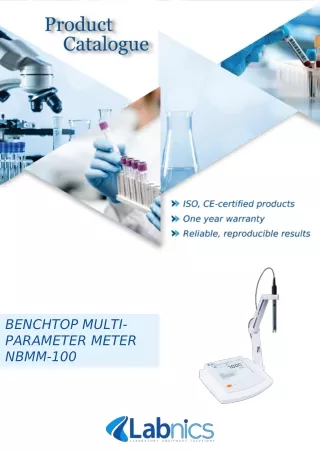

  1. BENCHTOP MULTI- PARAMETER METER NBMM-100

  2. BENCHTOP MULTI-PARAMETER METER NBMM-100 Benchtop laboratory apparatus designed for measurement of pH, conductivity, temperature, salinity, TDS etc of water and various industrial samples. It is equipped with built-in real-time clock that meets standards of any laboratory automatic temperature compensation for accurate display of reading value over the entire pH range and other parameters. The subsequent reminder alerts for calibration aids in maintaining the smooth functionality of a meter. Multi-Parameter Meter NBMM-100 is a the setting. GLP regulatory It enables FEATURES ⇋ Large backlit LCD display ⇋ Selectable pH buffer standard (USA/NIST/DIN) for automatic calibration ⇋ Automatic electrode slope display to guide the user whether to replace sensor ⇋ Easy reading and recording of measured data with Auto-Hold function ⇋ Selectable temperature unit (°C or °F) meets different application requirements ⇋ Automatic electrode diagnosis shows zero point offset and slopes of the pH electrode ⇋ Automatic Reset function resumes all parameters back to factory default settings ⇋ Expandable memory stores and recalls up to 500 readings ⇋ Easy transfer of data via USB communication interface

  3. SPECIFICATIONS pH Specifications:- Range Accuracy Resolution Calibration Points Calibration Solutions Temperature Compensation mV Range mV Accuracy mV Resolution mV Calibration Points mV Measurement Modes Conductivity Range Conductivity Accuracy Conductivity Resolution Conductivity Calibration Points Conductivity Calibration Solutions Temperature Coefficient Cell Constant Reference Temperature TDS Range TDS Accuracy TDS Resolution TDS factor Salinity Range Salinity Accuracy Salinity Resolution Measurement Modes Resistivity Range Resistivity Accuracy Resistivity Resolution General Temperature Compensation Stability Criteria Calibration Due Alarm Power Supply Overall Dimensions(L×W×H) Weight (-2.000~20.000) pH ±0.002pH 0.1, 0.01, 0.001pH, Selectable 1 to 5 points USA, NIST, DIN or User-defined 0~100°C, 32~212°F (-1999.9~1999.9) mV ±0.2mV 0.1, 1mV, Selectable 1 point (Only for Relative mV mode) Relative or absolute mV 0.01~20.00,200.0,2000µS/cm,20.00,200.0mS/cm ±0.5% F.S 0.001,0.01,1, automatic 1 to 5 points 10µS/cm,84µS/cm,1413µS/cm,12.88mS/cm,111.8 mS/cm Linear(0.0~10.0%/°C) or pure water compensation K=0.1,1,10 or custom 20°C or 25°C 0~10.00,100.0,1000ppm,10.00,100.0ppt(max 200ppt) ±1%F.S 0.01,0.1,1, automatic 0.1~1.0(Default 0.5) 0.00~80.00ppt,0.00~42.00psu ±1%F.S 0.01 Practical salinity(psu) or natural seawater(ppt) 0.00-20.00MΩ ±1%F.S 0.01 0~100°C,32~212°F, manual or automatic Low or high 1 to 31 days or off DC5V,AC 220V/50Hz 210×188×60 mm 1.5kg APPLICATIONS It has multidisciplinary applications in areas like research and development, water testing laboratories, sewage water treatment plant, brewing and wine industries, healthcare and clinical applications etc.

  4. STANDARD ACCESSORIES Accessories No Name 1 2 3 4 pH electrode Temperature probe pH buffer solutions (pH 4.0/7.00/10.01) DC9V power adapter

  5. Labnics product catalog Generated on: 30/12/2022 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
