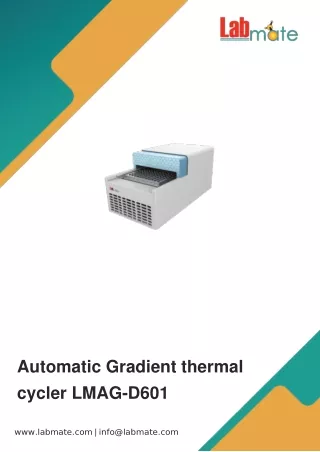

  1. Automatic Gradient thermal cycler LMAG-D601 www.labmate.com info@labmate.com |

  2. Overview Automatic Gradient thermal cycler LMAG-D601 has a sophisticated operating computer controlled software to guide the protocols for PCR analysis for once and it can operate the functions offline. The high-precision Peltier heating units provides maximum. heating rates within the range of 0 to 100 °C. It is the suitable solutions to fulfill different requirements like adding samples while process is going on to encounter several experimental requirements. We have optimized capacity of 96 wells plate and half skirt 96 wells plate. It supported by user-friendly USB port or RS232 / RS485 port to connect with computer and print data. Specifications : Capacity 96×0.2 ml Tube 0.2 ml single tube, 8 tubes, 96-well full skirt plate, 96-well half skirt plate, 96-well no skirt plate Temperature Range 0 to 100 °C Maximum. Heating Rate 5 °C/s Maximum. Cooling Rate 4 °C/s Uniformity ≤± 0.3 °C Accuracy ≤± 0.2 °C Display Resolution 0.1 °C Temperature Control Block\Tube Ramping Rate Adjustable 0.1 to 5 °C

  3. Gradient Temperature. Range 30 to 100 °C Gradient Spread 1 to 30 °C Hot Lid Temperature 30 to 110 °C Hot Lid Height Adjustable Electric hot cover Maximum. No. Of Step 30 Maximum. No. Of Cycle 100 Increment/Decrement Time 1 Second to 600 Second Increment/Decrement Temperature 0.1 to 10.0 °C Pause Function Yes Auto Data Protection Yes Holding 4 °C Interface USB2.0, RS232/RS485 Dimensions(L×W×H) 305×155×170 mm Weight 14 kg Power Consumption 600 W Power Supply 100 to 240 V AC, 50 to 60 Hz Features : - Uniform heating of the samples is achieved with Peltier heating units with maximum 100 cycles - It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant - Maximum. heating Rate is 5 °C/s with temperature range of 0 to 100 °C

  4. - It has the capability to accommodate 96 wells plate and half skirt 96 wells plate with self-adjusting lid and desktop pipetting station - The connectivity between computer is via USB port or RS232 / RS485 port - All the operations are controlled by a computer software system which instrument PCR protocols - It has power of operation recovery option which helps in continuing the same command after a recovering from power cut - To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations Applications : Used in Gene expression analysis, Pathogen detection, DNA methylation analysis, Genotyping and gene scanning, miRNA research Labmate Scientific | Website: Phone: +1 (765)-665-4943 Email: info@labmate.com www.labmate.com
