Existent-Gum-Tester

The Existent Gum Tester "Test Methods for Existent Gum in Engine Fuels" is used in the production of the Existent Gum Tester 52-EGT100. It is appropriate to ascertain whether fuels (gasoline, coal oil, and diesel oil) have a propensity to gum up when employed in a motor.

labexpo
Download Presentation

Existent-Gum-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

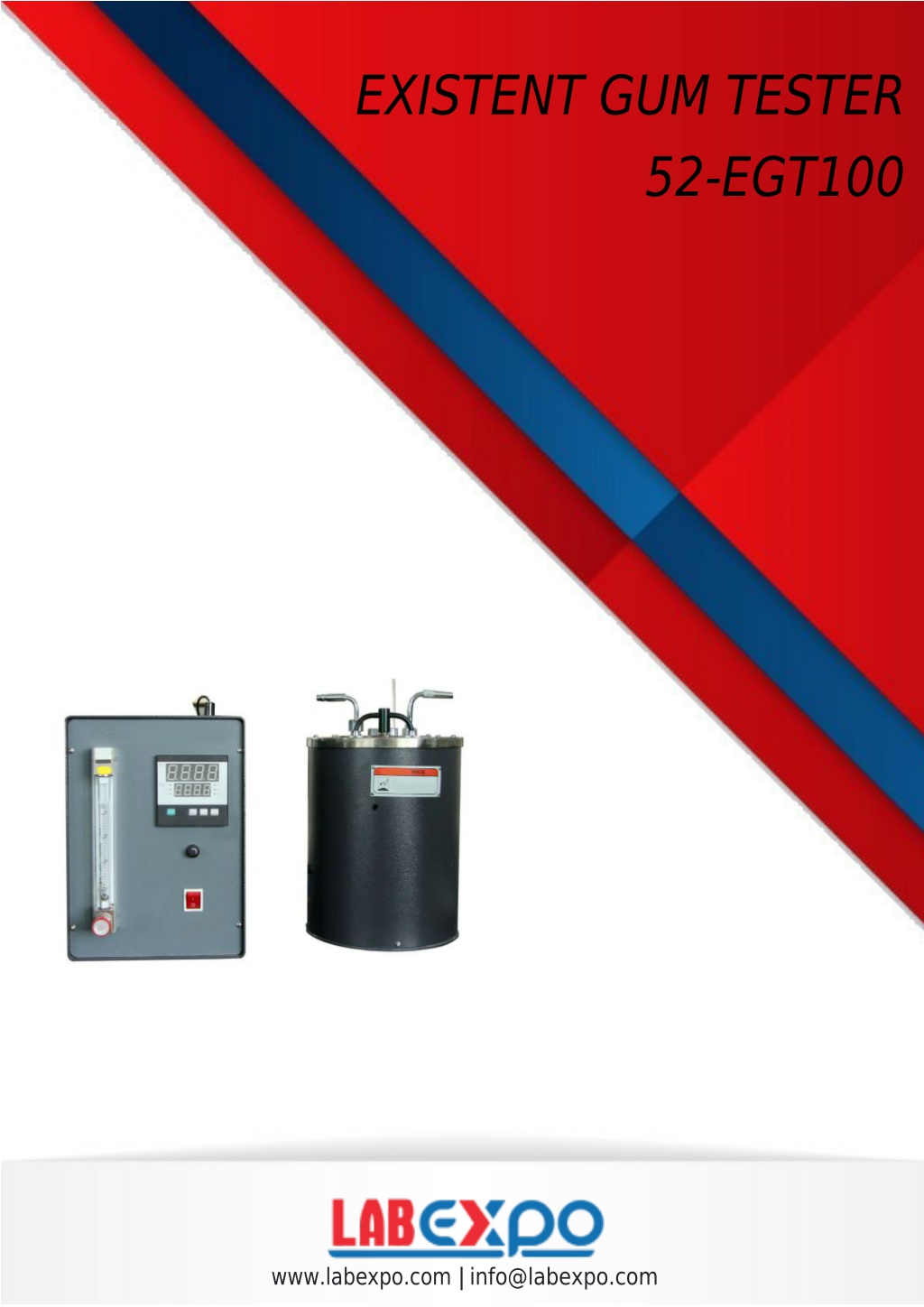

  1. EXISTENT GUM TESTER 52-EGT100 www.labexpo.com info@labexpo.com |

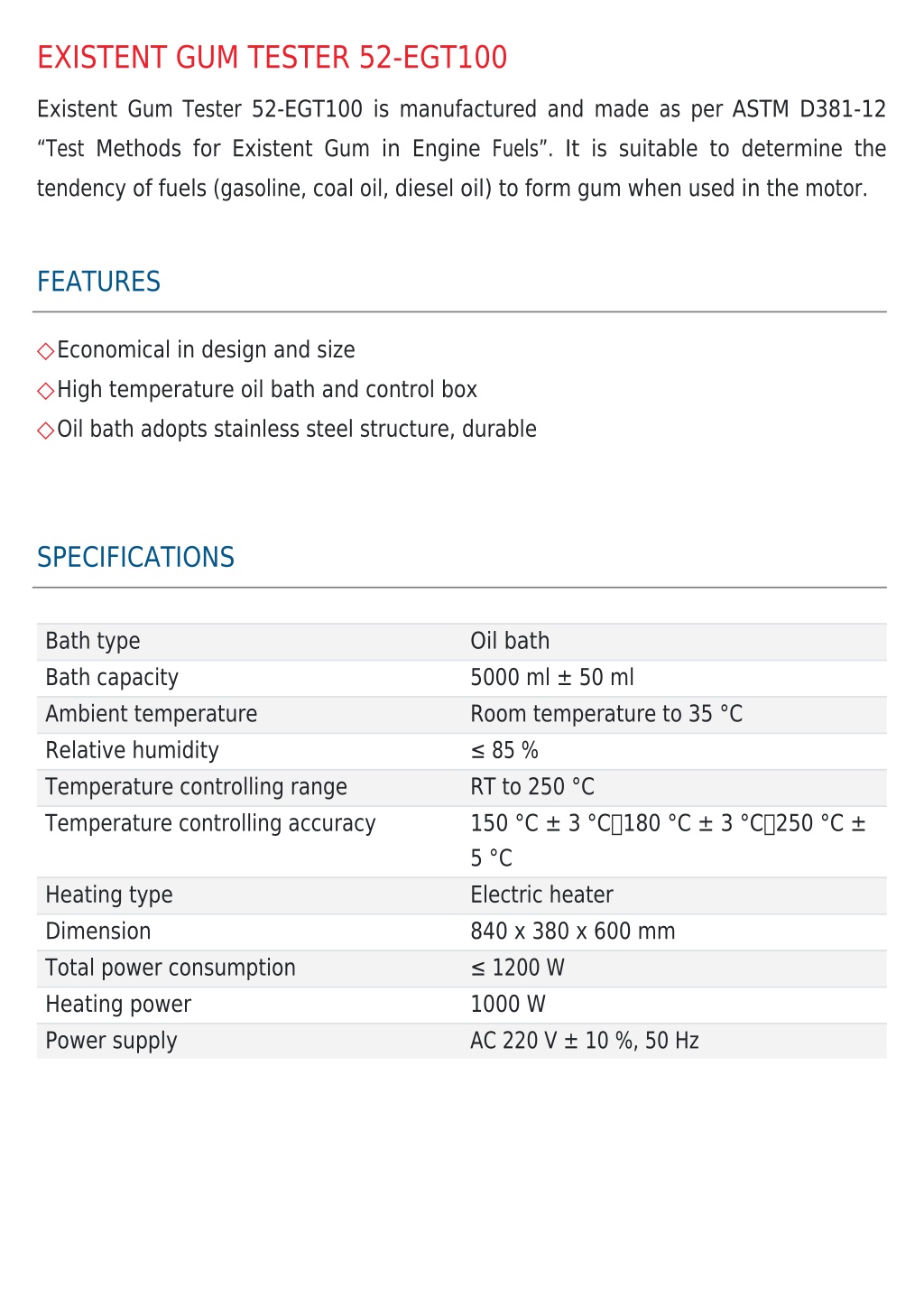

  2. EXISTENT GUM TESTER 52-EGT100 Existent Gum Tester 52-EGT100 is manufactured and made as per ASTM D381-12 “Test Methods for Existent Gum in Engine Fuels”. It is suitable to determine the tendency of fuels (gasoline, coal oil, diesel oil) to form gum when used in the motor. FEATURES ◇ Economical in design and size ◇ High temperature oil bath and control box ◇ Oil bath adopts stainless steel structure, durable SPECIFICATIONS Bath type Bath capacity Ambient temperature Relative humidity Temperature controlling range Temperature controlling accuracy Oil bath 5000 ml ± 50 ml Room temperature to 35 °C ≤ 85 % RT to 250 °C 150 °C ± 3 °C；180 °C ± 3 °C；250 °C ± 5 °C Electric heater 840 x 380 x 600 mm ≤ 1200 W 1000 W AC 220 V ± 10 %, 50 Hz Heating type Dimension Total power consumption Heating power Power supply

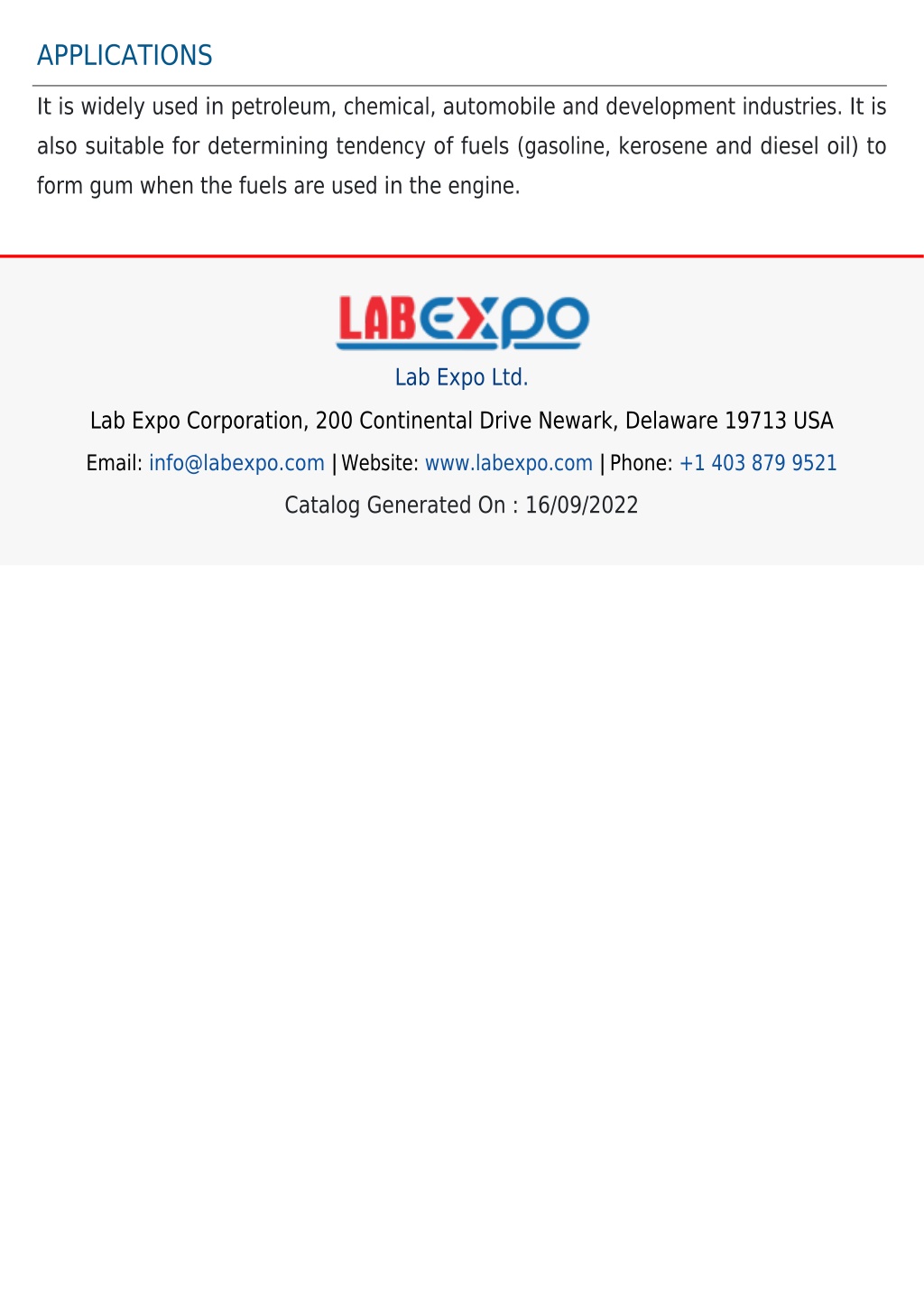

  3. APPLICATIONS It is widely used in petroleum, chemical, automobile and development industries. It is also suitable for determining tendency of fuels (gasoline, kerosene and diesel oil) to form gum when the fuels are used in the engine. Lab Expo Ltd. Lab Expo Corporation, 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com Website: www.labexpo.com Phone: +1 403 879 9521 | | Catalog Generated On : 16/09/2022
